Twin Skin 3 Bedroom Log Cabin 12x7m
Delivery is agreed individually with each client. Markets and languages
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
At a glance

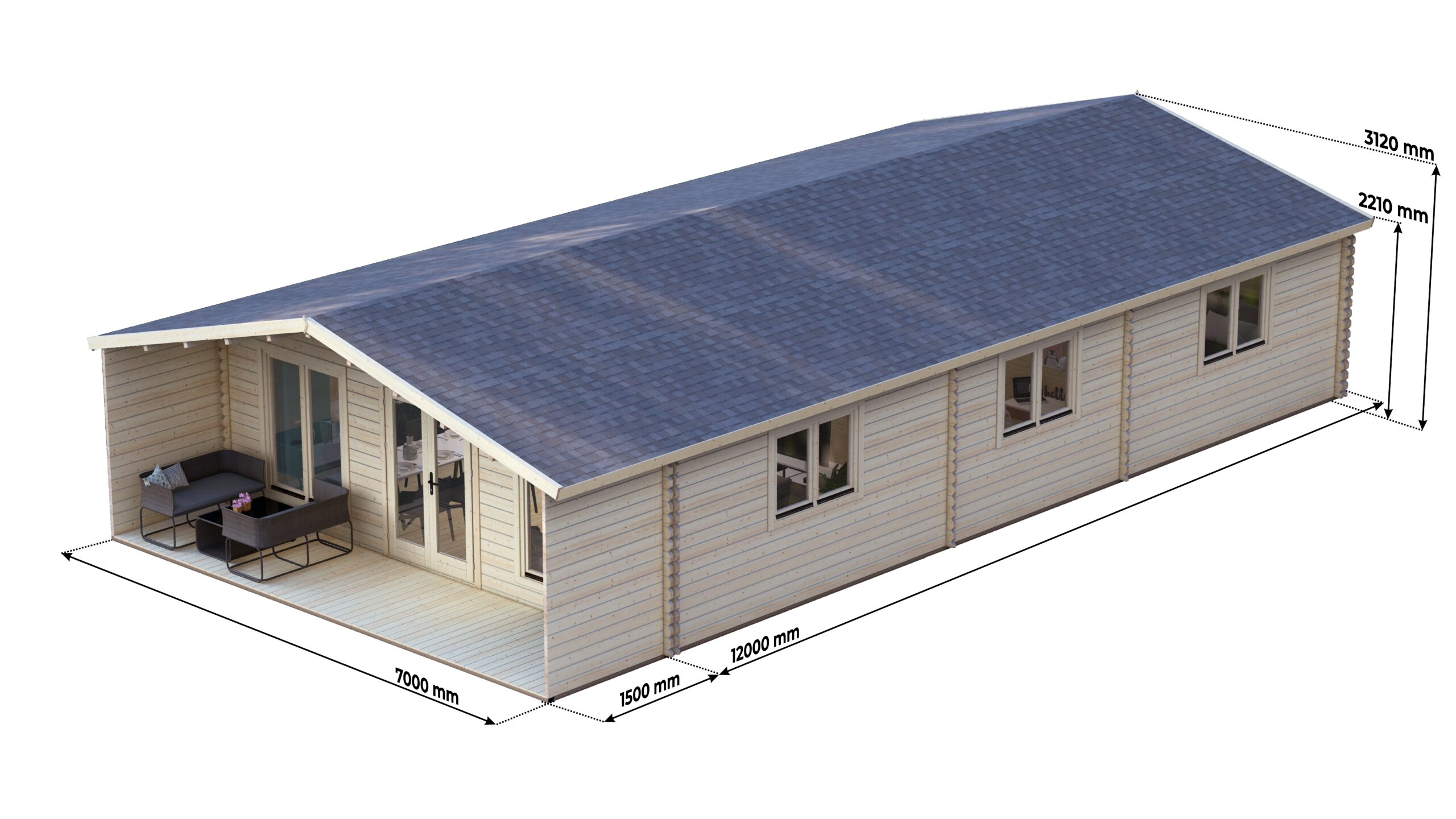

Twin Skin 3 Bedroom Log Cabin 12x7m is a twin-skin log cabin with three bedrooms, supplied as a building kit. It measures 12 x 7 m externally, an external footprint of 84 m². The ridge height is 312 cm and the eaves height 220 cm. It has one storey. It is listed with the twin skin log cabins.
Read the full description
Layout

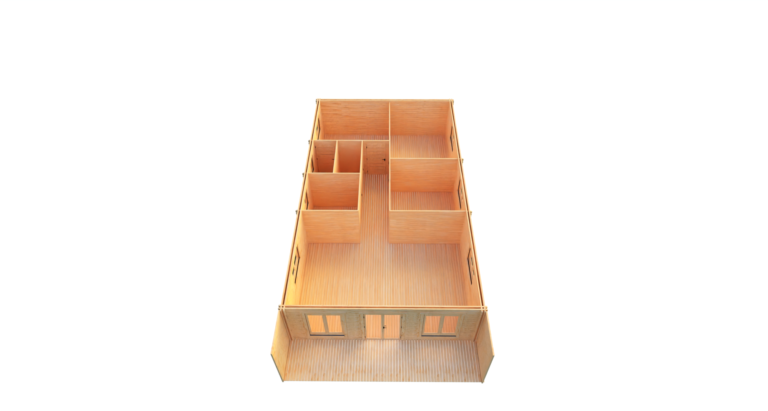

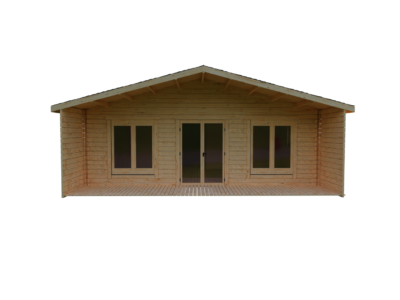

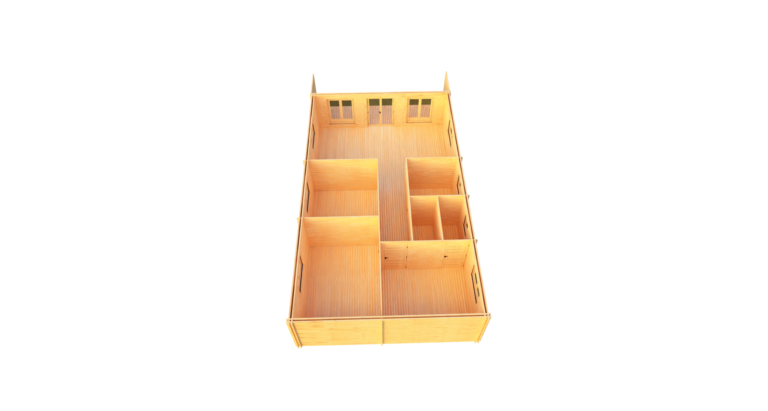

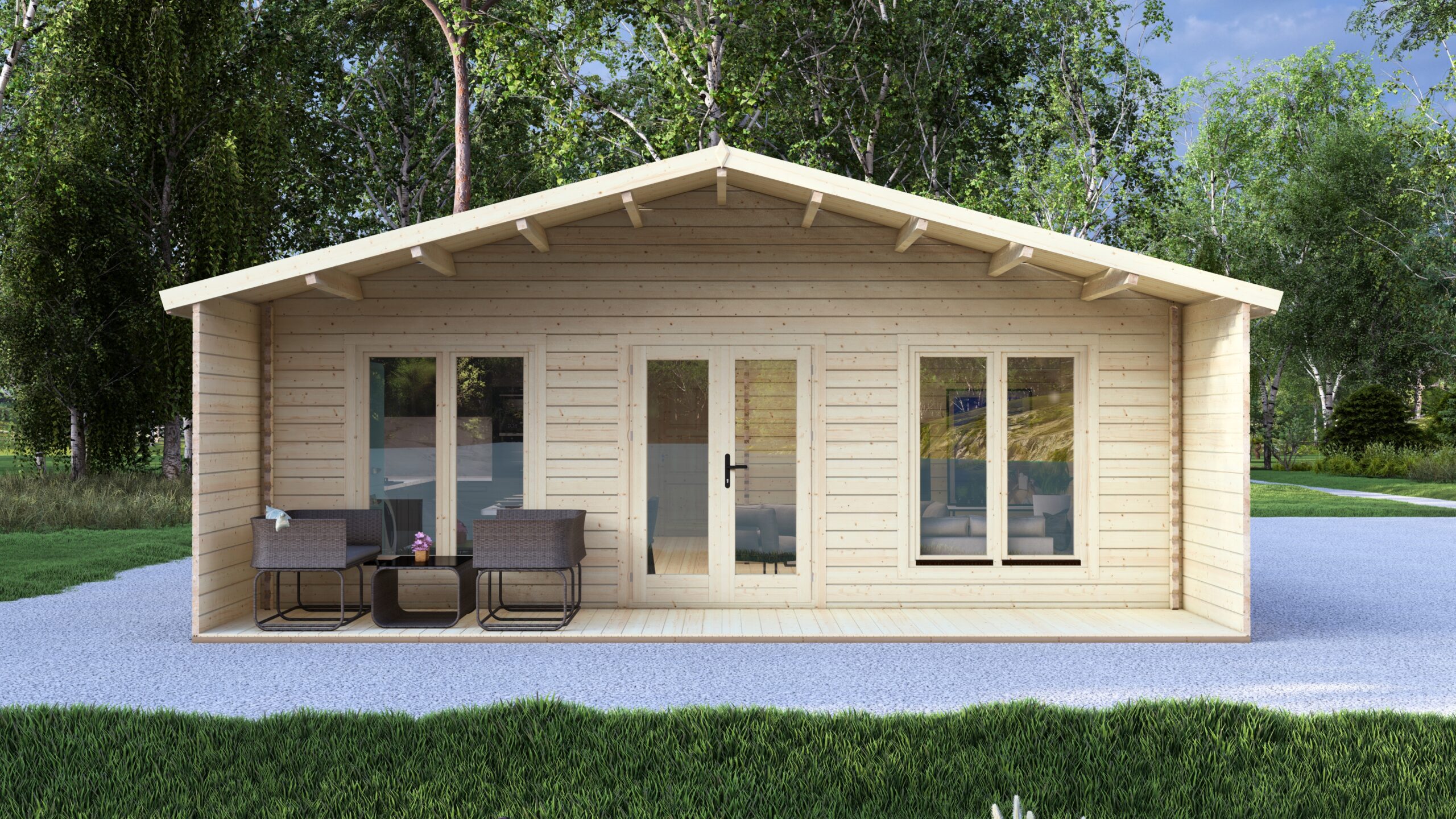

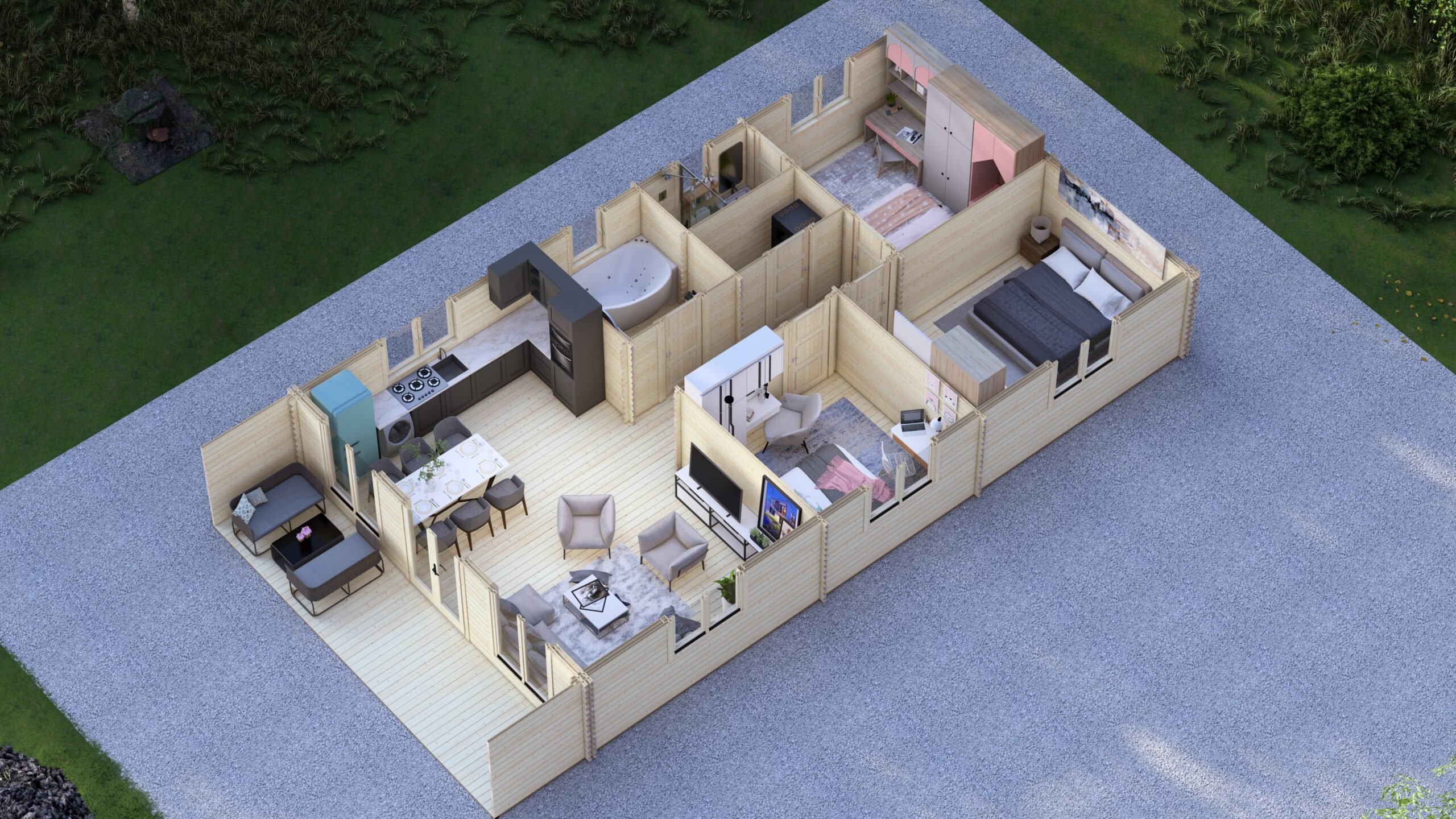

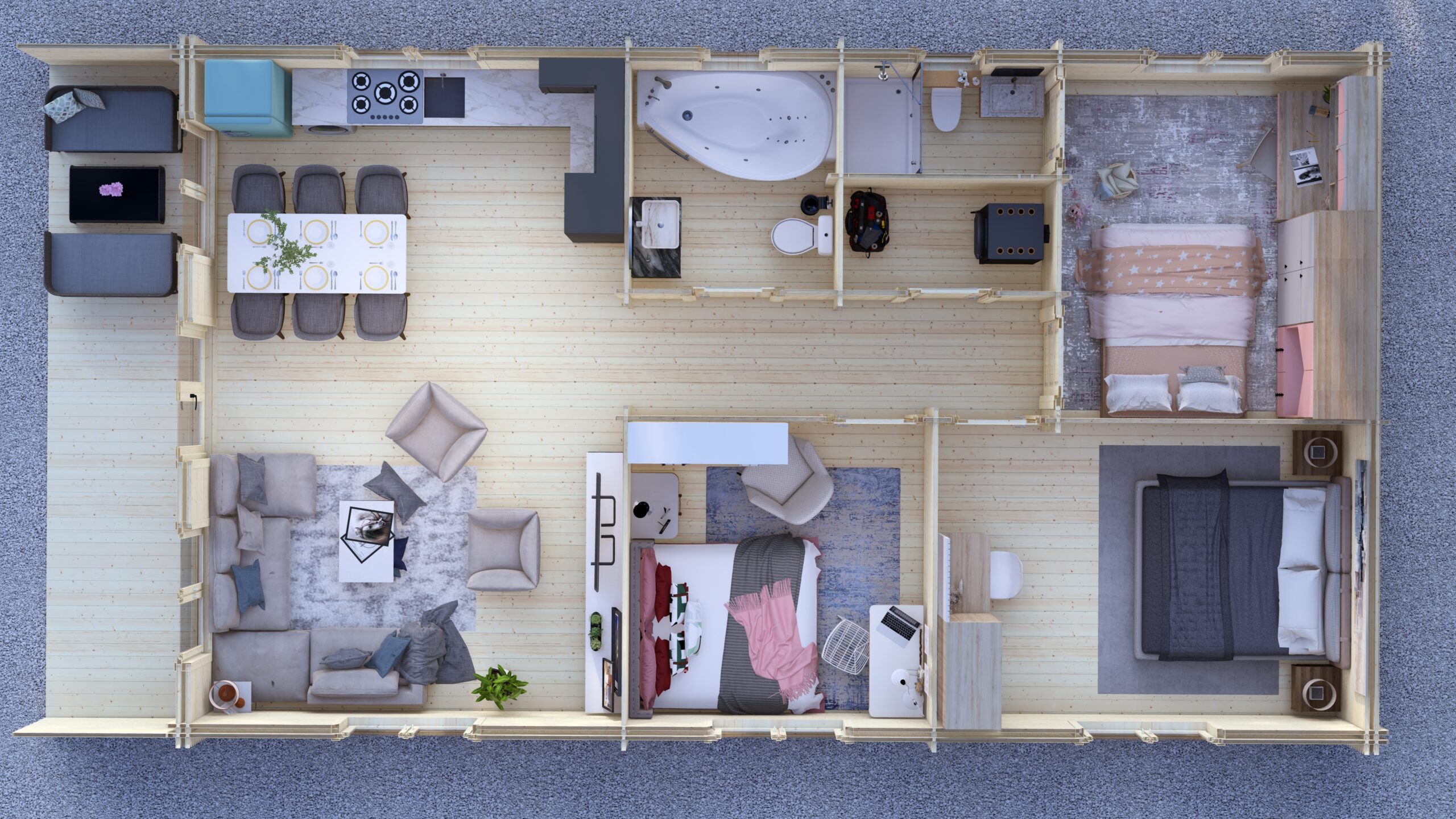

The plan drawing shows an open living room with a kitchen area, three bedrooms, two bathrooms and a utility room. It also shows a terrace under the roof across one gable end.
Walls
The wall is a twin-skin build-up of 44-100-44 mm: a 44 mm outer wall log, a 100 mm cavity and a 44 mm inner wall log, 188 mm in total. The cavity is prepared for insulation, which is sourced locally.
Doors and windows
Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Twin Skin 3 Bedroom Log Cabin 12x7m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 12 x 7 m |
| External footprint area | 84 m² |
| Eaves height | 220 cm |
| Ridge height | 312 cm |
| Storeys | 1 |
| Base | External footprint 12 x 7 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall build-up | 44-100-44 mm: 44 mm outer skin, 100 mm cavity, 44 mm inner skin. 188 mm total wall thickness. |
| Other wall options | The twin-skin build-ups are 44-100-44, 58-50-58 and 58-100-58 mm; the build-up is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing |
| Windows | Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing |
| Scope of these figures | |
| Insulation | The 100 mm cavity is the space insulation occupies. Eurodita supplies the structure prepared for insulation, not the insulation material, so the cavity dimension is not an insulation specification. |
| Availability | Build-up availability and suitability for a given project and destination are confirmed per order. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Twin Skin 3 Bedroom Log Cabin 9x8m
| This model | 9x8m | |
|---|---|---|
| External size | 12 x 7 m | 9 x 8 m |
| External footprint | 84 m² | 72 m² |
| Bedrooms | 3 | 3 |
Twin Skin 2 Bedroom Log Cabin 11x6m
| This model | 11x6m | |
|---|---|---|
| External size | 12 x 7 m | 11 x 6 m |
| External footprint | 84 m² | 66 m² |
| Bedrooms | 3 | 2 |
Twin Skin 4 Bedroom Log Cabin 13x8m
| This model | 13x8m | |
|---|---|---|
| External size | 12 x 7 m | 13 x 8 m |
| External footprint | 84 m² | 104 m² |
| Bedrooms | 3 | 4 |
Frequently asked questions
Is a 3 bedroom log cabin available as a kit in the UK?
Eurodita manufactures 3 bedroom log cabin kits in Lithuania and supplies them to UK buyers, either directly for larger residential projects, each assessed individually, or through Eurodita dealers, who resell under their own name.
Can I get plans for a 3 bedroom log cabin?
Floor plans, elevations and a 3D visualisation are produced for a specific, configured project through the Eurodita design system. Eurodita does not publish a set of generic 3 bedroom plans for download.
Which wall build-up suits a 3 bedroom log cabin?
Solid 44, 58 or 70 mm wall logs or twin-skin cavity walls such as 44-100-44 mm; a solid log model can also be made in 28, 34, 44, 58 or 70 mm and a glulam model in any glulam profile. The right build-up depends on use, local building control requirements and the project brief; twin-skin insulation is sourced locally.
Is a two-storey 3 bedroom log cabin available?
Yes. The Roan model in this range is a two-storey log cabin. Storey count and the structural calculations behind it are confirmed for each project rather than offered as a standard specification across every model.
Is it legal to live in a 3 bedroom log cabin full time in the UK?
Local planning and building control decide. In England, a new self-contained dwelling normally requires planning permission and must meet Building Regulations, and the permitted development allowance for garden outbuildings does not cover independent living accommodation. Eurodita supplies the building drawings and specification; obtaining local approval sits with the customer or project team. Scotland, Wales and Northern Ireland have separate systems.
Do I need planning permission and building regulations approval for a 3 bedroom log cabin?
Usually both, in England: planning permission is generally needed when a building becomes a separate home, and Building Control assesses Building Regulations separately. Eurodita does not state that any log cabin is compliant with, or exempt from, those rules; its design process produces 2D CAD, 3D visualisation and documentation for an application, and structural calculations come from external engineering specialists.
Will I have to pay council tax on a 3 bedroom log cabin?
A cabin built and used as a self-contained dwelling typically gets a council tax band of its own from the Valuation Office Agency. Under the Council Tax (Reductions for Annexes) (England) Regulations 2013 the bill is halved when a resident of the main dwelling uses the annexe as part of their sole or main residence. Ask your council.
How is a 3 bedroom log cabin delivered and installed in the UK?
Eurodita manufactures and supplies the timber building; kits are quoted excluding VAT and delivery, and delivery is agreed individually with each client. Foundations, installation on site and utility connections are not part of our supply. Electrical, plumbing and gas systems are outside the default scope, and the structure is prepared for insulation that is sourced locally.
