Timber windows for log cabins and timber buildings
Eurodita makes its own timber windows in three systems. Every window opens unless the order asks for a fixed one, and the opening windows are tilt and turn, except on the 19 mm sheds. The data sheet of each catalogue model names the type it carries.
- Garden type (IV45): the lower-cost window for smaller cabins, with 4-6-4 mm double glazing.

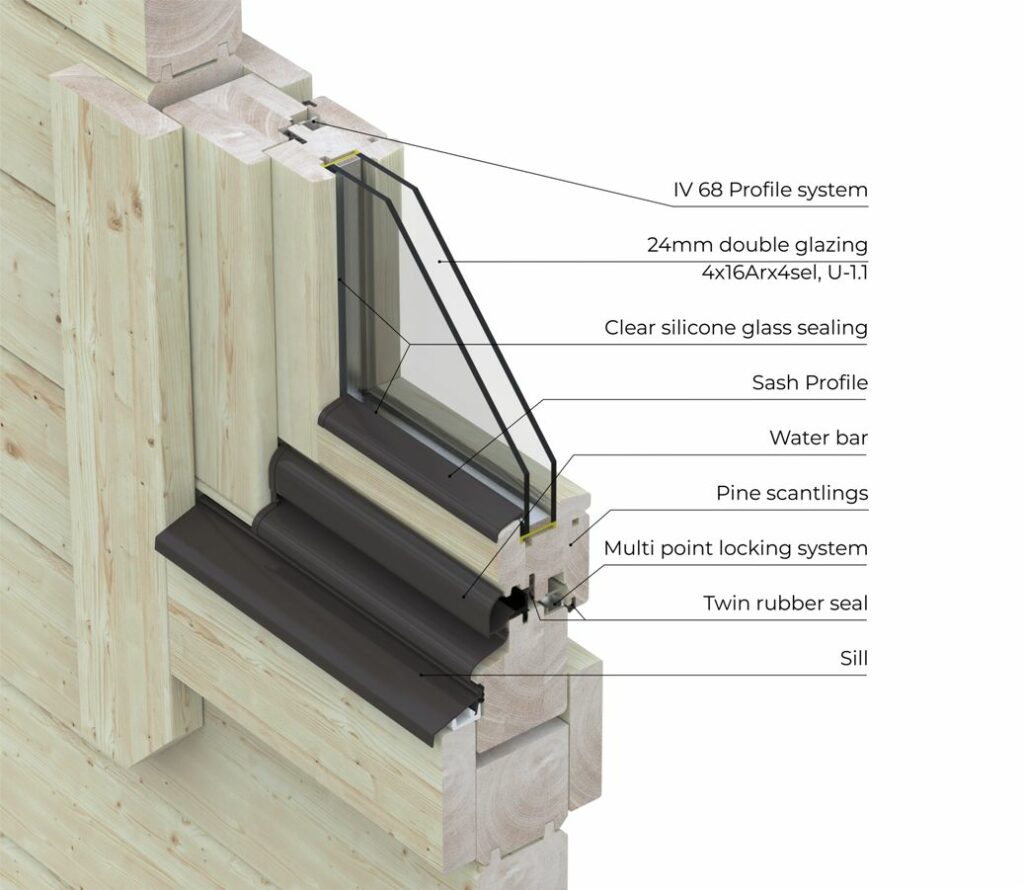

- Residential type (IV68): a full IV68 window with 4-16-4 mm double glazing, the premium line.
- IV92: triple glazing, offered with glulam buildings.
The 19 mm sheds have single glazed windows. Windows and doors can also be quoted without a building.
Start with the building and order route
A window enquiry starts with the building: the model or the drawing, where it goes, the openings and the quantities.
For trade buyers
Dealers and builders choose from the standard sizes for a range or a repeat order. The configuration and the terms are confirmed in the written quotation.
For a single building
A private buyer or a builder sends the model or the drawing with the opening sizes. Individual sizes are made for an order.
Standard sizes
Sizes are standard; individual sizes are made for an order.
Single windows
- 580 × 580 mm
- 700 × 860 mm
- 700 × 990 mm
- 700 × 1510 mm
- 700 × 1770 mm
- 1200 × 600 mm

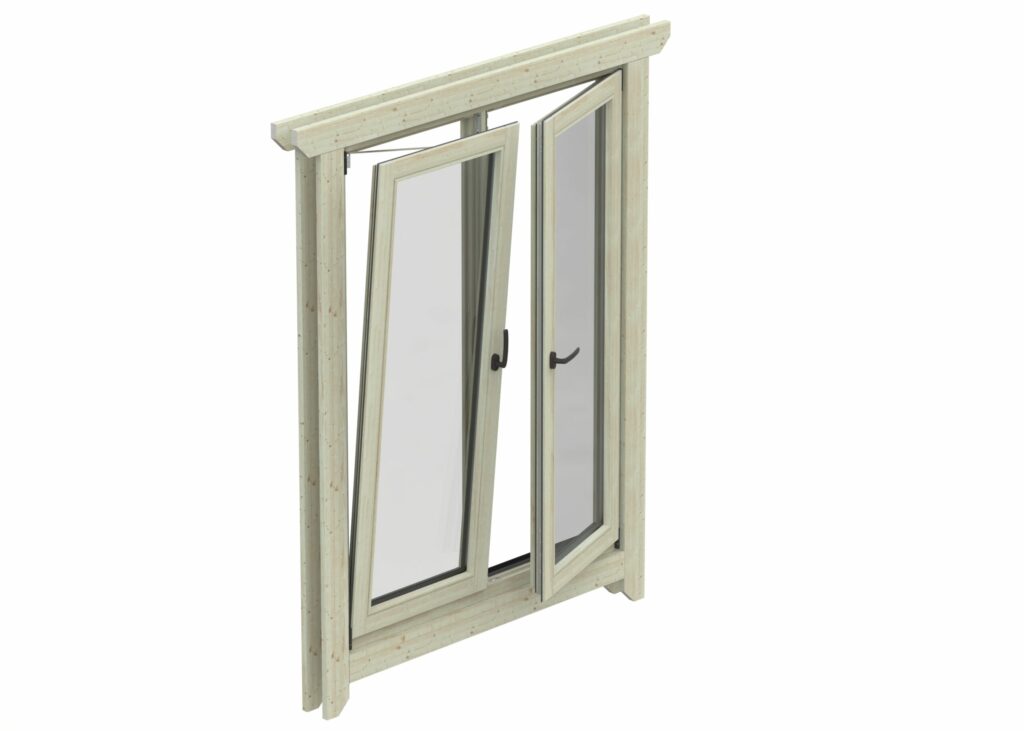

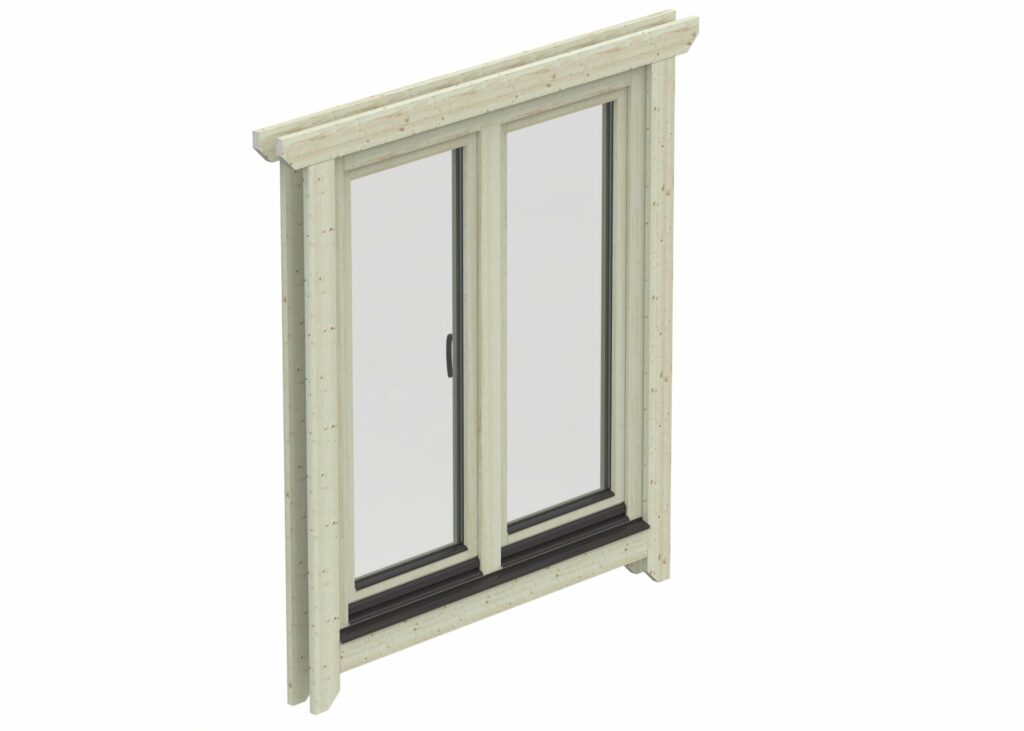

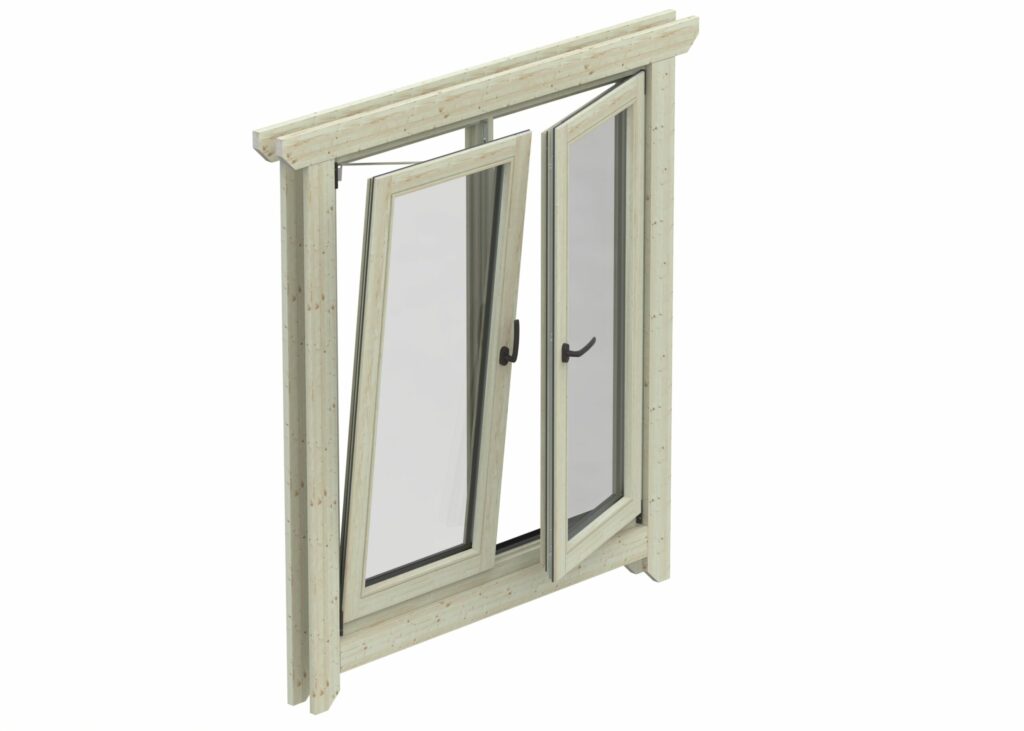

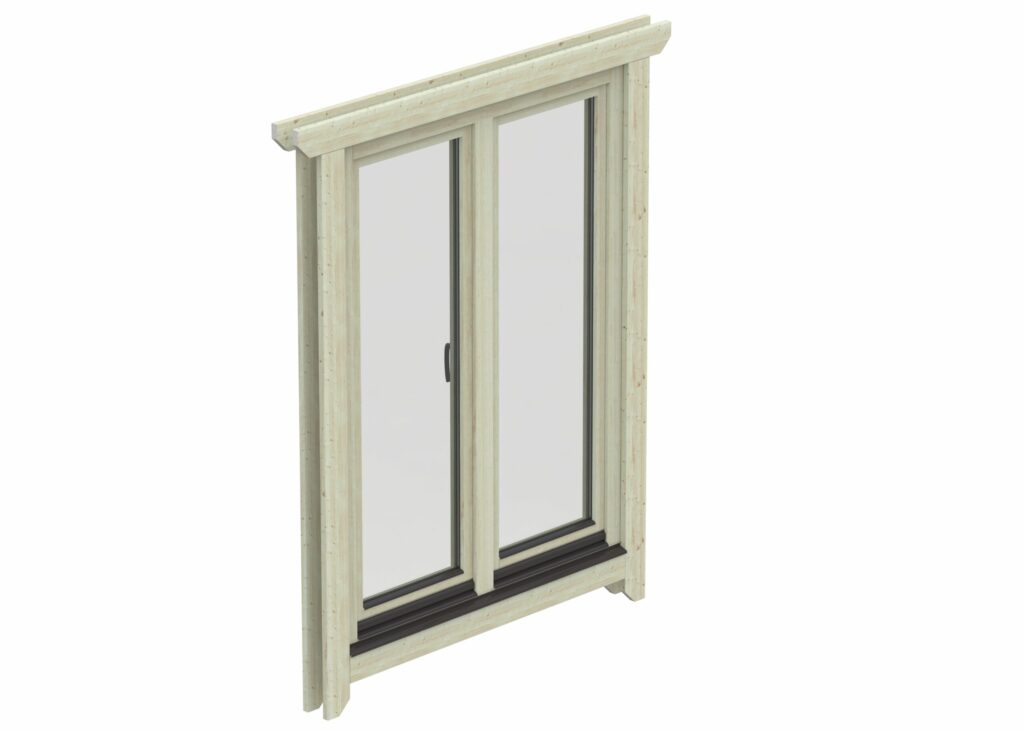

Double windows
- 1330 × 860 mm
- 1330 × 990 mm
- 1330 × 1510 mm
- 1330 × 1770 mm
Specification inputs required before quotation
- Your name or company and the destination
- Building or project type and intended use
- Required opening sizes and quantities
- Single or double format and opening direction
- Glazing, hardware, finish and colour requirements
- Required technical or destination-market documentation
- Target timing, packing, Incoterm and unloading route
Performance and documentation are configuration-specific
Glazing of each type
Garden type (IV45): 4-6-4 mm double glazing. Residential type (IV68): 4-16-4 mm double glazing. IV92: triple glazing. The 19 mm sheds are single glazed, and the workshops have a single glazed door.
Destination-market review
No blanket CE, UKCA or local-approval claim applies. Identify the required documentation and acceptance route for the destination and project before order approval.
On site: the buyer and appointed project parties verify openings, interfaces, installation, weatherproofing and local suitability.
Review certification information and shipping responsibilities.
What the written order must confirm
Product scope
Exact dimensions, quantity, frame and glazing build-up, opening mechanism and handing, hardware, finish, included accessories and technical documents.
Commercial and logistics scope
Price basis, payment terms, production timing, packing, Incoterm, collection or delivery route, unloading and responsibility split.
For a branded trade route, review private-label manufacturing. Branding does not replace required manufacturer, safety or traceability information.
Window selection video
This short video shows the windows. The exact opening, profile, glazing, hardware, finish and documentation are confirmed in the written quotation for the order.
Timber window questions
Who can enquire about Eurodita timber windows?
Dealers, builders, developers and private buyers can send an enquiry. Windows are quoted with a timber building, and windows and doors can also be quoted without a building. Every order is quoted in writing.
Are the listed window sizes the only sizes?
No. The listed single and double window sizes are the standard sizes. Individual sizes are made for an order, and the written quotation confirms the size of each window.
What is the difference between garden type and residential type windows?
Both are timber and both are made by Eurodita, and both are tilt and turn. The garden type (IV45) is the lower-cost window for smaller cabins, with 4-6-4 mm double glazing. The residential type (IV68) is a full IV68 window with 4-16-4 mm double glazing.
Are the windows tilt and turn?
Yes. Every opening window of the garden type and of the residential type is tilt and turn. The 19 mm sheds are the exception. A window can be made fixed where the order asks for it.
What destination-market marking applies to a window order?
Eurodita does not make a blanket CE or UKCA marking claim for the window range. Destination-market documentation and any applicable product-performance evidence must be identified and reviewed for the exact order. The buyer and appointed local professionals remain responsible for determining project acceptance and installation requirements.
Can a model be ordered with the other type of windows?
Yes. The type can be changed for an order, and the written quotation names the type and the price.
Who is responsible for measurement and installation?
The buyer and its appointed project parties must verify structural openings, tolerances, installation details, weatherproofing interfaces, local requirements and site work. Eurodita manufactures the scope confirmed in the approved order information. Any survey, installation or site service must be explicitly included before it can be treated as Eurodita responsibility.
What should a buyer send for a quotation?
Send the company and destination, project type, opening schedule, drawings, required sizes and quantities, opening direction, glazing, hardware, finish, documentation needs and target timing. Also state the packing, delivery and unloading route. Missing specification or local-review inputs may need to be resolved before a quotation can be finalised.
Send the opening schedule and project requirements
Include your name or company, the destination, drawings, sizes, quantities, glazing, hardware, finish, documentation needs, timing and logistics route.
