Twin Skin 4 Bedroom Log Cabin 13x8m
Delivery is agreed individually with each client. Markets and languages
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
At a glance

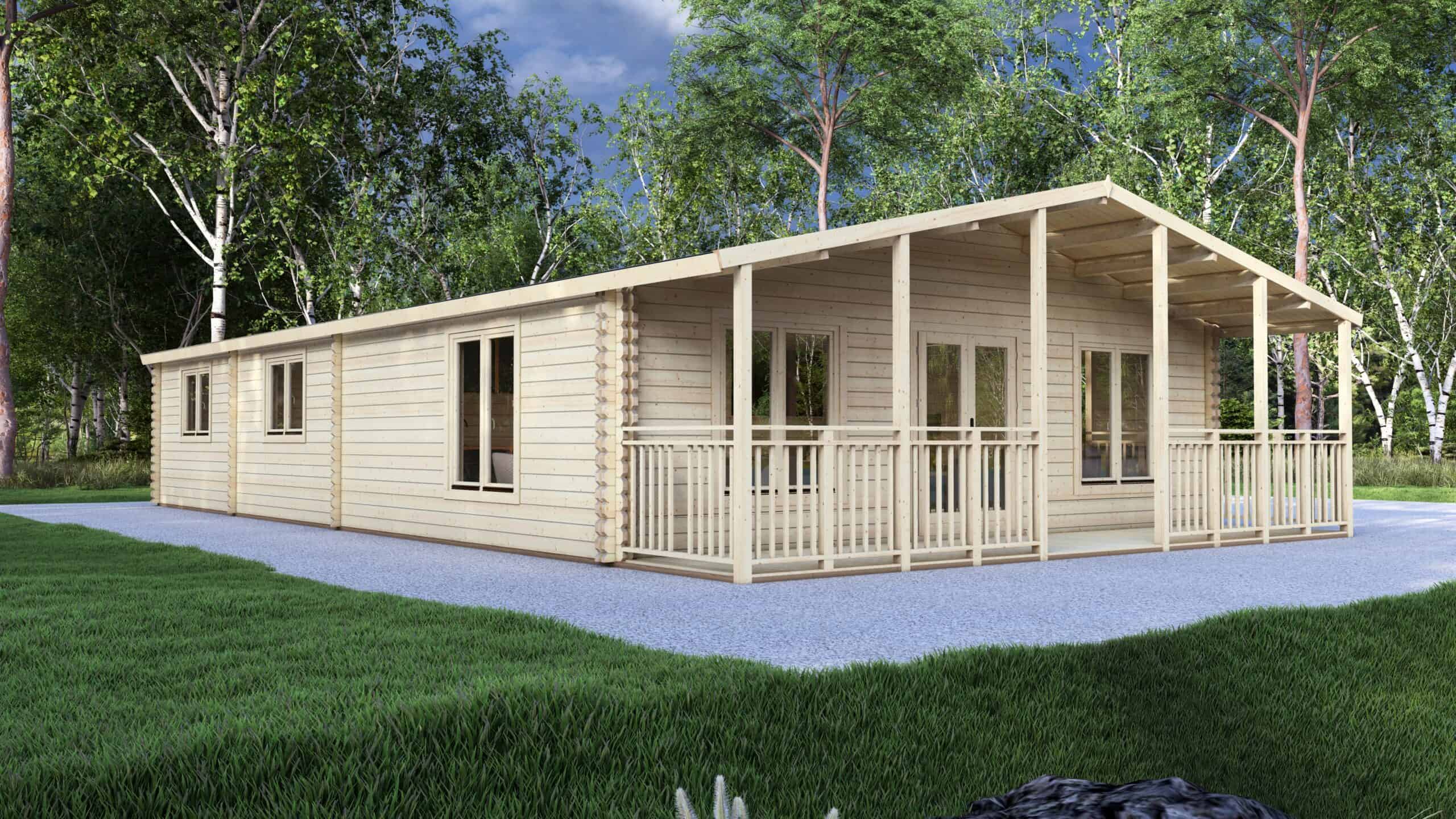

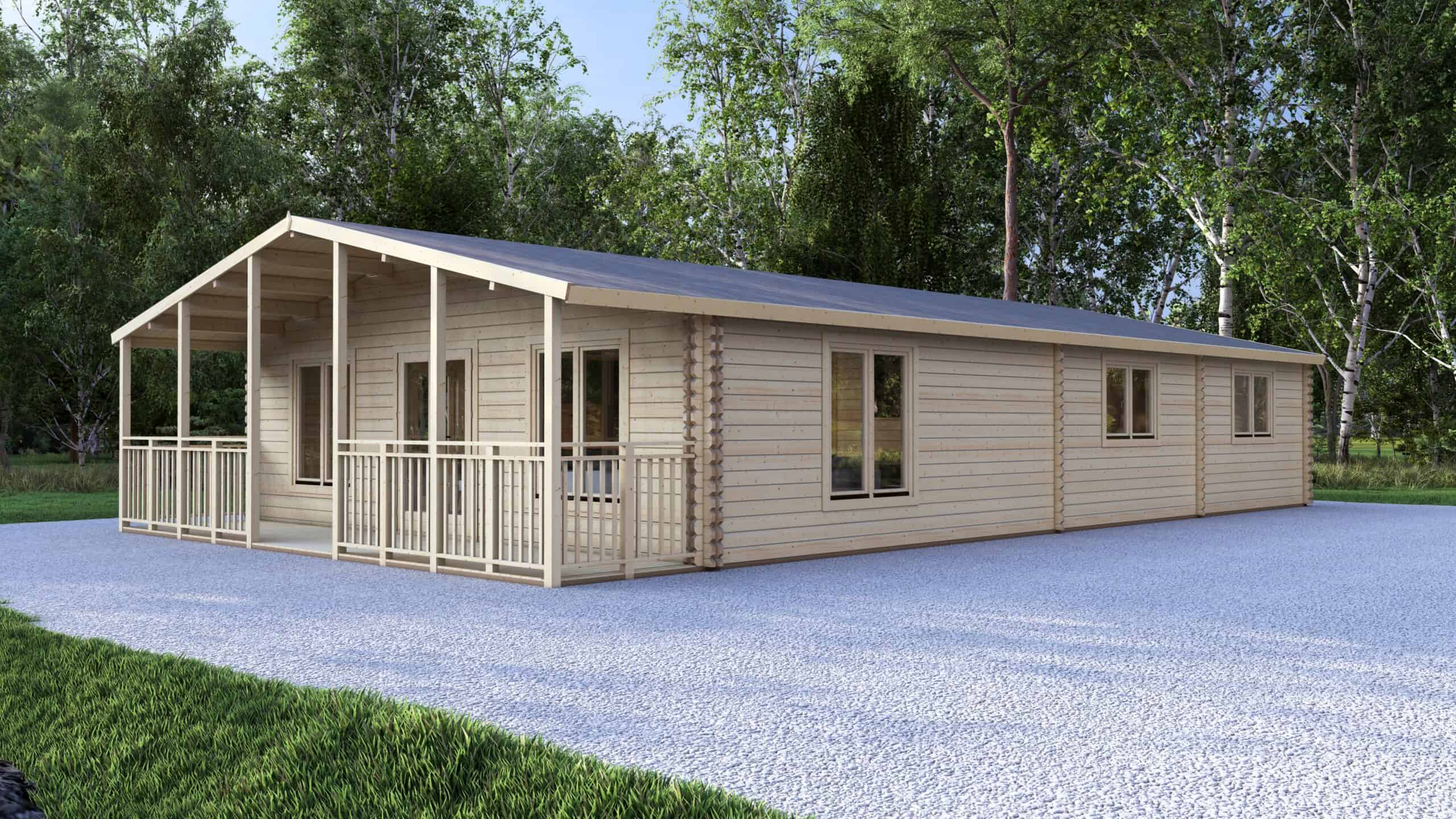

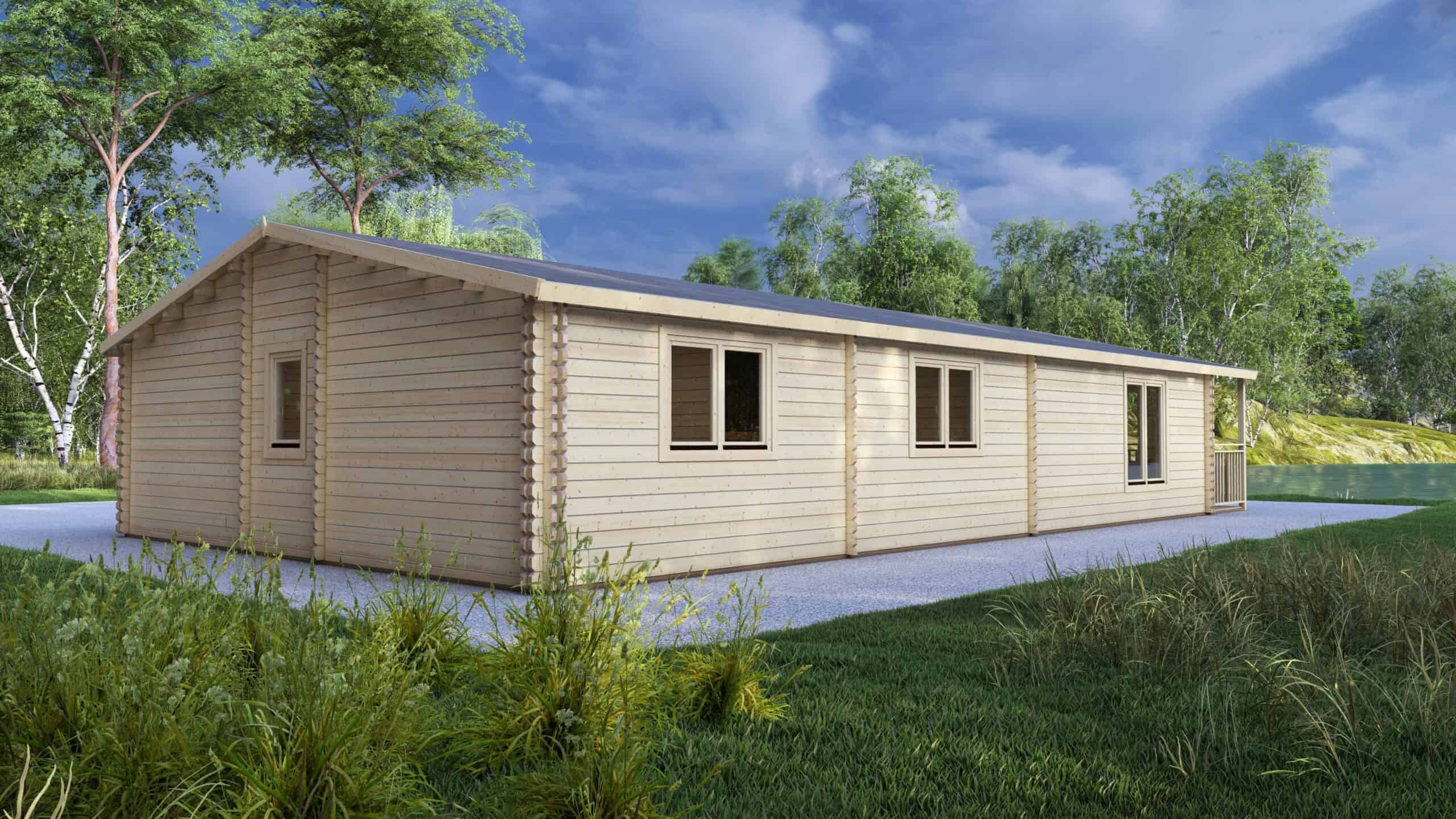

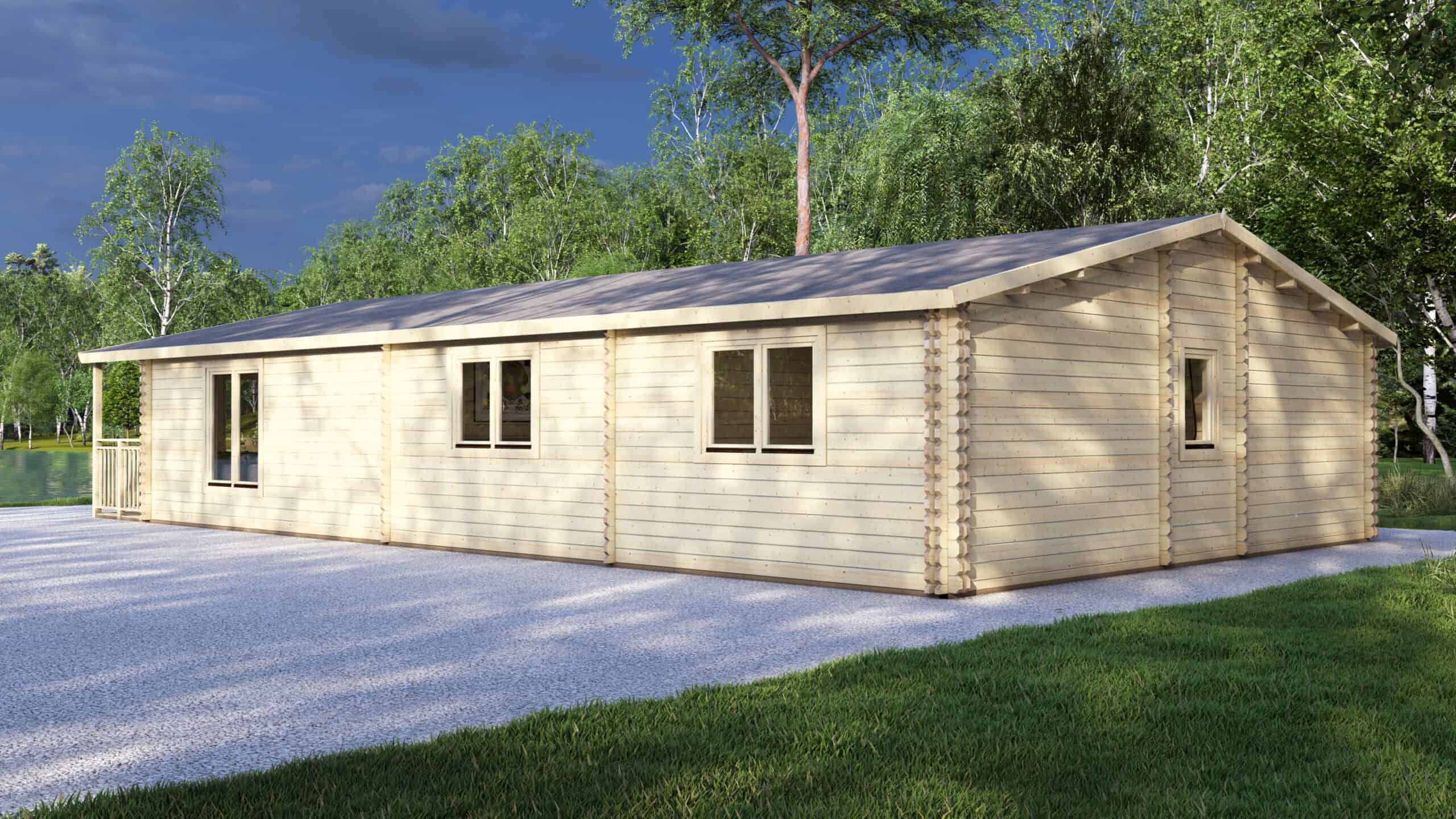

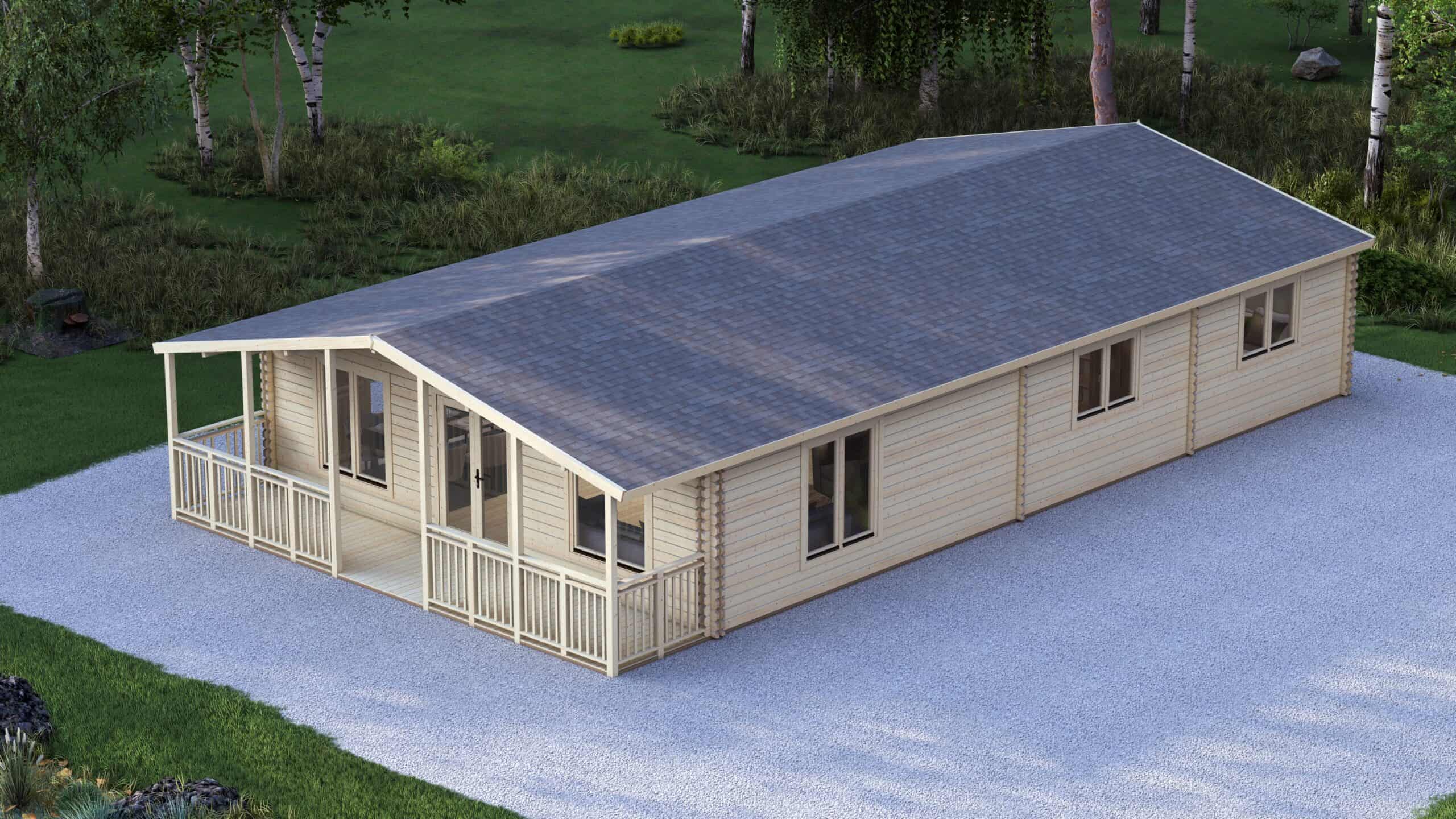

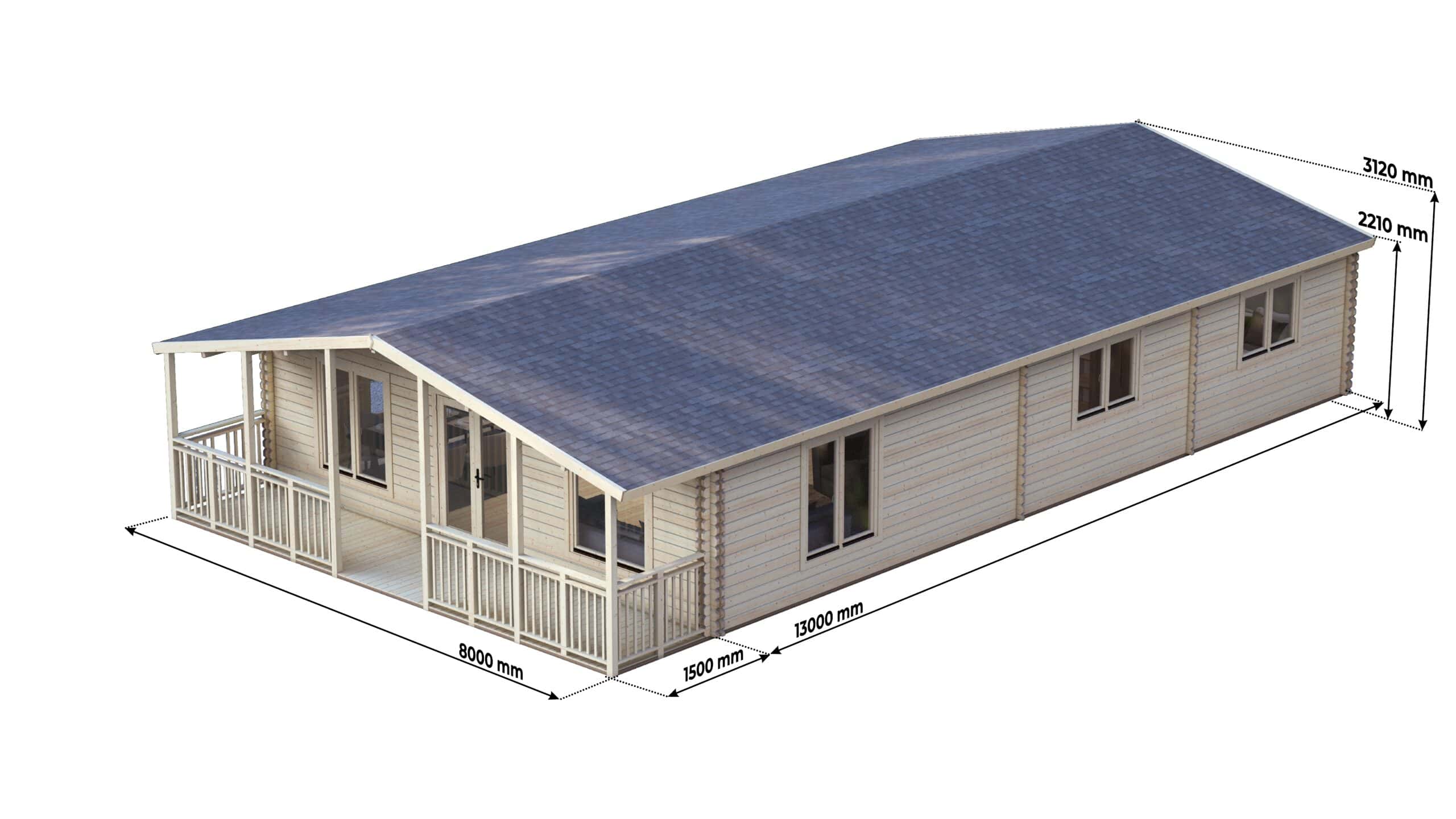

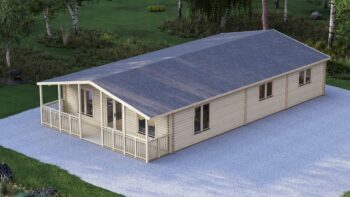

Twin Skin 4 Bedroom Log Cabin 13x8m is a twin-skin log cabin with four bedrooms, supplied as a building kit. It measures 13 x 8 m externally, an external footprint of 104 m². The ridge height is 312 cm and the eaves height 220 cm. It is listed with the twin skin log cabins.
Read the full description
Layout

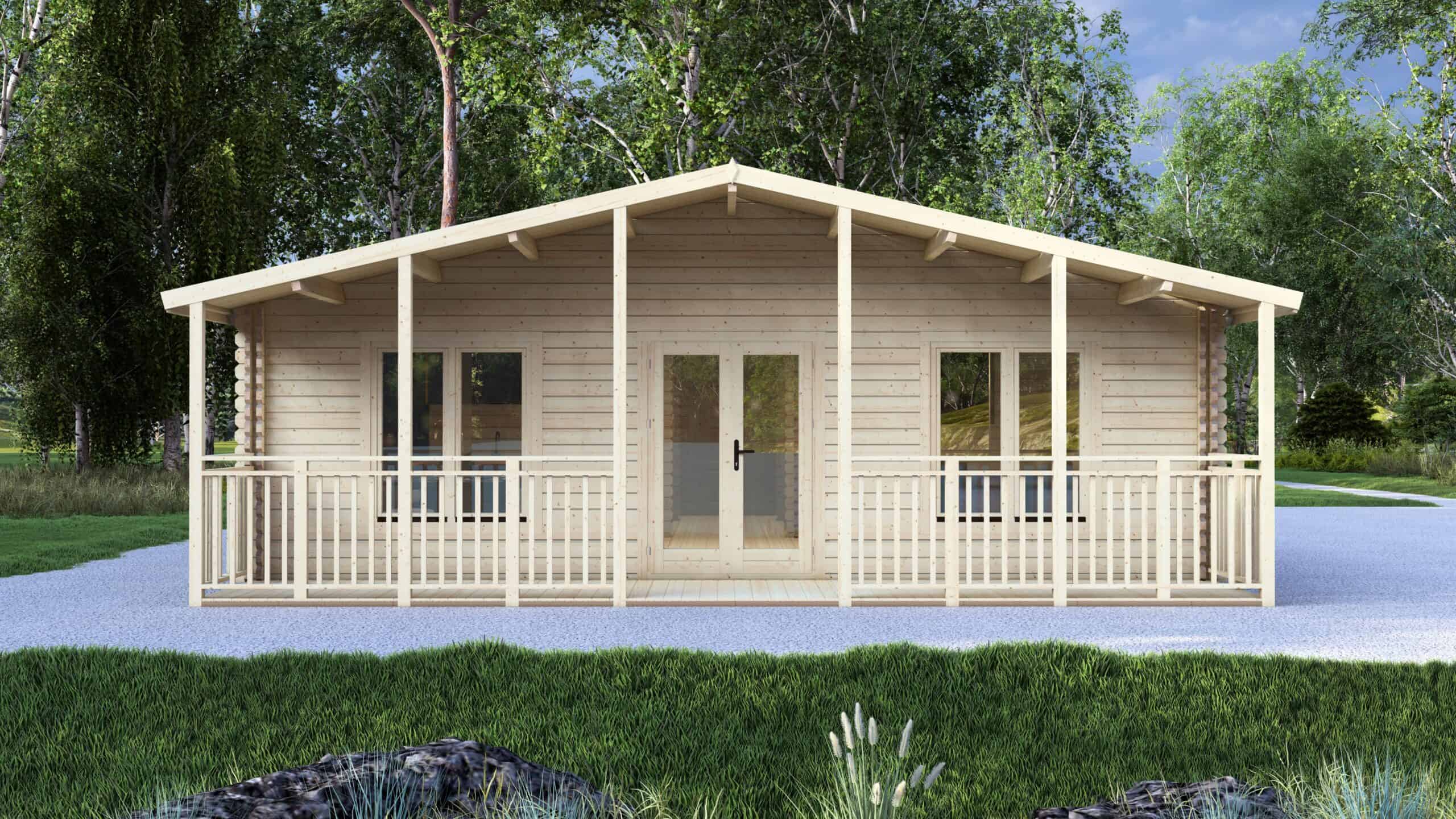

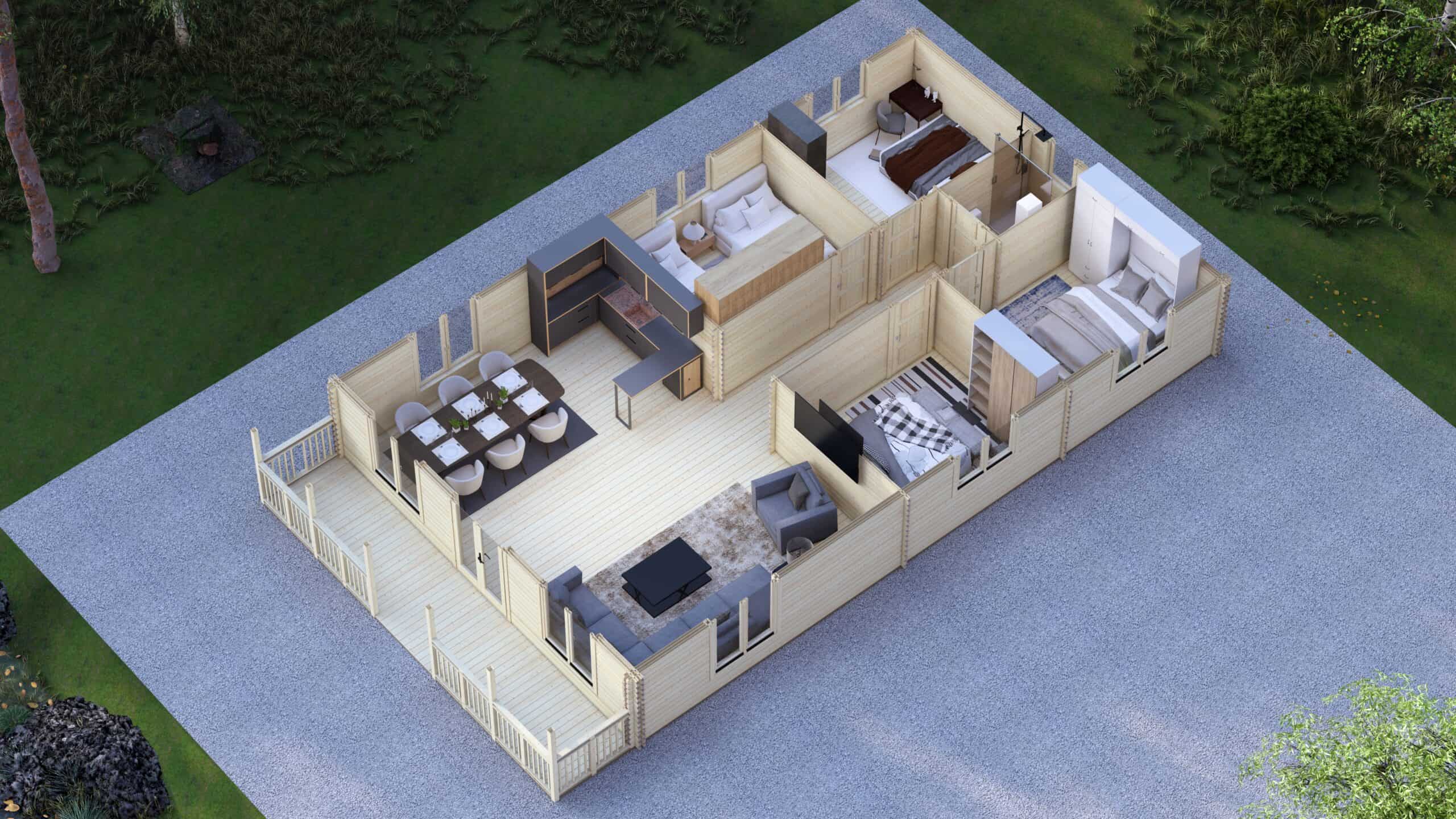

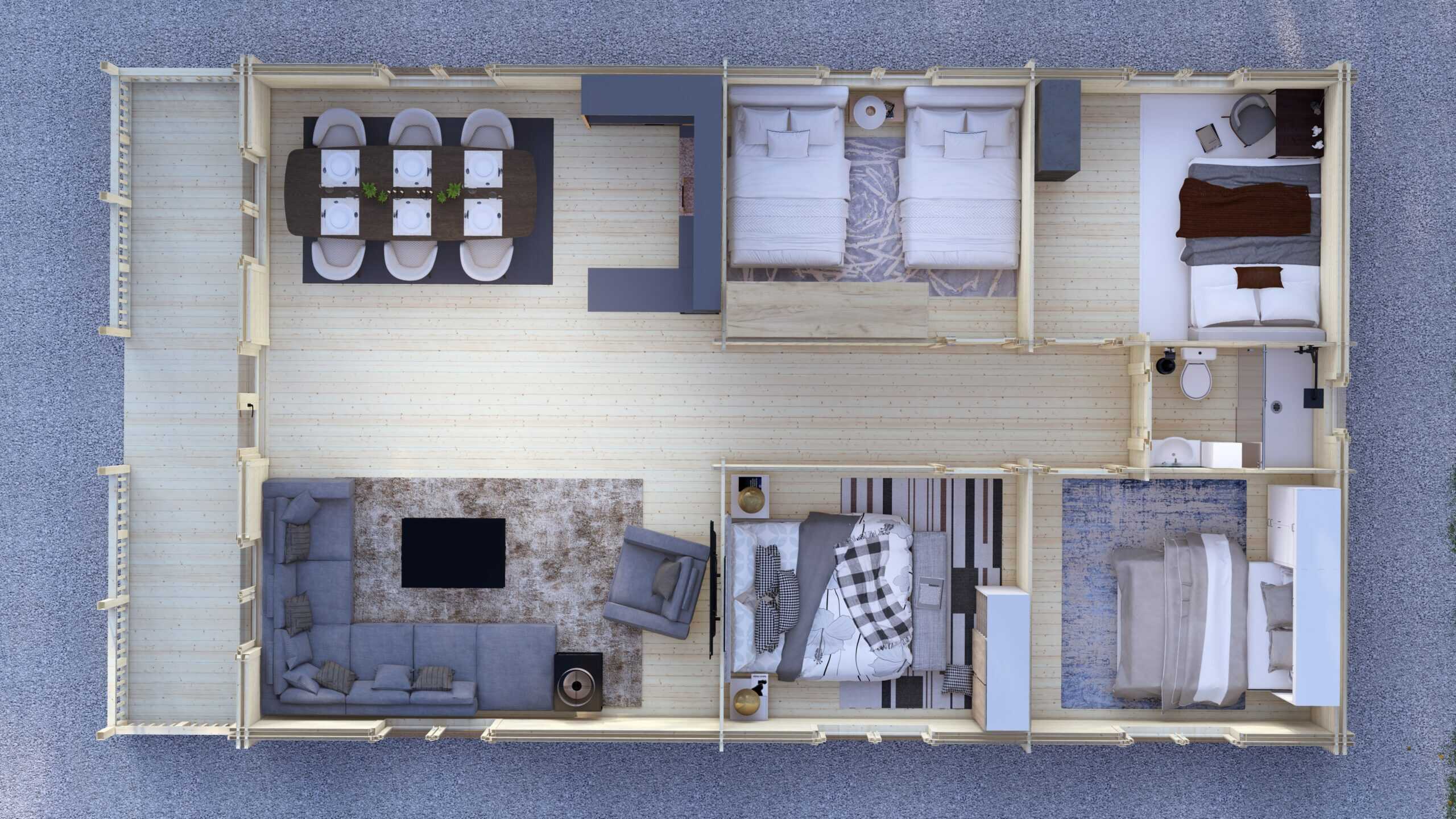

The plan drawing shows an open living room with a kitchen area, four bedrooms and a bathroom. It also shows a veranda across one gable end.
Walls
The wall is a twin-skin build-up of 44-100-44 mm: a 44 mm outer wall log, a 100 mm cavity and a 44 mm inner wall log, 188 mm in total. The cavity is prepared for insulation, which is sourced locally.
Doors and windows
Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Twin Skin 4 Bedroom Log Cabin 13x8m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 13 x 8 m |
| External footprint area | 104 m² |
| Eaves height | 220 cm |
| Ridge height | 312 cm |
| Base | External footprint 13 x 8 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall build-up | 44-100-44 mm: 44 mm outer skin, 100 mm cavity, 44 mm inner skin. 188 mm total wall thickness. |
| Other wall options | The twin-skin build-ups are 44-100-44, 58-50-58 and 58-100-58 mm; the build-up is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing |
| Windows | Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing |
| Scope of these figures | |
| Insulation | The 100 mm cavity is the space insulation occupies. Eurodita supplies the structure prepared for insulation, not the insulation material, so the cavity dimension is not an insulation specification. |
| Availability | Build-up availability and suitability for a given project and destination are confirmed per order. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
The kit is supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Twin Skin 3 Bedroom Log Cabin 12x7m
| This model | 12x7m | |
|---|---|---|
| External size | 13 x 8 m | 12 x 7 m |
| External footprint | 104 m² | 84 m² |
| Bedrooms | 4 | 3 |
