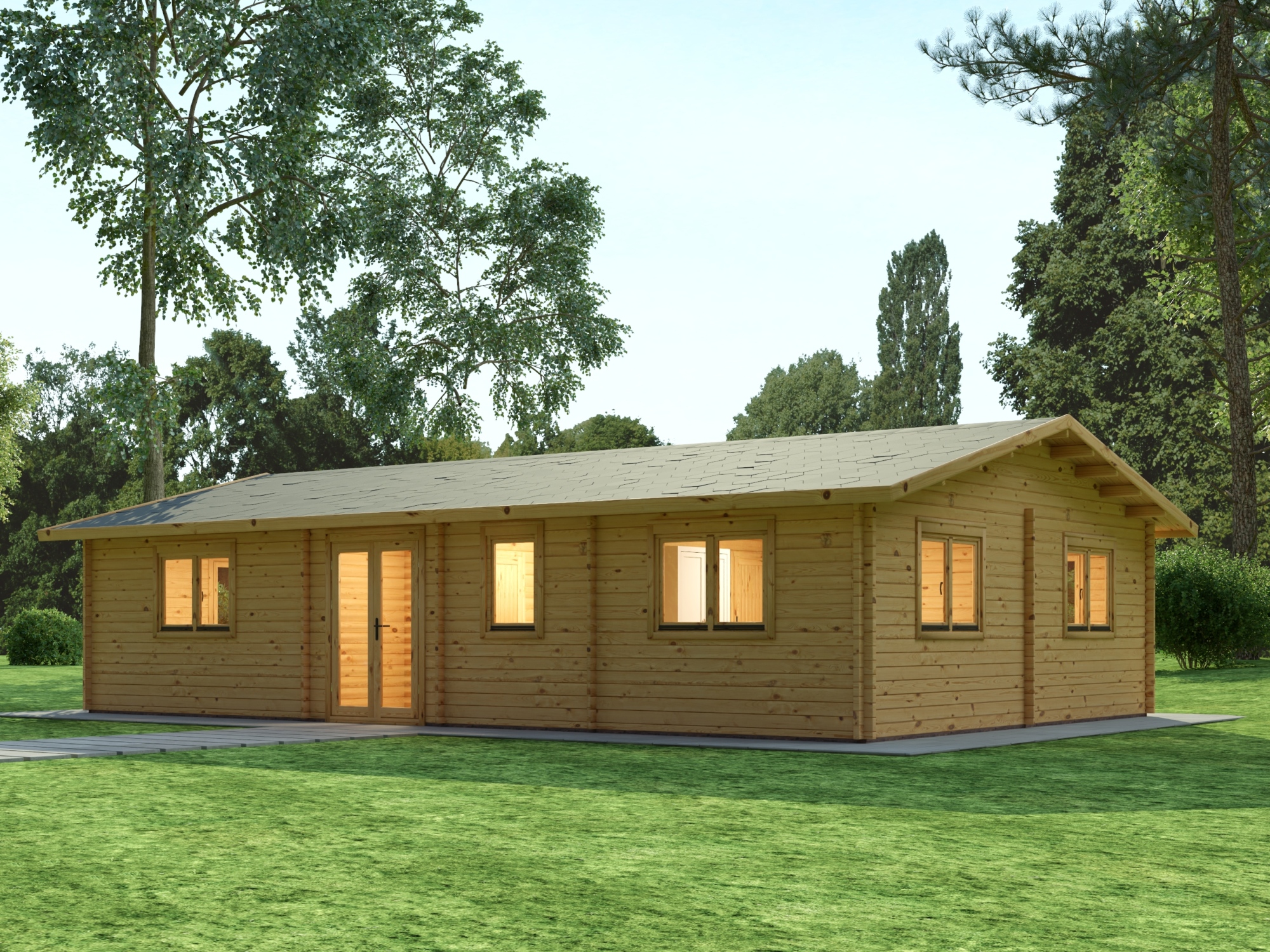

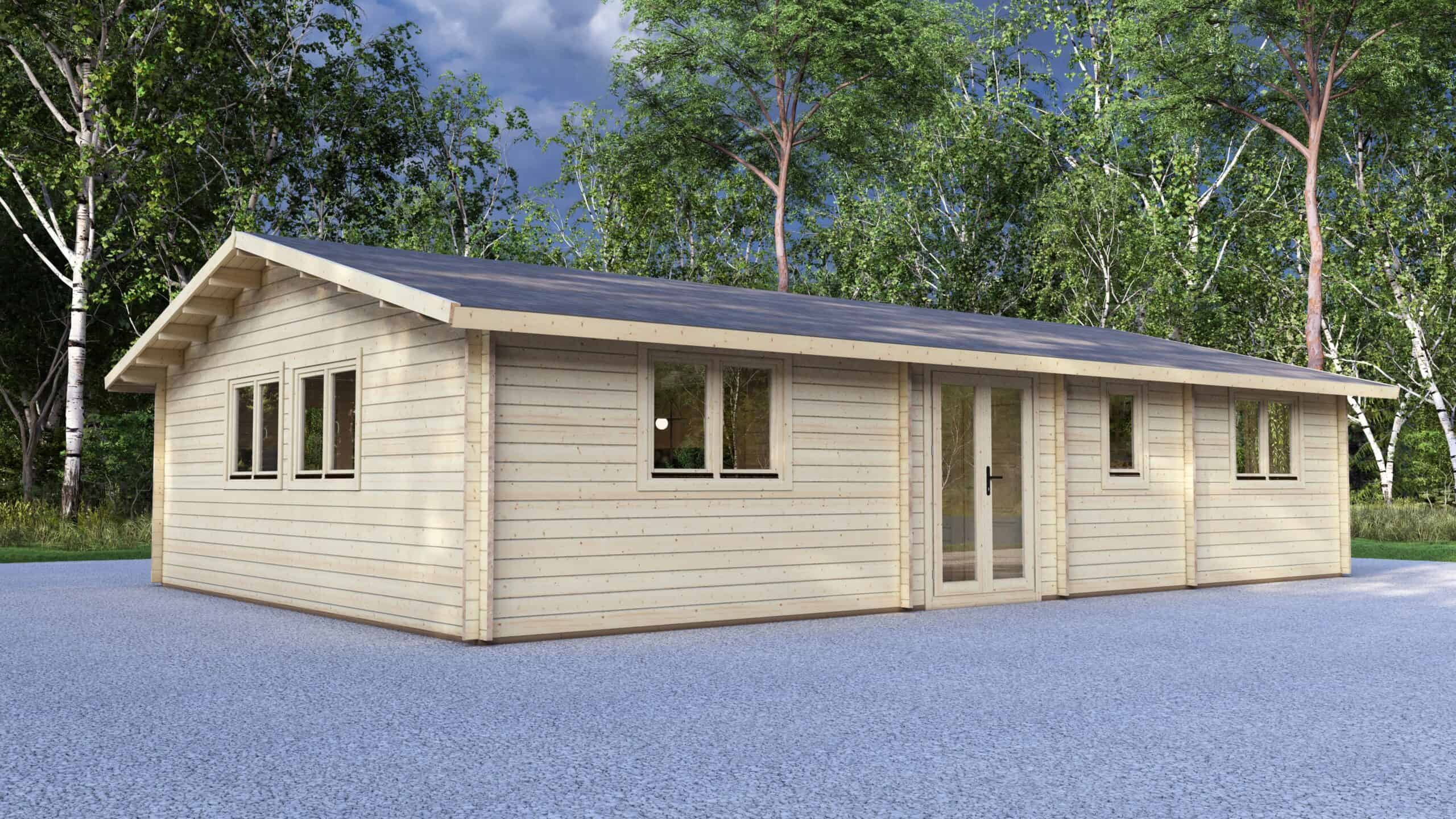

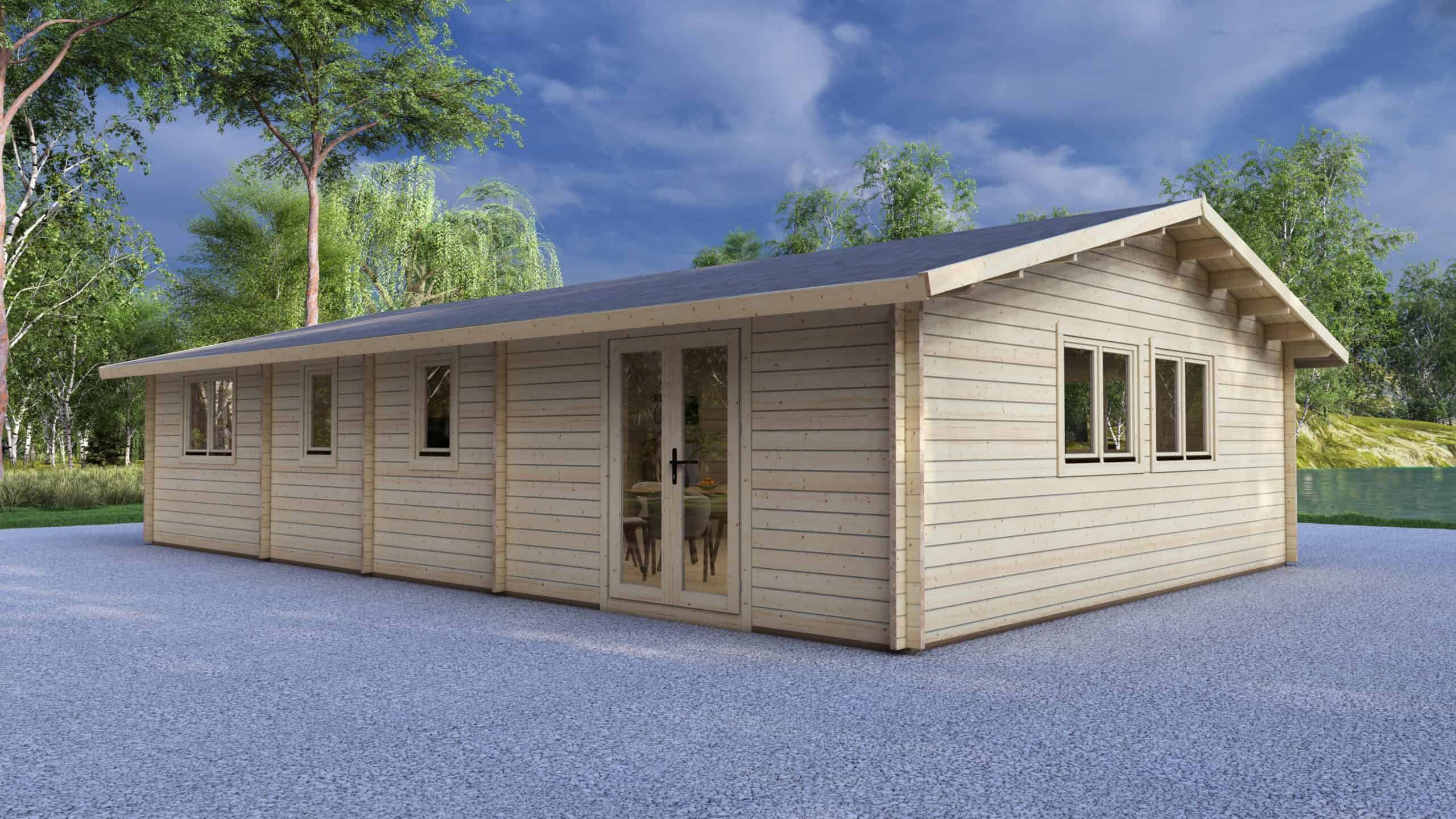

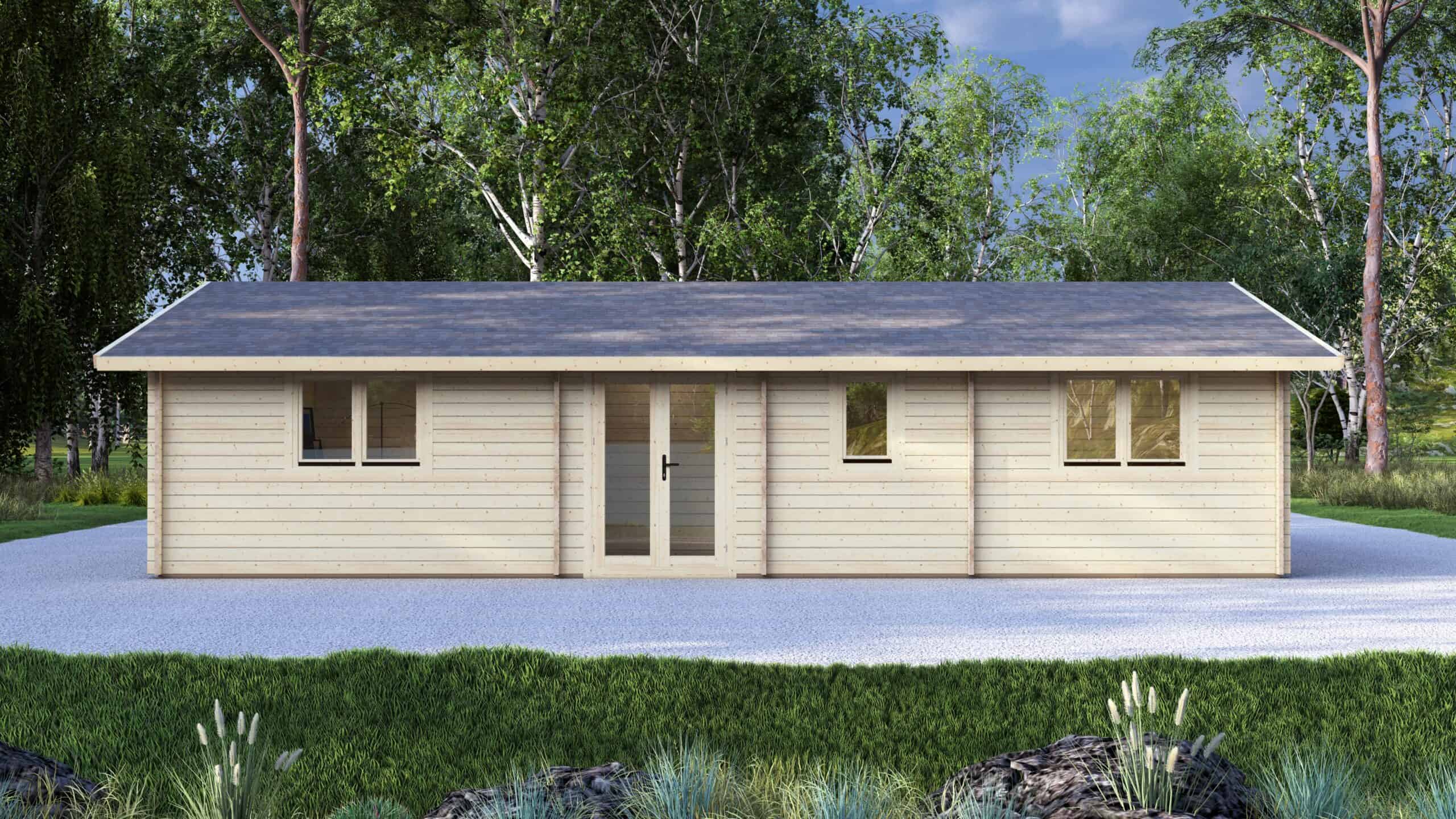

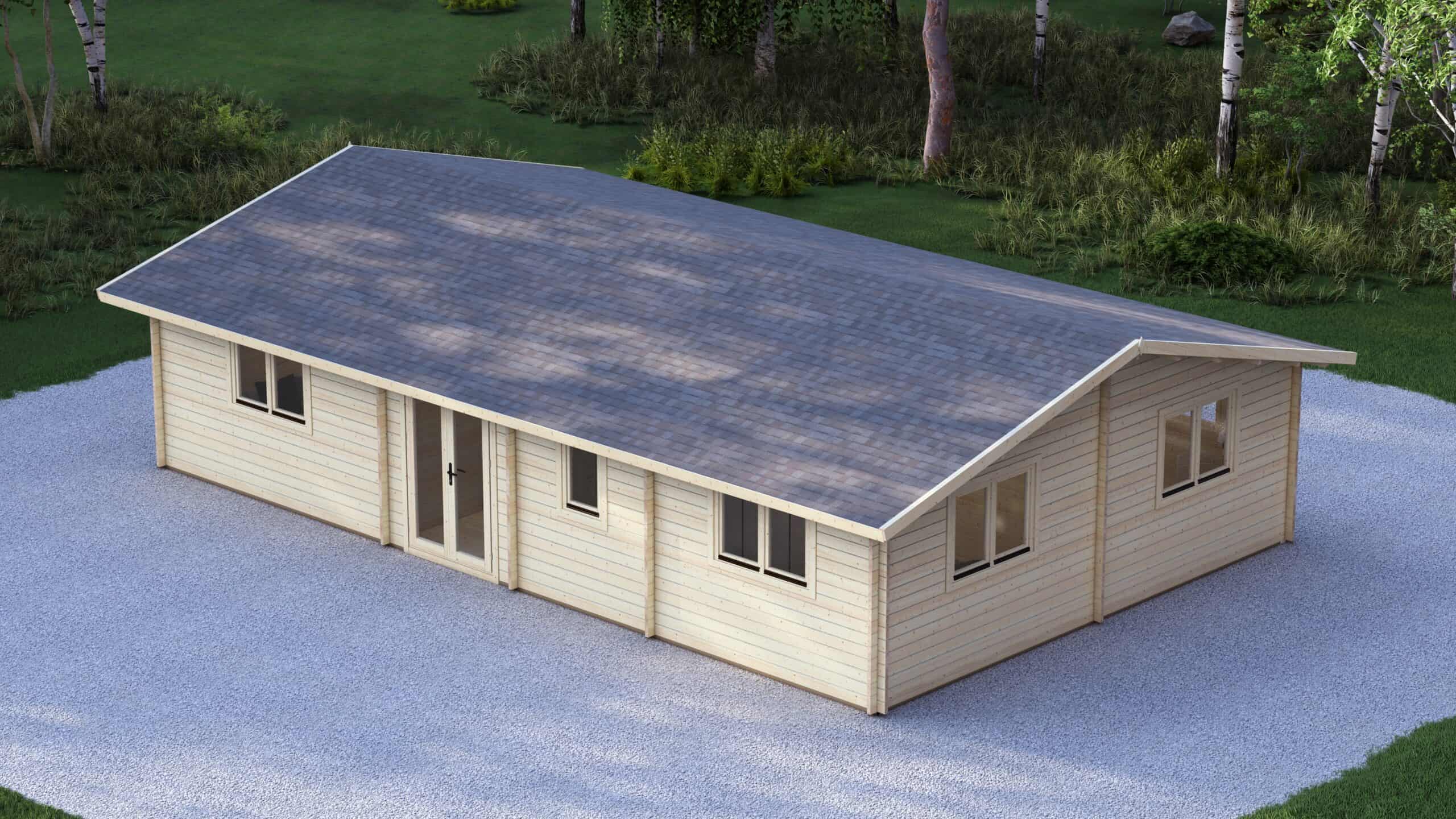

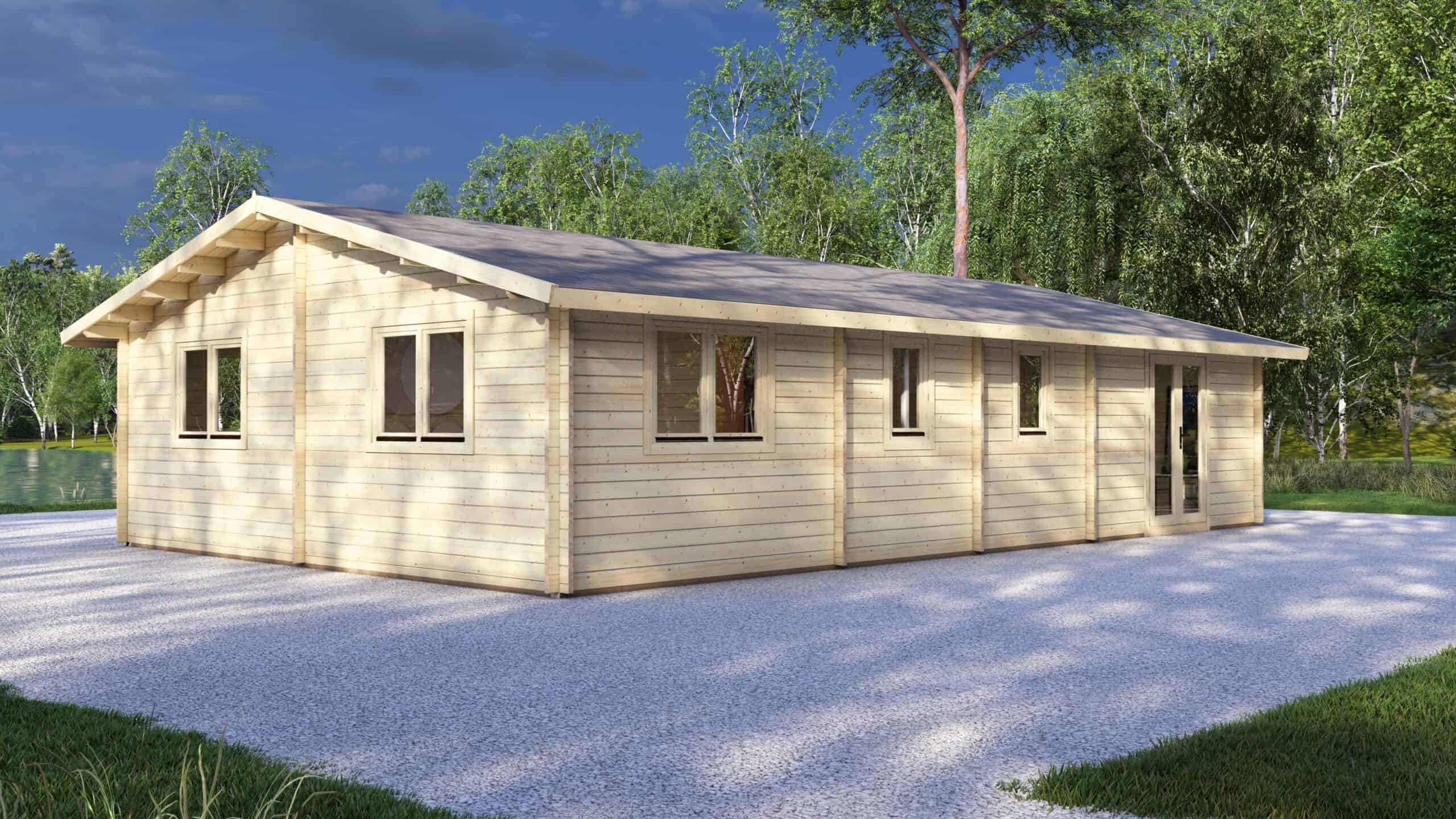

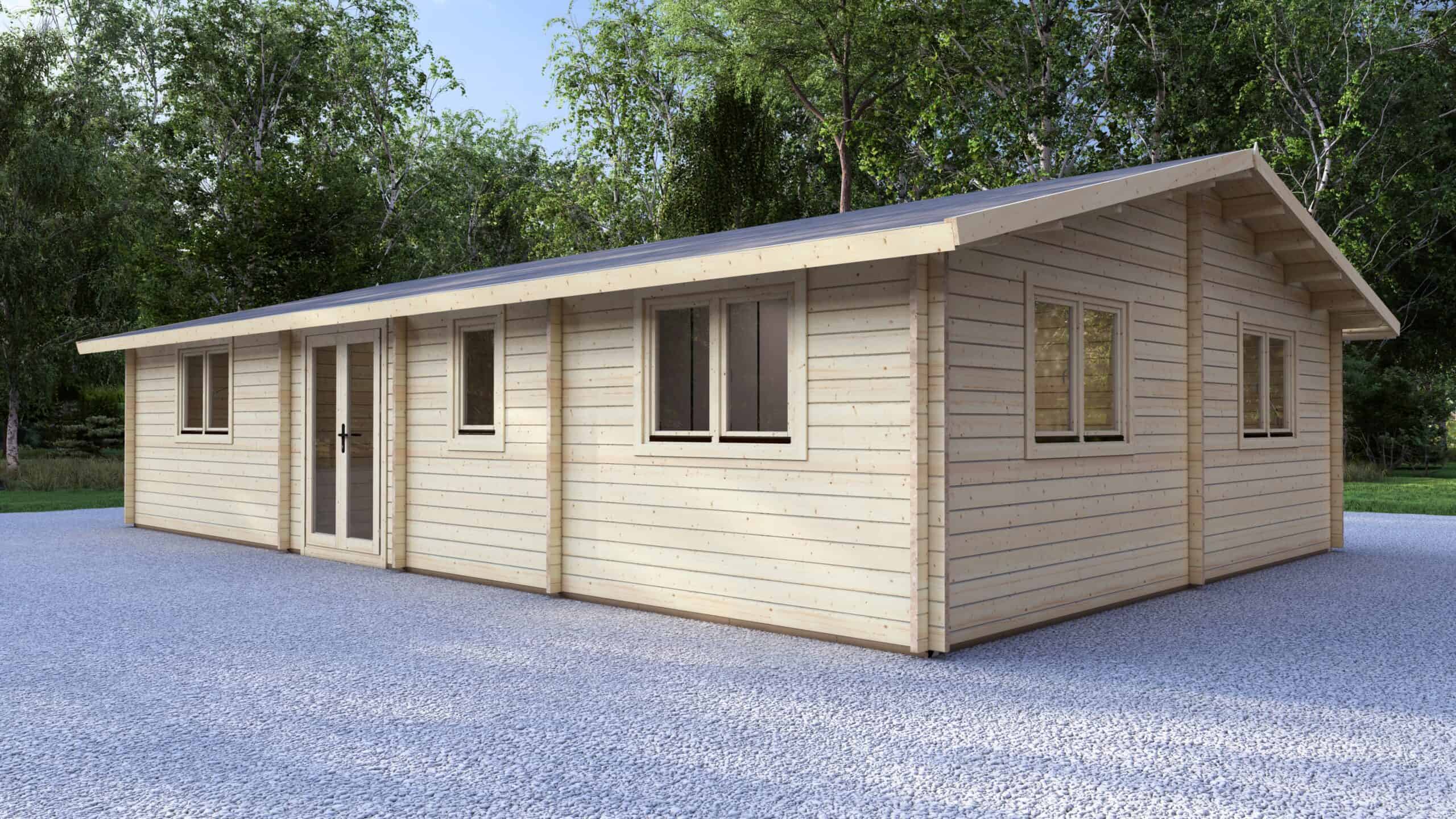

3 Bedroom Log Cabin 11.3×7.1m, 44mm
This 11.3x7.1m three-bedroom log cabin is a multi-room timber-building configuration for B2B project evaluation. The layout provides substantial 80.2m² floor area for dealer quotation, holiday-park, leisure or other project-specific briefs.
Technical data sheet
Specification recorded for 3 Bedroom Log Cabin 11.3x7.1m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

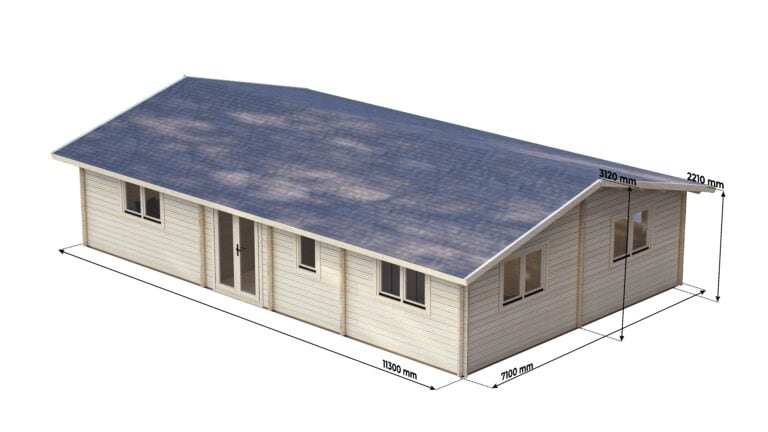

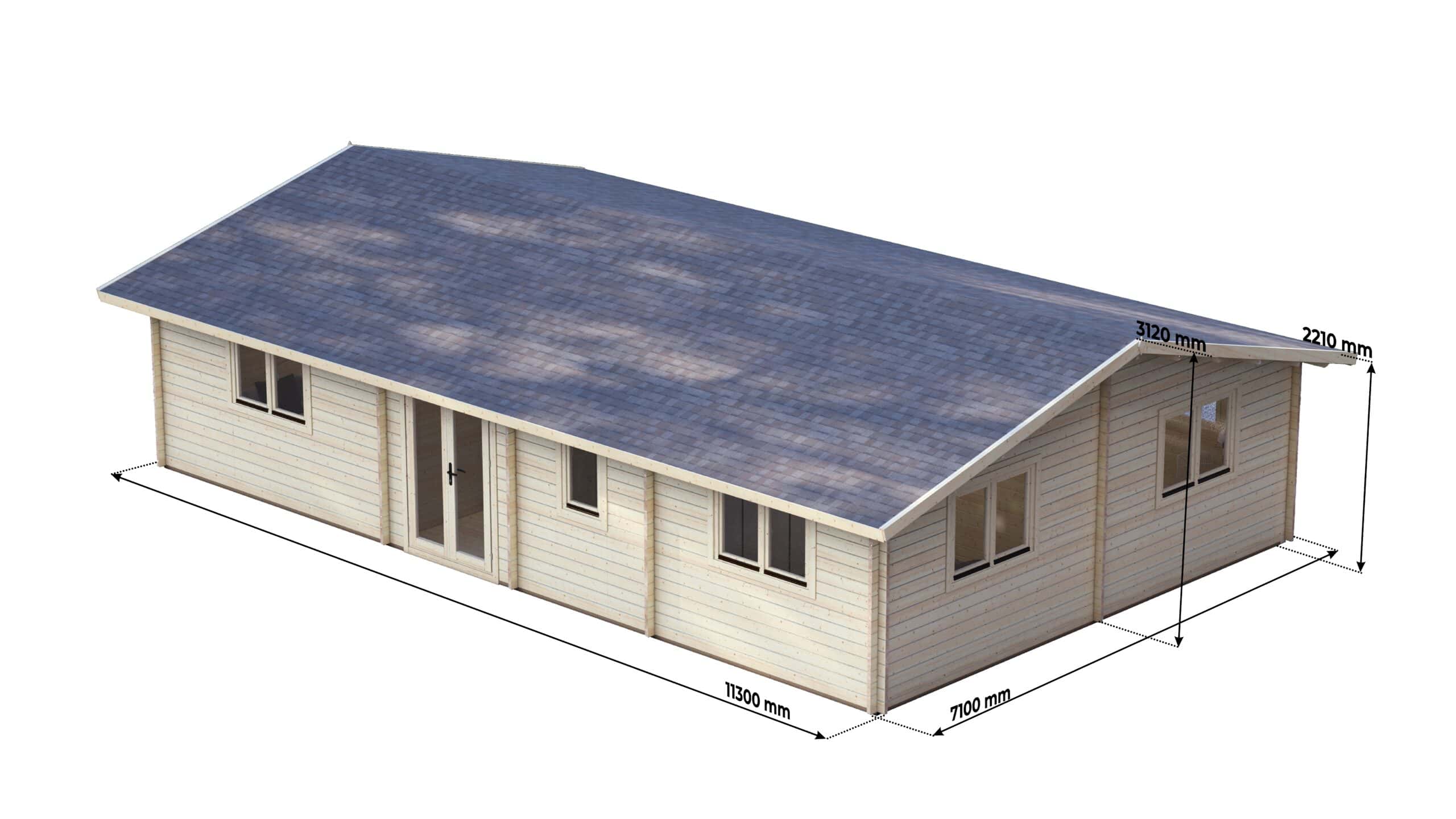

| External dimensions | 11.3 x 7.1 m |
| External footprint area | 80 m² |
| Eaves height | 221 cm |
| Ridge height | 312 cm |
| Storeys | 1 |
| Base | External footprint 11.3 x 7.1 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 11.3 x 7.1 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 3 bedroom log cabins range.
About This 3 Bedroom Log Cabin 11.3×7.1m, 44mm
Product Overview
This 11.3x7.1m three-bedroom log cabin is a multi-room timber-building configuration for B2B project evaluation. The layout provides substantial 80.2m² floor area for dealer quotation, holiday-park, leisure or other project-specific briefs. Eurodita supplies drawings, specifications and technical data for dealer, project team and local authority review where relevant.
Layout & Configuration

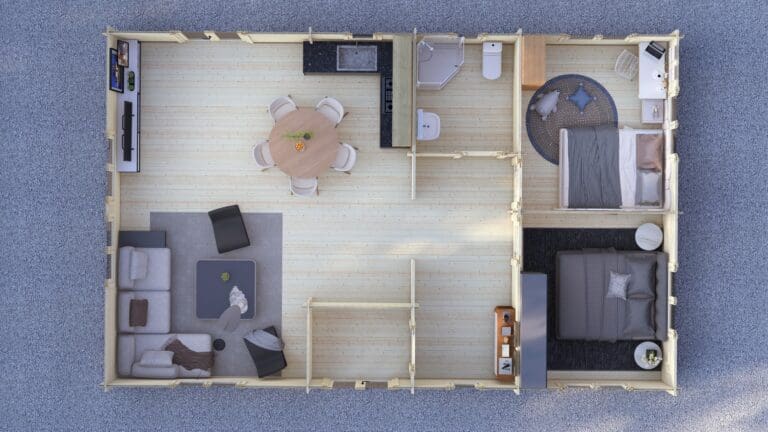

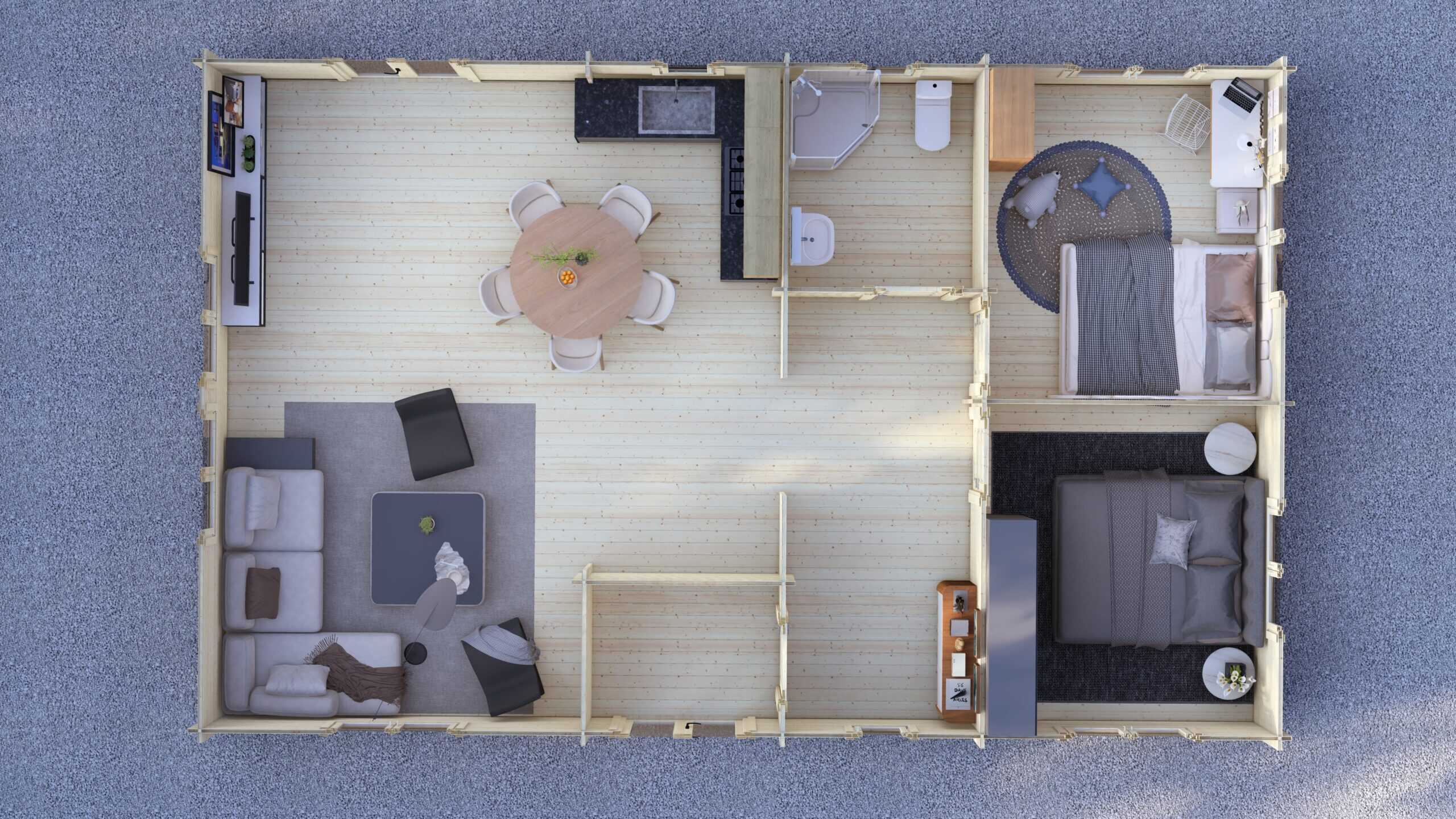

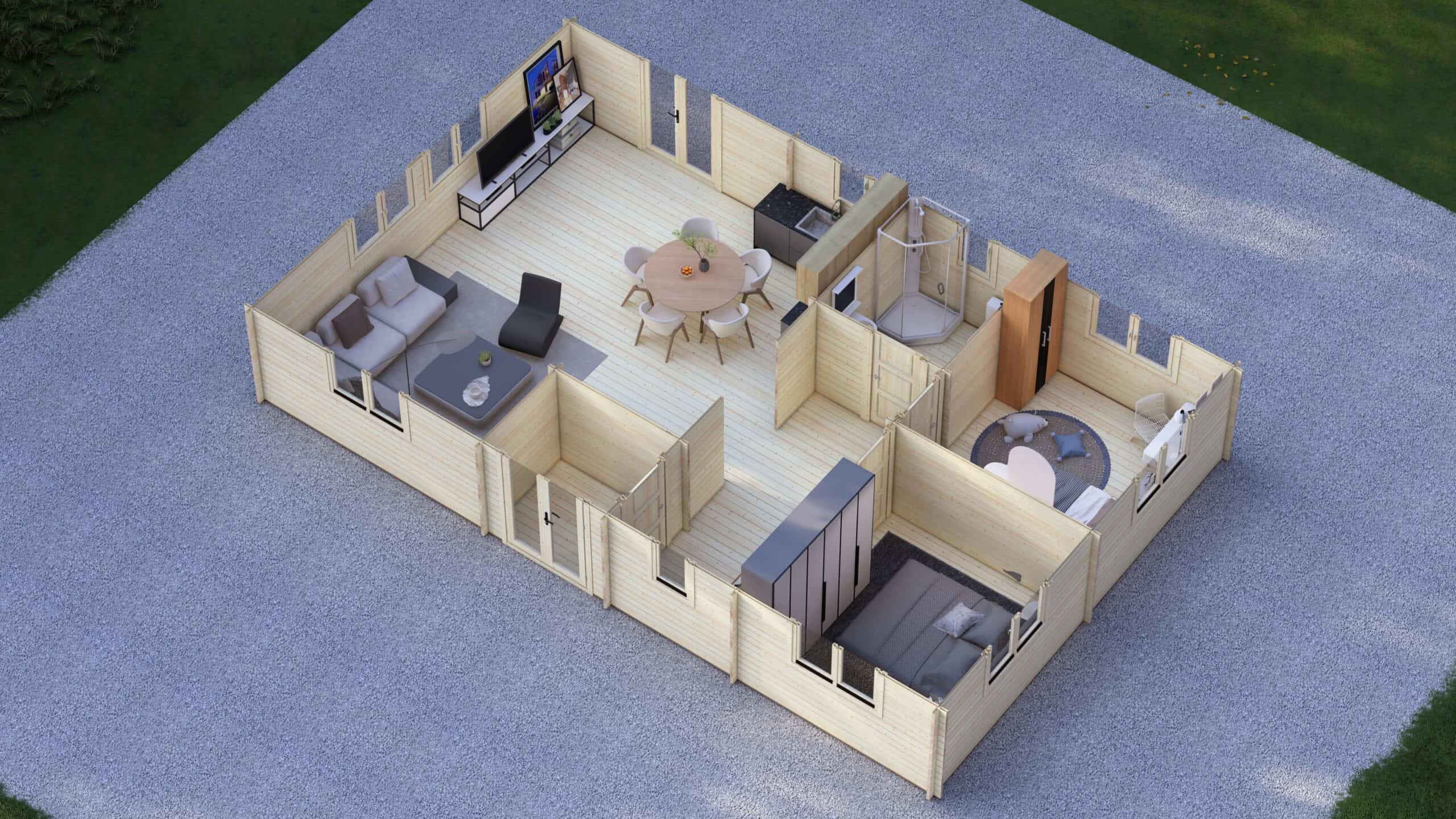

Three separate bedrooms support multi-room project briefs or multi-occupancy layouts where appropriate. Open-plan central areas maximise usable floor area while maintaining functional separation between private rooms and shared zones. Standard configuration includes bathroom and kitchen-area planning positions, with flexible internal layout options available to suit specific project requirements.
Timber & Construction
Northern European timber delivers exceptional assembly stability and thermal specification. 44mm wall thickness supports extended-season usability with natural insulation properties. Strong interlocking tongue-and-groove joints help reduce thermal weak points. Double-glazed timber joinery with insulated profiles provides enhanced energy-related specification while maintaining traditional aesthetic appeal.
Floor & Roof
Robust 28mm floor boards provide durable subflooring suitable for various finish materials. Pressure-treated bearers ensure long-term structural stability and moisture resistance. 19mm tongue-and-groove roof boards create weather-protected covering ready for roofing membrane application. Storm bracing system included for enhanced wind resistance.
Customisation Options
Wall thickness upgrades available to 70mm for enhanced insulation performance in colder climates. Additional glazing options include triple-glazing and alternative window configurations. Partition modification kits enable layout adjustments. Veranda extensions and porch additions available to increase covered outdoor space and property appeal.
Manufacturing & Delivery
Eurodita processes 150,000 m³ of timber annually. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita's standard terms are EXW from Kaunas. Bespoke modifications handled through in-house design team. Precision CNC manufacturing supports consistent quality and accurate component dimensions for reliable assembly.
Private Label Partnership
Private-label capability enables dealer branding across all documentation and marketing materials. Custom 3D visualisations support sales presentations and customer consultations. Branded assembly instructions and technical specifications maintain consistent partner identity. Showroom display programmes available with marketing support for established trade partners.
What should dealers confirm before quoting 3 Bedroom Log Cabin 11.3×7.1m, 44mm?
Eurodita supplies 3 Bedroom Log Cabin 11.3×7.1m, 44mm as a private-label B2B residential log cabin with a 11.3 x 7.1m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, layout, openings, selected wall or insulation scope, foundation interface, unloading access, EXW release or freight route from Kaunas, private-label documentation, and local-authority planning or site-use review requirements.
Warranty & Support
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. Comprehensive assembly documentation with detailed drawings and component schedules is provided. Technical support is available throughout installation via the trade partner support route.
