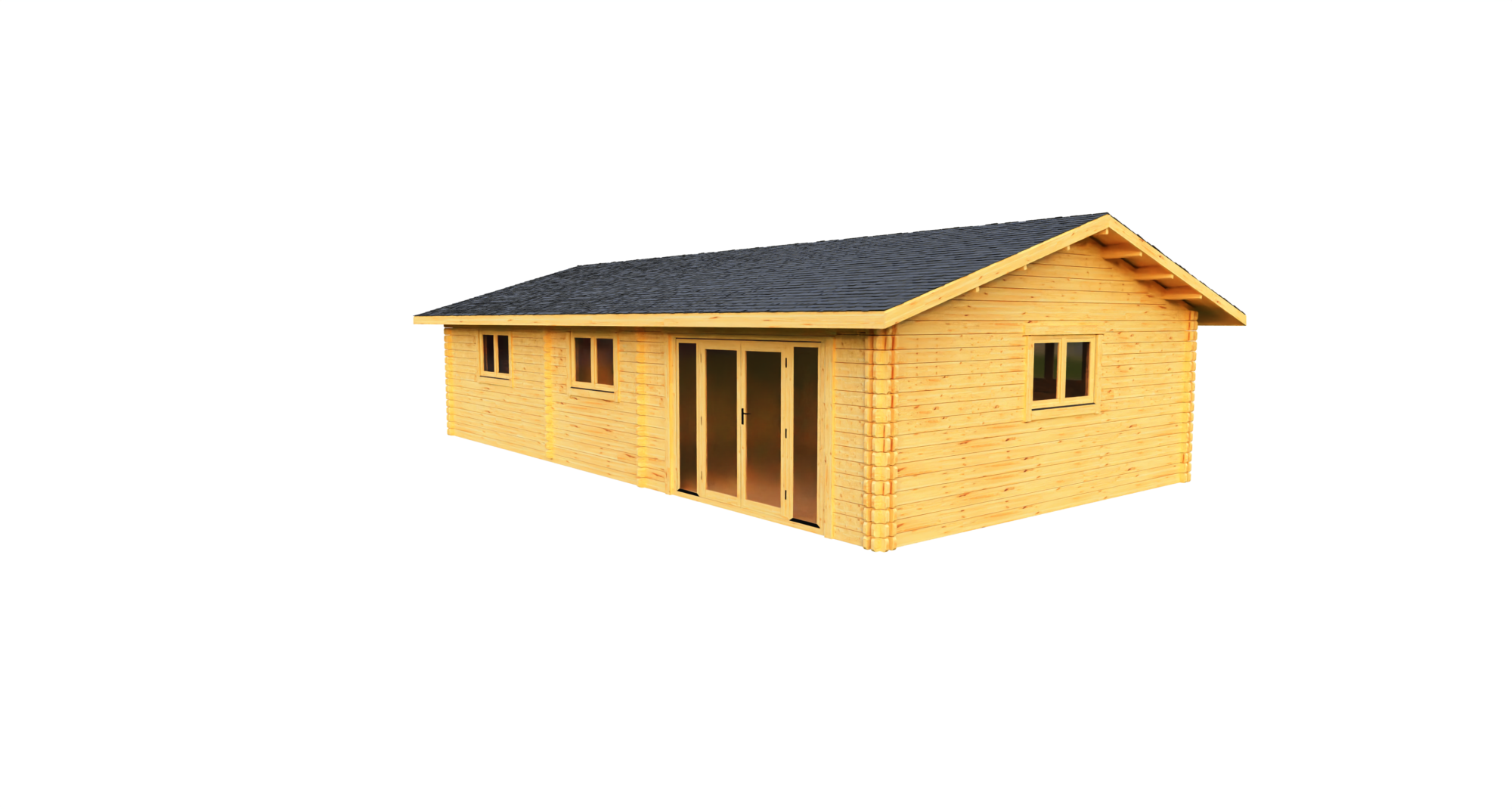

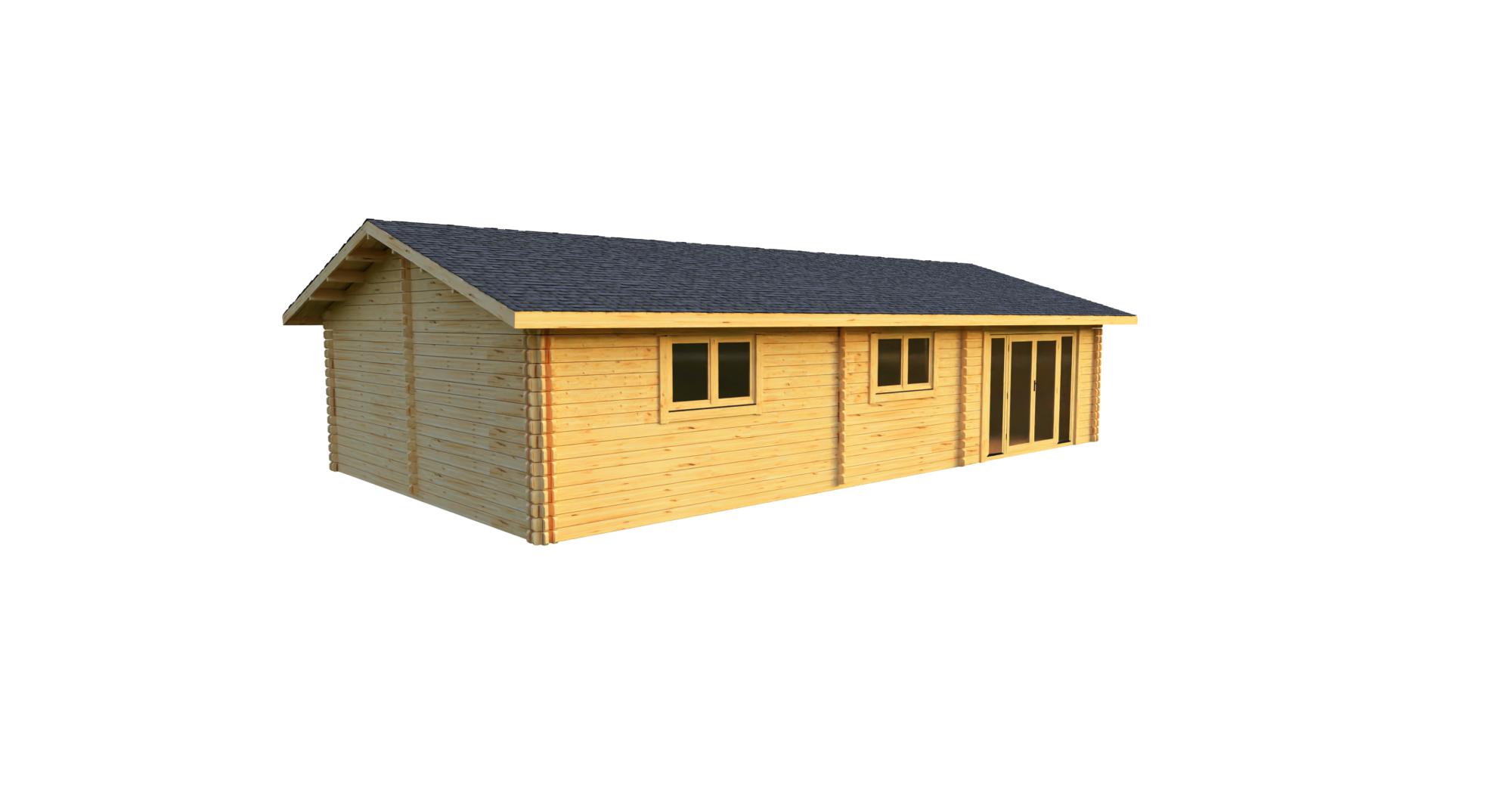

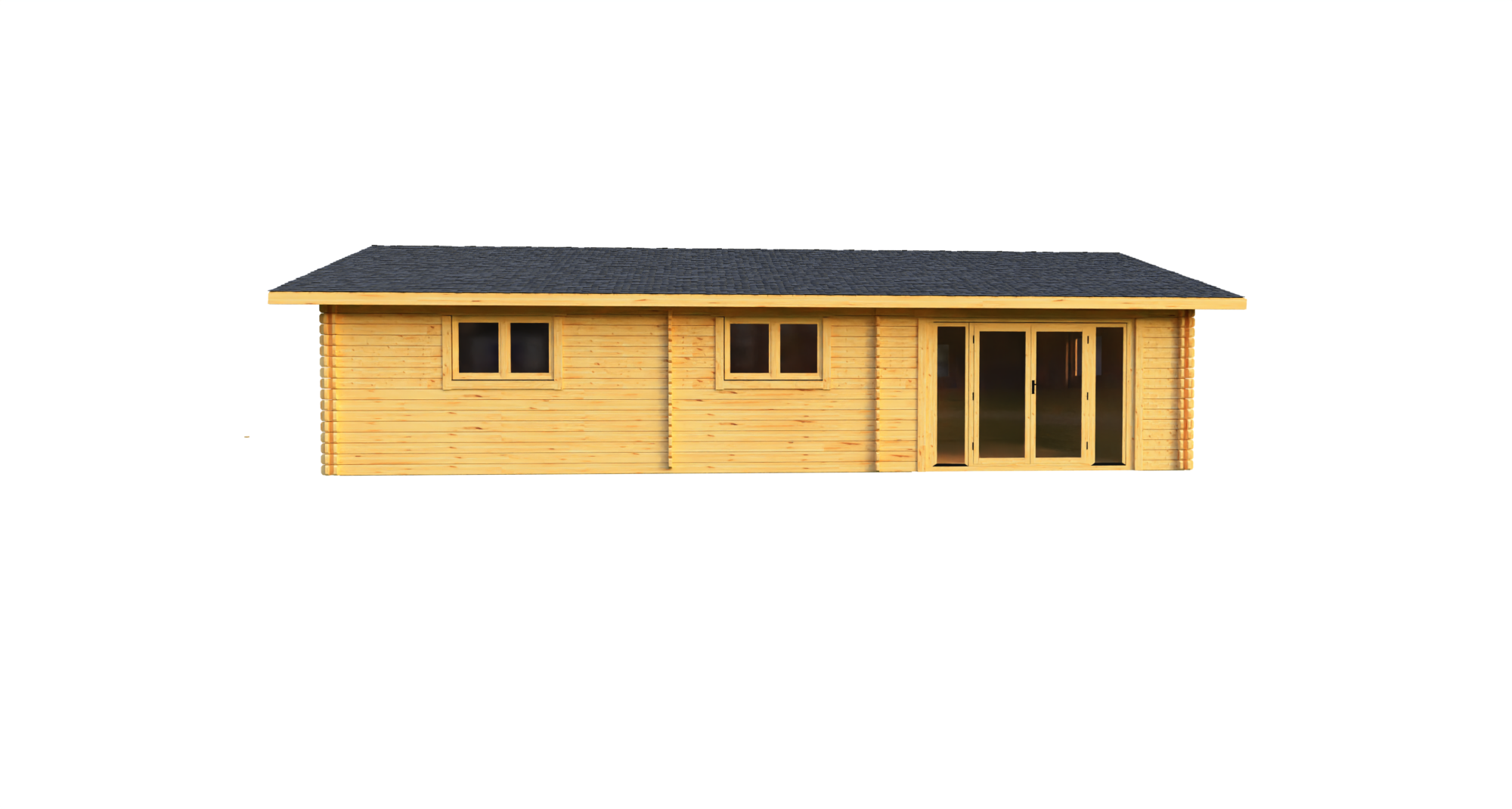

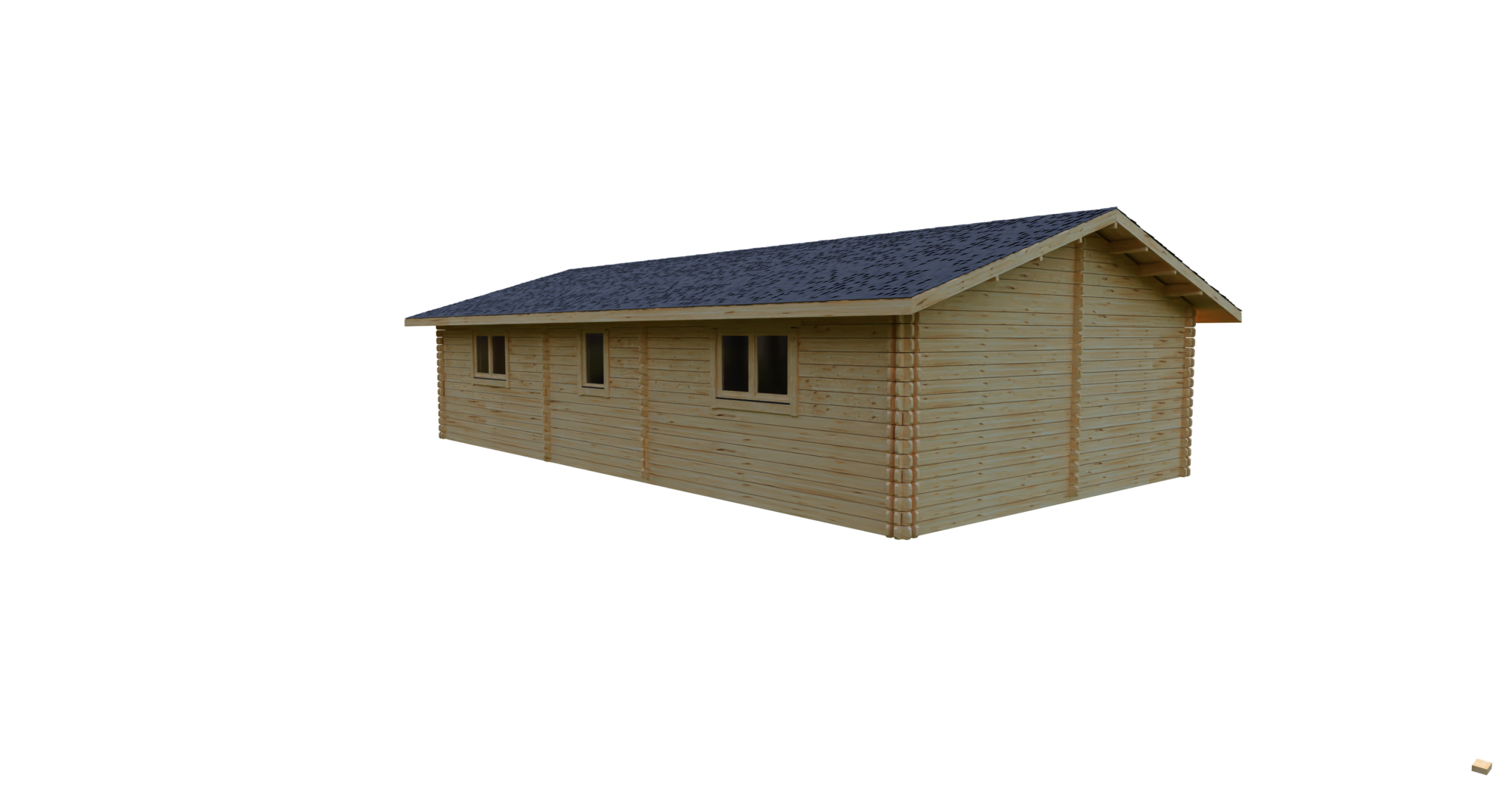

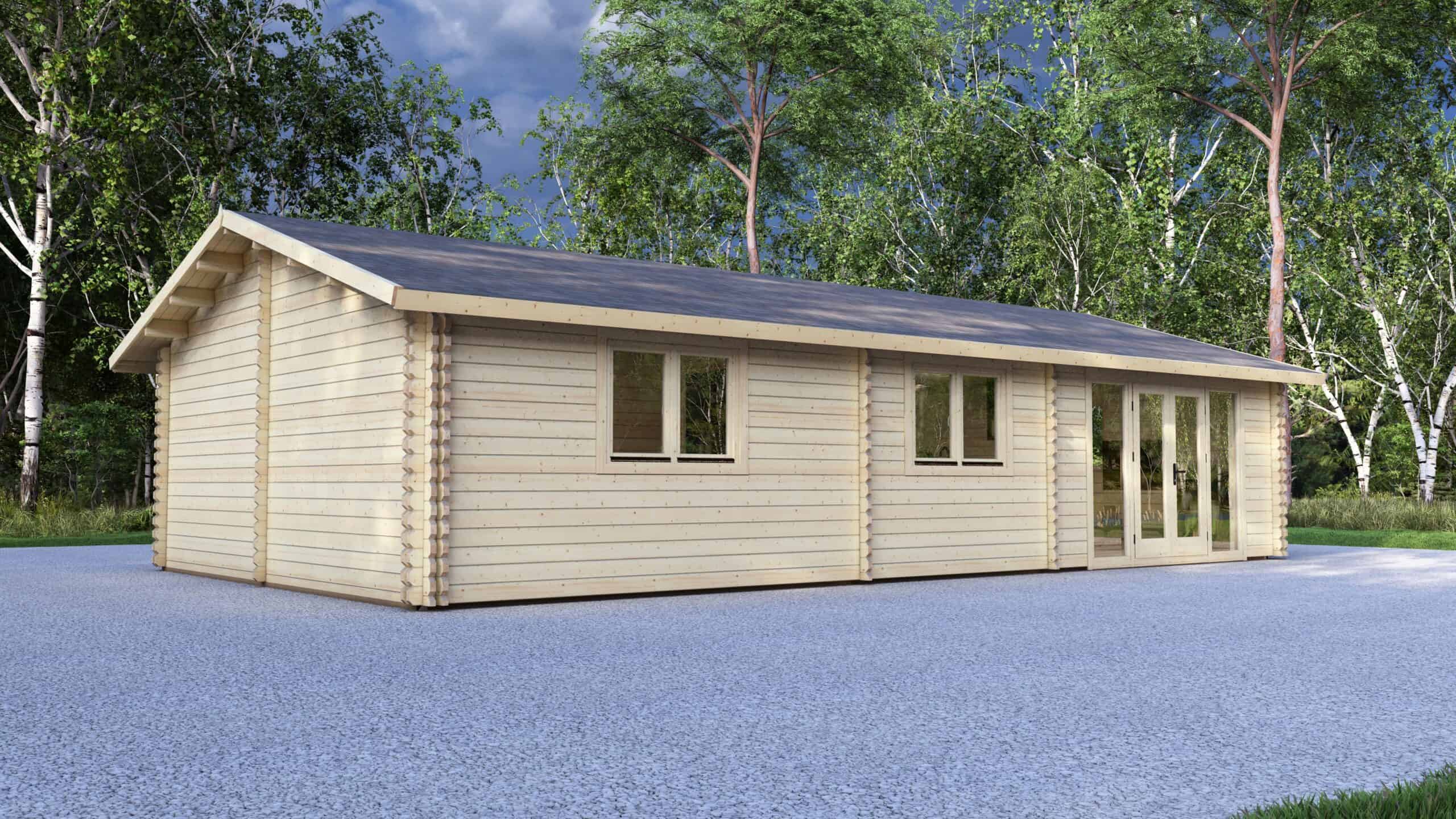

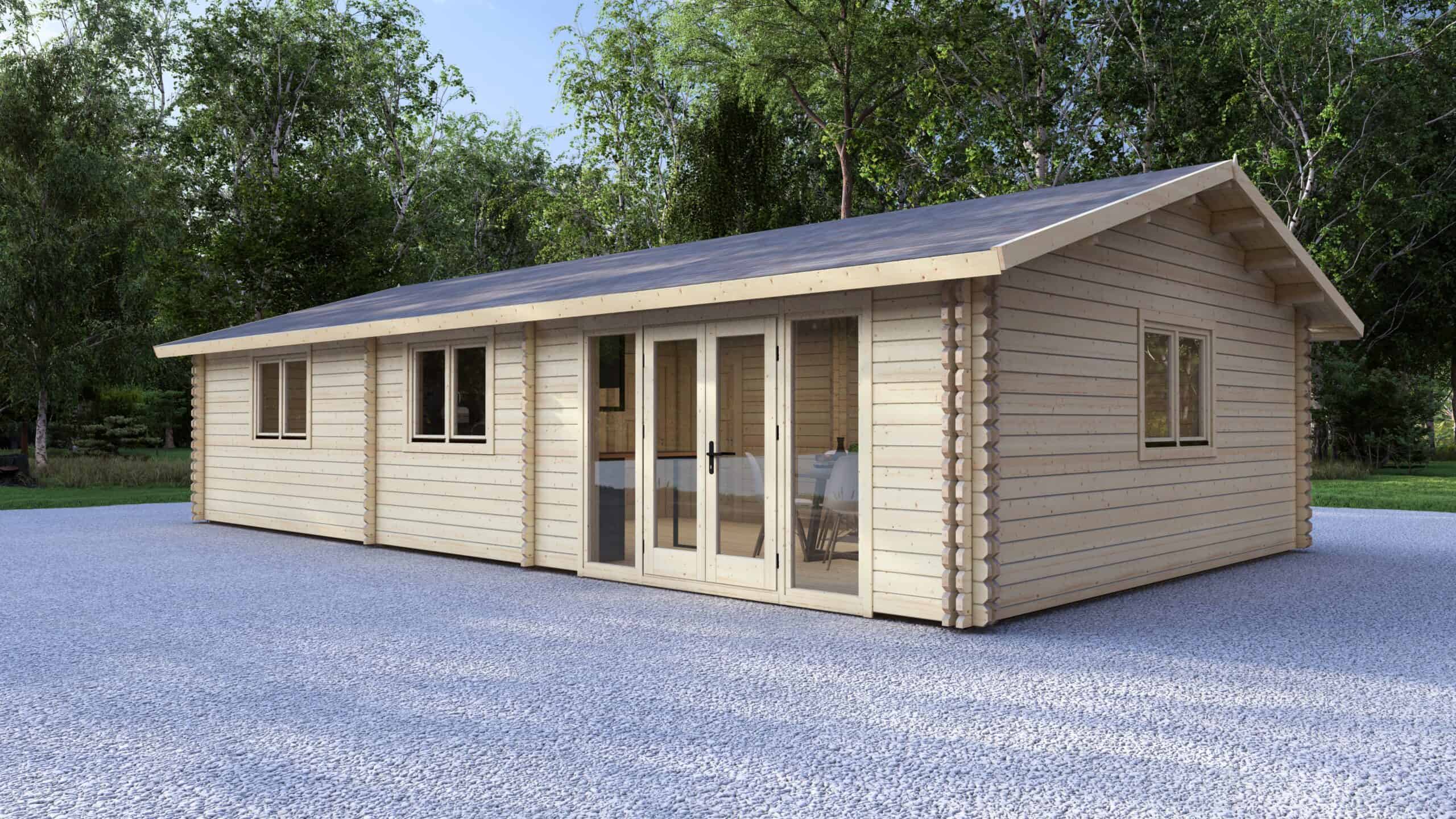

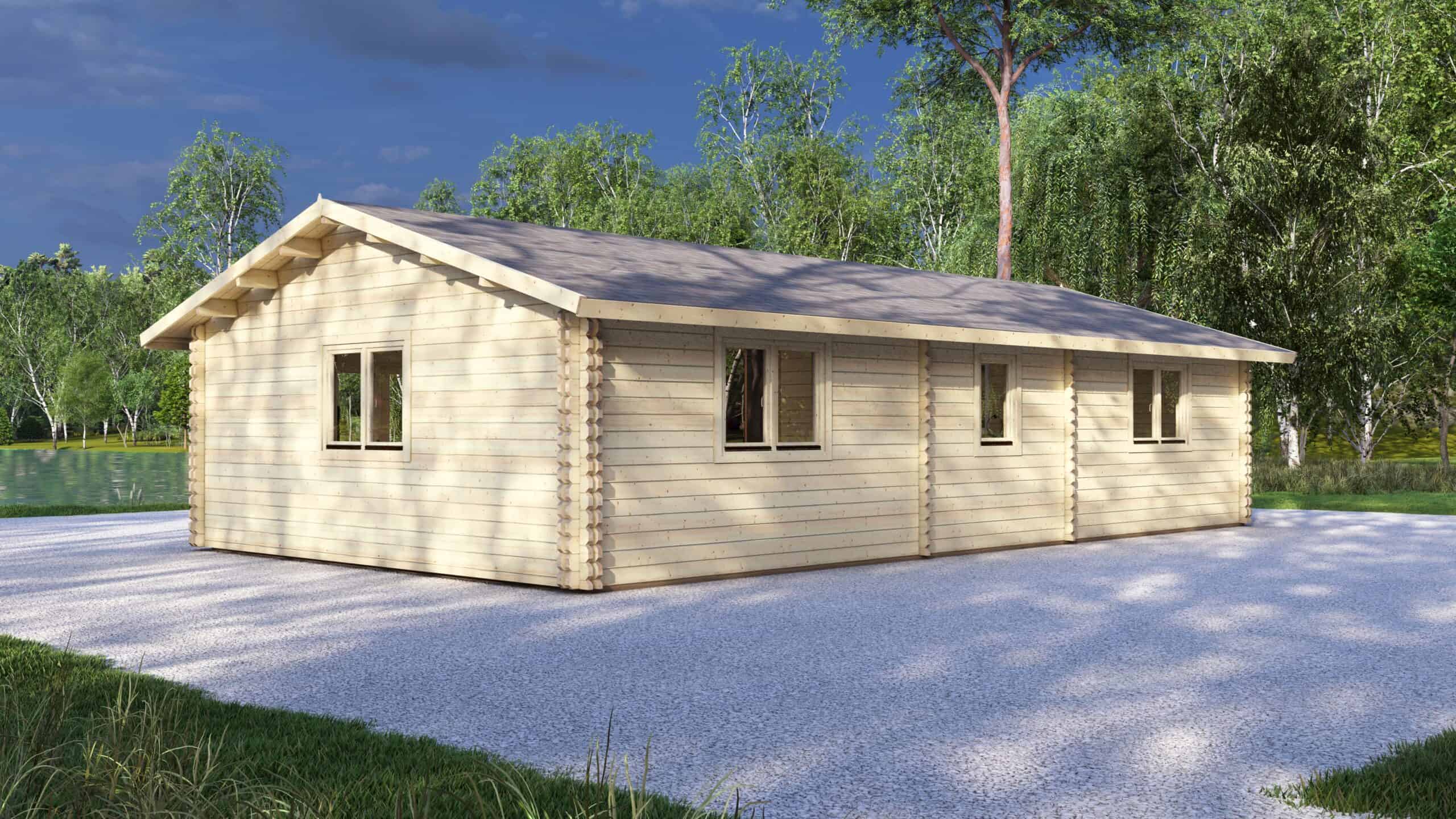

Eurodita Twin Skin two bed log cabin 11x6m
The Eurodita Twin Skin two bed log cabin 11x6m delivers an accommodation project route subject to local-authority review, with thermal specification confirmed at quotation stage.
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for Eurodita Twin Skin two bed log cabin 11x6m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

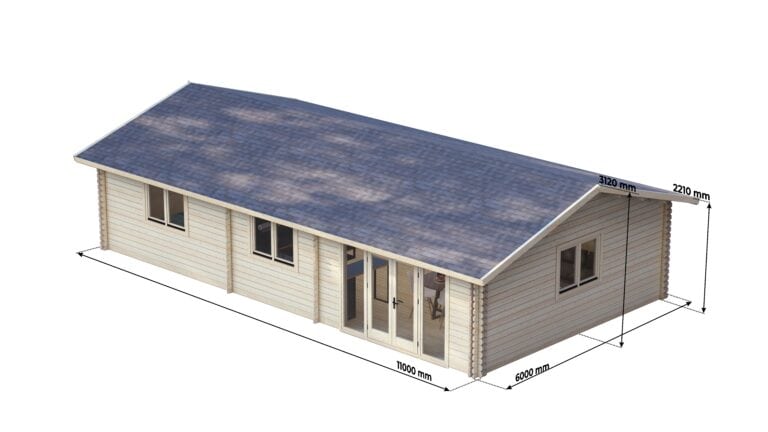

| External dimensions | 11 x 6 m |
| External footprint area | 66 m² |
| Eaves height | 220 cm |
| Ridge height | 312 cm |
| Storeys | 1 |
| Base | External footprint 11 x 6 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall build-up | 44-100-44 mm: 44 mm outer skin, 100 mm cavity, 44 mm inner skin. 188 mm total wall thickness. |
| Other wall options | The other approved twin-skin build-ups and solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | The 100 mm cavity is the space insulation occupies. Eurodita supplies the structure prepared for insulation, not the insulation material, so the cavity dimension is not an insulation specification. |
| Availability | Build-up availability and suitability for a given project and destination are confirmed per order. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 11 x 6 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 2 bedroom log cabins range.
About This Eurodita Twin Skin two bed log cabin 11x6m
Product Overview
The Eurodita Twin Skin two bed log cabin 11x6m delivers an accommodation project route subject to local-authority review, with thermal specification confirmed at quotation stage. This double-wall construction cabin suits extended-season accommodation, managed-site developments, and holiday retreat projects. The twin skin design incorporates insulation between walls for weather-protection details and project comfort review.
Layout & Configuration

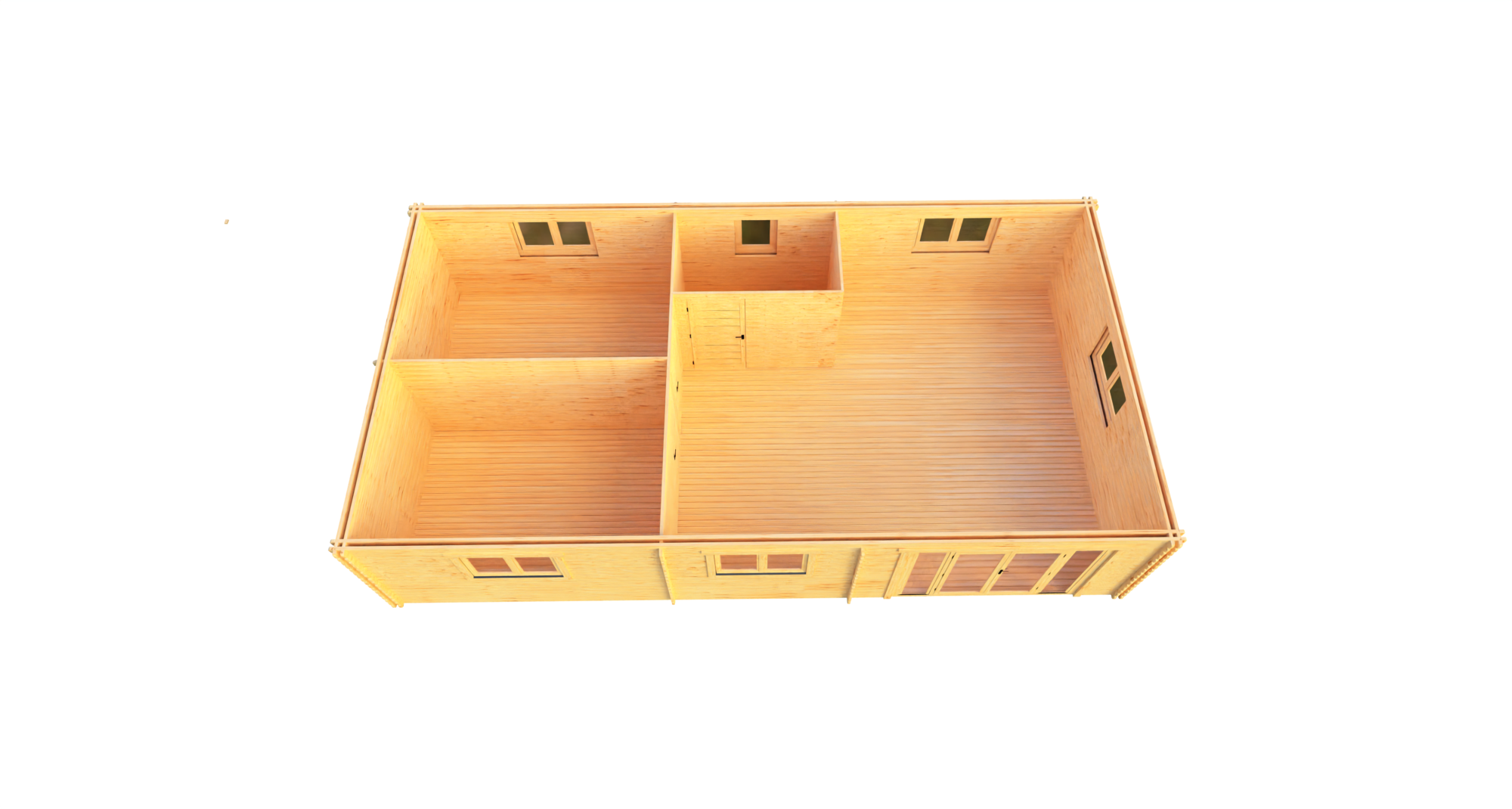

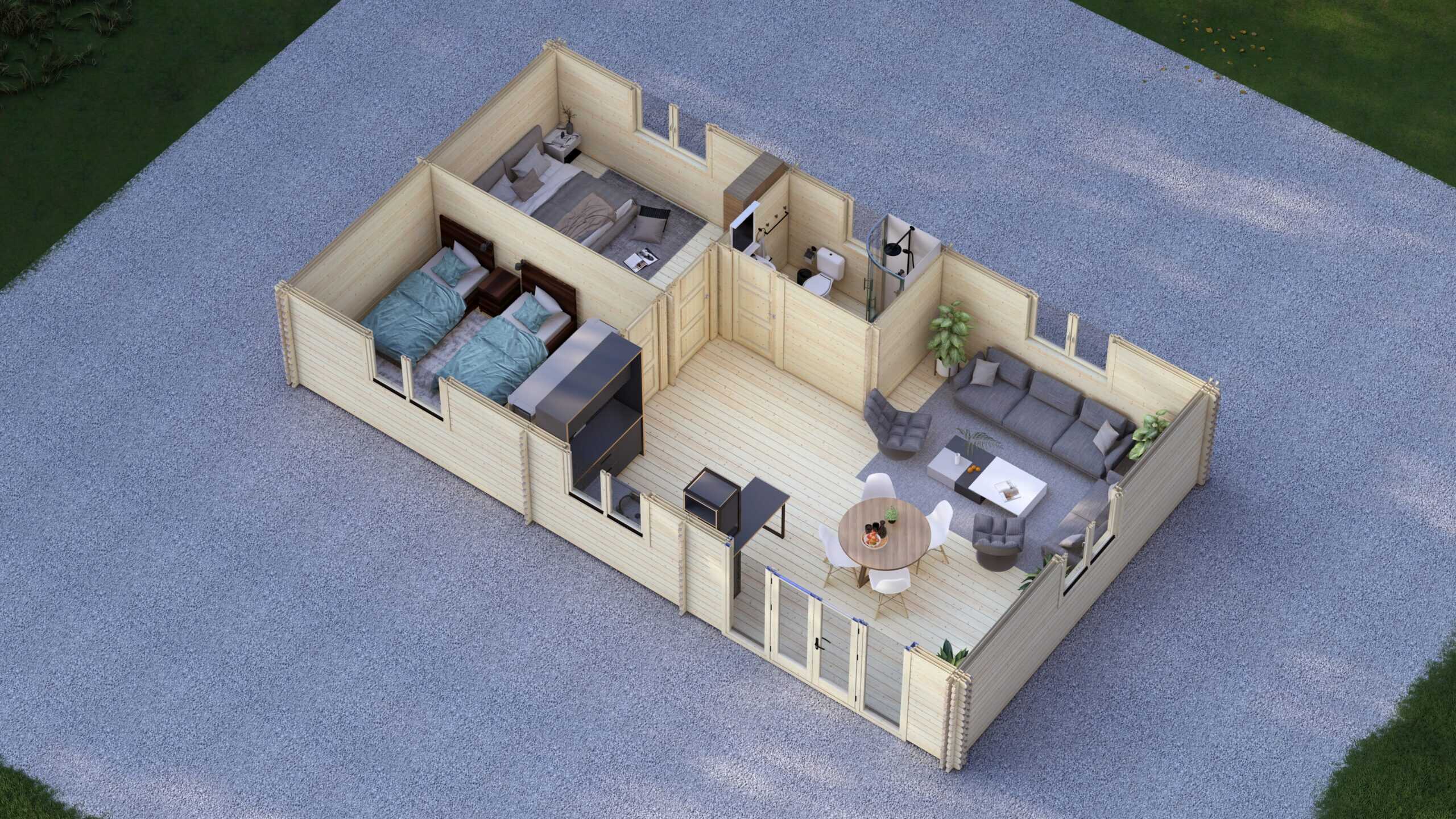

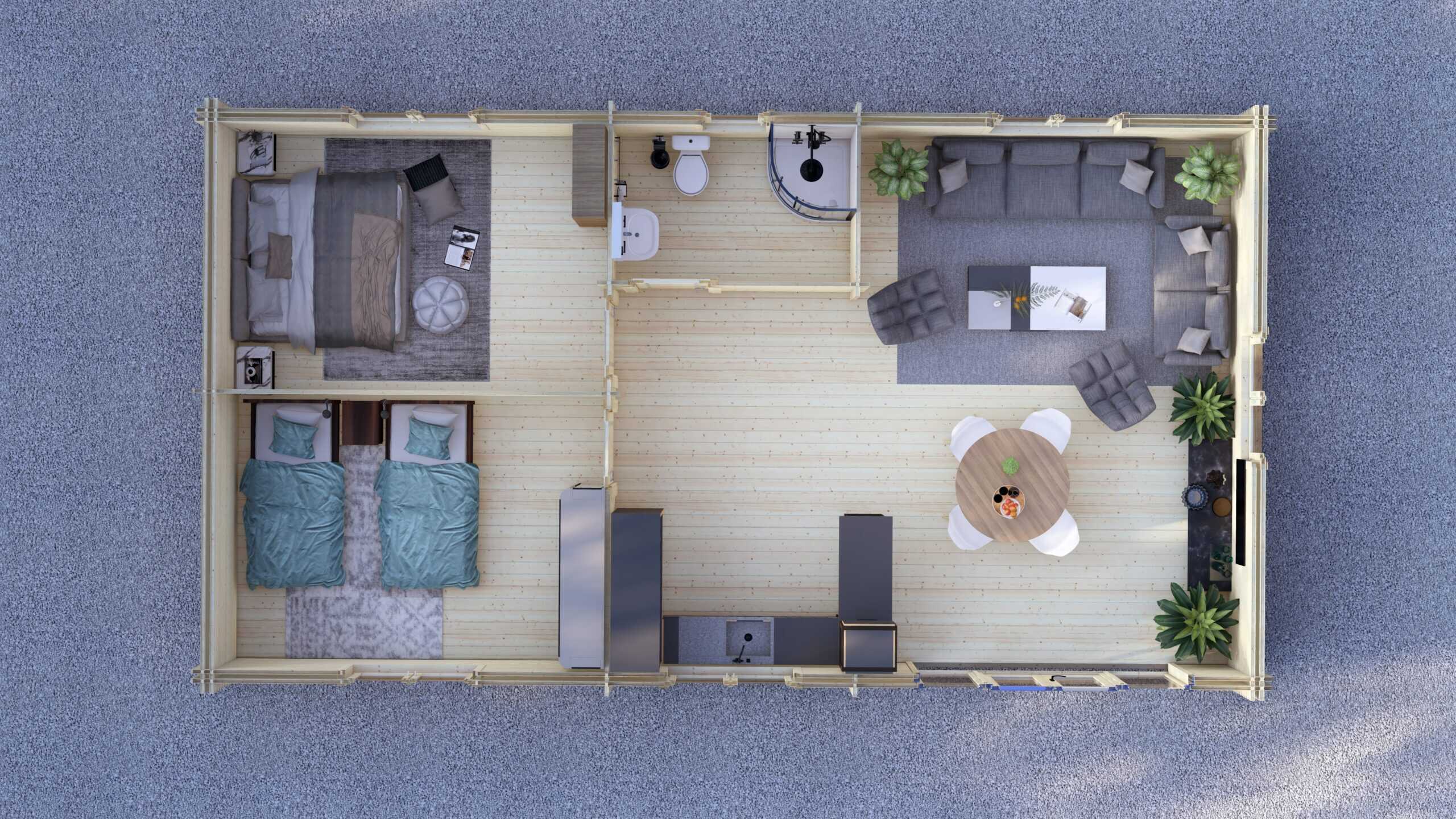

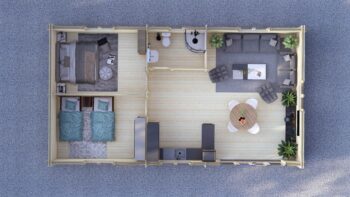

The cabin features two separate bedrooms within the 66m² footprint, maximising accommodation density for multi-occupancy requirements. The open-plan living area connects kitchen and lounge spaces efficiently. High eaves at 220cm ensure comfortable headroom throughout, while the configuration accommodates families or project users.
Timber & Construction
Construction utilises Northern European timber with 44-100-44mm twin skin wall build-up, with insulation scope confirmed per quote. The cavity is the space insulation occupies. Eurodita supplies the timber structure prepared for insulation and does not normally supply the insulation materials, so a cavity dimension does not by itself specify insulation. These dimensions do not by themselves establish thermal, fire, structural or project suitability. Interlocking tongue-and-groove joints ensure assembly stability and weather sealing. Double-glazed timber joinery includes standard profile windows and doors throughout, maintaining consistent aesthetic and specification standards across all openings.
Floor & Roof
The floor system incorporates 28mm boards over pressure-treated bearers for moisture resistance and longevity. Roof construction features 19mm tongue-and-groove boards providing structural decking for weather covering. Storm bracing reinforces the structure against wind-exposure requirements reviewed in project documentation, supporting stability in exposed locations across European markets.
Customisation Options
Wall thickness upgrades accommodate enhanced insulation requirements for colder climates. Triple glazing options improve thermal specification further. Additional partition kits enable room reconfiguration, while veranda extensions increase living space. Contractors can specify upgraded joinery profiles and alternative roof coverings to match project requirements and local project requirements.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita standard terms are EXW from the Eurodita factory. The facility accommodates bespoke modifications and project-specific requirements for developers requiring tailored specifications or volume orders.
Private Label Partnership
Private-label manufacturing enables dealers to market cabins under their own branding with customised documentation and specifications. The partnership includes 3D visualisation services, branded assembly guides, and showroom display programmes. Technical support supports partners can confidently specify and sell accommodation cabins projects to their customer base.
What should dealers confirm before quoting Eurodita Twin Skin two bed log cabin 11x6m?
Eurodita supplies Eurodita Twin Skin two bed log cabin 11x6m as a private-label B2B Twin Skin log cabin with a 11 x 6m footprint and a source-listed Twin Skin build-up of 44-100-44mm. Before quoting, dealers should confirm the quote stage package, layout, openings, selected wall or insulation scope, foundation interface, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.
Warranty & Support
All structural timber includes ten-year warranty coverage against defects and weather damage. Pressure treatment protects against moisture and pest damage throughout the warranty period. Comprehensive assembly documentation and technical support ensure contractors can complete installation efficiently while maintaining warranty compliance and structural performance.
