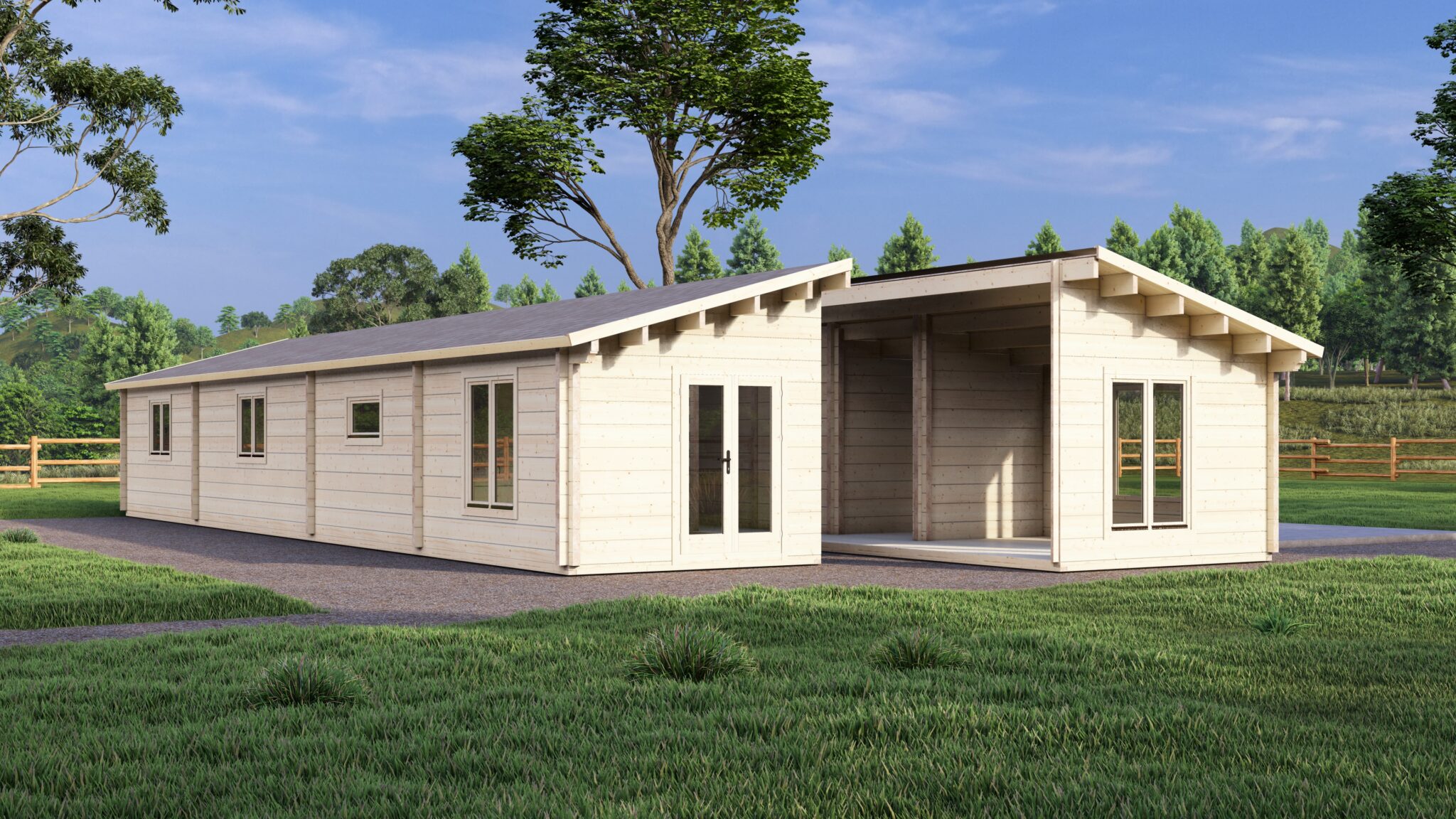

Mobile Log Home 4 Bed 18×6.8m

Product Overview

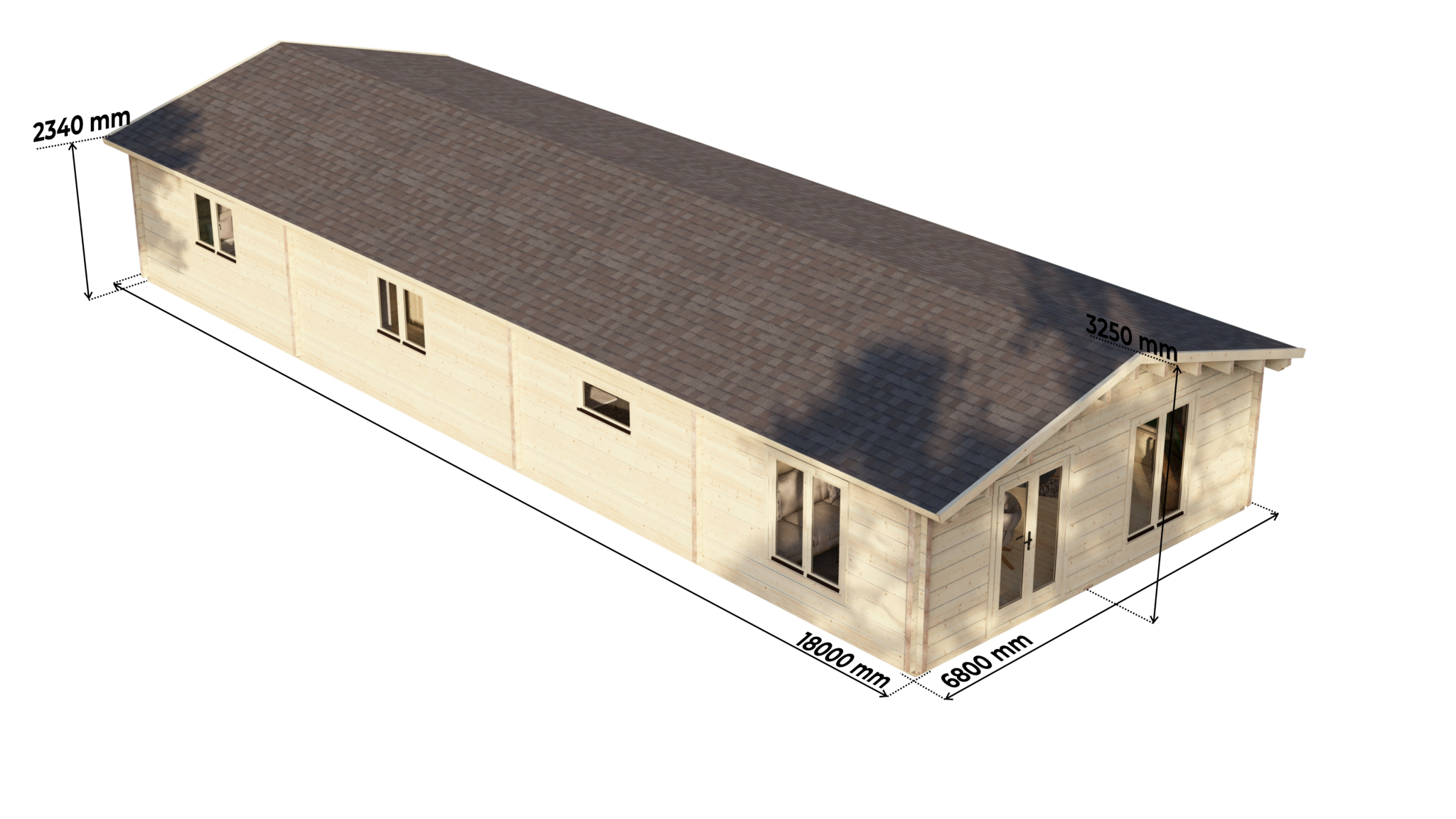

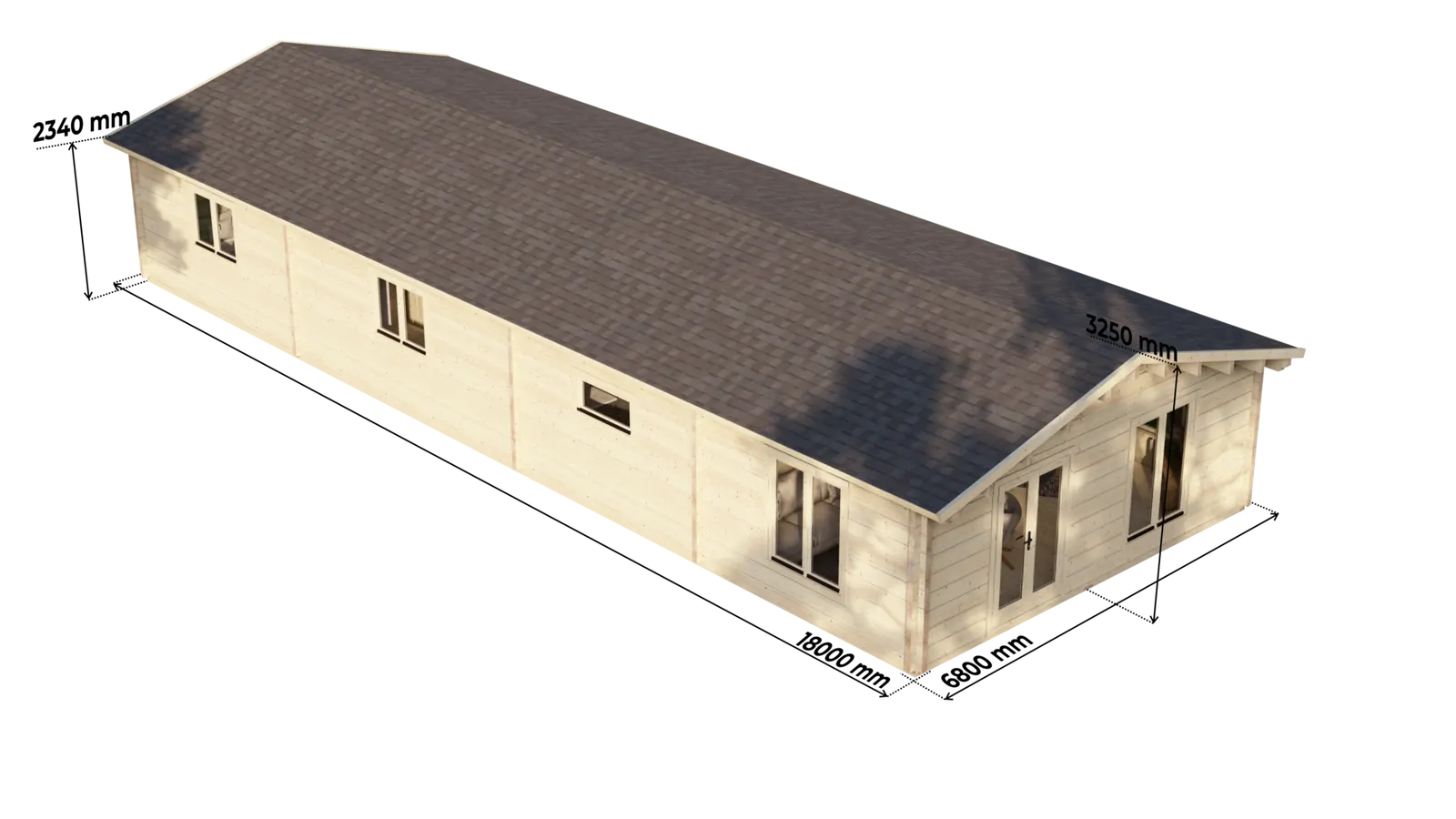

This four-bedroom mobile log home delivers 122m² of internal floor area within a 18x6.8m footprint configured around UK Caravan Sites Act 1968 (as amended by SI 2006/2374) dimensional criteria for dealer and local-authority review. Positioned as a large-format accommodation model, this four-bedroom configuration supports holiday-park and managed-site accommodation briefs where room separation, storage planning and shared living areas need to be reviewed at specification stage. The full-height 297cm ridge construction provides generous interior volume while keeping transport planning subject to the confirmed route and project documentation.

Layout and Configuration

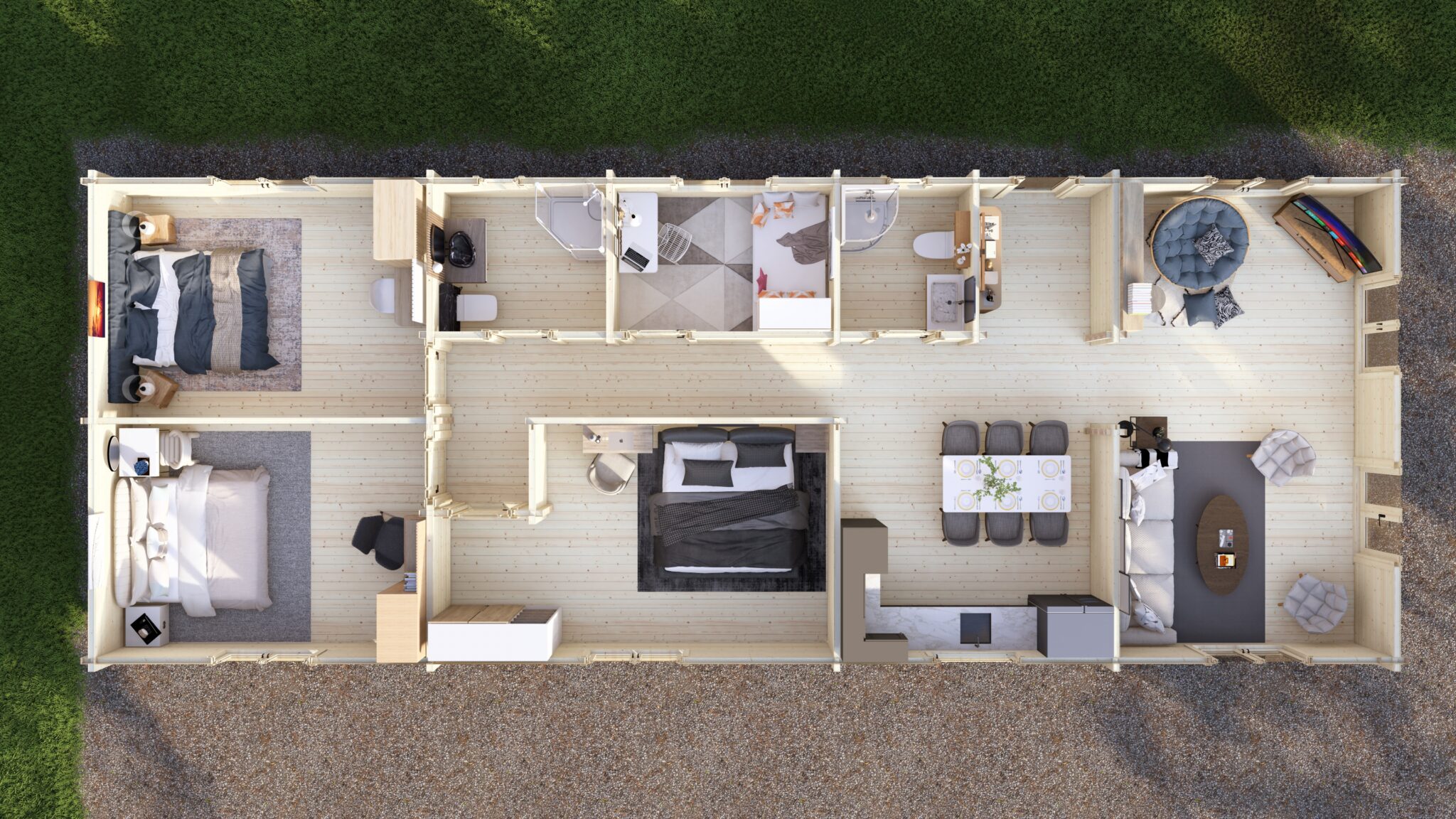

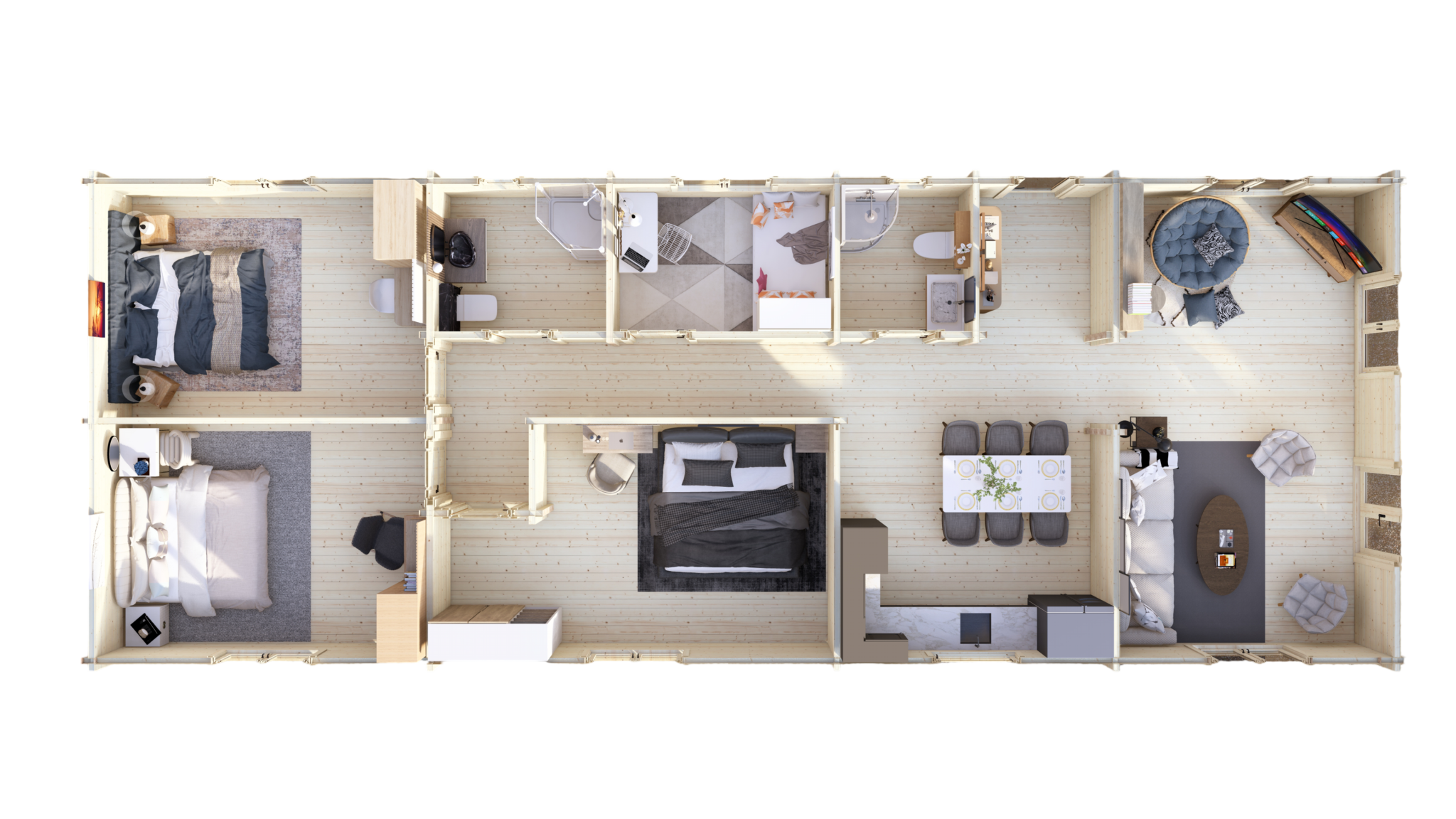

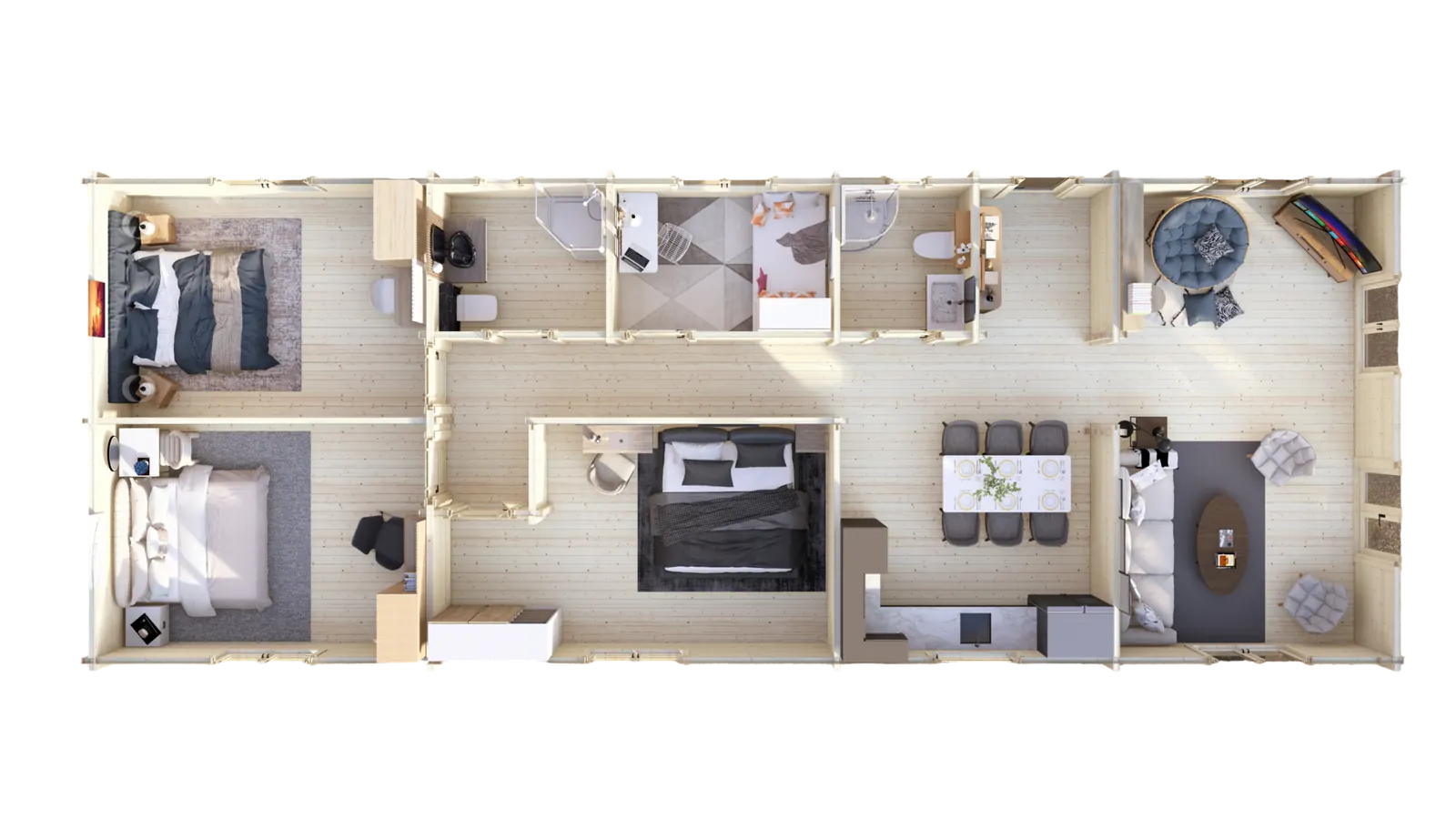

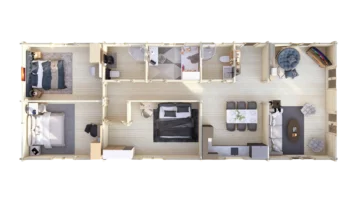

The 18x6.8m floor plan accommodates four bedrooms, a family bathroom, an en-suite to the principal bedroom, and an expansive open-plan living, dining, and kitchen area. A dedicated hallway provides access to all rooms while maintaining acoustic and visual privacy. The layout supports a separate utility or laundry area, and room dimensions throughout are aligned with project specification expectations. The standard 220cm eaves height ensures comfortable headroom throughout, with the apex roof profile creating additional storage opportunities above partition walls.

Timber and Construction

Engineered glulam timber, produced from spruce lamellas, forms 88mm thick exterior walls using precision-machined tongue-and-groove profiles for assembly integrity and weather-exposure review. Double-glazed timber joinery incorporates insulated door and window frames throughout the structure. The four-bedroom configuration requires heavy structural engineering with reinforced connections at critical load points. Additional internal bracing and engineered wall-to-roof connections accommodate the extended spans. Multiple internal load-bearing walls create a robust structural grid that distributes forces efficiently across the full footprint.

Floor and Roof

Pressure-treated 13.5×13.5cm glulam floor bearers support 28mm tongue-and-groove floor boarding specified for project-use requirements across the full 122m² floor plate. Roof construction utilises 19mm tongue-and-groove boards providing a solid substrate for insulation and selected roof covering systems. The engineered floor system for a four-bedroom structure employs closer bearer spacing and additional cross-bracing to accommodate the maximum span dimensions. Roof construction utilises reinforced rafter connections and a continuous engineered ridge beam, designed for the structural demands of a full-large-format roof spanning the complete building width.

Customisation Options

Project specifications can include insulation, glazing, door, and window options for dealer-led requirements. Eurodita provides product dimensions and technical data for project checks; final use and local authority requirements are confirmed by the dealer or project team. Four-bedroom models support full architectural customisation including multiple bathroom configurations, dedicated laundry room provision, and flexible principal suite arrangements. Kitchen specification can be adapted to the dealer layout brief, including island unit accommodation. Room sizing can be adjusted across all four bedrooms to match target market preferences.

Manufacturing and Delivery

Production at the Eurodita facility in Kaunas, Lithuania incorporates Hundegger CNC cutting systems and Nardi kiln-drying technology. Eurodita processes approximately 150,000m³ of Nordic spruce annually across its timber product operations. Lead times are confirmed per order according to specification, order volume, and production planning. The four-bedroom package requires multi-vehicle delivery coordination and advance site logistics planning including crane access assessment. Eurodita provides dedicated transport management for flagship models, ensuring delivery sequencing aligns with the phased assembly programme spanning ten to fourteen working days.

Private Label Partnership

Private-label manufacturing enables dealers to supply this mobile home under their own brand identity with no visible Eurodita branding on the delivered product. Partner support includes customised assembly documentation, branded customer communications, and 3D visualisation tools for showroom and catalogue presentation. Flexible order volumes accommodate both individual project requirements and ongoing supply agreements for holiday park and accommodation operators.

Warranty and Support Eurodita provides 10-year anti-rot warranty documentation for eligible timber components, with scope, exclusions, treatment, installation and maintenance requirements confirmed in the order documentation.

What should dealers verify before quoting Mobile Log Home 4 Bed 18x6.8m?

Eurodita manufactures Mobile Log Home 4 Bed 18x6.8m as an 88mm engineered glulam mobile log home for private-label B2B partners. Before quoting, dealers should confirm the project route against Eurodita's Mobile Log Homes B2B range, the BS 3632 project-review route where relevant, site-licence or local-authority checks, layout changes, services, documentation scope and EXW Kaunas logistics. Final specification suitability, siting route and approval remain with the dealer, site operator, local authority or appointed assessor.
