Mobile Log Home 3 Bed 19×6.6m
Technical data sheet
Specification recorded for Mobile Log Home 3 Bed 19x6.6m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 19 x 6.6 m |
| External footprint area | 125 m² |
| Eaves height | 234 cm |
| Ridge height | 299 cm |
| Base | External footprint 19 x 6.6 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof type | Apex |
| Roof form | Apex |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 19 x 6.6 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the mobile log homes range.

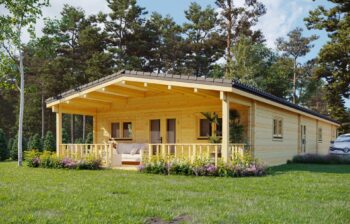

About This Mobile Log Home 3 Bed 19×6.6m
Product Overview
This three-bedroom mobile log home delivers 125m² of living space within a 19x6.6m footprint configured around UK Caravan Sites Act 1968 (as amended by SI 2006/2374) dimensional criteria for dealer and local-authority review. The substantial three-bedroom floor plan gives dealers a wide three-bedroom option for park and managed-site briefs where separate bedrooms, bathroom provision and shared living space are part of the specification review. The full-height 297cm ridge construction provides generous interior volume while keeping transport planning subject to the confirmed route and project documentation.
Layout and Configuration

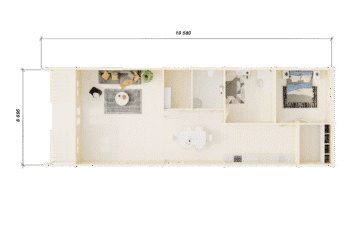

The 19x6.6m plan delivers three spacious bedrooms, a family bathroom, and a substantial open-plan living, dining, and kitchen area. The generous footprint supports en-suite provision for the principal bedroom, a separate utility area, and hallway storage. Room proportions support larger accommodation briefs where project requirements are confirmed. The standard 220cm eaves height ensures comfortable headroom throughout, with the apex roof profile creating additional storage opportunities above partition walls.
Timber and Construction
Northern European timber forms 88mm thick exterior walls using precision-machined tongue-and-groove profiles for assembly integrity and weather-exposure review. Double-glazed timber joinery incorporates insulated door and window frames throughout the structure. The larger span dimensions of a three-bedroom layout demand additional project review at wall intersections and roof bearing points. Internal load-bearing walls supplement the exterior envelope, supporting roof build-up review across multiple support lines for dimensional stability.
Floor and Roof
Pressure-treated 13.5×13.5cm glulam floor bearers support 28mm tongue-and-groove floor boarding specified for project-use requirements across the full 125m² floor plate. Roof construction utilises 19mm tongue-and-groove boards providing a solid substrate for insulation and selected roof covering systems. The reinforced bearer layout beneath a three-bedroom floor plan incorporates additional support lines at partition wall positions and high-traffic zones. Roof construction addresses the larger span with closer rafter spacing and continuous ridge beam support, supporting consistent performance under sustained project loading and regional snow-load review requirements.
Customisation Options
Glulam wall-profile and insulation options are confirmed at quote stage according to the project brief, destination climate and local-authority review route. Additional insulation packages, triple-glazing options, and alternative door and window configurations are specified for the destination climate and local project review route. Three-bedroom configurations provide room layout flexibility including family bathroom positioning options, utility room integration, and alternative bedroom sizing to prioritise a principal suite. Additional bathroom provisions and internal storage solutions adapt the standard layout to destination-market layout expectations.
Manufacturing and Delivery
Production at the Eurodita facility in Kaunas, Lithuania uses Hundegger CNC cutting systems and Nardi kiln-drying technology for Northern European timber components. Production and logistics timing is confirmed per order according to specification, order volume, factory planning, transport route and site-access needs. Multi-section transport planning for three-bedroom models coordinates delivery sequencing with site assembly schedules. Advance logistics consultation ensures access route suitability and crane positioning where required. Assembly coordination spans seven to ten working days with a dedicated crew.
Private Label Partnership
Private-label manufacturing enables dealers to supply this mobile home under their own brand identity with no visible Eurodita branding on the delivered product. Partner support includes customised assembly documentation, branded customer communications, and 3D visualisation tools for showroom and catalogue presentation. Flexible order volumes accommodate both individual project requirements and ongoing supply agreements for holiday-park, managed-site and accommodation operators.
Warranty and Support
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. Technical documentation includes detailed assembly drawings, hardware schedules, foundation guidance, and ongoing maintenance recommendations. The Eurodita sales team handles specification support, project quotations and after-sales technical questions. Three-bedroom mobile homes provide a large-format accommodation product segment for dealers working with project-specific mobile-home briefs.
What should dealers verify before quoting Mobile Log Home 3 Bed 19x6.6m?
Eurodita manufactures Mobile Log Home 3 Bed 19x6.6m as an 88mm engineered glulam mobile log home for private-label B2B partners. Before quoting, dealers should confirm the project route against Eurodita's Mobile Log Homes B2B range, the BS 3632 project-review route where relevant, site-licence or local-authority checks, layout changes, services, documentation scope and EXW Kaunas logistics. Final specification suitability, siting route and approval remain with the dealer, site operator, local authority or appointed assessor.
