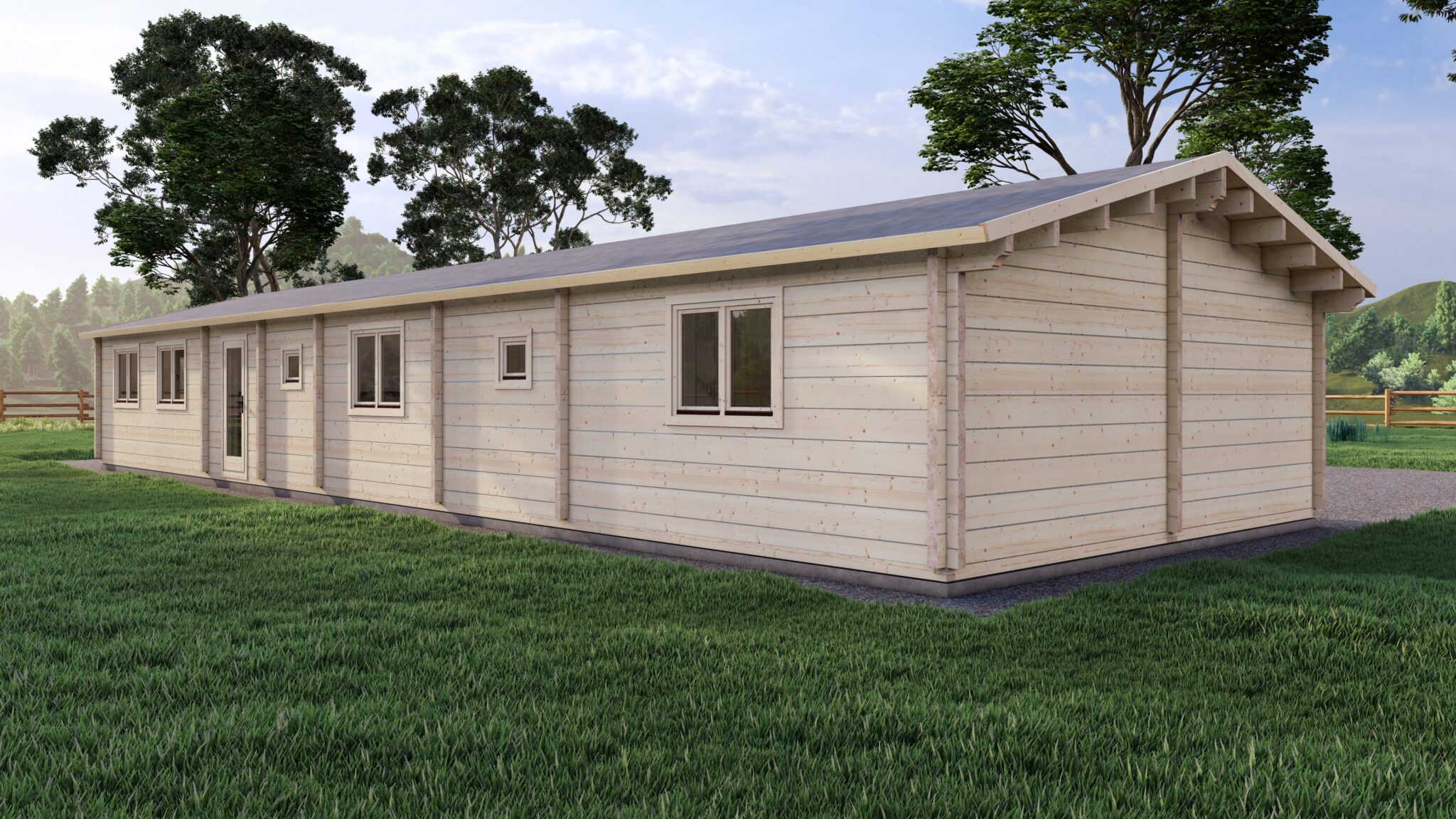

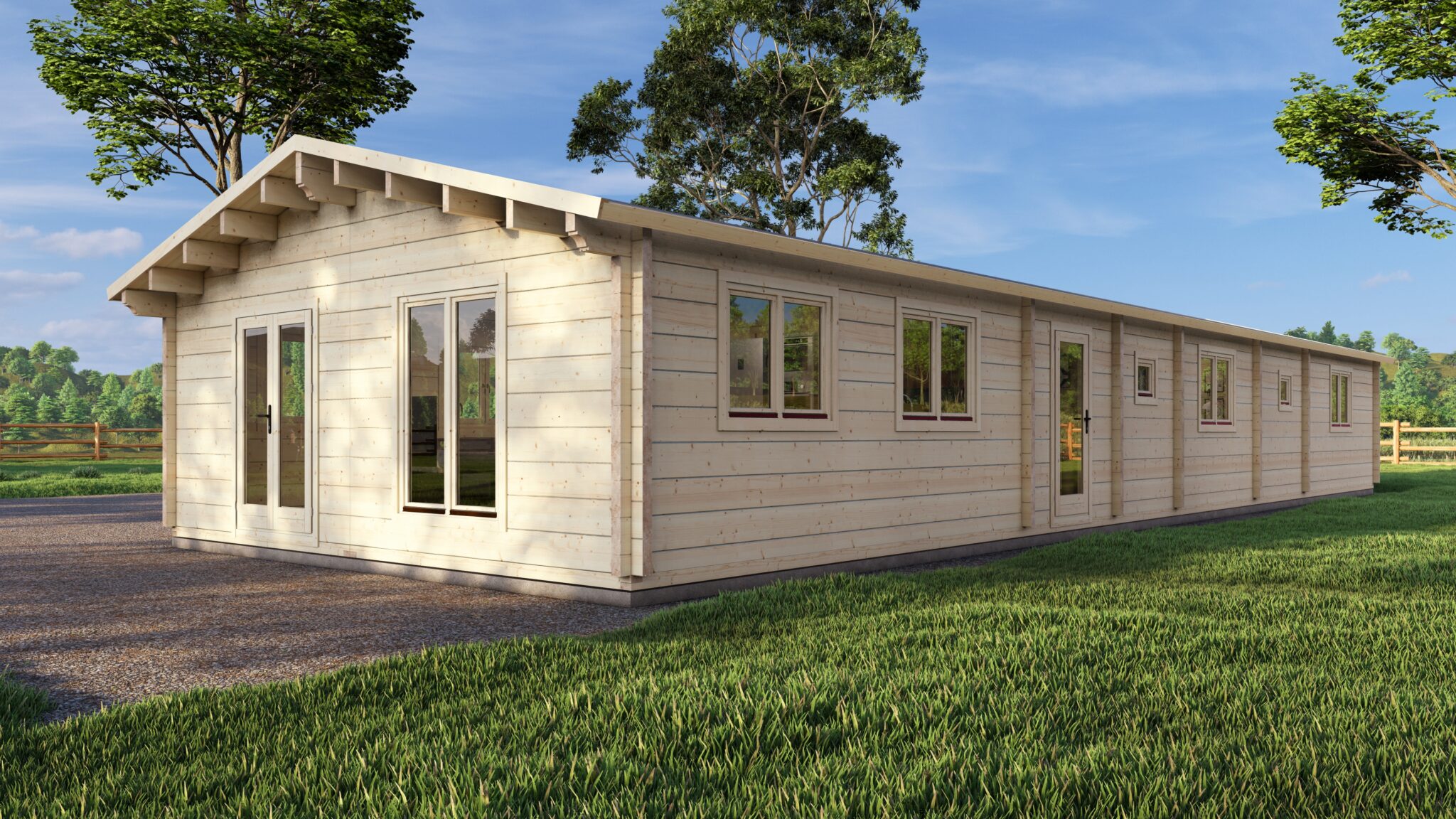

About This Mobile Log Home 4 Bed 20x6m
Product Overview

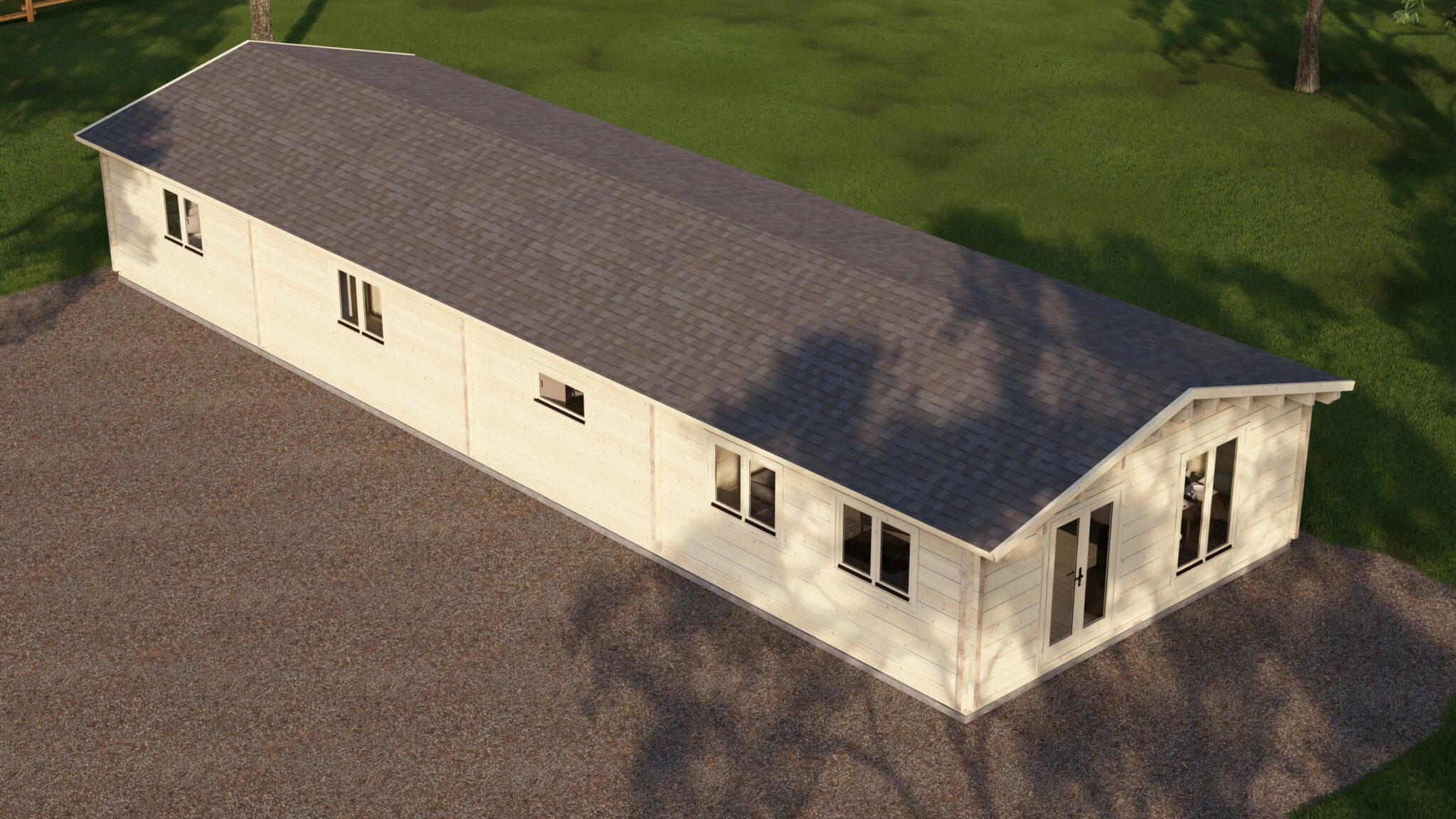

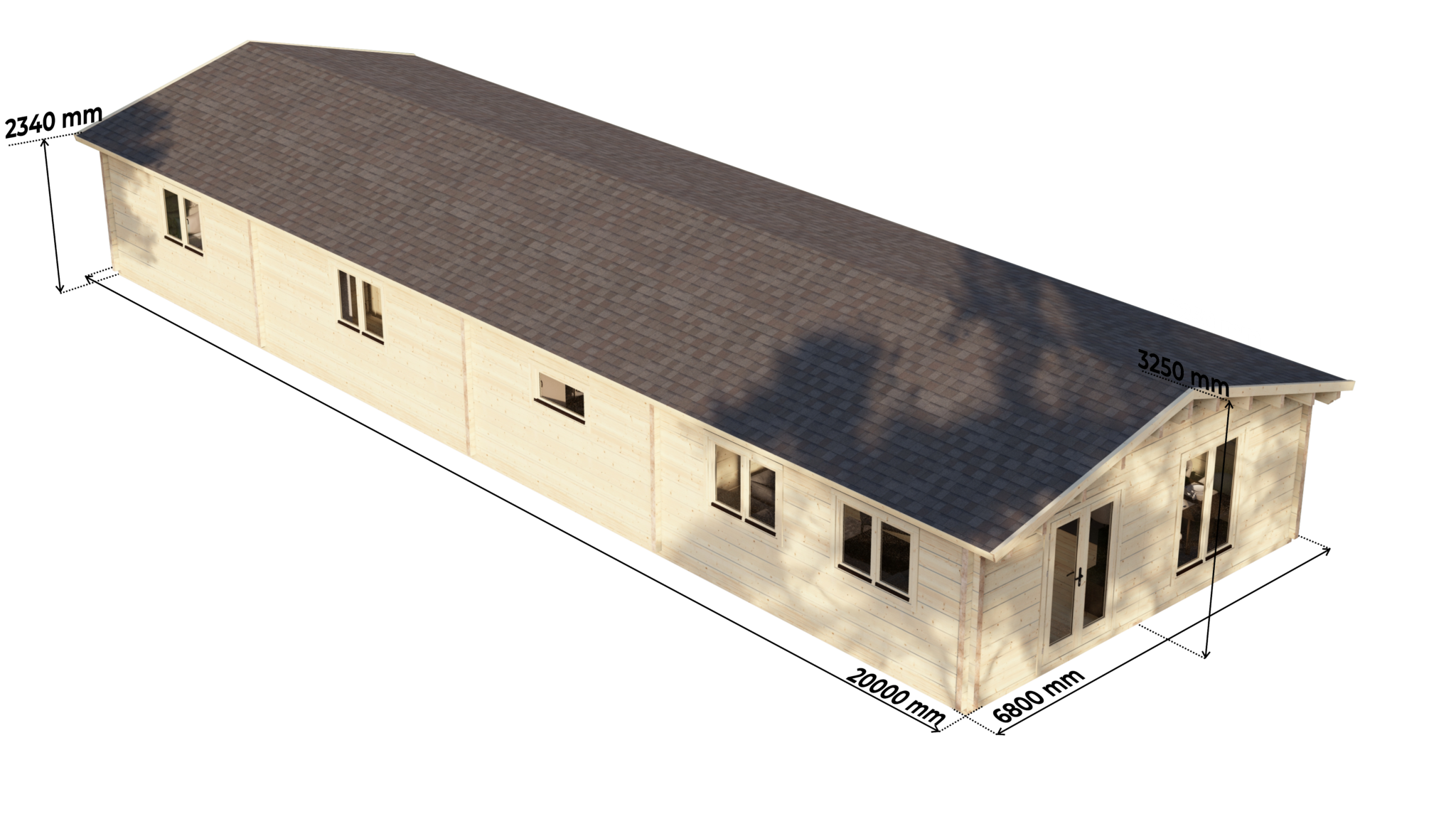

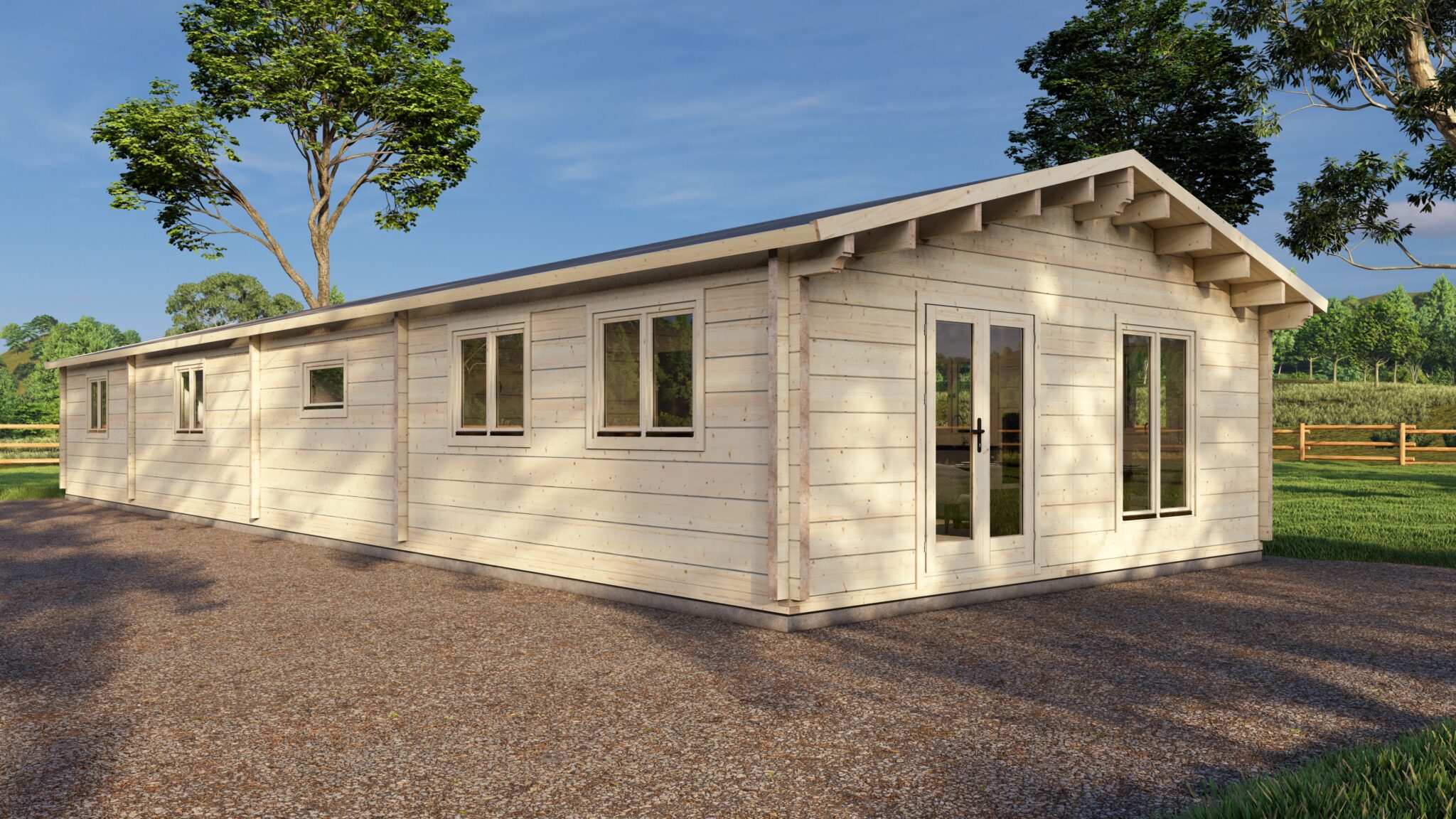

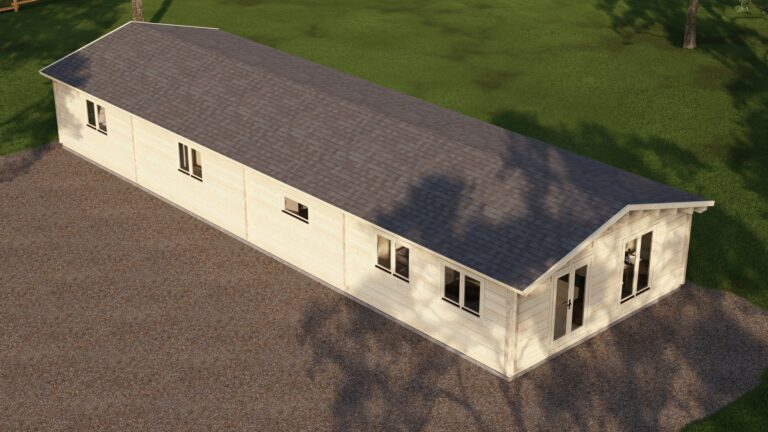

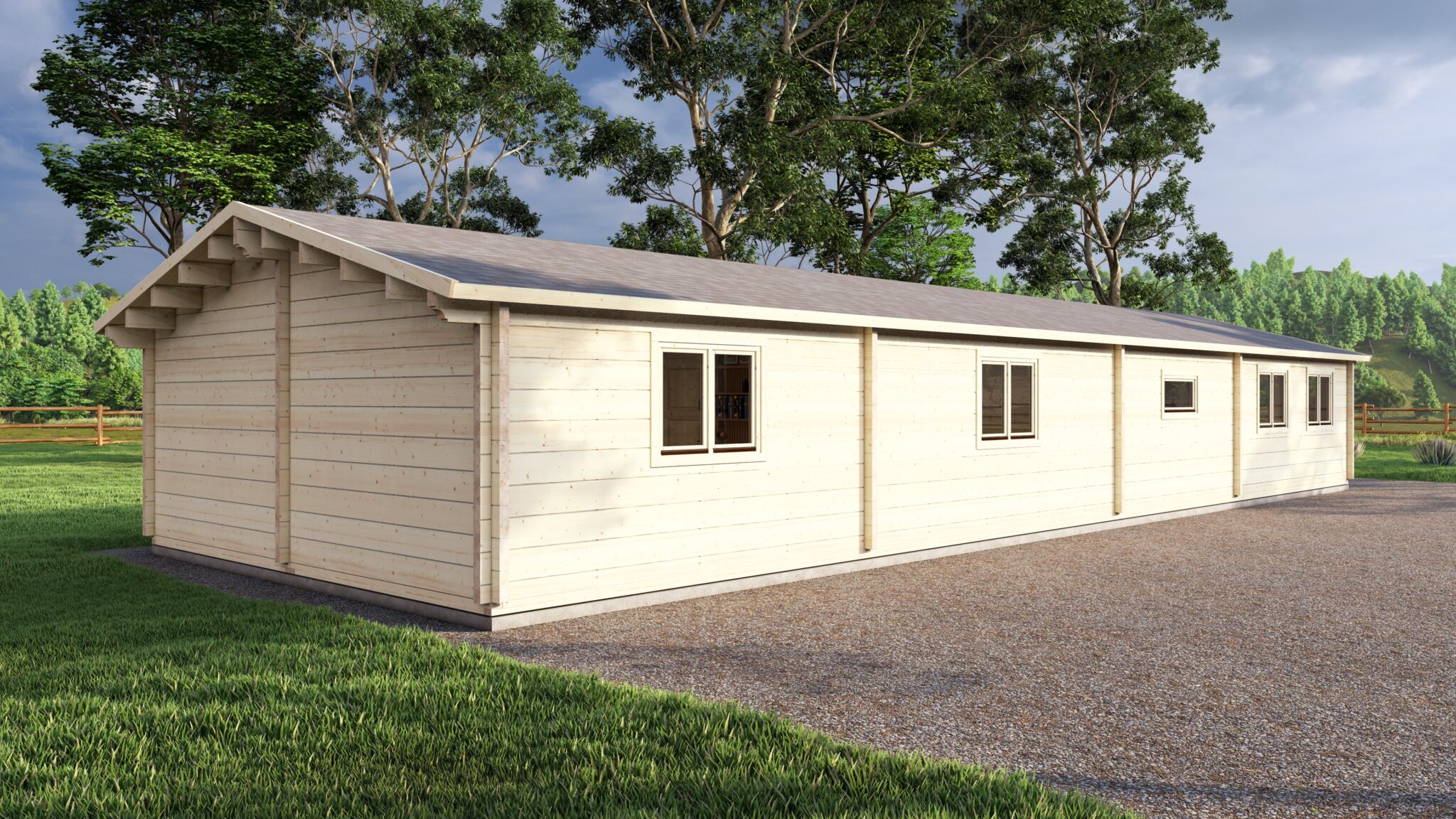

This four-bedroom mobile log home delivers 120m² of internal floor area within a 20x6m footprint configured around UK Caravan Sites Act 1968 (as amended by SI 2006/2374) dimensional criteria for dealer and local-authority review. Positioned as a flagship mobile-home layout, this four-bedroom configuration gives dealers a large-group accommodation option for holiday-park and managed-site briefs where bedroom count, circulation and shared areas need to be planned before quote. The full-height 297cm ridge construction provides generous interior volume while keeping transport planning subject to the confirmed route and project documentation.
Layout and Configuration

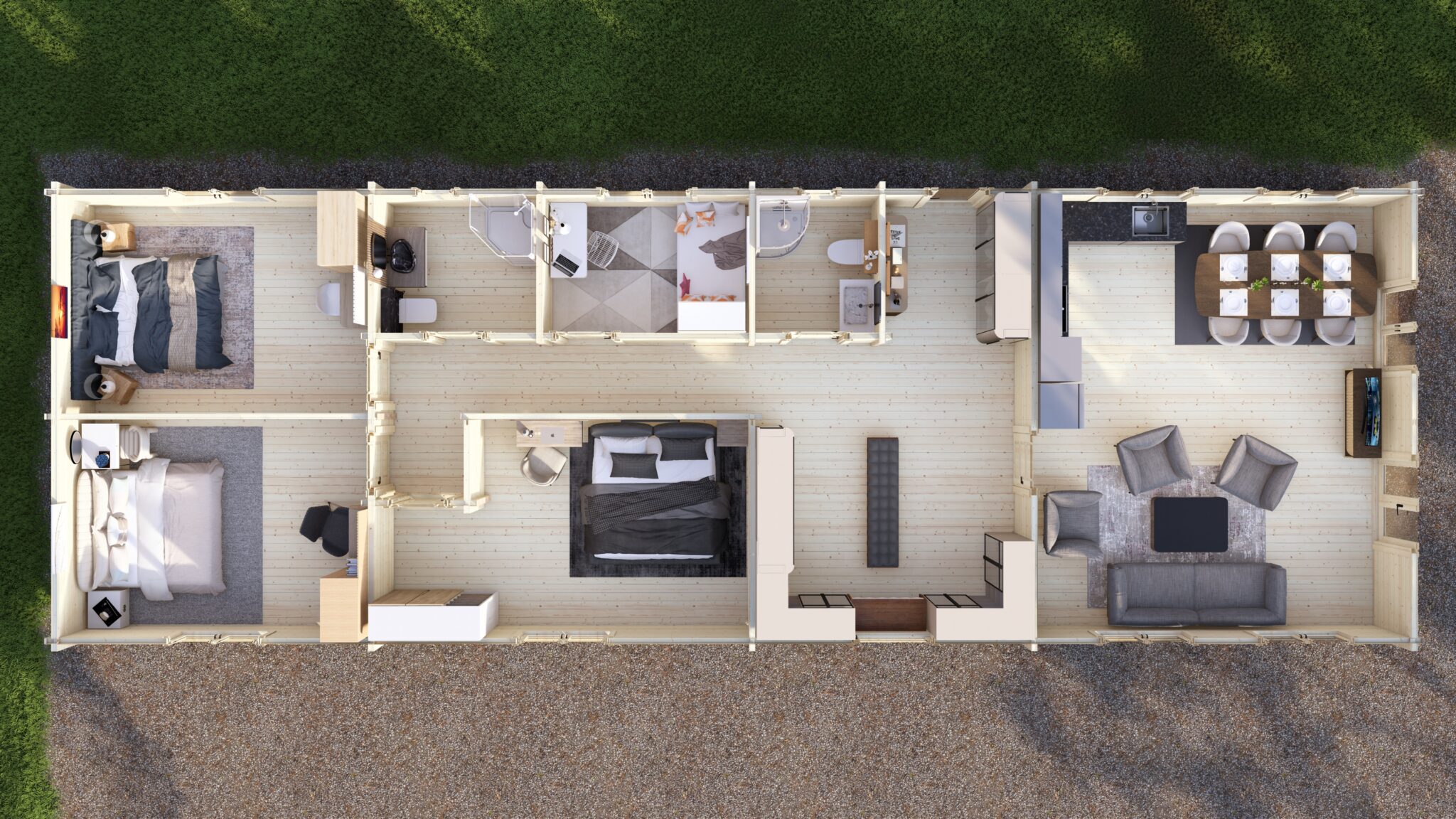

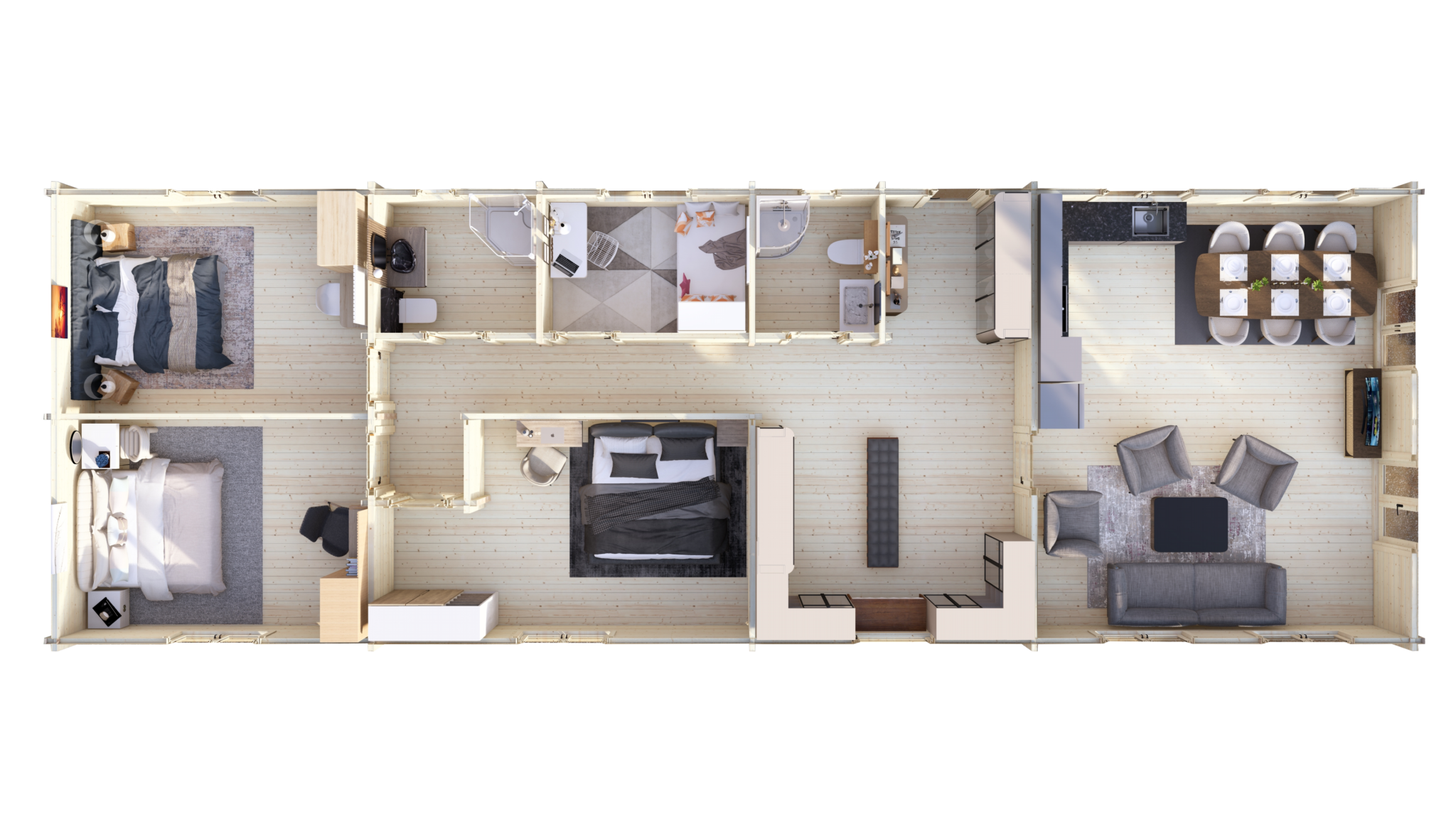

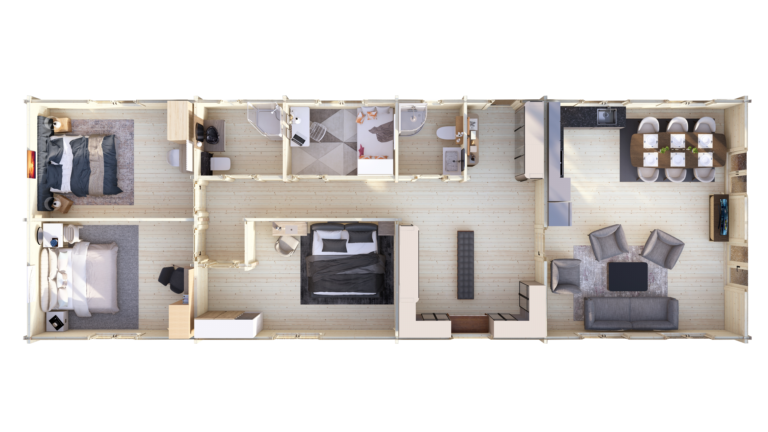

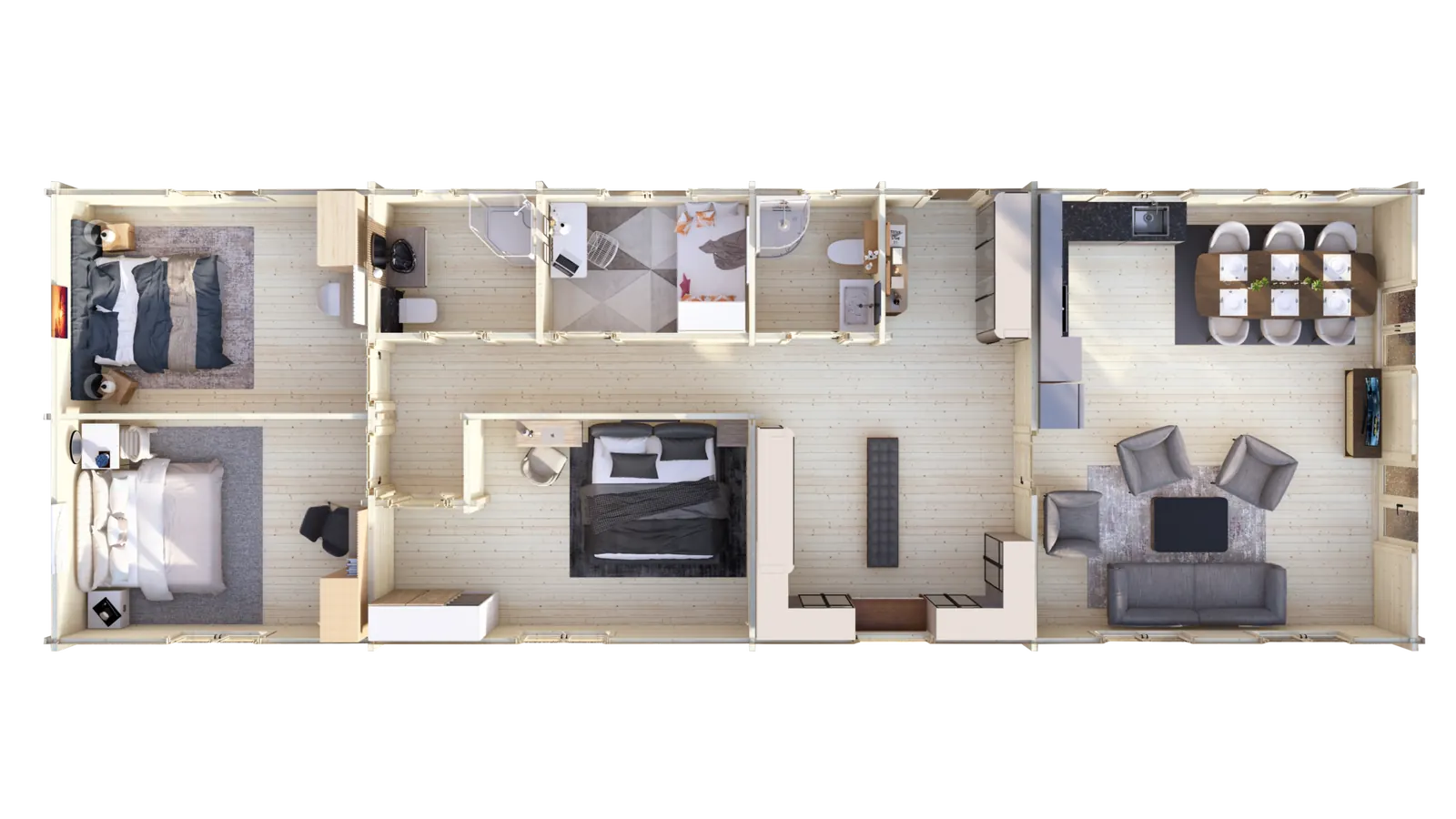

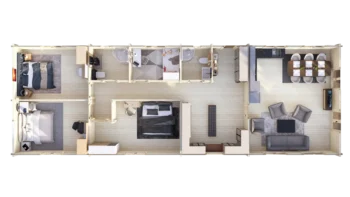

The 20x6m floor plan accommodates four bedrooms, a family bathroom, an en-suite to the principal bedroom, and an expansive open-plan living, dining, and kitchen area. A dedicated hallway provides access to all rooms while maintaining acoustic and visual privacy. The layout supports a separate utility or laundry area, and room dimensions support large accommodation briefs and dealer-led specification review. The standard 220cm eaves height ensures comfortable headroom throughout, with the apex roof profile creating additional storage opportunities above partition walls.
Timber and Construction
Slow-grown northern European spruce forms 88mm thick exterior walls using precision-machined tongue-and-groove profiles for assembly integrity and weather-exposure review. Double-glazed timber joinery incorporates insulated door and window frames throughout the structure. The four-bedroom configuration requires heavy structural engineering with reinforced connections at critical load points. Additional internal bracing and engineered wall-to-roof connections accommodate the extended spans. Multiple internal load-bearing walls create a robust structural grid that distributes forces efficiently across the full footprint.
Floor and Roof
Pressure-treated 13.5×13.5cm glulam floor bearers support 28mm tongue-and-groove floor boarding designed for intensive accommodation-use loading across the full 120m² floor plate. Roof construction utilises 19mm tongue-and-groove boards providing a solid substrate for insulation and selected roof covering systems. The engineered floor system for a four-bedroom structure employs closer bearer spacing and additional cross-bracing to accommodate the maximum span dimensions. Roof construction utilises reinforced rafter connections and a continuous engineered ridge beam, designed for the structural demands of a full-size mobile-home roof spanning the complete building width.
Customisation Options

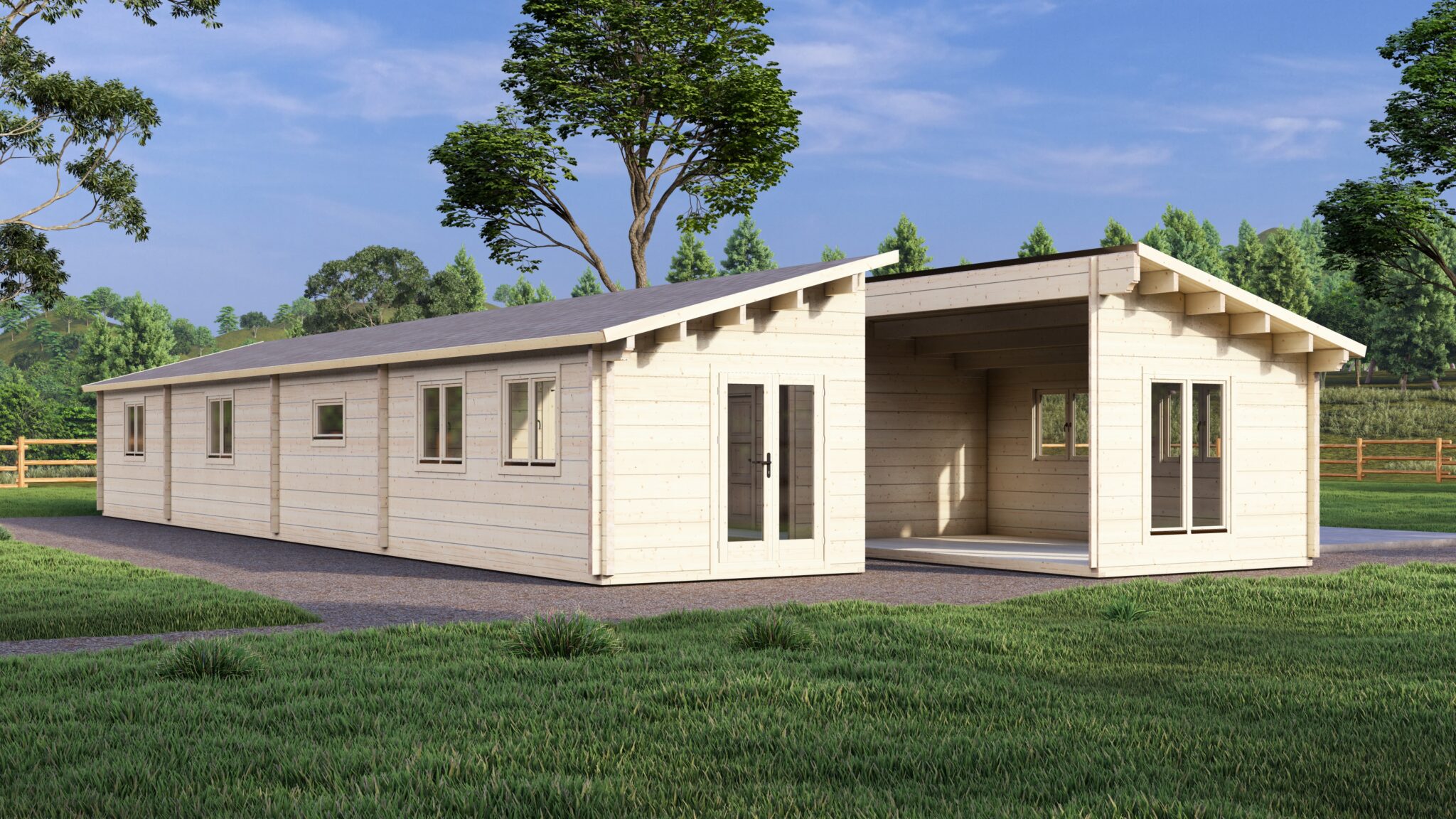

Wall thickness upgrades to 88mm or 135mm accommodate project-specific thermal or extended-season requirements subject to local-authority review. Additional insulation packages, triple-glazing options, and alternative door and window configurations are specified for the destination climate and local project review route. Four-bedroom models support full architectural customisation including multiple bathroom configurations, dedicated laundry room provision, and flexible principal suite arrangements. Kitchen specification can be adapted to the dealer layout brief, including island unit accommodation. Room sizing can be adjusted across all four bedrooms to match target market preferences.
Manufacturing and Delivery
Production at the Eurodita facility in Kaunas, Lithuania incorporates Hundegger CNC cutting systems and Nardi kiln-drying technology within a 150,000m³ annual northern European spruce throughput. Production and logistics timelines are confirmed per project from the approved specification, factory schedule, transport route and site-access plan. The four-bedroom package requires multi-vehicle delivery coordination and advance site logistics planning including crane access assessment. Eurodita provides dedicated transport management for flagship models, ensuring delivery sequencing aligns with the phased assembly programme spanning ten to fourteen working days.
Private Label Partnership
Private-label manufacturing enables dealers to supply this mobile home under their own brand identity with no visible Eurodita branding on the delivered product. Partner support includes customised assembly documentation, branded customer communications, and 3D visualisation tools for showroom and catalogue presentation. Flexible order volumes accommodate both individual project requirements and ongoing supply agreements for holiday-park, managed-site and accommodation-project operators.
Warranty and Support
Eurodita's 10-year anti-rot warranty applies to supplied timber components when the building is installed, treated and maintained according to documentation. Technical documentation includes detailed assembly drawings, hardware schedules, foundation guidance, and ongoing maintenance recommendations. Dedicated partner managers provide specification support, project quotation assistance, and after-sales technical consultation. Four-bedroom mobile homes serve as a large-format product for established dealers, demonstrating mobile accommodation manufacturing capability and supporting high-value project enquiries.
What should dealers verify before quoting Mobile Log Home 4 Bed 20x6m?
Eurodita manufactures Mobile Log Home 4 Bed 20x6m as an 88mm engineered glulam mobile log home for private-label B2B partners. Before quoting, dealers should confirm the project route against Eurodita's Mobile Log Homes B2B range, the BS 3632 project-review route where relevant, site-licence or local-authority checks, layout changes, services, documentation scope and EXW Kaunas logistics. Final specification suitability, siting route and approval remain with the dealer, site operator, local authority or appointed assessor.
