Glulam Log House Skara 14.7x9.2m, 220mm
Delivery is agreed individually with each client. Markets and languages
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
At a glance

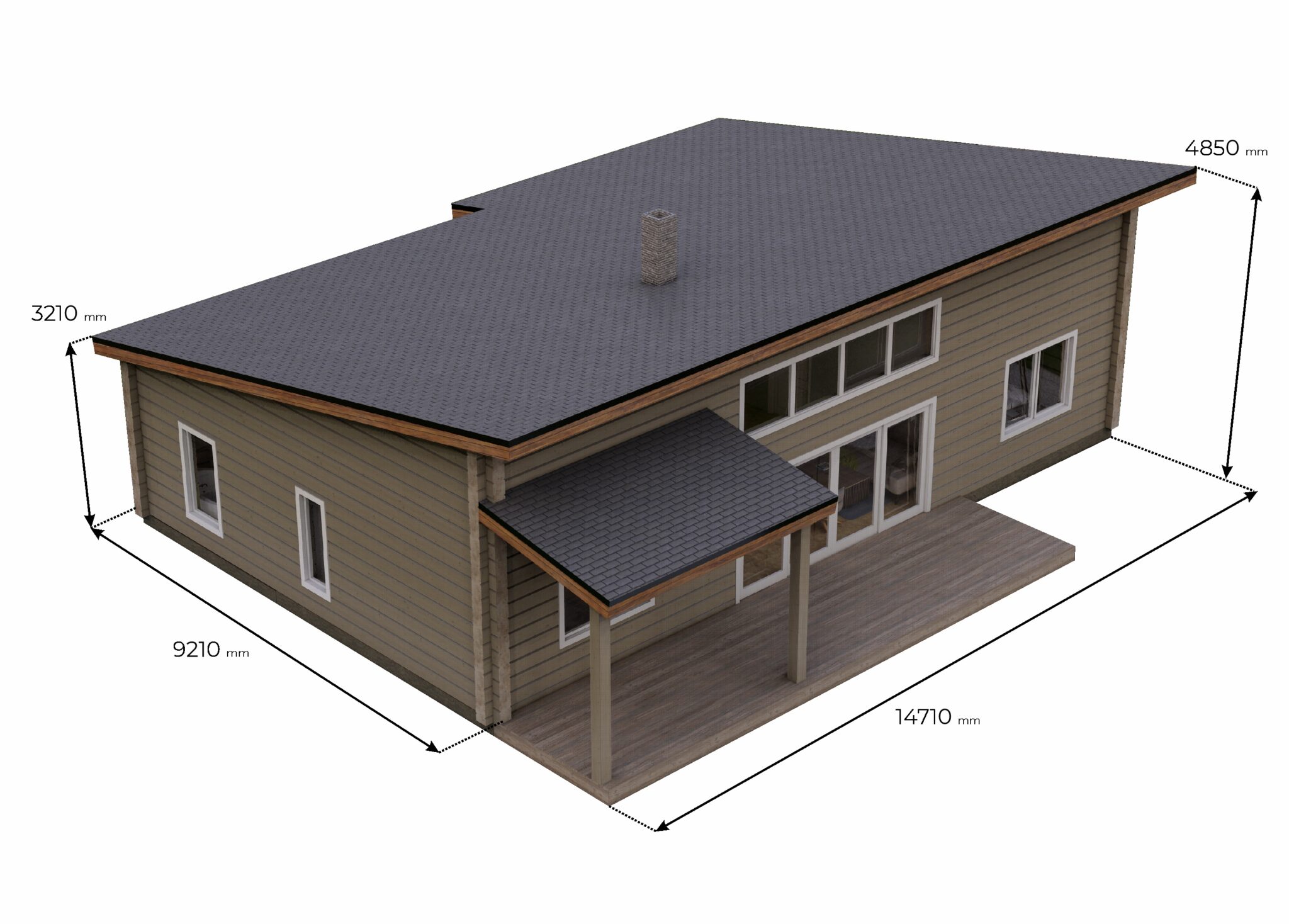

Glulam Log House Skara 14.7x9.2m is a glulam log house with a pent roof, supplied as a building kit. It measures 14.7 x 9.2 m externally, an external footprint of 135.2 m². The ridge height is 485 cm and the eaves height 310 cm. It has one storey. It is listed with the glulam houses.
Read the full description
Layout

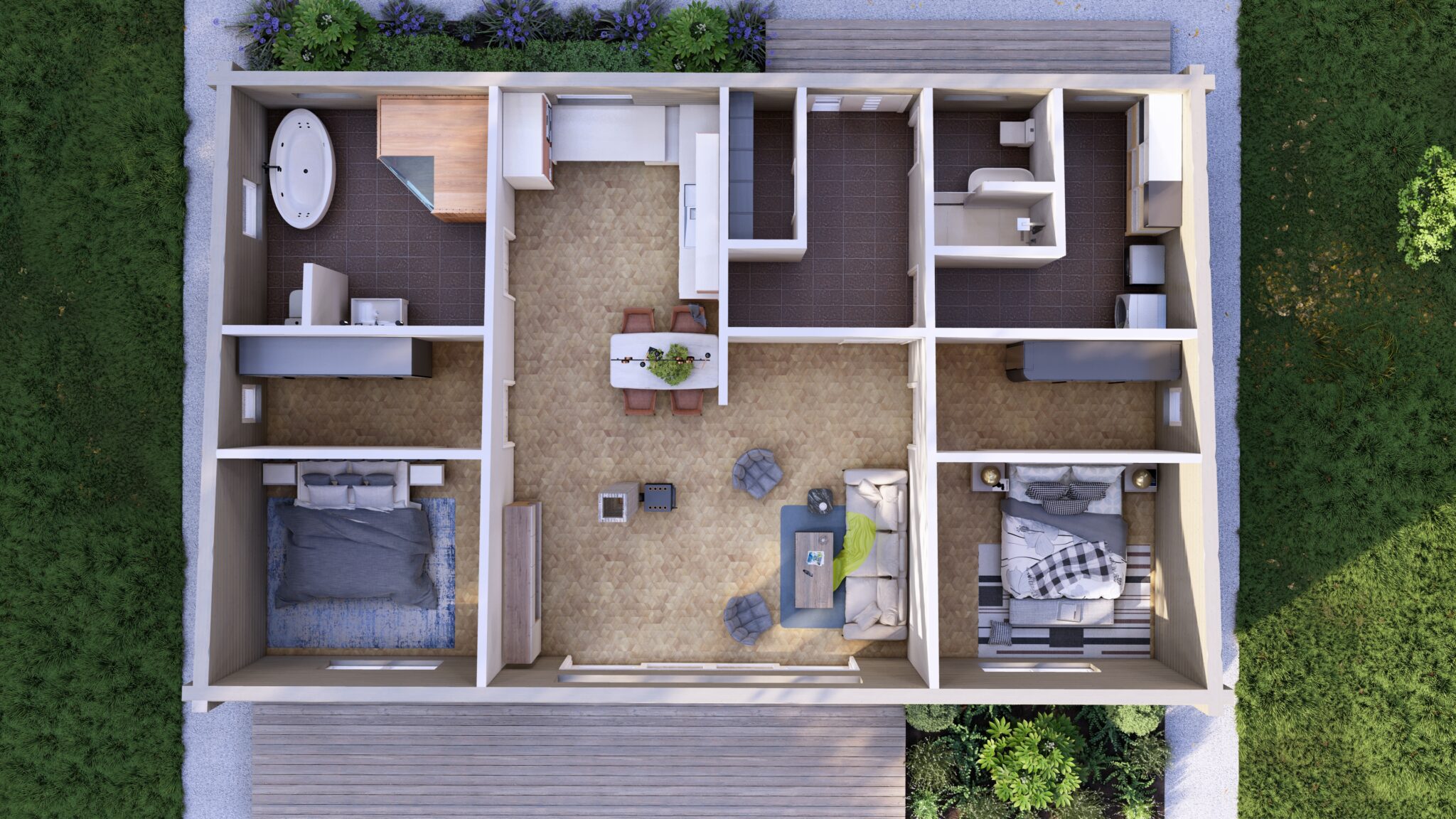

The plan drawing shows an open living room with a kitchen area, two bedrooms, two dressing rooms, two bathrooms, a utility room and a hall. It also shows a deck along the front.
Walls
The walls are glulam wall logs of the 220 x 260 mm profile: each log is 220 mm thick and 260 mm high. A glulam model can be made in any glulam profile. The glulam is glued, profiled and CNC machined at the Eurodita factory. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Glulam Log House Skara 14.7x9.2m, 220mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 14.7 x 9.2 m |
| External footprint area | 135.2 m² |
| Eaves height | 310 cm |
| Ridge height | 485 cm |
| Storeys | 1 |
| Base | External footprint 14.7 x 9.2 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof form | Pent |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing |
| Windows | Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
The kit is supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project.
What is in a Eurodita kitGlulam log houses and cabinsReading a Eurodita quotation
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Two Storey Glulam Log House Timberly
| This model | Timberly | |
|---|---|---|
| External size | 14.7 x 9.2 m | 12.73 x 10.81 m |
| External footprint | 135.2 m² | 137.6 m² |
| Ridge height | 485 cm | 615 cm |
| Eaves height | 310 cm | 285 cm |
| Storeys | 1 | 2 |
| Wall logs | 220 x 260 mm glulam | 180 x 260 mm glulam |
Glulam Log House Sylvie 11.3x11.3m
| This model | Sylvie 11.3x11.3m | |
|---|---|---|
| External size | 14.7 x 9.2 m | 11.3 x 11.3 m |
| External footprint | 135.2 m² | 127.7 m² |
| Ridge height | 485 cm | 416 cm |
| Eaves height | 310 cm | 260 cm |
| Storeys | 1 | not compared |
| Wall logs | 220 x 260 mm glulam | 88 x 260 mm glulam |
Glulam Log House Vienna 11.97x12m
| This model | Vienna 11.97x12m | |
|---|---|---|
| External size | 14.7 x 9.2 m | 11.97 x 12 m |
| External footprint | 135.2 m² | 143.6 m² |
| Ridge height | 485 cm | not compared |
| Eaves height | 310 cm | not compared |
| Storeys | 1 | not compared |
| Wall logs | 220 x 260 mm glulam | 135 x 260 mm glulam |
