Two Storey Glulam Log House Timberly, 180mm
Delivery is agreed individually with each client. Markets and languages
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
At a glance

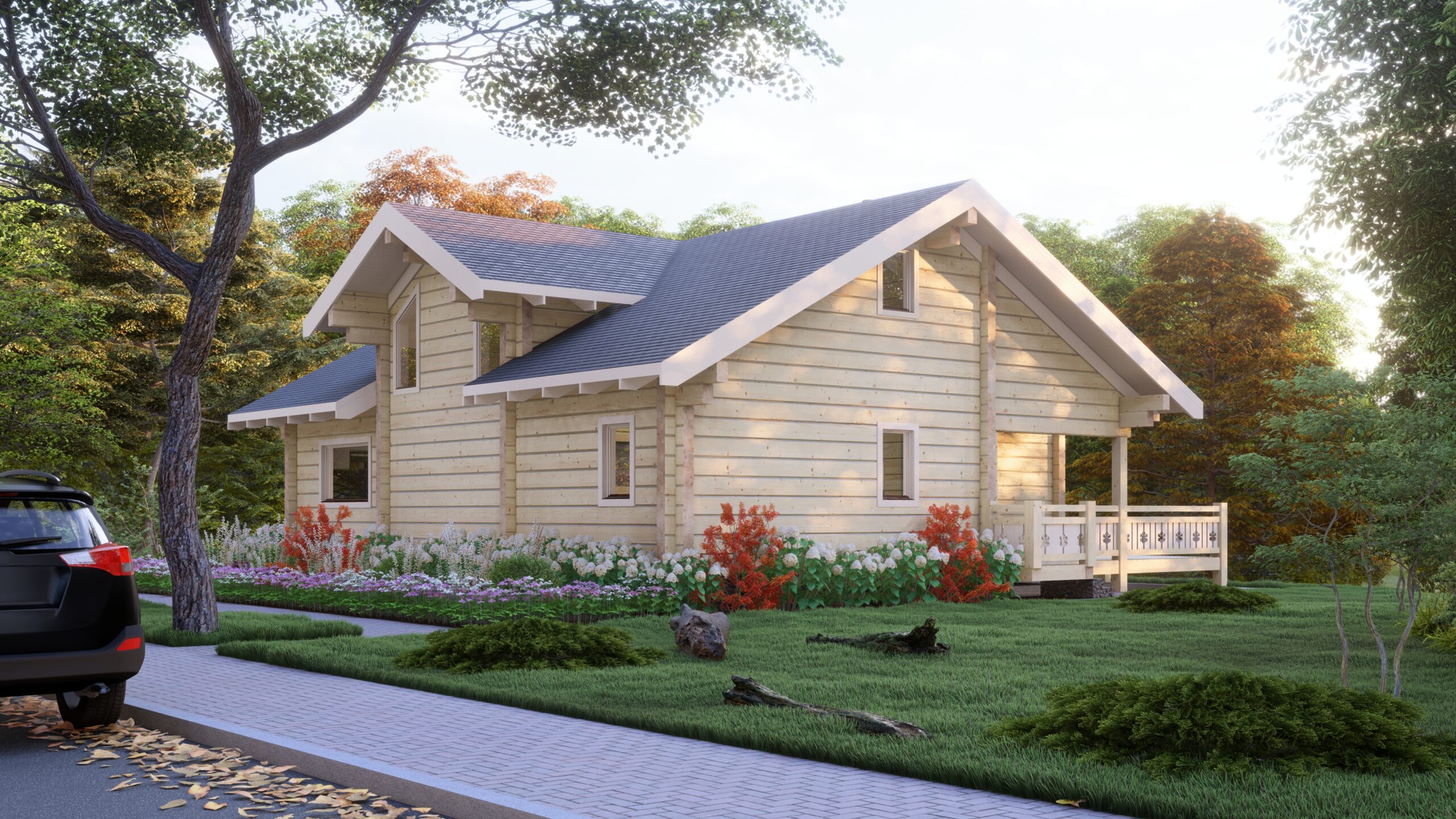

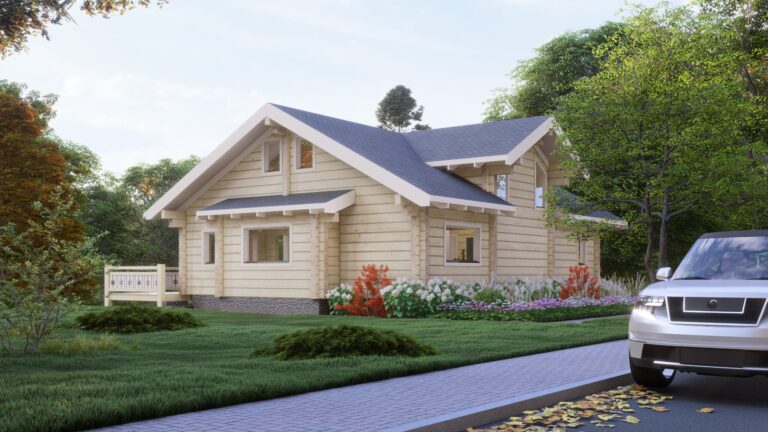

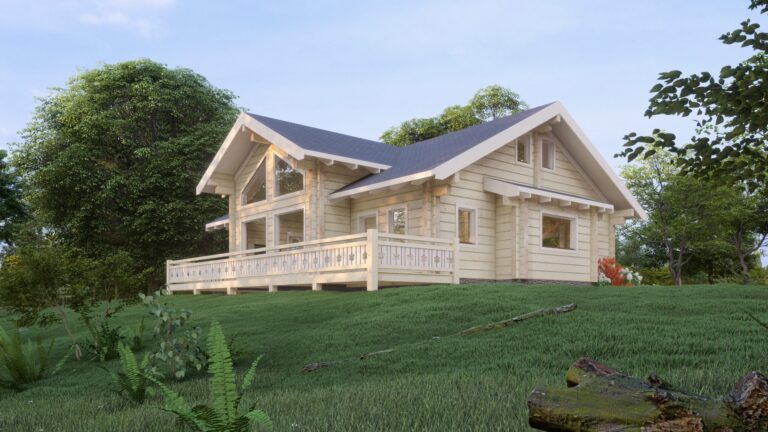

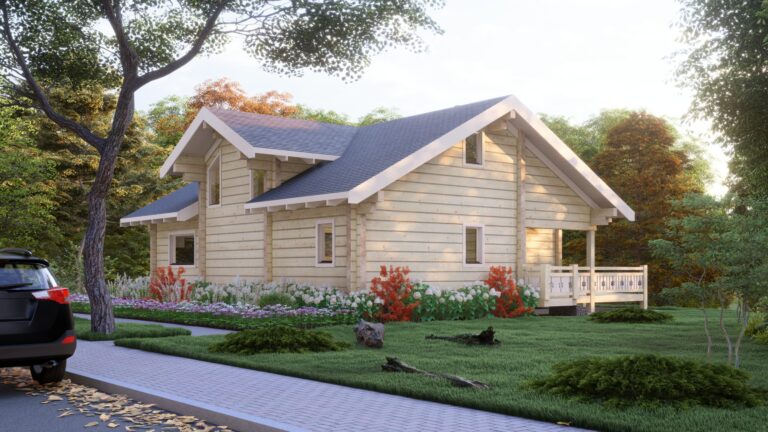

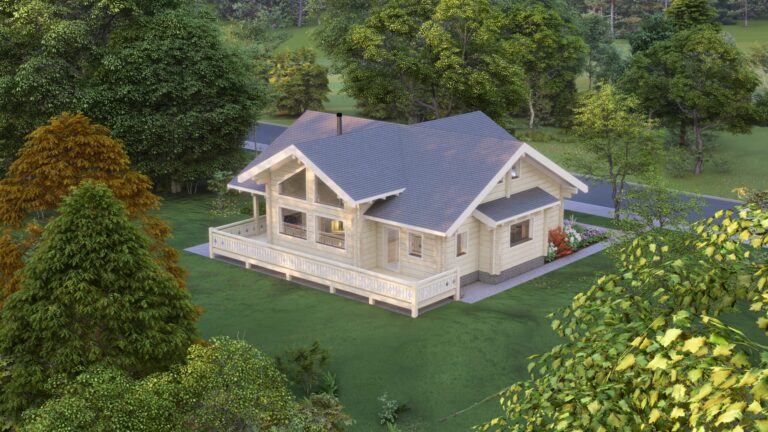

Two Storey Glulam Log House Timberly is a two-storey glulam log house supplied as a building kit. It measures 12.73 x 10.81 m externally, an external footprint of 137.6 m². The ridge height is 615 cm and the eaves height 285 cm. It is listed with the glulam houses.
Read the full description
Layout

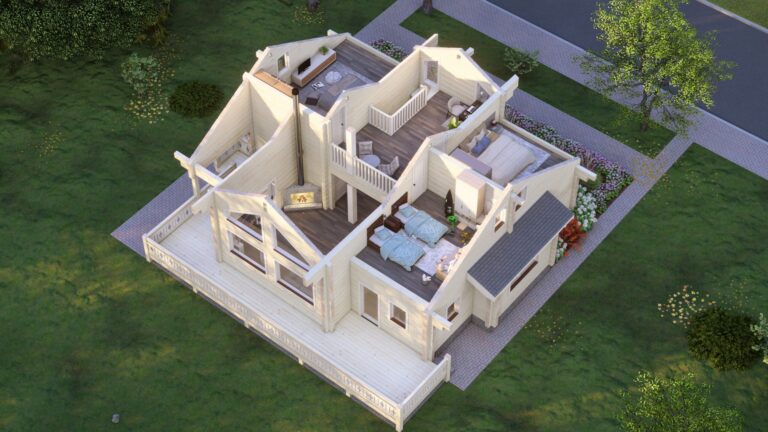

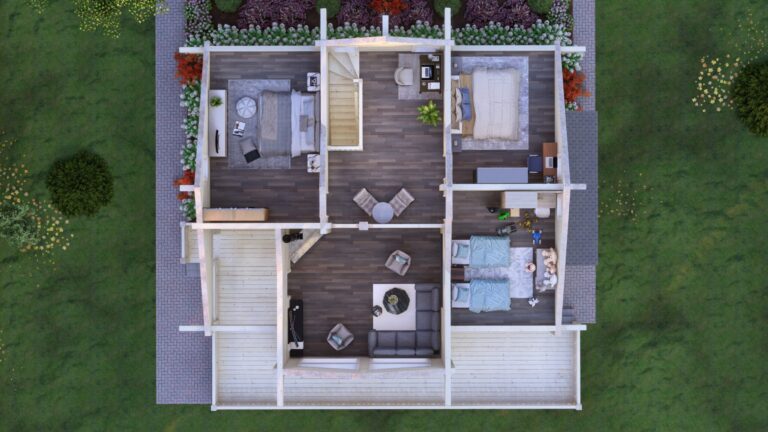

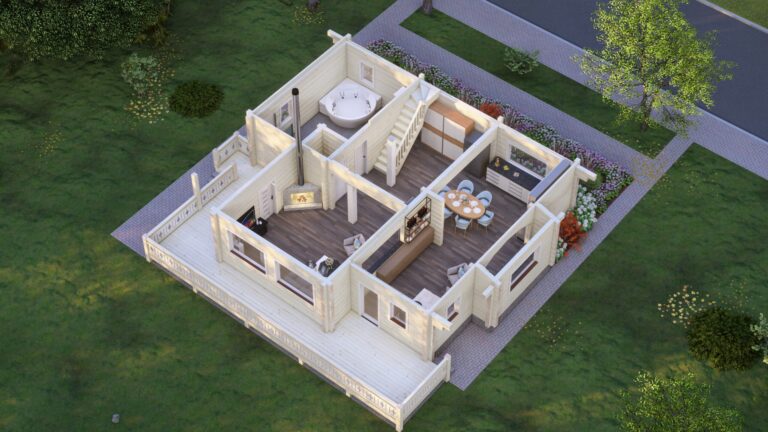

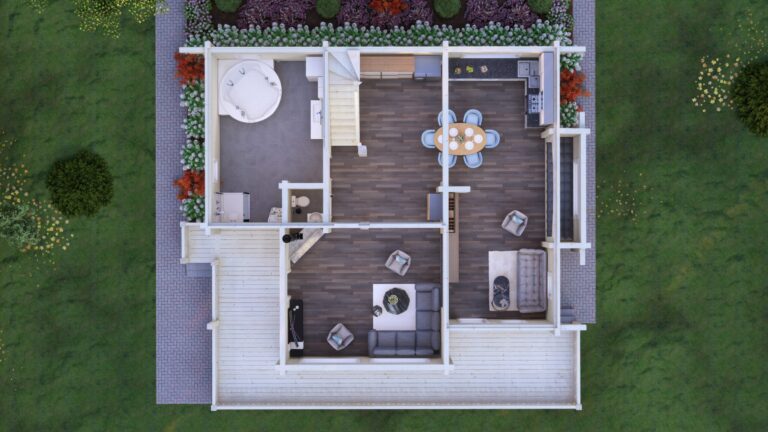

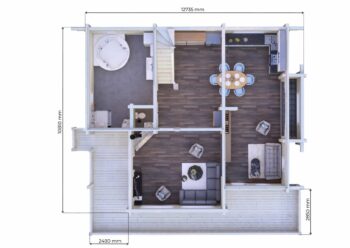

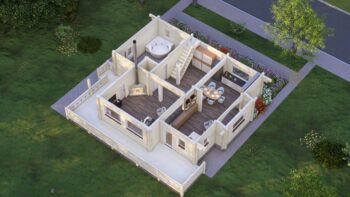

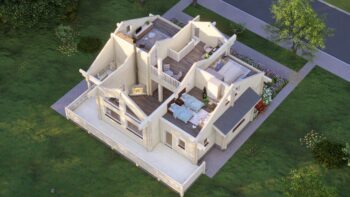

The plan drawings show, on the ground floor, a kitchen with a dining area, two sitting rooms, a bathroom, a separate WC and the stair; on the upper floor, three bedrooms, a sitting room and a landing. They also show a terrace along the front and one side and balconies on the upper floor.
Walls
The walls are glulam wall logs of the 180 x 260 mm profile: each log is 180 mm thick and 260 mm high. A glulam model can be made in any glulam profile. The glulam is glued, profiled and CNC machined at the Eurodita factory. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Two Storey Glulam Log House Timberly, 180mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 12.73 x 10.81 m |
| External footprint area | 137.6 m² |
| Eaves height | 285 cm |
| Ridge height | 615 cm |
| Storeys | 2 |
| Base | External footprint 12.73 x 10.81 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing |
| Windows | Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
What is in a Eurodita kitGlulam log houses and cabinsReading a Eurodita quotation
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Glulam Log House Skara 14.7x9.2m
| This model | 14.7x9.2m | |
|---|---|---|
| External size | 12.73 x 10.81 m | 14.7 x 9.2 m |
| External footprint | 137.6 m² | 135.2 m² |
| Ridge height | 615 cm | 485 cm |
| Eaves height | 285 cm | 310 cm |
| Storeys | 2 | 1 |
| Wall logs | 180 x 260 mm glulam | 220 x 260 mm glulam |
Glulam Log House Vienna 11.97x12m
| This model | 11.97x12m | |
|---|---|---|
| External size | 12.73 x 10.81 m | 11.97 x 12 m |
| External footprint | 137.6 m² | 143.6 m² |
| Ridge height | 615 cm | not compared |
| Eaves height | 285 cm | not compared |
| Storeys | 2 | not compared |
| Wall logs | 180 x 260 mm glulam | 135 x 260 mm glulam |
Glulam Log House Monaco 14x10.5m
| This model | 14x10.5m | |
|---|---|---|
| External size | 12.73 x 10.81 m | 14 x 10.5 m |
| External footprint | 137.6 m² | 147 m² |
| Ridge height | 615 cm | not compared |
| Eaves height | 285 cm | not compared |
| Storeys | 2 | 2 |
| Wall logs | 180 x 260 mm glulam | 220 x 260 mm glulam |
Frequently asked questions
What is a Eurodita glulam house?
A timber house kit whose walls are machined from glued-laminated profiles, from 70x130 mm to 220x260 mm, manufactured in Lithuania, on Hundegger CNC lines. The catalogue models are single or two-storey houses; two-storey designs are handled as project-engineered work. Eurodita does not publish a performance comparison between glulam and solid log walls.
What wall thickness options are available for glulam houses?
The glulam profile series is 70x130, 88x260, 135x260, 180x260 and 220x260 mm. The Dovetail corner system is available on the four larger profiles, from 88x260 mm upward. A glulam model can be made in any glulam profile, confirmed per order; a profile dimension on its own is not a thermal or structural figure.
Can Eurodita manufacture a glulam house from my architect's drawings?
Yes, as a bespoke brief. A sketch or architectural drawing is reviewed technically and commercially and comes back as a manufacturable, priced proposal with 2D CAD drawings and a 3D visual for that project. Structural calculations, where required, are carried out by external specialists, and building approval stays with the buyer's local route.
Which wall build-up does a glulam house need for year-round use?
Wall build-up for year-round use is specified per project, according to the client's climate and requirements; there is no single standard solution. Eurodita supplies the structure prepared for insulation, which is bought locally, and publishes measured U-values for the timber wall element alone; they are not a figure for a finished building. Whether a given build-up meets local building regulations for year-round use is confirmed by the buyer's building control route.
How is a glulam house quoted and who can order one?
Every glulam house is priced in a written quotation for the project, in EUR; there is no price list and no published lead time. Buyers are developers, holiday-park and resort operators, dealers, and private clients commissioning a larger home, each project assessed individually.
