Glulam Log House Sylvie 11.3×11.3m, 88mm
Contemporary residential log cabin designed for extended-season accommodation-style layout across European climates. The 11.3x11.3m square footprint delivers substantial family accommodation with project-specific thermal specification.
Technical data sheet
Specification recorded for Glulam Log House Sylvie 11.3x11.3m, 88mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 11.3 x 11.3 m |
| Eaves height | 260 cm |
| Ridge height | 416 cm |
| Base | External footprint 11.3 x 11.3 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Need this in a different size?
This model is supplied as a 11.3 x 11.3 m footprint, 88 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the glulam houses range.

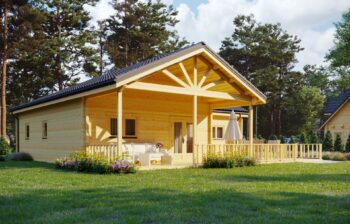

About This Glulam Log House Sylvie 11.3×11.3m, 88mm
Product Overview
Contemporary residential log cabin designed for extended-season accommodation-style layout across European climates. The 11.3x11.3m square footprint delivers substantial family accommodation with project-specific thermal specification. Built for contractors and developers seeking premium glulam construction that combines traditional craftsmanship with project-specific energy specification targets.
Layout & Configuration

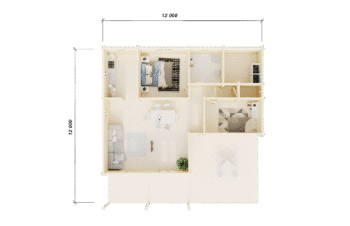

Open-plan ground floor maximises natural light flow across living spaces. The 2.6m eaves height creates spacious interiors while the pitched roof design allows for loft development. Flexible room arrangement accommodates various accommodation requirements, from family accommodation layouts to larger accommodation projects or dealer-led accommodation ranges.
Timber & Construction
Northern European timber walls feature 88mm thickness with precision tongue-and-groove interlocking joints. Double-glazed timber joinery incorporates insulated profiles for enhanced thermal specification. The glulam construction ensures dimensional stability while maintaining the natural thermal mass properties essential for comfortable extended-season use.
Floor & Roof
Floor system incorporates pressure-treated bearers supporting 28mm floor boards for assembly stability and moisture protection. Roof construction features 19mm tongue-and-groove boards with integrated storm bracing. This specification ensures weather resistance and structural performance across varying load conditions and climate zones.
Customisation Options
Wall thickness upgrades to 128mm or 180mm available for enhanced insulation performance. Additional glazing configurations, partition wall kits, and veranda extensions accommodate specific project requirements. Interior finishing packages and upgraded hardware options enable precise alignment with target market expectations and local project requirements.
Manufacturing & Delivery
Eurodita processes 150,000 m³ of timber annually. Glulam production timing is confirmed per order according to project specification. Bespoke modifications and dimensional adjustments are prepared through Eurodita's in-house design and estimation system, subject to technical and commercial review. Structural engineering and calculations are sourced from specialist partners, and local building control approval remains the responsibility of the customer's project team.
Private Label Partnership
Private-label manufacturing enables dealer branding across documentation and marketing materials. Technical drawings, 3D visualisations, and showroom display programmes support retail partner sales processes. Comprehensive partner support includes training materials and ongoing technical assistance for customer engagement and project development.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
What should dealers verify before quoting Glulam Log House Sylvie 11.3x11.3m, 88mm?
Eurodita supplies Glulam Log House Sylvie 11.3x11.3m, 88mm as a B2B private-label glulam house for dealers, developers and project teams. Before quoting, confirm whether the project uses the listed wall profile or another Eurodita glulam profile route, 88mm, 135mm, 180mm or 220mm, plus layout changes, documentation scope, EXW Kaunas logistics and local-authority review needs. Check Glulam Houses, private-label manufacturing, shipping policy and documentation status before client commitments.
Explore Similar Products
B2B Order Framework
Scope is confirmed in the written quotation and order documentation.
Private-label scope
Branding for packaging and relevant customer-facing documents is agreed per order.
Production planning
Production timing is confirmed in the written quotation and order acknowledgement for the selected model and specification.
Commercial terms
Price, quantity, payment and any volume conditions are quoted for the specific order.
Technical documents
The drawings, specifications and customer-facing documents included in the order are listed in the order documentation.
Configuration review
Dimensions, layout, openings, wall profile and other requested changes are reviewed before they are accepted into the quotation.
Dispatch terms
EXW Kaunas is the standard basis. Any delivered option is agreed for the specific market and order.
How a B2B Order Moves Forward
Specification
Share the model or drawing, destination, quantity and required configuration. Missing technical inputs are confirmed before quotation.
Manufacturing scope
Only the model, options, documentation and branding listed in the accepted order move into production.
Checking and packing
Completed order components are checked and packed against the agreed order scope before factory dispatch.
Dispatch terms
Orders are dispatched from Kaunas under the agreed collection or logistics terms. This does not promise carrier or final-mile delivery performance.
