Glulam Log House Vienna 11.97x12m

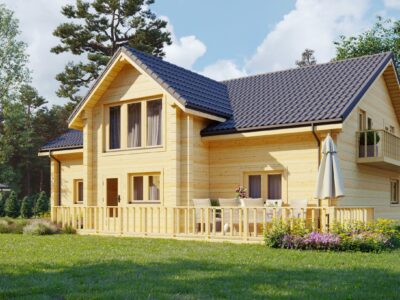

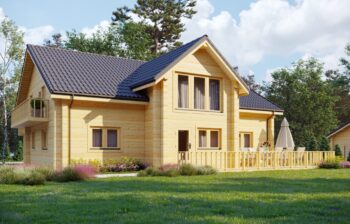

Glulam Log House Vienna 11.97x12m is a glulam log house supplied as a building kit. It measures 11.97 x 12 m externally, an external footprint of 143.6 m².
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for Glulam Log House Vienna 11.97x12m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 11.97 x 12 m |
| External footprint area | 143.6 m² |
| Base | External footprint 11.97 x 12 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 11.97 x 12 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the glulam houses range.
About This Glulam Log House Vienna 11.97x12m
The model
Glulam Log House Vienna 11.97x12m is a glulam log house supplied as a building kit. It measures 11.97 x 12 m externally, an external footprint of 143.6 m². It is listed with the glulam houses.
Layout

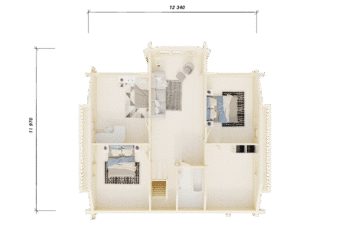

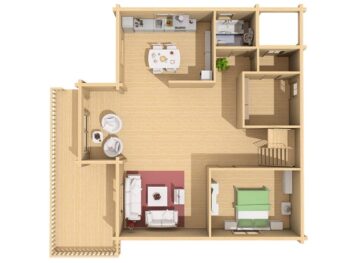

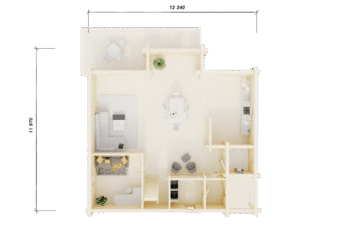

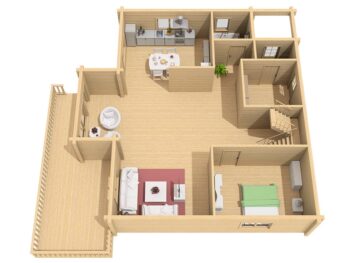

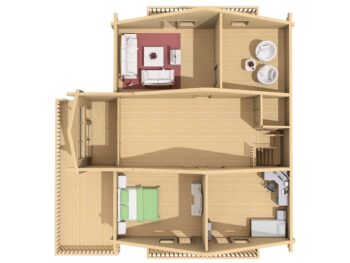

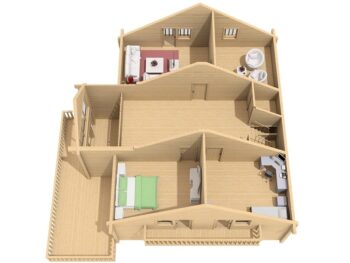

The plan drawings show, on the ground floor, an open living room with a kitchen area, the stair, one further room, a hall, a lobby, a separate WC and a store room; on the upper floor, a landing, four further rooms and a bathroom. They also show a terrace along the rear, a porch at the entrance and balconies on the upper floor. Furniture and fittings in the drawings show how the rooms can be used; kitchens, bathrooms and interior fit-out are local scope.
Walls
The walls are glulam wall logs of the 135 x 260 mm profile: each log is 135 mm thick and 260 mm high. The glulam is glued, profiled and CNC machined at the Eurodita factory. Any approved glulam profile (70 x 130, 88 x 260, 135 x 260, 180 x 260 and 220 x 260 mm) can be specified for this model. Glulam walls do settle, but only minimally: in use the settlement is neither felt nor seen. The profiles are set out on wall thickness and glulam profiles.
Floor and roof
The floor is 28 mm floorboards on floor bearers that are impregnated as standard. The roof is boarded with 19 mm tongue and groove boards. A storm brace and anchor set is included.
Doors and windows
Doors and windows are double-glazed timber joinery with an insulated profile, made by Eurodita.
What can be changed
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing: the written quotation is prepared in the Eurodita design and estimator system, with 2D drawings and a 3D visualisation. Cable channels are machined in the wall logs where the order specifies them. More on bespoke orders.
Supply
The kit is quoted in writing and supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project; foundations, utilities and approvals stay with the local team of the buyer. What the kit holds is set out on What is in a Eurodita kit.
