Eurodita timber building project

Pent Timber Residence 8.4x12.6

A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.

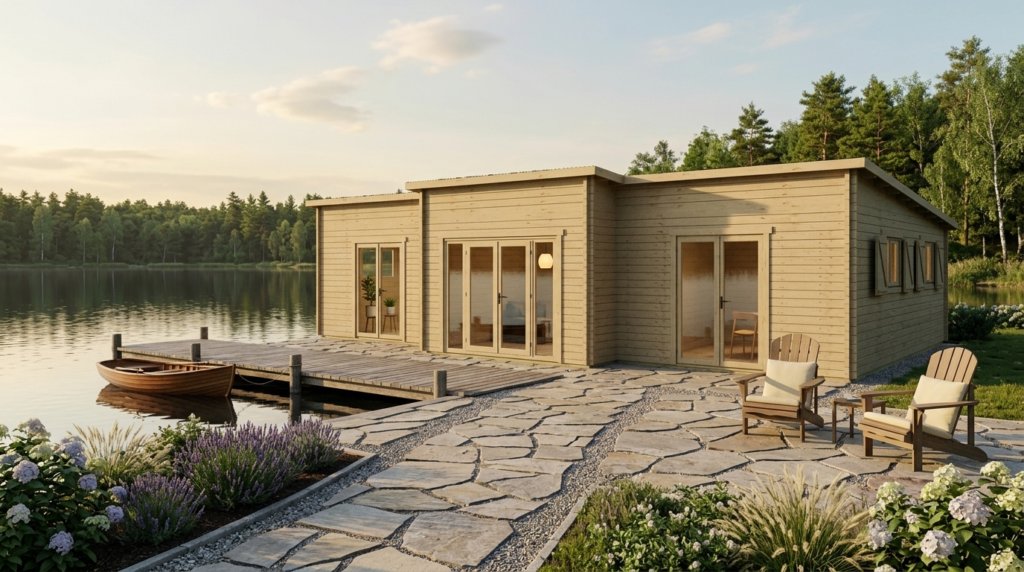

3D technical project visual for Pent Timber Residence 8.4x12.6.
3D view of the building as drawn. The final specification is confirmed in the written quotation.
Inside area98.9 m²
Overall footprint8392 × 12618 mm
Wall configuration70 mm log
Roof geometryPent, 4.5°

Specification

Technical data

The figures below come from the project drawing of this building.

Dimensions

Inside area
98.9 m²
Overall dimensions
8392 × 12618 mm
Internal dimensions
8052 × 12278 mm
Wall thickness
70 mm
Project reference
PTR-805x1228-070

Height and roof

Sidewall height
2340 mm
Maximum/high-side roof height
2990 mm
Roof type
Pent
Roof pitch
4.5°

Floor and roof

Floor bearers
40x60mm
Floorboards
28 mm
Roof boards
19 mm
Roof purlins
70x130mm × 10

Windows and doors

Window and door schedule

Windows4 × Garden type (IV45) timber window1330x990mm
Windows2 × Garden type (IV45) timber window580x600mm
Doors3 × Internal timber single door, solid timber900x2030mm
Doors1 × Internal timber double door, solid timber1400x2030mm
Doors1 × Garden type (IV45) timber double door with side windows2800x2030mm
Doors3 × Garden type (IV45) timber double door, fully glazed1400x2030mm

Drawings

Floor plan and elevations

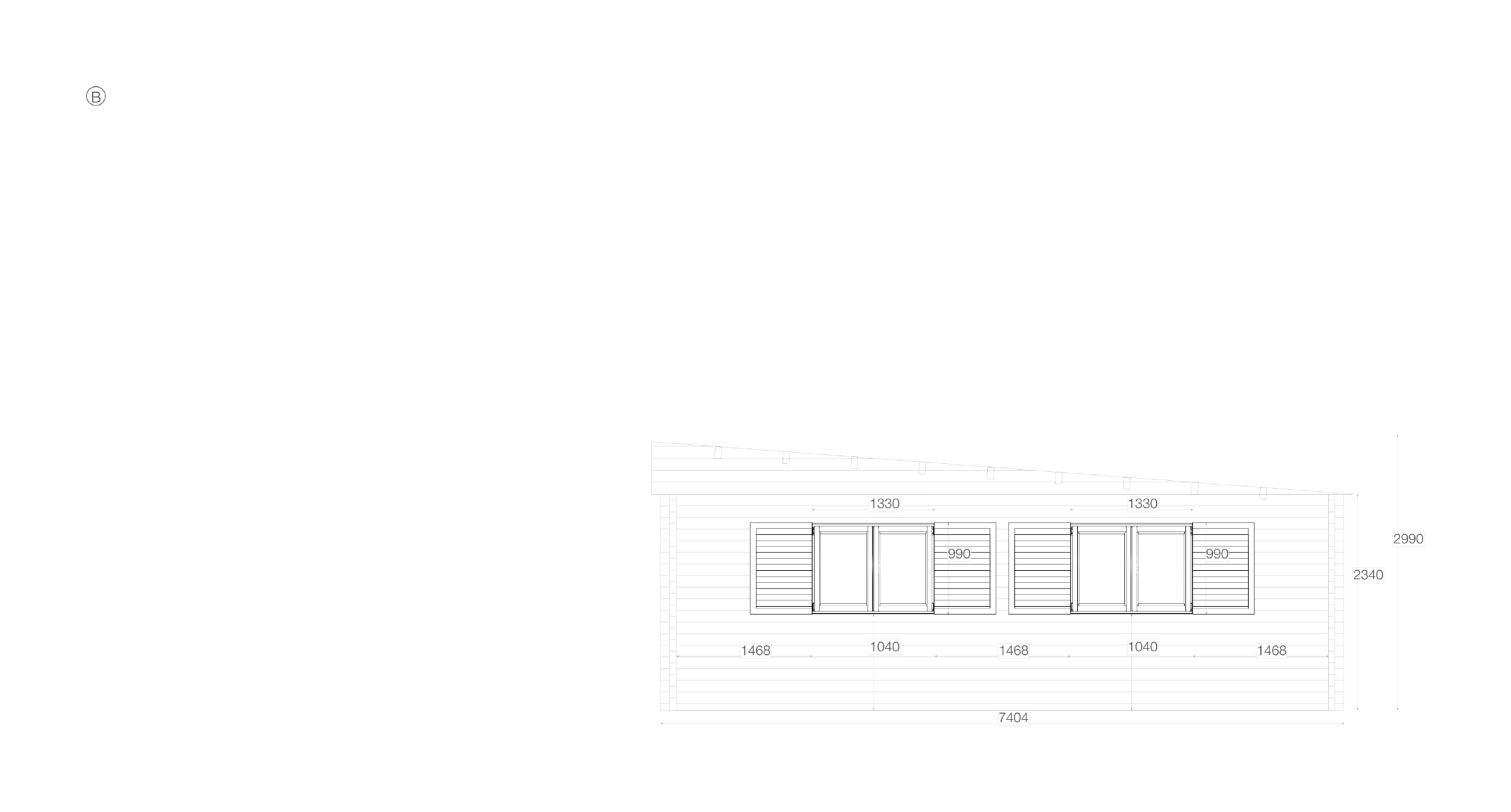

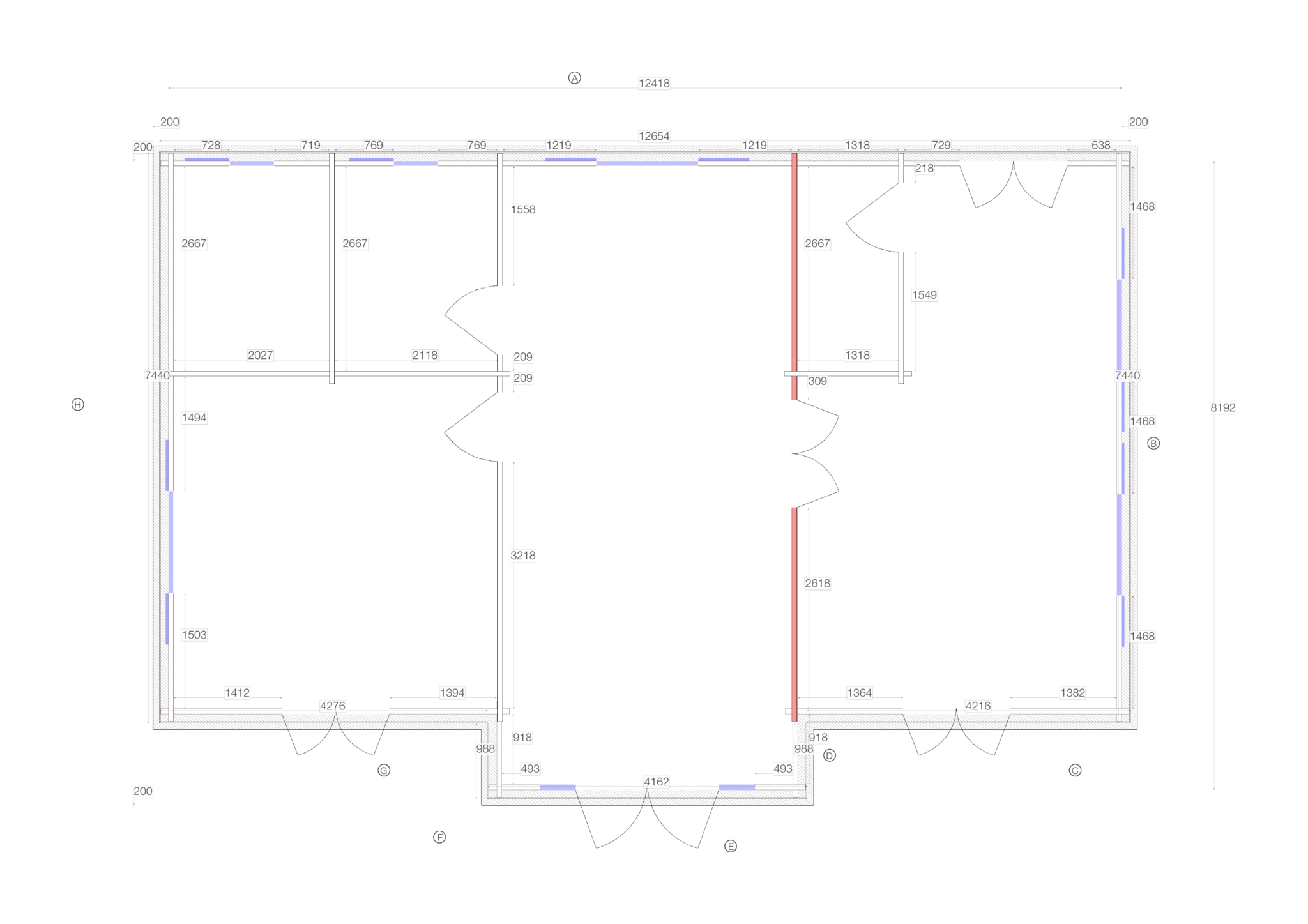

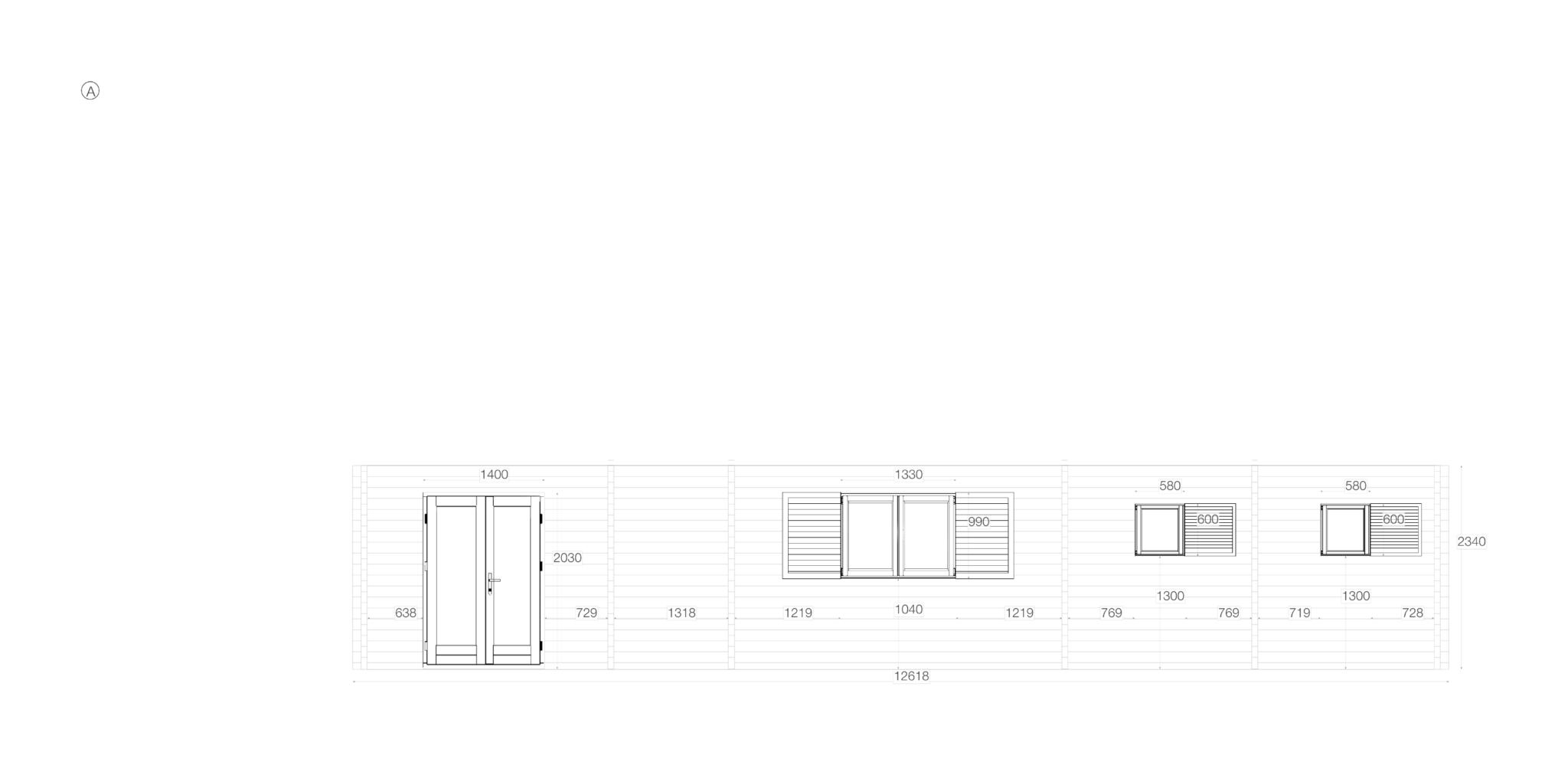

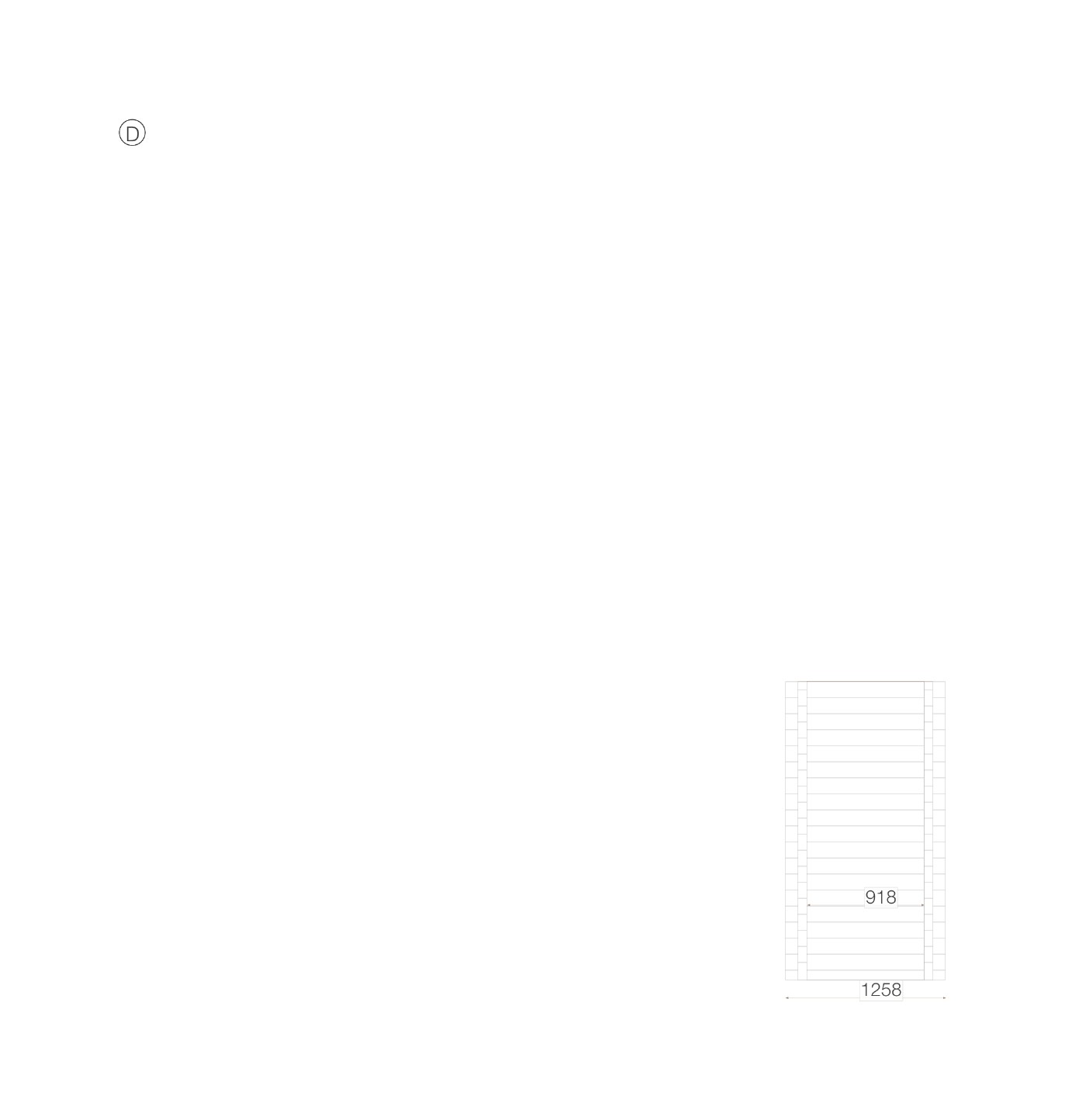

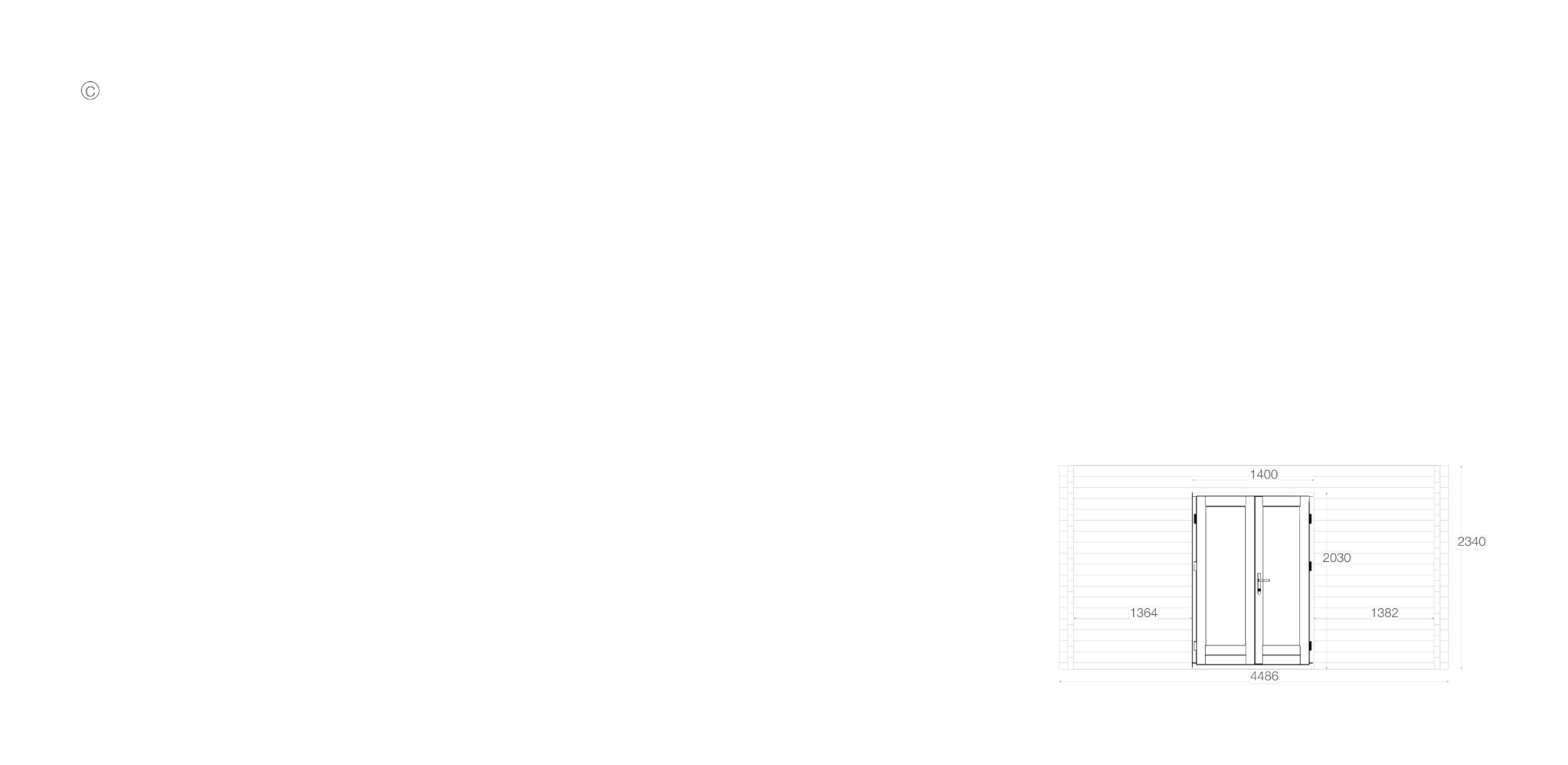

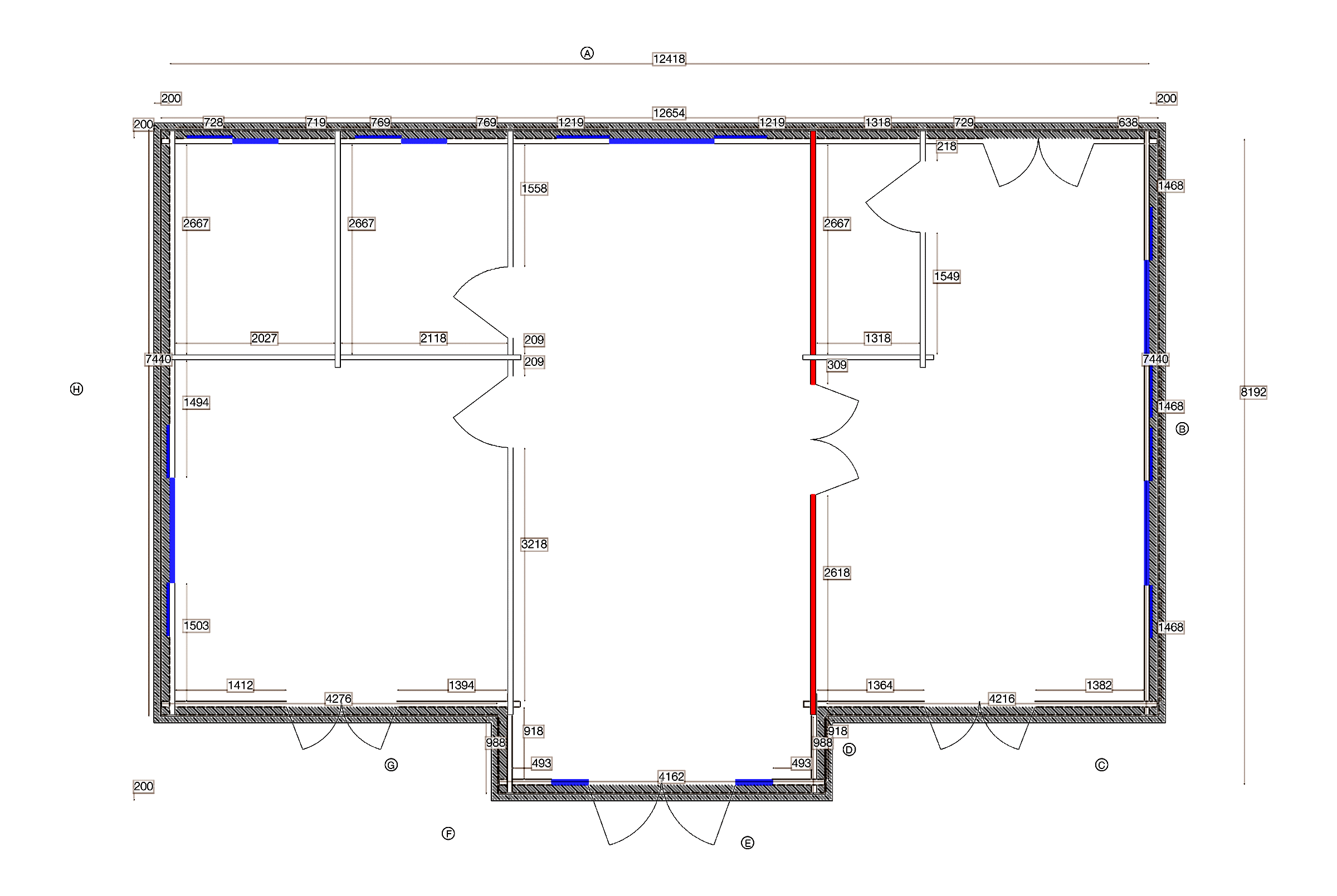

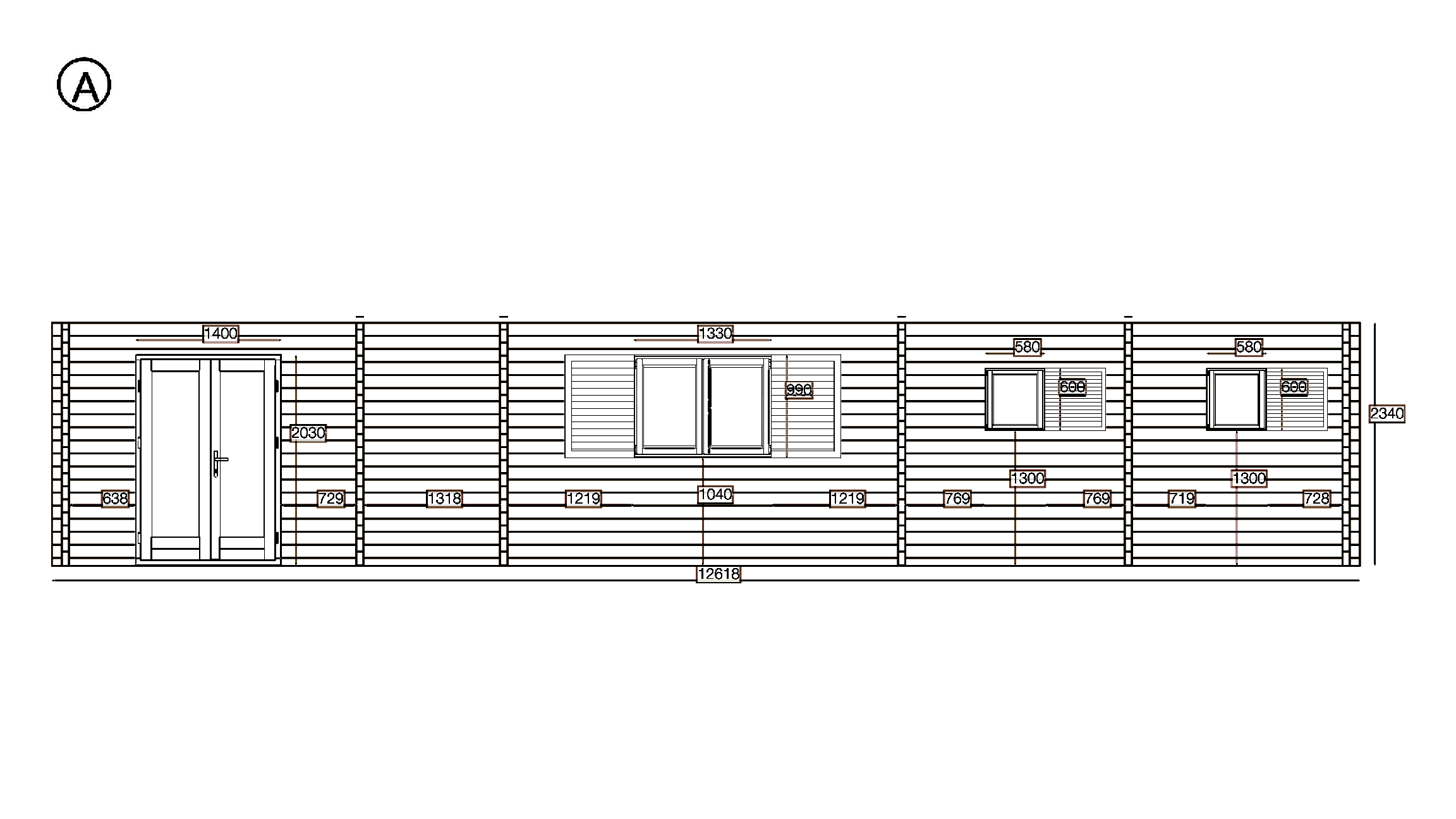

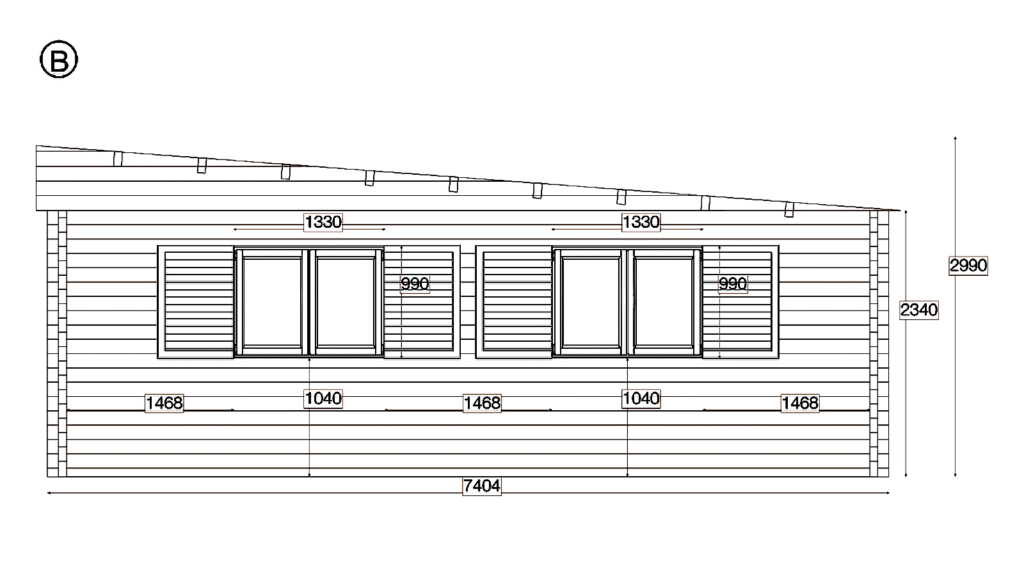

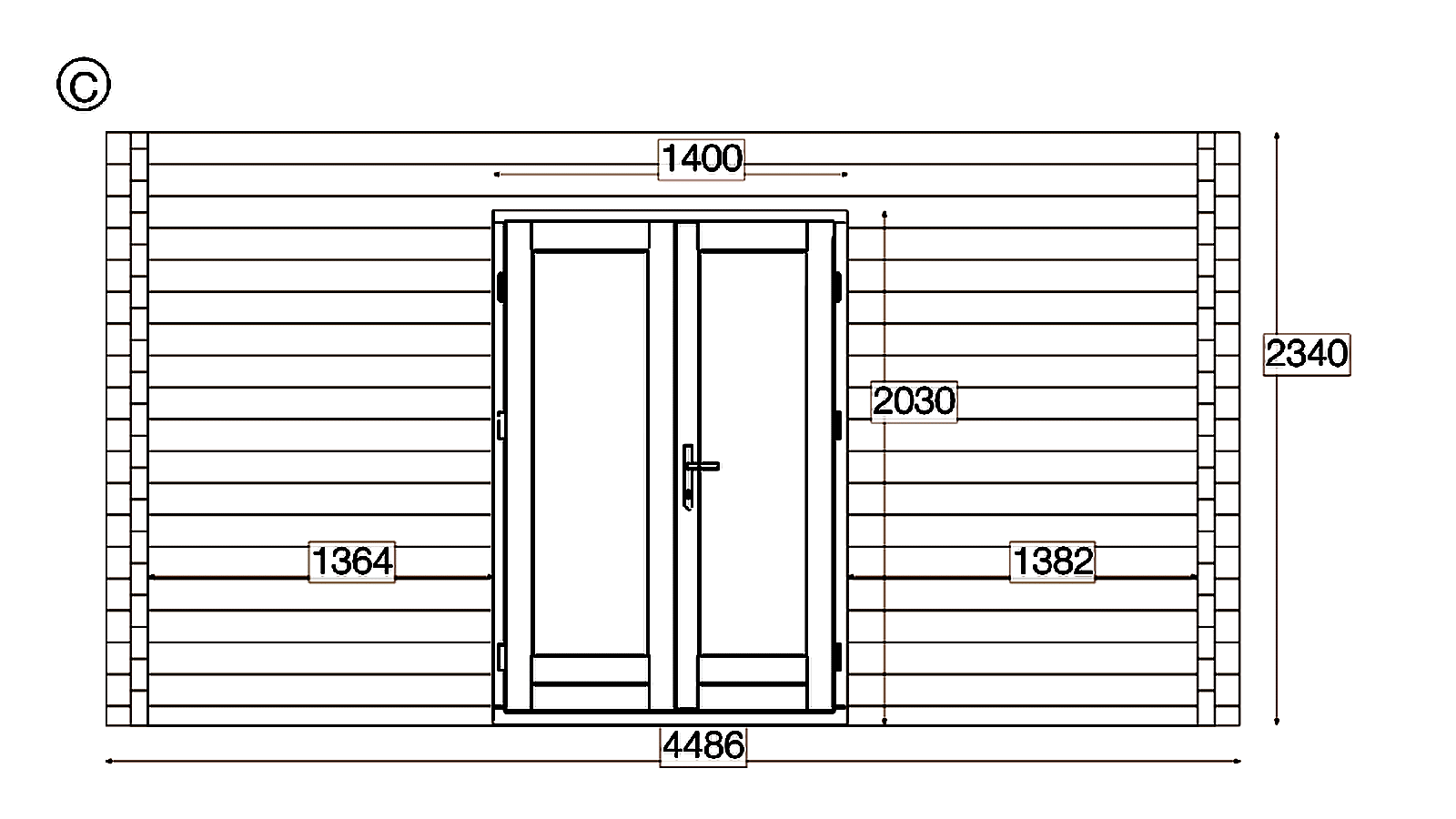

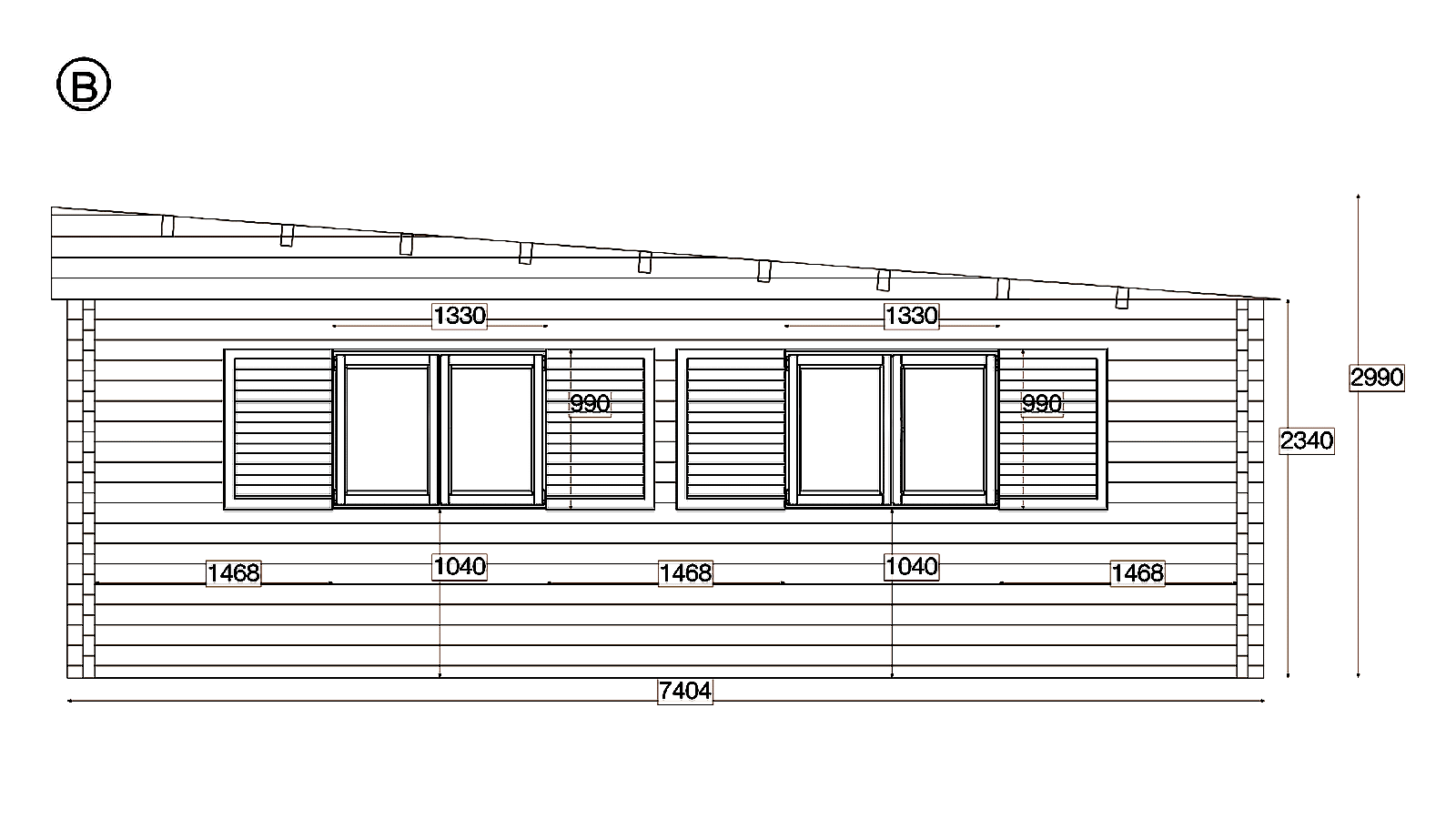

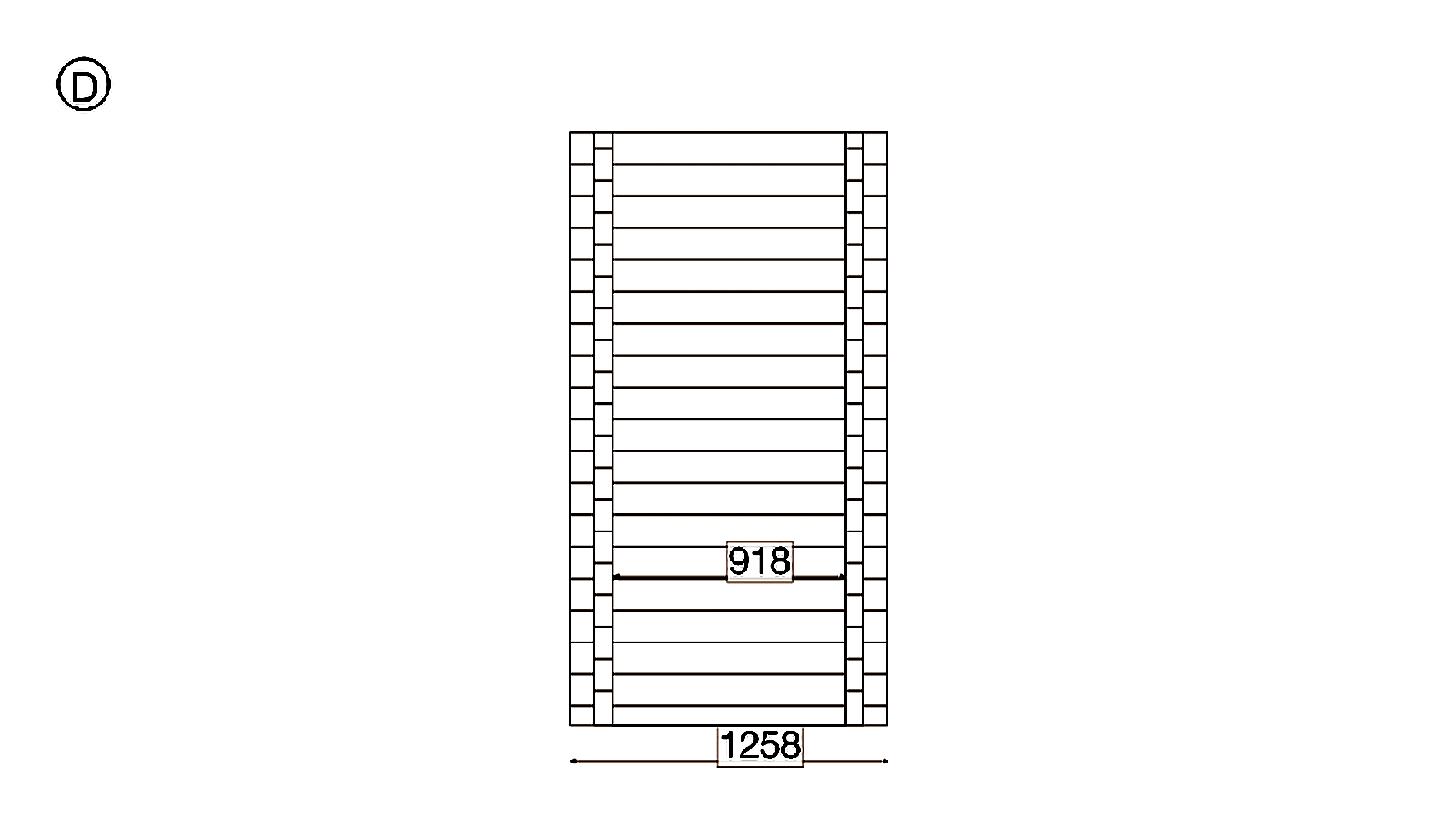

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
