Eurodita timber building project

Pent Timber Lodge 3.8x8.0

A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.

Project visual of Pent Timber Lodge 3.8x8.0
3D view of the building as drawn. The final specification is confirmed in the written quotation.
Inside area26.1 m²
Overall footprint3750 × 8000 mm
Wall configuration70 mm log
Roof geometryPent, 4.1°

Specification

Technical data

The figures below come from the project drawing of this building.

Dimensions

Inside area
26.1 m²
Overall dimensions
3750 × 8000 mm
Internal dimensions
3410 × 7660 mm
Wall thickness
70 mm
Project reference
GLPTL-341x766-070

Height and roof

Sidewall height
2210 mm
Maximum/high-side roof height
2470 mm
Roof type
Pent
Roof pitch
4.1°
Roof area
34.9 m²

Floor and roof

Floor bearers
40x60mm
Floorboards
28 mm
Roof boards
19 mm
Roof purlins
70x130mm × 4

Windows and doors

Window and door schedule

Windows2 × Garden type (IV45) timber window700x1770mm
Doors1 × Aluminium sliding door Slide3000x2000mm

Drawings

Floor plan and elevations

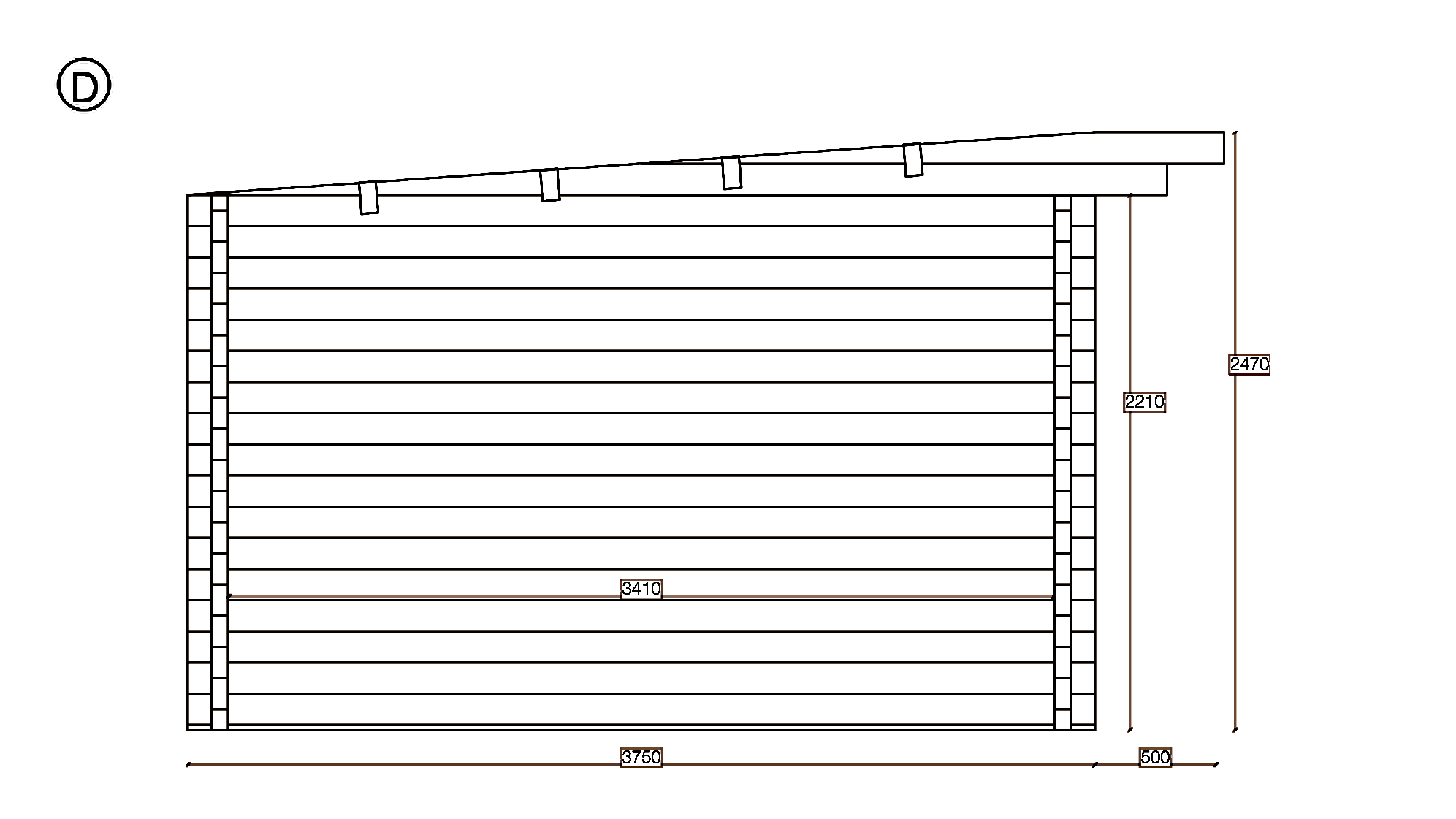

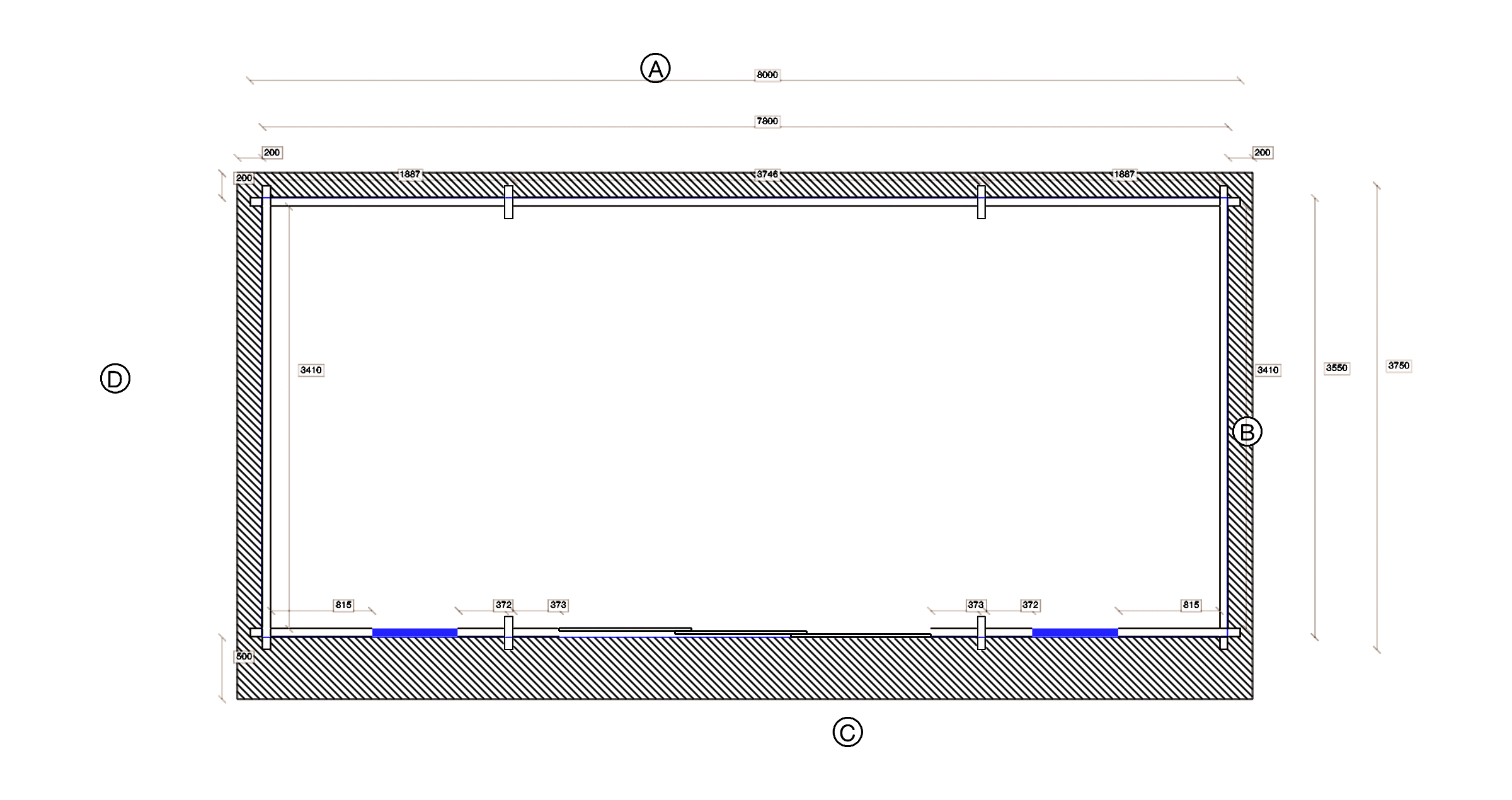

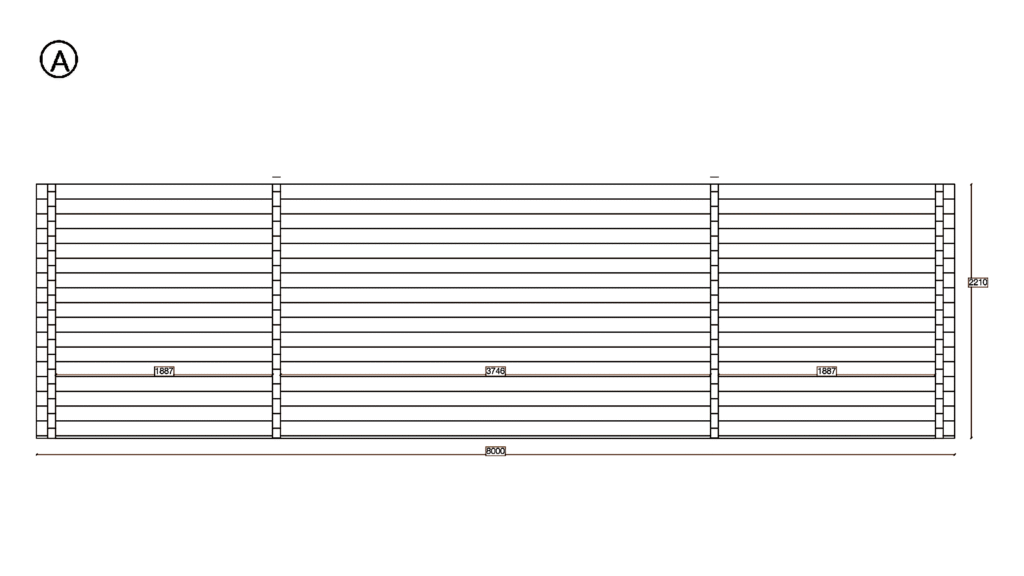

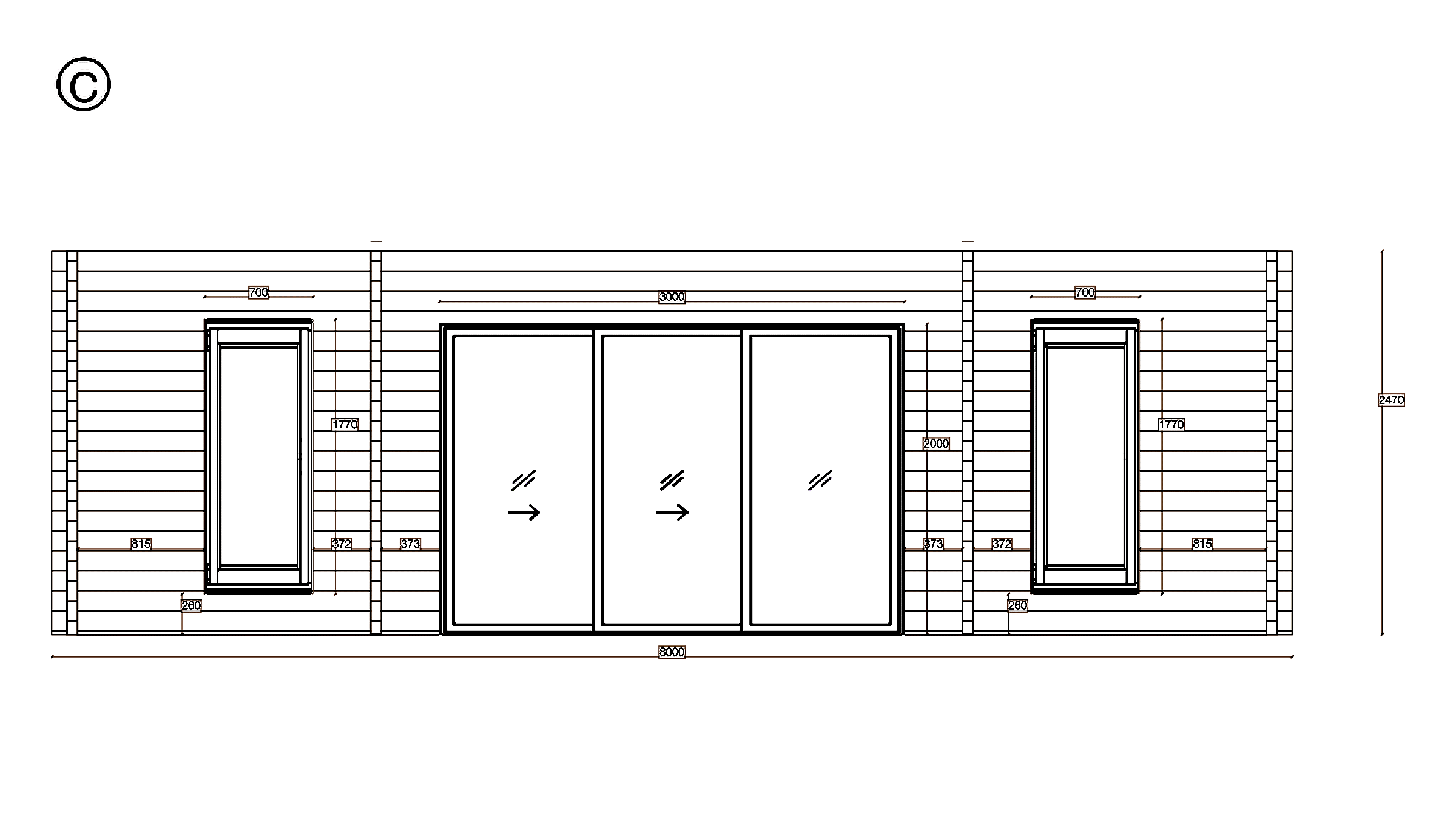

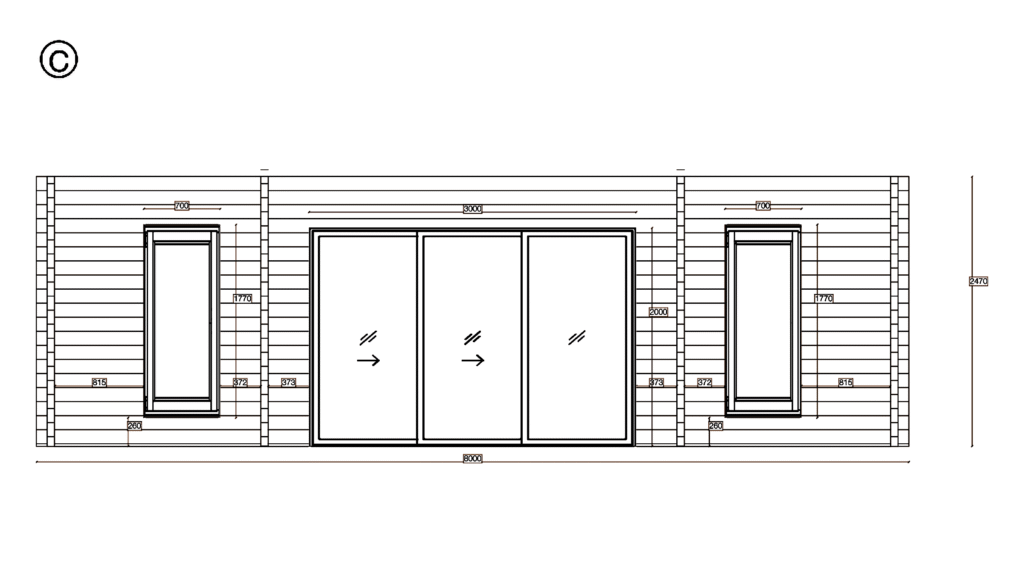

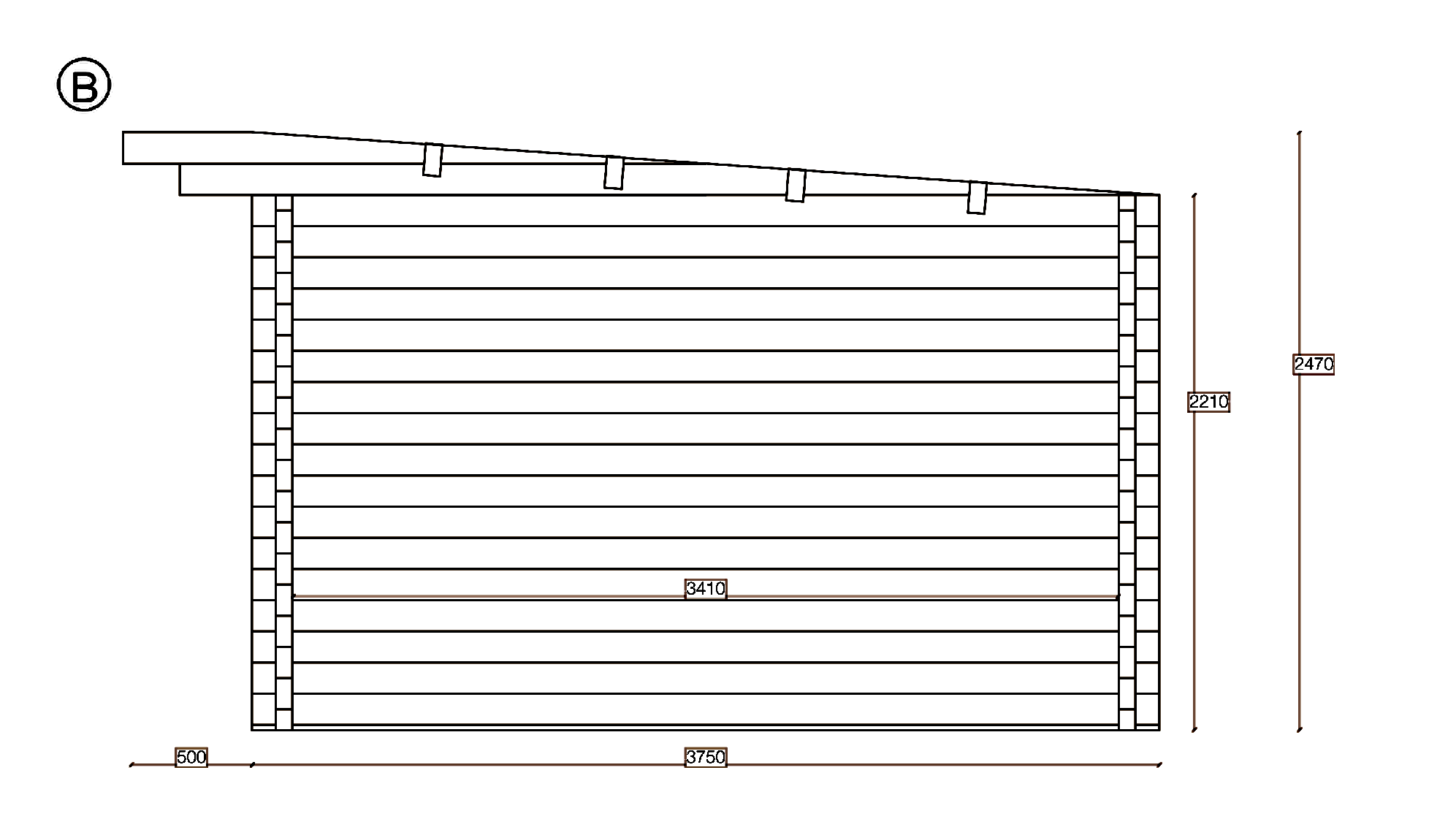

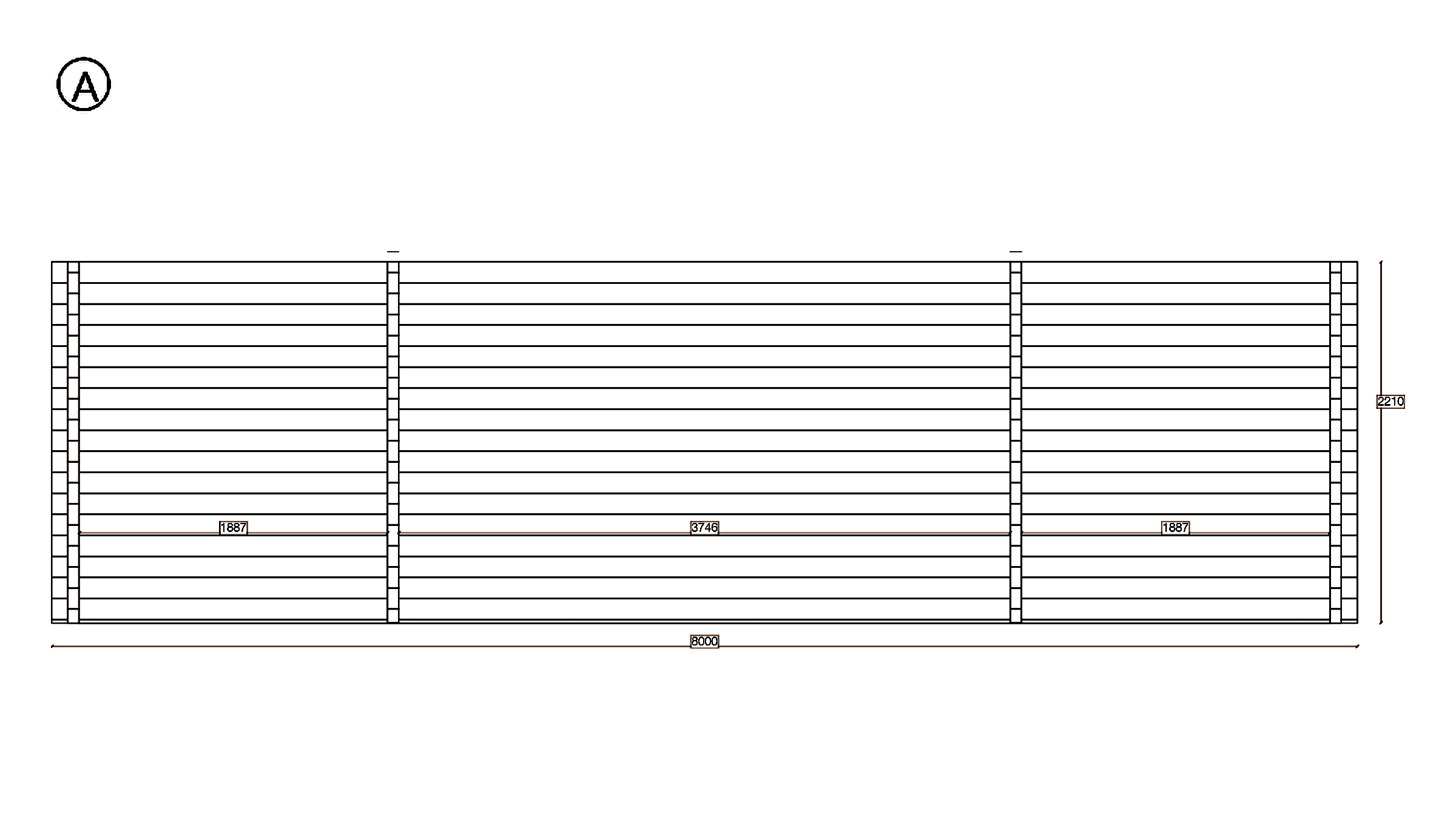

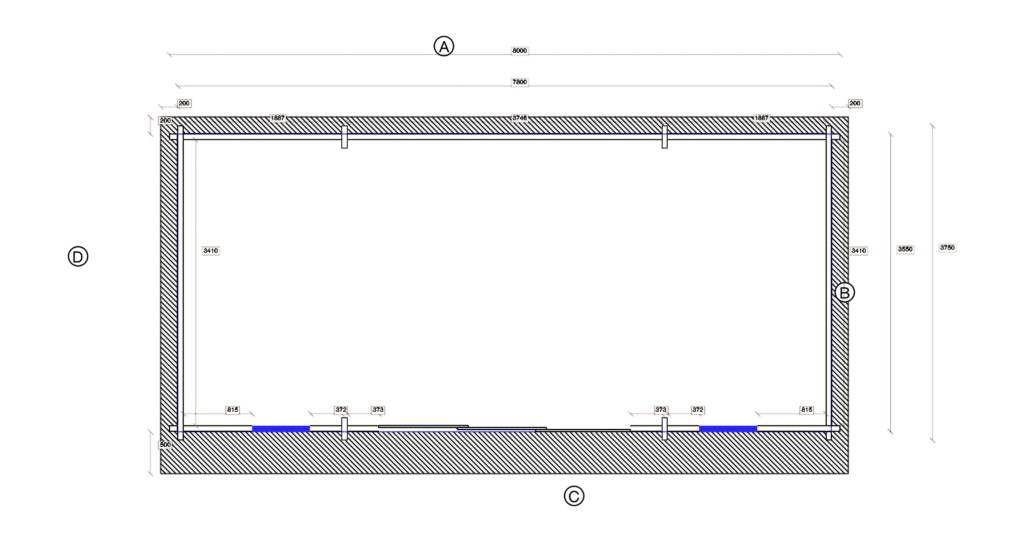

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
