Design Overview

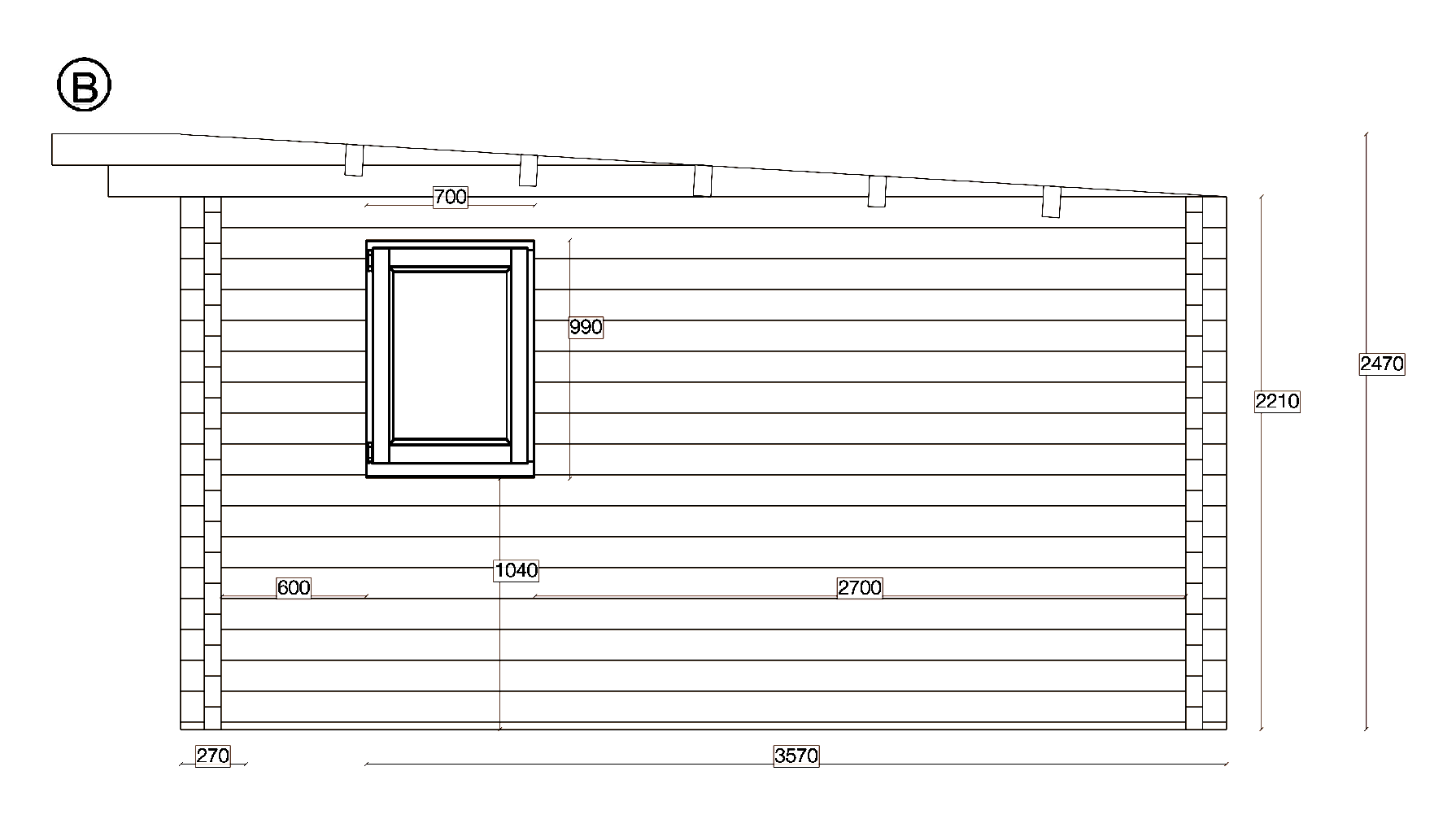

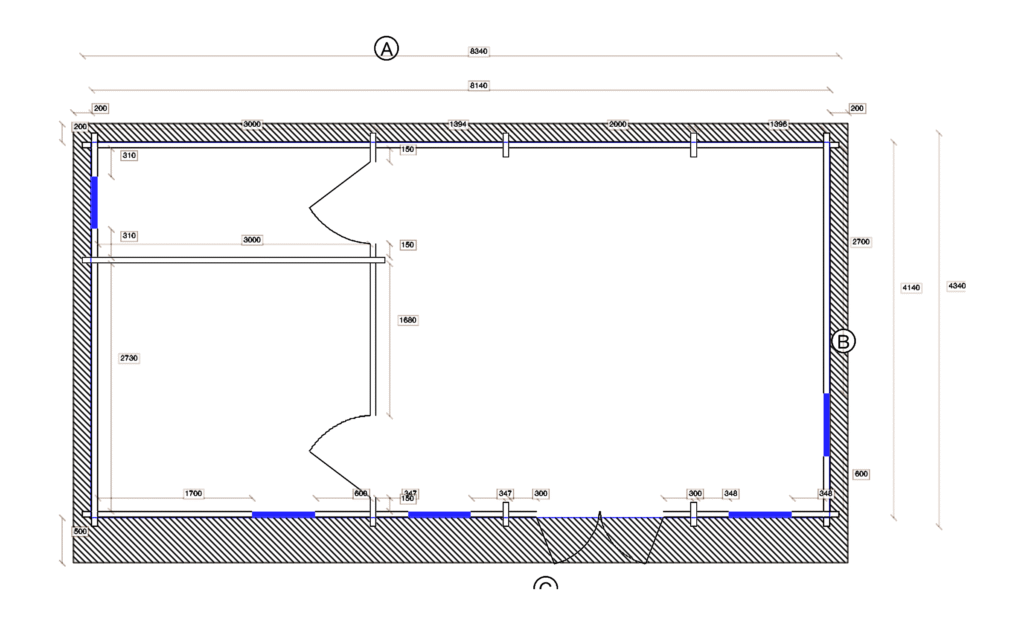

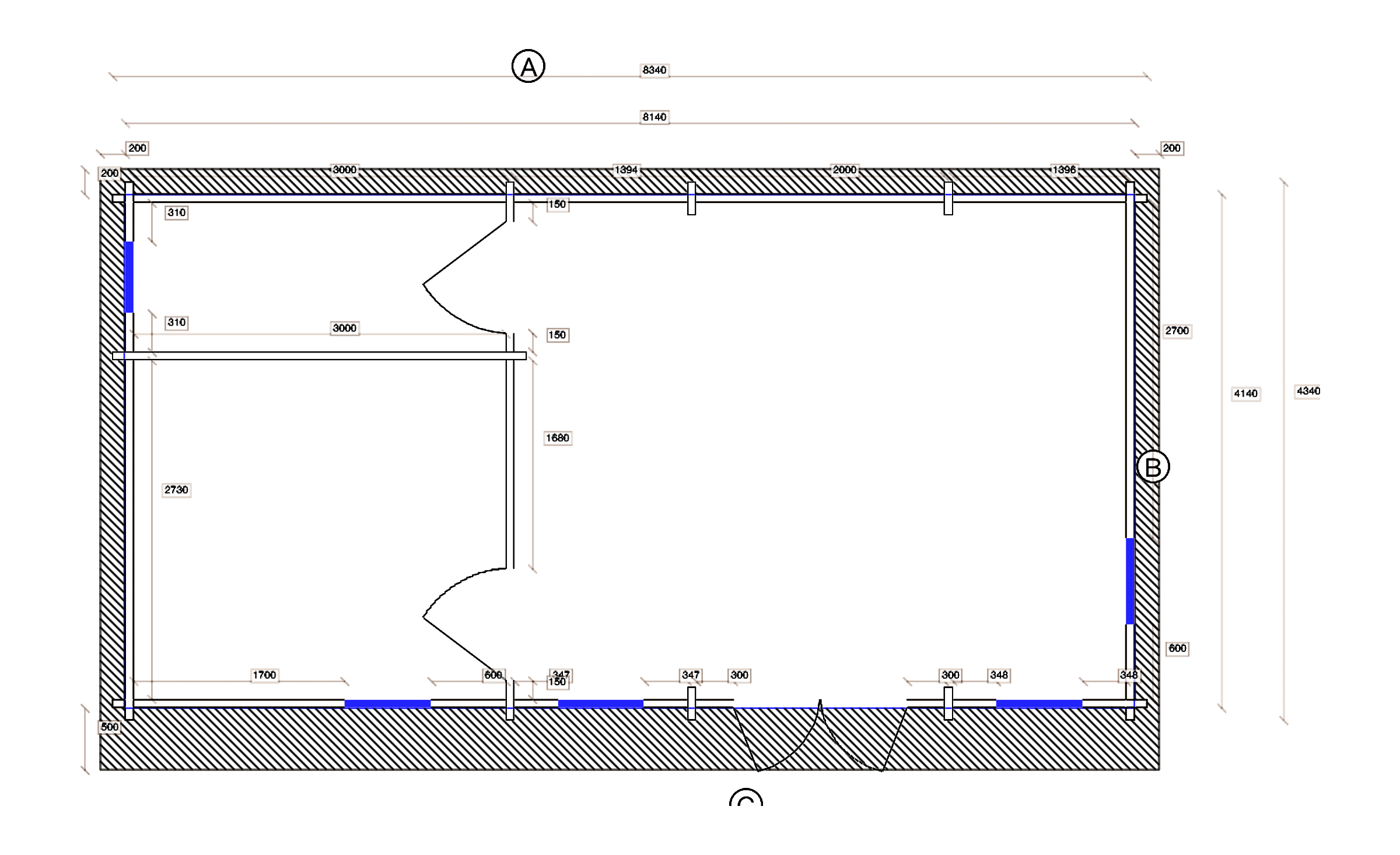

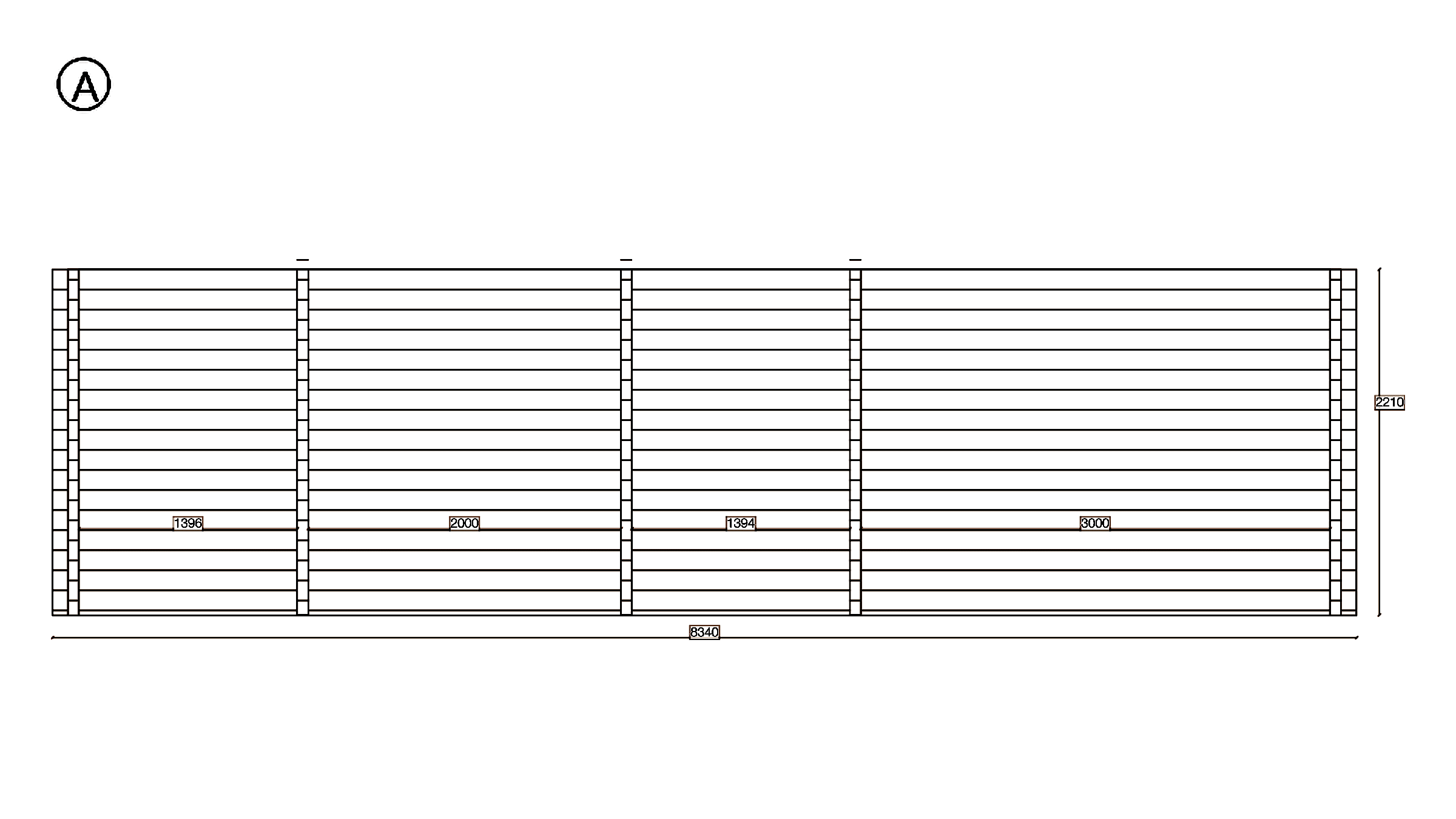

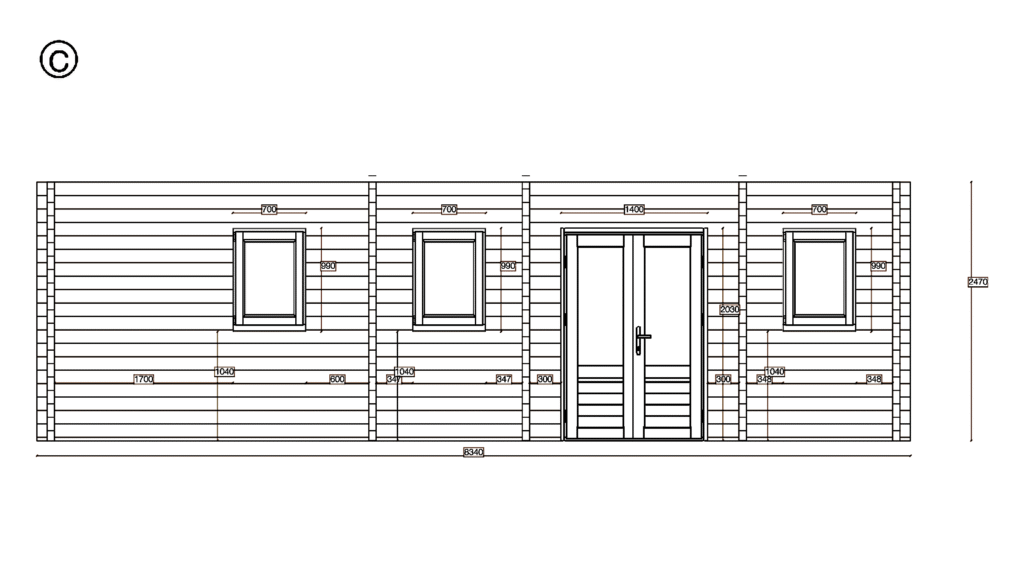

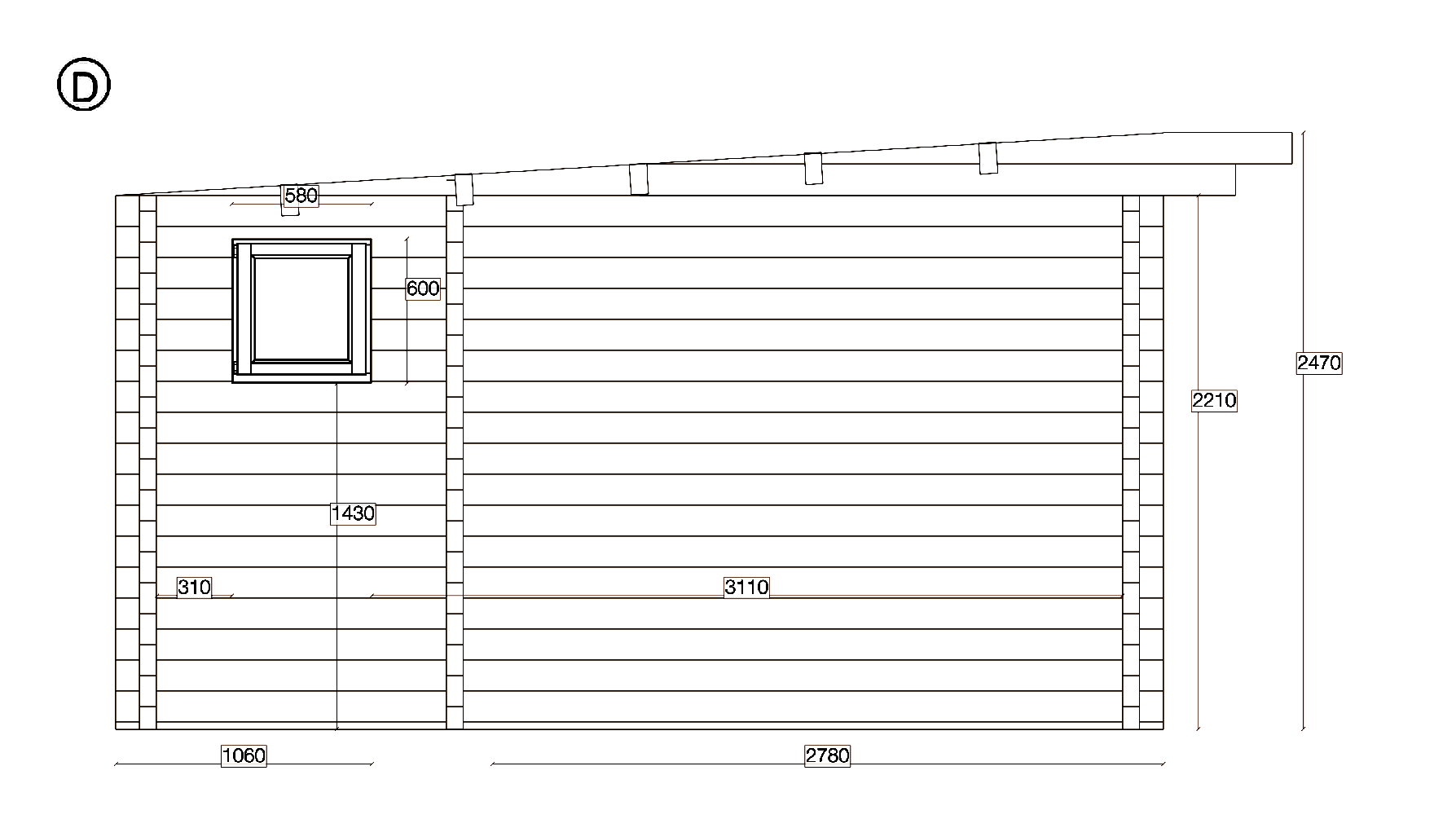

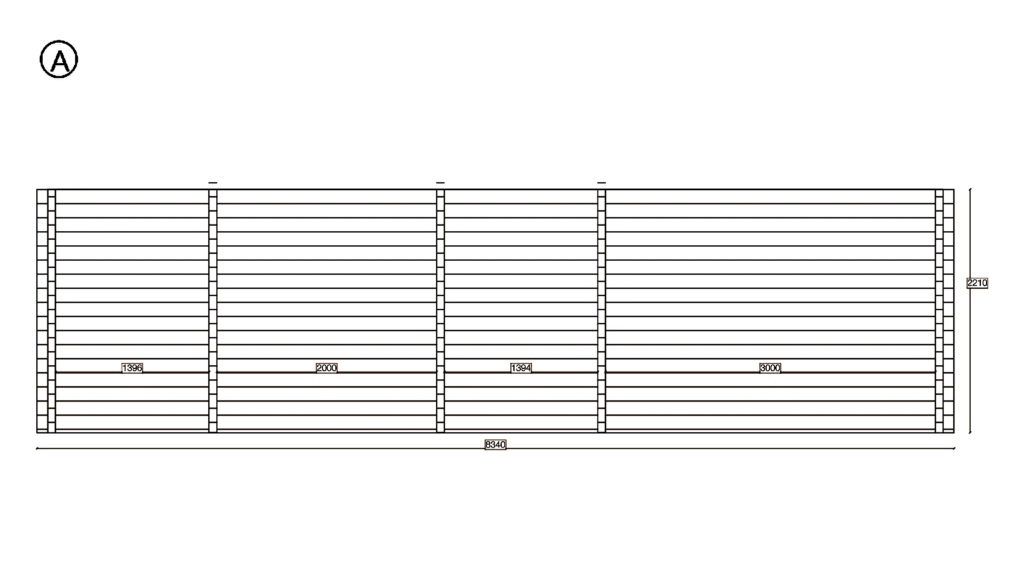

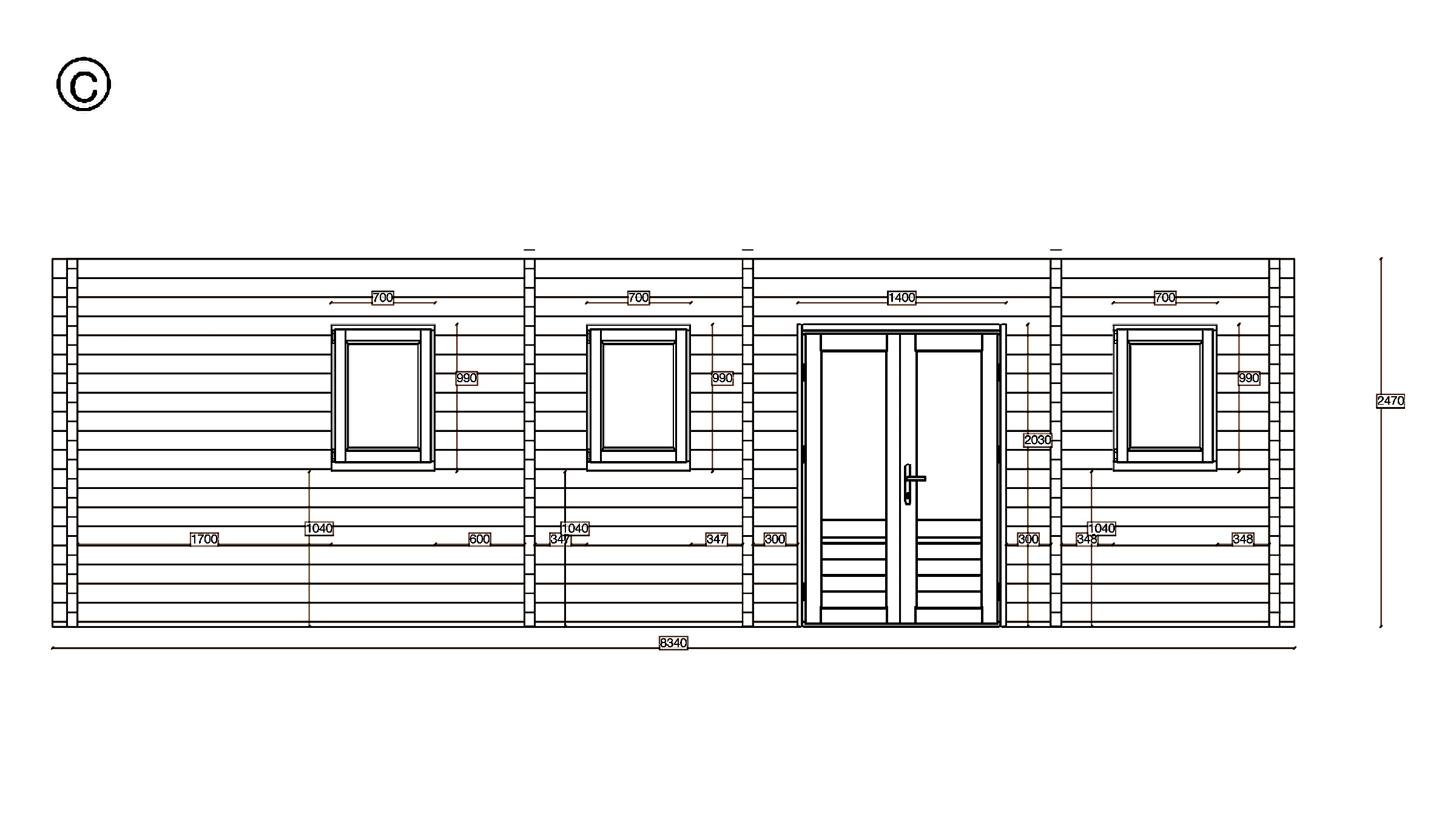

Custom-manufactured to exact specifications, the Pent Holiday Cabin 4.0×8.0 provides 32m² of usable floor area across overall dimensions of 4.3m x 8.3m. Internal dimensions of 4.0m x 8.0m are enclosed by 70mm solid log walls rising to a sidewall height of 2210mm, with the pent (mono-pitch) roof reaching 2470mm at the ridge. Fenestration comprises 5 windows and 3 doors arranged per the specified floor plan, all beneath a 3.5° pent roof covering 41.4m². No off-the-shelf components are used in this log cabin; every element is cut and machined to the project-specific measurements, delivering a truly bespoke result for the dealer and their end client.
Why This Configuration
The pent (mono-pitch) roof delivers a clean, modern profile with a single slope that simplifies construction and reduces material requirements without compromising weather protection. The low 3.5° pitch maintains a discreet roofline, which can be advantageous in areas with height restrictions or where planning sensitivity is a consideration.
The wall specification shown here is project data for dealer review. Final use, insulation package, glazing, ventilation, installation quality, and any building-control or local authority route must be confirmed for the target market and project.
With 5 windows, the design prioritises abundant natural light, reducing daytime reliance on artificial lighting and creating a bright, inviting interior. The double-door entry creates a generous opening that accommodates furniture delivery, wheelchair access, and commercial foot traffic, adding versatility to the building’s potential use.
The deep 4.3m x 8.3m plan provides generous room depth, well-suited to open-plan living or configurations requiring clear span in the primary direction.
Materials & Construction
The 70mm solid log wall profiles in this design are precision-milled from solid timber for clean joints and consistent assembly. The specification is recorded as a project reference for dealer and project review, with insulation, glazing, ventilation and local authority requirements confirmed per market and final use.
The floor system comprises 100x60mm pressure-treated bearers supporting 28mm tongue-and-groove floorboards. This combination provides a rigid, level deck capable of handling furnishing loads, underfloor insulation, and finished flooring overlays as required by the end user.
The roof structure is carried on 5 purlins of 70x130mm section, covered with 19mm boards to form a total roof area of 41.4m². The deck is supplied ready for the dealer’s choice of final covering – EPDM rubber membrane, bitumen shingles, or standing-seam metal are popular options that Eurodita can advise on.
The wall profile, insulation package, glazing, roof, floor, ventilation, and installation route should be reviewed together before any all-season or residential-style use is marketed. Eurodita provides project data for dealer review rather than a blanket use approval.
Eurodita mills all profiles in-house from Northern European timber, kiln-dried to controlled moisture levels before precision machining. This integrated supply chain ensures traceability and consistent quality.
Customisation Options
Every parameter of this 32m² design is open to modification. Eurodita operates as a pure bespoke manufacturer: the project shown here is a starting point, not a fixed product.
The 4.3m x 8.3m footprint shown here is a project reference rather than a fixed size, and alternative dimensions are assessed for technical feasibility project by project. Wall specification is confirmed per project and product family. Eurodita provides the technical data needed for dealer review, including wall build-up, insulation, glazing, and approval-route considerations where relevant.
The pent (mono-pitch) roof shown here can be changed to any supported type (apex, pent, or hip), and the pitch adjusted to suit local planning or aesthetic preferences. Sidewall height, ridge height, and overhang dimensions are all variable.
Window and door positions, sizes, types, and quantities are fully configurable. Glazing can be specified as standard double-glazed (45mm) or living-type (68mm) profiles, with optional painted finishes and crossbar detailing.
Internal partitions, electrical pre-wiring channels, additional insulation packages, and bespoke floor plans are available on request. Eurodita works directly with dealer partners to develop a sketch or drawing into a manufacturable, priced proposal, with feasibility confirmed for the specific design. Structural engineering and calculations are sourced from specialist partners, and the dealer’s project team handles the local building control route.
Private-Label Service
Eurodita offers private-label manufacturing for this log cabin design. Documents, delivery notes and product labels can carry your brand instead of ours, as agreed for the order. The terms of this private-label service are confirmed in the written quotation for each bespoke order, while your business sets its own prices and runs its own customer relationships.
Ideal Use Cases
With 32m² of interior space, this design supports a broad range of applications: workspace, studio, leisure room, hospitality-support, or annexe-style layouts where local planning and building-control requirements allow. The generous floor plate permits flexible partitioning to suit the end user’s needs, and dealers should position buildings of this scale around the confirmed local approval route, operator requirements, and agreed specification. The 4.3m x 8.3m footprint fits comfortably within most residential plots while providing enough room for a kitchenette, bathroom pod, or separate sleeping area.
Accessibility compliance requires the confirmed opening, threshold, circulation and site design.
The wall section can be considered alongside insulation, services, glazing, roof and floor build-up for project-specific comfort targets. Final all-season or residential-style positioning depends on the confirmed specification and local authority review route.
The generous glazing allowance makes the interior particularly appealing for studio, retail, and hospitality applications where natural light is a selling point.
Delivery & Production
The production and dispatch schedule is confirmed for each order. Delivery is flat-packed on standard road-freight pallets. All 70mm wall sections, roof purlins, 28mm floor panels, pre-fitted windows, doors, and fasteners are included as a complete kit with numbered components and illustrated assembly instructions. Eurodita coordinates transport across Europe and the UK through long-standing haulage partners, delivering to dealer depots, construction sites, or end-client addresses.
Frequently Asked Questions
Can I customise the dimensions of the Pent Holiday Cabin 4.0×8.0?
Yes. Every dimension of this 32m2 log cabin is fully customisable. Eurodita manufactures to your exact floor plan; width, depth, wall height, and roof pitch can all be adjusted. Window and door positions, sizes, and types are also changeable. Contact us with your requirements for a bespoke quotation.
What wall thickness does the Pent Holiday Cabin 4.0×8.0 use?
This project record lists 70mm solid log walls for the shown design. Alternative wall specifications are confirmed by product family and project brief. Standard solid-log cabins use 28, 34, 44, 58 or 70mm profiles; glulam projects use 88, 135, 180 or 220mm profiles. Final use, insulation, glazing, installation and local authority review are confirmed per quote.
Is the Pent Holiday Cabin 4.0×8.0 suitable for year-round use?
Suitability for all-season or residential-style use is not confirmed from wall thickness alone. Eurodita supplies project data for dealer, client and local-authority review, including the selected wall profile, insulation, glazing, ventilation, foundation and services where relevant. Final marketing or approval claims should be confirmed for the destination market and project specification.
How is the Pent Holiday Cabin 4.0×8.0 delivered?
Eurodita supplies project kits from the Kaunas factory with components prepared for the confirmed specification. Standard terms are EXW Kaunas. If a delivered route is required, freight timing and delivery terms are agreed per quotation for the destination market, project size and access requirements.
Does Eurodita supply under my brand (private label)?
Yes. Eurodita is a private-label log cabin manufacturer for trade clients across the UK and EU. We offer two service levels: standard supply with neutral packaging and documentation, or full private-label production with your brand identity on technical drawings, parts lists, packaging labels, and delivery notes. Both levels include the same factory production, materials, and quality control as our catalog range. Private-label terms are agreed per account on order volume and product range. Contact our trade desk for a private-label proposal tailored to your product line.
This one was built to a drawing. Yours can be too.
This project was produced as a 32 m2 internal area, 70 mm wall profile, 2470 mm ridge height. Every published project on this page followed a project-specific brief. Send your drawing and Eurodita will confirm whether the qualified bespoke route fits your project. Partner branding is agreed per order.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. CAD/3D material and branding follow the agreed order scope.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed in the written quotation and order. Catalogue models on the same wall profile and a comparable footprint: Golf Simulator Cabin 7.0×4.0m, 70mm, Golf Simulator Cabin 6.0×4.5m, 70mm, Golf Simulator Cabin 7.5×4.0m, 70mm. Review the wider wholesale log cabins range, or see the other published projects with drawings and dimensions.
