Eurodita timber building project

Pent Holiday Cabin 5.2x8.2

A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.

3D technical project visual for Pent Holiday Cabin 5.2x8.2.
3D view of the building as drawn. The final specification is confirmed in the written quotation.
Inside area38.2 m²
Overall footprint5200 × 8200 mm
Wall configuration70 mm log
Roof geometryPent, 2.9°

Specification

Technical data

The figures below come from the project drawing of this building.

Dimensions

Inside area
38.2 m²
Overall dimensions
5200 × 8200 mm
Internal dimensions
4860 × 7860 mm
Wall thickness
70 mm
Project reference
PHC-486x786-070

Height and roof

Sidewall height
2210 mm
Maximum/high-side roof height
2470 mm
Roof type
Pent
Roof pitch
2.9°
Roof area
47.9 m²

Floor and roof

Floor bearers
40x60mm
Floorboards
28 mm
Roof boards
19 mm
Roof purlins
70x130mm × 19

Windows and doors

Window and door schedule

Windows1 × Residential type (IV68) timber window1200x600mm
Windows2 × Residential type (IV68) timber window700x1510mm
Doors1 × Residential type (IV68) timber double door with side windows2800x2030mm
Doors1 × Residential type (IV68) timber single door, solid timber900x2030mm

Drawings

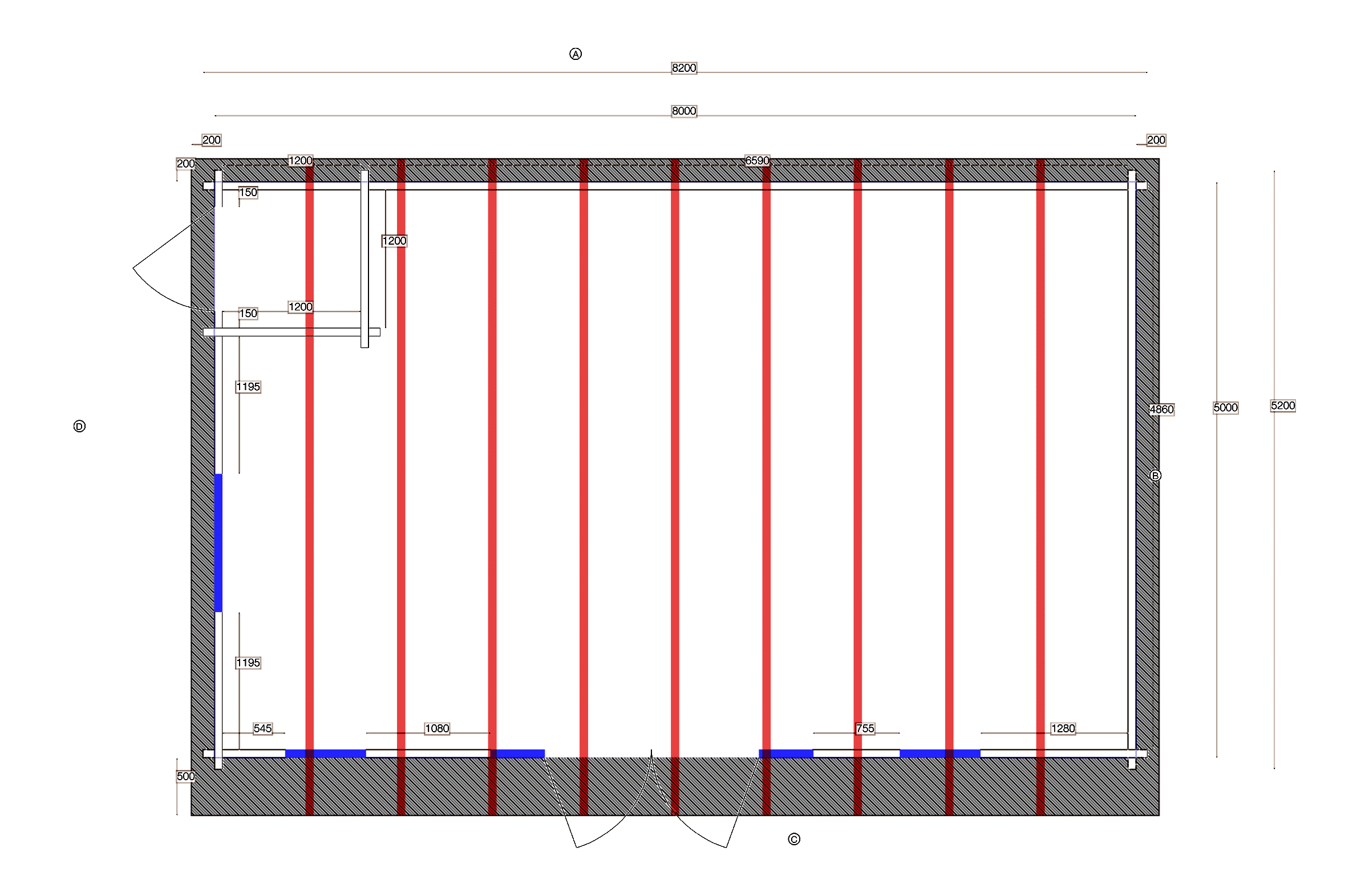

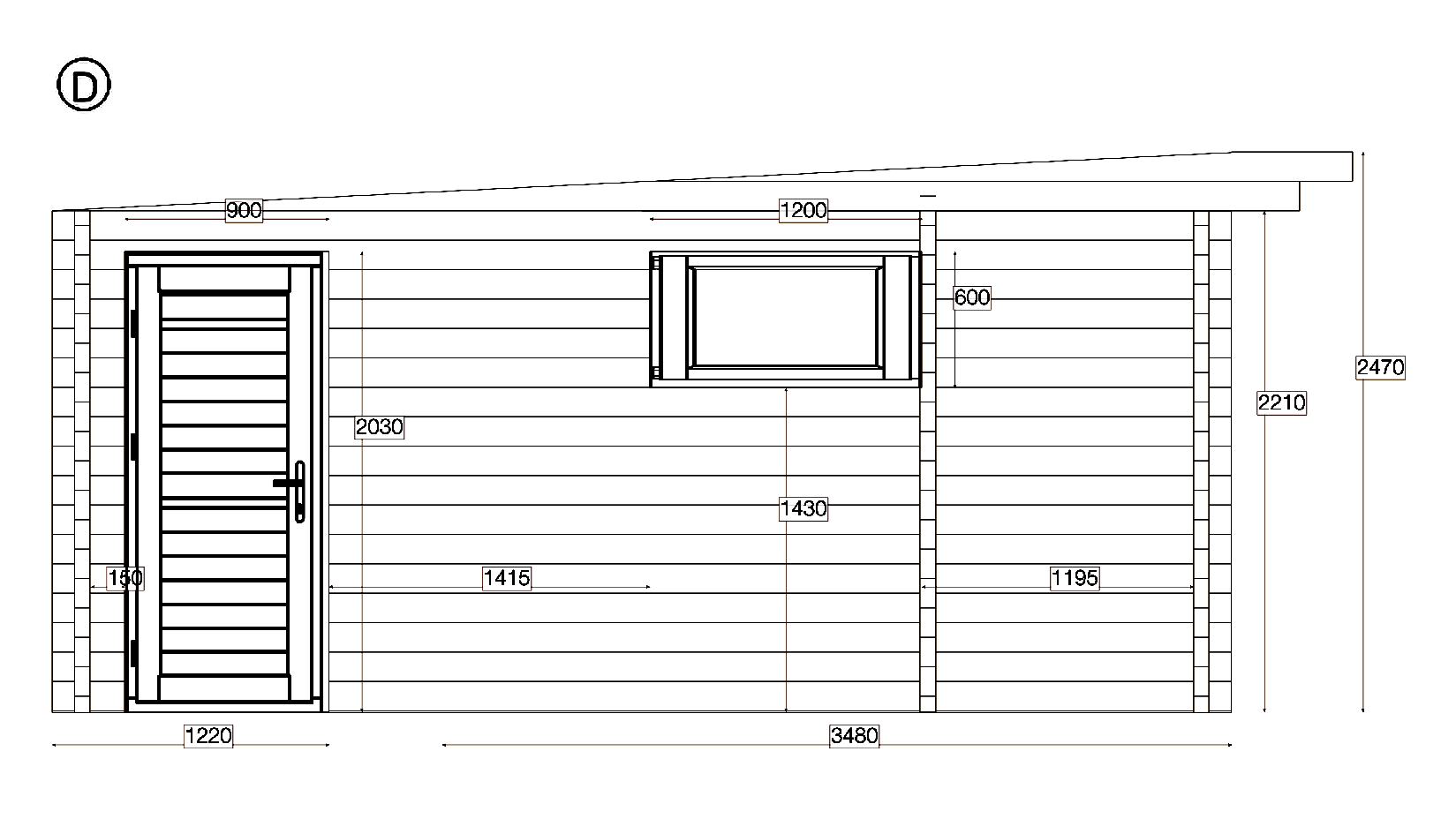

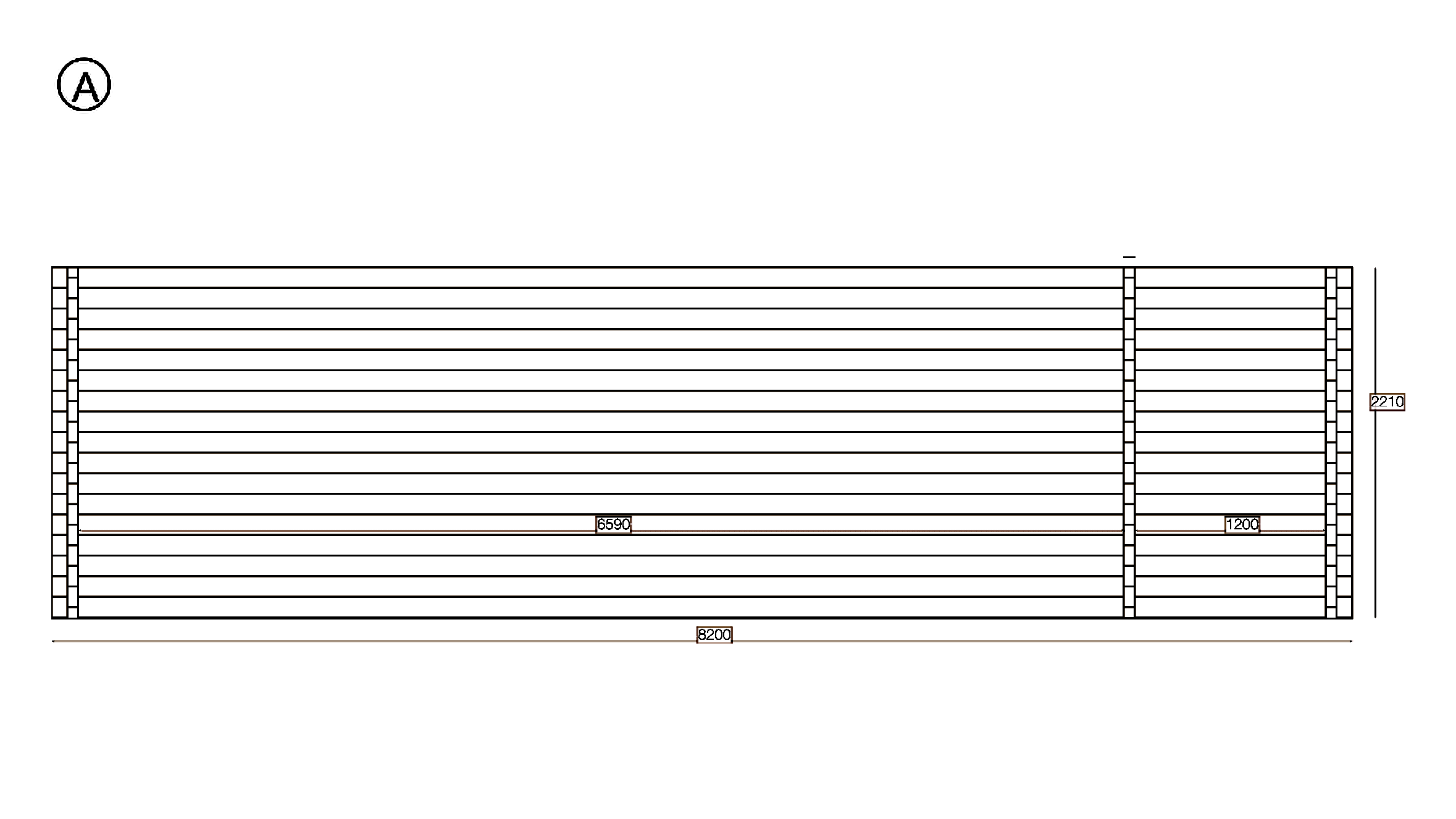

Floor plan and elevations

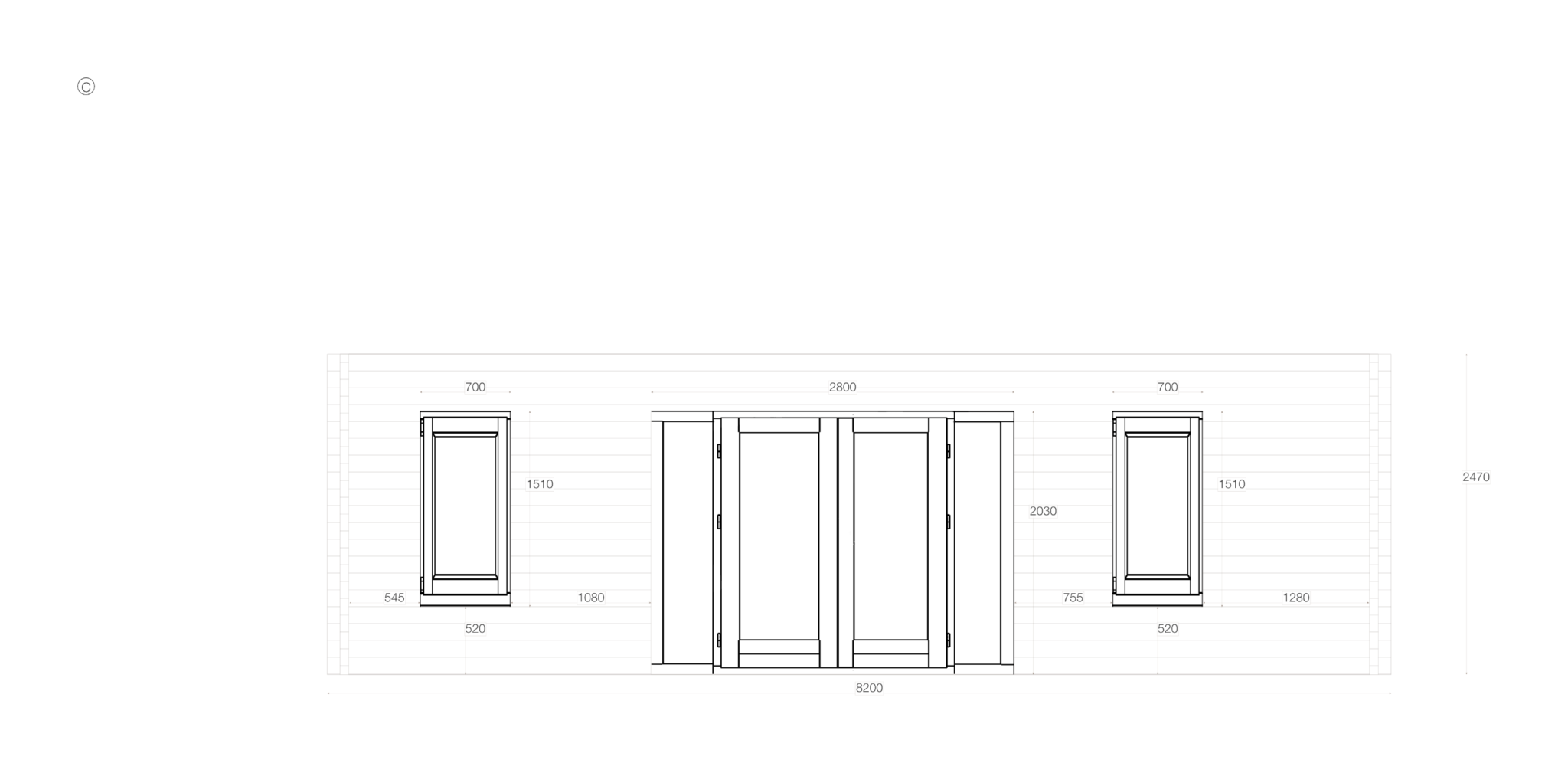

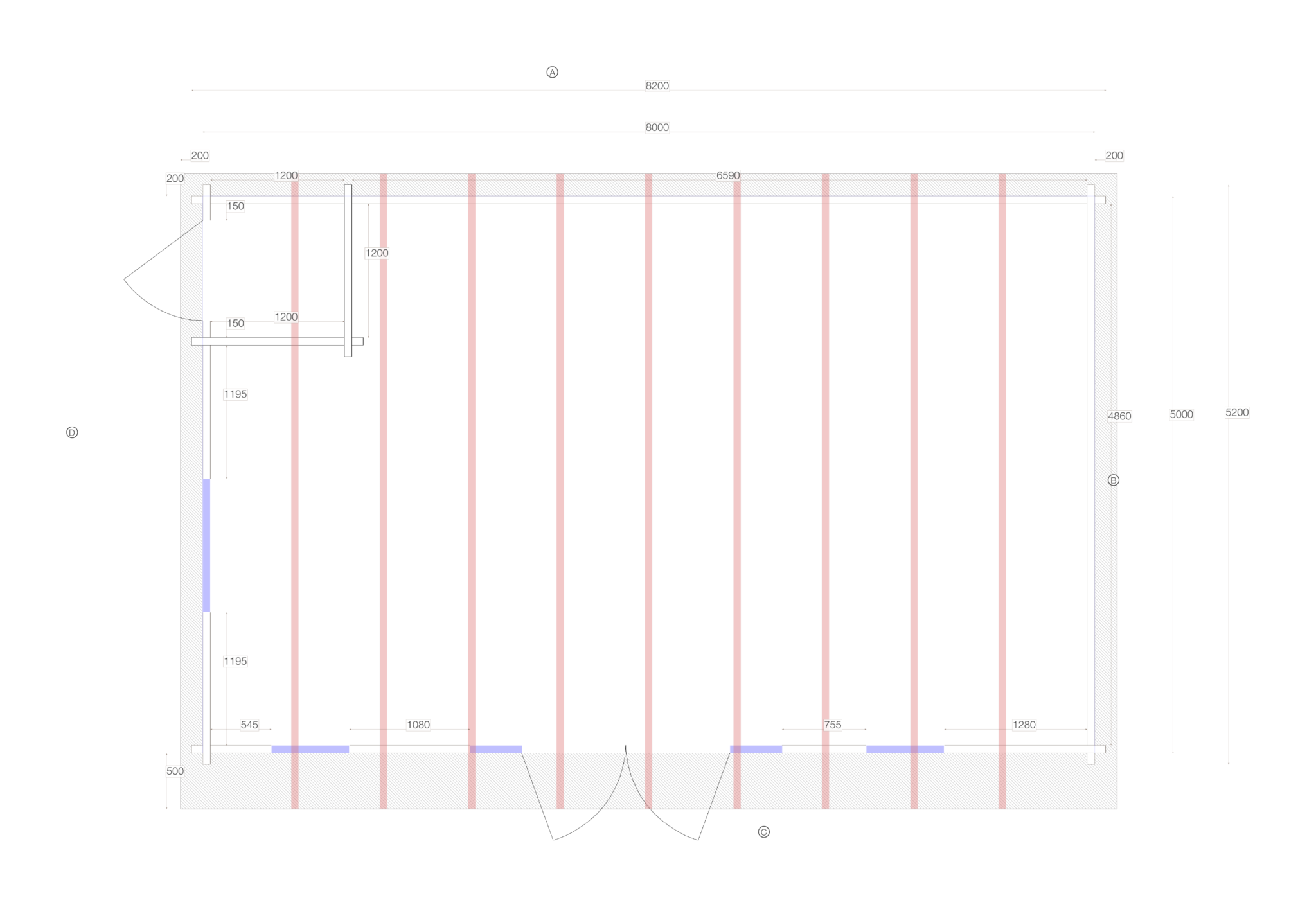

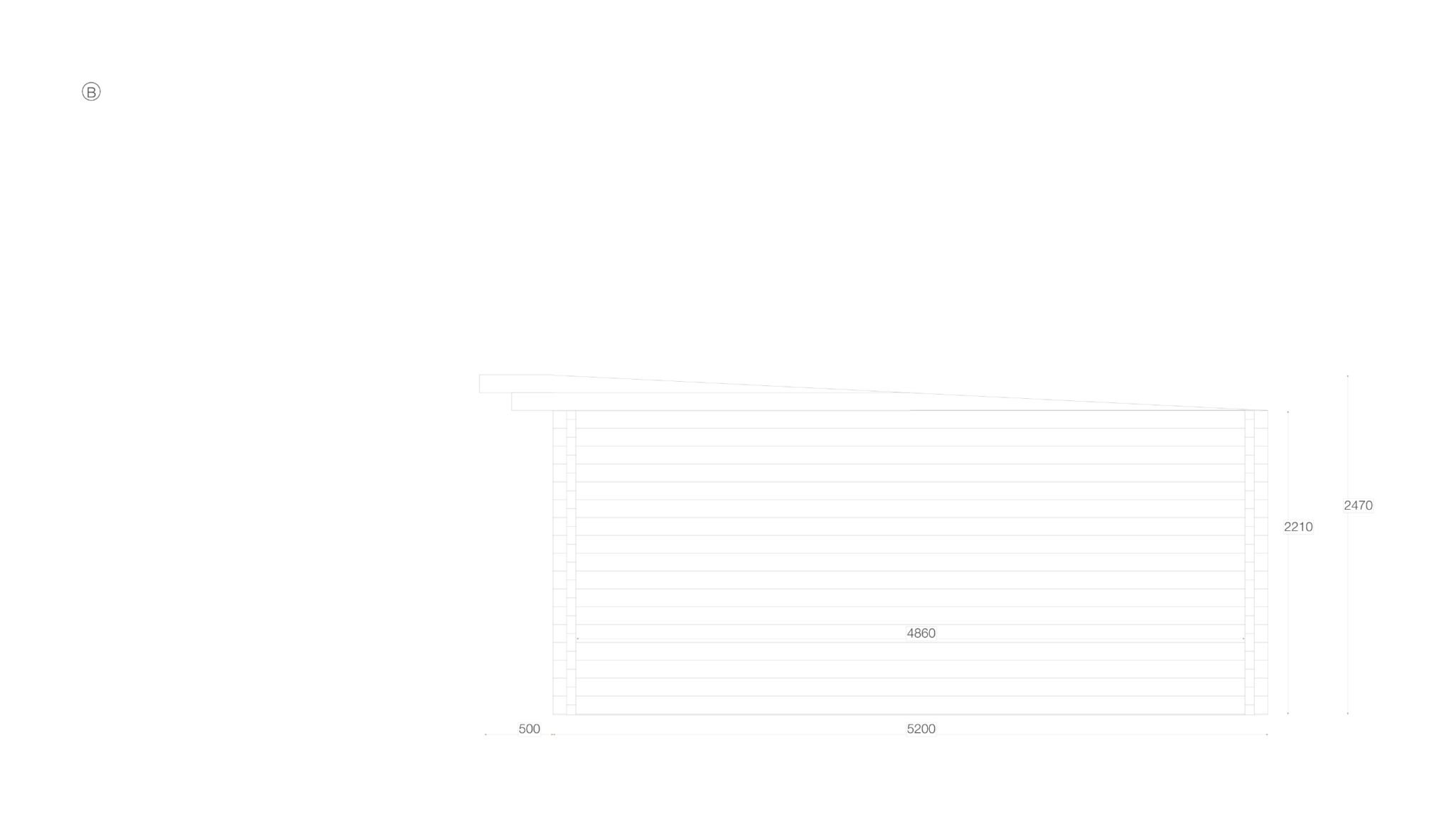

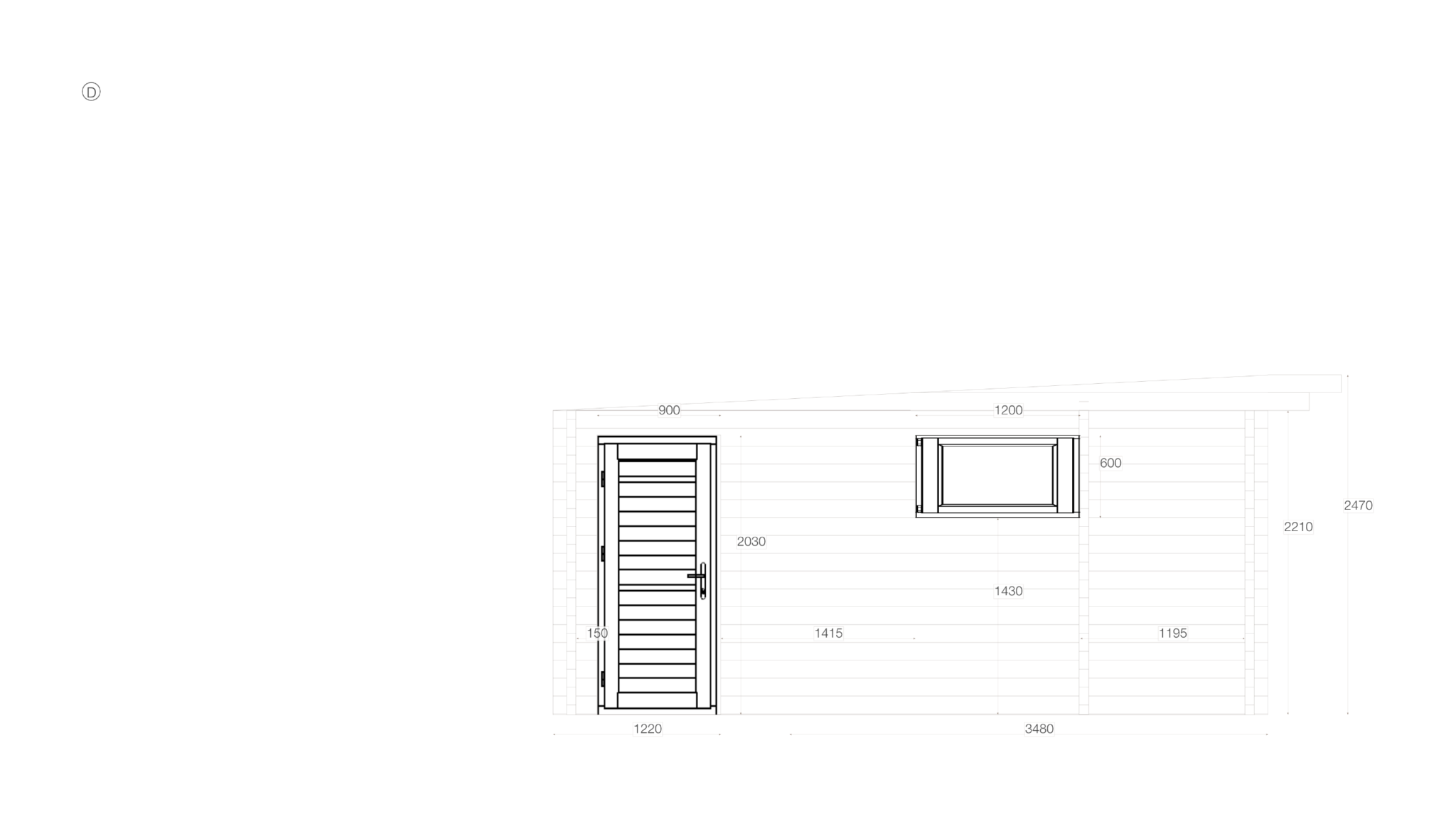

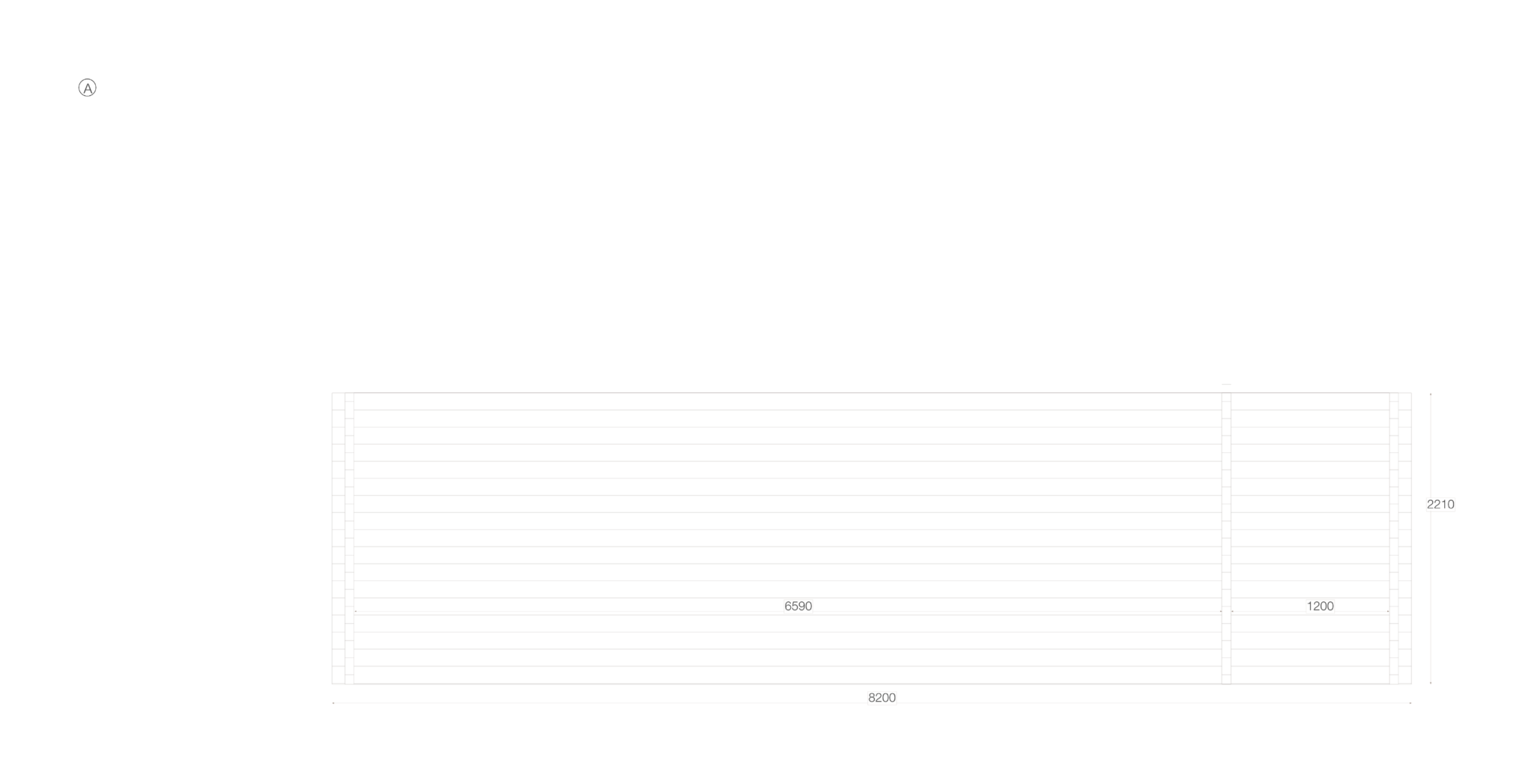

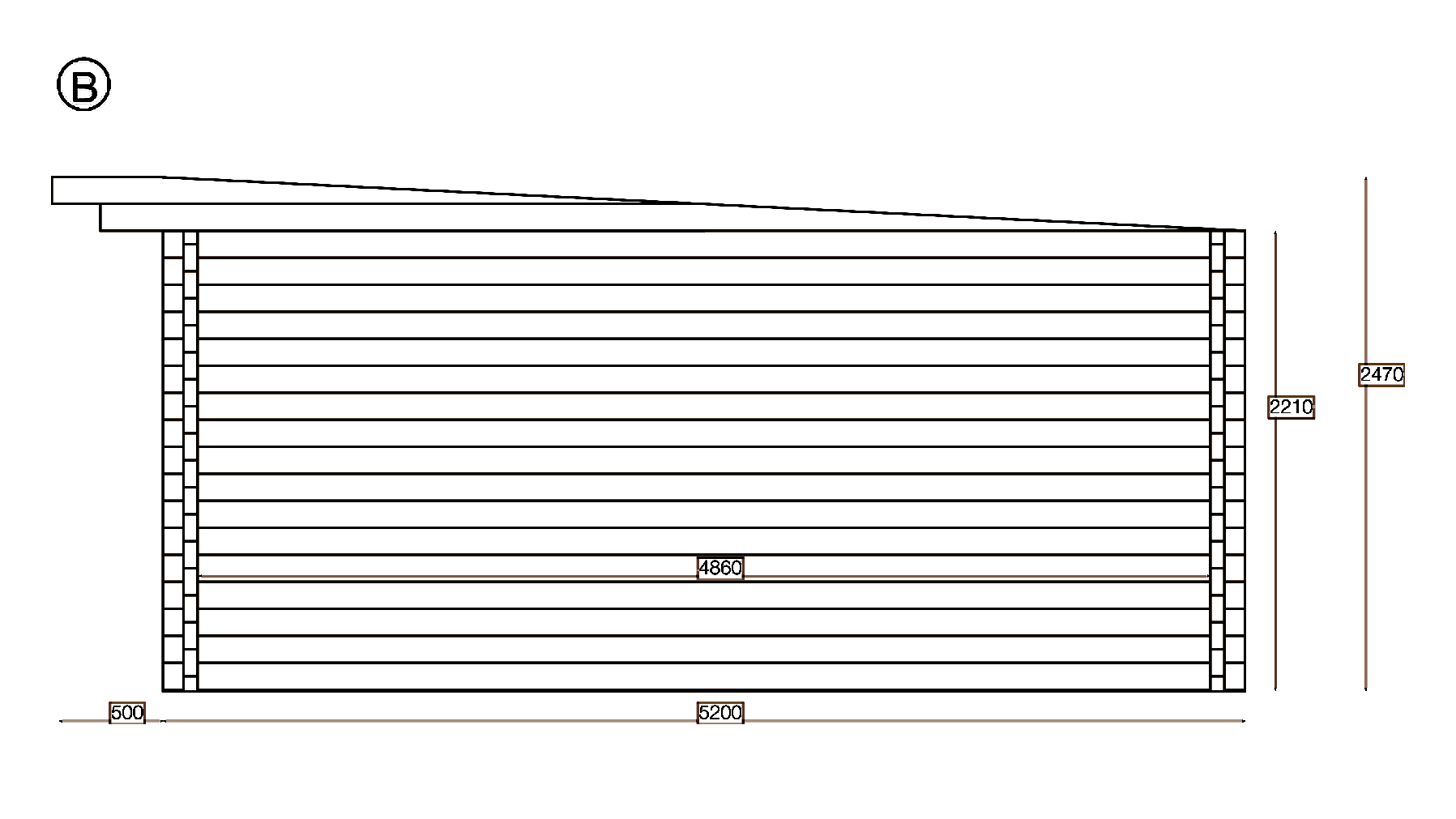

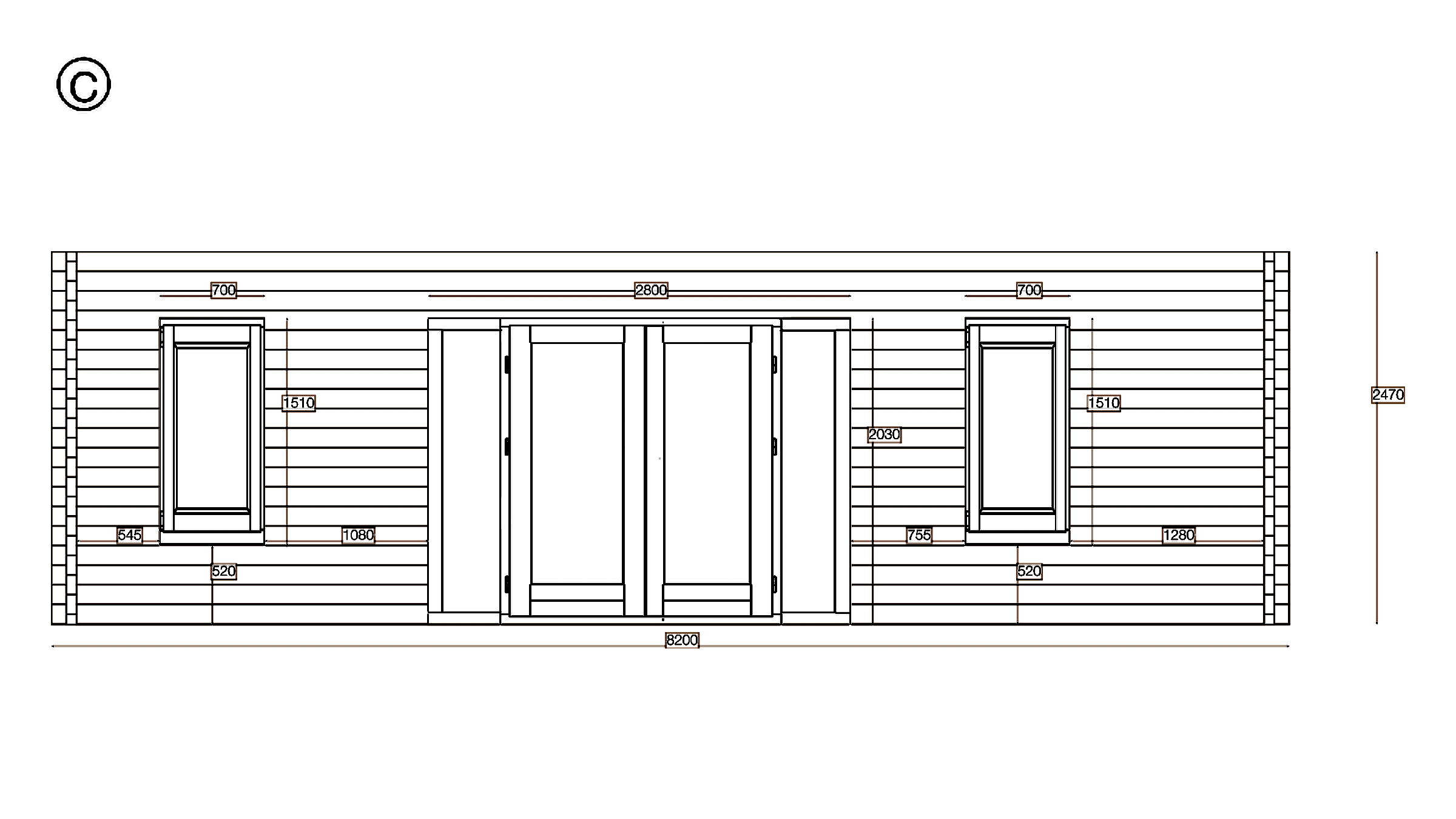

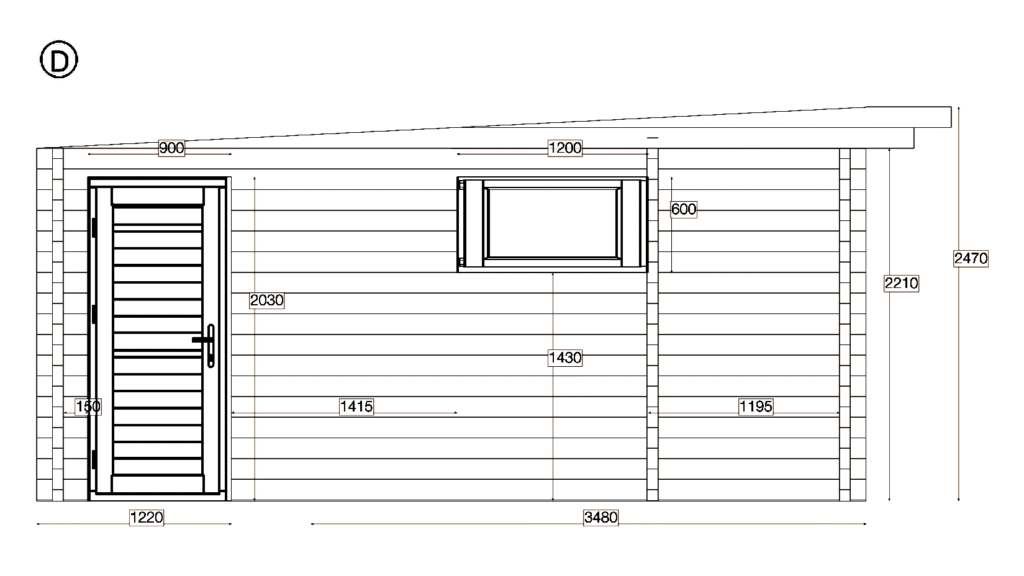

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
