Eurodita timber building project

Apex Timber Lodge 5.0x6.0

A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.

3D technical project visual for Apex Timber Lodge 5.0x6.0.
3D view of the building as drawn. The final specification is confirmed in the written quotation.
Inside area26.4 m²
Overall footprint5000 × 6000 mm
Wall configuration70 mm log
Roof geometryApex, 26.9°

Specification

Technical data

The figures below come from the project drawing of this building.

Dimensions

Inside area
26.4 m²
Overall dimensions
5000 × 6000 mm
Internal dimensions
4660 × 5660 mm
Wall thickness
70 mm
Project reference
ATL-466x566-070

Height and roof

Sidewall height
2340 mm
Ridge height
3575 mm
Roof type
Apex
Roof pitch
26.9°
Roof area
35.7 m²

Floor and roof

Floor bearers
40x60mm
Floorboards
28 mm
Roof boards
19 mm
Roof purlins
70x130mm × 7

Windows and doors

Window and door schedule

Windows1 × Garden type (IV45) timber window700x1770mm
Doors1 × Garden type (IV45) timber double door, fully glazed1400x2030mm

Drawings

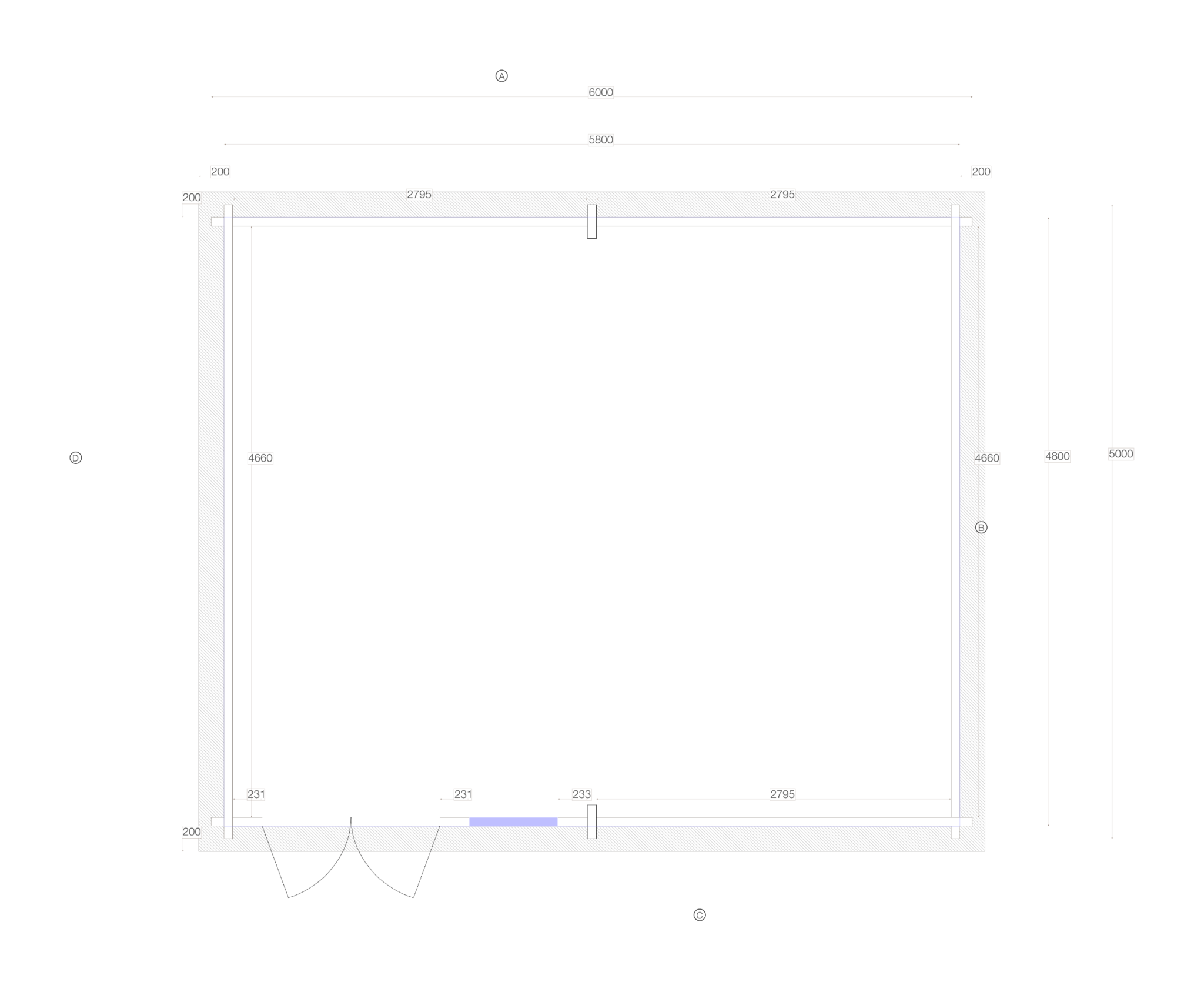

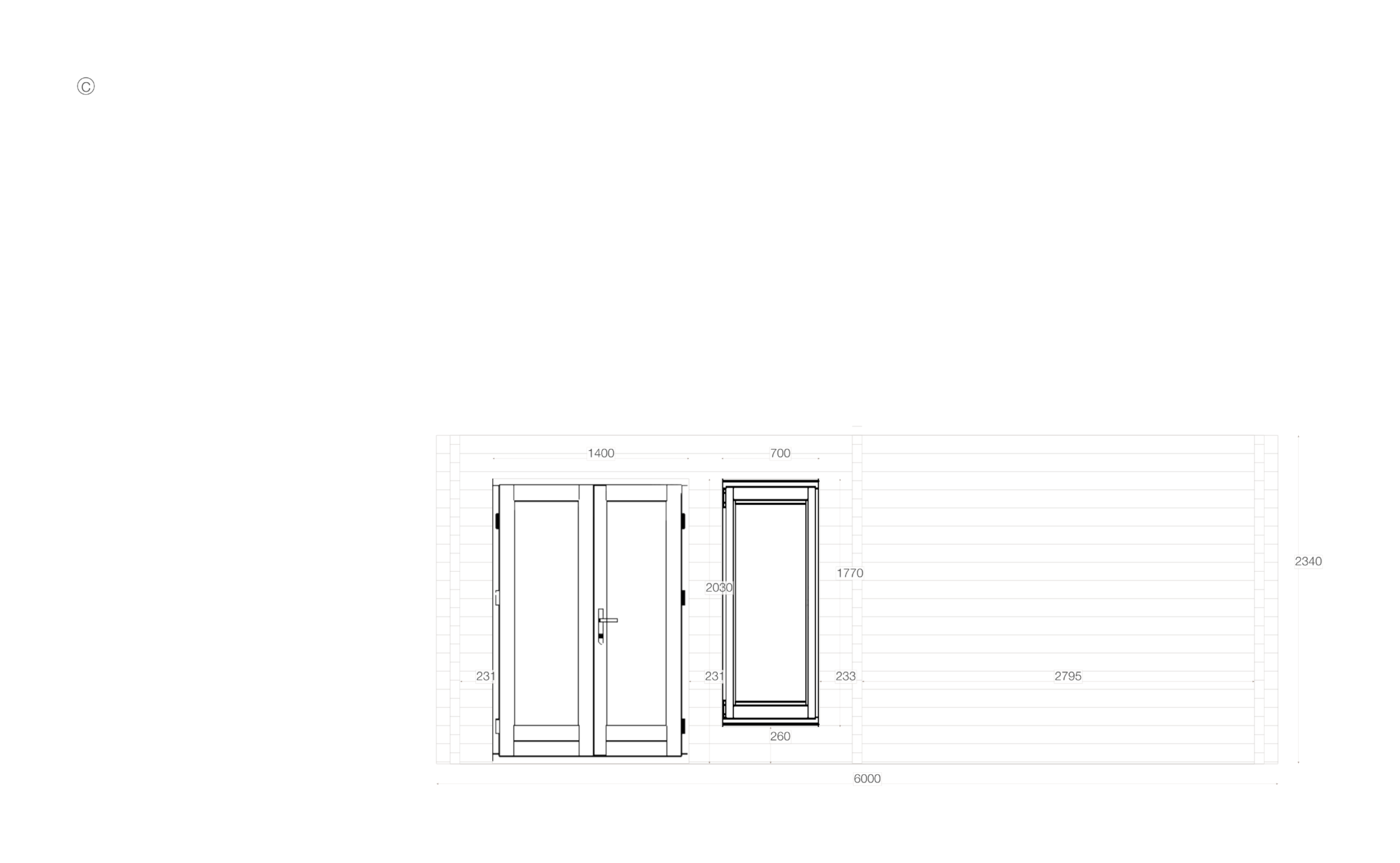

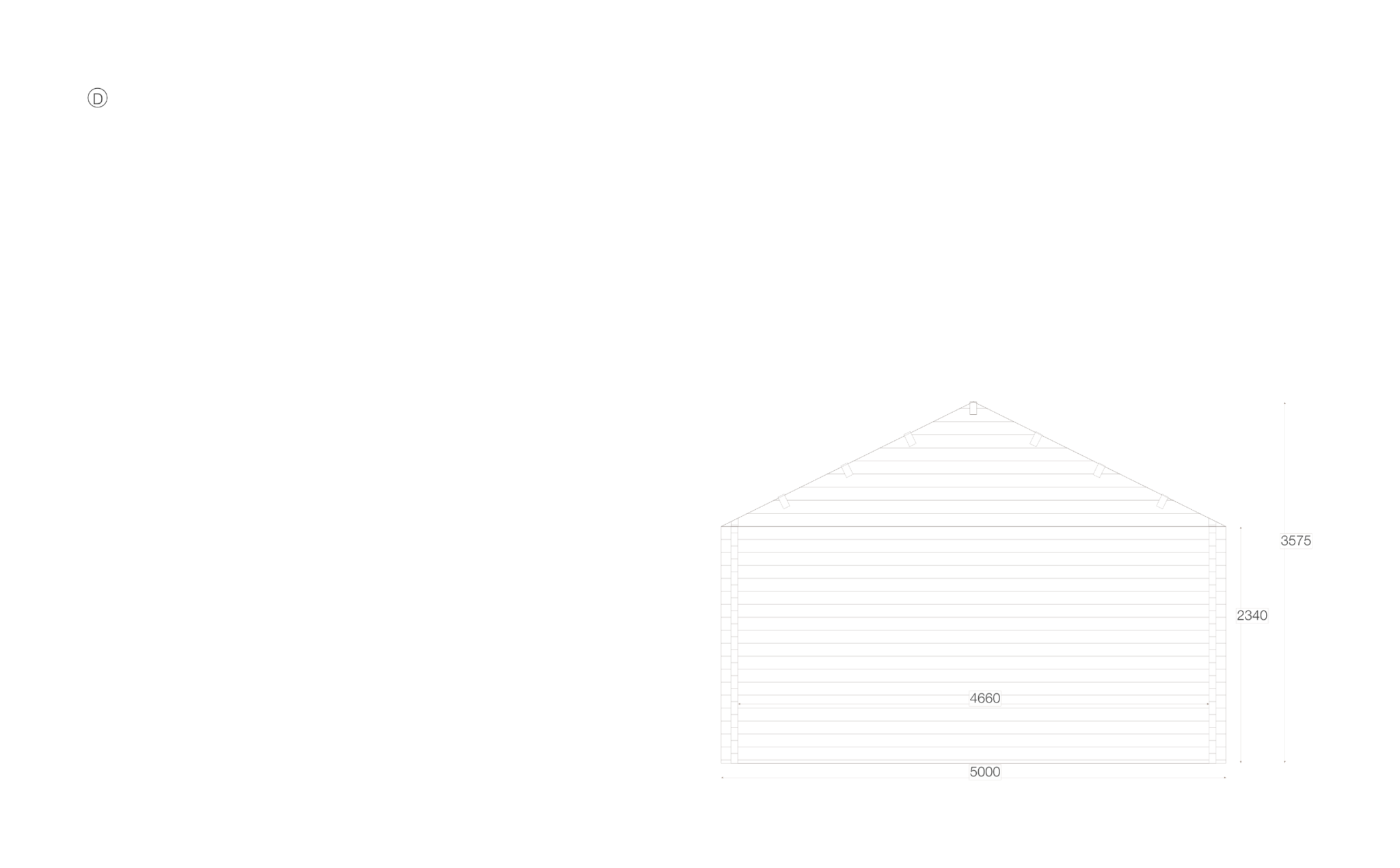

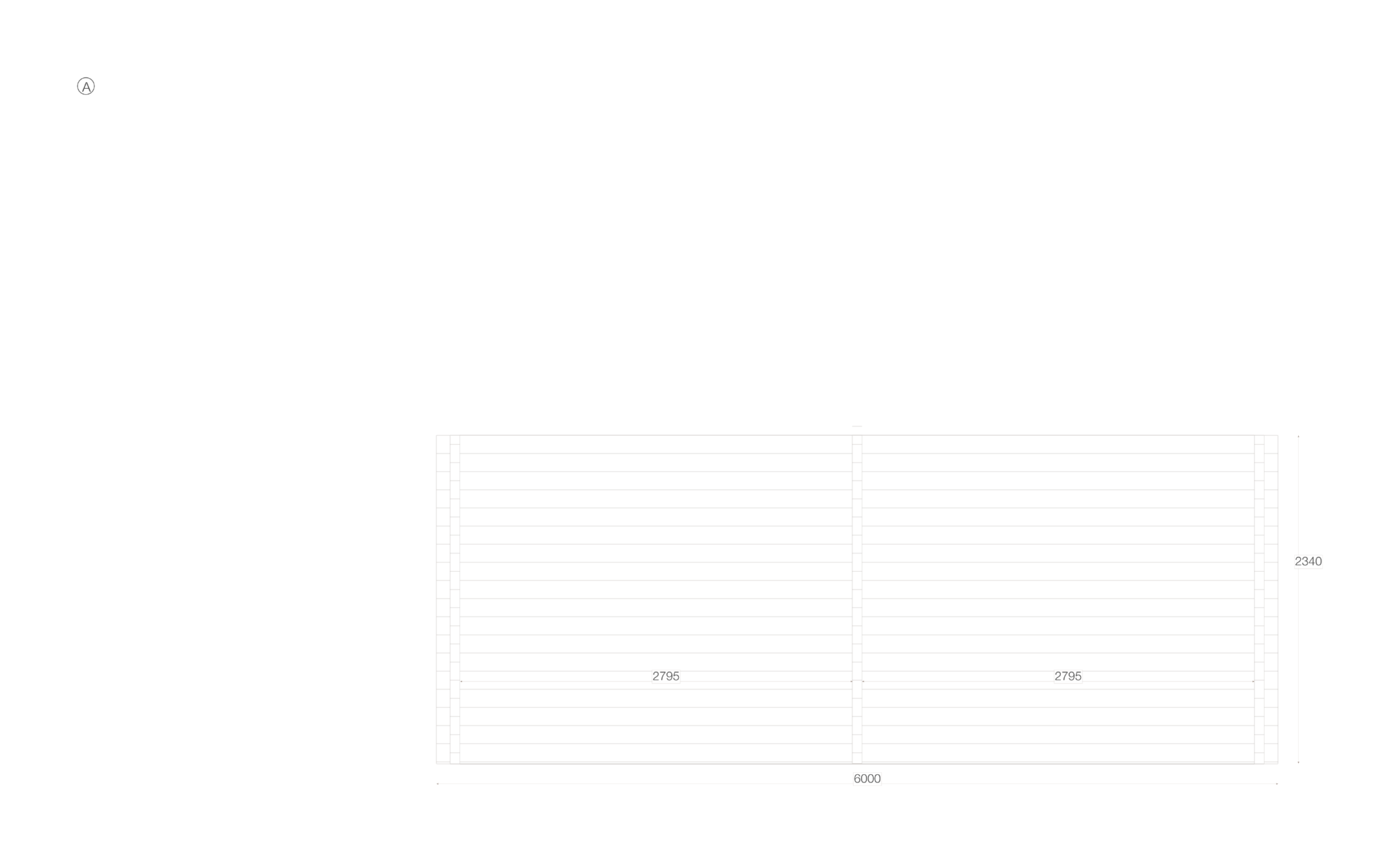

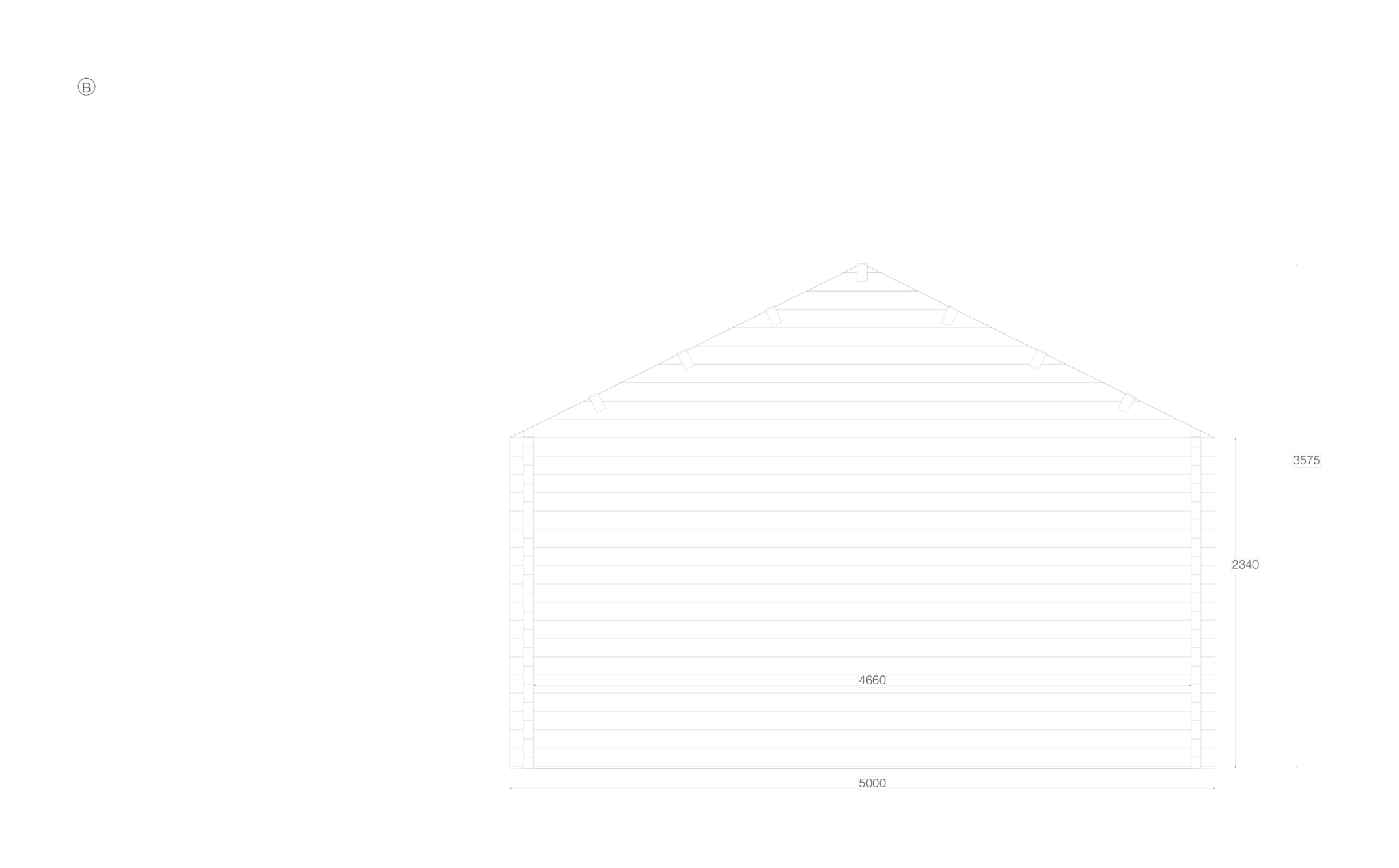

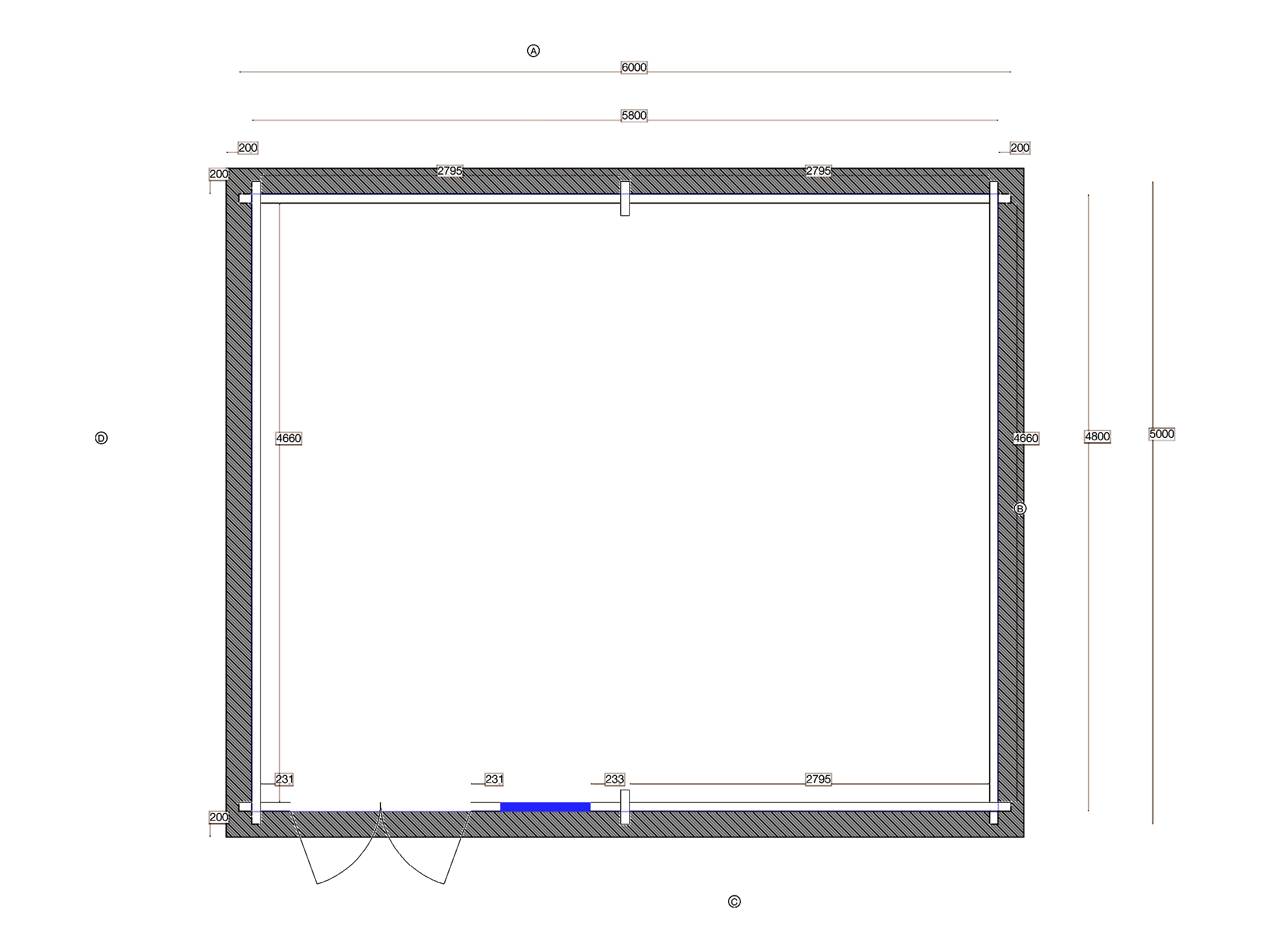

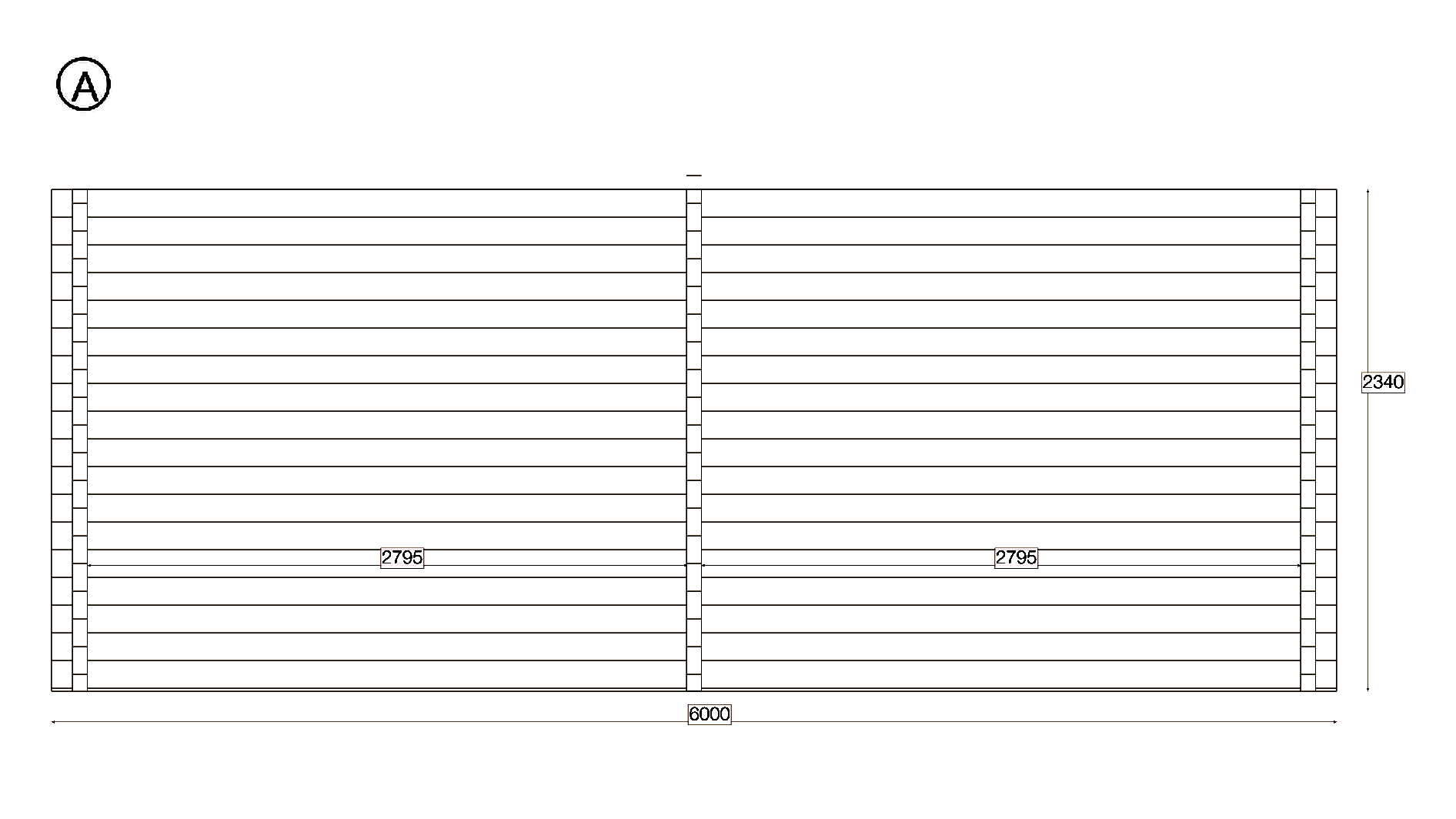

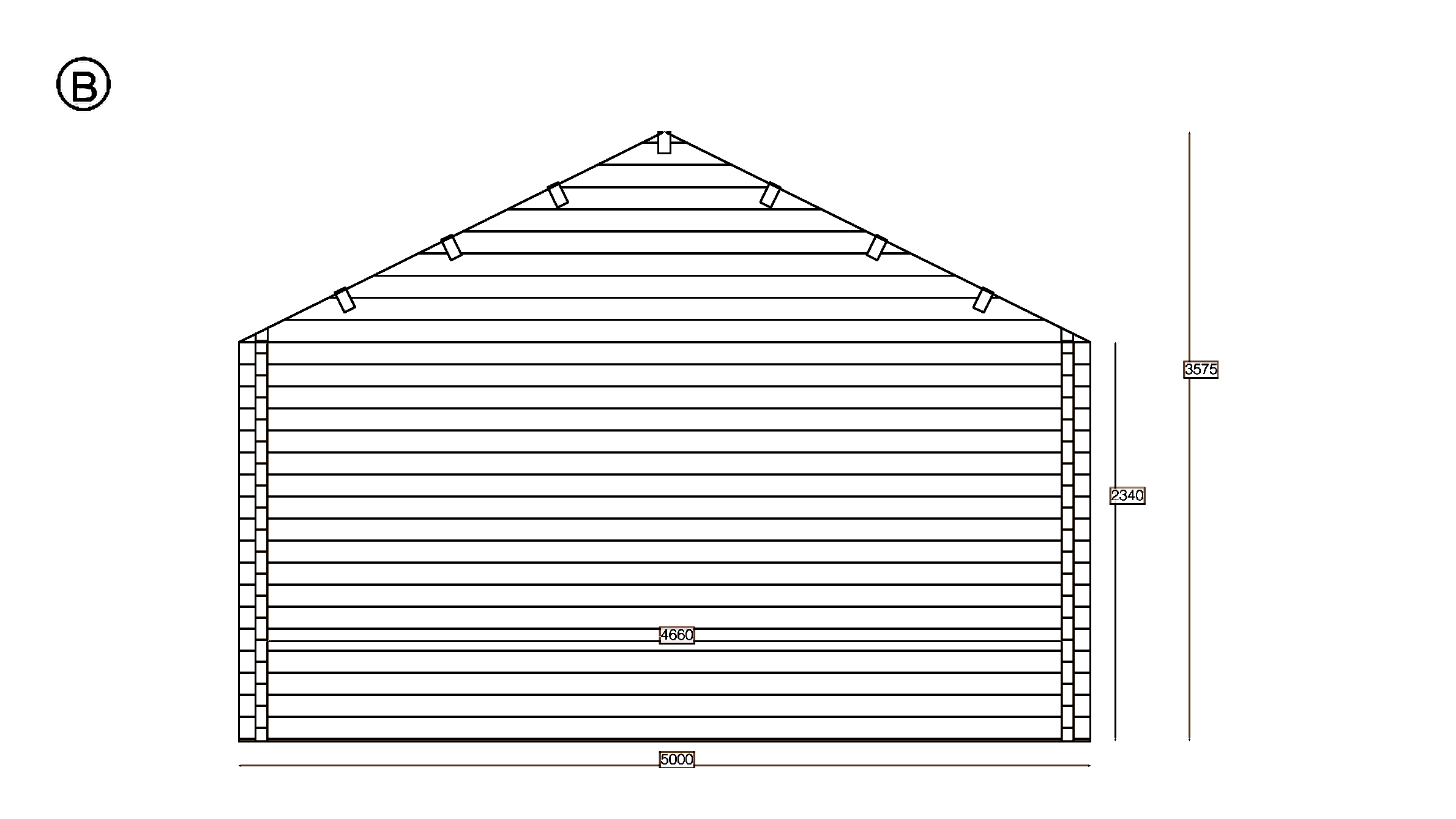

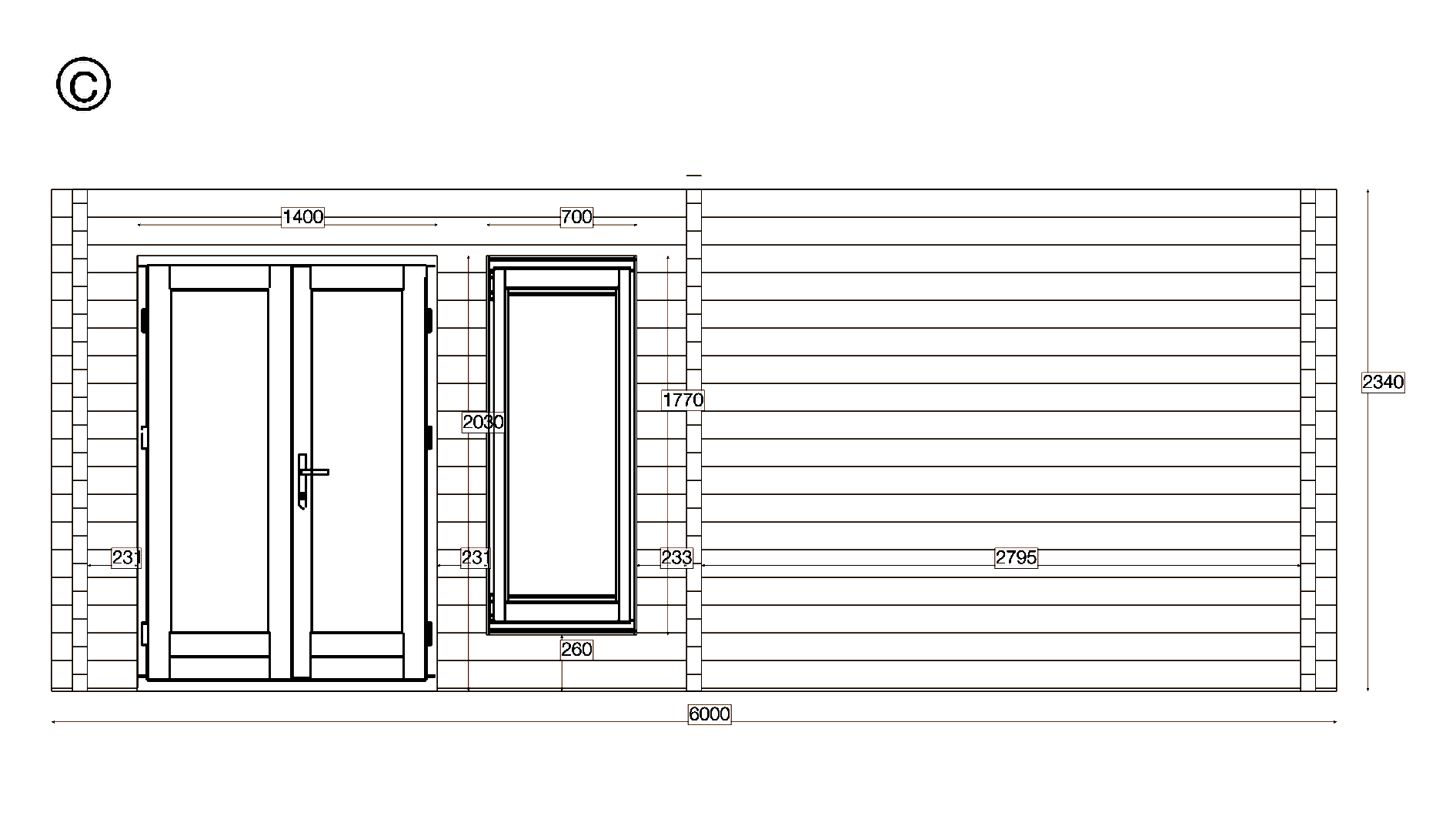

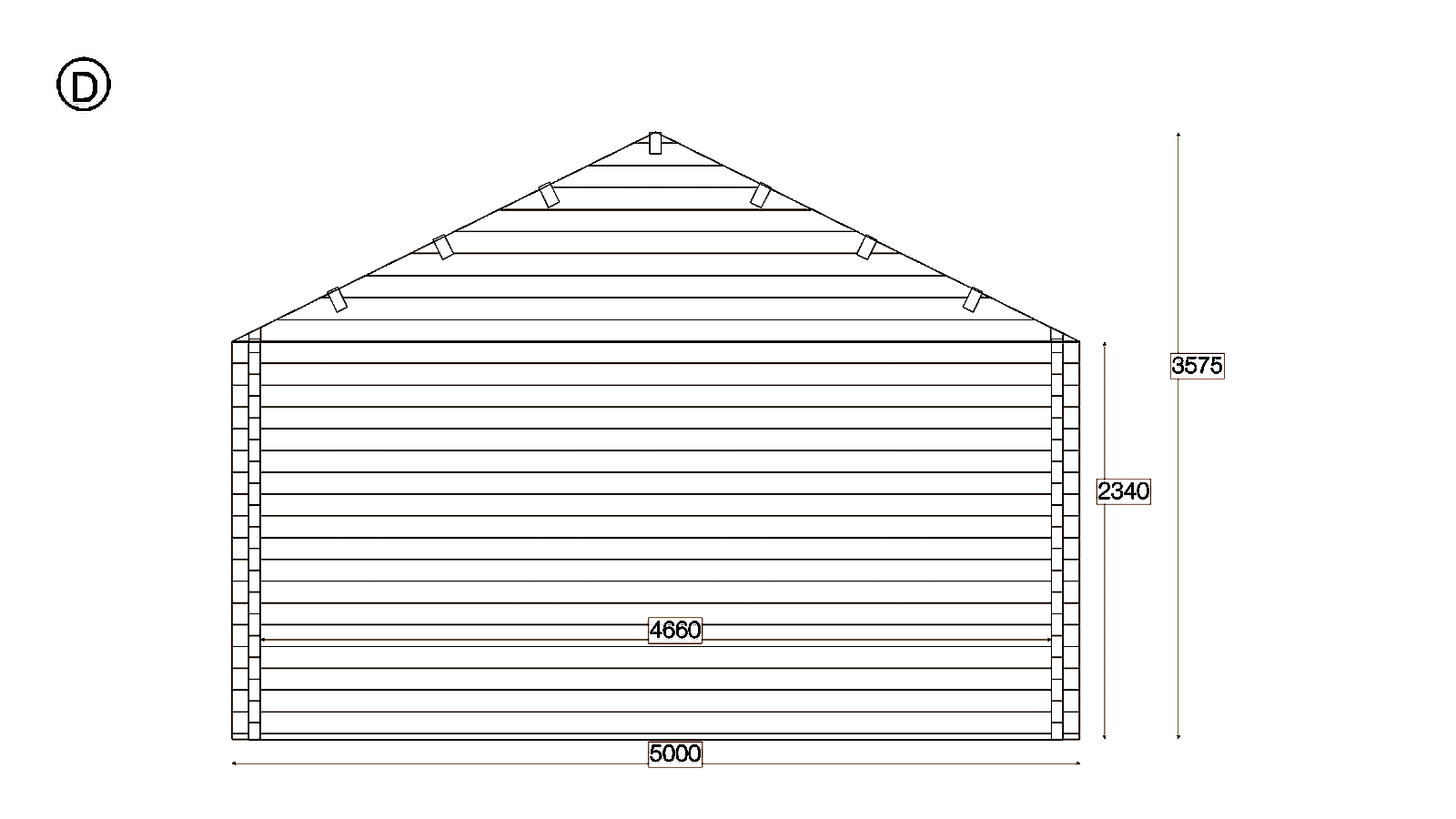

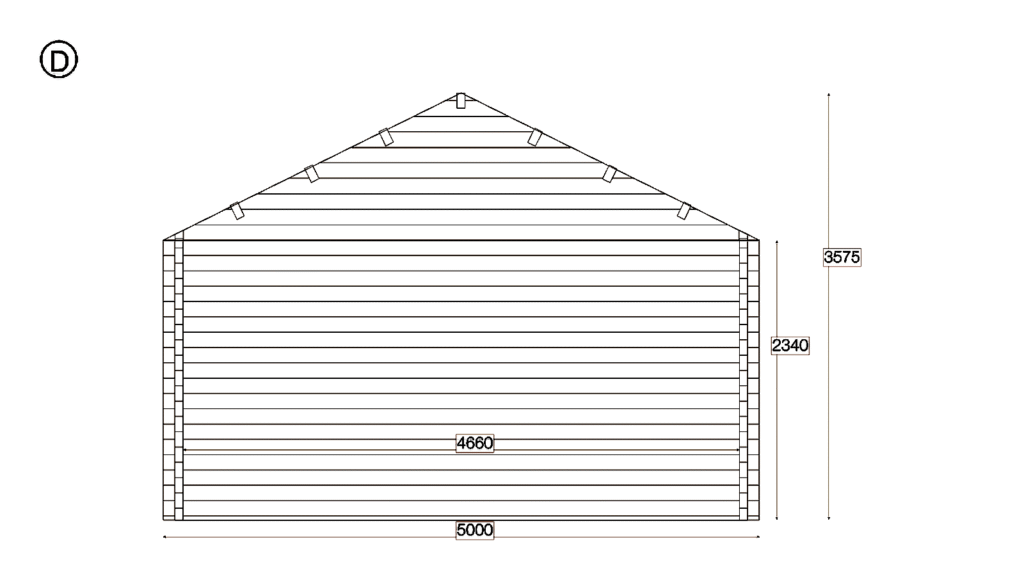

Floor plan and elevations

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
