Eurodita timber building project

Apex Timber Lodge 5.2x6.2

A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.

3D technical project visual for Apex Timber Lodge 5.2x6.2.
3D view of the building as drawn. The final specification is confirmed in the written quotation.
Inside area28.5 m²
Overall footprint5200 × 6200 mm
Wall configuration70 mm log
Roof geometryApex, 14.4°

Specification

Technical data

The figures below come from the project drawing of this building.

Dimensions

Inside area
28.5 m²
Overall dimensions
5200 × 6200 mm
Internal dimensions
4860 × 5860 mm
Wall thickness
70 mm
Project reference
ATL-486x586-070

Height and roof

Sidewall height
2210 mm
Ridge height
2860 mm
Roof type
Apex
Roof pitch
14.4°
Roof area
35.5 m²

Floor and roof

Floor bearers
40x60mm
Floorboards
28 mm
Roof boards
19 mm
Roof purlins
70x195mm × 7

Windows and doors

Window and door schedule

Doors2 × Garden type (IV45) timber single door, solid timber900x2030mm

Drawings

Floor plan and elevations

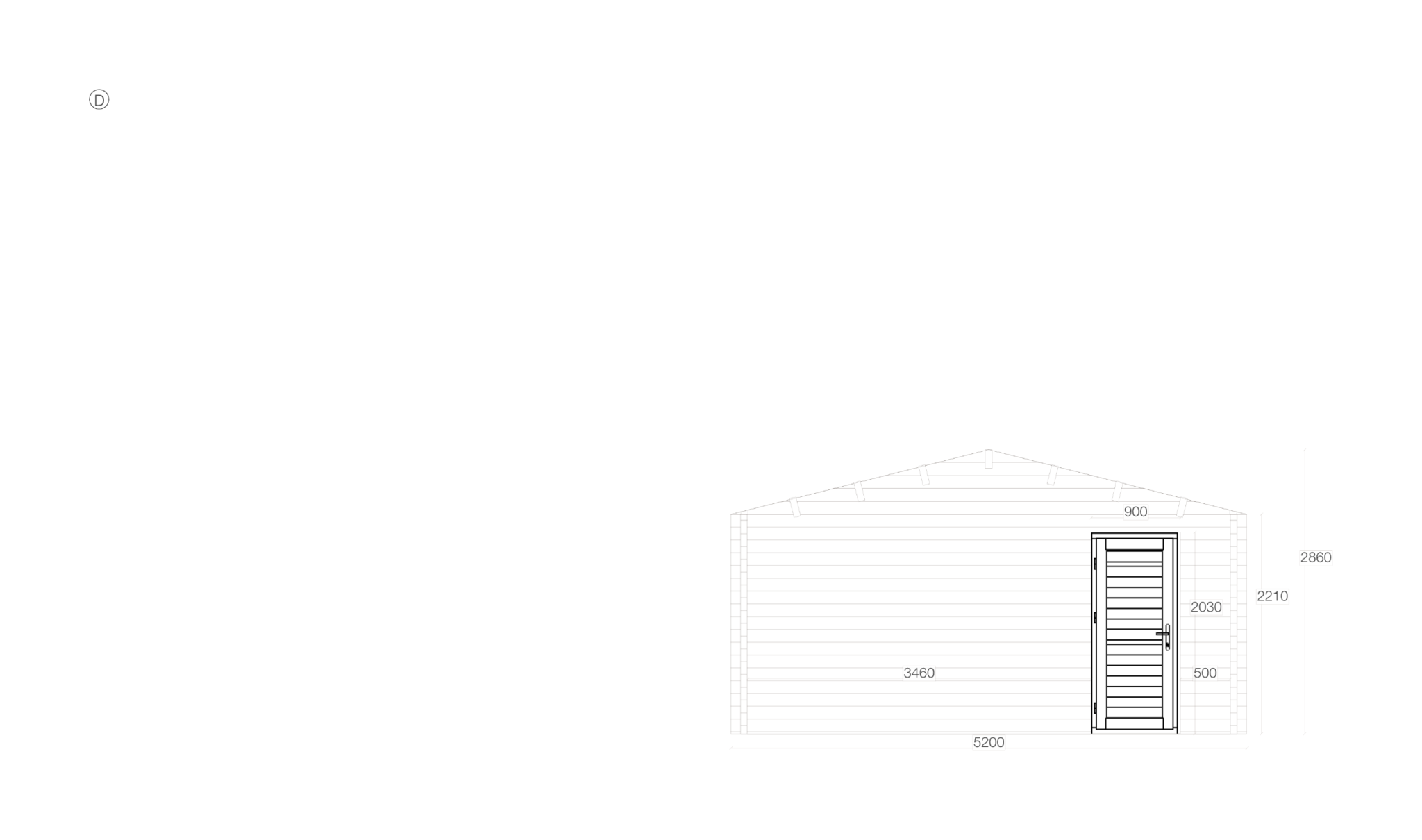

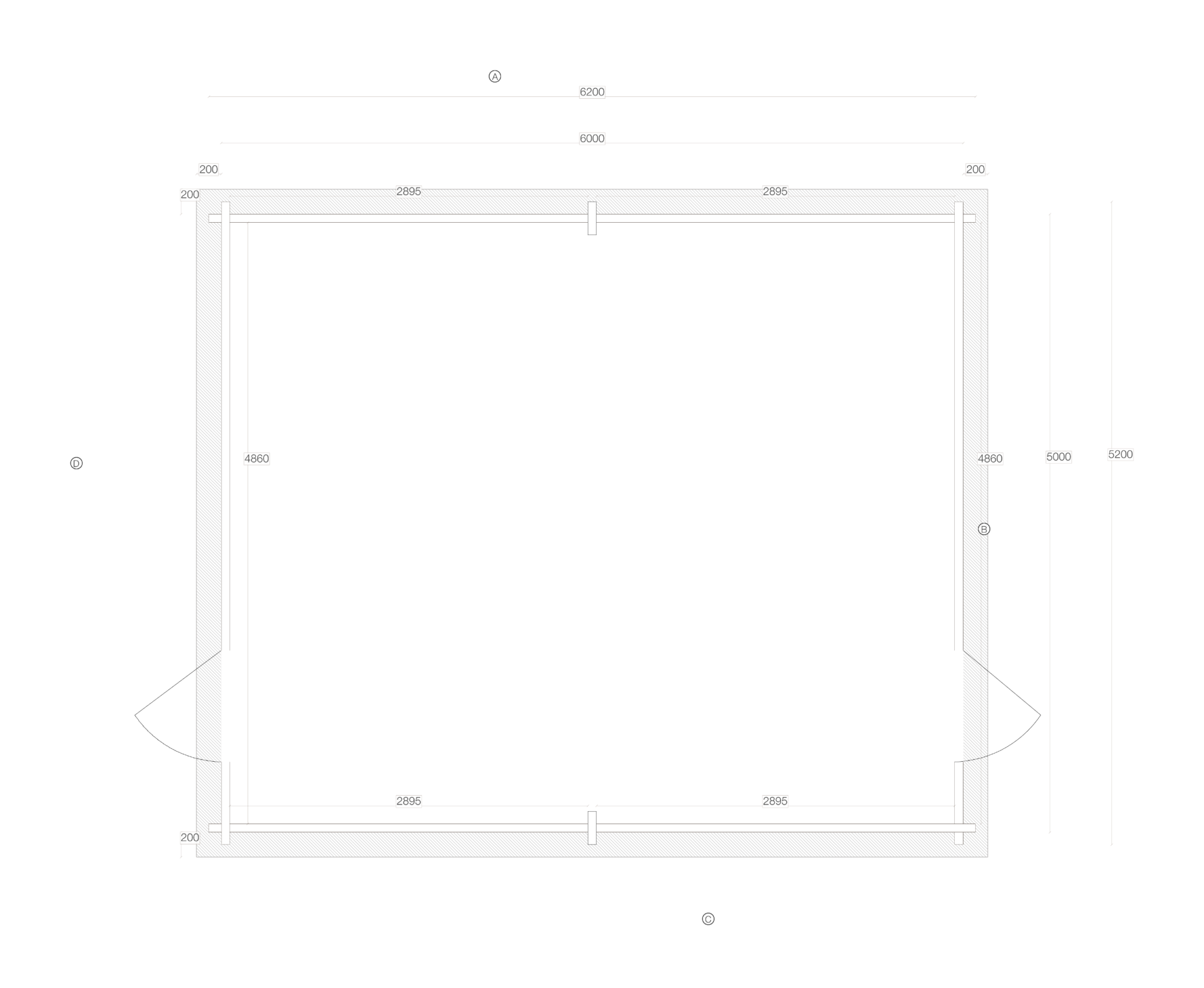

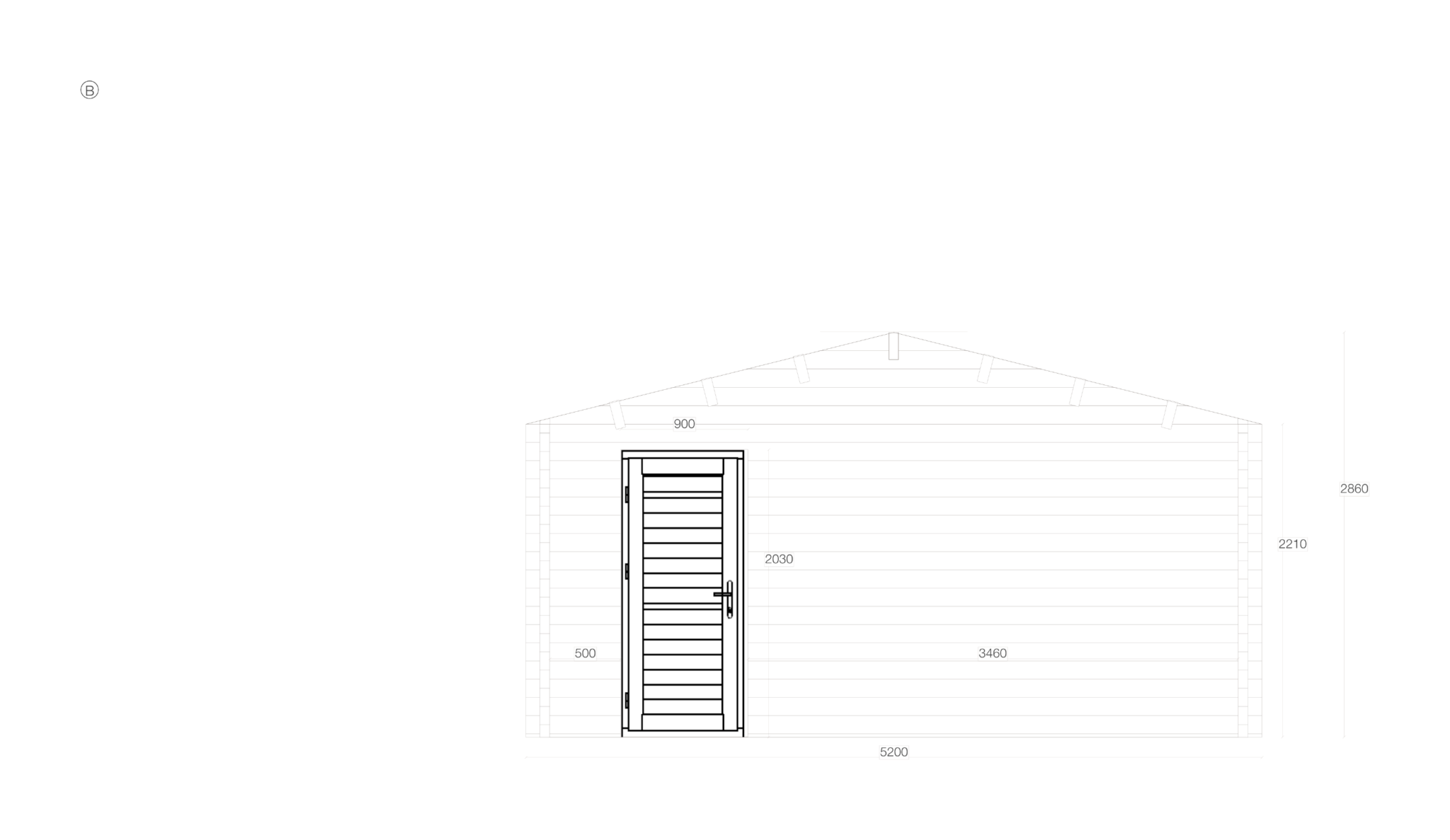

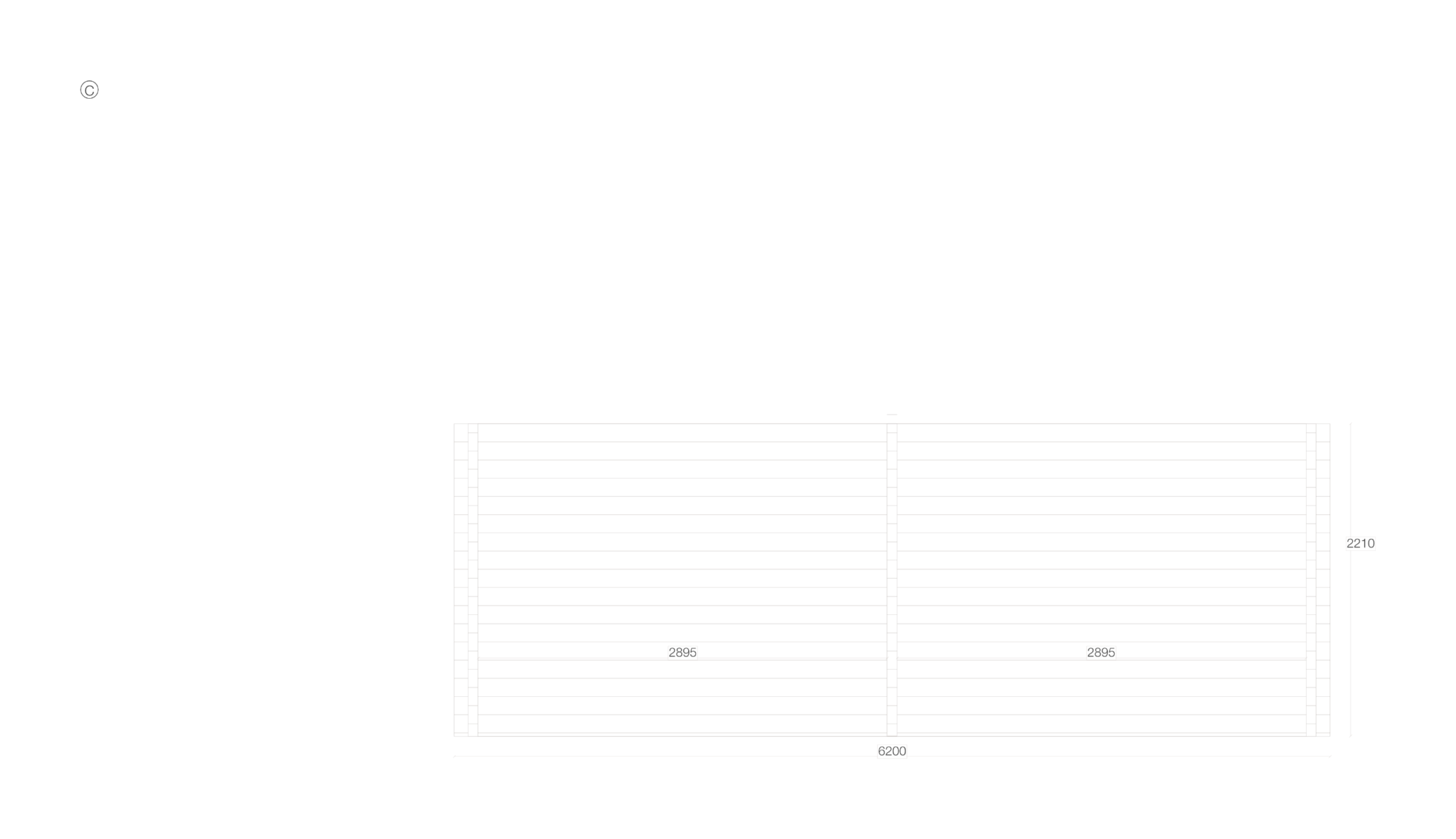

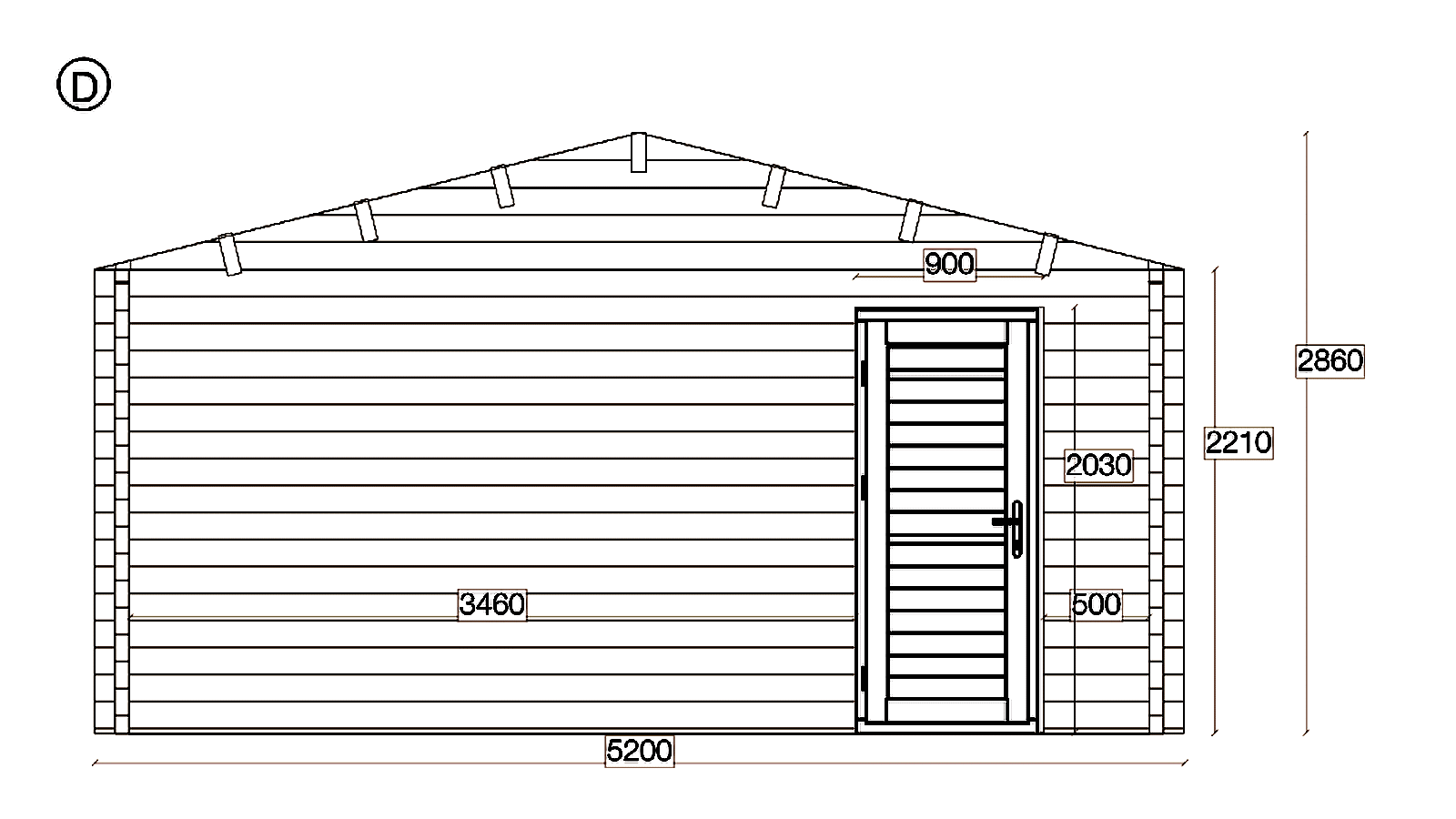

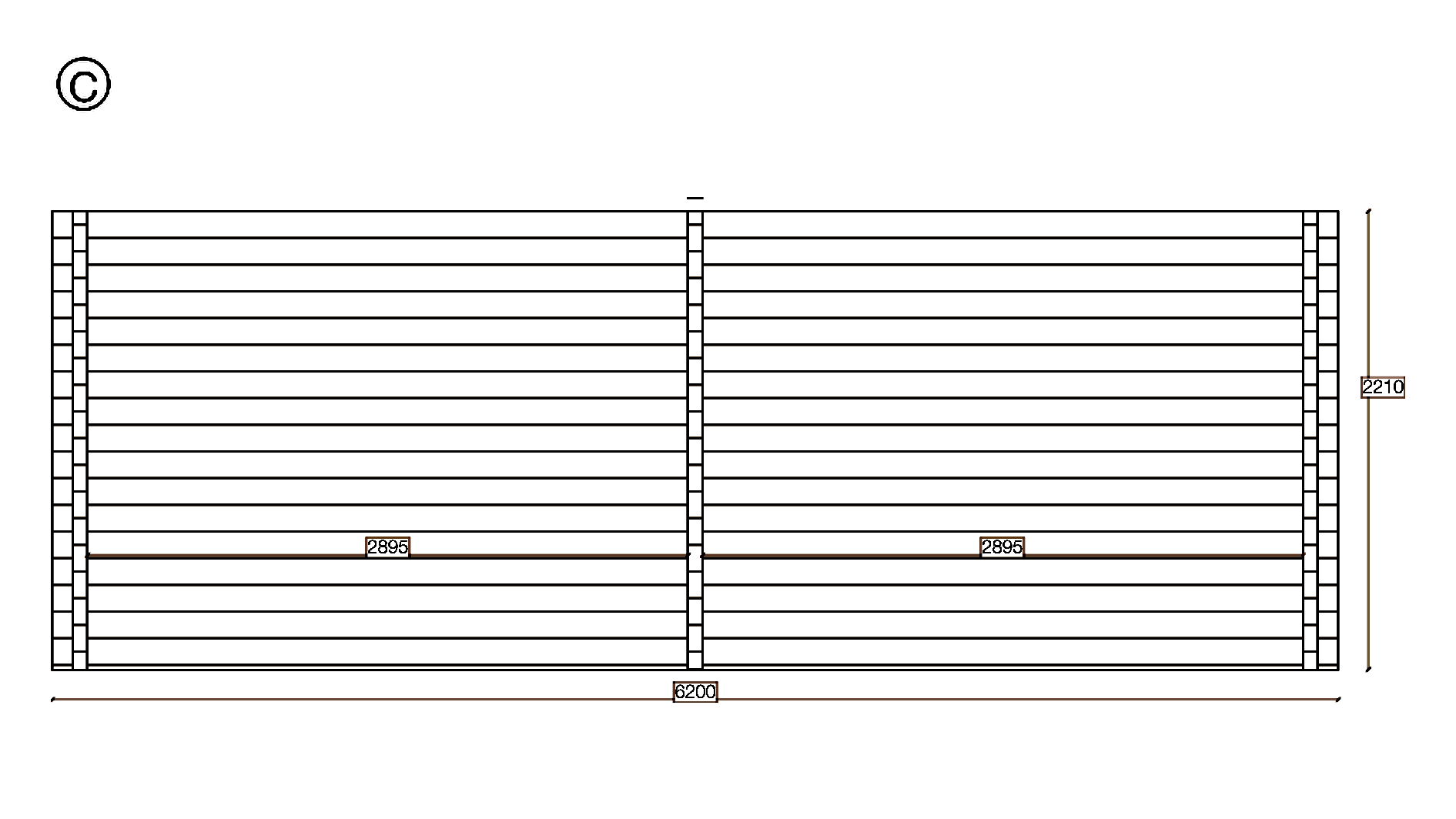

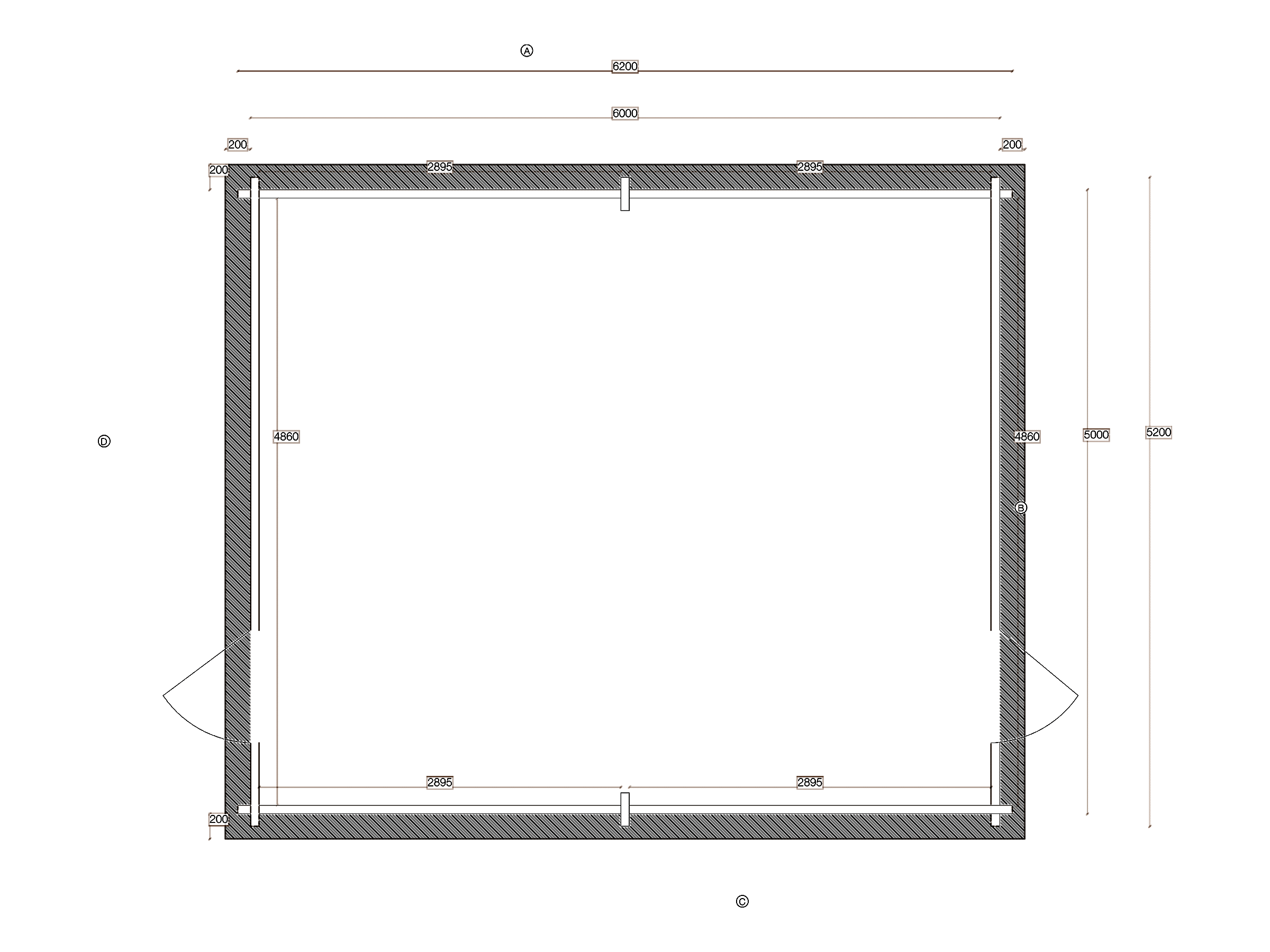

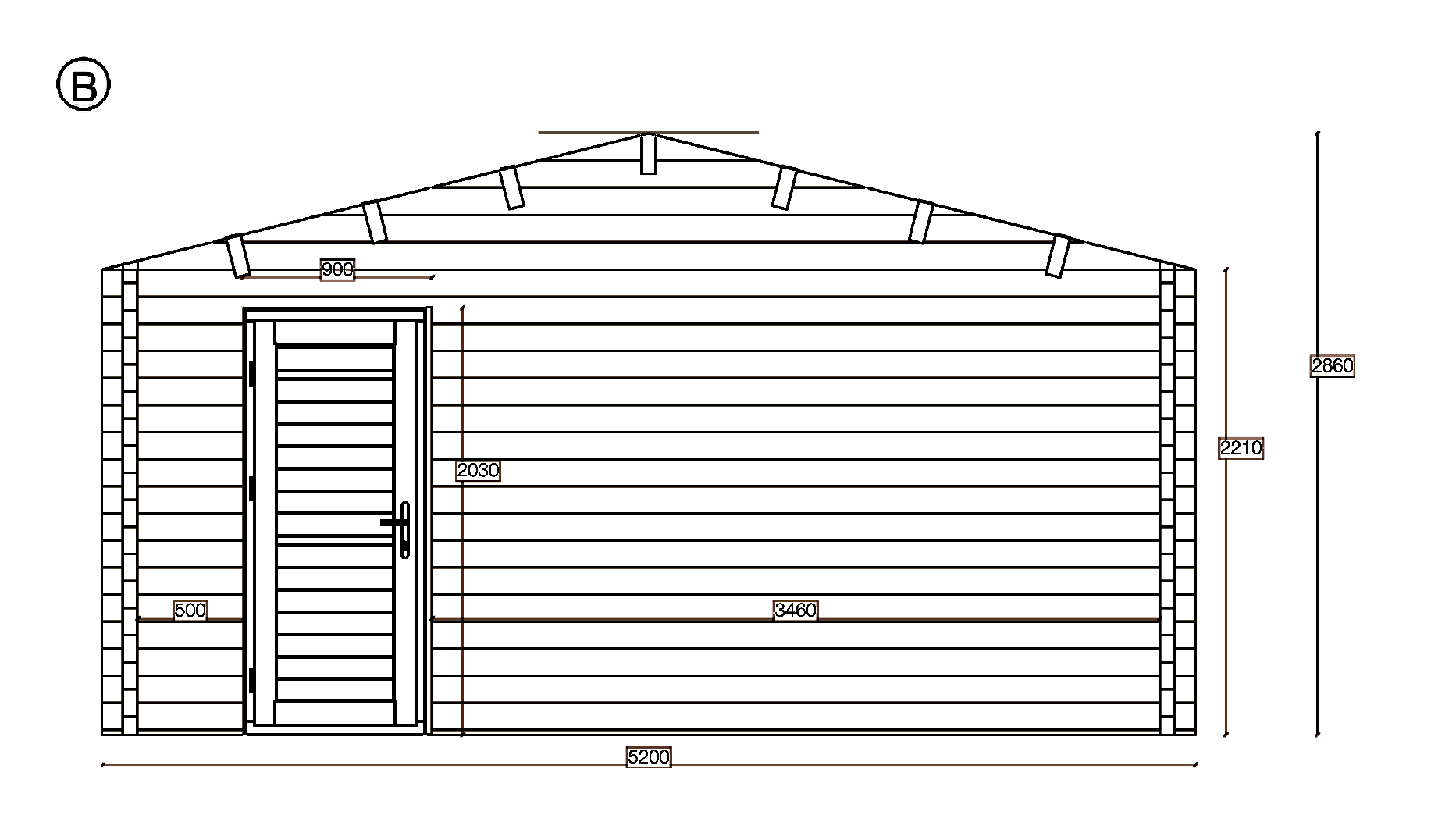

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
