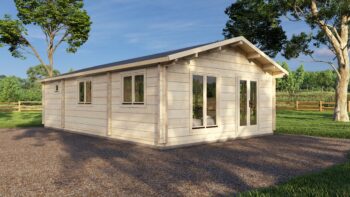

Mobile Log Home 1 Bed 10x6m

Product Overview

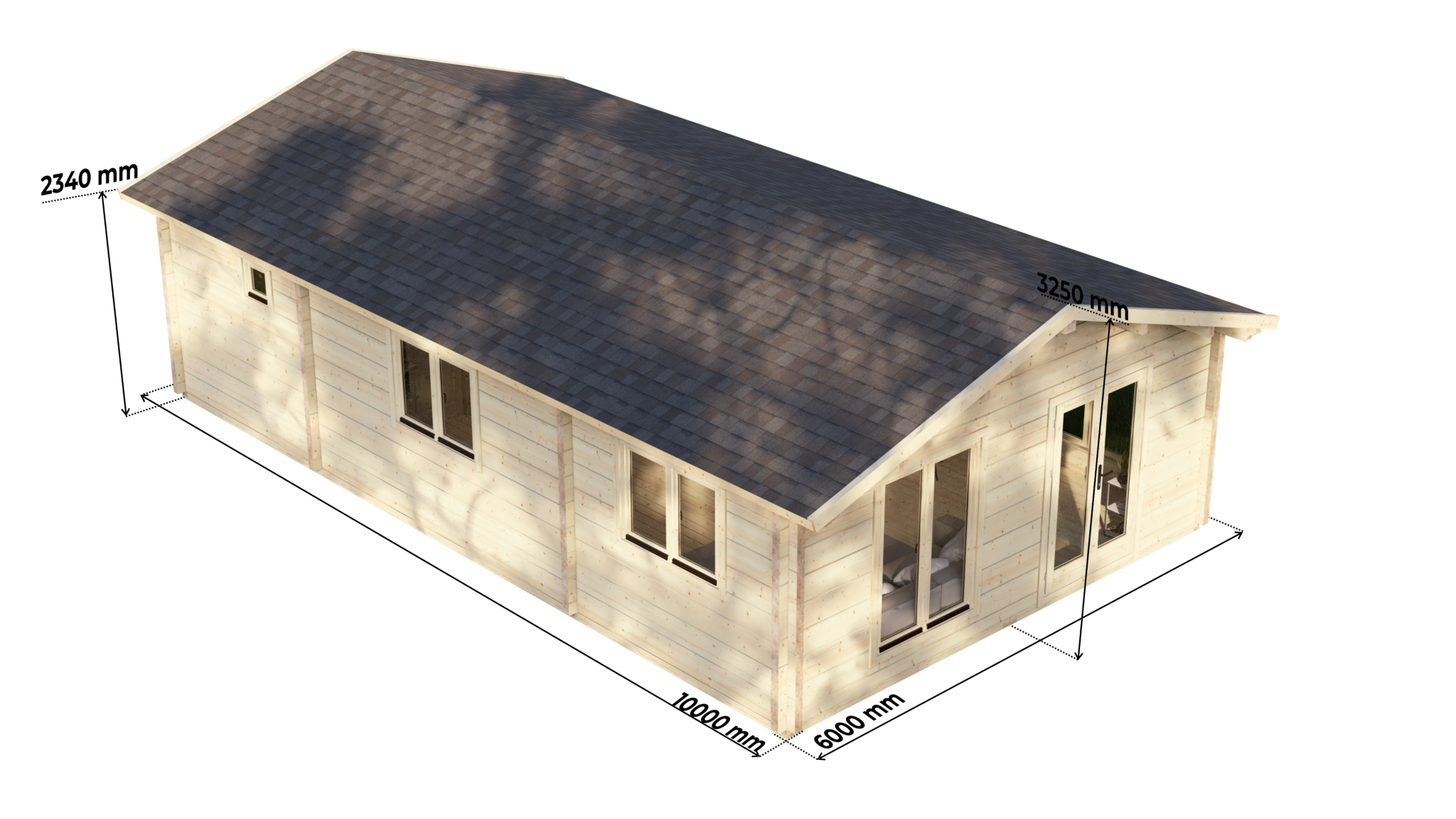

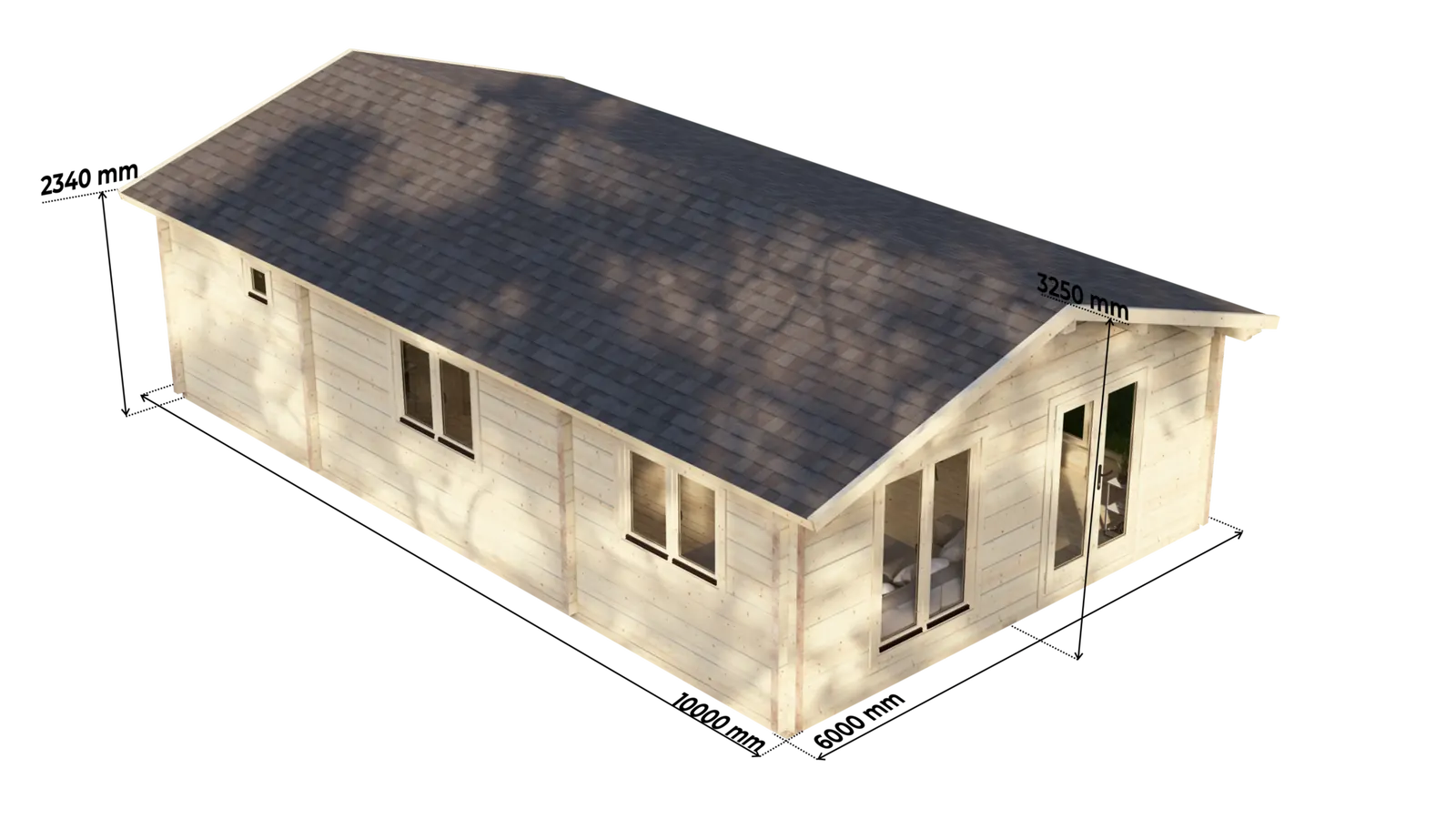

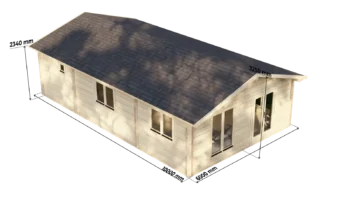

This one-bedroom mobile log home delivers 60m² of living space within a 10x6m footprint configured around UK Caravan Sites Act 1968 (as amended by SI 2006/2374) dimensional criteria for dealer and local-authority review. The design serves holiday-park operators, single-occupant accommodation layouts, and ancillary accommodation projects where the intended use is checked locally where efficient space utilisation is the primary consideration. The full-height 294cm ridge construction provides generous interior volume while remaining within transportable dimensions for standard road delivery.

Layout and Configuration

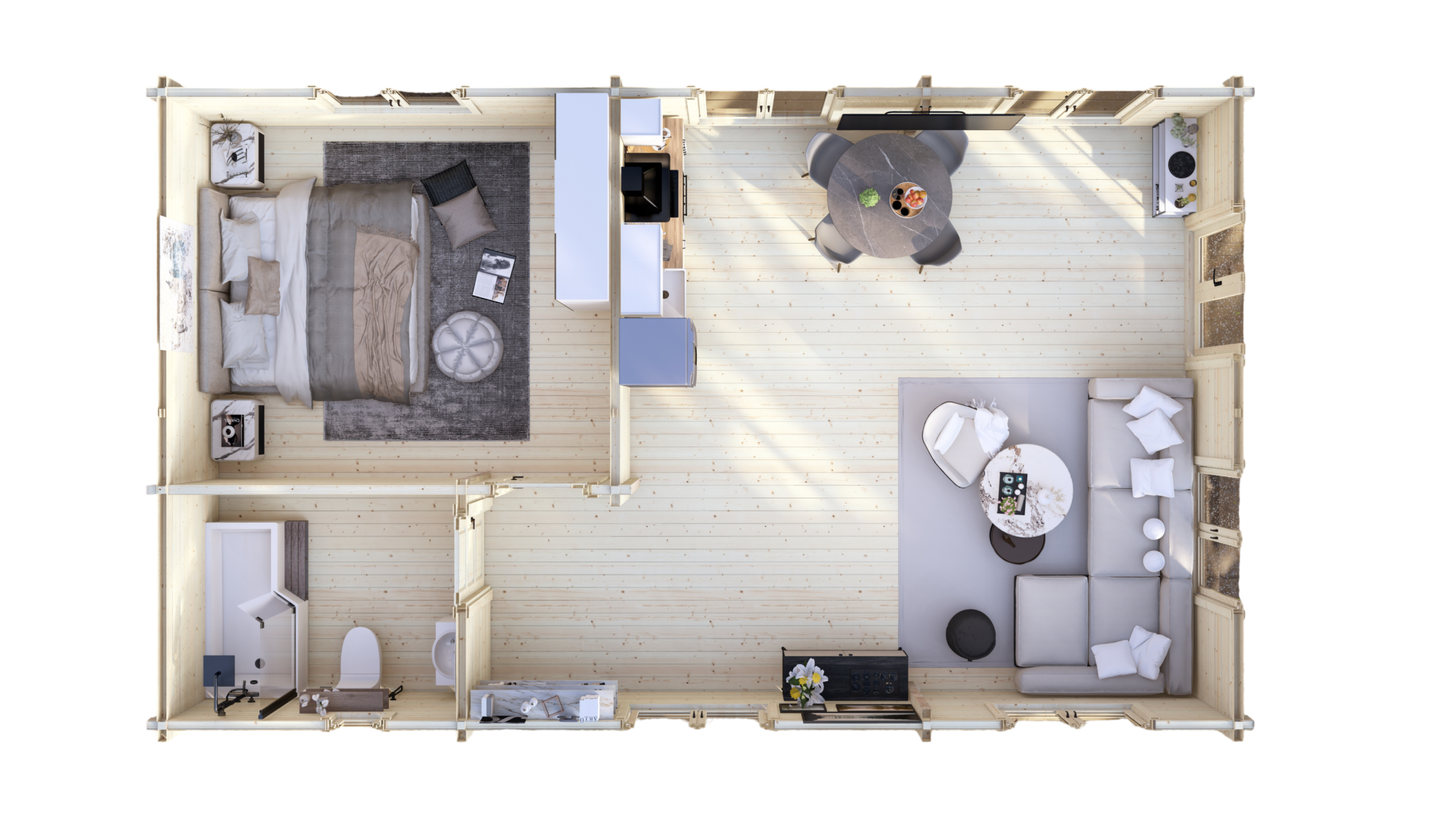

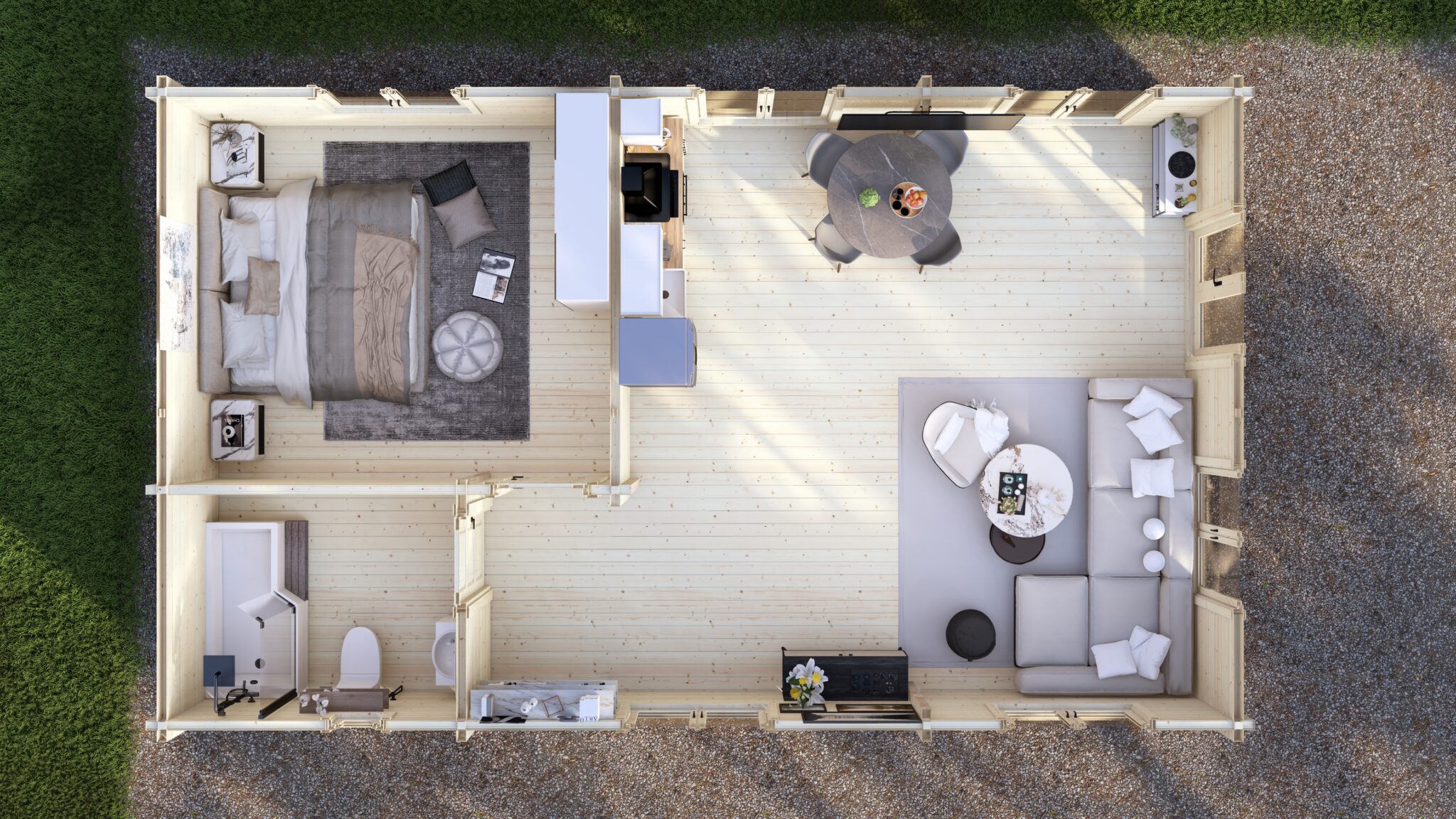

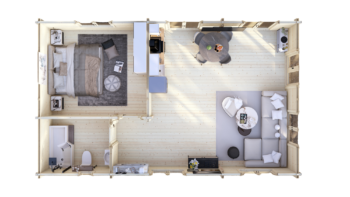

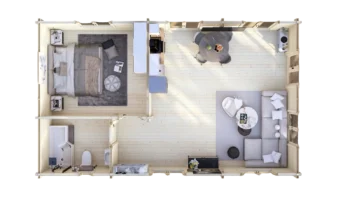

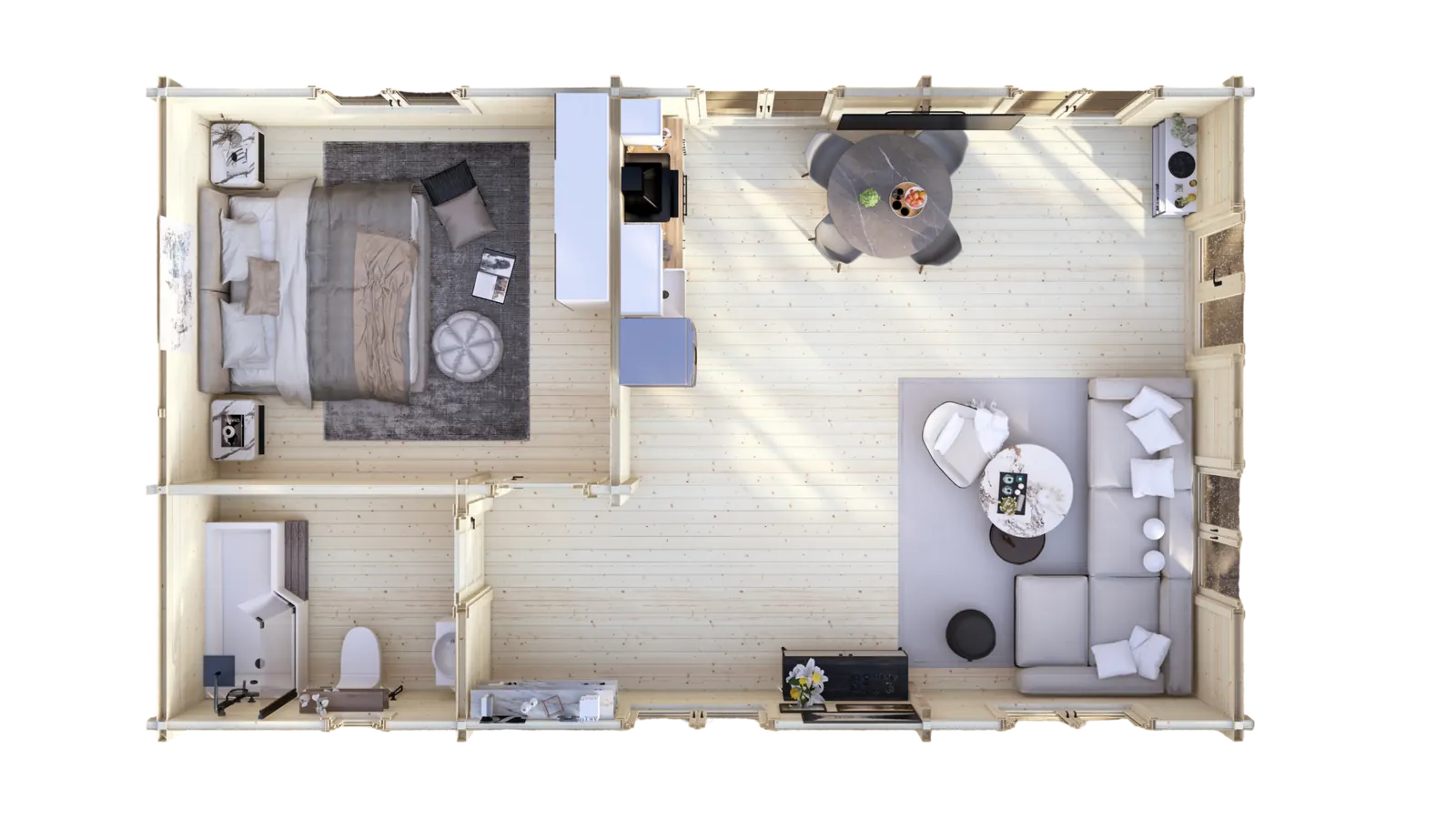

At 10x6m, the internal layout provides a generously proportioned open-plan living area alongside a fully enclosed bedroom and separate bathroom. The additional floor area permits dedicated hallway circulation, larger kitchen preparation zones, and supplementary storage capacity beyond minimum requirements. The standard 220cm eaves height ensures comfortable headroom throughout, with the apex roof profile creating additional storage opportunities above partition walls.

Timber and Construction

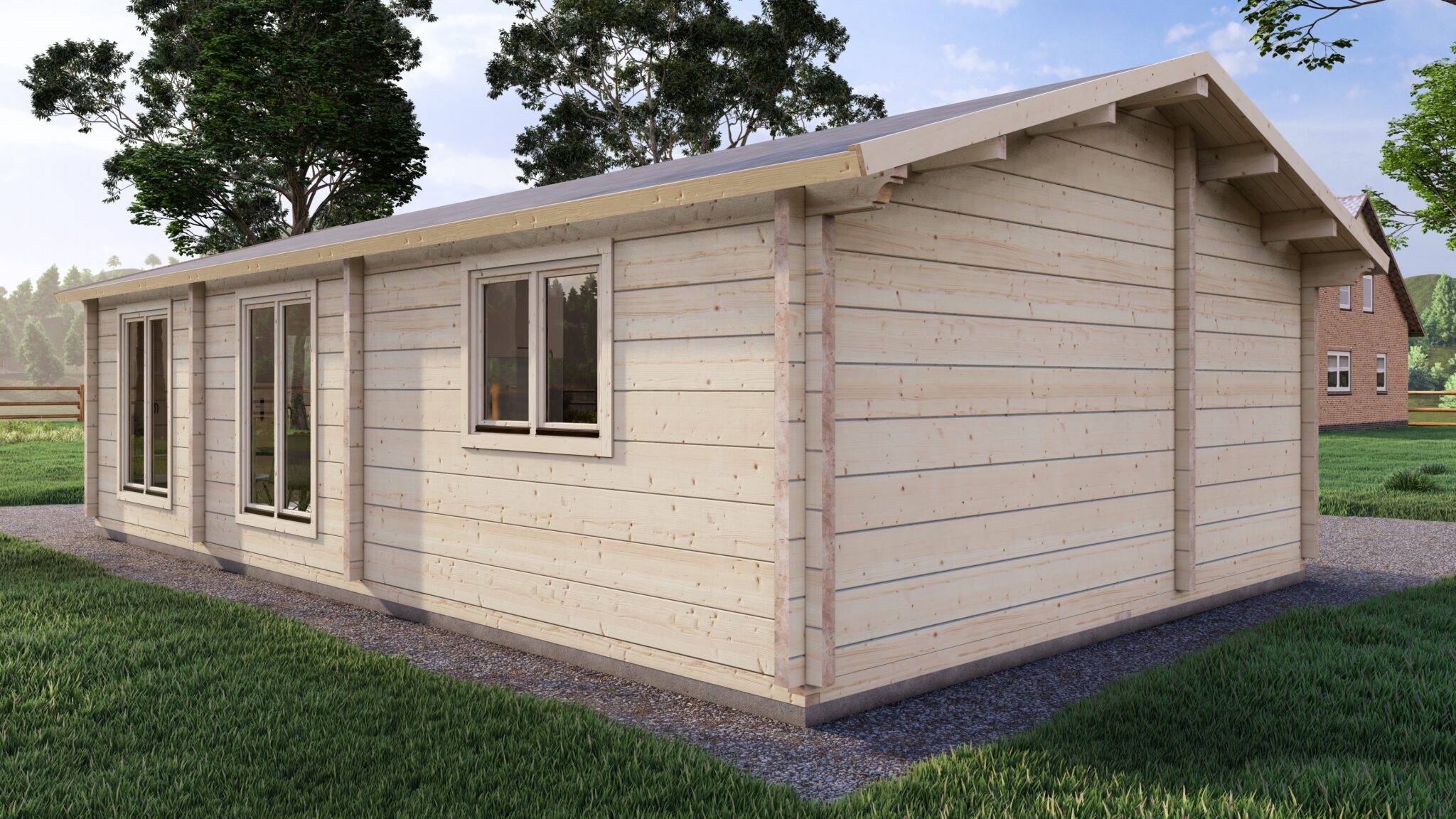

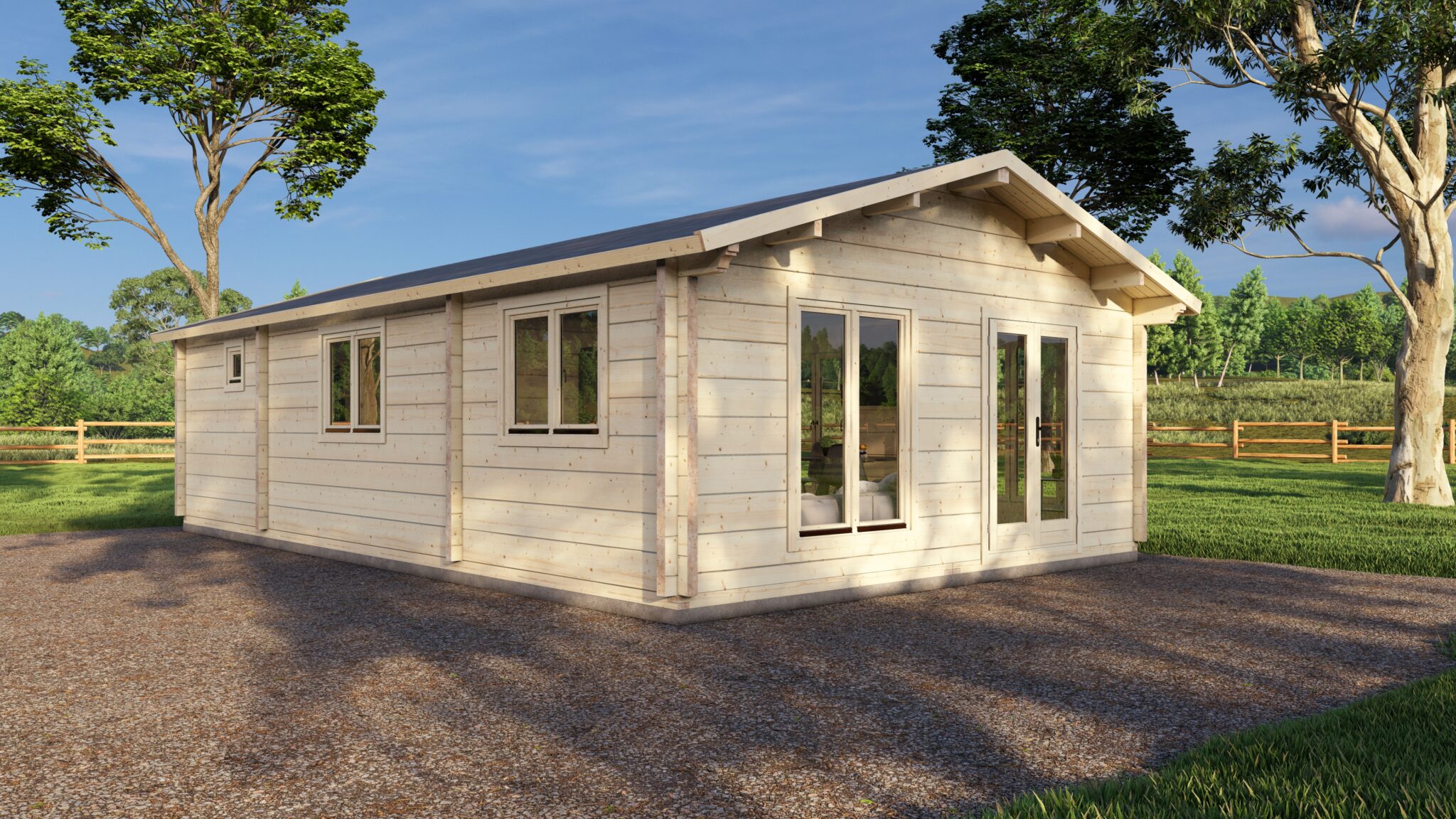

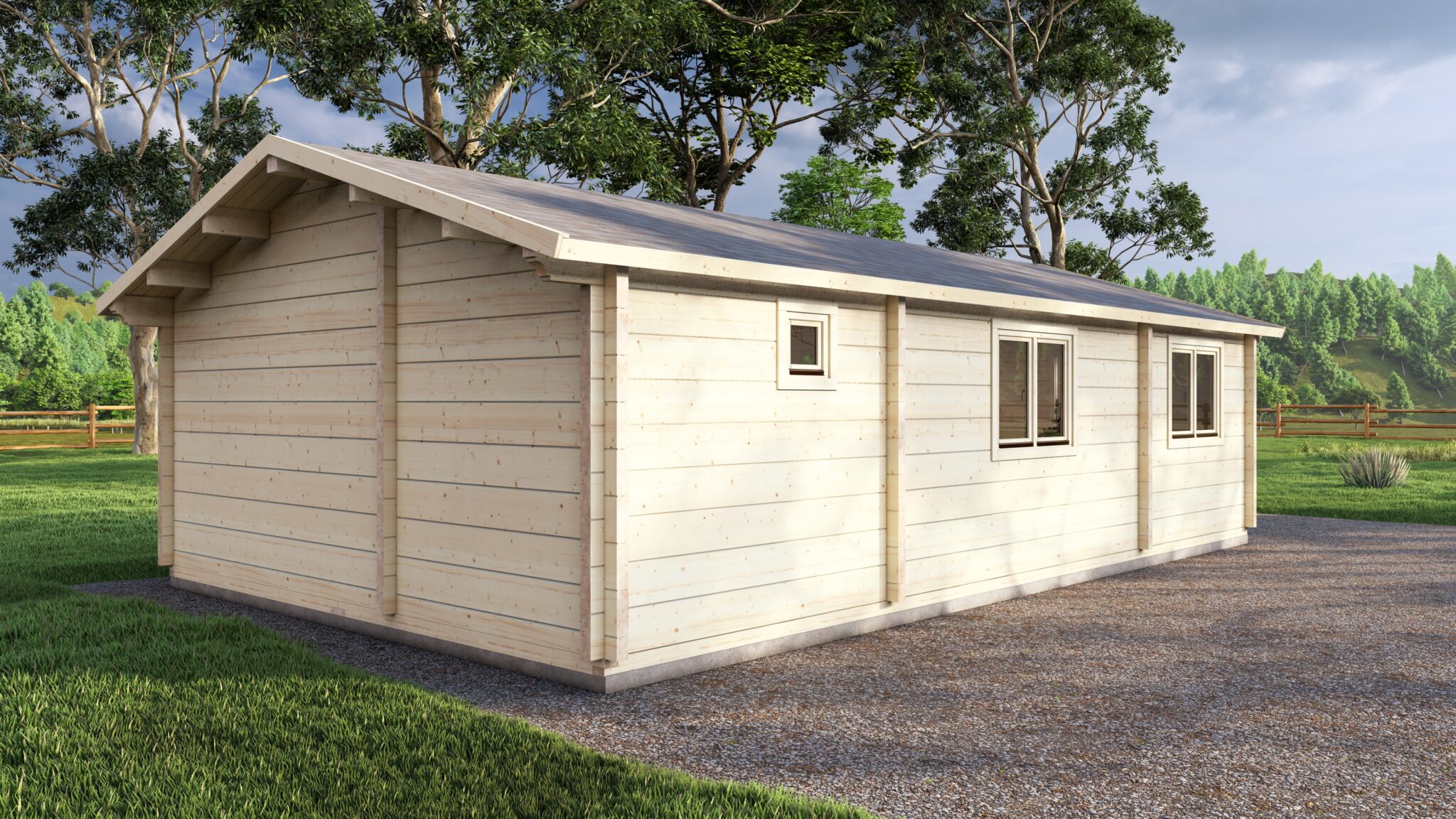

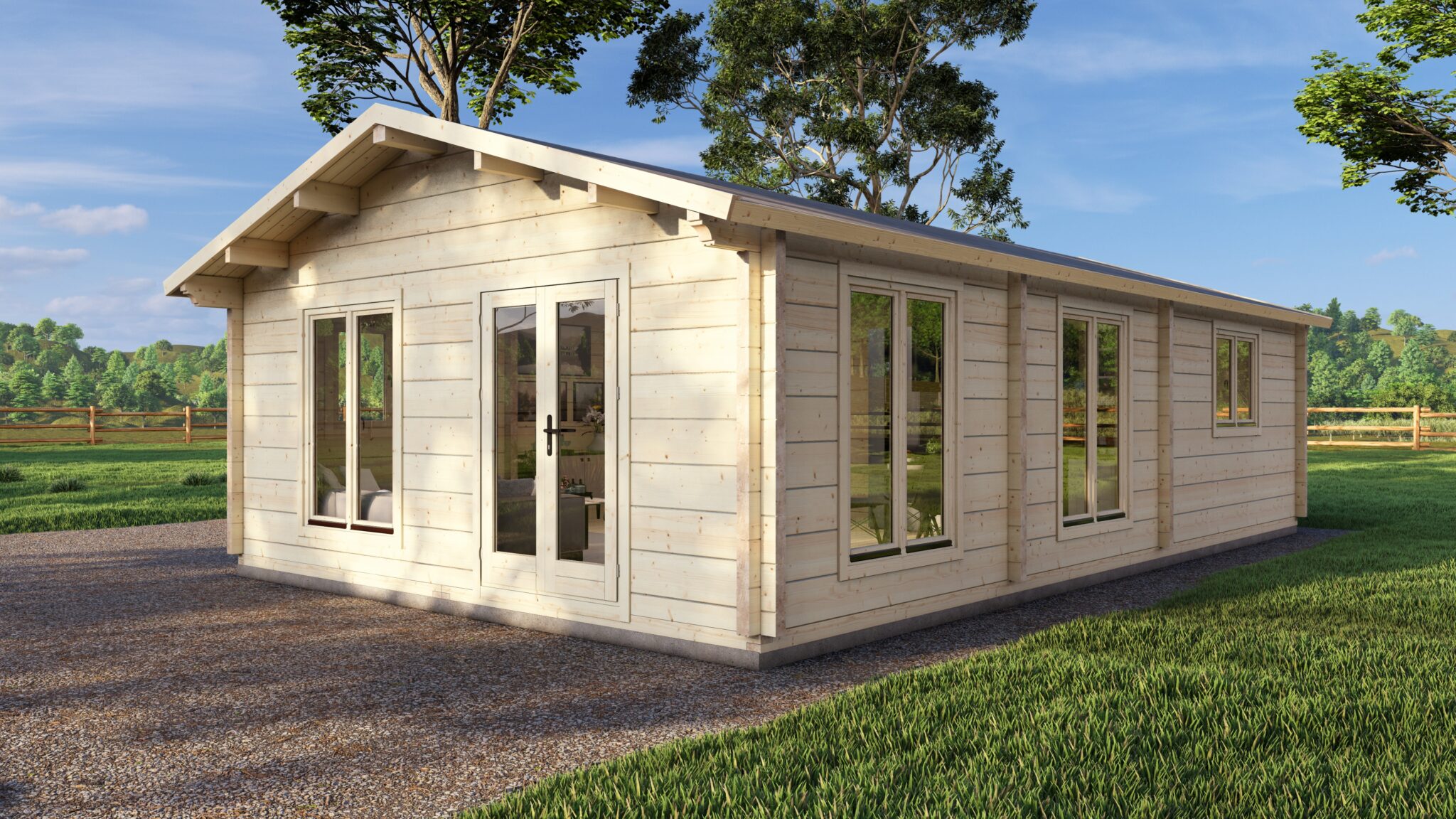

Engineered glulam timber, produced from spruce lamellas, forms 88mm thick exterior walls using precision-machined tongue-and-groove profiles for assembly stability and weather-exposure review. Double-glazed timber joinery incorporates insulated door and window frames throughout the structure. The compact building envelope benefits from efficient material utilisation, with shorter wall spans reducing the requirement for intermediate bracing. Assembly stability is supported by continuous interlocking profiles that support assembly review across the compact perimeter.

Floor and Roof

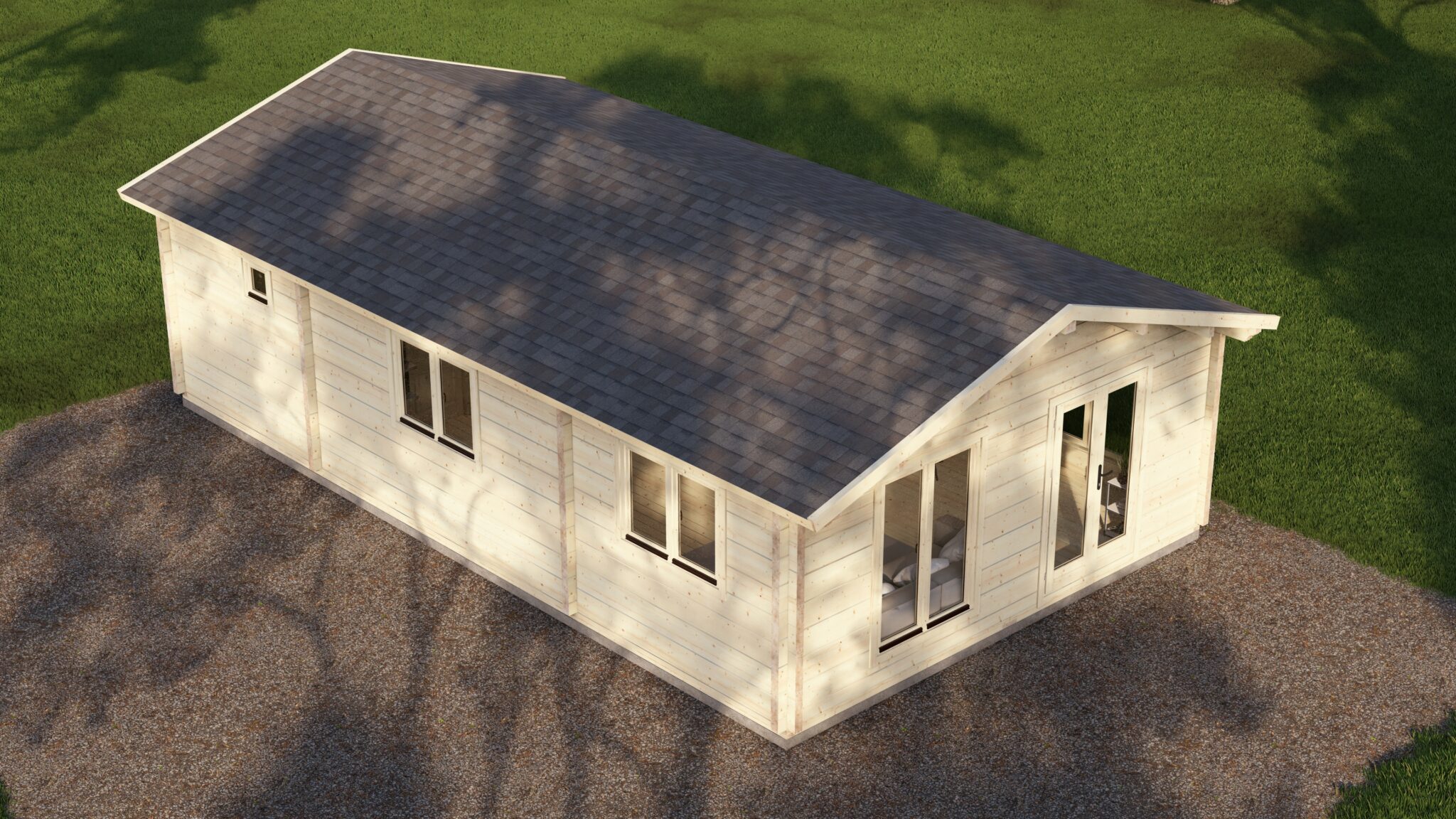

Pressure-treated 13.5×13.5cm glulam floor bearers support 28mm tongue-and-groove floor boarding specified for project-use requirements across the full 60m² floor plate. Roof construction utilises 19mm tongue-and-groove boards providing a solid substrate for insulation and selected roof covering systems. Standard bearer spacing provides reliable support across the compact floor area. The roof structure spans the narrow width efficiently, with integrated storm bracing systems securing the assembly against uplift forces.

Customisation Options

Project specifications can include insulation, glazing, door, and window options for dealer-led requirements. Eurodita provides product dimensions and technical data for project checks; final use and local authority requirements are confirmed by the dealer or project team. One-bedroom configurations benefit from kitchenette specification options, space-efficient integrated storage solutions, and compact bathroom layout alternatives. Fold-away and multi-functional furniture provisions can be incorporated into the internal design to maximise the usable floor area.

Manufacturing and Delivery

Production at the Eurodita facility in Kaunas, Lithuania incorporates Hundegger CNC cutting systems and Nardi kiln-drying technology. Eurodita processes 150,000 m³ of timber annually. Lead times are confirmed per order according to specification, order volume, and production planning. The compact one-bedroom format enables efficient single-vehicle delivery, reducing transport costs and simplifying site logistics. Assembly timelines for this model typically range from three to five days with an experienced two-person crew.

Can the Mobile Log Home 1 Bed 10x6m support holiday-park or accommodation-style projects?

The Mobile Log Home 1 Bed 10x6m can be considered for holiday-park, accommodation-style or developer-led project briefs when the confirmed specification supports that use. Final suitability depends on the 88mm glulam wall profile, insulation, glazing, heating, ventilation, foundation, services and local authority or destination-market review.

Who is this Eurodita mobile log home built for?

Eurodita manufactures this 1 bedroom mobile log home with approximately 60 m2 of plan area for private-label partners, distributors, retailers, developers and holiday-park operators. The product can support a dealer-branded mobile log homes B2B range when drawings, documentation and specification details are reviewed per project.

Which technical details should be reviewed before quoting?

Before quoting this Eurodita product, partners should confirm external dimensions 10x6m, 88mm glulam wall profile, room layout, glazing package, foundation route, services and destination-market requirements. Eurodita can provide dealer resources, technical data and documentation references for project review rather than making blanket approval claims.

Private Label Partnership

Private-label manufacturing enables dealers to supply this mobile home under their own brand identity with no visible Eurodita branding on the delivered product. Partner support includes customised assembly documentation, branded customer communications, and 3D visualisation tools for showroom and catalogue presentation. Flexible order volumes accommodate both individual project requirements and ongoing supply agreements for holiday park and accommodation operators.

Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
