Mobile Log Home 1 Bed 10x5m

Product Overview

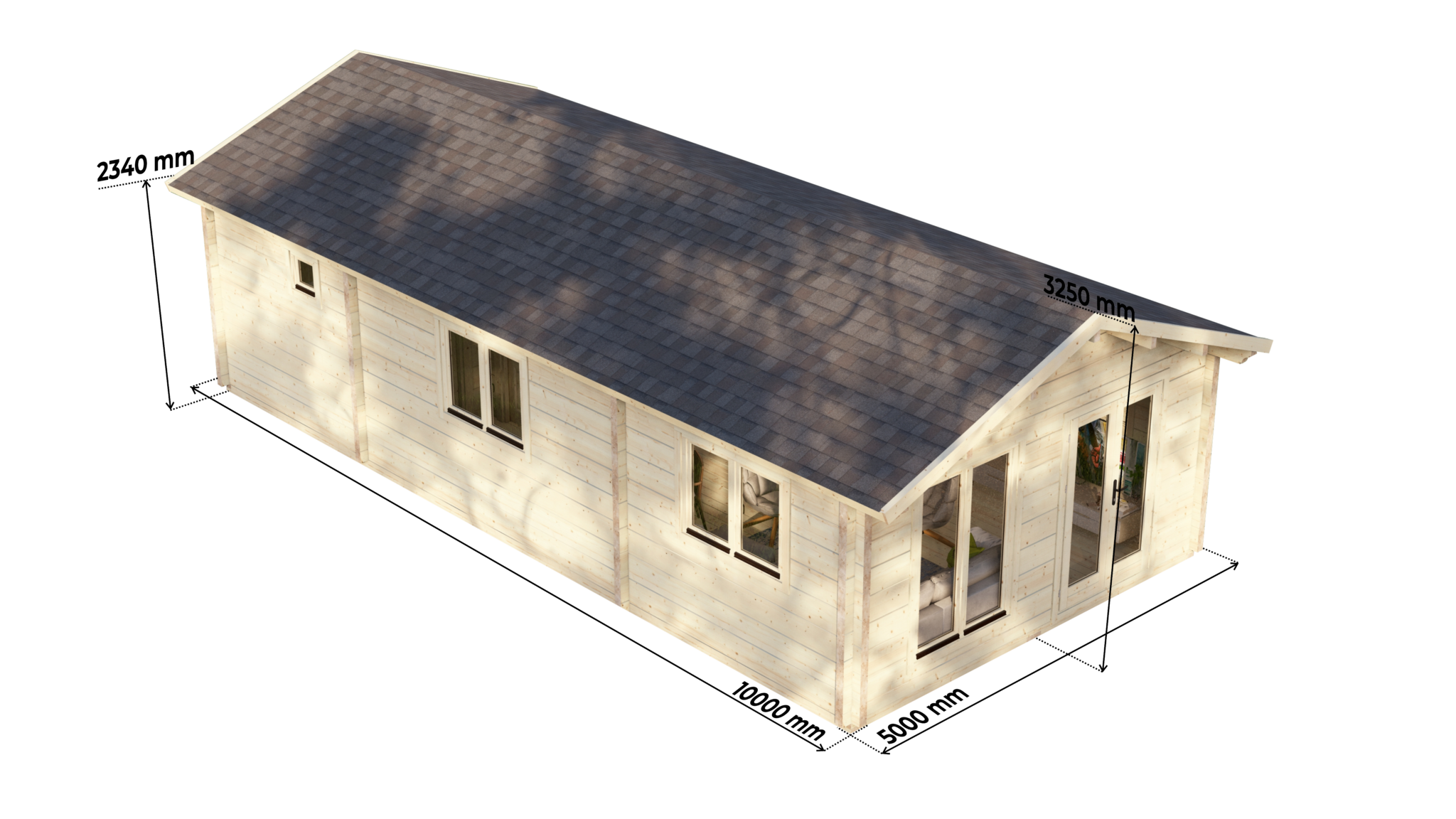

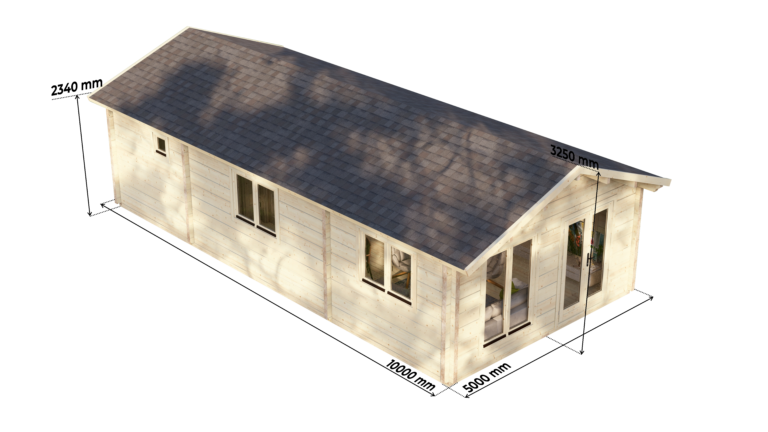

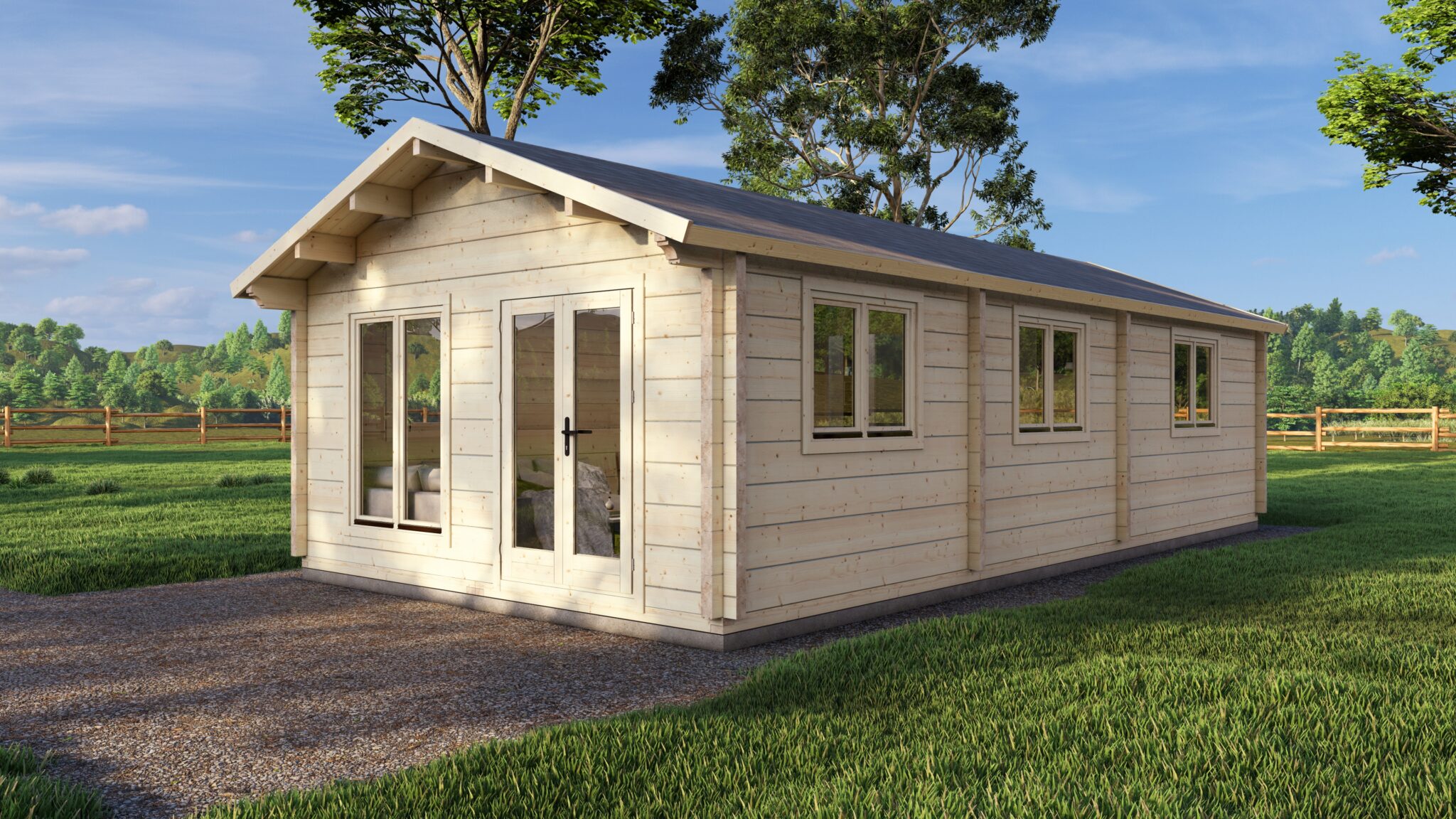

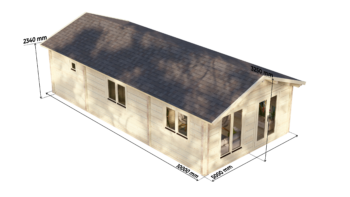

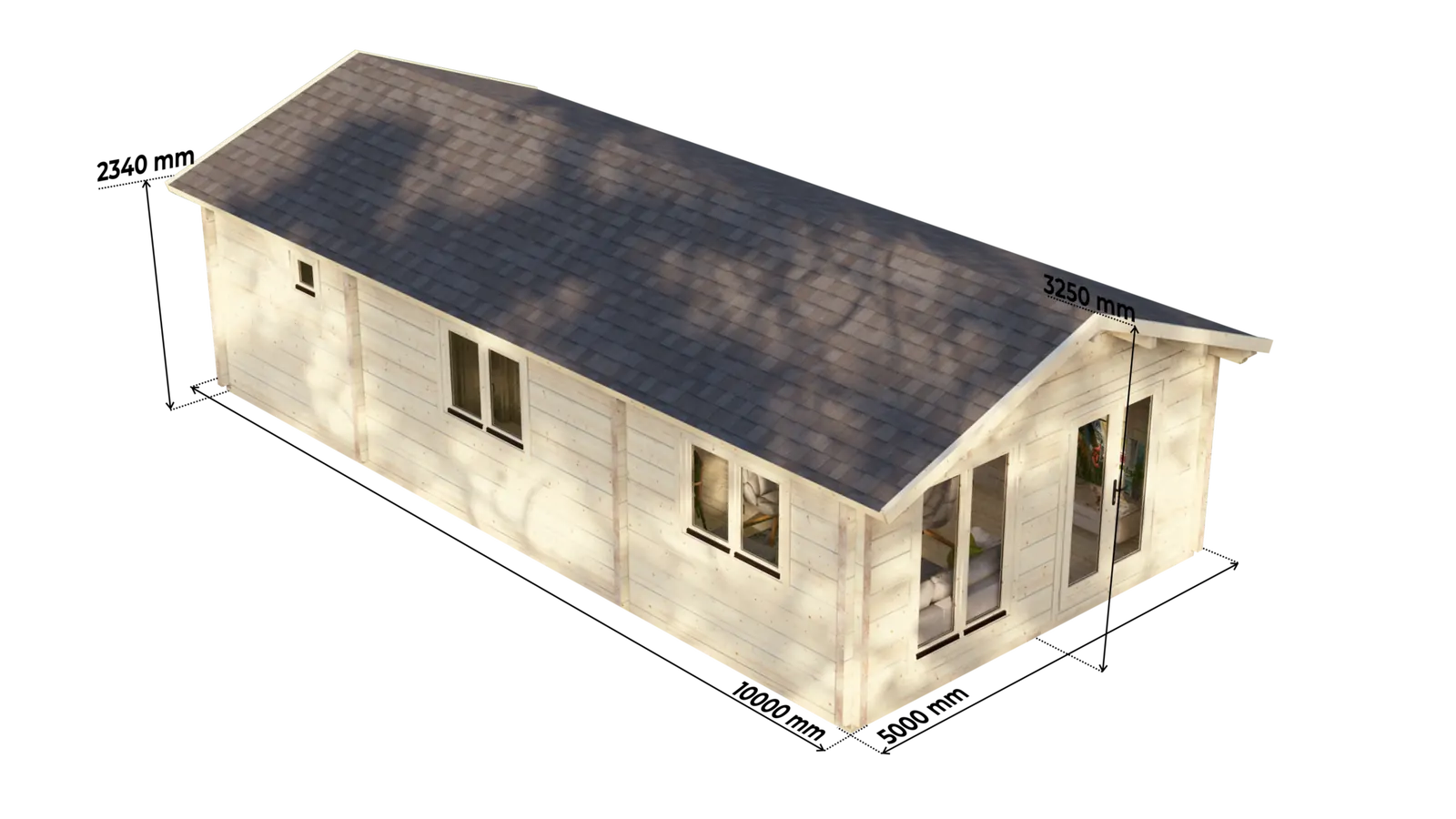

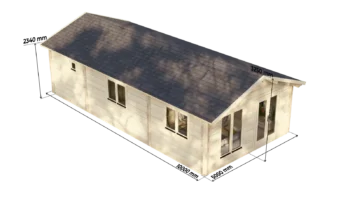

This one-bedroom mobile log home delivers 50m² of living space within a 10x5m footprint configured around UK Caravan Sites Act 1968 (as amended by SI 2006/2374) dimensional criteria for dealer and local-authority review. The design serves holiday-park operators, single-occupant accommodation layouts, and ancillary accommodation requirements where efficient space utilisation is the primary consideration. The full-height 291cm ridge construction provides generous interior volume while remaining within transportable dimensions for standard road delivery.

Layout and Configuration

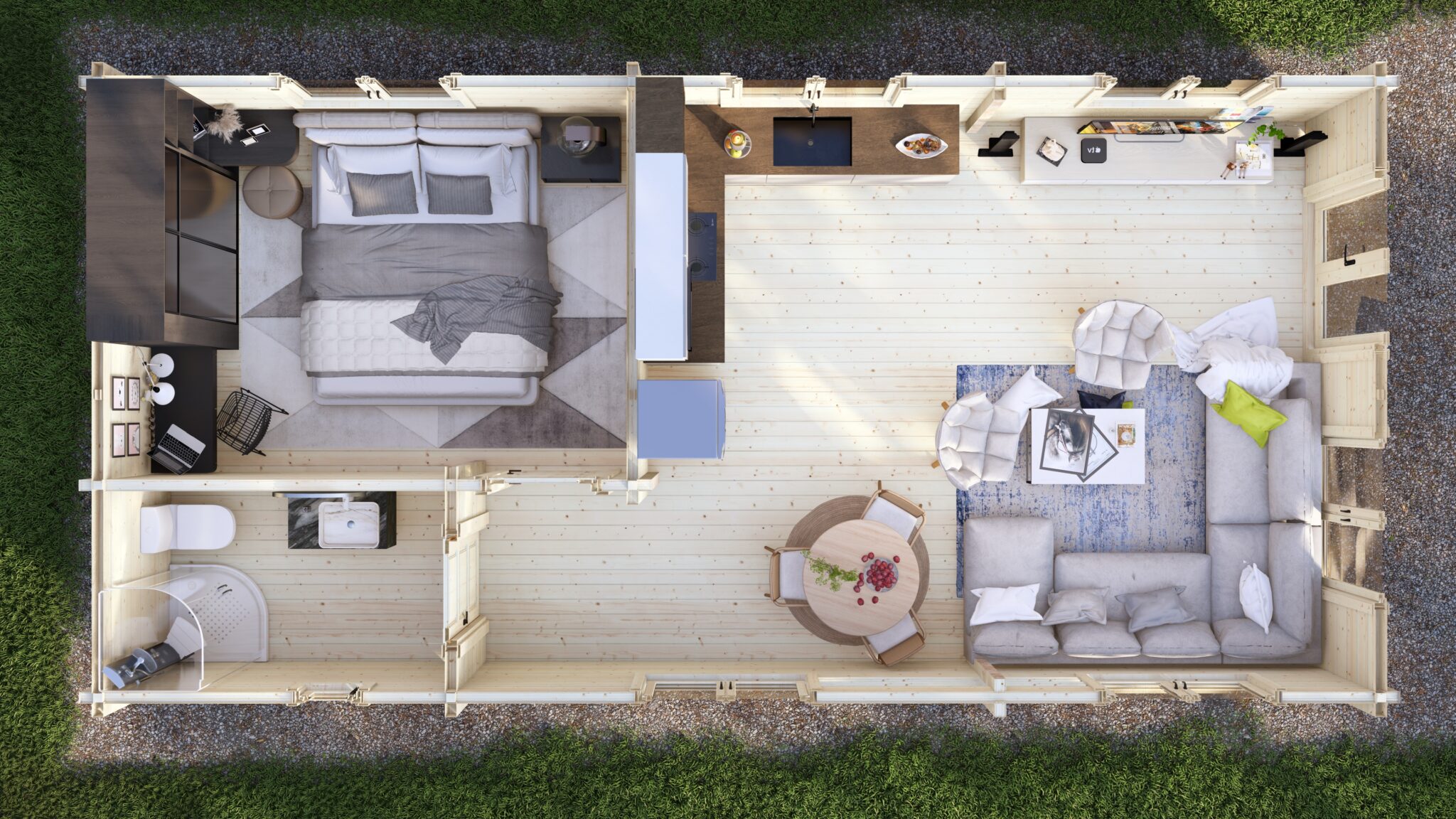

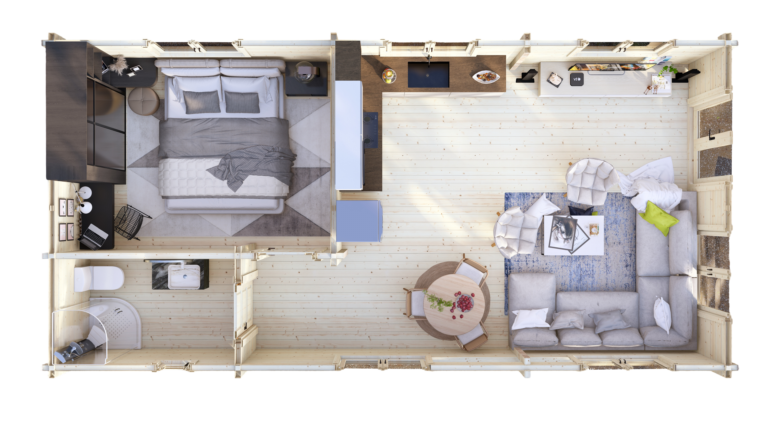

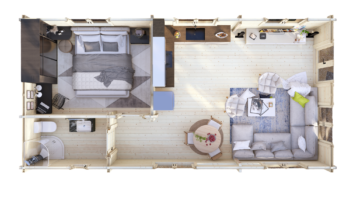

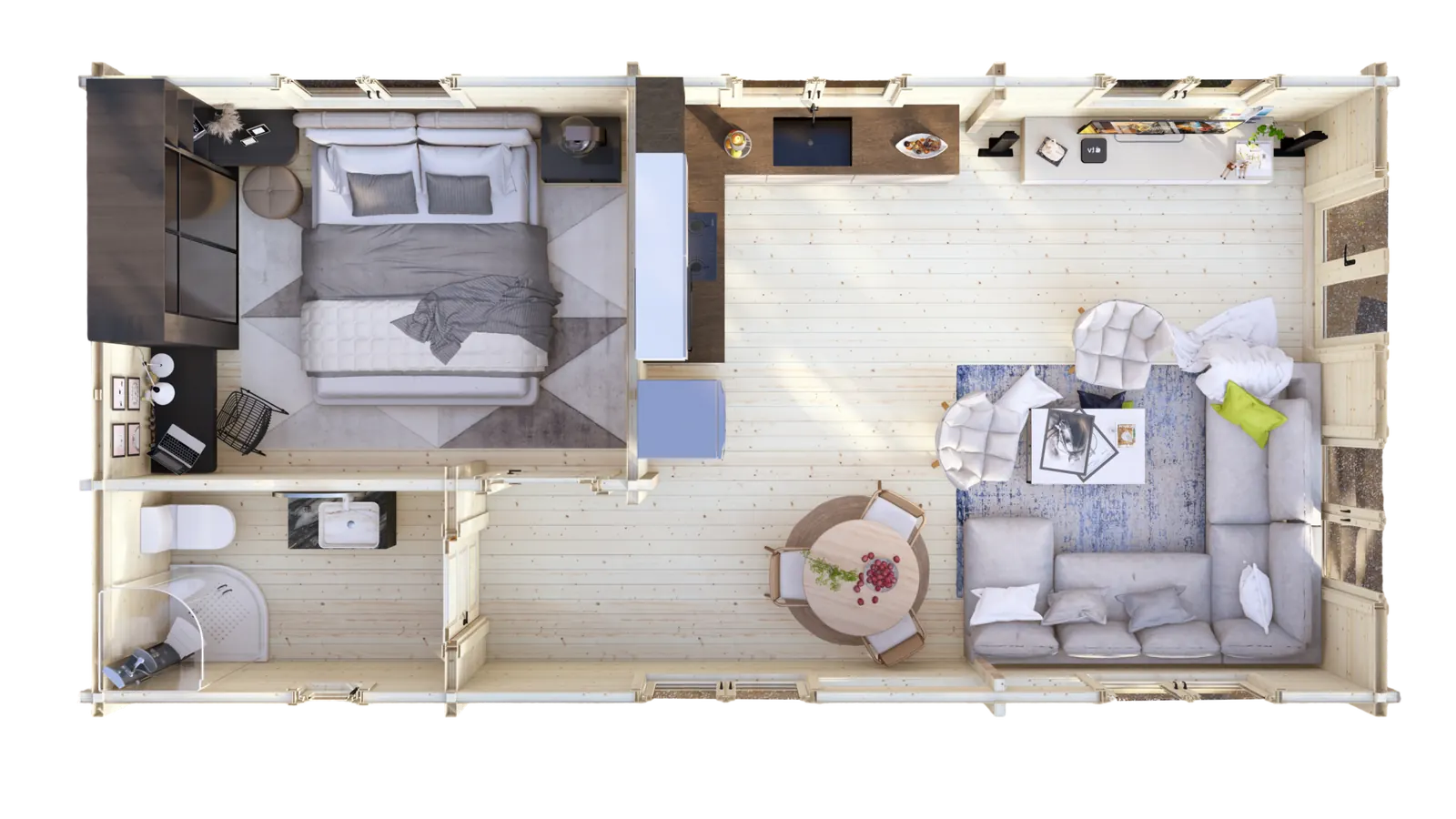

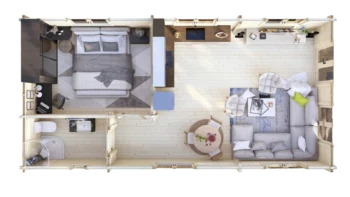

The 10x5m floor plan separates sleeping accommodation from an open-plan living, dining, and kitchen area. A dedicated bathroom with full sanitary fittings connects to both zones. The proportions allow comfortable furniture placement without compromising circulation routes. The standard 220cm eaves height ensures comfortable headroom throughout, with the apex roof profile creating additional storage opportunities above partition walls.

Timber and Construction

Slow-grown northern European spruce forms 88mm thick exterior walls using precision-machined tongue-and-groove profiles for assembly integrity and weather-exposure review. Double-glazed timber joinery incorporates insulated door and window frames throughout the structure. The compact building envelope benefits from efficient material utilisation, with shorter wall spans reducing the requirement for intermediate bracing. Assembly integrity is maintained through continuous interlocking profiles that support assembly review across the compact perimeter.

Floor and Roof

Pressure-treated 13.5×13.5cm glulam floor bearers support 28mm tongue-and-groove floor boarding specified for project-use review across the full 50m² floor plate. Roof construction utilises 19mm tongue-and-groove boards providing a solid substrate for insulation and selected roof covering systems. Standard bearer spacing provides reliable support across the compact floor area. The roof structure spans the narrow width efficiently, with integrated storm bracing systems securing the assembly against uplift forces.

Customisation Options

Wall thickness upgrades to 88mm or 135mm accommodate project-specific insulation brief for project use and extended-season briefs subject to local-authority review. Additional insulation packages, triple-glazing options, and alternative door and window configurations are specified for the destination climate and local project review route. One-bedroom configurations benefit from kitchenette specification options, space-efficient integrated storage solutions, and compact bathroom layout alternatives. Fold-away and multi-functional furniture provisions can be incorporated into the internal design to maximise the usable floor area.

Manufacturing and Delivery

Production at the Eurodita facility in Kaunas, Lithuania incorporates Hundegger CNC cutting systems and Nardi kiln-drying technology within a 150,000m² annual manufacturing capacity. Standard delivery timelines span four to six weeks across European markets, with expedited schedules available for confirmed volume commitments. The compact one-bedroom format enables efficient single-vehicle delivery, reducing transport costs and simplifying site logistics. Assembly timelines for this model typically range from three to five days with an experienced two-person crew.

Can the Mobile Log Home 1 Bed 10x5m support holiday-park or accommodation-style projects?

The Mobile Log Home 1 Bed 10x5m can be considered for holiday-park, accommodation-style or developer-led project briefs when the confirmed specification supports that use. Final suitability depends on the 88mm glulam wall profile, insulation, glazing, heating, ventilation, foundation, services and local authority or destination-market review.

Who is this Eurodita mobile log home built for?

Eurodita manufactures this 1 bedroom mobile log home with approximately 50 m2 of plan area for private-label partners, distributors, retailers, developers and holiday-park operators. The product can support a dealer-branded mobile log homes B2B range when drawings, documentation and specification details are reviewed per project.

Which technical details should be reviewed before quoting?

Before quoting this Eurodita product, partners should confirm external dimensions 10x5m, 88mm glulam wall profile, room layout, glazing package, foundation route, services and destination-market requirements. Eurodita can provide dealer resources, technical data and documentation references for project review rather than making blanket approval claims.

Private Label Partnership

Private-label manufacturing enables dealers to supply this mobile home under their own brand identity with no visible Eurodita branding on the delivered product. Partner support includes customised assembly documentation, branded customer communications, and 3D visualisation tools for showroom and catalogue presentation. Flexible order volumes accommodate both individual project requirements and ongoing supply agreements for holiday park and residential site operators.

Warranty and Support

Eurodita's 10-year anti-rot warranty applies to supplied timber components when the building is installed, treated and maintained according to documentation. Technical documentation includes detailed assembly drawings, hardware schedules, foundation guidance, and ongoing maintenance recommendations. Dedicated partner managers provide specification support, project quotation assistance, and after-sales technical consultation. One-bedroom mobile homes represent an accessible entry point for dealers building a residential timber product portfolio, with competitive unit economics and broad market applicability.
