At a glance

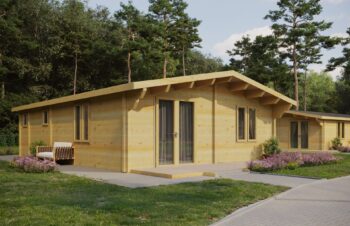

Mobile Log Home 1 Bed 9x7m is a single-storey glulam log home with one bedroom and an apex roof. It measures 9 x 7 m externally, an external footprint of 63 m². The ridge height is 291 cm and the eaves height 220 cm. It is listed with the mobile log cabins and timber lodges.

Read the full description

Layout

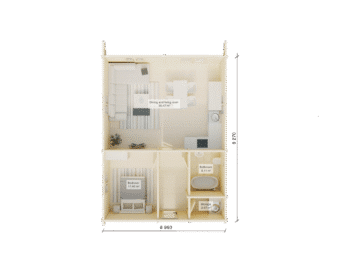

The plan drawing shows an open living room with a kitchen area, one bedroom, a bathroom and a store room.

Walls

The walls are glulam wall logs of the 88 x 260 mm profile: each log is 88 mm thick and 260 mm high. A glulam model can be made in any glulam profile. The glulam is glued, profiled and CNC machined at the Eurodita factory. The profiles are set out on wall thickness and glulam profiles.

Doors and windows

Doors and windows are made by Eurodita in timber. See windows and doors.

Floor plan

Technical data sheet

Specification recorded for Mobile Log Home 1 Bed 9x7m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building
External dimensions	9 x 7 m
External footprint area	63 m²
Eaves height	220 cm
Ridge height	291 cm
Base	External footprint 9 x 7 m. Base type and size are confirmed for the specific model and site.
Structure
Wall profile options	70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget
Corner system	Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm
Construction	Interlocking tongue and groove joints
Timber	Glued-laminated timber
Floor
Floor bearers	13.5 x 13.5 cm glulam
Floor boards	28 mm
Roof
Roof form	Apex
Roof boards	19 mm tongue and groove boards
Doors and windows
Doors	Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing
Windows	Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing
Scope of these figures
Insulation	Eurodita supplies the timber structure prepared for insulation where required, not the insulation material.
Performance	These dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

Enquiry

Mobile Log Home 1 Bed 9x7m

70 / 88 / 135 / 180 / 220mm, 9 x 7 m external, valid for 30 days

Request a quote

Mobile Log Home 1 Bed 9x7mRequest a quote

UK siting note

This model is 7.0 m wide, above the 6.8 m maximum width in the UK caravan definition (Caravan Sites Act 1968 s.13, as amended by SI 2006/2374, which sets 20.0 m length, 6.8 m width and 3.05 m internal height). It remains available for markets where that definition does not apply. For a UK project the siting and approval route is confirmed per project with the dealer, client and local authority before quotation. Narrower layouts within the definition are available on request.

How an Order Is Agreed

Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.

Need this in a different size?

Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.

Send a bespoke brief DrafTimber Published projects

Supply

The kit is supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project.

What is in a Eurodita kit Mobile log home range Reading a Eurodita quotation
