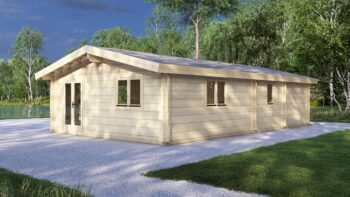

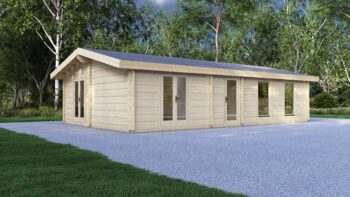

Mobile Log Home 2 Bed 11×6.8m
Technical data sheet
Specification recorded for Mobile Log Home 2 Bed 11x6.8m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 11 x 6.8 m |
| External footprint area | 75 m² |
| Eaves height | 234 cm |
| Ridge height | 316 cm |
| Storeys | 1 |
| Base | External footprint 11 x 6.8 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | 13.5 x 13.5 cm glulam |
| Floor boards | 28 mm |
| Roof | |
| Roof type | Apex |
| Roof form | Apex |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 11 x 6.8 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the mobile log homes range.
About This Mobile Log Home 2 Bed 11×6.8m
Product Overview
This two-bedroom mobile log home delivers 74m² of living space within a 11x6.8m footprint configured around UK Caravan Sites Act 1968 (as amended by SI 2006/2374) dimensional criteria for dealer and local-authority review. Configured for couples, small-family accommodation and holiday-park projects, the two-bedroom layout balances private sleeping quarters with communal living space. The full-height 294cm ridge construction provides generous interior volume while keeping transport planning subject to the confirmed route and project documentation.
Layout and Configuration

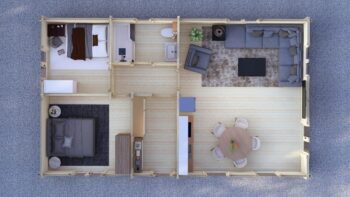

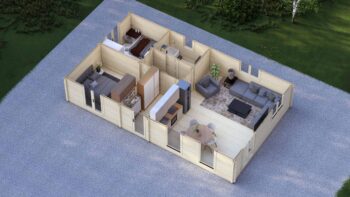

The 11x6.8m layout accommodates two private bedrooms, a shared bathroom, and an open-plan living and kitchen space. Internal partition walls create distinct sleeping zones while preserving adequate communal area for daily living. Circulation routes maintain comfortable movement between all functional zones. The standard 220cm eaves height ensures comfortable headroom throughout, with the apex roof profile creating additional storage opportunities above partition walls.
Timber and Construction
Northern European timber forms 88mm thick exterior walls using precision-machined tongue-and-groove profiles for assembly integrity and weather-exposure review. Double-glazed timber joinery incorporates insulated door and window frames throughout the structure. Internal partition walls integrate with the exterior envelope to create a coordinated wall framework. Load distribution across the two-bedroom layout requires engineered connection details at wall intersections, supporting dimensional stability under sustained project loading.
Floor and Roof
Pressure-treated 13.5×13.5cm glulam floor bearers support 28mm tongue-and-groove floor boarding specified for project-use requirements across the full 74m² floor plate. Roof construction utilises 19mm tongue-and-groove boards providing a solid substrate for insulation and selected roof covering systems. Bearer spacing accounts for the wider span dimensions typical of two-bedroom configurations, with additional bearers positioned beneath partition wall lines. Roof bracing systems are engineered for the intermediate span, providing resistance to lateral and uplift forces across the extended floor plate.
Customisation Options
Glulam wall-profile and insulation options are confirmed at quote stage according to the project brief, destination climate and local-authority review route. Additional insulation packages, triple-glazing options, and alternative door and window configurations are specified for the destination climate and local project review route. Two-bedroom models offer bedroom partition configuration alternatives, en-suite bathroom options for the principal bedroom, and flexible kitchen layout arrangements. Internal door and corridor positioning can be adjusted to suit specific site orientation and operator requirements.
Manufacturing and Delivery
Production at the Eurodita facility in Kaunas, Lithuania uses Hundegger CNC cutting systems and Nardi kiln-drying technology for Northern European timber components. Production and logistics timing is confirmed per order according to specification, order volume, factory planning, transport route and site-access needs. Transport requirements for the two-bedroom package are confirmed per order against haulage dimensions and route planning. Delivery scheduling coordinates with site preparation timelines to minimise on-site storage requirements. Assembly typically requires a three-to-four person crew over five to seven working days.
Private Label Partnership
Private-label manufacturing enables dealers to supply this mobile home under their own brand identity with no visible Eurodita branding on the delivered product. Partner support includes customised assembly documentation, branded customer communications, and 3D visualisation tools for showroom and catalogue presentation. Flexible order volumes accommodate both individual project requirements and ongoing supply agreements for holiday-park, managed-site and accommodation operators.
Warranty and Support
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. Technical documentation includes detailed assembly drawings, hardware schedules, foundation guidance, and ongoing maintenance recommendations. The Eurodita sales team handles specification support, project quotations and after-sales technical questions. Two-bedroom mobile homes provide a mid-range option for regional markets, balancing manufacturing complexity with project demand for multi-room accommodation layouts.
Trade pricing for verified B2B partners
What should dealers verify before quoting Mobile Log Home 2 Bed 11x6.8m?
Eurodita manufactures Mobile Log Home 2 Bed 11x6.8m as an 88mm engineered glulam mobile log home for private-label B2B partners. Before quoting, dealers should confirm the project route against Eurodita's Mobile Log Homes B2B range, the BS 3632 project-review route where relevant, site-licence or local-authority checks, layout changes, services, documentation scope and EXW Kaunas logistics. Final specification suitability, siting route and approval remain with the dealer, site operator, local authority or appointed assessor.
