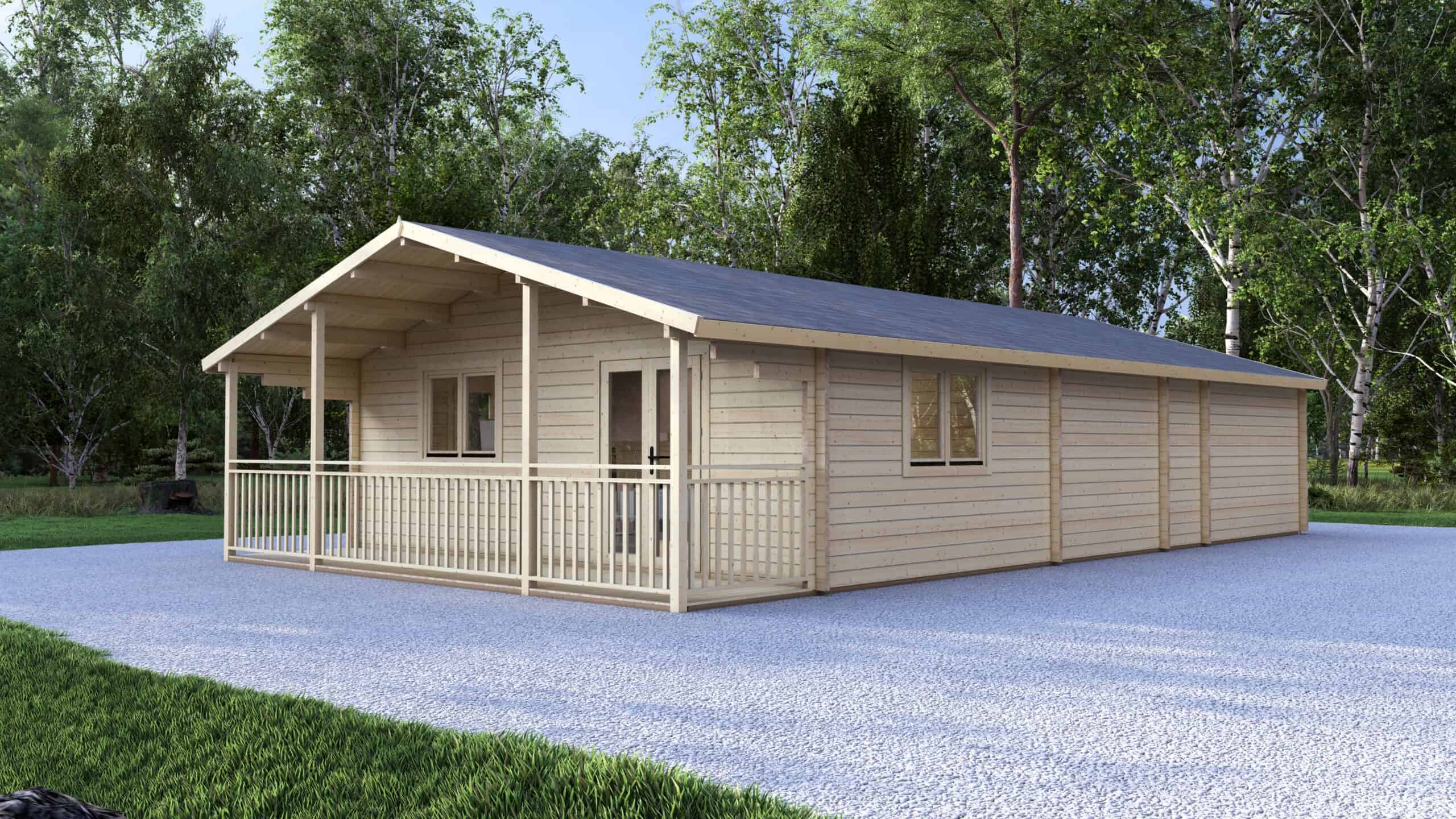

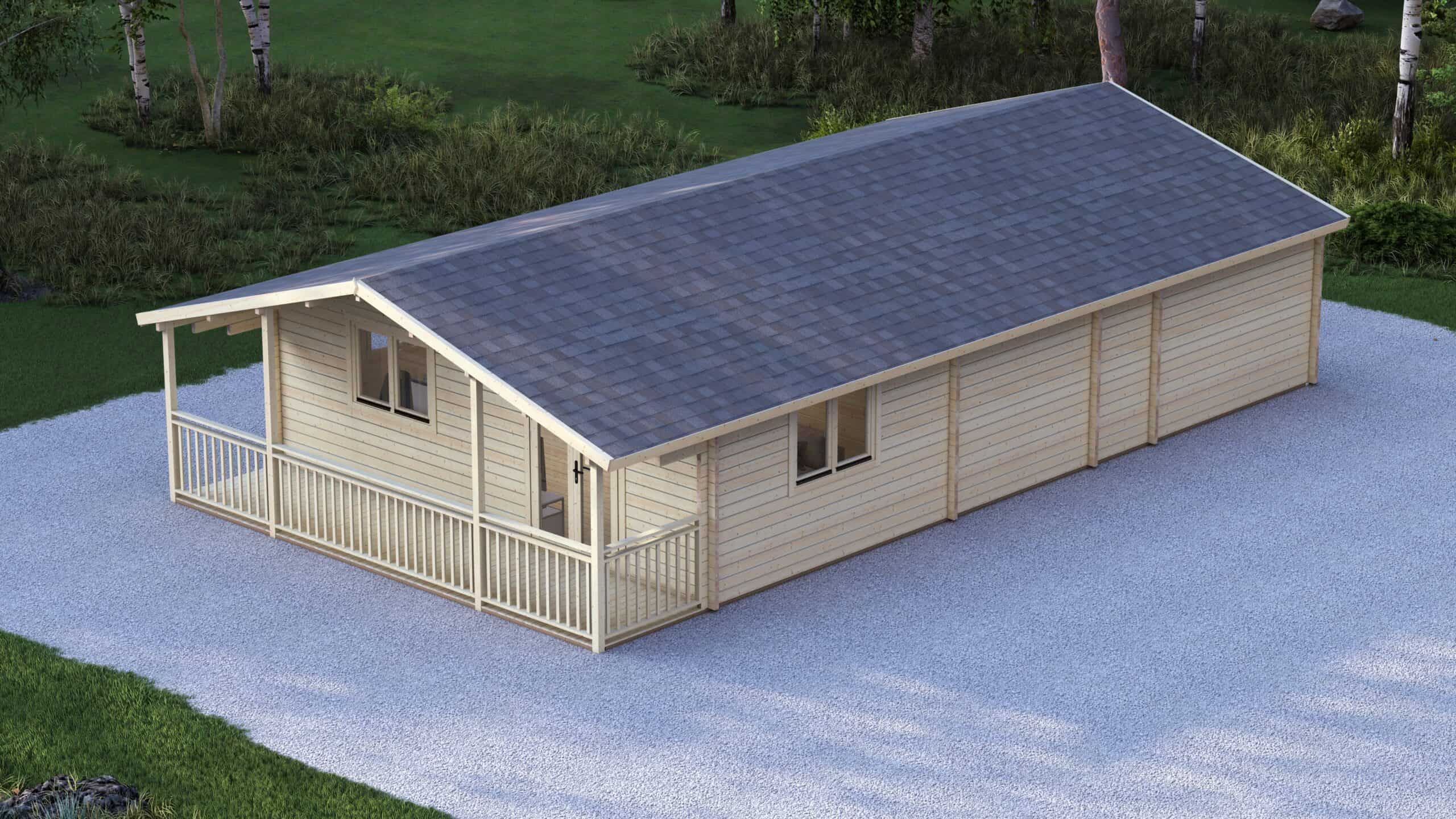

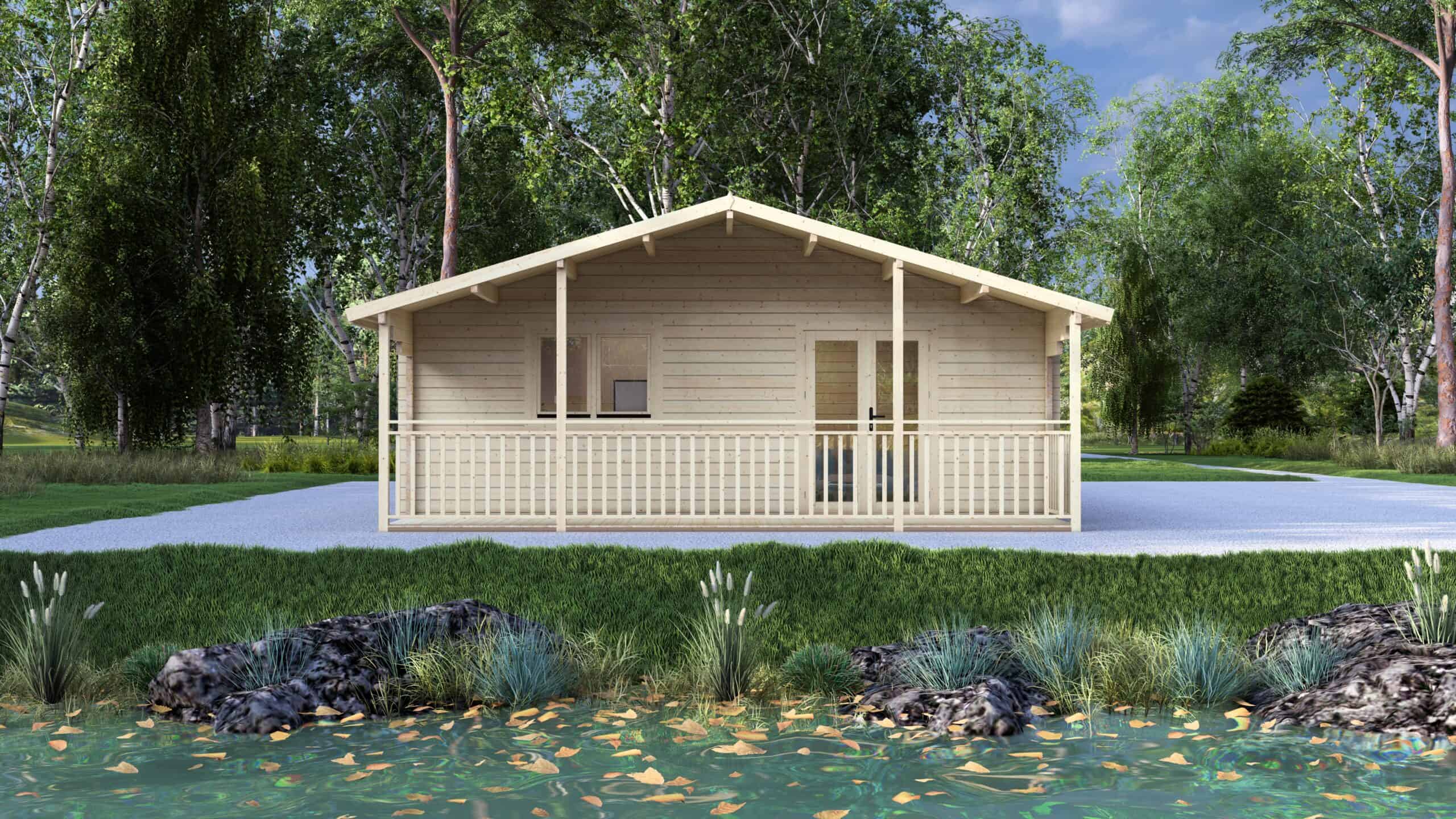

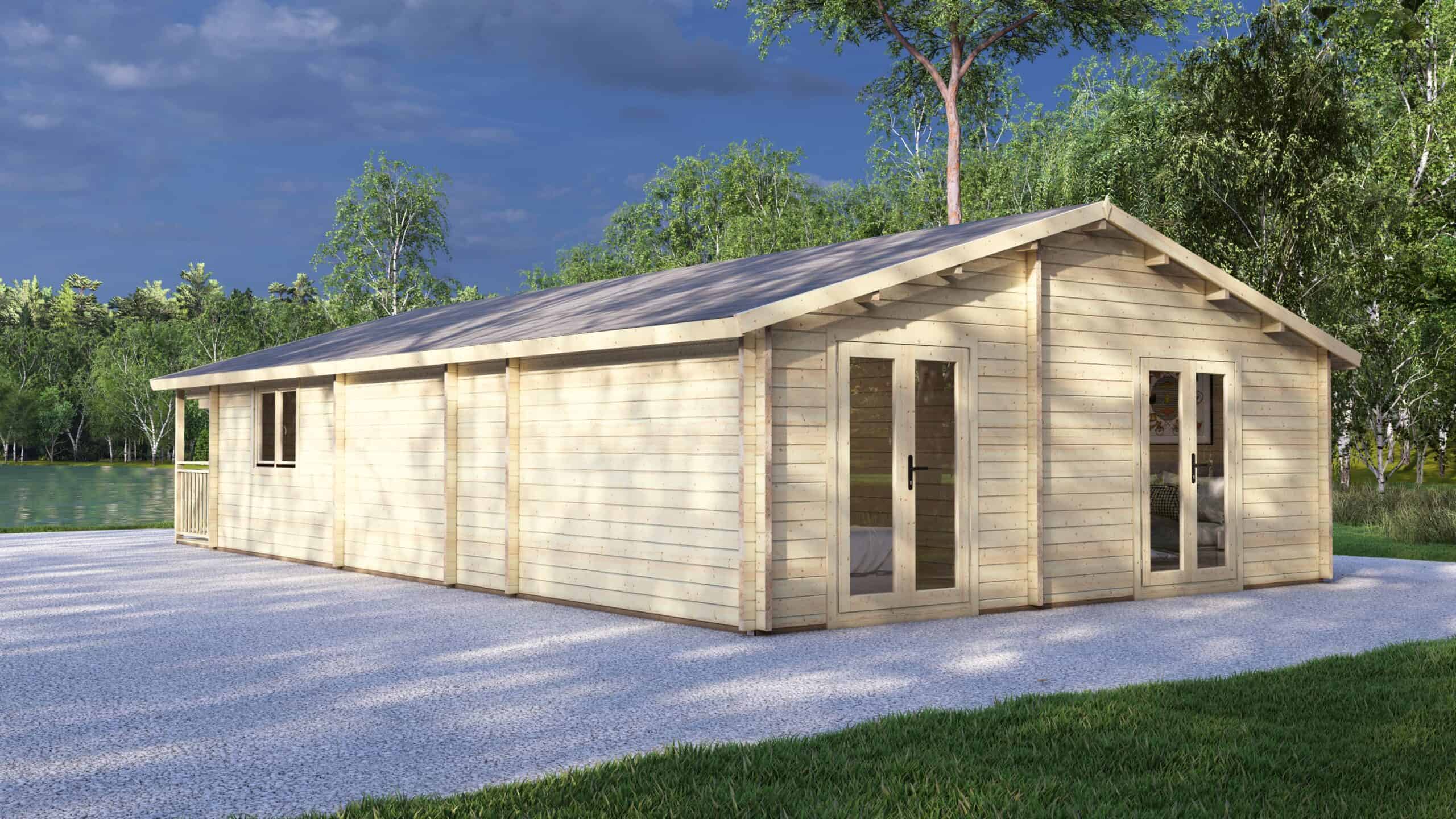

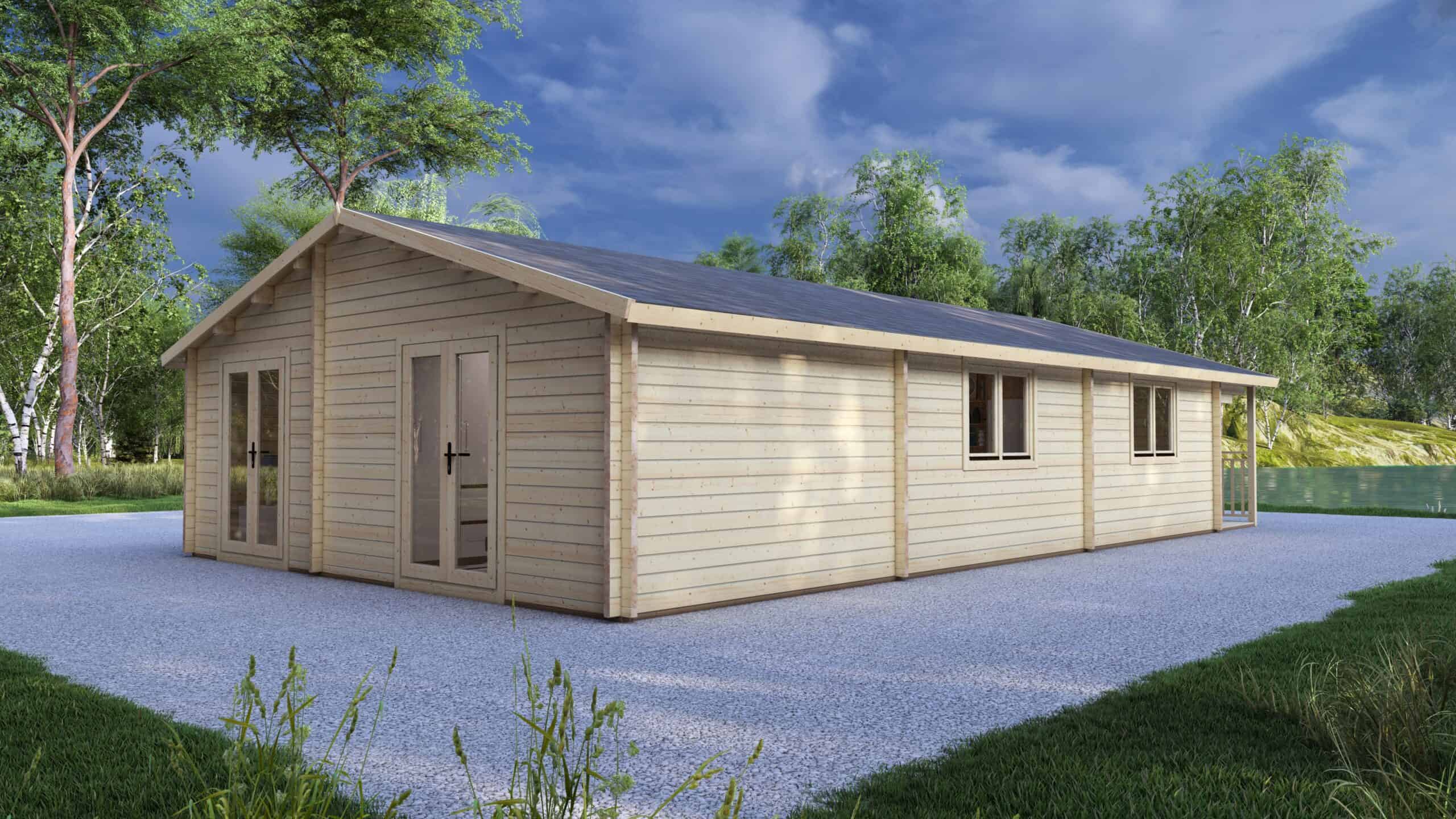

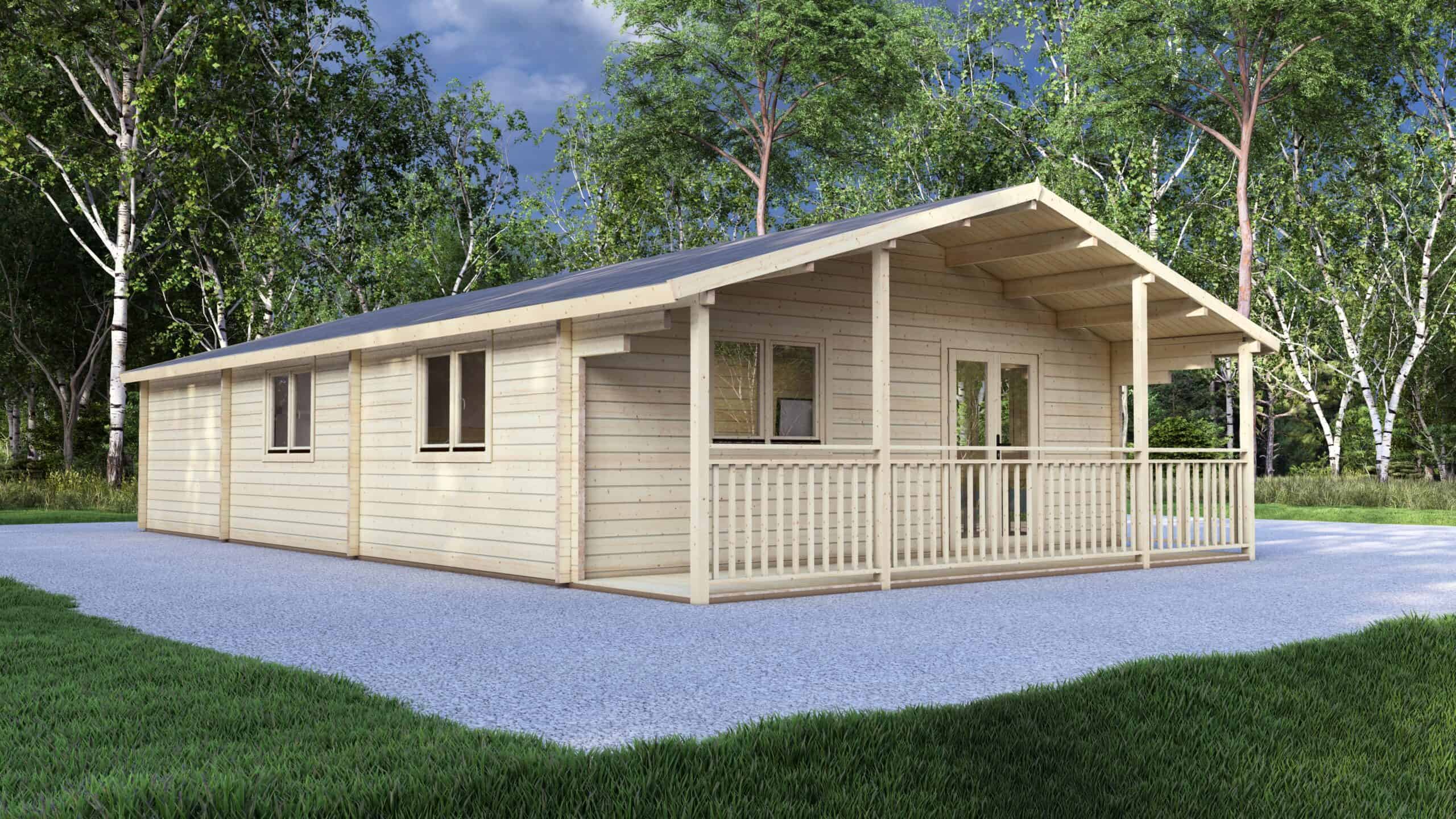

Log Cabin Lakeview 7×12.5m, 3Bedroom, 58mm
The Log Cabin Lakeview provides 87.5 m² of internal floor area in a substantial 7 x 12.5 m footprint .
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for Log Cabin Lakeview 7x12.5m, 3Bedroom, 58mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

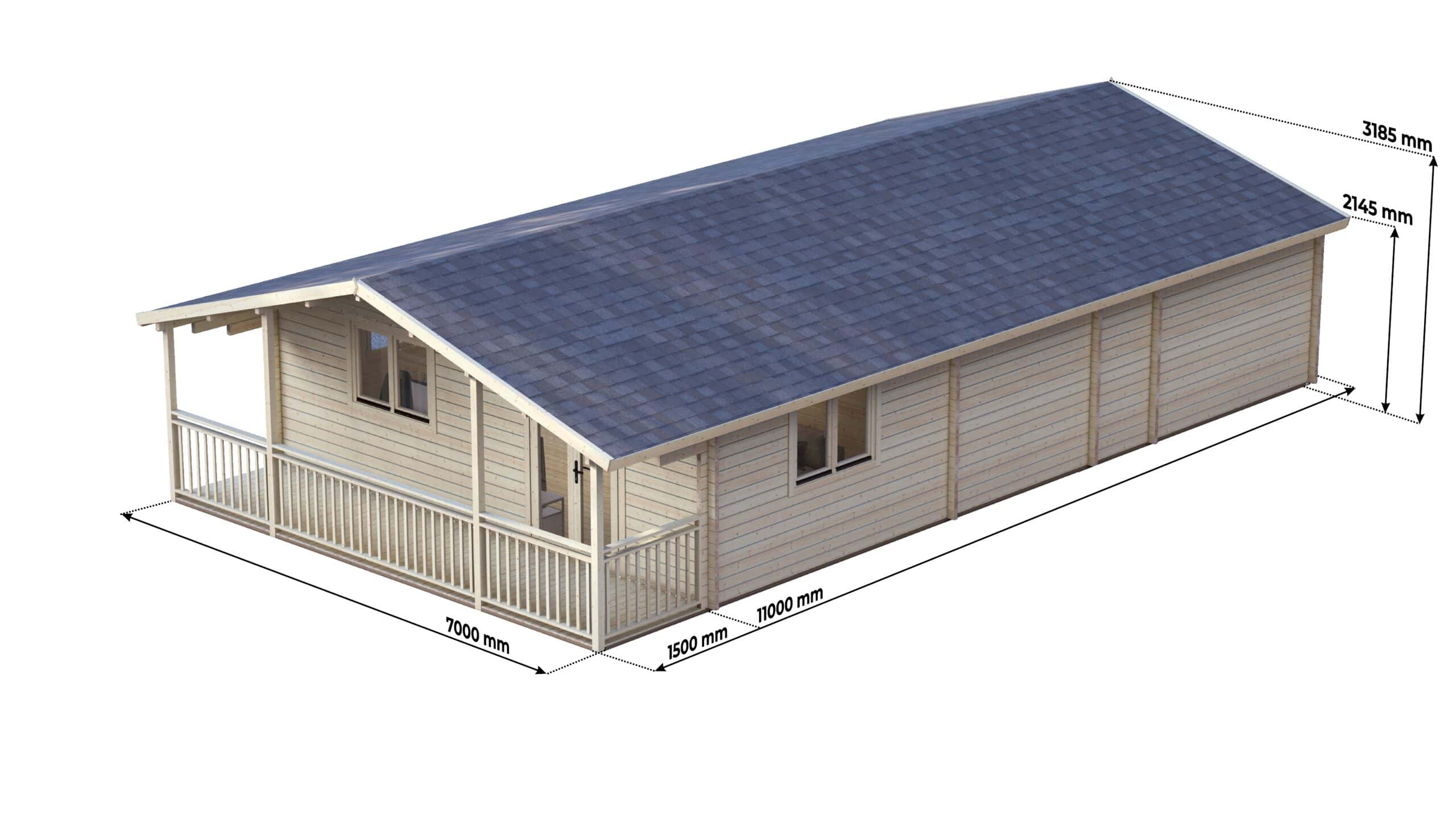

| Building | |
|---|---|
| External dimensions | 7 x 11 m |
| Terrace | 1.5 m, in addition to the building's external dimensions |
| Eaves height | 214 cm |
| Ridge height | 318 cm |
| Storeys | 1 |
| Base | External footprint 7 x 11 m, with the 1.5 m terrace in addition. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 58 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 7 x 11 m footprint, 58 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 3 bedroom log cabins range.
About This Log Cabin Lakeview 7×12.5m, 3Bedroom, 58mm
Product Overview
The Log Cabin Lakeview provides 87.5 m² of internal floor area in a substantial 7 x 12.5 m footprint. This three-bedroom higher-specification cabin is manufactured by UAB Eurodita in Lithuania, for B2B partners in dealer-led development, holiday-park briefs, and rural project briefs. Explore additional cabin configurations.
Layout & Configuration
The 87.5 m² floor plan accommodates three bedrooms, a spacious open-plan living and dining area, a kitchen zone, and a bathroom. The 12.5 m length provides generous room proportions. The layout supports both dealer-specified use cases subject to local-authority review and managed holiday-site letting.
Timber & Construction
Constructed from Northern European timber, kiln-dried in Nardi kilns (Italy) to a 12-14% production moisture target. Wall logs machined on Hundegger CNC centres (Germany) with tongue-and-groove profiles supporting weathertight assembly. Solid timber walls provide natural thermal mass, moisture regulation, and acoustic performance.
Technical Specifications
Key specifications: External dimensions: 7 x 12.5 m | Floor area: ~87.5 m² | Bedrooms: 3 | Timber: Northern European timber, kiln-dried | Assembly: tongue-and-groove interlocking | Foundation: confirmed for the specific model and site.
Customisation Options
Fully customisable: room layout, wall thickness (44 mm, 70 mm, or twin-skin), window positions, glazing, roof style, veranda, and exterior finish. Structural upgrades for high snow-load regions available. Standard catalogue production lead time is confirmed per order at quote stage.
Manufacturing & Delivery
Manufactured at UAB Eurodita in Lithuania. Product scope and production timing are confirmed in the written quotation and order. Ships as a comprehensive flat-pack kit. European delivery via full-load freight. Production timing is confirmed per order at quote stage.
Private Label Partnership
Private-label branding, packaging and customer-facing documentation are agreed perorder. The three-bedroom Lakeview provides a mobile-home layout for partner-led housing and holiday-park project briefs.
What should dealers confirm before quoting Log Cabin Lakeview 7×12.5m, 3Bedroom, 58mm?
Eurodita supplies Log Cabin Lakeview 7×12.5m, 3Bedroom, 58mm as a private-label B2B residential log cabin with a 7x11m + 1.5m Terrace footprint and 58mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, layout, openings, selected wall or insulation scope, foundation interface, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
