Golf Simulator Cabin 5.3×3.8m, 70mm
The Golf Simulator Cabin 5.3x3.8m is a B2B private-label timber shell engineered for golf simulator installations.
Technical Specifications
Add-ons & Customisation
Need this in a different size?
This model is supplied as a 4.14 x 5.64 m footprint, 70 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed in the written quotation and order. See published projects for built examples with dimensions and drawings, or review the rest of the golf simulator cabins range.
About This Golf Simulator Cabin 5.3×3.8m, 70mm
Product Overview

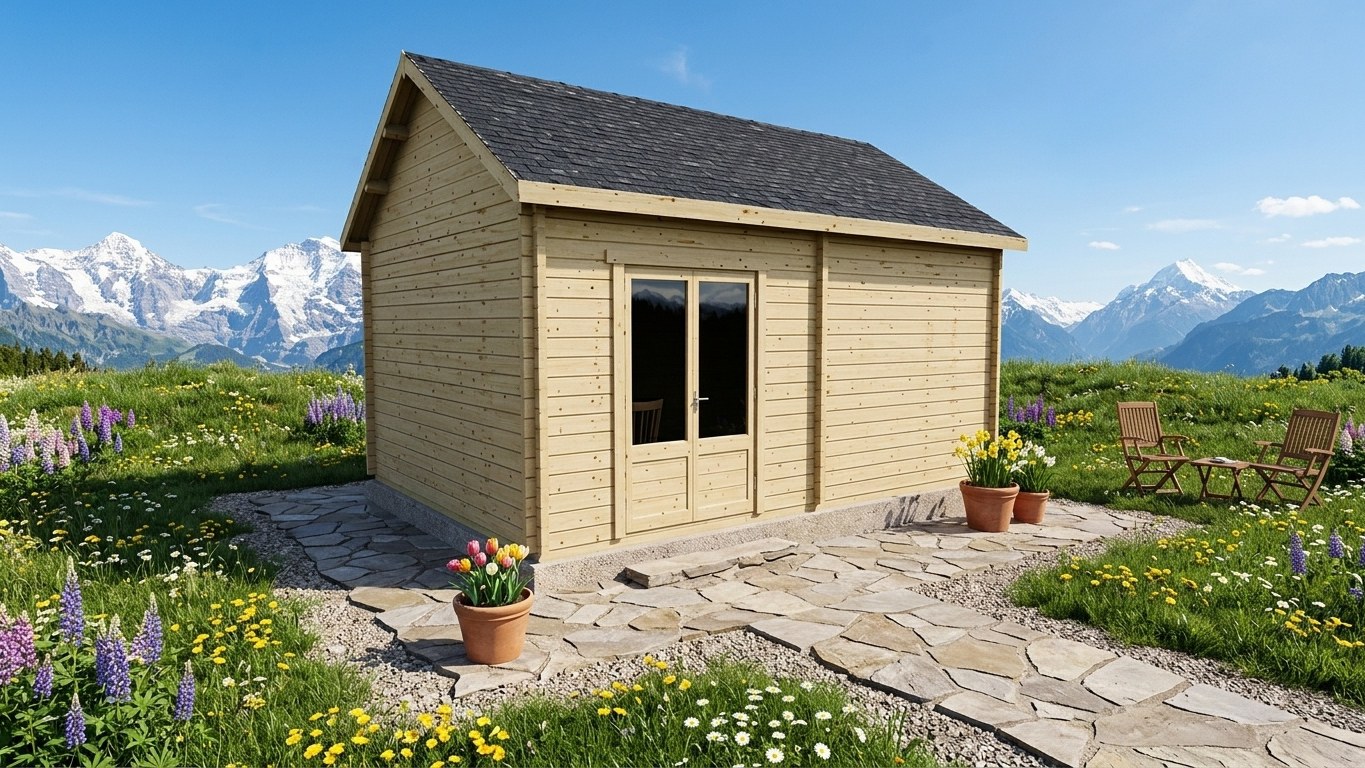

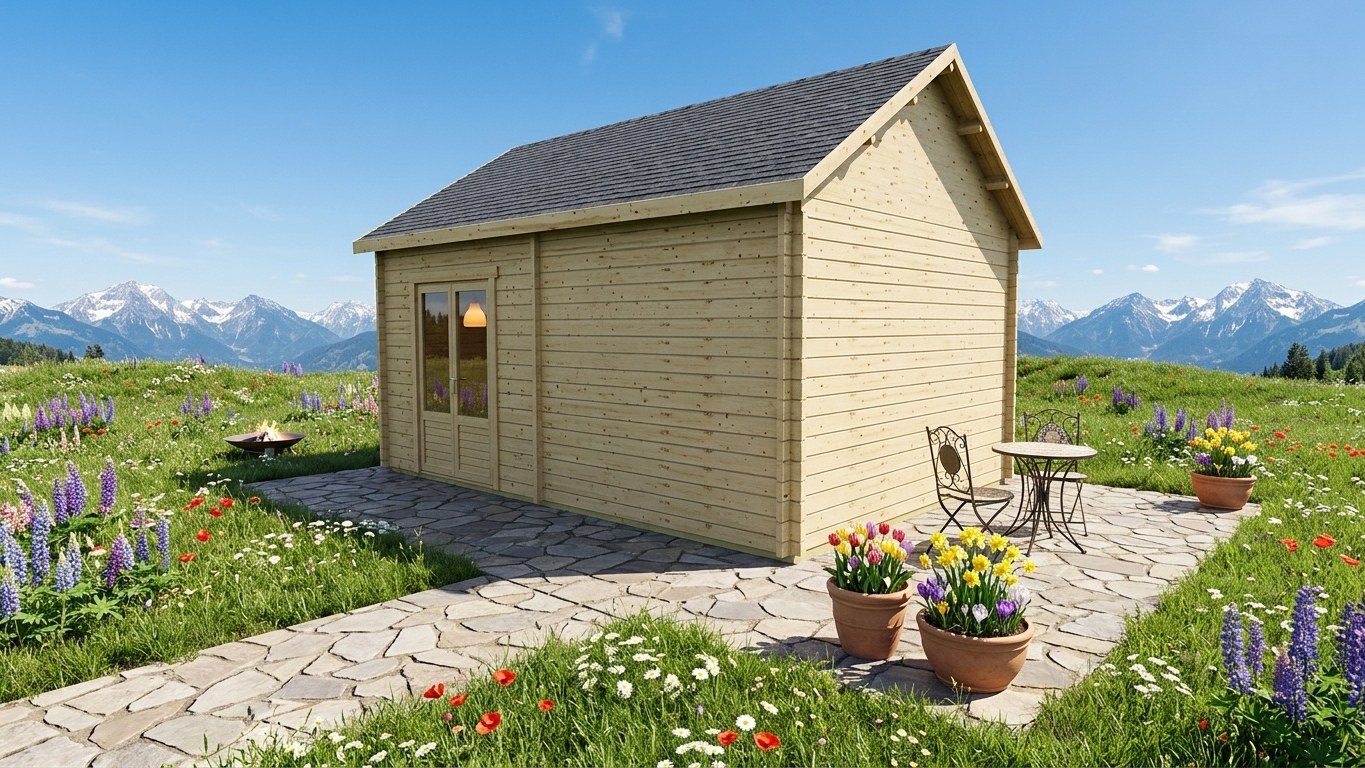

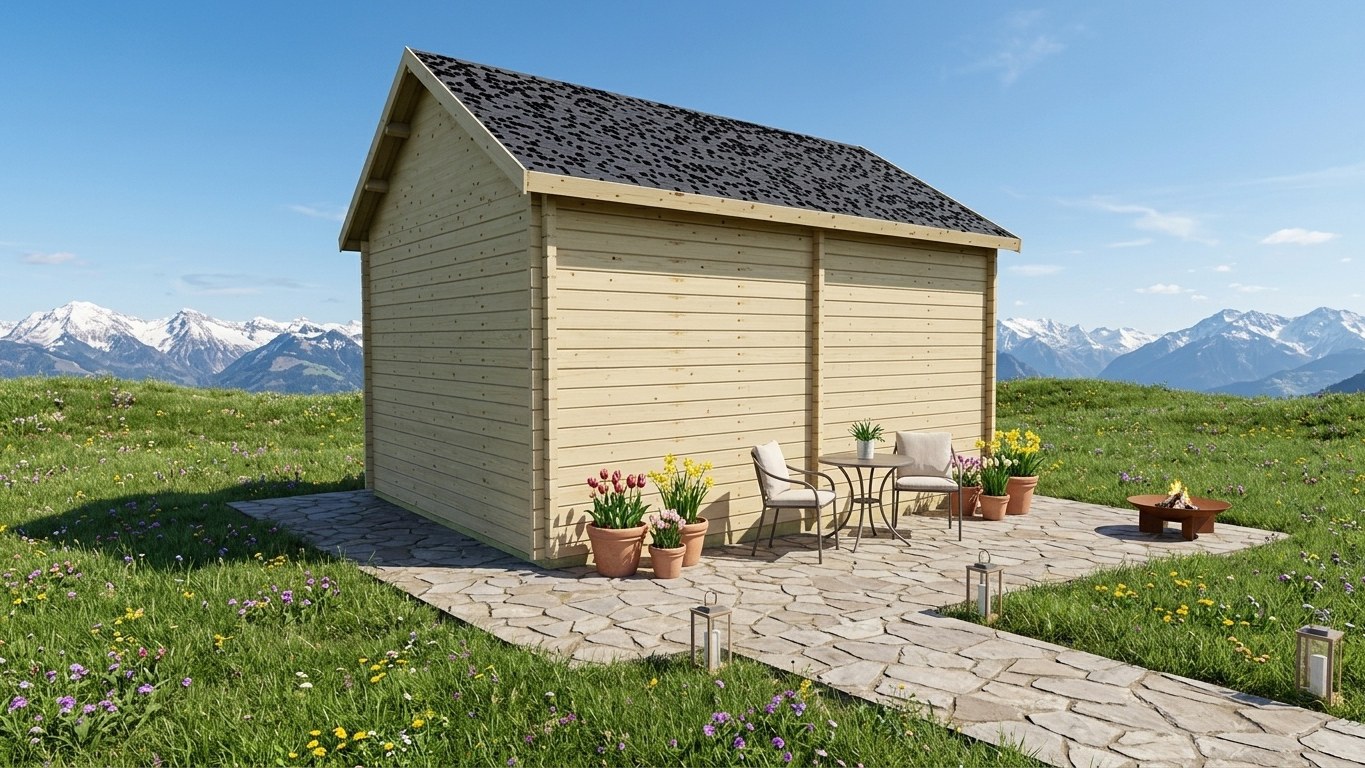

The Golf Simulator Cabin 5.3x3.8m is a B2B private-label timber shell engineered for golf simulator installations. It provides 20.1 m² of internal floor area (3800 x 5300mm) and an apex roof reaching a 3640mm ridge, giving approximately 3.4m of internal clearance at the centreline. The approximately 3.4m centreline clearance supports full-swing simulator layouts, subject to golfer height, mat build-up, screen position and the selected launch-monitor or enclosure system. The same shell suits home cinema rooms, console gaming rooms and driving simulators. Eurodita manufactures the shell in Kaunas, Lithuania; fitting companies add the technology and sell under their own brand.
Built for golf simulators, and more
Ceiling height is a critical simulator-layout constraint, so this shell is designed around that early project-review point. The steep 31.6° apex roof provides increased centreline headroom for simulator swing-clearance planning, while the eaves stay at 2405mm. The 20.1 m² footprint suits a hitting bay, screen and projector throw distance, and works equally for a home cinema, a console gaming room or a driving simulator.
Timber and construction
Walls are 70mm solid, slow-grown northern European spruce, with FSC chain-of-custody documentation on record. Technical data can be supplied for dealer or project review of insulation, heating and local-use requirements. A lower-cost 44mm wall option is available on request. Components arrive precision-machined and numbered for fast on-site assembly. Total timber volume is 5.67 m³.
Floor, roof and door

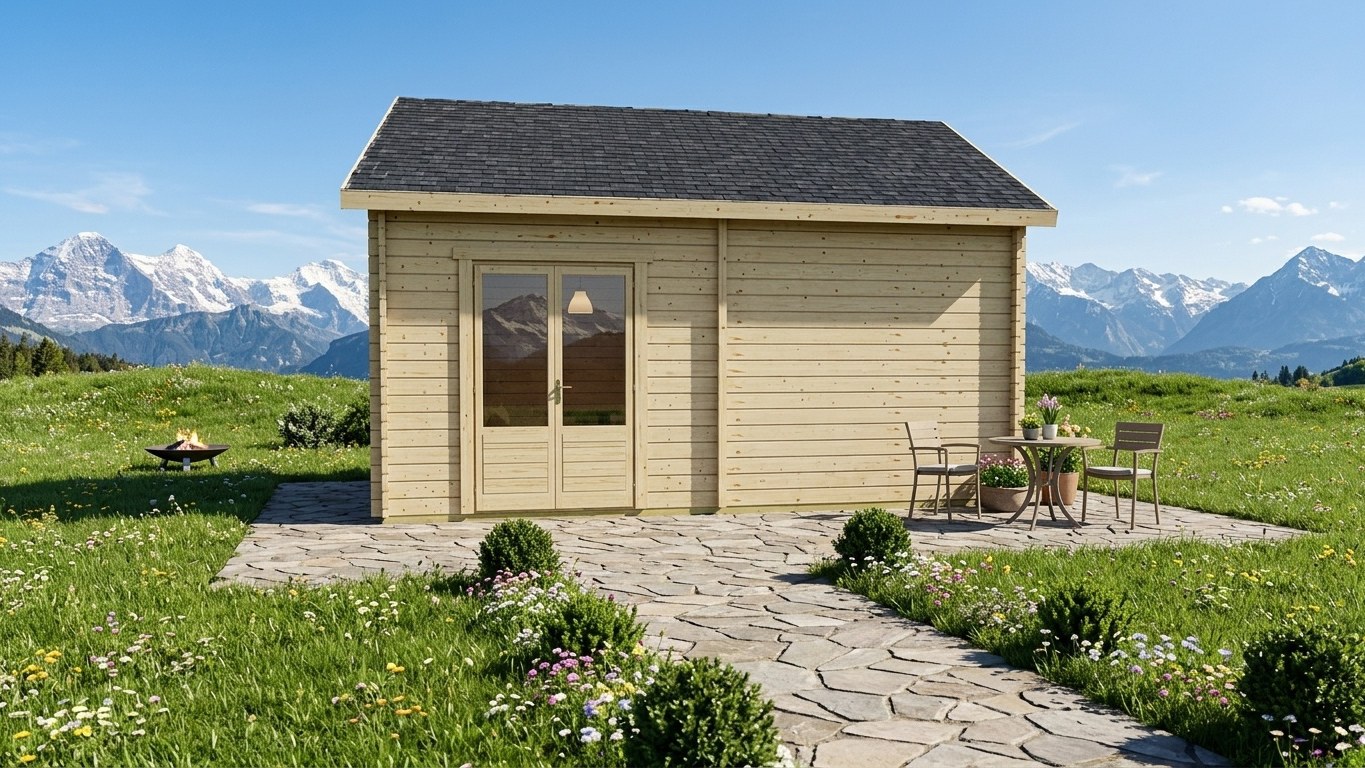

The floor uses 28mm boarding over 40x60mm bearers. The apex roof spans 70x130mm purlins (5 units) under 19mm roofboards, covering 29.2 m². Access is via a double 68mm door, 1400x2030mm, two-thirds glazed. External dimensions are 4140 x 5640mm.
Customisation options
Every design can be adapted. We can add or reposition the door, add windows, or change openings to suit the simulator layout, the screen wall or the entry point. Some images show an example configuration; the standard specification is listed in the table. For requirements beyond the standard range, we design and manufacture to fully bespoke dimensions.
Planning
At a 3640mm ridge and 2405mm eaves, the cabin sits within England's Class E permitted-development dimensions for a dual-pitched outbuilding, provided it is sited more than 2m from any boundary. Within 2m of a boundary the total height limit drops to 2500mm, which this cabin exceeds, so planning permission would be required in that position. The building must also be single-storey, not forward of the principal elevation, and not on designated land. Installers should confirm permitted-development status with the local planning authority for each site.
Private-label partnership
The shell is supplied unbranded for private-label resale. Your customers see your brand, not Eurodita's. Standard terms are EXW (Ex Works) from Kaunas; delivered options can be arranged for selected markets and projects, agreed individually per order. Flexible quote-based ordering applies on standard designs.
Warranty and lead time
Eurodita provides 10-year anti-rot warranty documentation for eligible treated timber components, subject to the written installation, maintenance and warranty terms confirmed for the order. For this catalogue golf simulator cabin shell, production timing and the included timber-component scope are confirmed in the written quotation. Standard terms are EXW from Kaunas; delivered options may be arranged for selected markets and projects and are agreed per order.
What should dealers confirm before quoting Golf Simulator Cabin 5.3×3.8m, 70mm?
Eurodita supplies Golf Simulator Cabin 5.3×3.8m, 70mm as a private-label B2B golf simulator cabin shell with 4.14 x 5.64m footprint handling and 70mm wall specification where listed. Before quoting, dealers should confirm simulator hardware route, golfer profile, swing envelope, mat build-up, screen position, fit-out, foundation, local-authority review, private-label needs and EXW Kaunas logistics. For bespoke layouts, CAD or 3D quotation material can normally be prepared within 1-2 working hours during business hours when the brief is complete.
Explore Similar Products
B2B Order Framework
Scope is confirmed in the written quotation and order documentation.
Private-label scope
Branding for packaging and relevant customer-facing documents is agreed per order.
Production planning
Production timing is confirmed in the written quotation and order acknowledgement for the selected model and specification.
Commercial terms
Price, quantity, payment and any volume conditions are quoted for the specific order.
Technical documents
The drawings, specifications and customer-facing documents included in the order are listed in the written quotation.
Configuration review
Dimensions, layout, openings, wall profile and other requested changes are reviewed before they are accepted into the quotation.
Dispatch terms
EXW Kaunas is the standard basis. Any delivered option is agreed for the specific market and order.
How a B2B Order Moves Forward
Specification
Share the model or drawing, destination, quantity and required configuration. Missing technical inputs are confirmed before quotation.
Manufacturing scope
Only the model, options, documentation and branding listed in the accepted order move into production.
Checking and packing
Completed order components are checked and packed against the agreed order scope before factory dispatch.
Dispatch terms
Orders are dispatched from Kaunas under the agreed collection or logistics terms. This does not promise carrier or final-mile delivery performance.
