Golf Simulator Cabin 5.0×4.0m, 70mm
The Golf Simulator Cabin 5.0x4.0m is a B2B private-label timber shell engineered for golf simulator installations.
Technical data sheet
Specification recorded for Golf Simulator Cabin 5.0×4.0m, 70mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 4.34 x 5.34 m |
| External footprint area | 23.2 m² |
| Eaves height | 240.5 cm |
| Ridge height | 364 cm |
| Storeys | 1 |
| Base | External footprint 4.34 x 5.34 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 70 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking solid log walls |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | 40 x 60 mm, impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof form | Apex |
| Roof boards | 19 mm boards |
| Roof purlins | 5 purlins, 70 x 130 mm |
| Doors and windows | |
| Doors | Double, 68mm, 1400x2030mm, two-thirds glazed |
| Windows | Not supplied as standard, available as an option |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 4.34 x 5.34 m footprint, 70 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the golf simulator cabins range.
About This Golf Simulator Cabin 5.0×4.0m, 70mm
Product Overview
The Golf Simulator Cabin 5.0x4.0m is a B2B private-label timber shell engineered for golf simulator installations. It provides 20.0 m² of internal floor area (4000 x 5000mm) and an apex roof reaching a 3640mm ridge, giving approximately 3.4m of internal clearance at the centreline. The approximately 3.4m centreline clearance supports full-swing simulator layouts, subject to golfer height, mat build-up, screen position and the selected launch-monitor or enclosure system. The same shell suits home cinema rooms, console gaming rooms and driving simulators. Eurodita manufactures the shell in Lithuania; fitting companies add the technology and sell under their own brand.
Built for golf simulators, and more
Ceiling height is a critical simulator-layout constraint, so this shell is designed around that early project-review point. The steep 30.4° apex roof provides increased centreline headroom for simulator swing-clearance planning, while the eaves stay at 2405mm. This size suits a hitting bay, screen and projector throw distance, and works equally for a home cinema, a console gaming room or a driving simulator.
Timber and construction
Walls are 70mm solid, Northern European timber, purchased from suppliers within certified supply chains. Technical data can be supplied for dealer or project review of insulation, heating and local-use requirements. A lower-cost 44mm wall option is available on request. Components arrive precision-machined and numbered for fast on-site assembly. Total timber volume is 5.64 m³.
Floor, roof and door

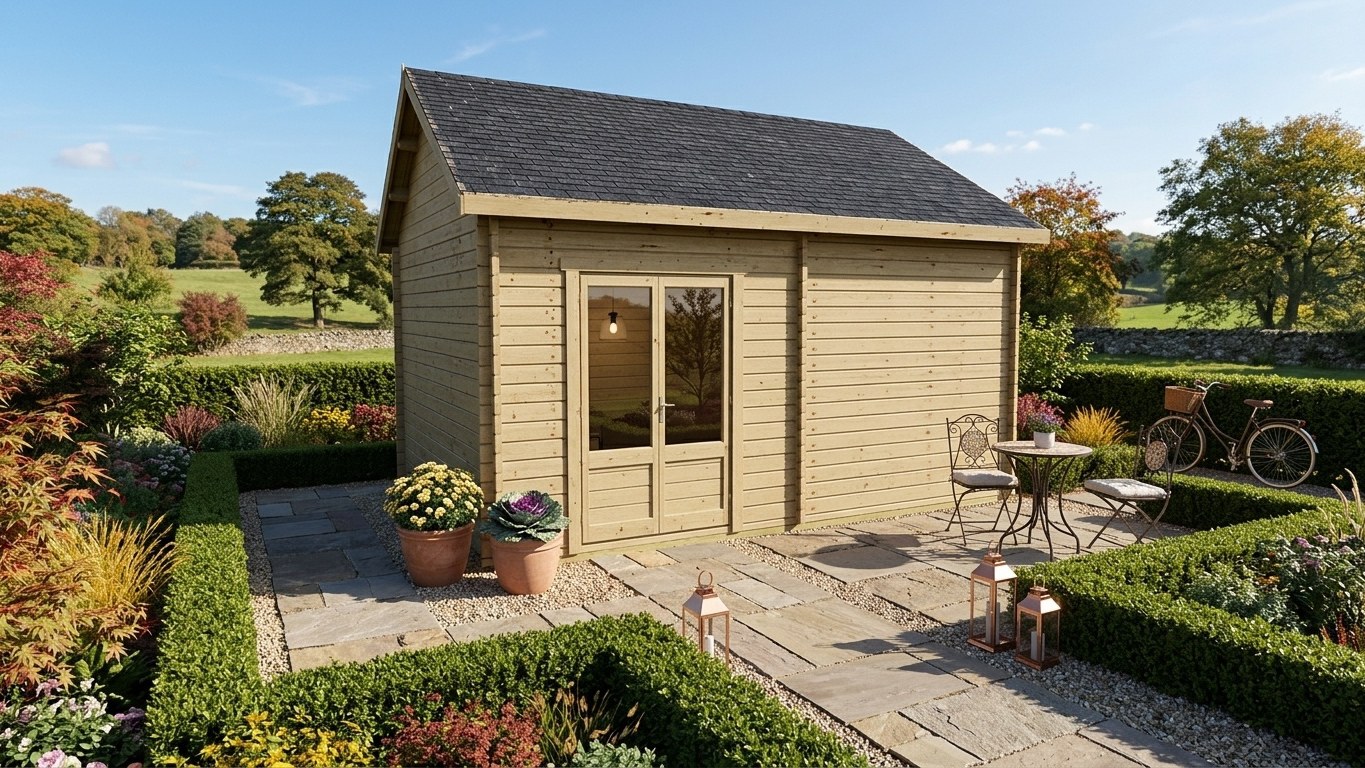

The floor uses 28mm boarding over 40x60mm bearers. The apex roof spans 70x130mm purlins (5 units) under 19mm roofboards, covering 28.6 m². Access is via a double 68mm door, 1400x2030mm, two-thirds glazed. External dimensions are 4340 x 5340mm.
Customisation options
Every design can be adapted. We can add or reposition the door, add windows, or change openings to suit the simulator layout, the screen wall or the entry point. Some images show an example configuration; the standard specification is listed in the table. For requirements beyond the standard range, we design and manufacture to fully bespoke dimensions.
Planning
At a 3640mm ridge and 2405mm eaves, the cabin sits within England's Class E permitted-development dimensions for a dual-pitched outbuilding, provided it is sited more than 2m from any boundary. Within 2m of a boundary the total height limit drops to 2500mm, which this cabin exceeds, so planning permission would be required in that position. The building must also be single-storey, not forward of the principal elevation, and not on designated land. Installers should confirm permitted-development status with the local planning authority for each site.
Private-label partnership
The shell is supplied unbranded for private-label resale. Your customers see your brand, not the Eurodita brand. Standard terms are EXW (Ex Works) from the Eurodita factory; delivered options can be arranged for selected markets and projects, agreed individually per order. Order scope for standard designs is confirmed in the written quotation.
Warranty and lead time
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. For this catalogue golf simulator cabin shell, production timing and the included timber-component scope are confirmed in the written quotation. Standard terms are EXW from the Eurodita factory; delivered options may be arranged for selected markets and projects and are agreed per order.
What should dealers confirm before quoting Golf Simulator Cabin 5.0×4.0m, 70mm?
Eurodita supplies Golf Simulator Cabin 5.0×4.0m, 70mm as a private-label B2B golf simulator cabin shell with 4.34 x 5.34m footprint handling and 70mm wall specification where listed. Before quoting, dealers should confirm simulator hardware route, golfer profile, swing envelope, mat build-up, screen position, fit-out, foundation, local-authority review, private-label needs and EXW Eurodita factory logistics. Eurodita prepares the complete quotation, CAD, 3D visualisation and technical drawing package per enquiry after receiving a complete brief.
