Golf Simulator Cabin 5.34x3.94m, 70mm
Delivery is agreed individually with each client. Markets and languages
For private buyers the supply route is confirmed project by project.
At a glance

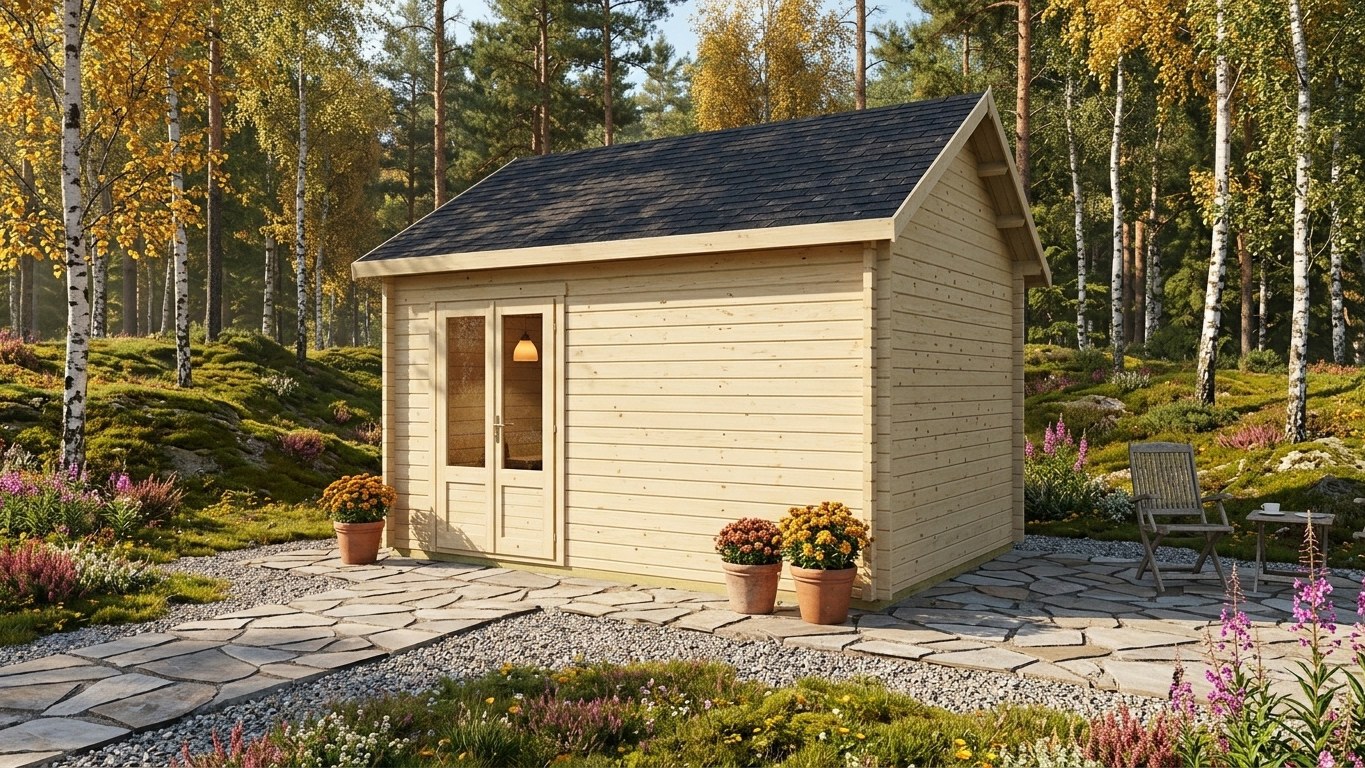

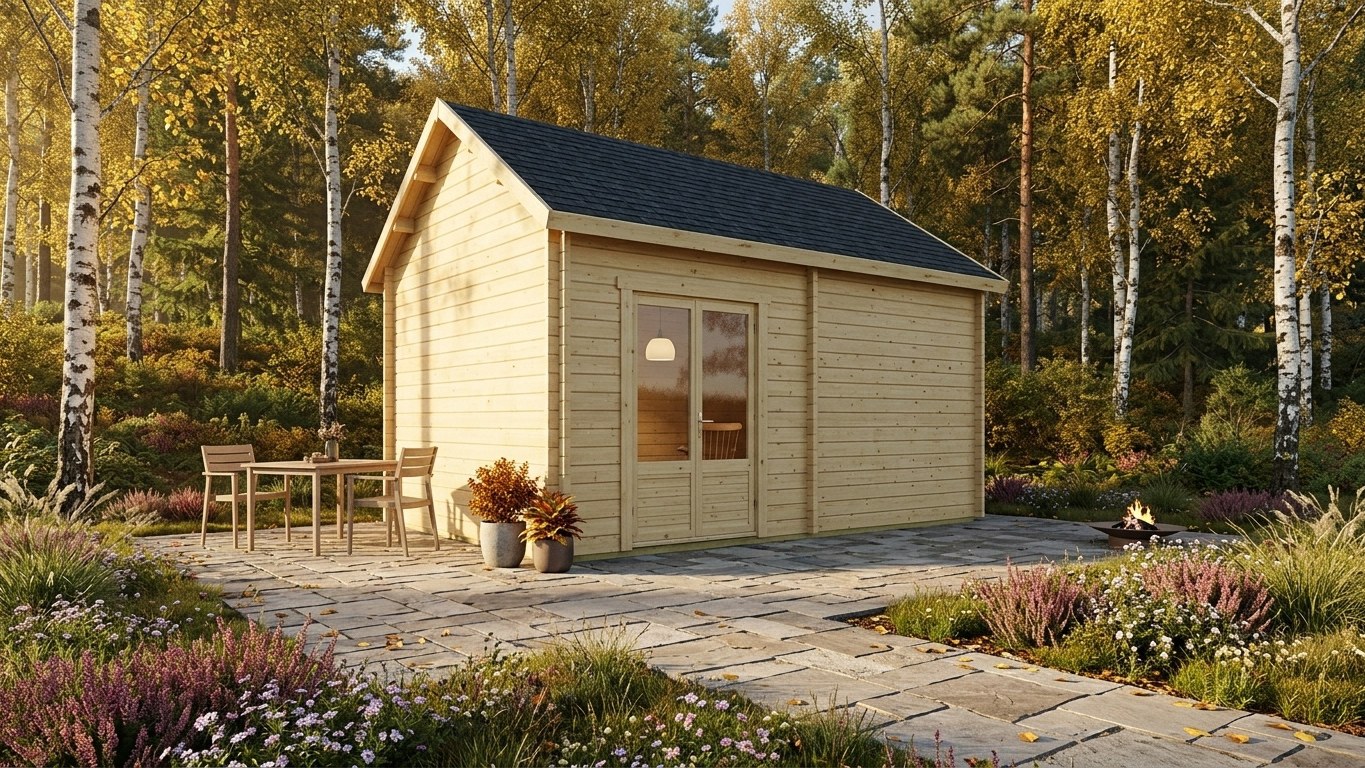

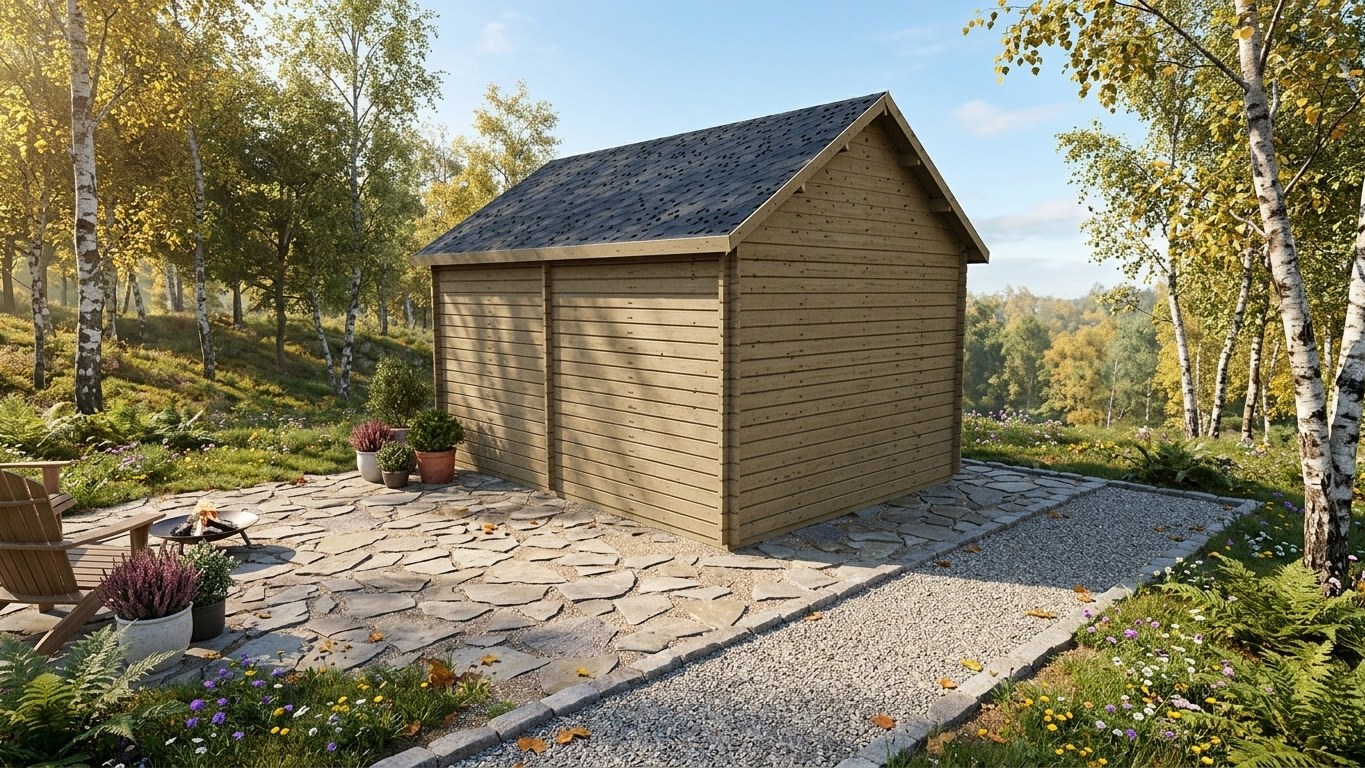

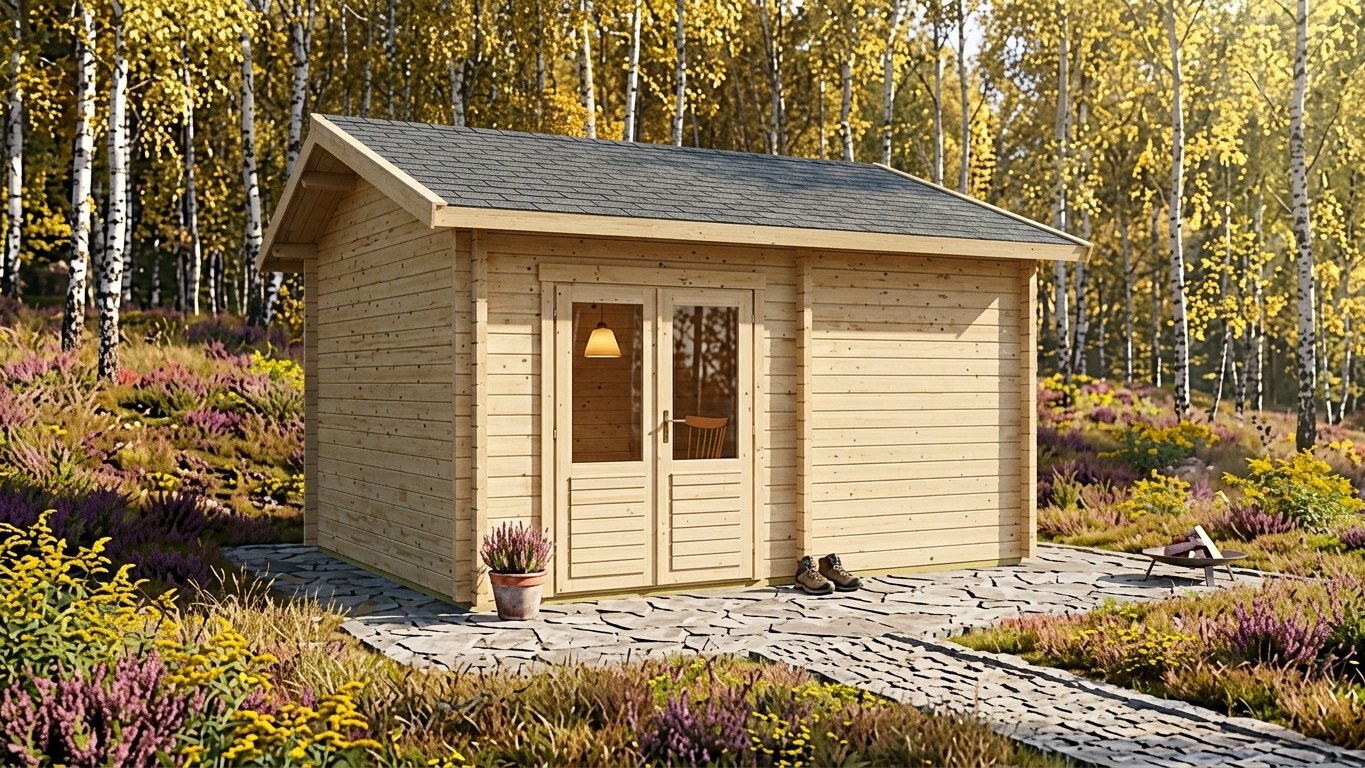

Golf Simulator Cabin 5.34x3.94m is a log cabin for a golf simulator room with an apex roof, supplied as a building kit. It measures 3.94 x 5.34 m externally, an external footprint of 21 m². The ridge height is 364 cm and the eaves height 240.5 cm. It has one storey. It is listed with the golf simulator cabins.
Read the full description
Walls
The wall logs are solid, of the 70 x 130 mm profile: each log is 70 mm thick and 130 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
The door is made by Eurodita in timber. See windows and doors.
Planning in England
In England a garden building that is incidental to the enjoyment of a house can be permitted development under Class E of Part 1 of Schedule 2 to the Town and Country Planning (General Permitted Development) (England) Order 2015 (S.I. 2015/596, revised text of legislation.gov.uk, read on 29 September 2026). Among its conditions: a single storey, eaves no higher than 2.5 metres, and a height of no more than 4 metres for a building with a dual-pitched roof, or 2.5 metres for a building within 2 metres of the boundary. This model has an apex roof, which is a dual-pitched roof, an eaves height of 240.5 cm and a ridge height of 364 cm: it is within the 2.5 metres of the eaves and the 4 metres of a dual-pitched roof, and above the 2.5 metres that apply within 2 metres of a boundary. The other conditions of Class E, and whether it applies to a site at all, are confirmed with the local planning authority.
Technical data sheet
Specification recorded for Golf Simulator Cabin 5.34x3.94m, 70mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 3.94 x 5.34 m |
| External footprint area | 21 m² |
| Eaves height | 240.5 cm |
| Ridge height | 364 cm |
| Storeys | 1 |
| Base | External footprint 3.94 x 5.34 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 70 x 130 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking solid log walls |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | 40 x 60 mm, impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof form | Apex |
| Roof boards | 19 mm boards |
| Roof purlins | 5 purlins, 70 x 130 mm |
| Doors and windows | |
| Doors | Residential type (IV68) double door, 1400 x 2030 mm, two-thirds glazed |
| Windows | Available as an option |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Golf Simulator Cabin 5.34x4.34m
| This model | 5.34x4.34m | |
|---|---|---|
| External size | 3.94 x 5.34 m | 4.34 x 5.34 m |
| External footprint | 21 m² | 23.2 m² |
Golf Simulator Cabin 5.64x4.14m
| This model | 5.64x4.14m | |
|---|---|---|
| External size | 3.94 x 5.34 m | 4.14 x 5.64 m |
| External footprint | 21 m² | 23.3 m² |
Golf Simulator Cabin 5.34x3.34m
| This model | 5.34x3.34m | |
|---|---|---|
| External size | 3.94 x 5.34 m | 3.34 x 5.34 m |
| External footprint | 21 m² | 17.8 m² |
Frequently asked questions
What internal ceiling height does a golf simulator cabin provide?
The apex roof reaches a 3640mm ridge, giving approximately 3.4m of internal clearance at the centreline on the standard golf simulator cabin profile. The eaves sit at 2405mm. Dealers and fit-out partners should confirm the final swing, screen, projector and launch-monitor layout against the selected simulator equipment and project brief.
Can a golf simulator cabin be supplied under our own brand?
Yes. Eurodita supplies the timber shell for trade partners through a private-label manufacturing arrangement. Private-label presentation, packing and customer-facing documentation are agreed per order. The trade partner manages the simulator technology and customer-facing offer within the agreed order scope. See the private-label arrangement for terms.
What is the lead time for a golf simulator cabin order?
Production timing is confirmed in the written quotation and order. Standard terms are Ex Works (EXW) from the Eurodita factory in Lithuania. DAP or DDP may be arranged for selected markets and projects, agreed individually per order. Full terms are in the shipping and delivery policy.
Do golf simulator cabins need planning permission in England?
Planning status is site-specific. Under the Town and Country Planning (General Permitted Development) (England) Order 2015, an outbuilding with a dual-pitched roof can fall within permitted development when sited more than 2 metres from a boundary, subject to a 4 metre ridge limit and a 2.5 metre eaves limit. Within 2 metres of a boundary the overall height limit is 2.5 metres, which this range exceeds, so planning permission would be required in that position. Conservation areas and listed buildings carry additional restrictions. Installers should confirm permitted-development status with the local planning authority for each site.
Can we order a bespoke size or customise the layout?
Eurodita can review custom door positions, added windows, wall-thickness options and bespoke dimensions beyond the nine standard sizes. Order quantity, pricing and production scope for standard models are confirmed per quote. Bespoke dimensions are qualified and quoted individually against drawings, engineering scope, production planning and logistics. Eurodita has manufactured timber buildings since 1994.
Is Eurodita a bespoke golf simulator cabin manufacturer?
Yes. Eurodita supplies standard and bespoke timber cabin shells for golf simulator cabin projects. For smaller garden buildings the supply route is confirmed project by project. The simulator technology, screen, projector and interior fit-out are specified and installed by the dealer, fitting company or project partner.
Can Eurodita prepare CAD or 3D quotation material for bespoke golf simulator cabins?
Eurodita supplies timber shells for golf simulator cabin projects. Dealers, fit-out partners and project suppliers can send target dimensions, internal-clearance needs and door or window positions for project review. For a bespoke brief, Eurodita reviews the available drawings, scope and destination; quotation-support timing is confirmed with the team.
