Name: Golf Simulator Cabin 4.3×3.2m, 70mm | Eurodita
Brand: Eurodita
SKU: ED-CAT-51602

Technical Specifications

Wall Thickness:

70mm

Construction:

Apex roof, interlocking solid log walls

External dimensions:

3.54 x 4.64m

Eaves Height (cm):

240.5

Ridge Height (cm):

364

Material:

Slow-grown northern European spruce

Doors:

Double, 68mm, 1400x2030mm, two-thirds glazed

Windows:

None, sealed for projection

Floor Boards:

28mm

Floor Bearers:

40x60mm, pressure-treated

Roof:

19mm boards on 70x130mm purlins

Storm brace & anchor set:

Included

Anti Rot Warranty:

10 Year

Add-ons & Customisation

✅ Logo branding on drawings and packaging

✅ Wall thickness upgrade

✅ Roof & floor insulation

✅ Optional wall liner insulation

✅ Project-specific glazing options

✅ Production schedule review

Product Inquiry

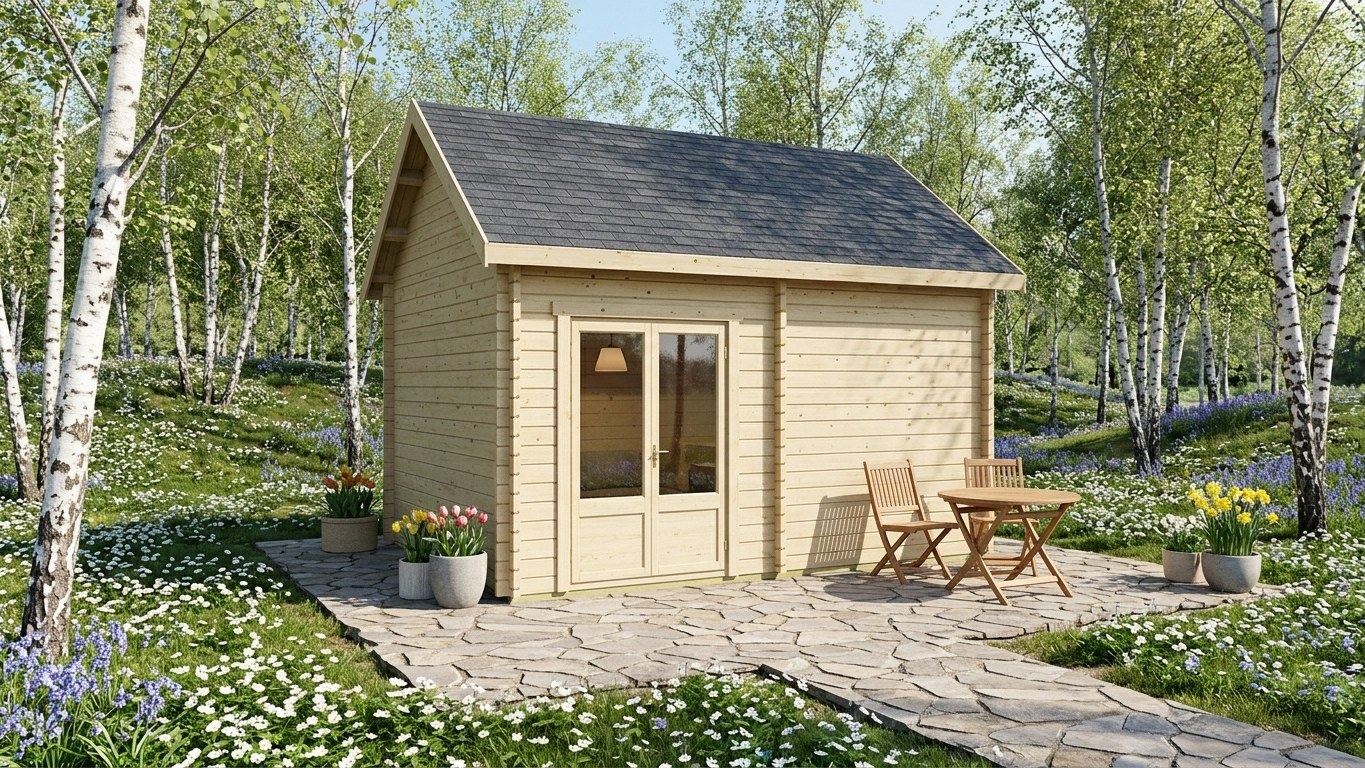

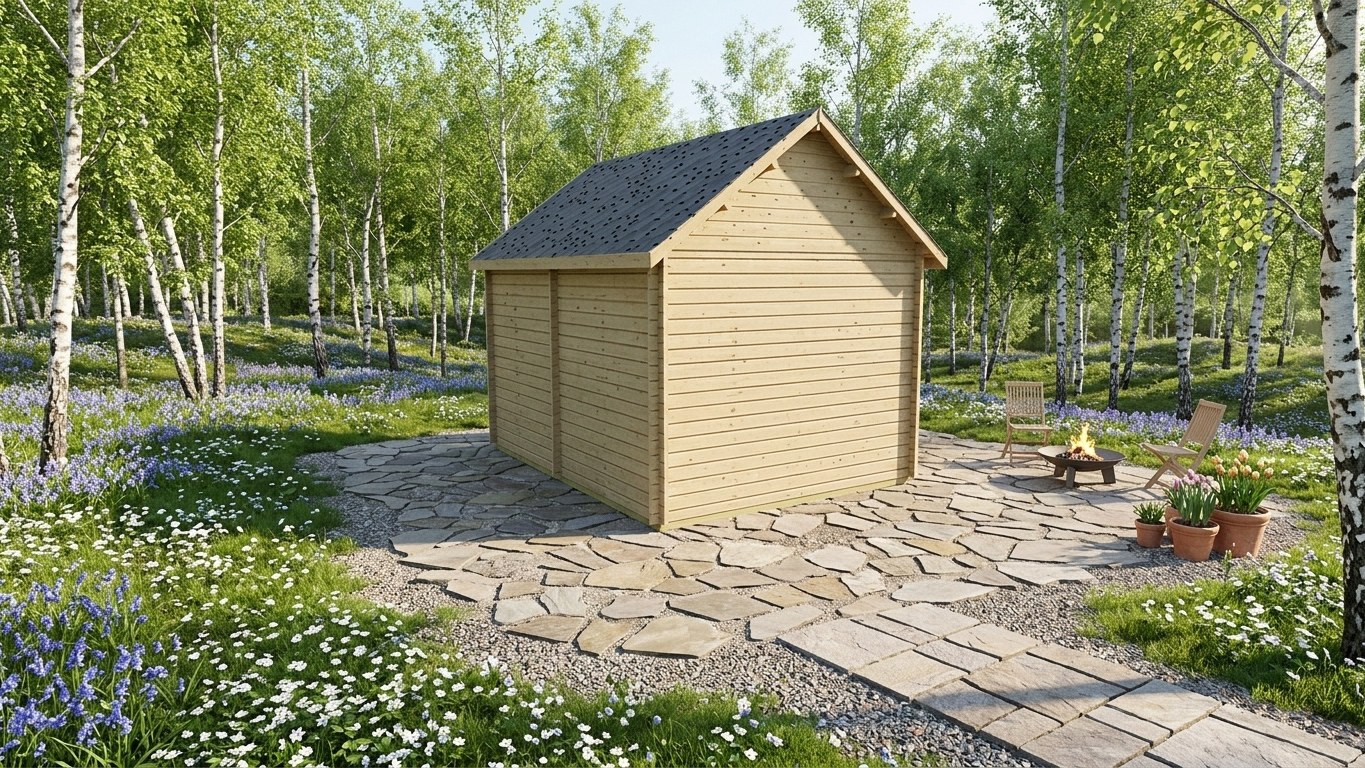

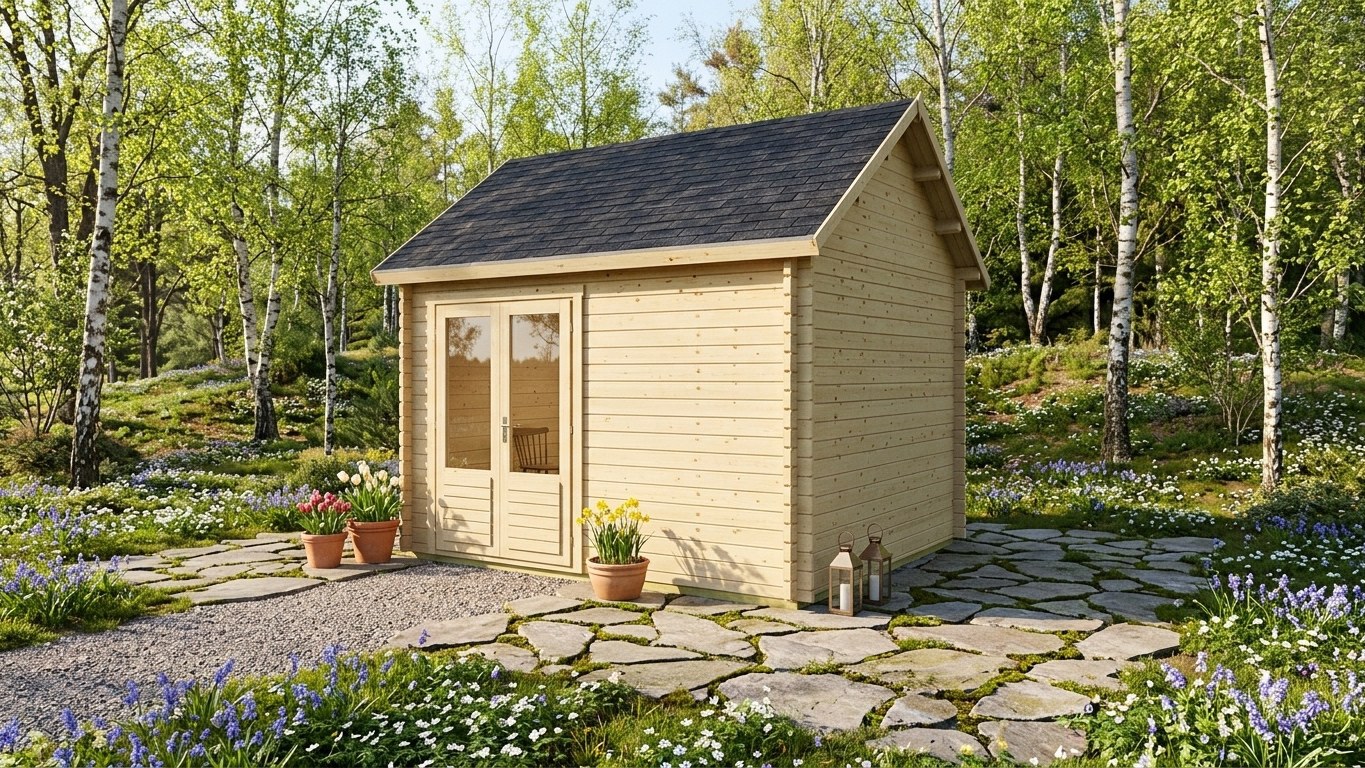

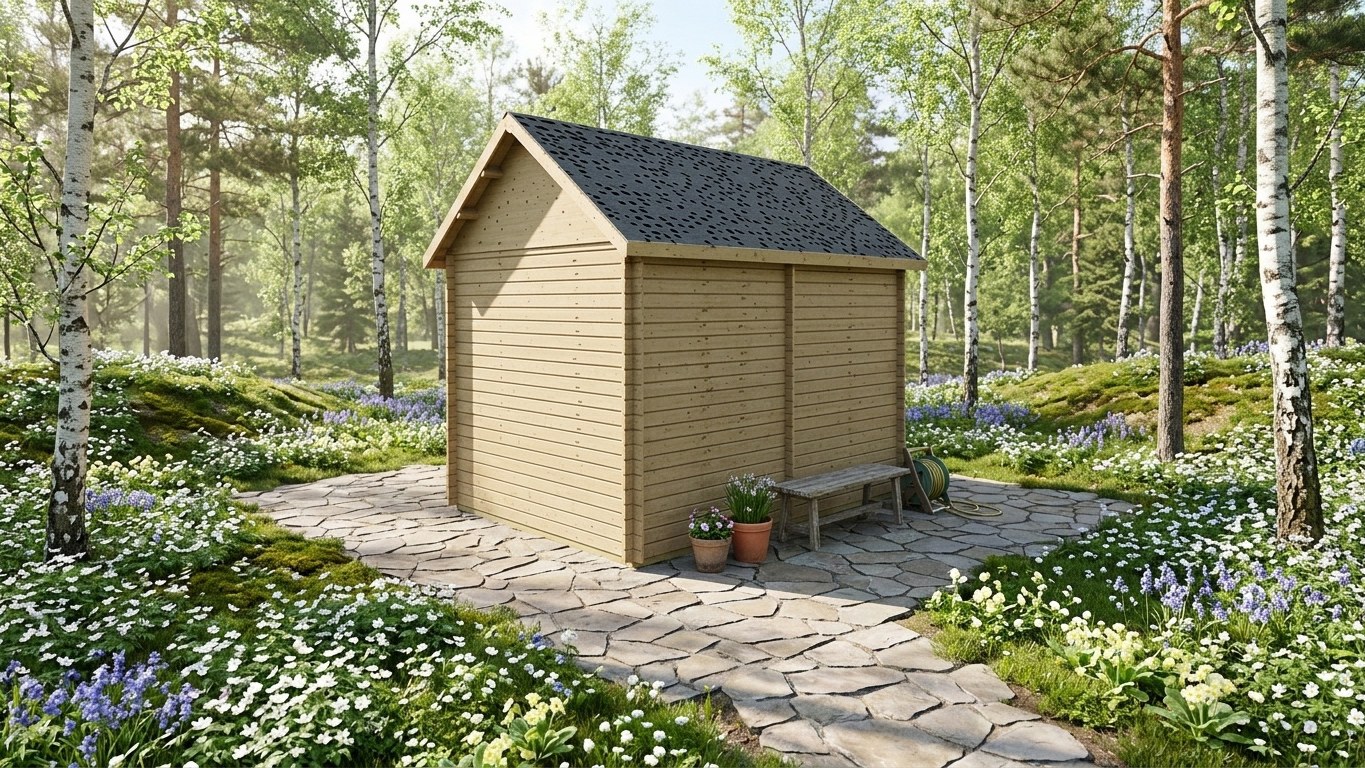

About This Golf Simulator Cabin 4.3×3.2m, 70mm

Product Overview

The Golf Simulator Cabin 4.3x3.2m is a B2B private-label timber shell engineered for golf simulator installations. It provides 13.8 m² of internal floor area (3200 x 4300mm) and an apex roof reaching a 3640mm ridge, giving approximately 3.4m of internal clearance at the centreline. The approximately 3.4m centreline clearance supports full-swing simulator layouts, subject to golfer height, mat build-up, screen position and the selected launch-monitor or enclosure system. Eurodita manufactures the shell in Kaunas, Lithuania; fitting companies add the simulator technology and sell under their own brand.

Built for golf simulators

Ceiling height is a critical simulator-layout constraint, so this shell is designed around that early project-review point. The steep 35.9° apex roof provides increased centreline headroom for simulator swing-clearance planning, while the eaves stay at 2405mm. The 13.8 m² footprint suits a single-bay hitting area, screen and projector throw distance.

Timber and construction

Walls are 70mm solid, slow-grown northern European spruce, with FSC chain-of-custody documentation on record. Technical data can be supplied for dealer or project review of insulation, heating and local-use requirements. A lower-cost 44mm wall option is available on request. Components arrive precision-machined and numbered for fast on-site assembly. Total timber volume is 4.63 m³.

Floor, roof and door

The floor uses 28mm boarding over 40x60mm bearers. The apex roof spans 70x130mm purlins (5 units) under 19mm roofboards, covering 21.7 m². Access is via a double 68mm door, 1400x2030mm, two-thirds glazed. External dimensions are 3540 x 4640mm.

Planning

At a 3640mm ridge and 2405mm eaves, the cabin sits within England's Class E permitted-development dimensions for a dual-pitched outbuilding, provided it is sited more than 2m from any boundary. Within 2m of a boundary the total height limit drops to 2500mm, which this cabin exceeds, so planning permission would be required in that position. The building must also be single-storey, not forward of the principal elevation, and not on designated land. Installers should confirm permitted-development status with the local planning authority for each site.

Private-label partnership

The shell is supplied unbranded for private-label resale. Your customers see your brand, not Eurodita's. Standard terms are EXW (Ex Works) from Kaunas; delivered options can be arranged for selected markets and projects, agreed individually per order. Flexible quote-based ordering applies on standard designs.

Warranty and lead time

Covered by Eurodita's 10-year anti-rot warranty. Standard lead time is 2 to 4 weeks from order confirmation, EXW Kaunas.

What should dealers confirm before quoting Golf Simulator Cabin 4.3×3.2m, 70mm?

Eurodita supplies Golf Simulator Cabin 4.3×3.2m, 70mm as a private-label B2B golf simulator cabin shell with 3.54 x 4.64m footprint handling and 70mm wall specification where listed. Before quoting, dealers should confirm simulator hardware route, golfer profile, swing envelope, mat build-up, screen position, fit-out, foundation, local-authority review, private-label needs and EXW Kaunas logistics. For bespoke layouts, CAD or 3D quotation material can normally be prepared within 1-2 working hours during business hours when the brief is complete.
