4 Bedroom Log Cabin Ryan 14.58×9.2m, 58mm
The 4 Bedroom Log Cabin Ryan is one of the largest accommodation cabins in the Eurodita catalogue, providing 134 m² of living space across a 14.58 x 9.2 m footprint .
Technical data sheet
Specification recorded for 4 Bedroom Log Cabin Ryan 14.58x9.2m, 58mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

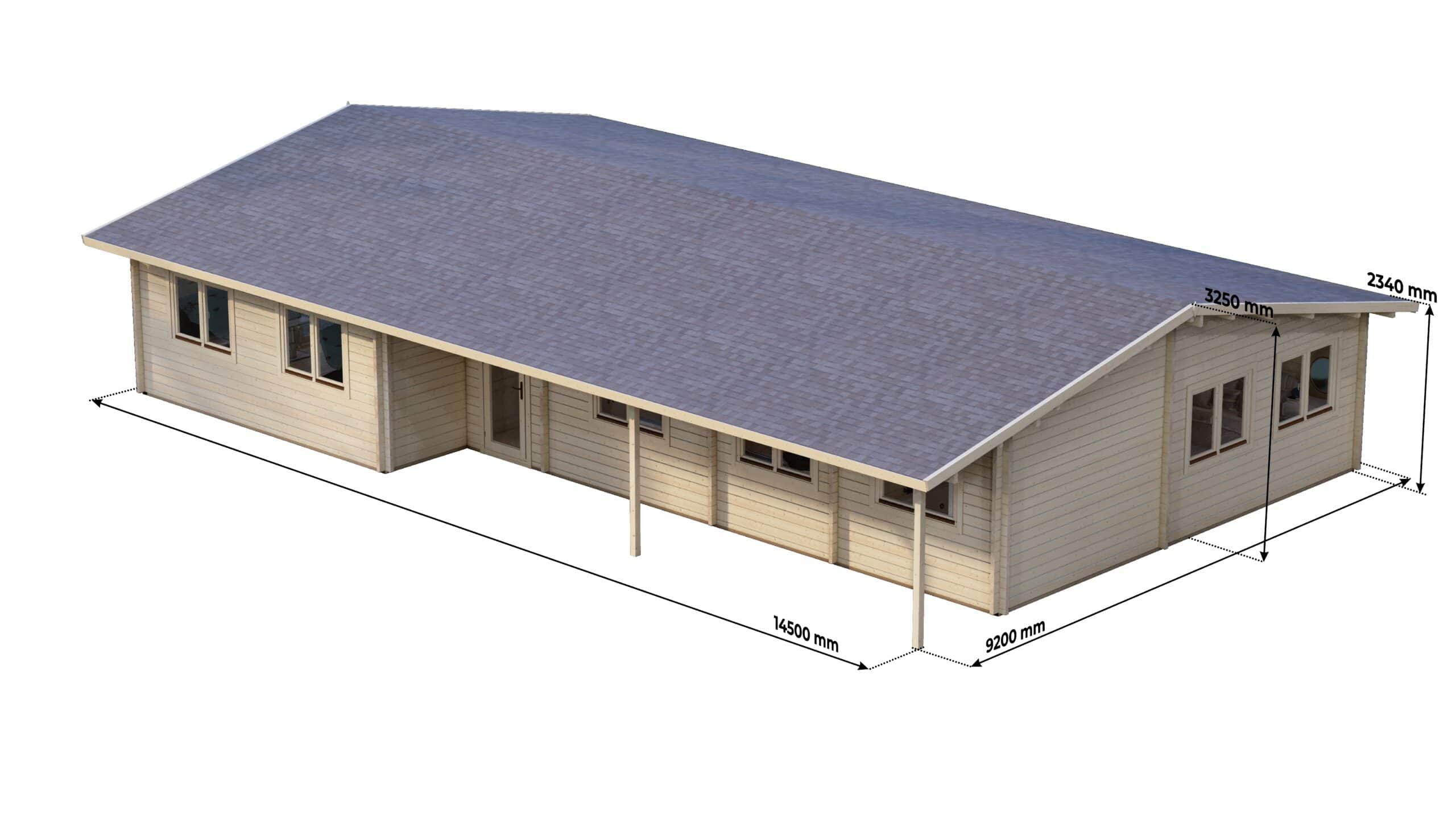

| Building | |
|---|---|
| External dimensions | 14.58 x 9.2 m |
| External footprint area | 134 m² |
| Eaves height | 234 cm |
| Ridge height | 325 cm |
| Storeys | 1 |
| Base | External footprint 14.58 x 9.2 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 58 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 14.58 x 9.2 m footprint, 58 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 4 bedroom log cabins range.

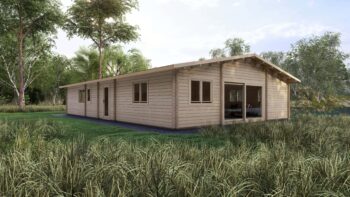

About This 4 Bedroom Log Cabin Ryan 14.58×9.2m, 58mm
Product Overview
The 4 Bedroom Log Cabin Ryan is one of the largest accommodation cabins in the Eurodita catalogue, providing 134 m² of living space across a 14.58 x 9.2 m footprint. This full-specification four-bedroom family accommodation layout in solid timber is manufactured by UAB Eurodita in Kaunas, Lithuania, for B2B partners in dealer-led accommodation projects and managed holiday-site accommodation. Explore additional cabin configurations.
Layout & Configuration

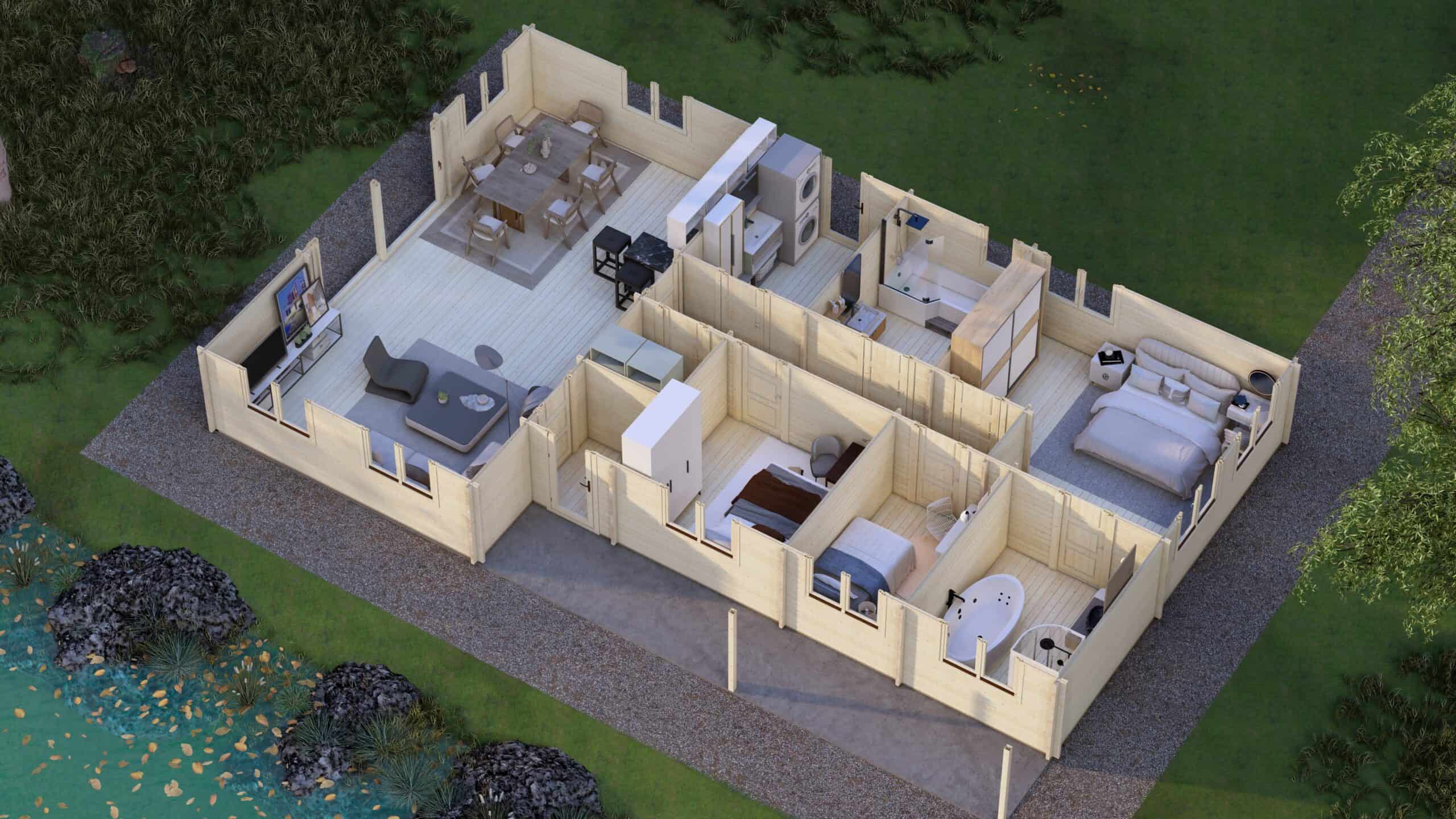

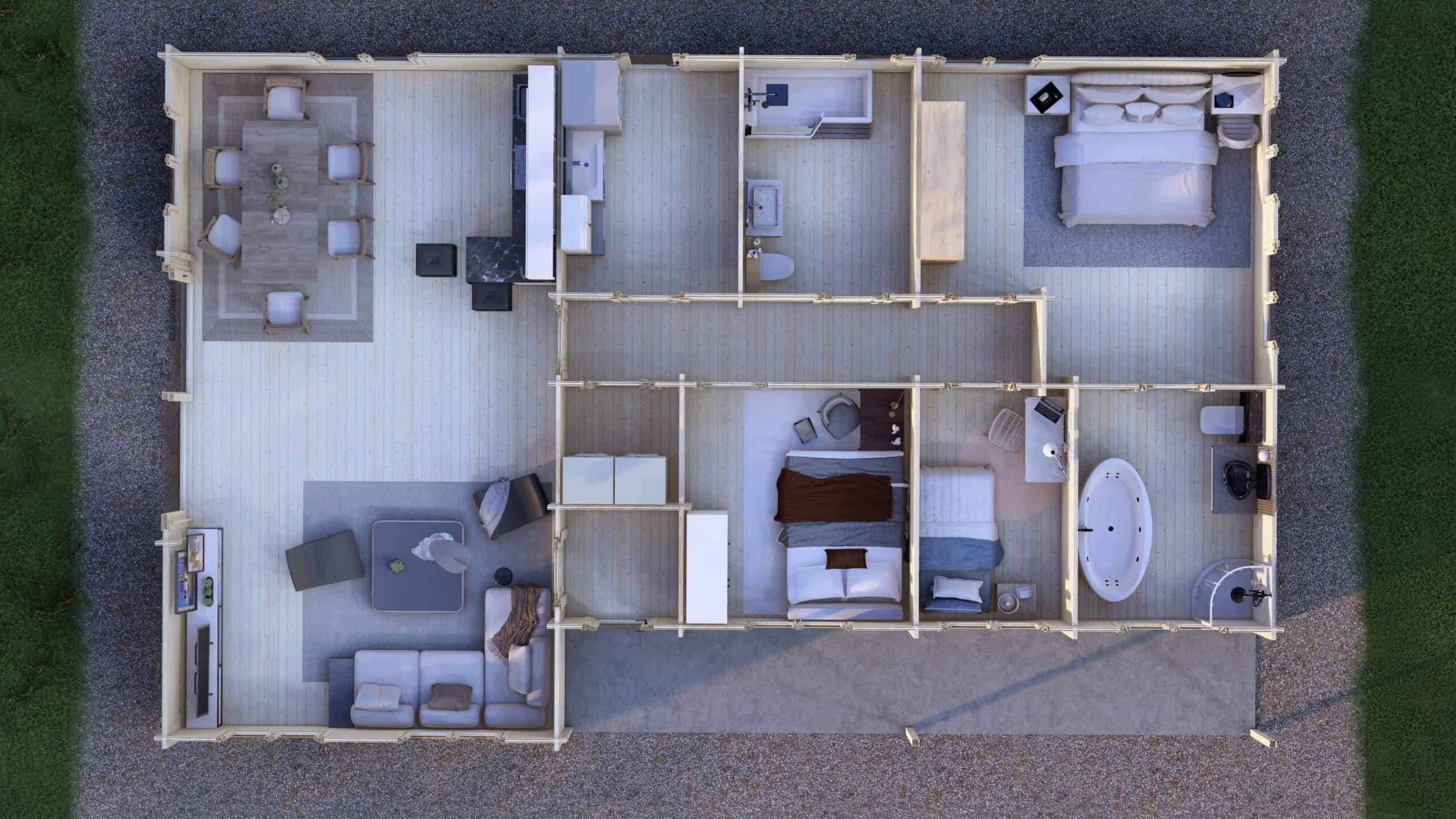

The 134 m² floor plan provides four bedrooms, a large open-plan living and dining area, kitchen, bathroom, and utility space. The 14.58 m length allows well-proportioned room distribution. Supports family accommodation, multi-let holiday accommodation, and institutional accommodation projects.
Timber & Construction
All structural timbers are Northern European timber, kiln-dried in Nardi kilns (Italy) to a 12-14% production moisture target. Extended 14.58 m wall sections machined on Hundegger CNC centres (Germany) with precision tongue-and-groove profiles supporting weathertight, dimensionally stable assembly.
Technical Specifications
Key specifications: External dimensions: 14.58 x 9.2 m | Floor area: ~134 m² | Bedrooms: 4 | Timber: Northern European timber, kiln-dried | Foundation: confirmed for the specific model and site. Wall thickness options include 44 mm, 70 mm, and twin-skin.
Customisation Options
Fully configurable: room layout, wall thickness, window and door positions, glazing (double or triple), roof style, veranda, balcony, and exterior finish. Structural reinforcement for high snow-load regions available. The 134 m² floor area provides scope for significant layout personalisation. Standard catalogue production lead time is confirmed per order at quote stage.
Manufacturing & Delivery
Produced at UAB Eurodita in Kaunas, Lithuania. The Ryan is a large four-bedroom catalogue model that requires order-specific production scheduling. Delivered as a comprehensive flat-pack kit on multiple pallets. Production timing is confirmed per order at quote stage.
Private Label Partnership
Private-label branding, packaging and customer-facing documentation are agreed perorder. The four-bedroom Ryan gives residential and holiday-park partners a large-layout option. Annual framework agreements available.
What should dealers confirm before quoting 4 Bedroom Log Cabin Ryan 14.58×9.2m, 58mm?
Eurodita supplies 4 Bedroom Log Cabin Ryan 14.58×9.2m, 58mm as a private-label B2B residential log cabin with a 14.58x9.2m footprint and 58mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, layout, openings, selected wall or insulation scope, foundation interface, unloading access, EXW release or freight route from Kaunas, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
