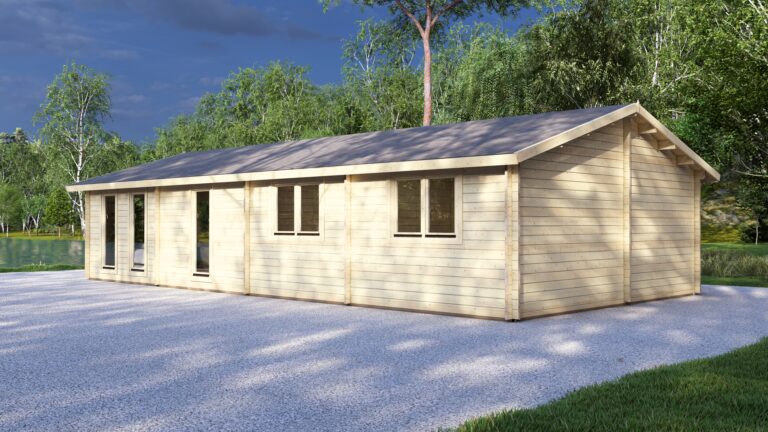

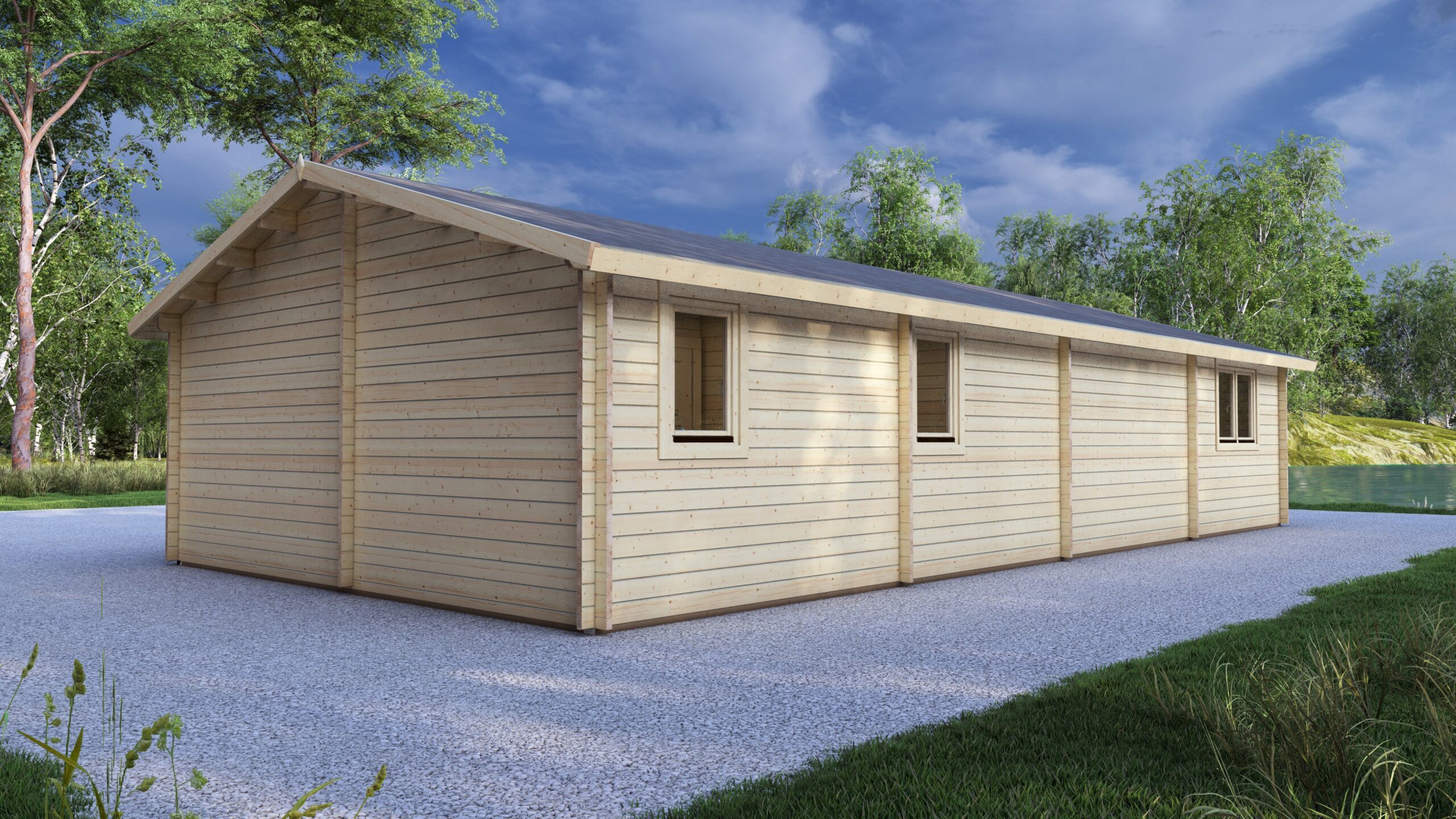

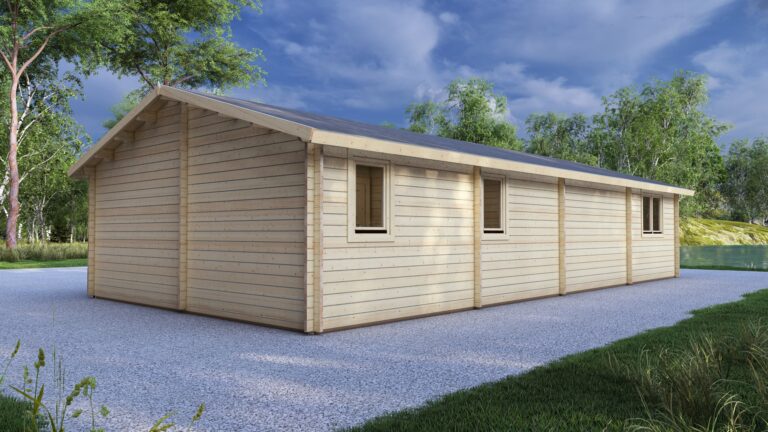

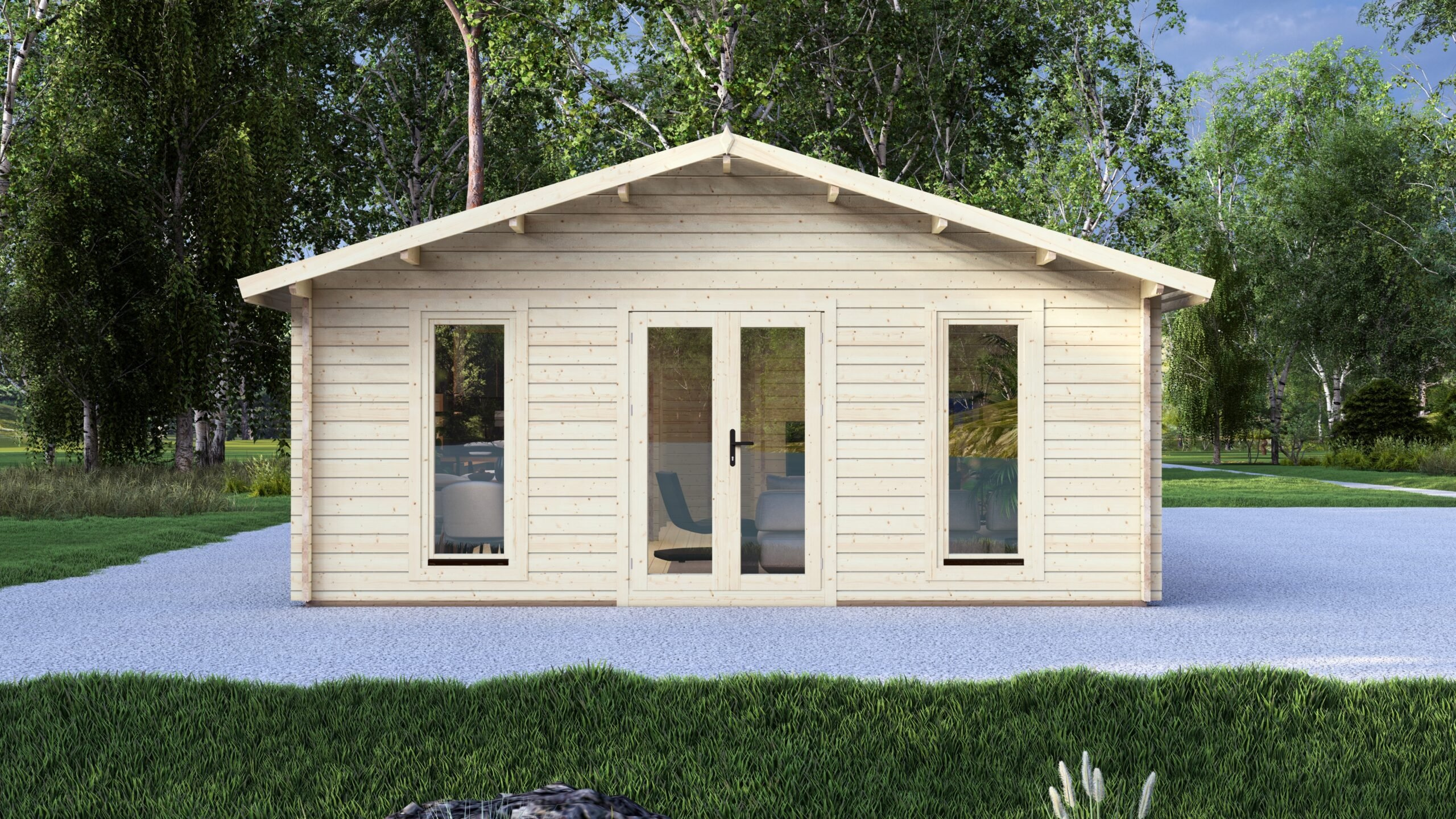

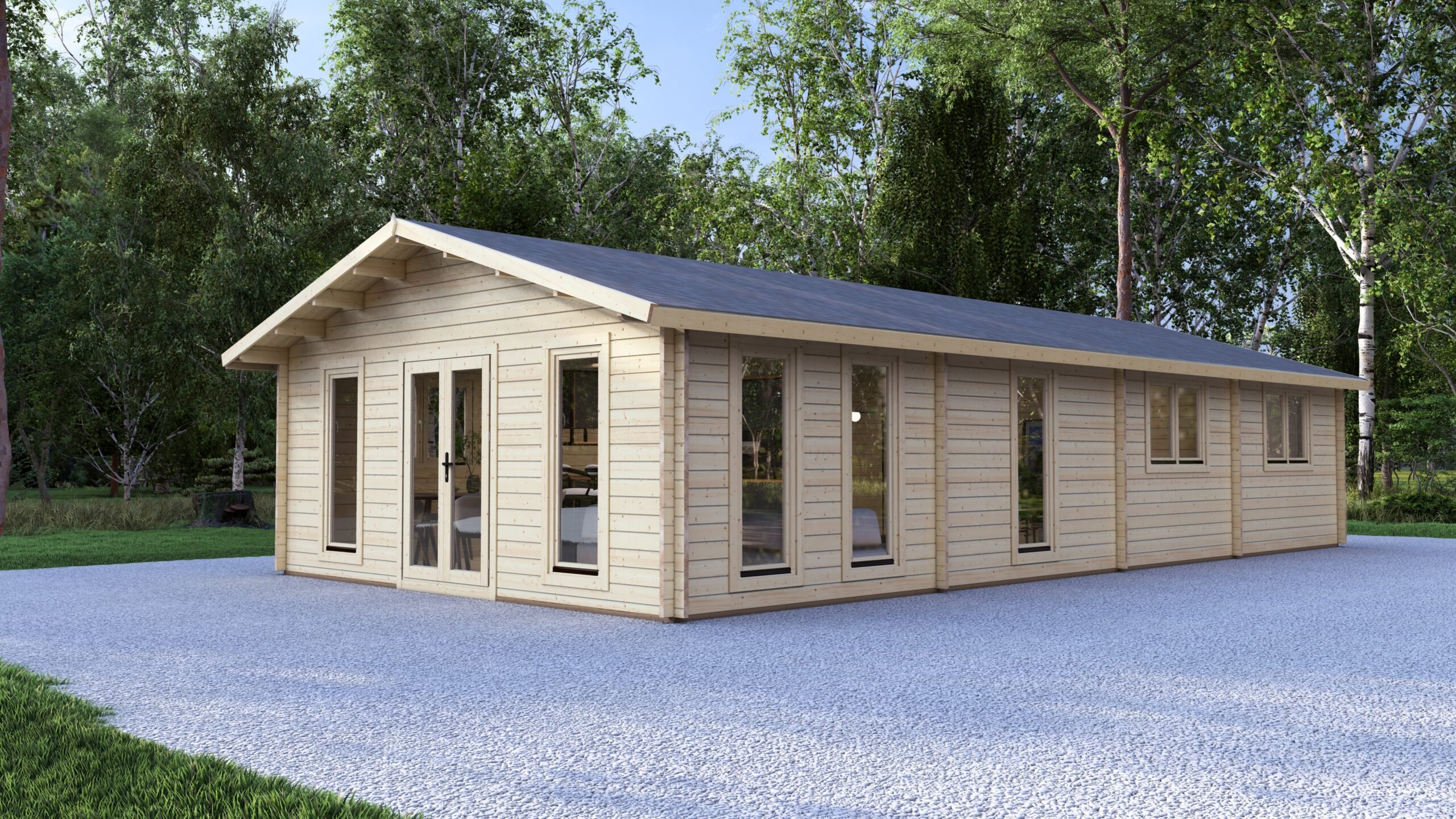

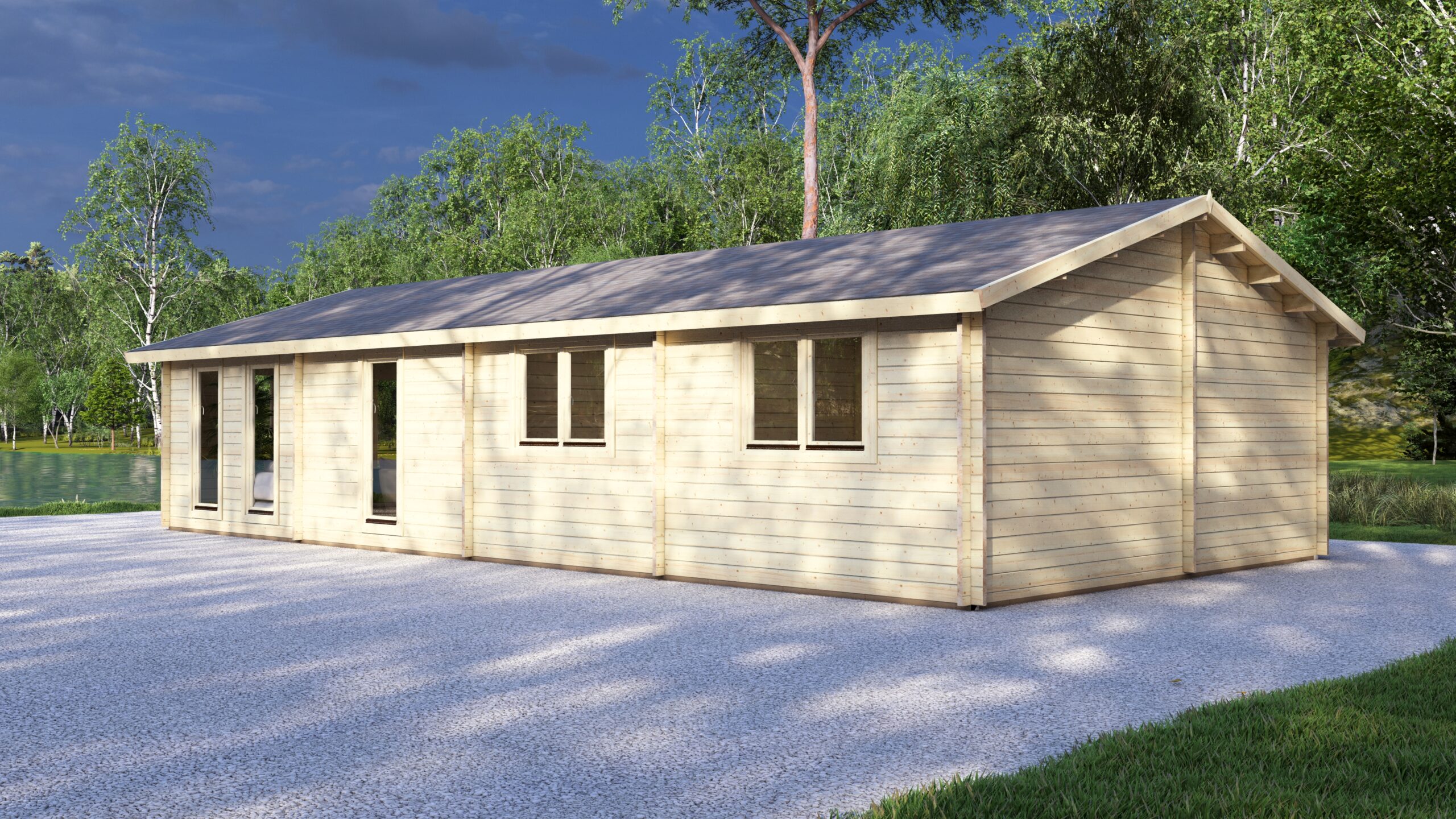

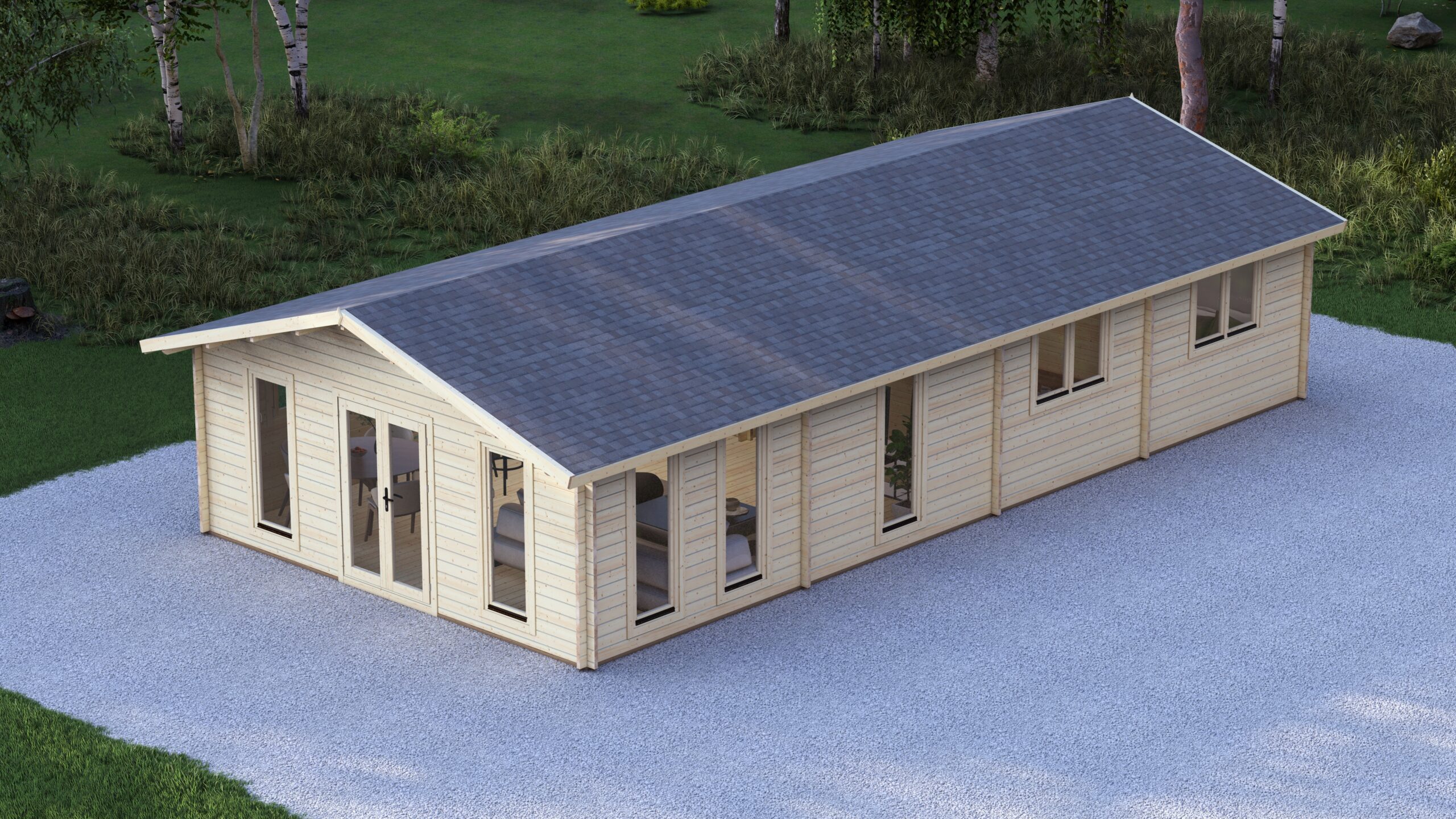

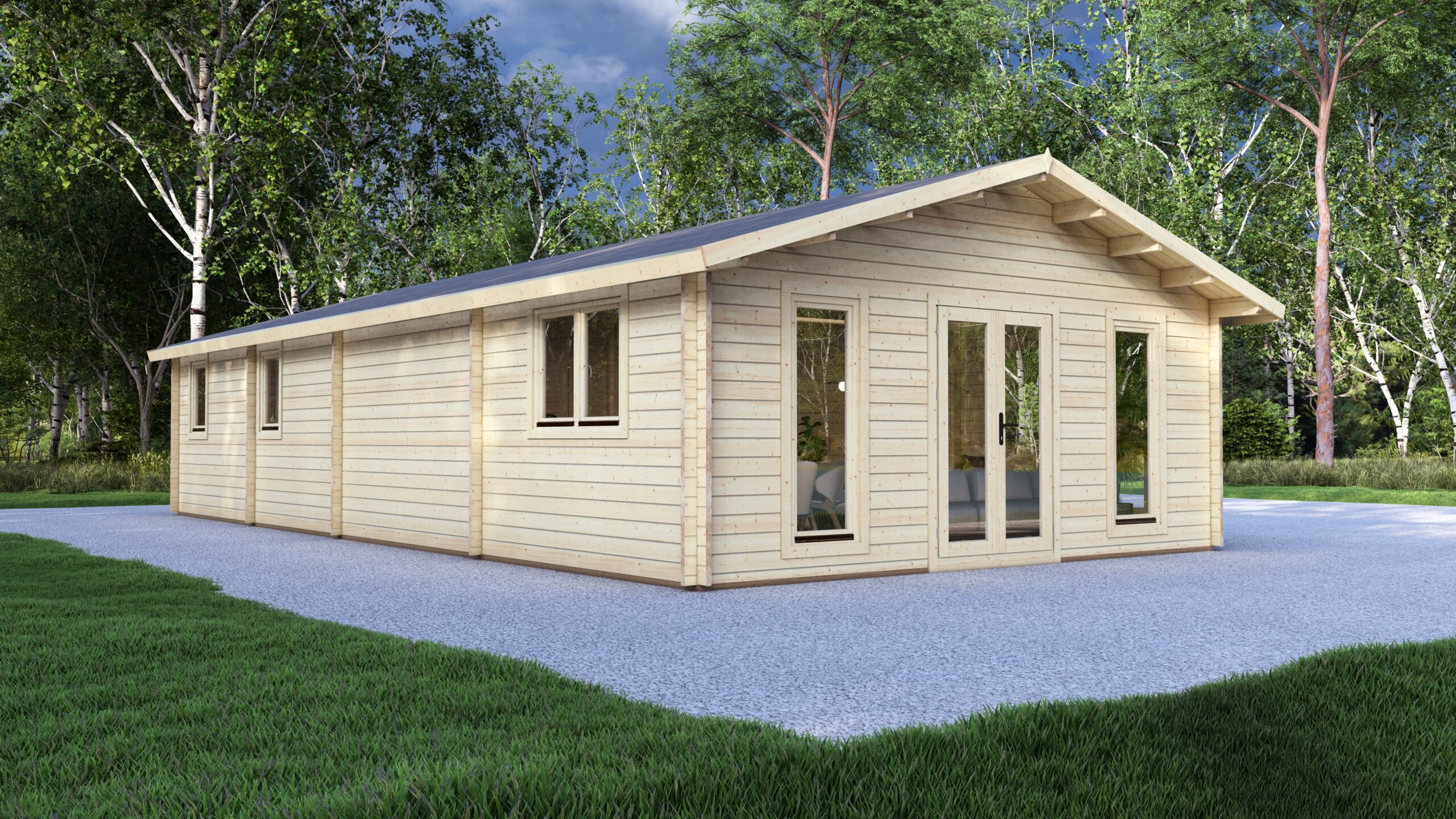

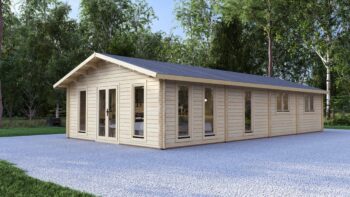

3 Bedroom Log Cabin 12.2x6m, 58mm
This 12.2x6m three-bedroom log cabin delivers project-specific accommodation for family developments and managed-site portfolios. The 58mm wall system provides thermal specification suited to project-specific use.
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for 3 Bedroom Log Cabin 12.2x6m, 58mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

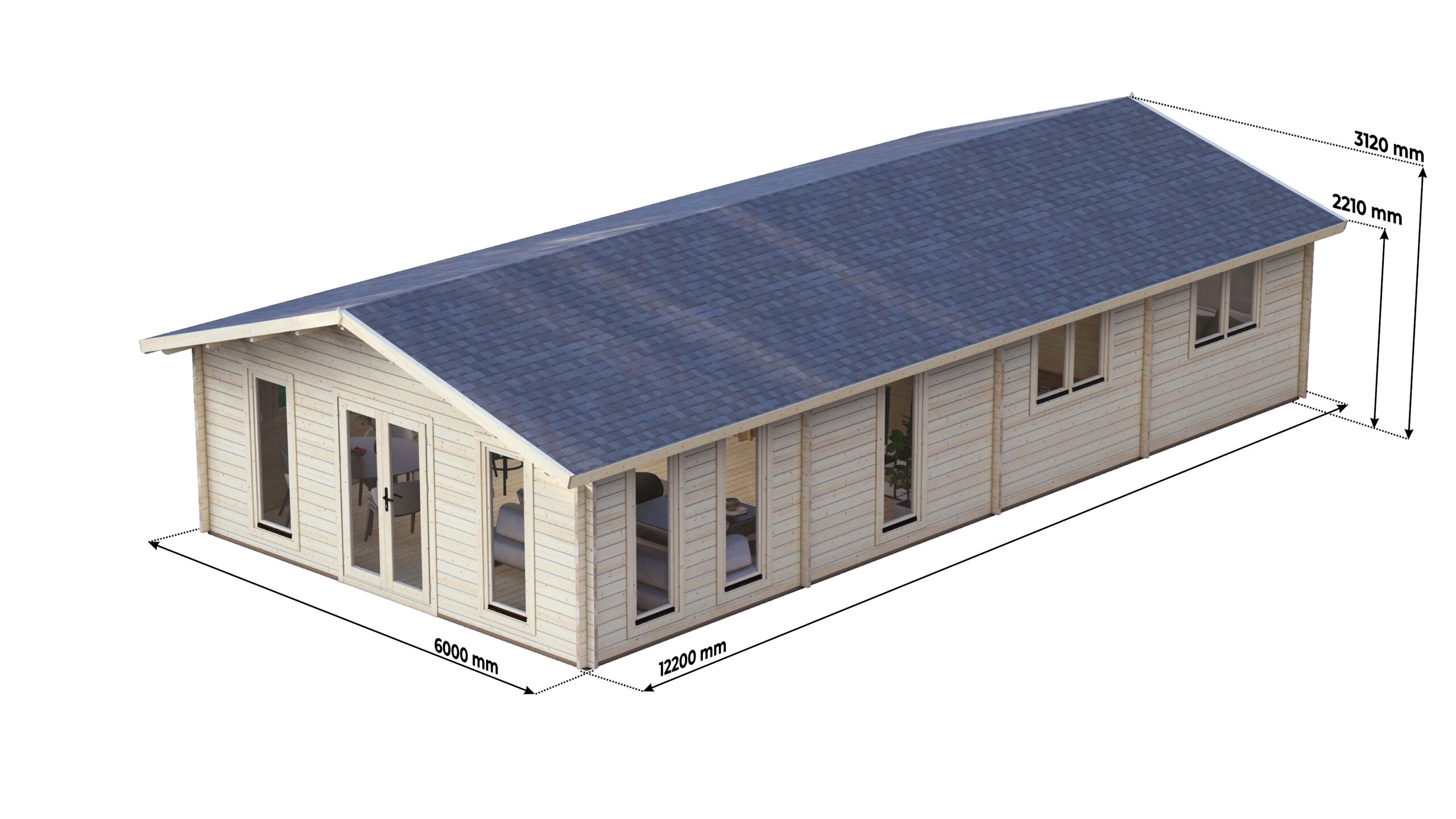

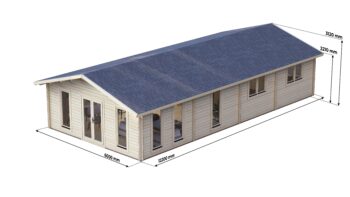

| External dimensions | 12.2 x 6 m |
| External footprint area | 73.2 m² |
| Eaves height | 221 cm |
| Ridge height | 312 cm |
| Storeys | 1 |
| Base | External footprint 12.2 x 6 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 58 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 12.2 x 6 m footprint, 58 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 3 bedroom log cabins range.
About This 3 Bedroom Log Cabin 12.2x6m, 58mm
Product Overview
This 12.2x6m three-bedroom log cabin delivers project-specific accommodation for family developments and managed-site portfolios. The 58mm wall system provides thermal specification suited to project-specific use. Trade partners benefit from proven demand for spacious family timber homes across European markets.
Layout & Configuration

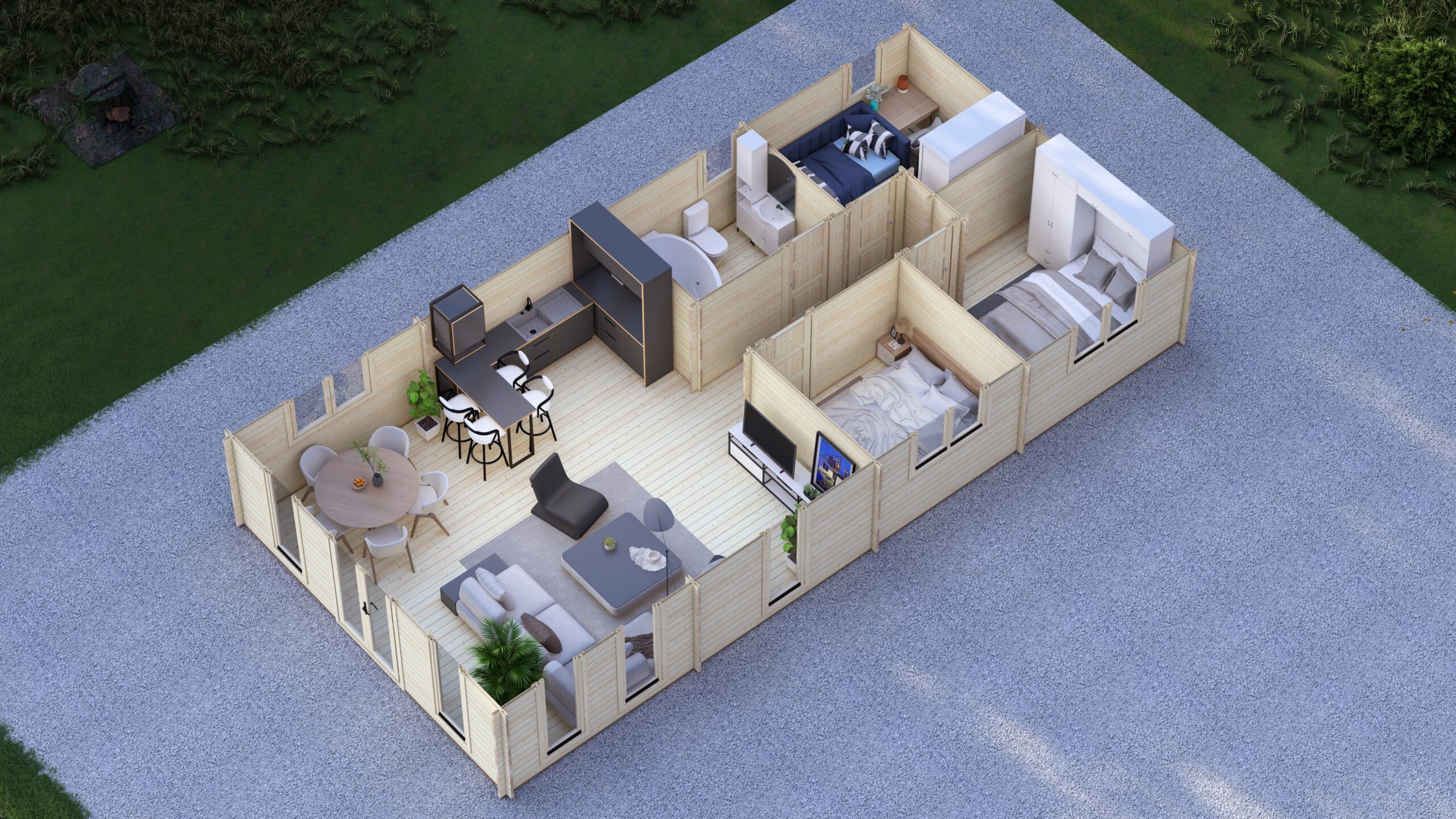

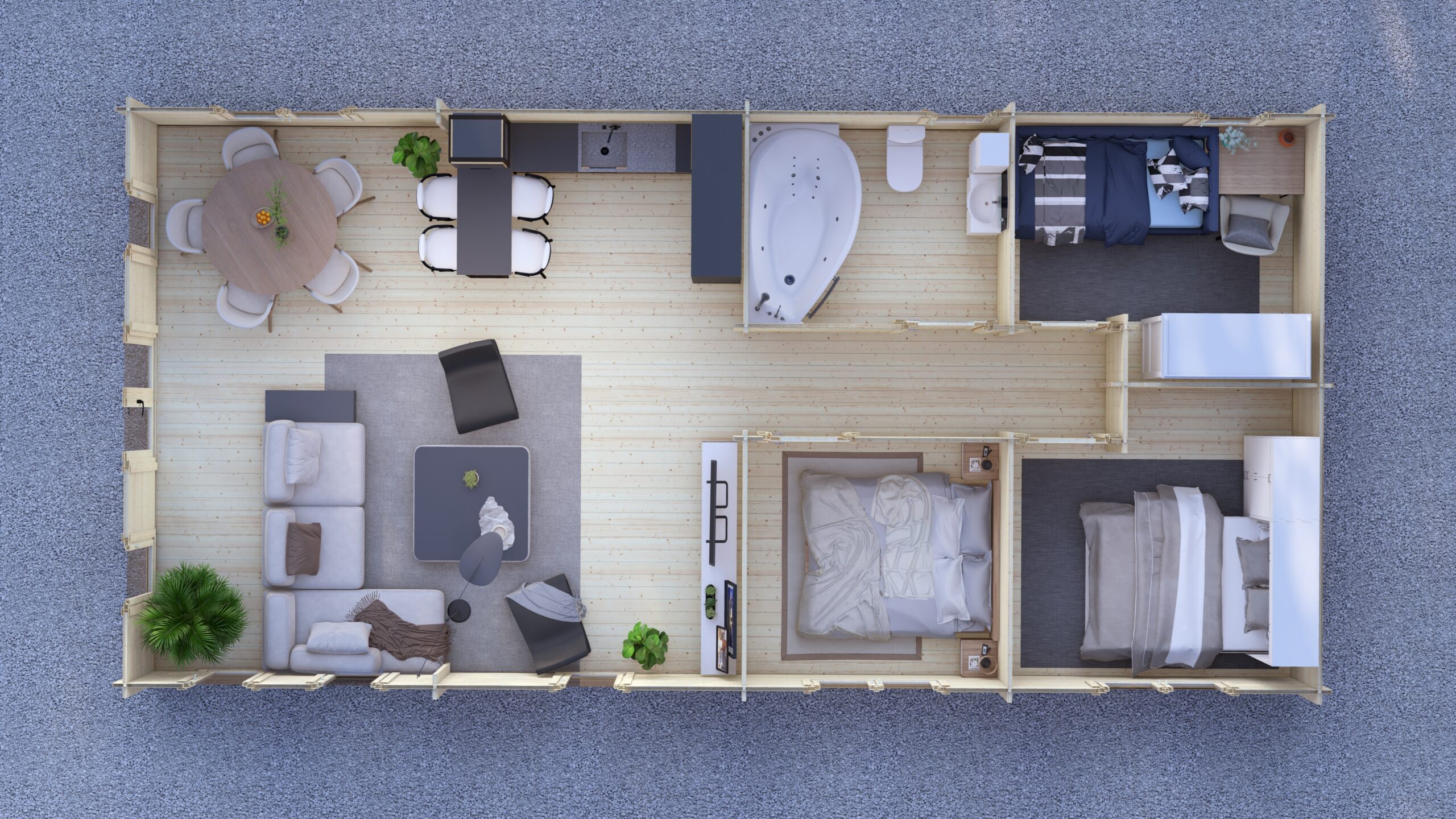

Three distinct bedroom zones maximize privacy within the 73.2m² floor plan. The open-plan living area integrates kitchen and dining functions efficiently. Room configurations accommodate various partition arrangements to meet local market preferences and planning requirements for dealer-led accommodation projects.
Timber & Construction
Northern European timber logs incorporate precision-machined interlocking tongue and groove joints for assembly stability. The 58mm wall thickness balances thermal specification with cost efficiency. Double-glazed timber joinery features insulated profiles throughout, with energy-related requirements subject to review against the project brief and destination-market requirements.
Floor & Roof
Pressure-treated floor bearers support 28mm tongue and groove floorboards for long-term durability. The roof system incorporates 19mm tongue and groove boards with integrated storm bracing. This construction methodology supports structural stability under varying climatic conditions throughout the installation lifecycle.
Customisation Options
Wall-thickness and insulation upgrades are confirmed at quotation stage for the product family, target use and destination-market review. Triple-glazing options and partition kits adapt the structure to specific market requirements, and the structure can be prepared for insulation sourced locally. Veranda extensions and material upgrades allow dealers to offer comprehensive customisation programmes.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Production allocation and the included material scope are confirmed in the written quotation. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita standard terms are EXW from the Eurodita factory. Bespoke modifications fit directly into production workflows without extending lead times significantly.
Private Label Partnership
Private-label manufacturing capabilities enable dealer branding across all documentation and materials. Branded assembly instructions, specification sheets, and promotional materials support partner sales processes. 3D visualization services and showroom display programmes enhance customer presentation capabilities for trade partners.
What should dealers confirm before quoting 3 Bedroom Log Cabin 12.2x6m, 58mm?
Eurodita supplies 3 Bedroom Log Cabin 12.2x6m, 58mm as a private-label B2B residential log cabin with a 12.2x6m footprint and 58mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, layout, openings, selected wall or insulation scope, foundation interface, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
