Eurodita timber building project

Pent Holiday Cabin 4.0x8.3

A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.

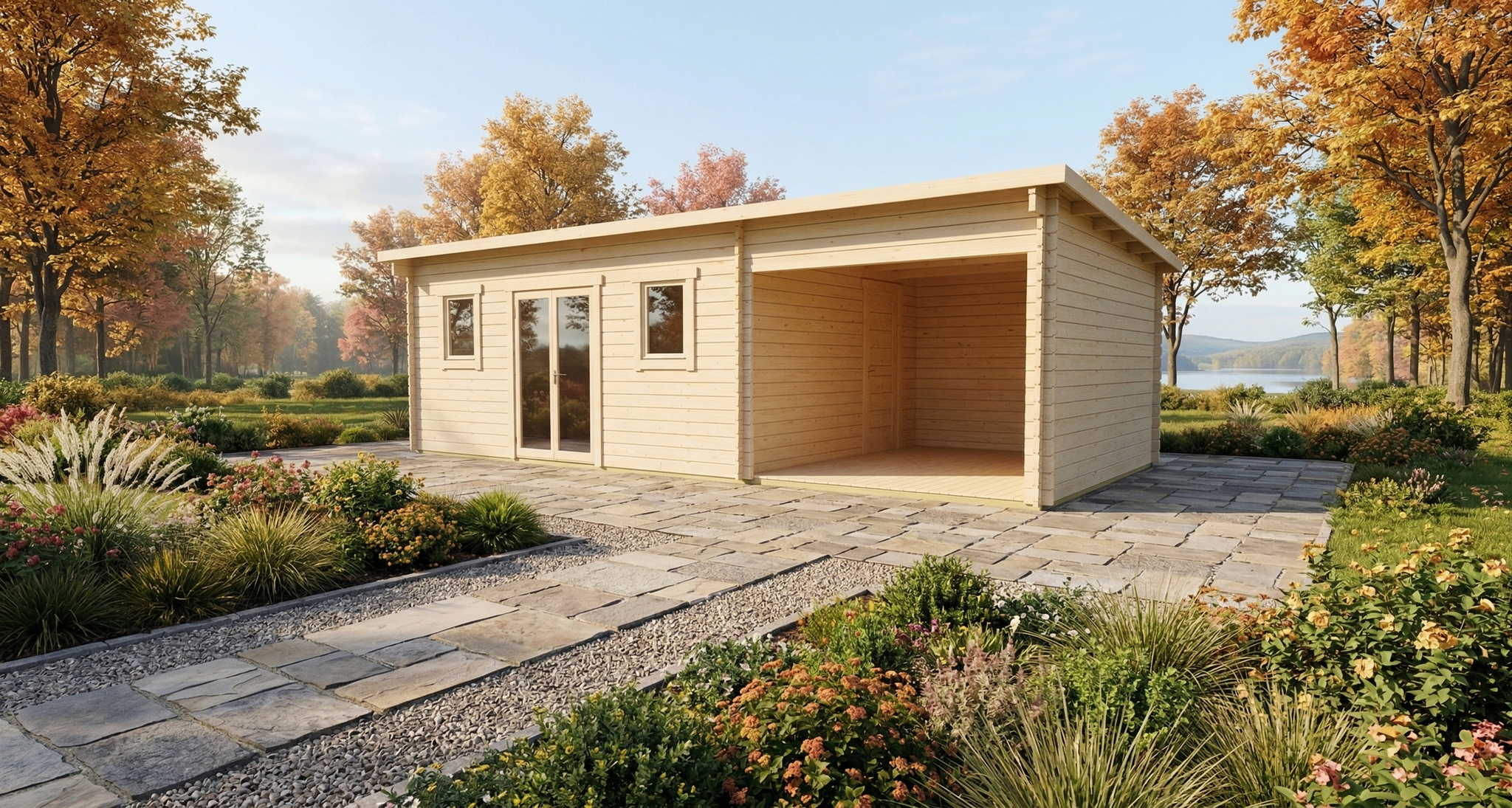

3D technical project visual for Pent Holiday Cabin 4.0x8.3.
3D view of the building as drawn. The final specification is confirmed in the written quotation.
Inside area29.7 m²
Overall footprint4000 × 8300 mm
Wall configuration44 mm log
Roof geometryPent, 3.9°

Specification

Technical data

The figures below come from the project drawing of this building.

Dimensions

Inside area
29.7 m²
Overall dimensions
4000 × 8300 mm
Internal dimensions
3712 × 8012 mm
Wall thickness
44 mm
Project reference
PHC-371x801-044

Height and roof

Sidewall height
2210 mm
Maximum/high-side roof height
2470 mm
Roof type
Pent
Roof pitch
3.9°
Roof area
36.6 m²

Floor and roof

Floor bearers
40x60mm
Floorboards
28 mm
Roof boards
19 mm
Roof purlins
44x130mm × 5

Windows and doors

Window and door schedule

Windows1 × Hole2600x2030mm
Windows2 × Garden type (IV45) timber window700x990mm
Doors1 × Garden type (IV45) timber double door, fully glazed1400x2030mm
Doors1 × Internal timber single door, solid timber900x2030mm

Drawings

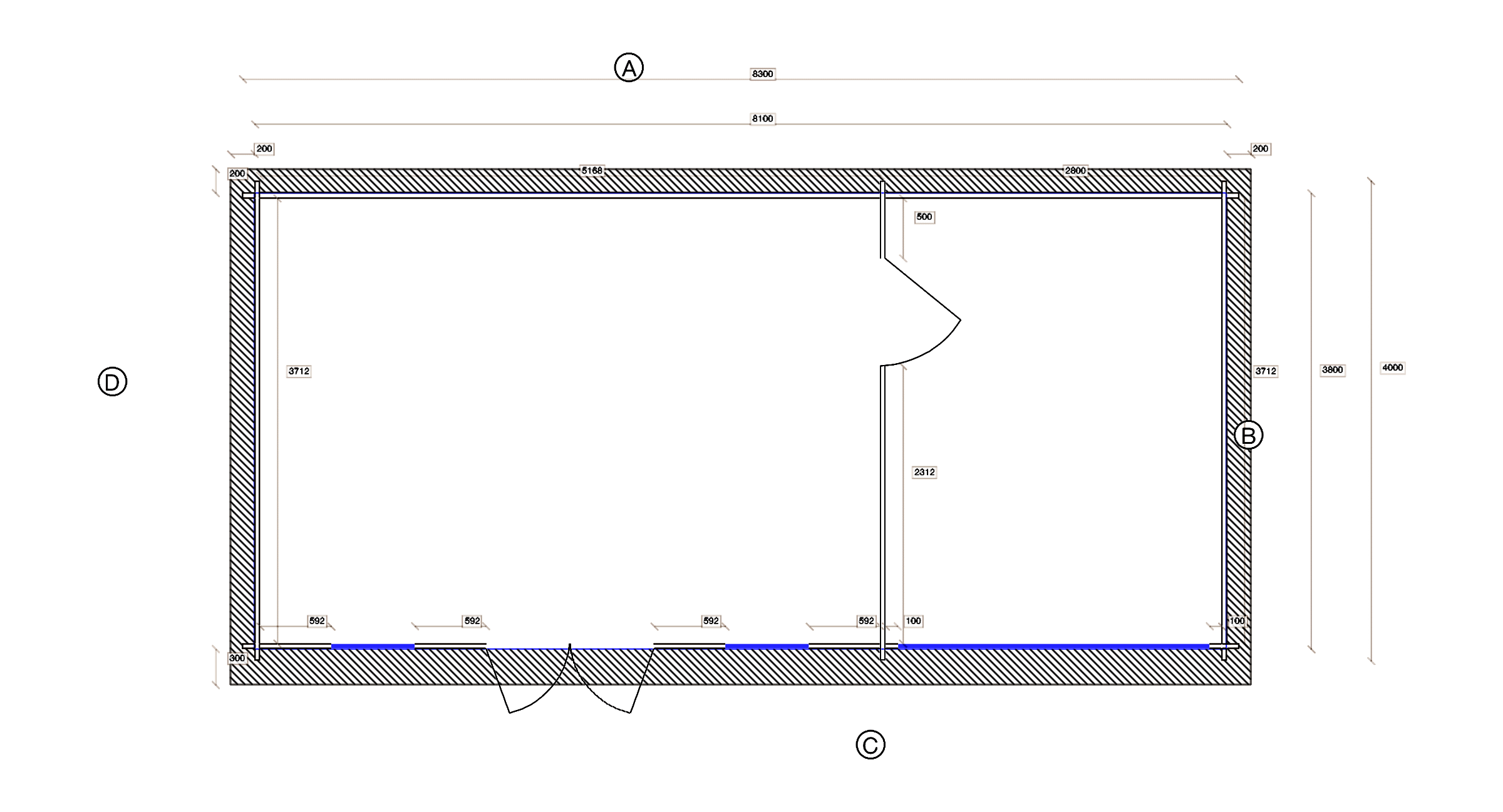

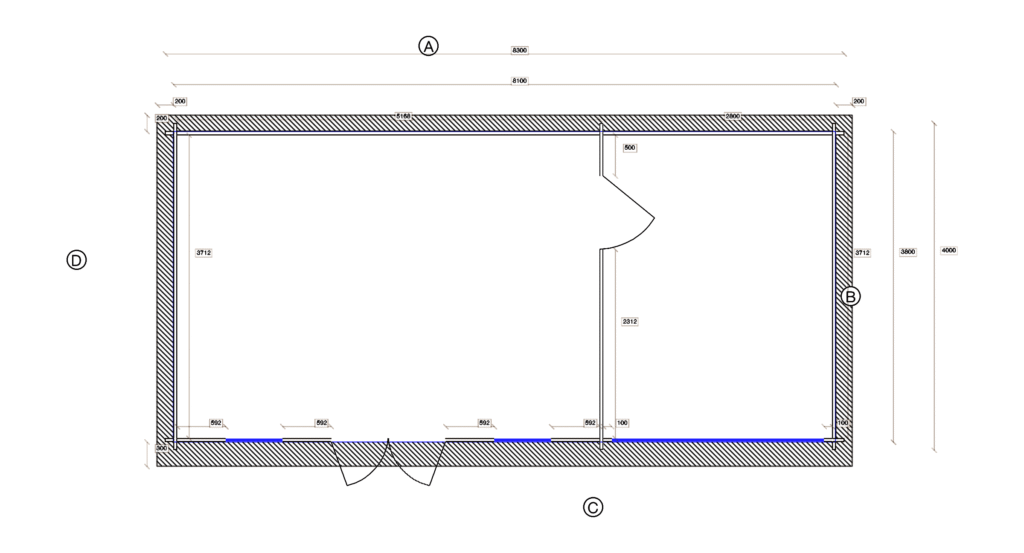

Floor plan and elevations

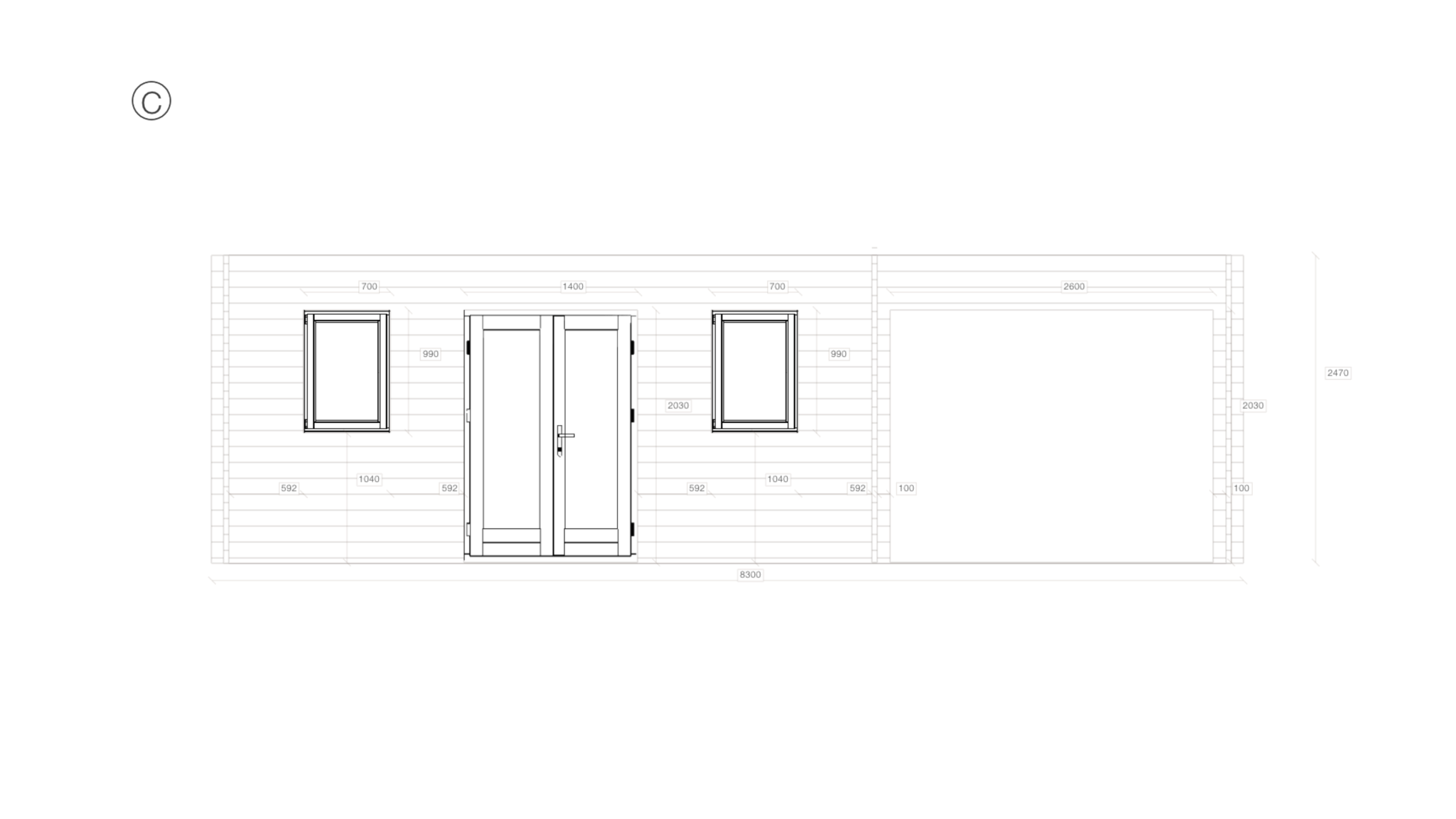

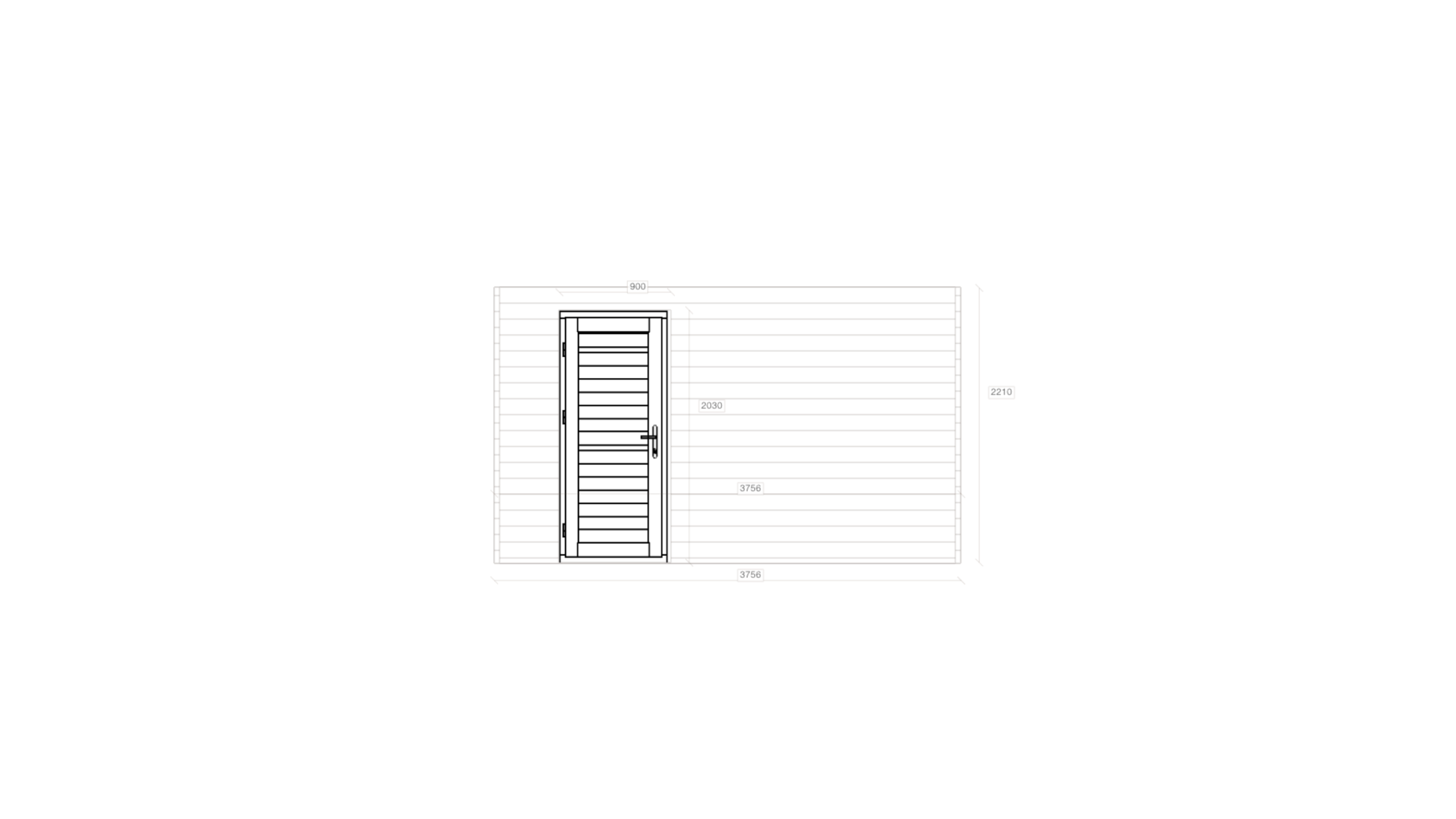

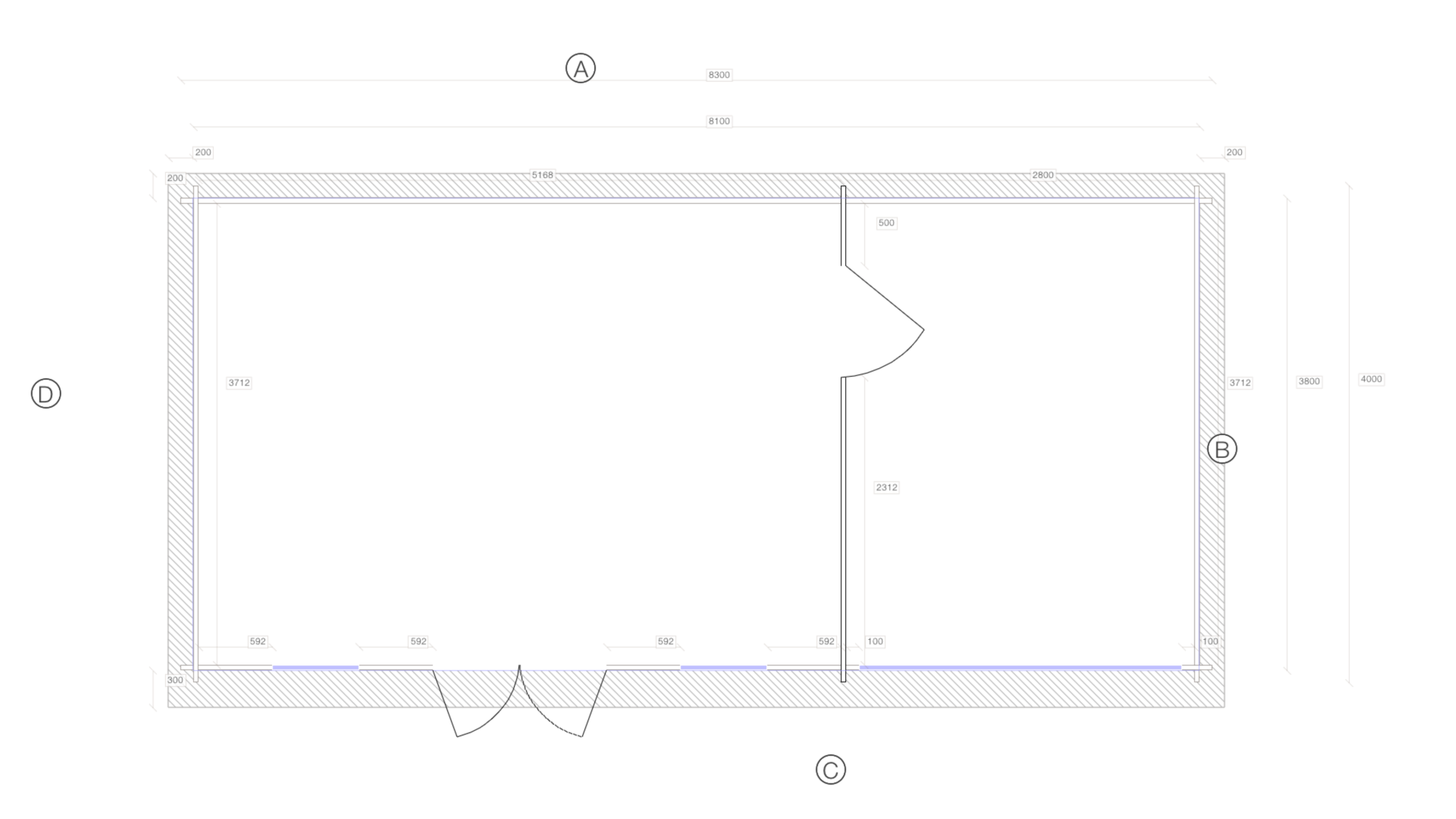

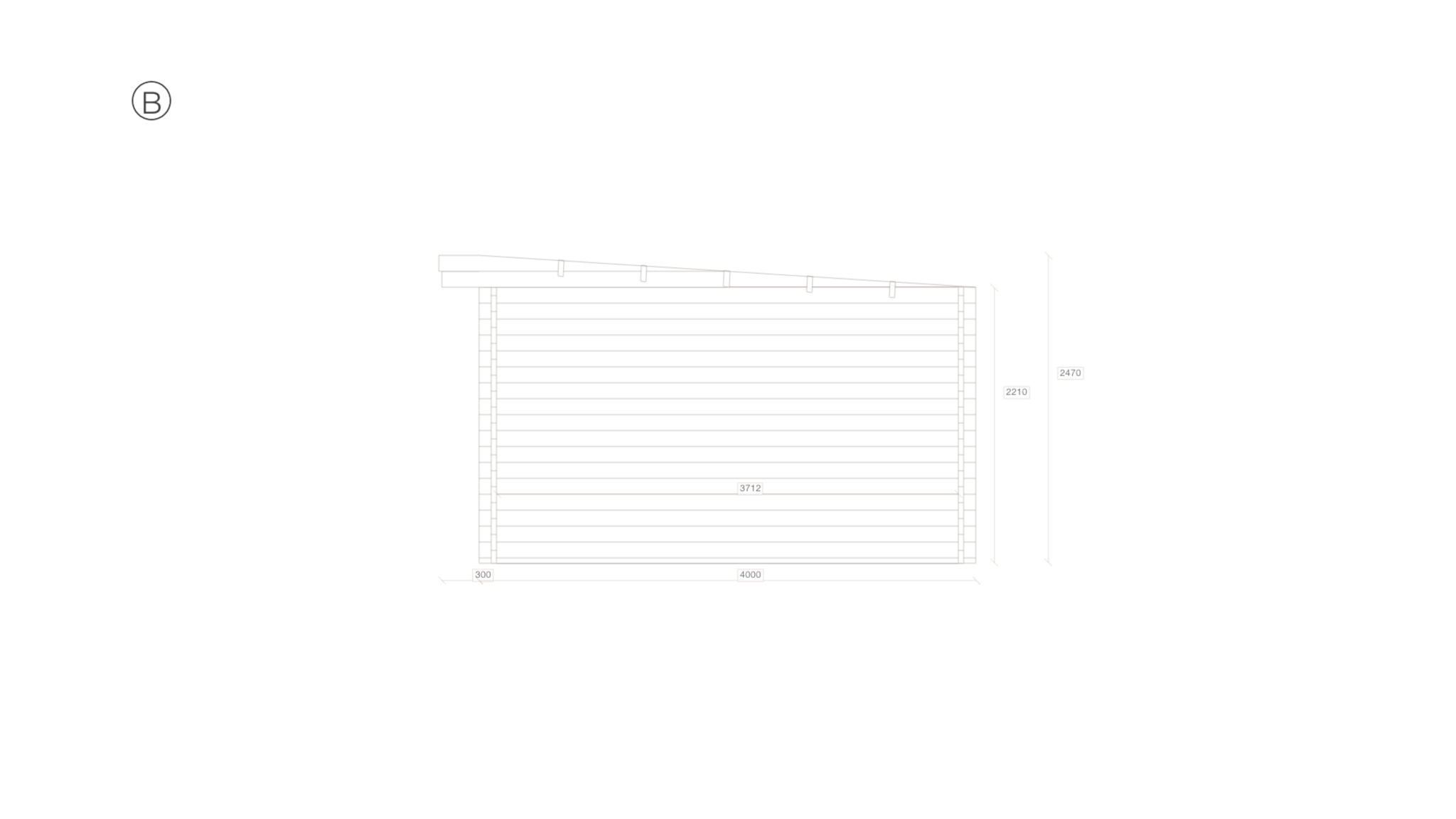

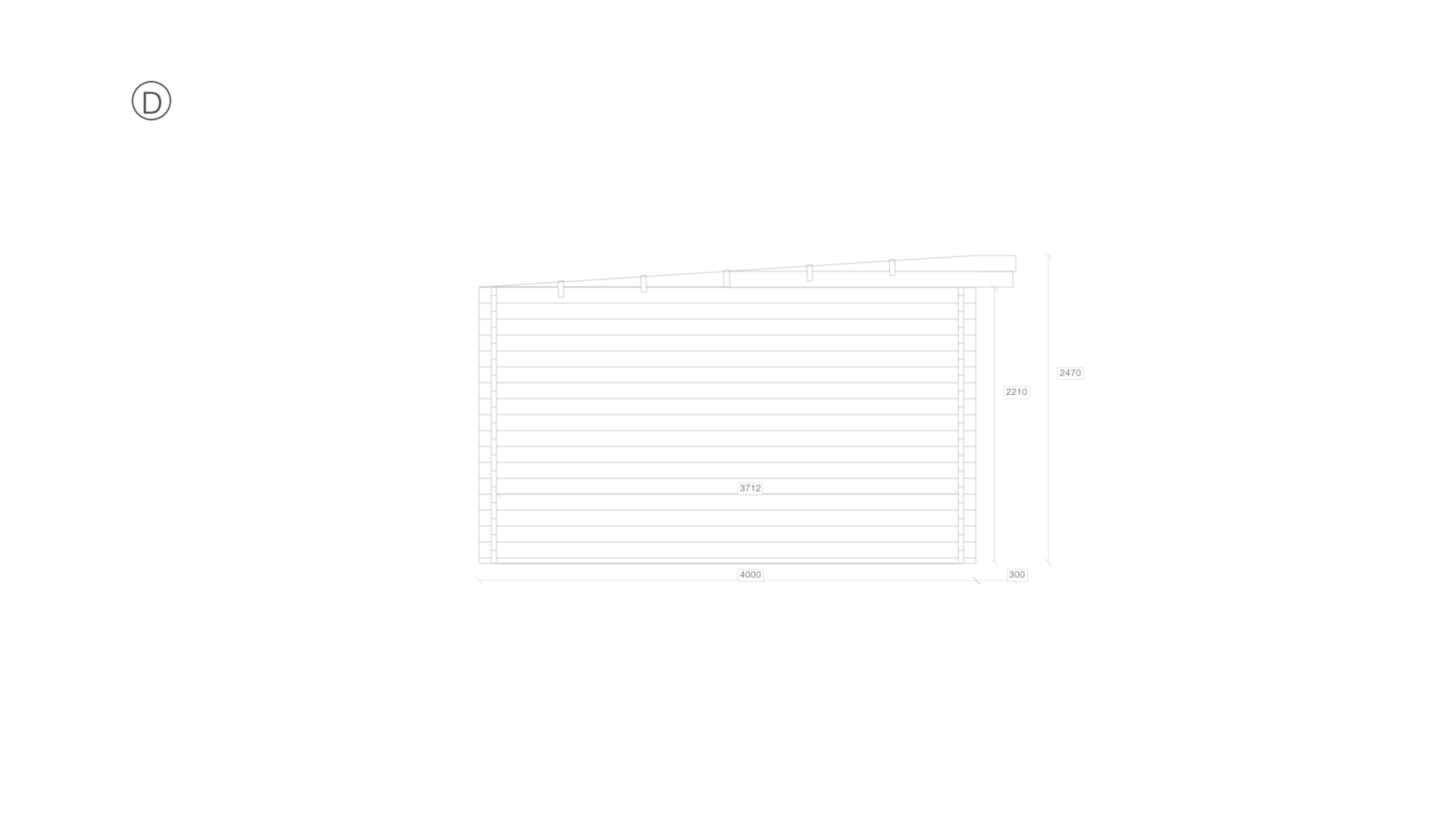

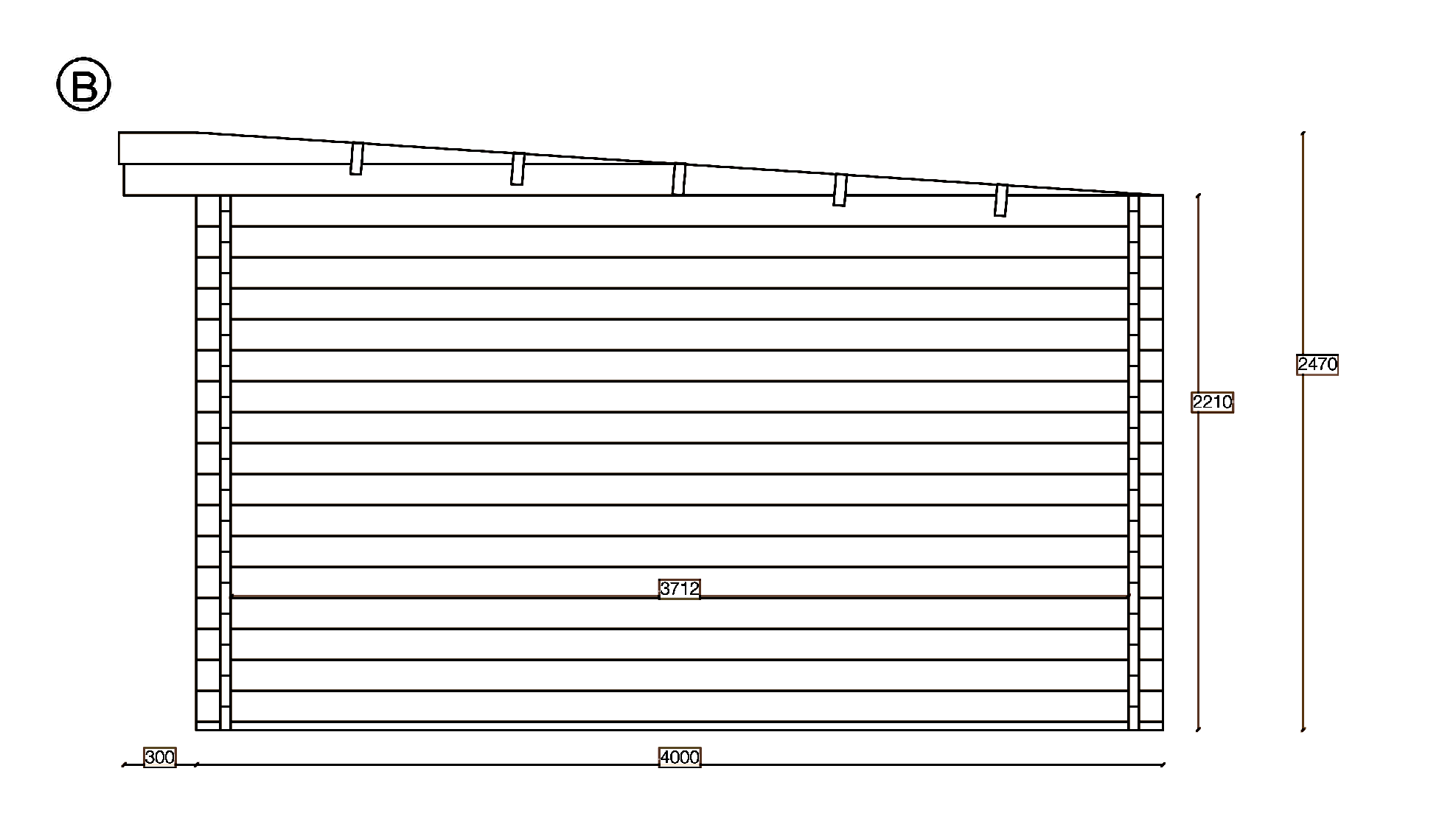

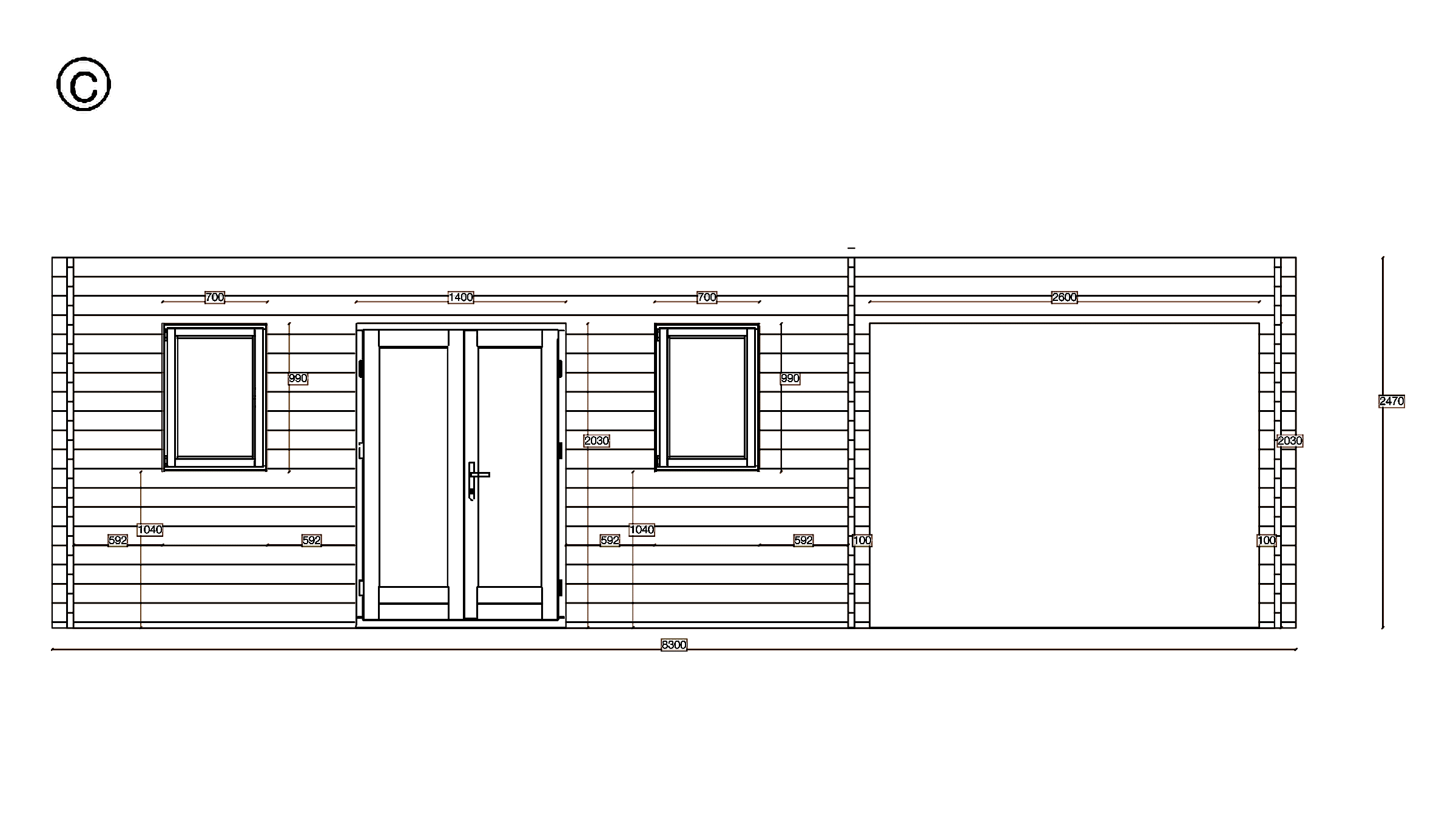

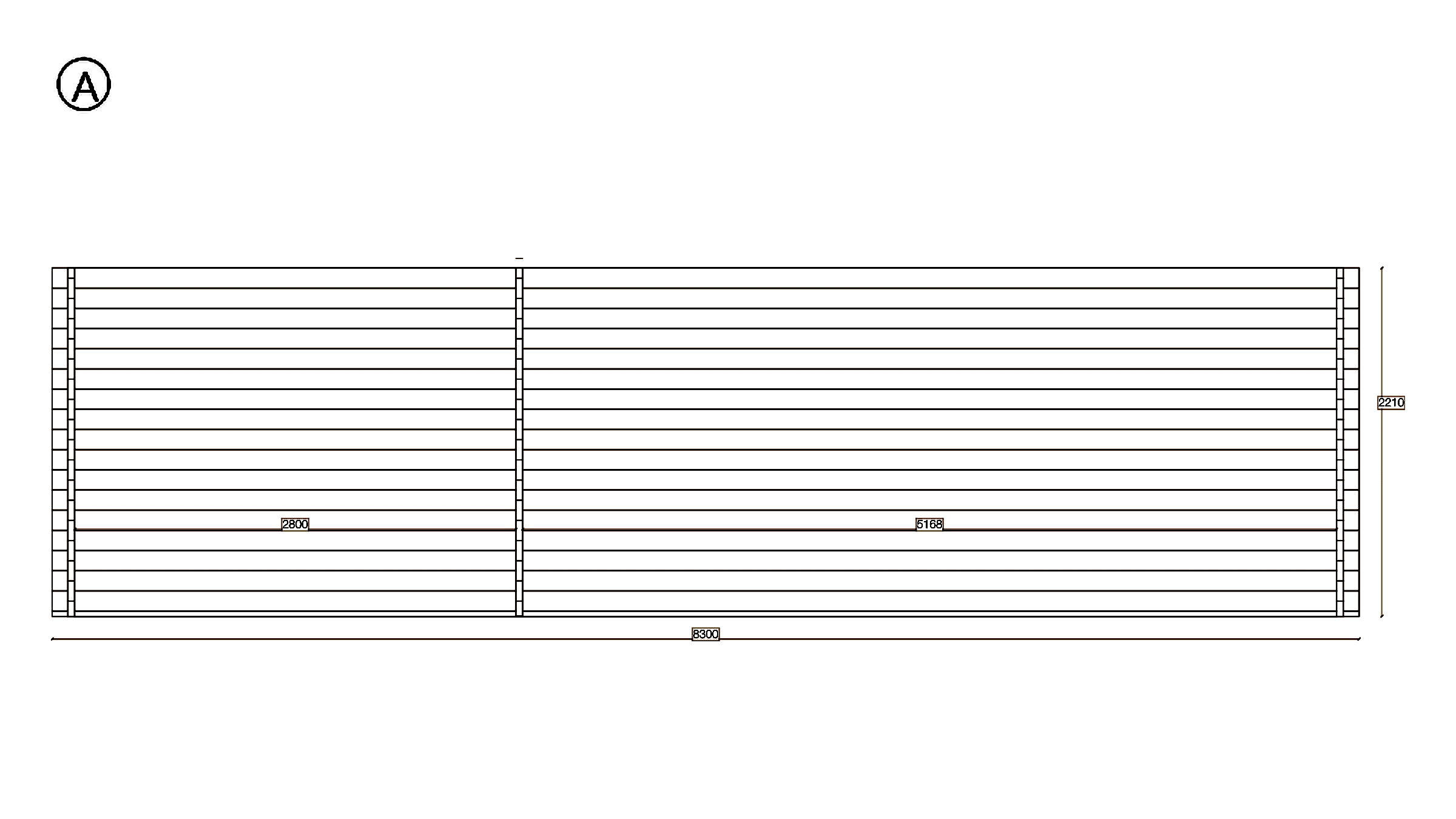

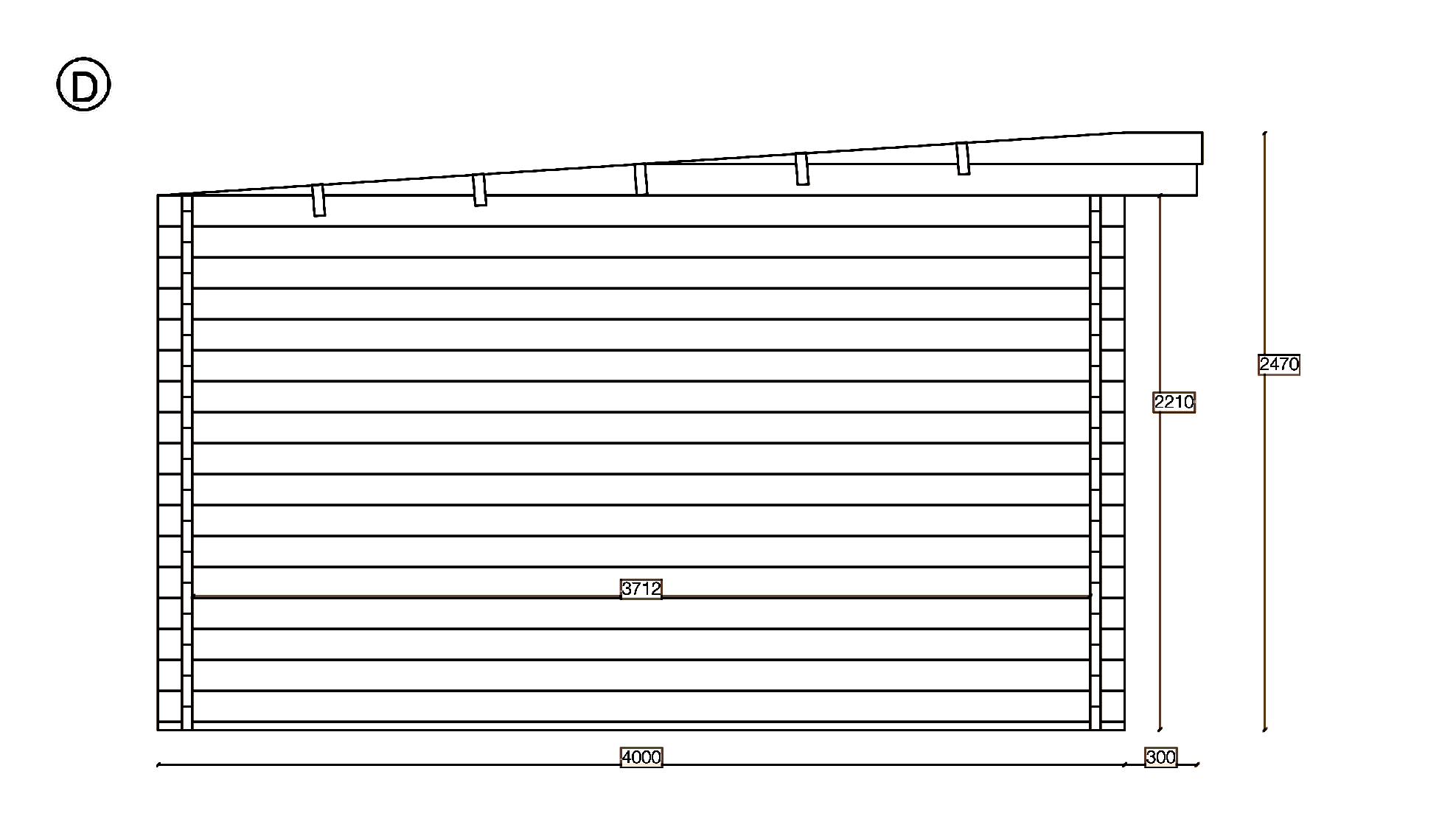

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
