Design Overview

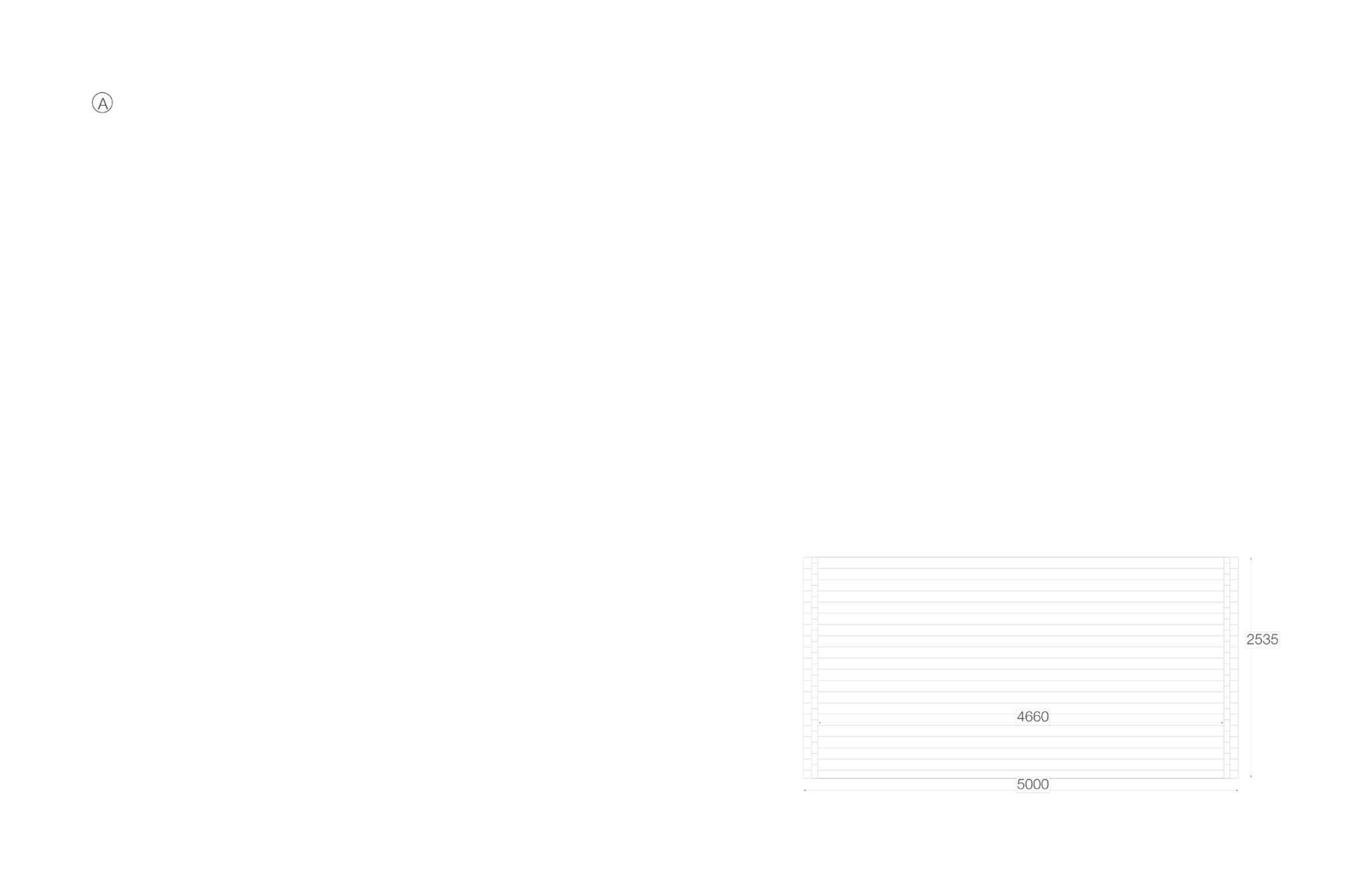

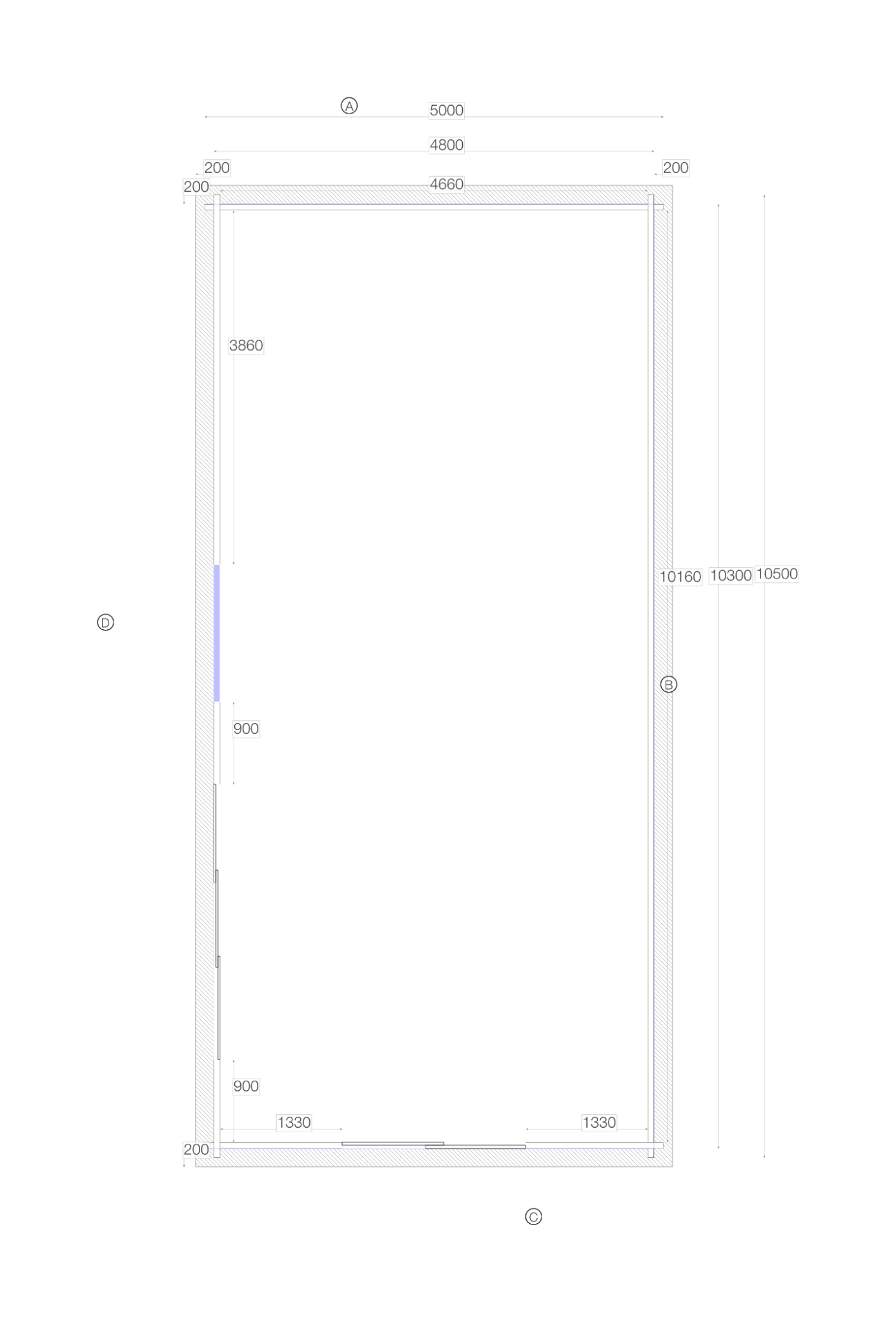

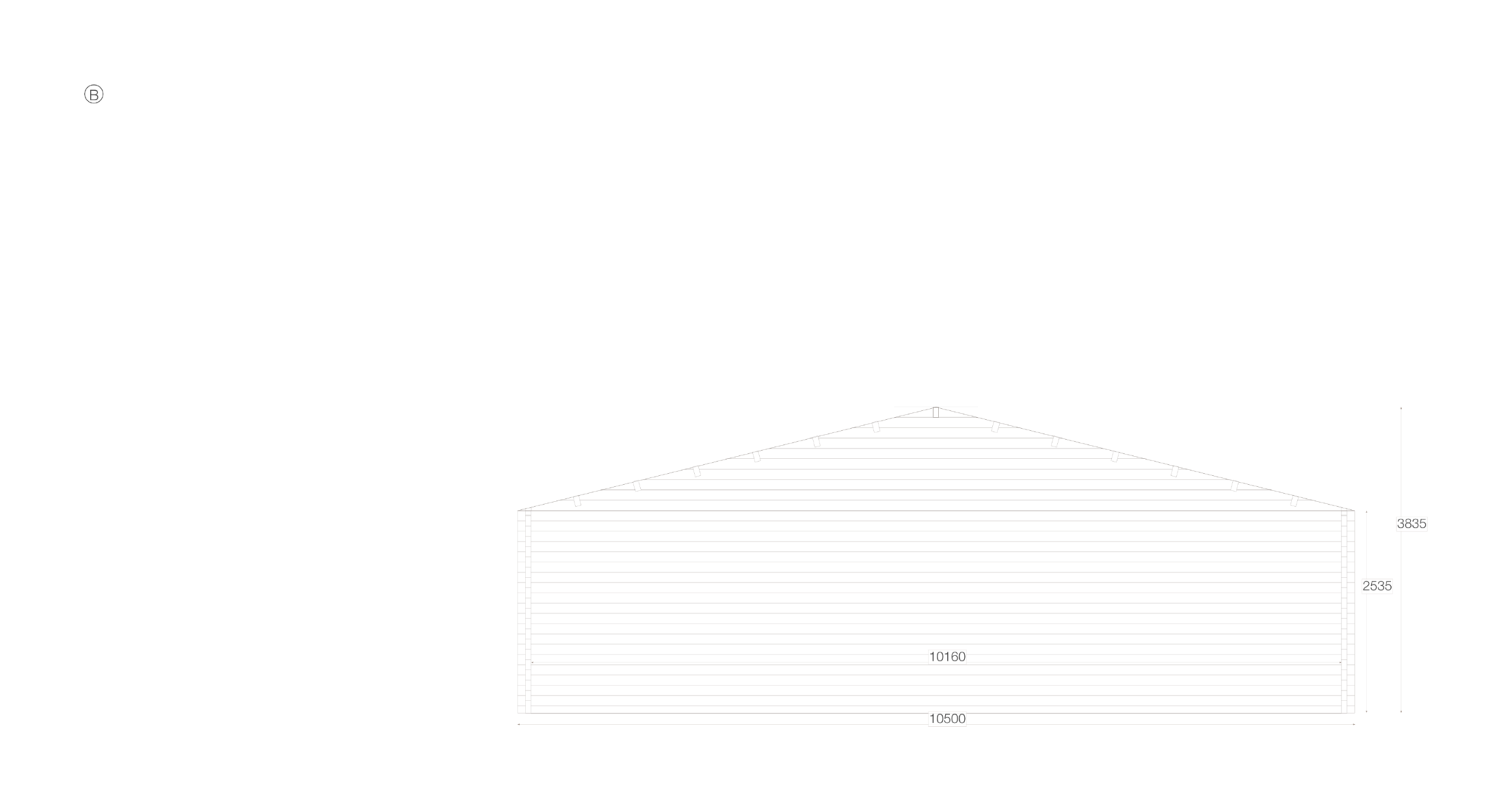

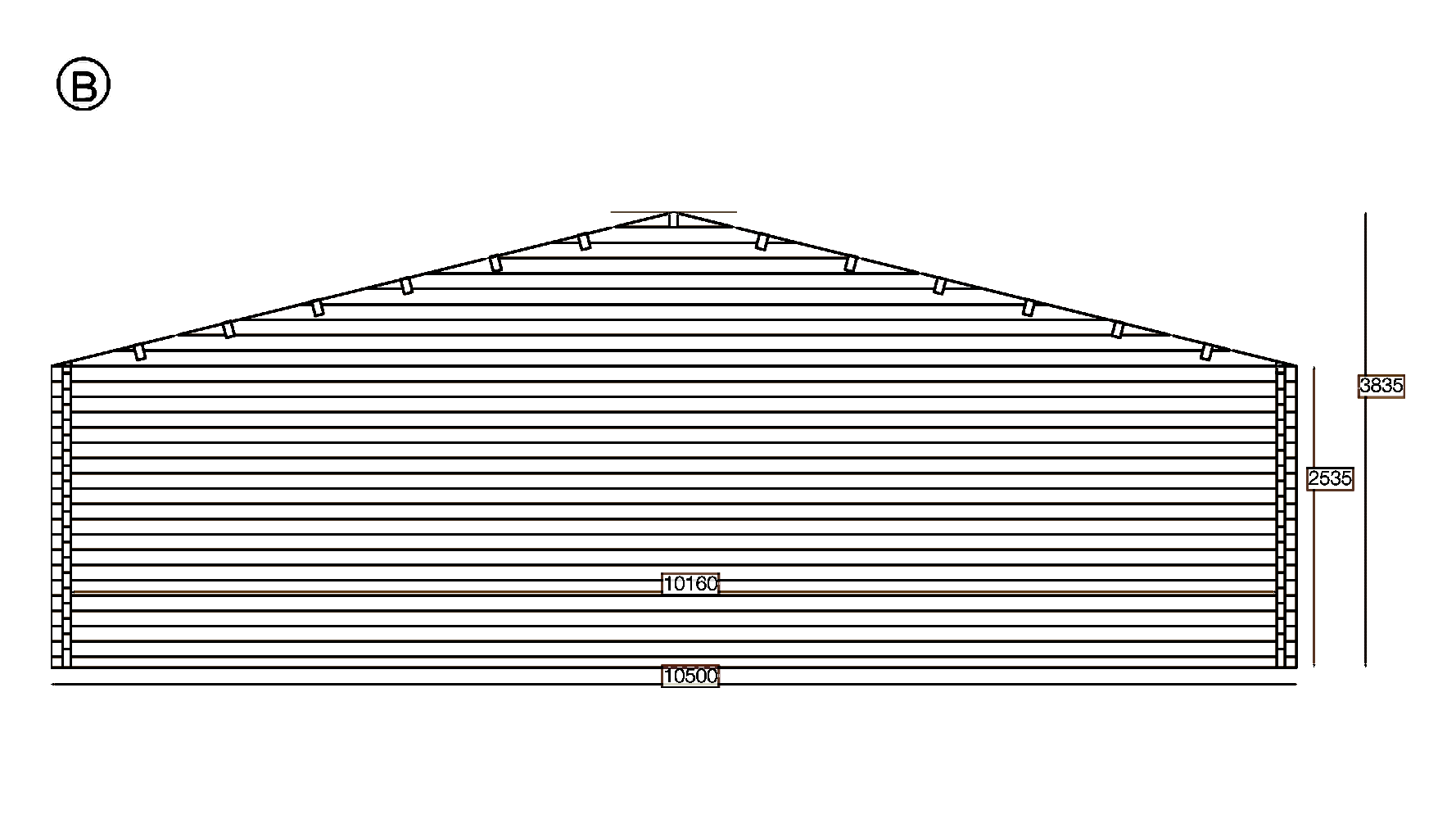

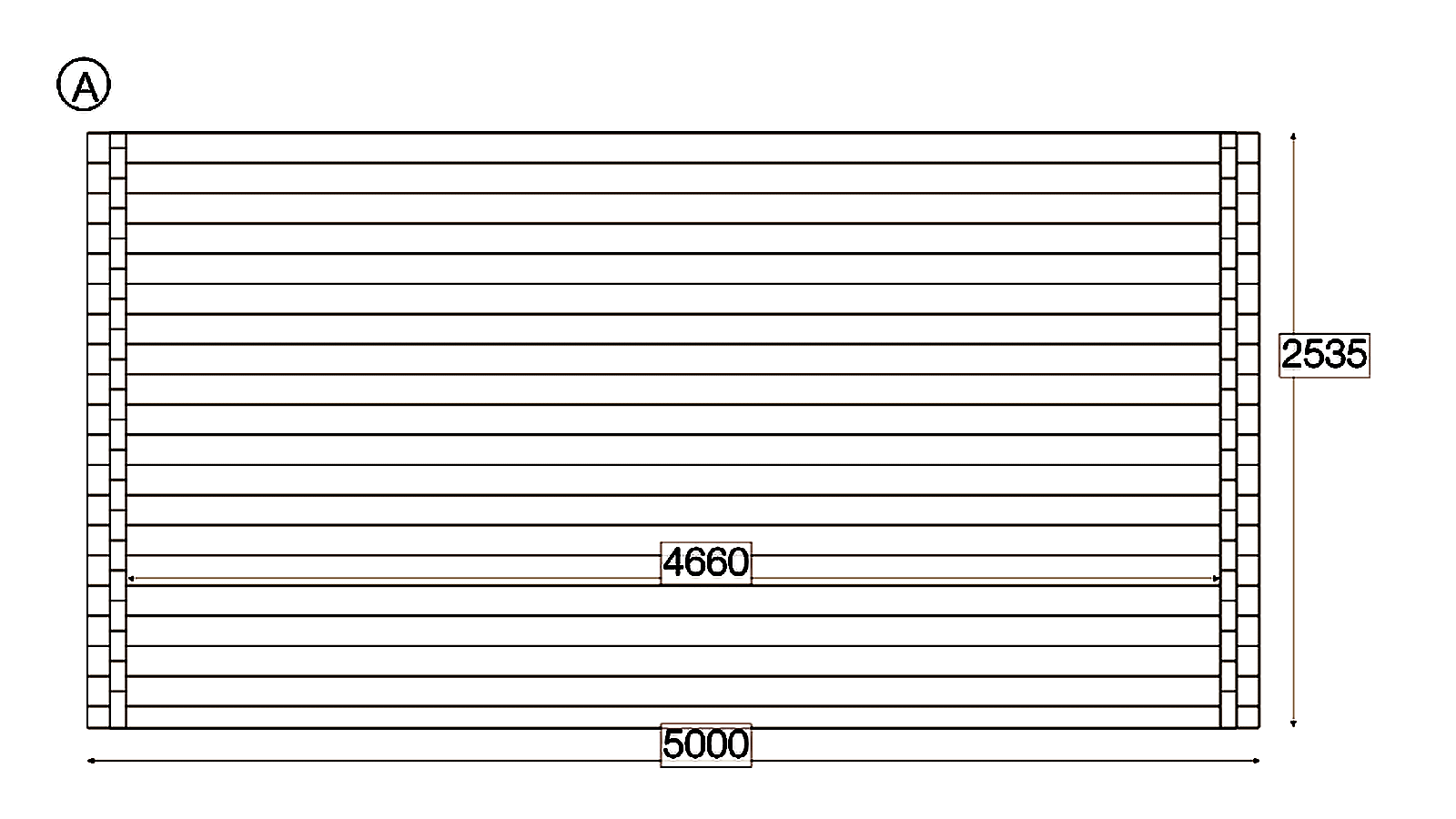

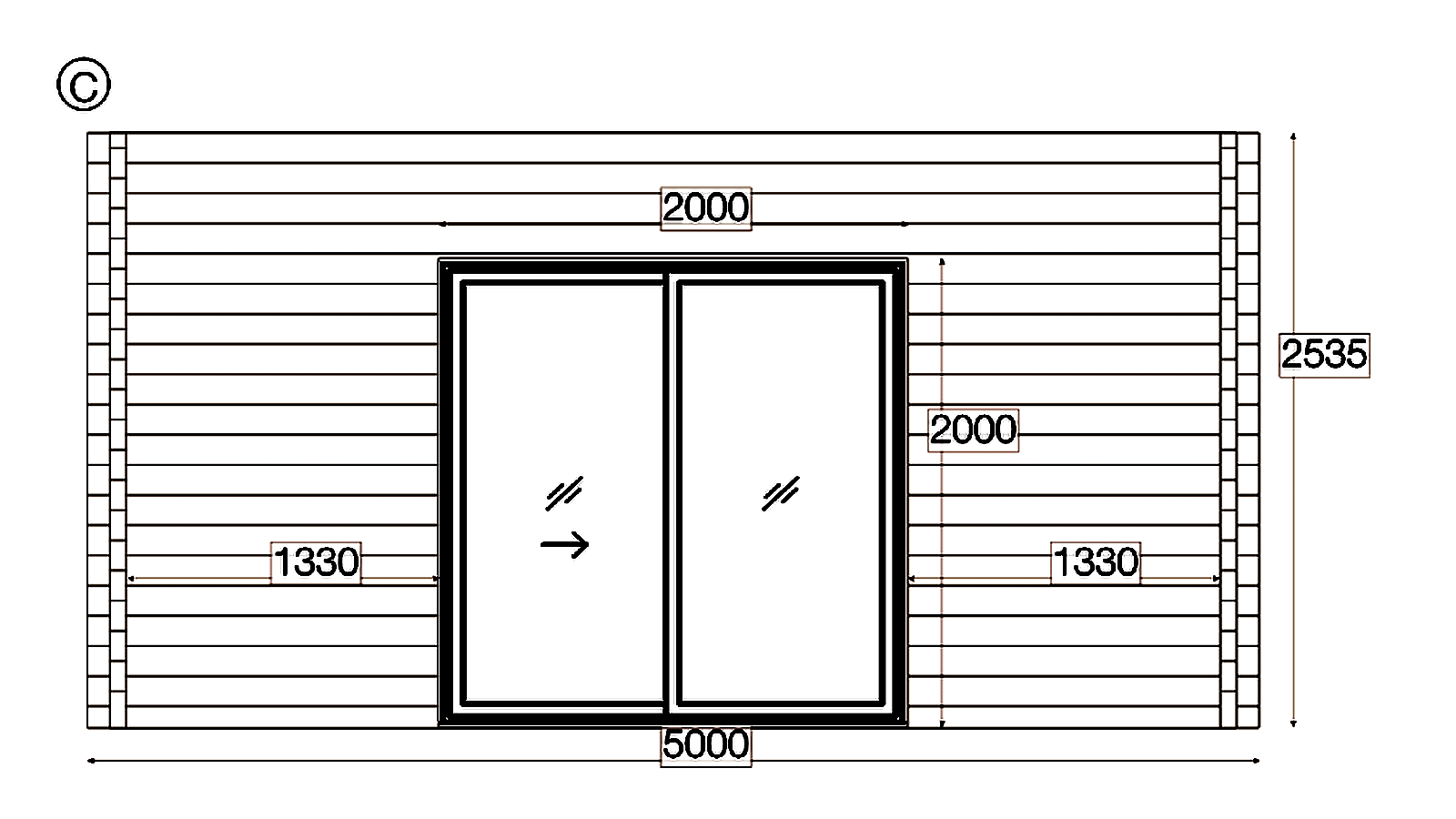

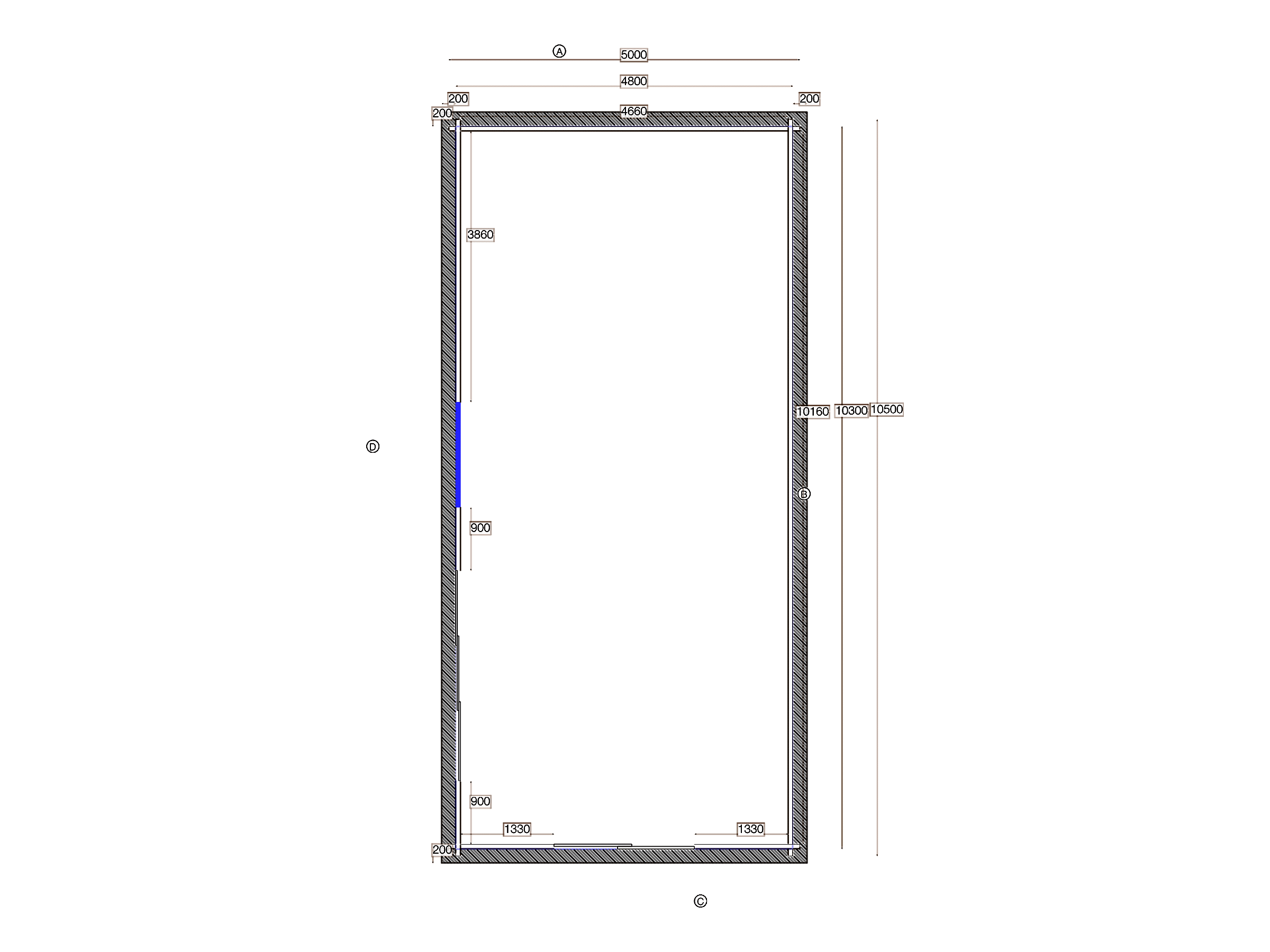

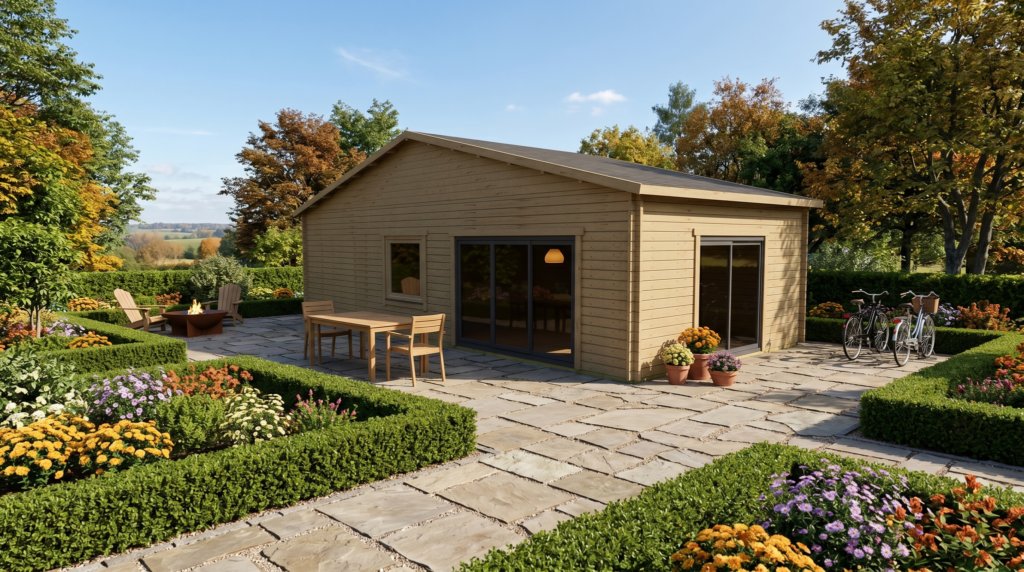

Manufactured to order, this spacious design encompasses 47.3m² of interior space within 10.5m x 5.0m external walls. Internal dimensions of 10.2m x 4.7m are enclosed by 70mm solid log walls rising to a sidewall height of 2535mm, with the apex (gable) roof reaching 3835mm at the ridge. The design incorporates 1 window and 2 doors, positioned to the client’s layout brief, with the apex (gable) roof spanning 57.3m² above 40x60mm floor bearers. No off-the-shelf components are used in this log cabin; every element is cut and machined to the project-specific measurements, delivering a truly bespoke result for the dealer and their end client.
Why This Configuration
The apex (gable) roof provides balanced aesthetics with symmetrical slopes meeting at a central ridge, creating a classic silhouette that integrates well with residential surroundings. At just 14.1°, the low-profile roof minimises visual impact, an advantage where planning height limits apply.
The 70mm wall profile can support higher-specification projects and insulation packages. Any all-season, habitable-use or approval route must be reviewed for the specific project, market and local authority process.

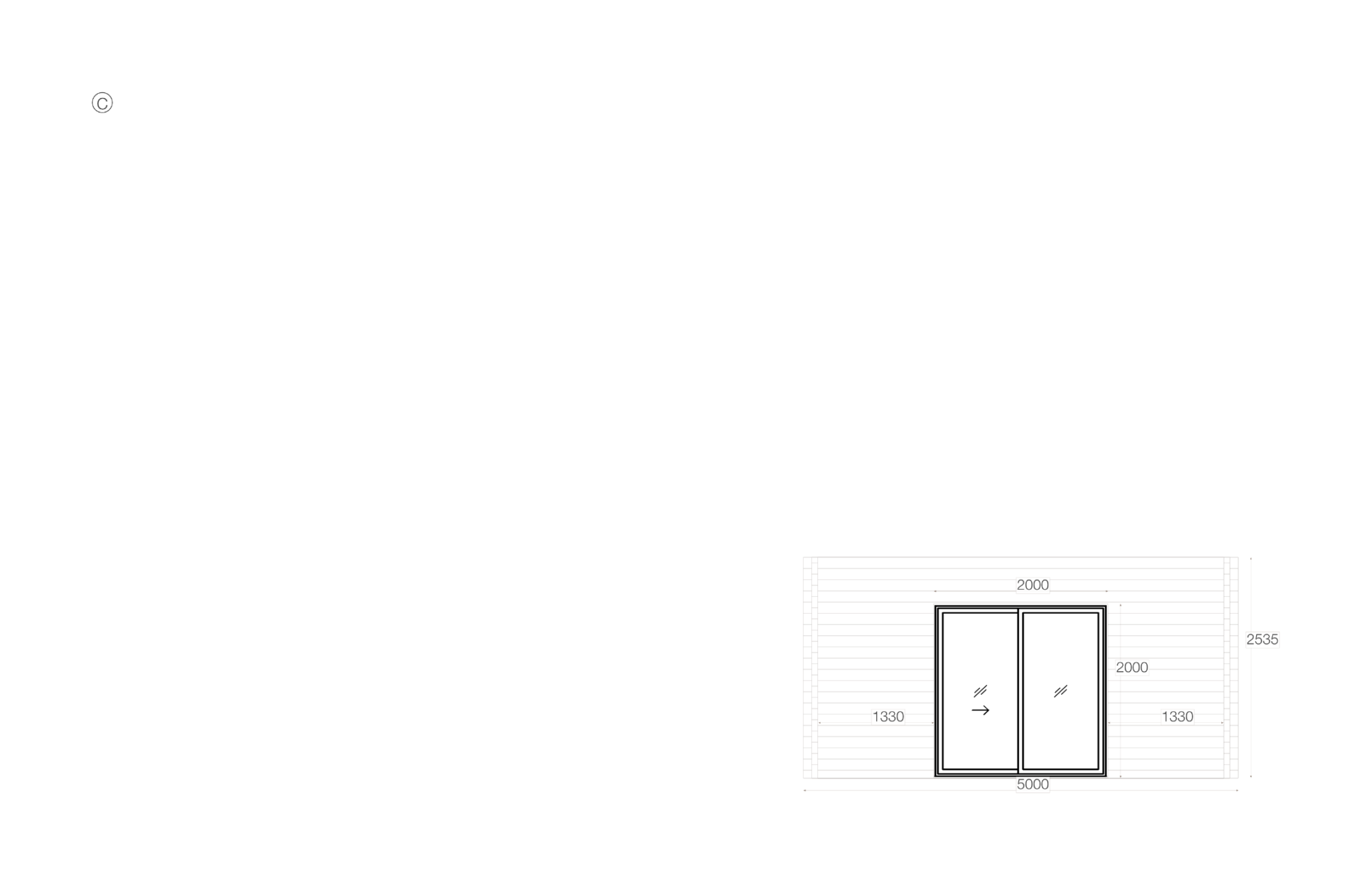

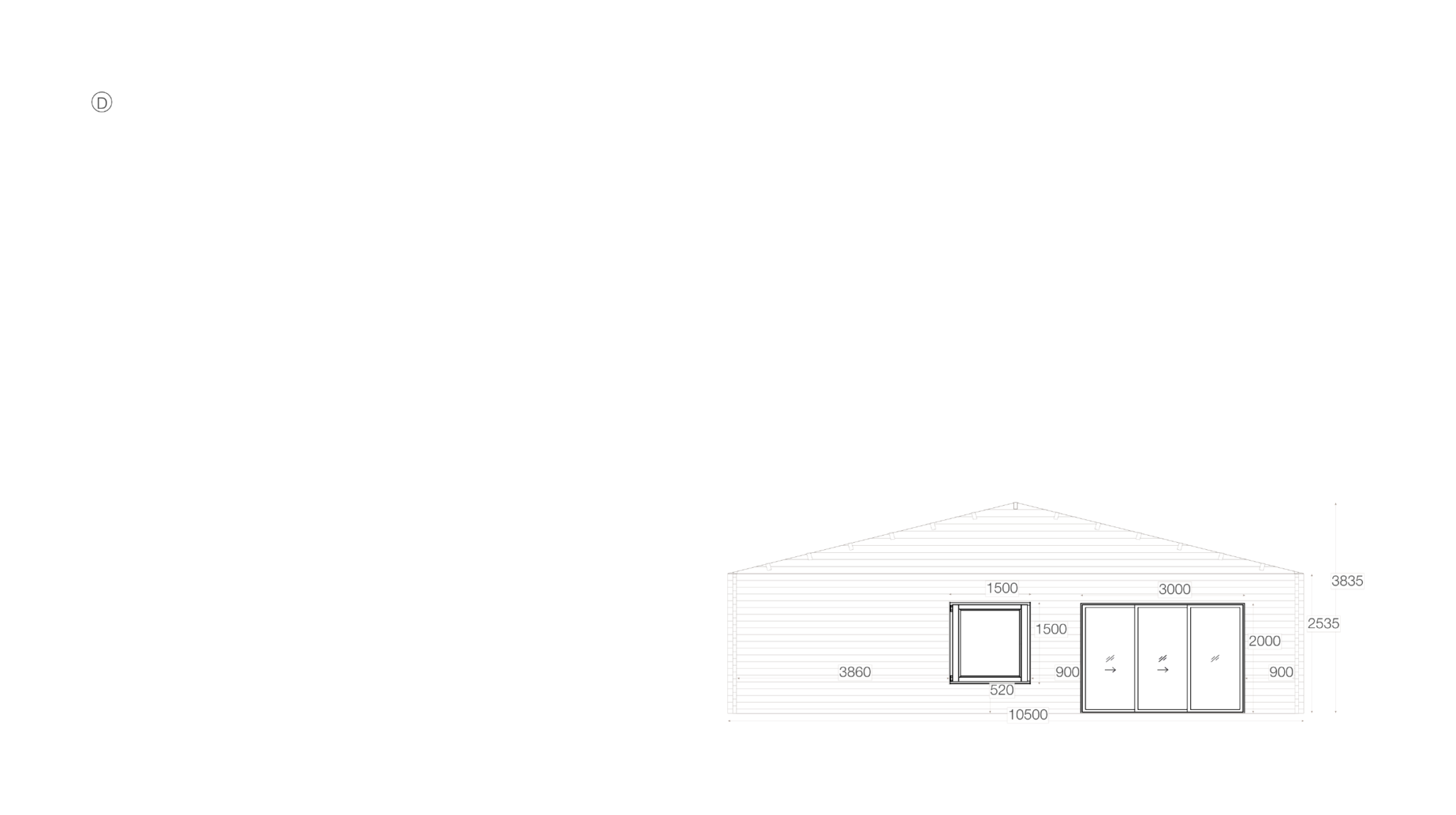

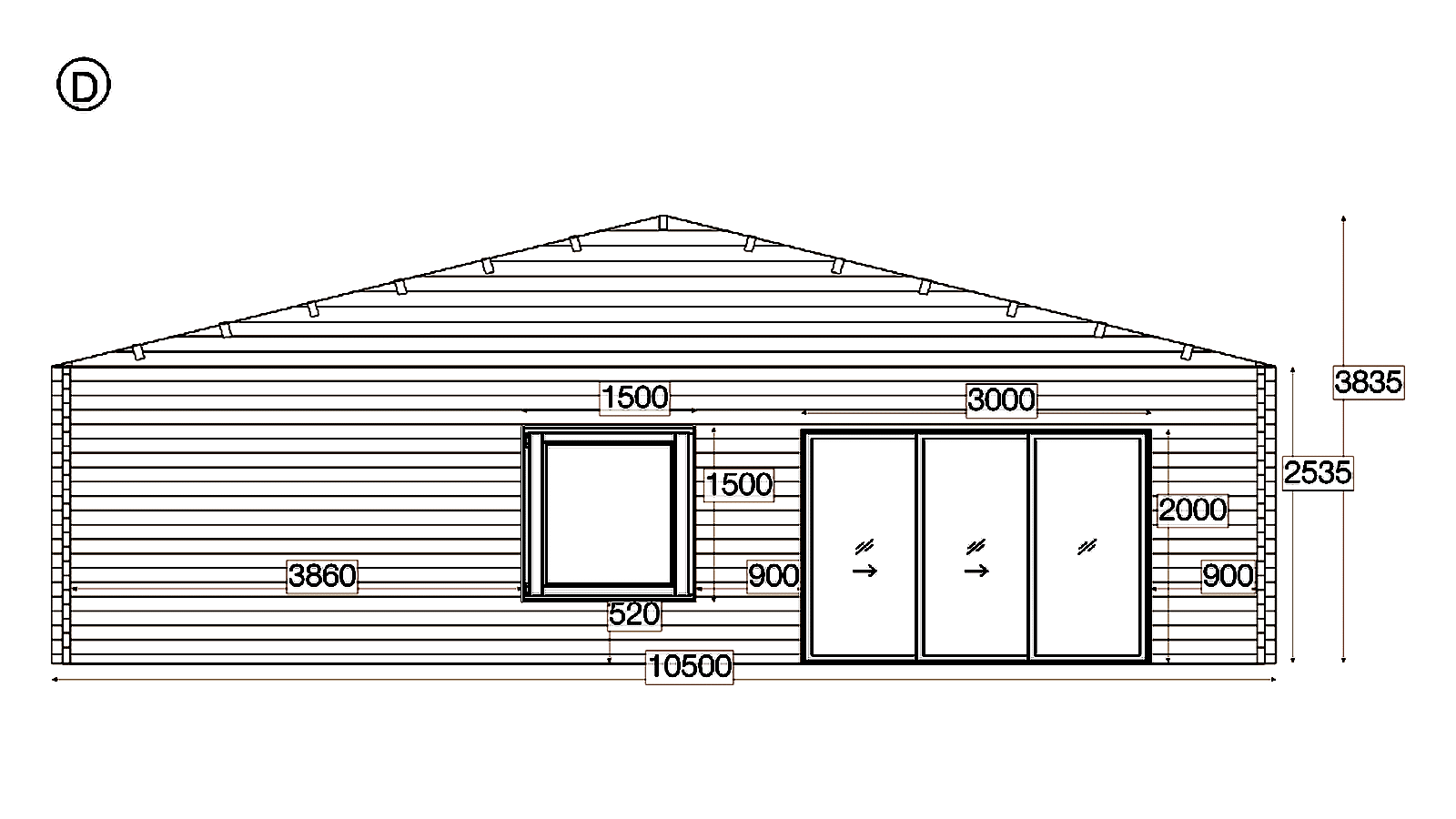

A single window provides controlled daylight while maximising uninterrupted wall area for improved thermal performance and privacy. The 2 doors provide multiple entry points, improving circulation and supporting flexible room layouts.
The elongated 10.5m x 5.0m floor plate suits linear layouts such as studios, workshops, or multi-zone interiors where distinct activity areas benefit from physical separation.
Materials & Construction
Constructed from 70mm solid log profiles milled from slow-grown northern European spruce, each wall section is tongue-and-groove machined for a tight wind-proof fit. The natural thermal mass of solid timber moderates interior temperature swings, keeping the space cooler in summer and warmer in winter. The honest, textured finish of genuine log construction requires no interior cladding and appeals to buyers seeking authentic timber character.
The floor system comprises 40x60mm pressure-treated bearers supporting 28mm tongue-and-groove floorboards. This combination provides a rigid, level deck capable of handling furnishing loads, underfloor insulation, and finished flooring overlays as required by the end user.
The roof structure is carried on 13 purlins of 70x130mm section, covered with 19mm boards to form a total roof area of 57.3m². The deck is supplied ready for the dealer’s choice of final covering, EPDM rubber membrane, bitumen shingles, or standing-seam metal are popular options that Eurodita can advise on.
At 70mm, the wall profile is significantly thicker than the industry-standard 44mm used in most flat-pack garden buildings.All-season suitability is not established by dimensions or wall thickness alone; it must be confirmed from the complete specification, installation and local approval route.
Certification and chain-of-custody documentation are confirmed for the applicable product scope in the order documentation.
Customisation Options
Every parameter of this 47.3m² design is open to modification. Eurodita operates as a pure bespoke manufacturer: the project shown here is a starting point, not a fixed product.
External dimensions can be adjusted freely, the current 10.5m x 5.0m footprint is not a constraint. Wall thickness can move up or down from 70mm across the full range (28mm to 220mm), and the wall profile can switch between solid log, glulam, or double-wall insulated construction.
The apex (gable) roof shown here can be changed to any supported type (apex, pent, or hip), and the pitch adjusted to suit local planning or aesthetic preferences. Sidewall height, ridge height, and overhang dimensions are all variable.
Window and door positions, sizes, types, and quantities are fully configurable. Glazing can be specified as standard double-glazed (45mm) or living-type (68mm) profiles, with optional painted finishes and crossbar detailing.
Internal partitions, electrical pre-wiring channels, additional insulation packages, and bespoke floor plans are available on request. Eurodita’s engineering team works directly with dealer partners to resolve any design requirement.
Private-Label Service
Eurodita offers full private-label manufacturing for this log cabin design. Every document, delivery note, and product label carries your brand, not ours. Your clients see your company name from quotation through to installation. This private-label service is available at no additional cost on all bespoke orders, making Eurodita the invisible manufacturer behind your timber building brand.
Ideal Use Cases
With 47.3m² of interior space, this design supports a broad range of applications: workspace, studio, leisure room, hospitality-support, or annexe-style layouts where local planning and building-control requirements allow. The generous floor plate permits flexible partitioning to suit the end user’s needs, and dealers should position buildings of this scale around the confirmed local approval route, operator requirements, and agreed specification. The 10.5m x 5.0m footprint fits comfortably within most residential plots while providing enough room for a kitchenette, bathroom pod, or separate sleeping area.
The 70mm wall section can support insulation and services planning for higher-specification projects; final all-season or habitable-use positioning depends on the confirmed specification and local authority review route.
Delivery & Production
Production takes place in Eurodita’s vertically integrated mill in Lithuania. Production timing is confirmed per quotation before EXW factory release. The building is delivered flat-packed on a standard road-transport pallet, with every component numbered and accompanied by detailed assembly drawings. Wall sections, roof elements, floor panels, windows, doors, and all hardware are included. Eurodita standard terms are EXW from Kaunas, Lithuania; delivered options can be quoted and agreed per order for selected markets and projects.
Frequently Asked Questions
Can I customise the dimensions of the Apex Timber Lodge 10.5×5.0?
Yes. Every dimension of this 47.3m² log cabin is fully customisable. Eurodita manufactures to your exact floor plan, width, depth, wall height, and roof pitch can all be adjusted. Window and door positions, sizes, and types are also changeable. Contact us with your requirements for a bespoke quotation.
What wall thickness does the Apex Timber Lodge 10.5×5.0 use?
This project record lists 70mm solid log walls for the shown design. Alternative wall specifications are confirmed by product family and project brief. Final use, insulation package, glazing, ventilation, installation and local authority review route are confirmed per dealer project before marketing or approval claims are made.
Is the Apex Timber Lodge 10.5×5.All-season suitability is not established by dimensions or wall thickness alone; it must be confirmed from the complete specification, installation and local approval route.
Suitability for all-season or residential-style use is not confirmed from wall thickness alone. Eurodita provides project technical data for dealer and project review; the final specification and local authority route are confirmed per market and project.
How is the Apex Timber Lodge 10.5×5.0 delivered?
This project is supplied as a precision-cut, flat-pack kit with numbered components for assembly by the dealer, installer or project team. Eurodita standard terms are EXW (Ex Works) from Kaunas, Lithuania. Delivered options can be arranged for selected markets and projects, with terms agreed individually per order. Production timing is confirmed per quote before EXW factory release, based on the final specification and agreed production slot.
Does Eurodita supply under my brand (private label)?
Yes. Eurodita offers full private-label manufacturing. All documentation, packaging, and delivery notes carry your brand identity. Your clients never see the Eurodita name, we are the invisible manufacturer behind your timber building business.
This one was built to a drawing. Yours can be too.
This project was produced as a 47.3 m2 internal area, 70 mm wall profile, 3835 mm ridge height. Every published project on this page followed a project-specific brief. Send your drawing and Eurodita will confirm whether the qualified bespoke route fits your project. Partner branding is agreed per order.
