Apex Timber Building 6.3x4.8

A timber building drawn in the Eurodita design and estimating system: 3D views, a floor plan and four elevations with dimensions, and the figures of the building as drawn.

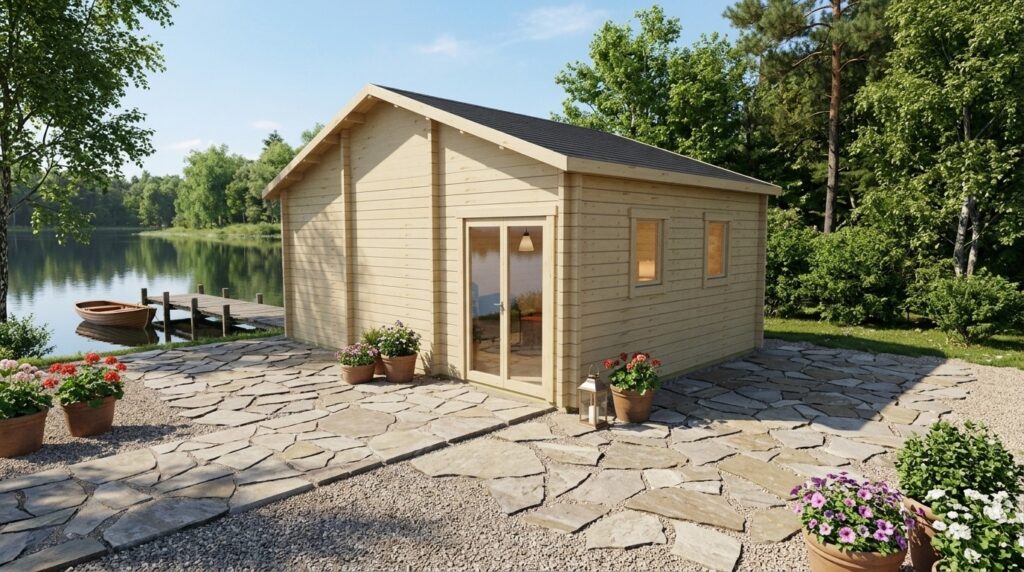

3D project view of Apex Timber Building 6.3x4.8 with 70mm solid log walls and an apex roof
3D view of the building as drawn. The final specification is confirmed in the written quotation.
Inside area27 m²
Overall footprint6340 × 4840 mm
Wall configuration70 mm log
Roof geometryApex, 20.6°

Specification

Technical data

The figures below come from the project drawing of this building.

Dimensions

Inside area
27 m²
Overall dimensions
6340 × 4840 mm
Internal dimensions
6000 × 4500 mm
Wall thickness
70 mm
Project reference
LOGAPX-600x450-070-P2796
Inner walls
None

Height and roof

Sidewall height
2470 mm
Ridge height
3640 mm
Roof type
Apex
Roof pitch
20.6°
Roof area
35.7 m²

Floor and roof

Floor bearers
100x60mm
Floorboards
28 mm
Roof boards
19 mm
Roof purlins
70x130mm × 9

Windows and doors

Window and door schedule

Windows2 × Residential type (IV68) timber window700x990mm
Doors1 × Residential type (IV68) timber double door, fully glazed1400x2030mm

Drawings

Floor plan and elevations

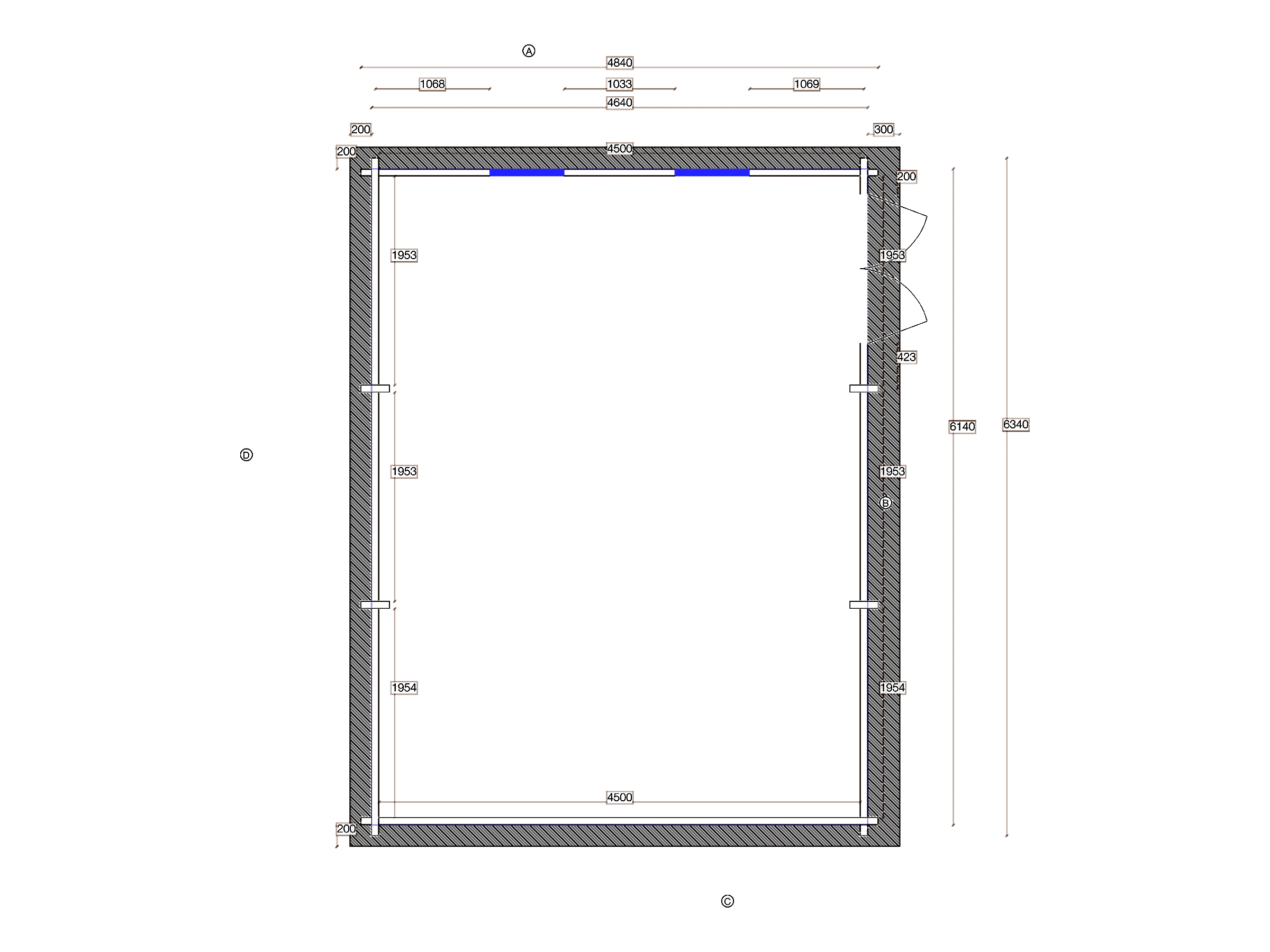

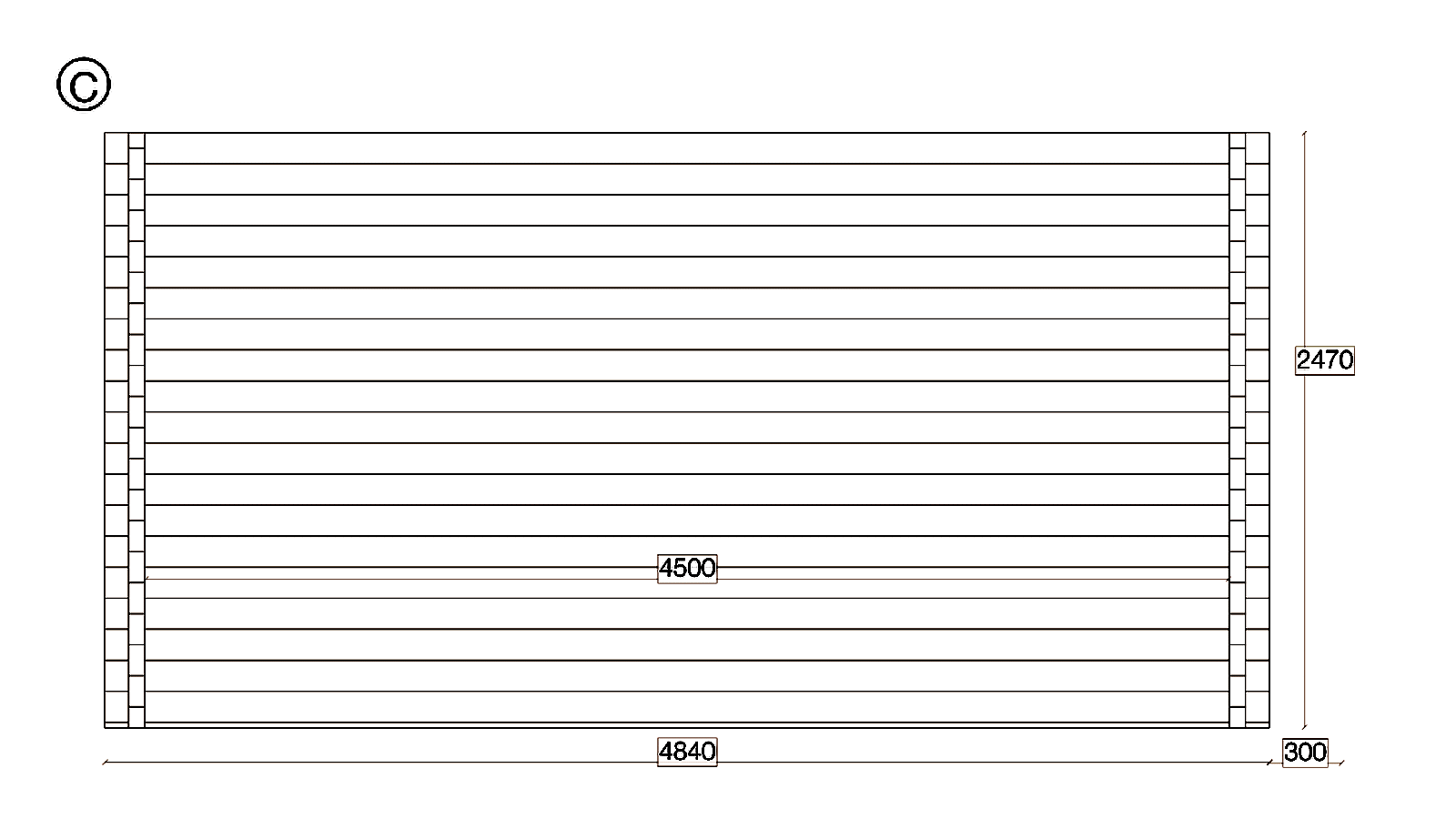

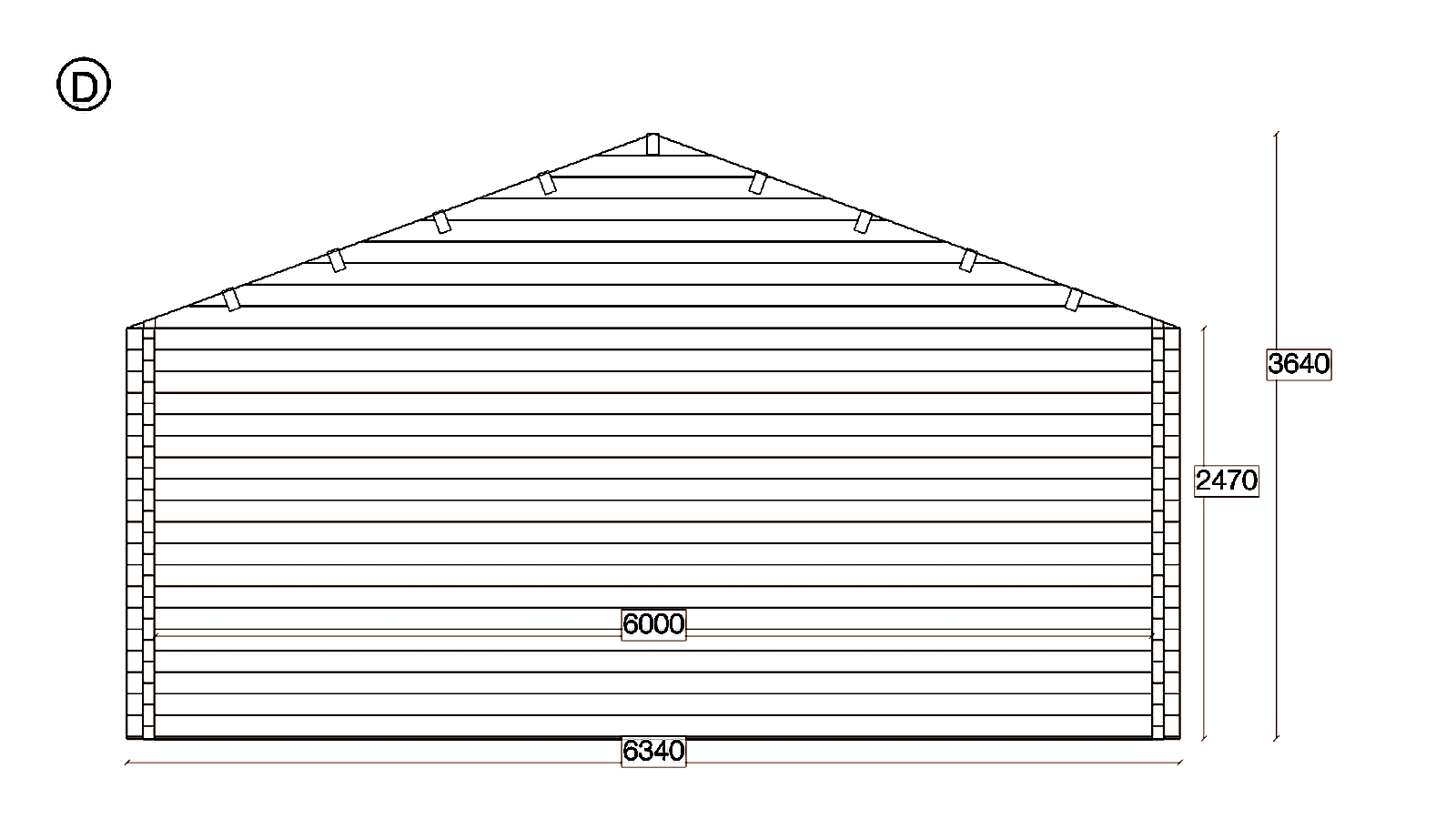

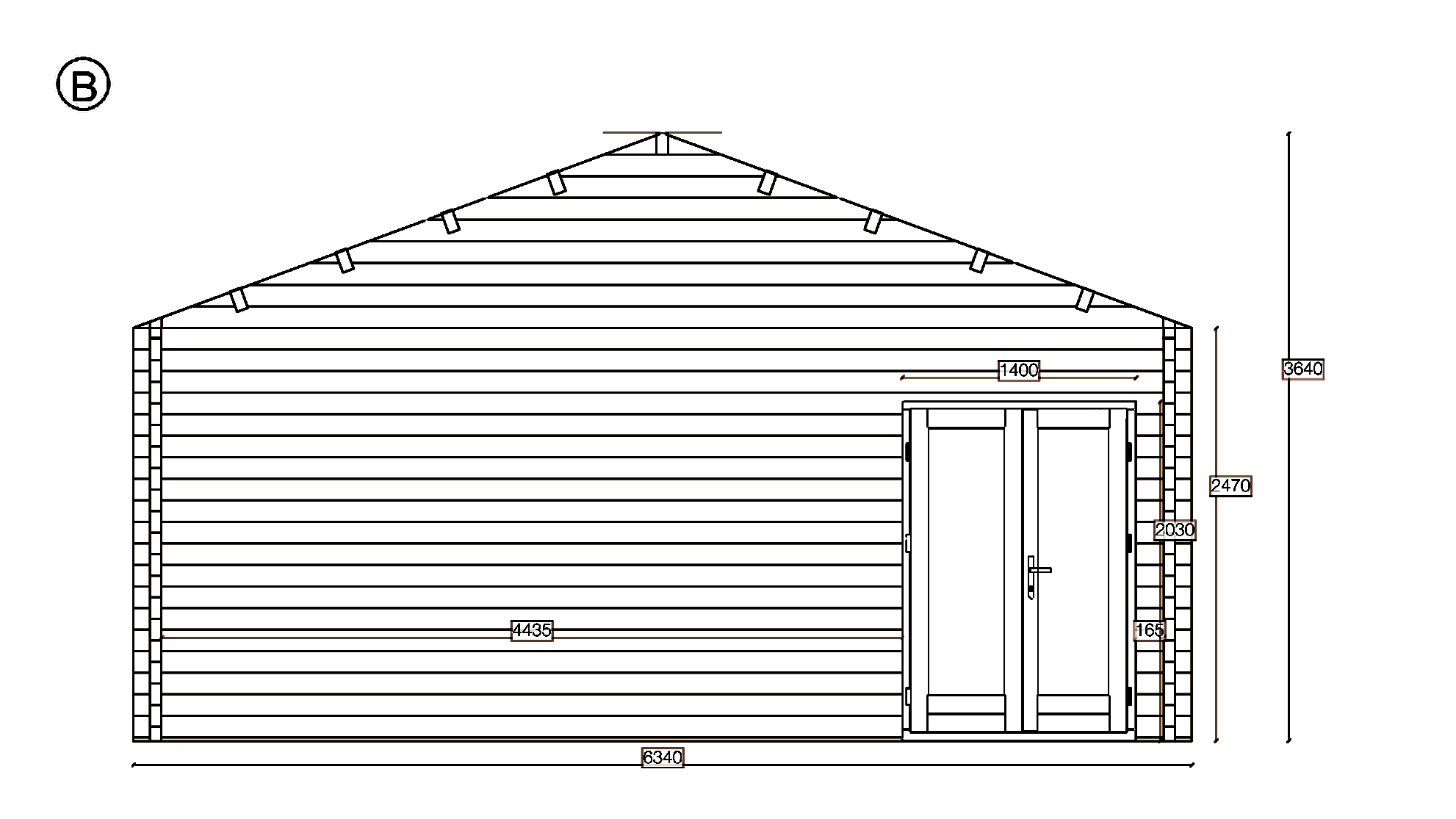

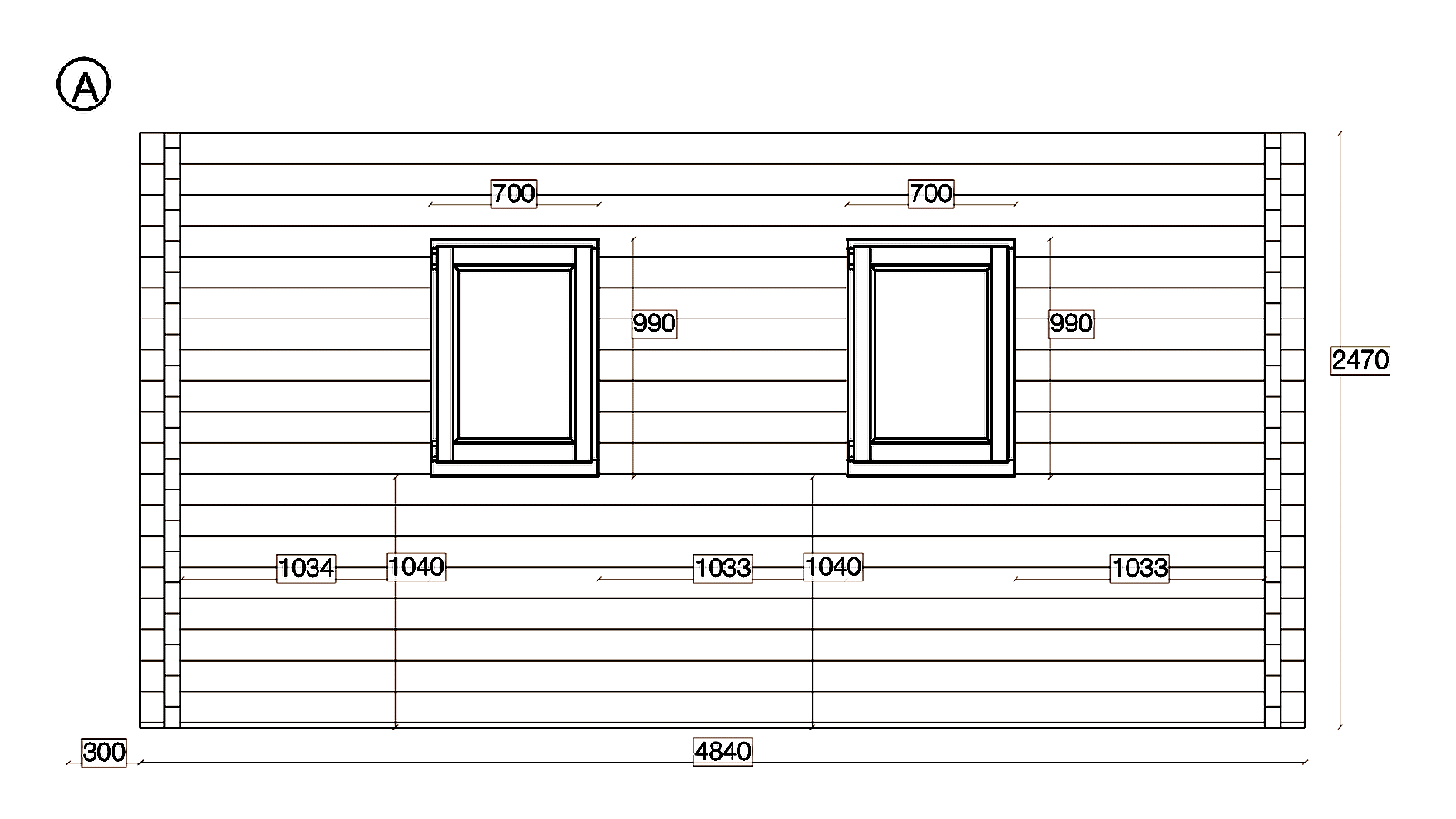

The letters A to D on the floor plan mark the four sides; each elevation shows one side with its dimensions. Open a drawing to see it at full size.
