Two Storey Log Cabin Roan, 70mm
Delivery is agreed individually with each client. Markets and languages
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
At a glance

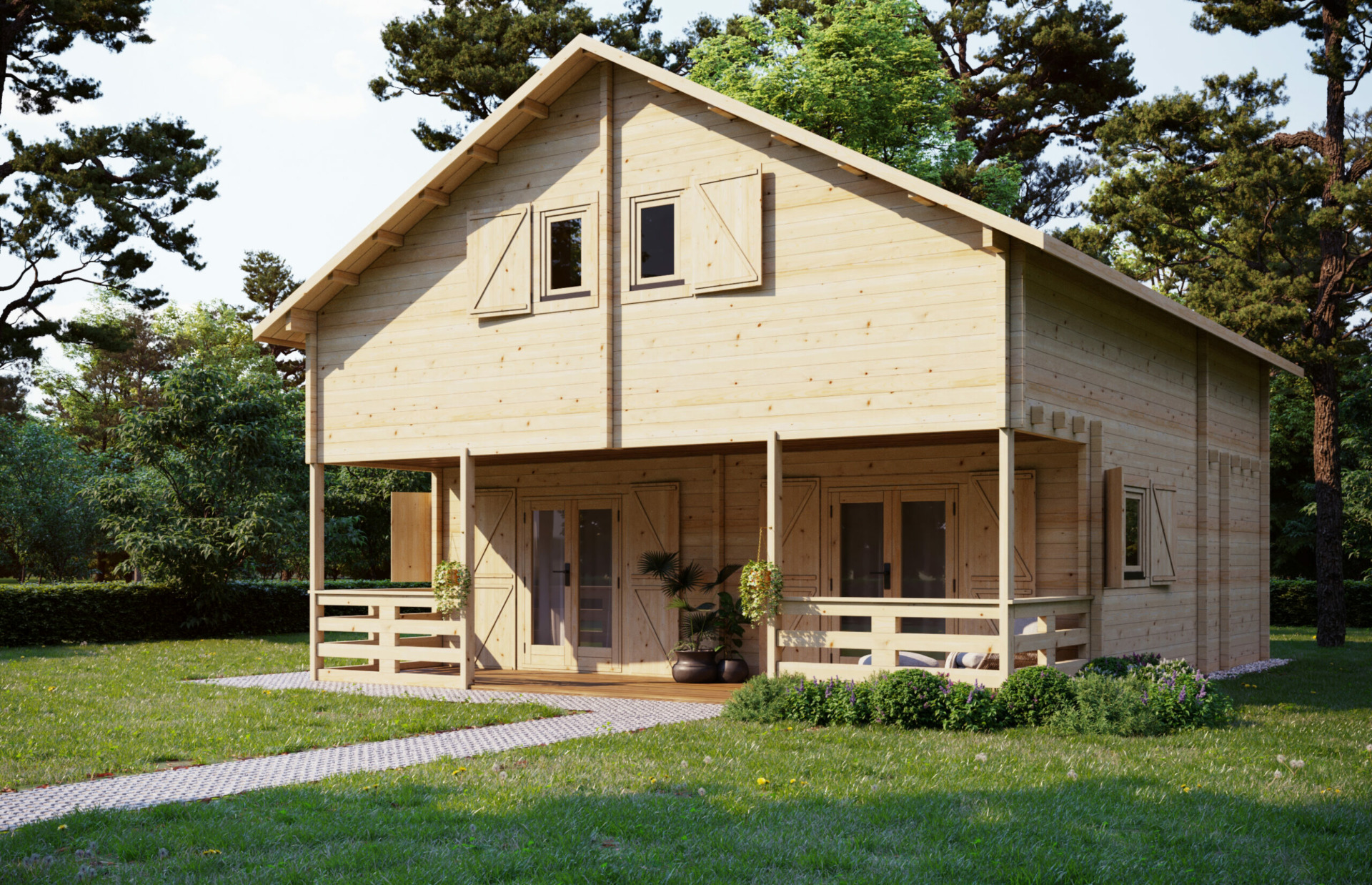

Two Storey Log Cabin Roan is a two-storey log cabin with three bedrooms, supplied as a building kit. It measures 8.45 x 7.6 m externally, an external footprint of 64.2 m². The ridge height is 572 cm and the eaves height 351 cm. It is listed with the 3 bedroom log cabins.
Read the full description
Walls
The wall logs are solid, of the 70 x 130 mm profile: each log is 70 mm thick and 130 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Technical data sheet
Specification recorded for Two Storey Log Cabin Roan, 70mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 8.45 x 7.6 m |
| External footprint area | 64.2 m² |
| Eaves height | 351 cm |
| Ridge height | 572 cm |
| Base | External footprint 8.45 x 7.6 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 70 x 130 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Timber door, made by Eurodita; the type is confirmed in the written quotation |
| Windows | Timber window, made by Eurodita; the type is confirmed in the written quotation |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
The kit is supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
3 Bedroom Log Cabin 10x6m
| This model | 10x6m | |
|---|---|---|
| External size | 8.45 x 7.6 m | 10 x 6 m |
| External footprint | 64.2 m² | 60 m² |
| Ridge height | 572 cm | 312 cm |
| Eaves height | 351 cm | 221 cm |
| Storeys | 2 | 1 |
| Wall logs | 70 x 130 mm | 44 x 130 mm |
3 Bedroom Log Cabin 10.2x7m
| This model | 10.2x7m | |
|---|---|---|
| External size | 8.45 x 7.6 m | 10.2 x 7 m |
| External footprint | 64.2 m² | 71.4 m² |
| Ridge height | 572 cm | 312 cm |
| Eaves height | 351 cm | 221 cm |
| Storeys | 2 | 1 |
| Wall logs | 70 x 130 mm | 44 x 130 mm |
3 Bedroom Log Cabin 12.2x6m
| This model | 12.2x6m | |
|---|---|---|
| External size | 8.45 x 7.6 m | 12.2 x 6 m |
| External footprint | 64.2 m² | 73.2 m² |
| Ridge height | 572 cm | 312 cm |
| Eaves height | 351 cm | 221 cm |
| Storeys | 2 | 1 |
| Wall logs | 70 x 130 mm | 58 x 130 mm |
