Mobile Log Home 3 Bed 20x7m

Technical data sheet

Specification recorded for Mobile Log Home 3 Bed 20x7m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building
External dimensions	20 x 7 m
External footprint area	140 m²
Eaves height	220 cm
Ridge height	297 cm
Base	External footprint 20 x 7 m. Base type and size are confirmed for the specific model and site.
Structure
Wall profile options	70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget
Corner system	Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm
Construction	Interlocking tongue and groove joints
Timber	Glued-laminated timber
Storm brace and anchor set	Included
Floor
Floor bearers	13.5 x 13.5 cm glulam
Floor boards	28 mm
Roof
Roof form	Apex
Roof boards	19 mm tongue and groove boards
Doors and windows
Doors	Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing
Windows	Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing
Scope of these figures
Insulation	Eurodita supplies the timber structure prepared for insulation where required, not the insulation material.
Performance	These dimensions establish no thermal, fire, structural or certification performance.

Download technical data sheet (PDF) Wall profile reference

Add-ons & Customisation

Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.

Enquiry

Mobile Log Home 3 Bed 20x7m

70 / 88 / 135 / 180 / 220mm · 20 x 7 m external · quoted in writing, EXW Eurodita factory

Request a quote

Different size or layout? Send a bespoke brief

Mobile Log Home 3 Bed 20x7mRequest a quote

Need this in a different size?

This model is supplied as a 20 x 7 m footprint. If you need a different size or layout, send a drawing. Eurodita will confirm whether the bespoke route and the factory scope fit the project. Partner branding is agreed per order.

1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.

CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.

Send a bespoke brief

Dimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the mobile log cabins and timber lodges range.

About This Mobile Log Home 3 Bed 20x7m

The model

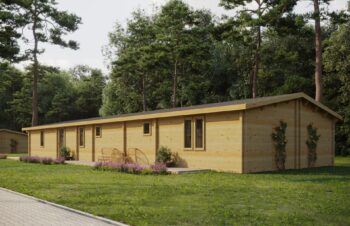

Mobile Log Home 3 Bed 20x7m is a single-storey glulam log home with three bedrooms and an apex roof, built to a mobile-home brief. It measures 20 x 7 m externally, an external footprint of 140 m². The ridge height is 297 cm and the eaves height 220 cm. It is listed with the mobile log cabins and timber lodges.

Walls

The walls are glulam wall logs of the 88 x 260 mm profile: each log is 88 mm thick and 260 mm high. The glulam is glued, profiled and CNC machined at the Eurodita factory. Any approved glulam profile (70 x 130, 88 x 260, 135 x 260, 180 x 260 and 220 x 260 mm) can be specified for this model. Glulam walls do settle, but only minimally: in use the settlement is neither felt nor seen. The profiles are set out on wall thickness and glulam profiles.

Floor and roof

The floor is 28 mm floorboards on glulam floor bearers of 13.5 x 13.5 cm. The roof is boarded with 19 mm tongue and groove boards. A storm brace and anchor set is included.

Doors and windows

Doors and windows are the residential type (IV68), made by Eurodita in timber: tilt and turn windows and doors with a 5-point locking system, both with 4-16-4 mm double glazing. See windows and doors.

What can be changed

Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing: the written quotation is prepared in the Eurodita design and estimator system, with 2D drawings and a 3D visualisation. Cable channels are machined in the wall logs where the order specifies them. More on bespoke orders.

Supply

Every order is quoted in writing and supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project; foundations, utilities and approvals stay with the local team of the buyer.

UK siting note

This model is 7.0 m wide, above the 6.8 m maximum width in the UK caravan definition (Caravan Sites Act 1968 s.13, as amended by SI 2006/2374, which sets 20.0 m length, 6.8 m width and 3.05 m internal height). It remains available for markets where that definition does not apply. For a UK project the siting and approval route is confirmed per project with the dealer, client and local authority before quotation. Narrower layouts within the definition are available on request.
