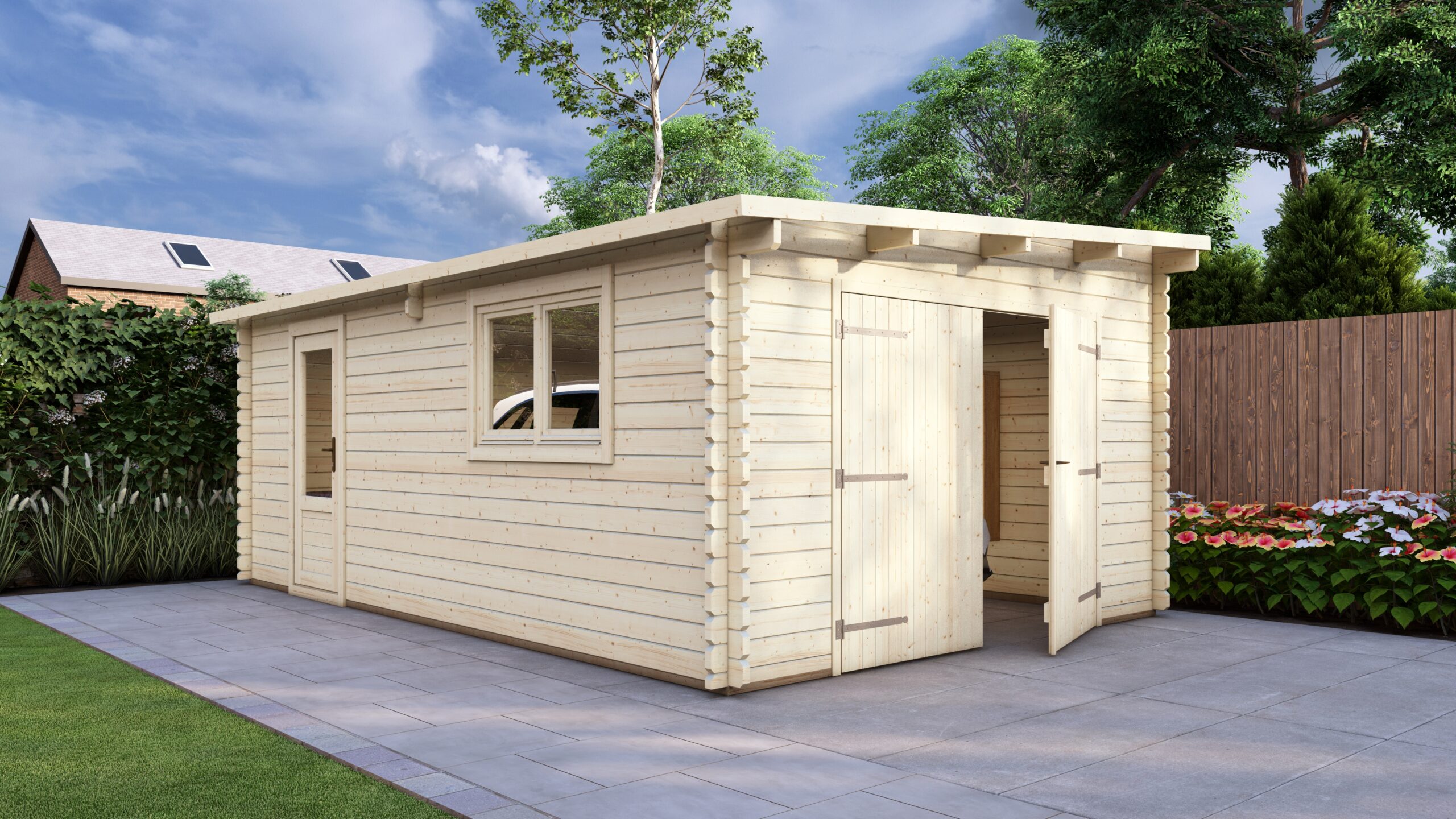

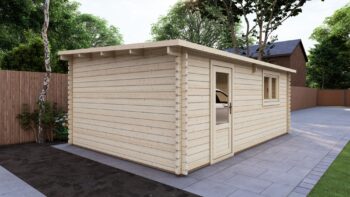

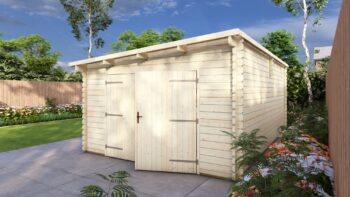

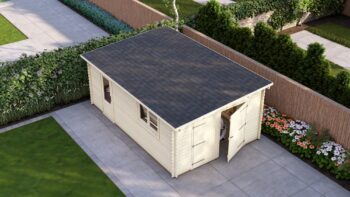

Log Garage 4x6m, Pent, 44mm

Product Overview

Contractors and property developers rely on this 4x6m pent garage for vehicle storage with security details confirmed by specification and equipment protection. The practical single-pitch design maximises internal height while maintaining straightforward installation. 44mm Northern European timber construction supports long-term assembly stability for residential and commercial applications.

Vehicle & Storage Capacity

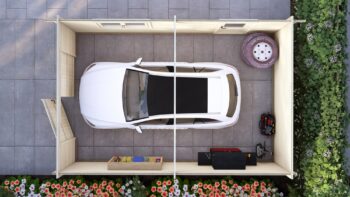

Accommodates standard cars, motorcycles, and garden machinery within its 24m² footprint. Double-glazed timber doors provide secure access while maintaining thermal specification. The 220cm eaves height delivers practical clearance for equipment storage and maintenance activities around vehicles.

Timber & Construction

Northern European timber delivers consistent density and minimal movement characteristics. 44mm wall thickness provides effective weather protection and security concerns. Strong interlocking tongue-and-groove joints create weather-sealed assembly without requiring specialised construction expertise or additional sealants.

Technical Specifications

External dimensions measure 4000x6000mm with 248cm ridge height accommodating the pent roof profile. Includes 19mm tongue-and-groove roof boards and double-glazed timber joinery throughout. Floor boards excluded, so the floor and base route is confirmed for the specific model and site.

Customisation Options

Upgrade to 70mm walls for enhanced thermal specification or specify alternative glazing configurations. Internal partition systems create separate storage zones for tools and equipment. Veranda extensions and additional window placements adapt the structure to specific site requirements and usage patterns.

Manufacturing & Delivery

Eurodita processes 150,000 m³ of timber annually. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita's standard terms are EXW from Kaunas. Our production systems accommodate both standard specifications and project-specific modifications for larger developments.

Private Label Partnership

Private-label manufacturing supports dealer and contractor brand development programmes. Complete documentation packages include branded assembly instructions and technical specifications. 3D visualisation tools and showroom display programmes enhance customer presentation capabilities for trade partners.

What should dealers confirm before quoting Log Garage 4x6m, Pent, 44mm?

Eurodita supplies Log Garage 4x6m, Pent, 44mm as a private-label B2B garage or carport product with a 4x6m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, vehicle-clearance needs, door/opening layout, roof and floor package, foundation interface, treatment or finish route, unloading access, EXW release or freight route from Kaunas, private-label documentation, and local-authority planning or site-use review requirements.

Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.

Technical data sheet

Specification recorded for Log Garage 4x6m, Pent, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

Building

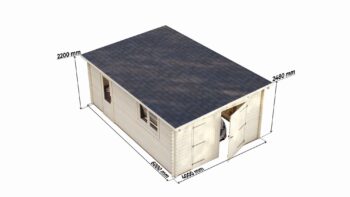

External dimensions	4 x 6 m
Eaves height	220 cm
Ridge height	248 cm
Base	External footprint 4 x 6 m. Base type and size are confirmed for the specific model and site.
Structure
Wall profile	44 x 130 mm as standard
Other wall options	Other approved solid wall profiles can be specified to suit the project and budget.
Construction	Interlocking tongue and groove joints
Timber	Northern European timber
Storm brace and anchor set	Included
Roof
Roof boards	19 mm tongue and groove boards
Doors and windows
Doors	Double-Glazed Timber Joinery, Insulated Profile
Windows	Double-Glazed Timber Joinery, Insulated Profile
Scope of these figures
Insulation	Eurodita supplies the timber structure prepared for insulation where required, not the insulation material.
Performance	These dimensions establish no thermal, fire, structural or certification performance.
