Log Garage 4x6m, Apex, 44mm
Delivery is agreed individually with each client. Markets and languages
For private buyers the supply route is confirmed project by project.
At a glance
Log Garage 4x6m, Apex is a log garage with an apex roof, supplied as a building kit. It measures 4 x 6 m externally, an external footprint of 24 m². The ridge height is 248 cm and the eaves height 210 cm. It is listed with the wooden garages.
Read the full description
Layout

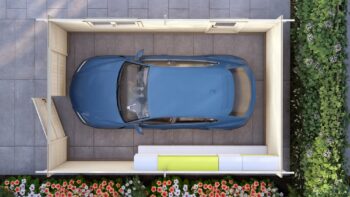

The plan drawing shows one room drawn with one car.
Walls
The wall logs are solid, of the 44 x 130 mm profile: each log is 44 mm thick and 130 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Floor
The model is supplied without a floor by default; a floor can be supplied on order.
Technical data sheet
Specification recorded for Log Garage 4x6m, Apex, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 4 x 6 m |
| External footprint area | 24 m² |
| Eaves height | 210 cm |
| Ridge height | 248 cm |
| Base | External footprint 4 x 6 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Roof | |
| Roof form | Apex |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Garden type (IV45) timber door, 5-point locking, 4-6-4 mm double glazing |
| Windows | Garden type (IV45) timber window, tilt and turn, 4-6-4 mm double glazing |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Log Garage 4x6m, Pent
| This model | Pent | |
|---|---|---|
| Eaves height | 210 cm | 220 cm |
| Roof | Apex roof | Pent roof |
Frequently asked questions
What sizes do wooden garages come in?
Single garages of 3.2 x 5.2 m and 4 x 6 m and a double garage of 6 x 6 m, plus a garage with carport of 6.61 x 5.36 m. The garages are catalogued in 28 or 44 mm wall logs; a solid log model can be made in 28, 34, 44, 58 or 70 mm. Dimensions are external.
Do you need planning permission for a wooden garage?
In England a freestanding wooden garage is assessed under Class E of the Town and Country Planning (General Permitted Development) (England) Order 2015 (S.I. 2015/596): a single storey, eaves no higher than 2.5 m, and an overall height of no more than 4 m with a dual-pitched roof, 2.5 m within 2 m of the boundary, or 3 m in any other case. Your local planning authority confirms the position.
Does a wooden garage need building regulations approval?
Under Class 6 of Schedule 2 to the Building Regulations 2010 (S.I. 2010/2214), a detached building with no sleeping accommodation is exempt up to 15 m², and a detached single-storey building with no sleeping accommodation up to 30 m² when no point of it is less than 1 m from the boundary or it is constructed substantially of non-combustible material. The single log garages are about 17 m² and 24 m², the double garages 36 m².
How do you build a wooden garage from a kit?
The kit arrives flat packed: the wall logs and components are cut at the factory, with assembly drawings. The garage is supplied without a floor by default; a floor can be supplied on order. Installation is not part of our supply. Foundations stay with the buyer's local team.
