Log Cabin Theo 5.5x4.0m, 44mm
Delivery is agreed individually with each client. Markets and languages
For private buyers the supply route is confirmed project by project.
At a glance

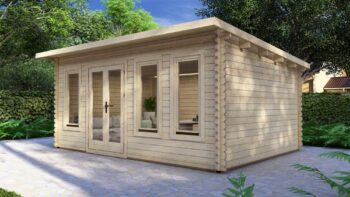

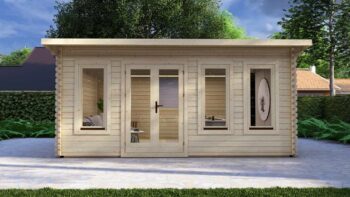

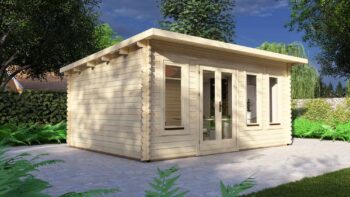

Log Cabin Theo 5.5x4.0m is a garden log cabin supplied as a building kit. It measures 5.5 x 4 m externally, an external footprint of 22 m². The ridge height is 247 cm and the eaves height 221 cm. It is listed with the garden log cabins.
Read the full description
Layout

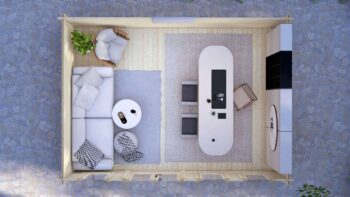

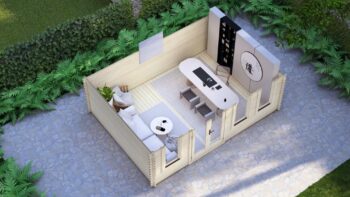

The plan drawing shows one room without inner walls.
Walls

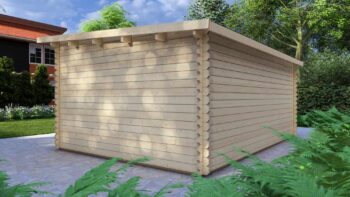

The wall logs are solid, of the 44 x 130 mm profile: each log is 44 mm thick and 130 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Log Cabin Theo 5.5x4.0m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

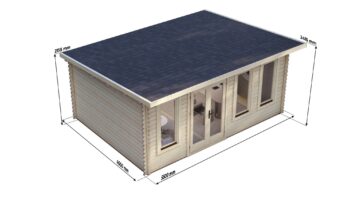

| External dimensions | 5.5 x 4 m |
| External footprint area | 22 m² |
| Eaves height | 221 cm |
| Ridge height | 247 cm |
| Base | External footprint 5.5 x 4 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |

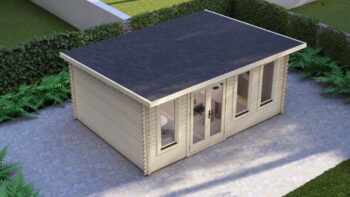

| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Garden type (IV45) timber door, 5-point locking, 4-6-4 mm double glazing |
| Windows | Garden type (IV45) timber window, tilt and turn, 4-6-4 mm double glazing |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Log Cabin Weymouth 5.5x4m
| This model | Weymouth 5.5x4m | |
|---|---|---|
| External size | 5.5 x 4 m | 5.5 x 4 m |
| External footprint | 22 m² | 22 m² |
| Ridge height | 247 cm | 240 cm |
| Eaves height | 221 cm | 214 cm |
Log Cabin Everwood 5x5.8m
| This model | Everwood 5x5.8m | |
|---|---|---|
| External size | 5.5 x 4 m | 5 x 4.3 m |
| External footprint | 22 m² | 21.5 m² |
| Ridge height | 247 cm | 273 cm |
| Eaves height | 221 cm | 234 cm |
Log Cabin With Sauna Room 5.7x3.7m
| This model | 5.7x3.7m | |
|---|---|---|
| External size | 5.5 x 4 m | 5.7 x 3.7 m |
| External footprint | 22 m² | 21.1 m² |
| Ridge height | 247 cm | 257 cm |
| Eaves height | 221 cm | 221 cm |
Frequently asked questions
Do I need planning permission for a log cabin in my garden?
In England, a garden log cabin incidental to the house can fall under Class E of the General Permitted Development Order 2015: single storey, eaves no higher than 2.5 m, height no more than 4 m with a dual-pitched roof, 2.5 m within 2 m of the boundary, or 3 m otherwise. Your local planning authority confirms the position.
How do you insulate a garden log cabin?
The structure of a Eurodita garden log cabin is prepared, where required, for insulation sourced locally; insulation material is not supplied as standard. The twin skin range offers the other route: garden cabins whose walls are two log skins with a cavity for insulation. Published U-values describe the timber wall element alone and are not a compliance result.
Can Eurodita modify standard garden cabin designs?
Yes. Eurodita can review garden cabin changes such as footprint, roof height, door position, window layout or wall profile where technically suitable. Dealers should send the brief before quoting. Feasibility, pricing, production drawings, documentation scope and lead time are confirmed at quotation stage.
