Log Cabin Everwood 5×5.8m, 44mm
Technical data sheet
Specification recorded for Log Cabin Everwood 5x5.8m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 5 x 4.3 m |
| Terrace | 1.5 m, in addition to the building's external dimensions |

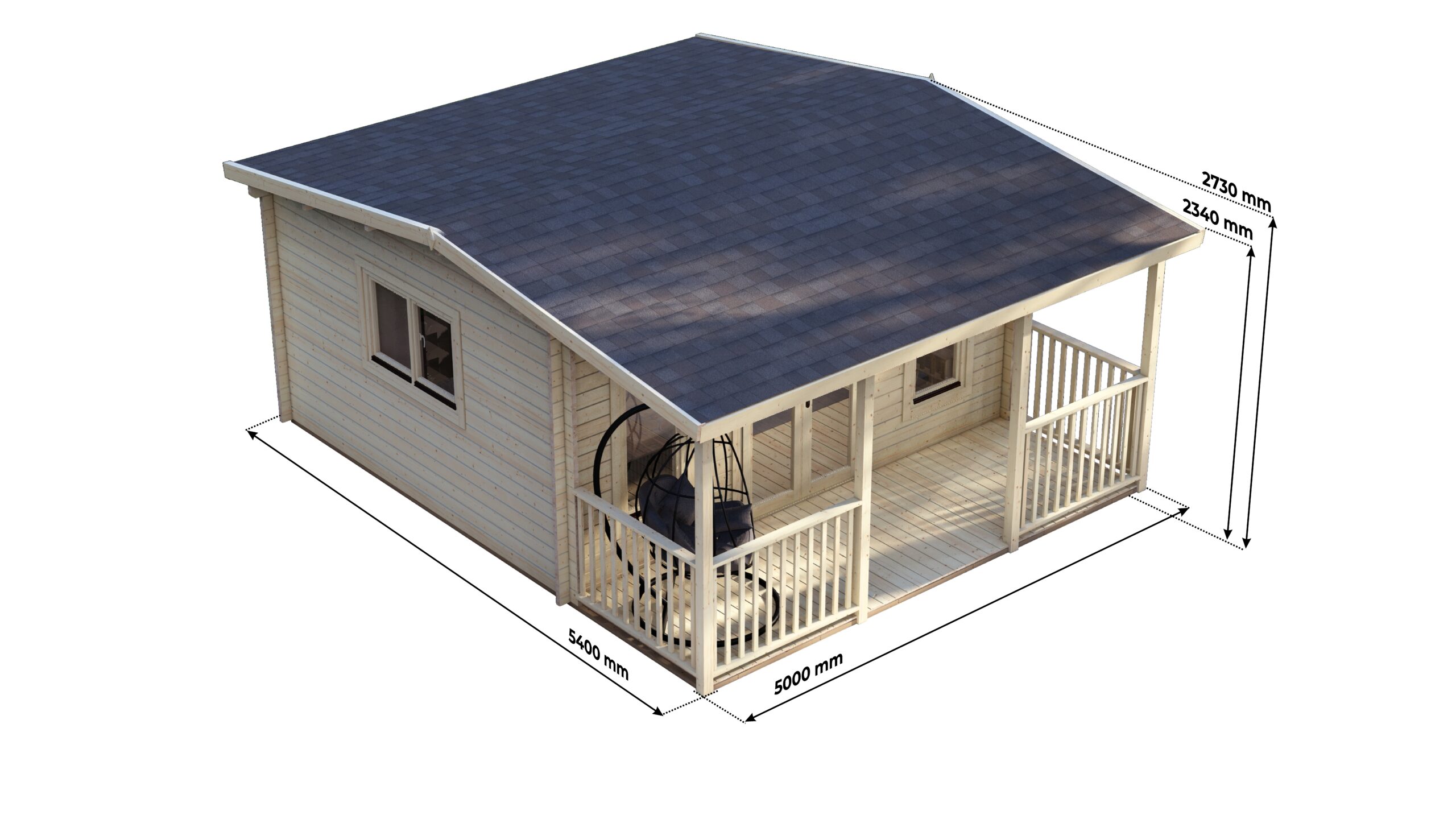

| Eaves height | 234 cm |
| Ridge height | 273 cm |
| Storeys | 1 |
| Base | External footprint 5 x 4.3 m, with the 1.5 m terrace in addition. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 5 x 4.3 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the garden log cabins range.
About This Log Cabin Everwood 5×5.8m, 44mm
Product Overview
The Everwood cabin suits contractors seeking reliable garden-building solutions for private-property clients. This 5x4.3m structure incorporates an integrated 1.5m terrace, creating versatile covered outdoor area. Northern European timber construction with 44mm wall thickness delivers effective thermal specification for extended-season use where the final specification and local review support it across European markets.
Layout & Configuration

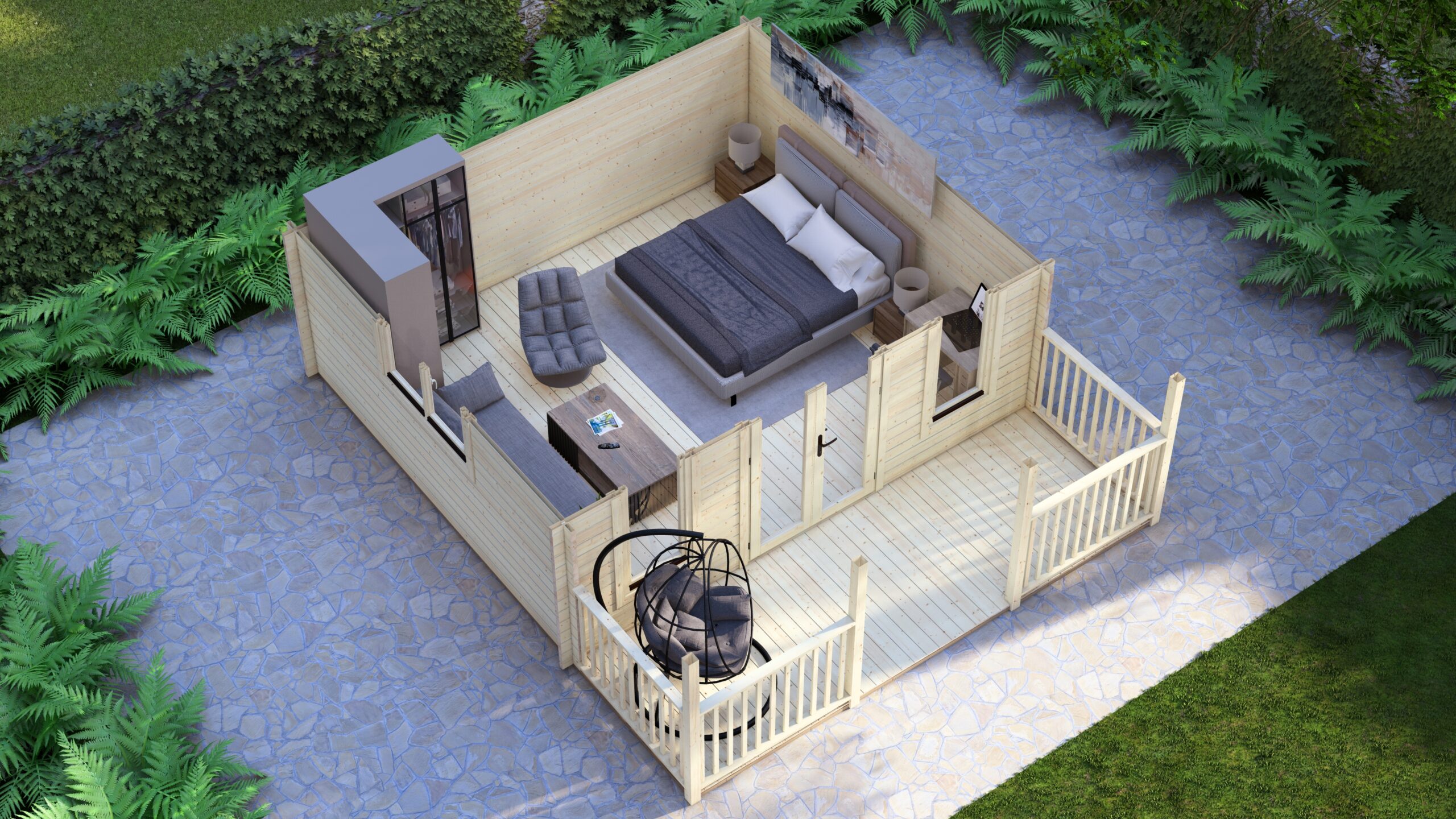

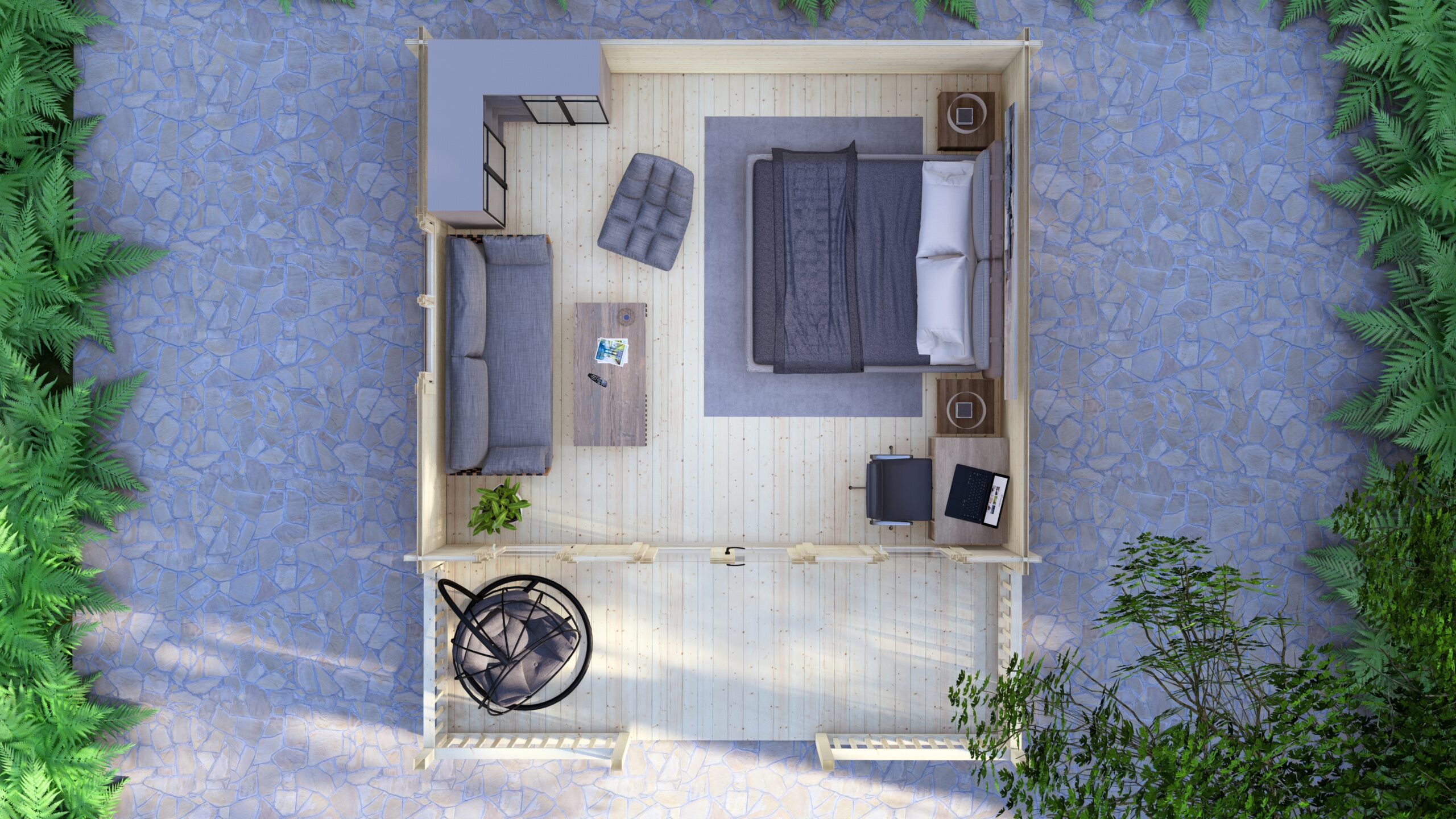

Single-room configuration maximises usable floor area within the 5x4.3m footprint. The attached terrace extends internal floor area outdoors, while 234cm eaves height and 273cm ridge height create comfortable interior proportions. Standard door and window placement allows flexible furniture arrangement for diverse applications.
Timber & Construction
Northern European timber logs feature precision-milled interlocking tongue-and-groove joints for project-specific thermal retention. 44mm wall thickness provides effective insulation properties while maintaining structural stability. Double-glazed timber joinery throughout supports consistent energy-related specification and weather resistance for demanding climates.
Floor & Roof
Robust 28mm floor boards rest on pressure-treated bearers for long-term stability and moisture protection. The roof system incorporates 19mm tongue-and-groove boards with integrated storm bracing. This construction methodology supports assembly stability while facilitating efficient site assembly for installation teams.
Customisation Options
Wall-thickness and insulation upgrades are confirmed at quotation stage for the product family, target use and destination-market review. Alternative glazing configurations and interior partition systems accommodate specific client requirements, and the structure can be prepared for insulation sourced locally. Terrace extensions and alternative roofing materials expand design possibilities for diverse applications.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita standard terms are EXW from the Eurodita factory. Bespoke modification capability accommodates specific dimensional or specification requirements while maintaining consistent quality standards throughout production runs.
Private Label Partnership
Private-label manufacturing services include branded documentation packages and customised product specifications. 3D visualisation support and showroom display programmes help partners present solutions effectively. Technical drawings and installation guides maintain your brand identity throughout the customer experience.
What should dealers confirm before quoting Log Cabin Everwood 5×5.8m, 44mm?
Eurodita supplies Log Cabin Everwood 5×5.8m, 44mm as a private-label B2B garden cabin with a 5x4.3m + 1.5m Terrace footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, wall profile, glazing/openings, roof and floor options, finish or treatment route, packaging, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
B2B Order Framework
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Private-label scope
Branding on packaging and documents, agreed per order.
Production planning
Production scope confirmed in the written quotation.
Commercial terms
Price, quantity and payment quoted per order.
Technical documents
Drawings and specifications listed in the order documentation.
Configuration review
Dimensions, openings and wall profile reviewed before quotation.
Dispatch terms
EXW Eurodita factory as standard; delivered options per market and order.
How a B2B Order Moves Forward
Each step is confirmed in writing for the specific order. See Reading a Eurodita quotation.

Specification

Manufacturing scope

Checking and packing
