Log Cabin Matthew 7x4m, 58mm
Delivery is agreed individually with each client. Markets and languages
For private buyers the supply route is confirmed project by project.
At a glance

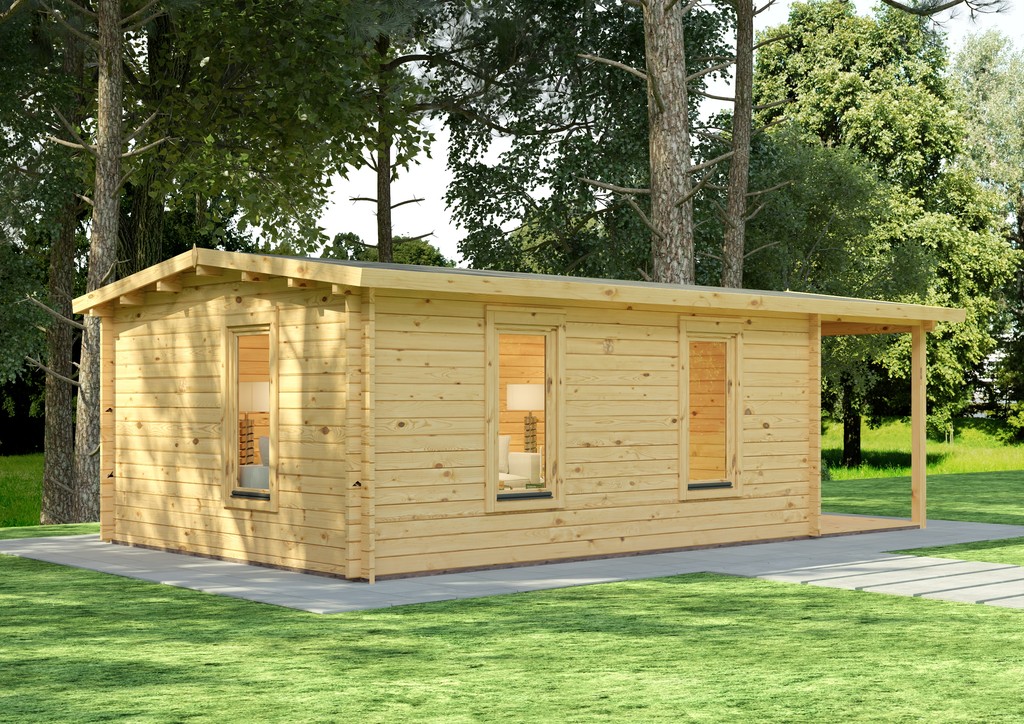

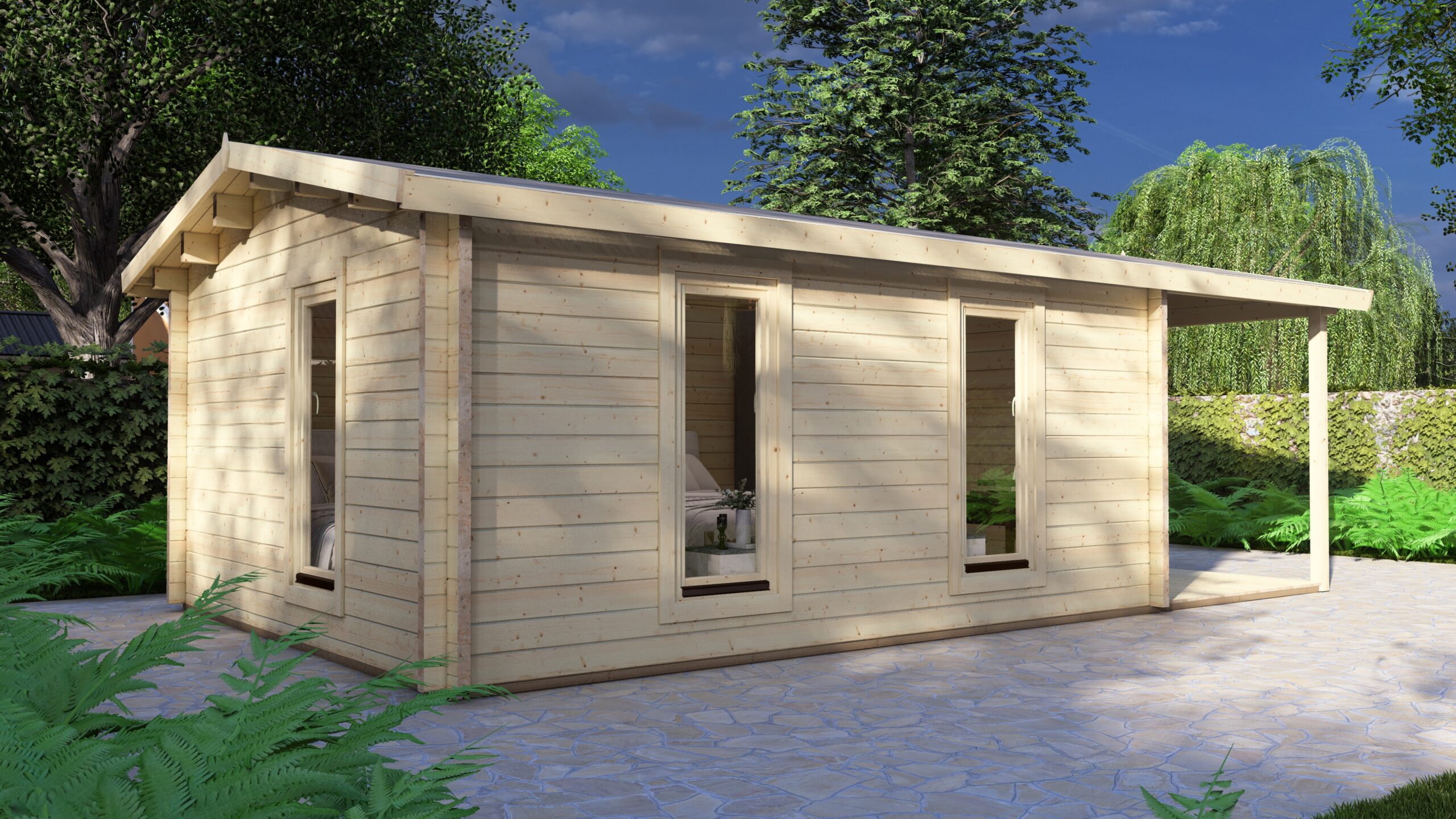

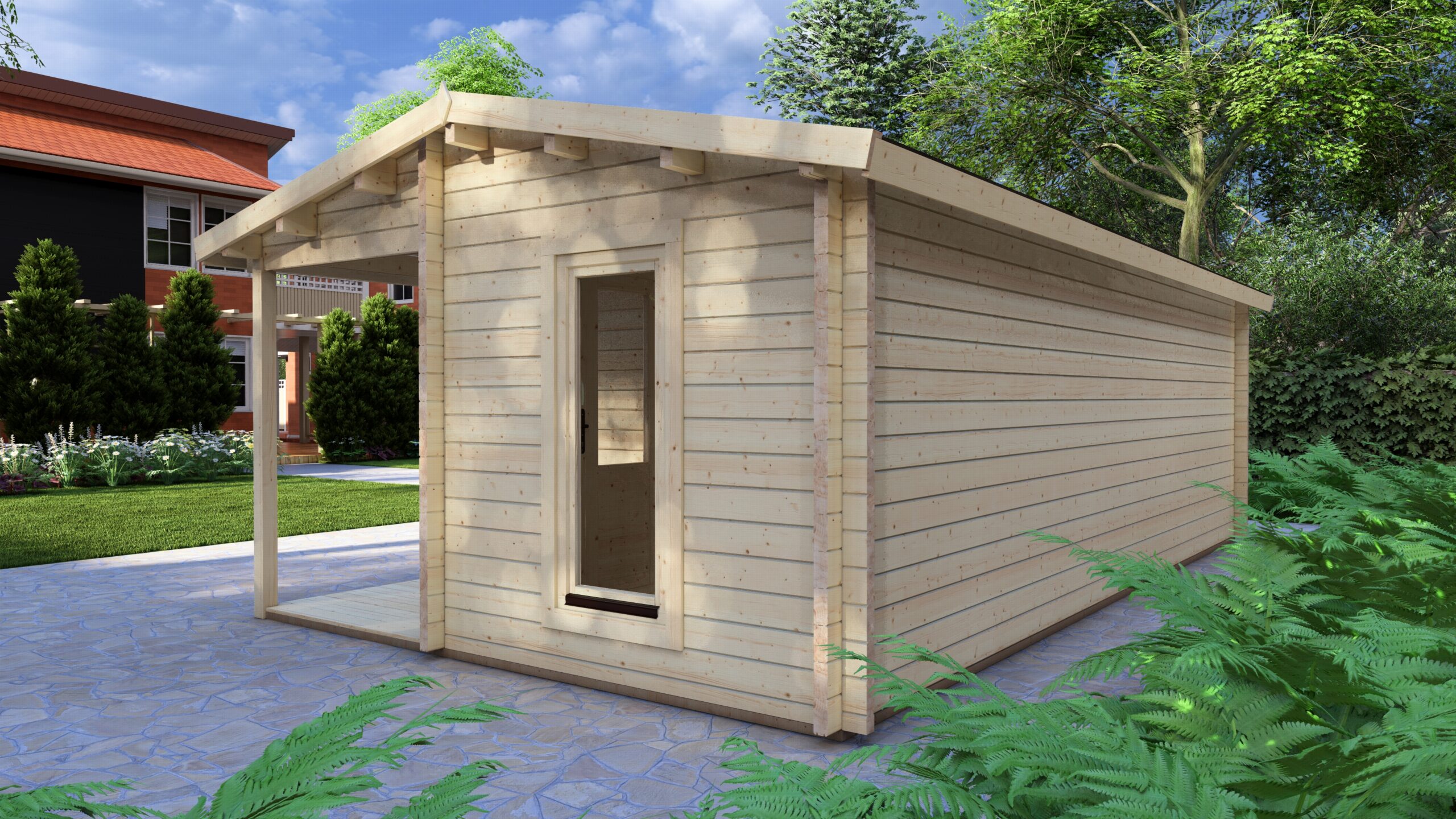

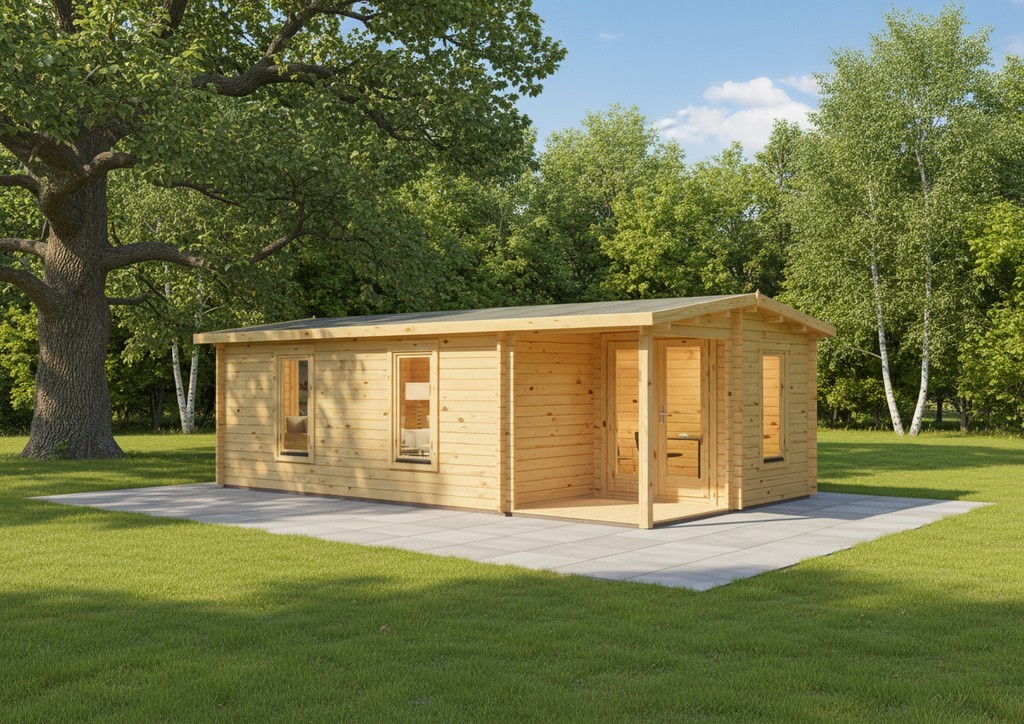

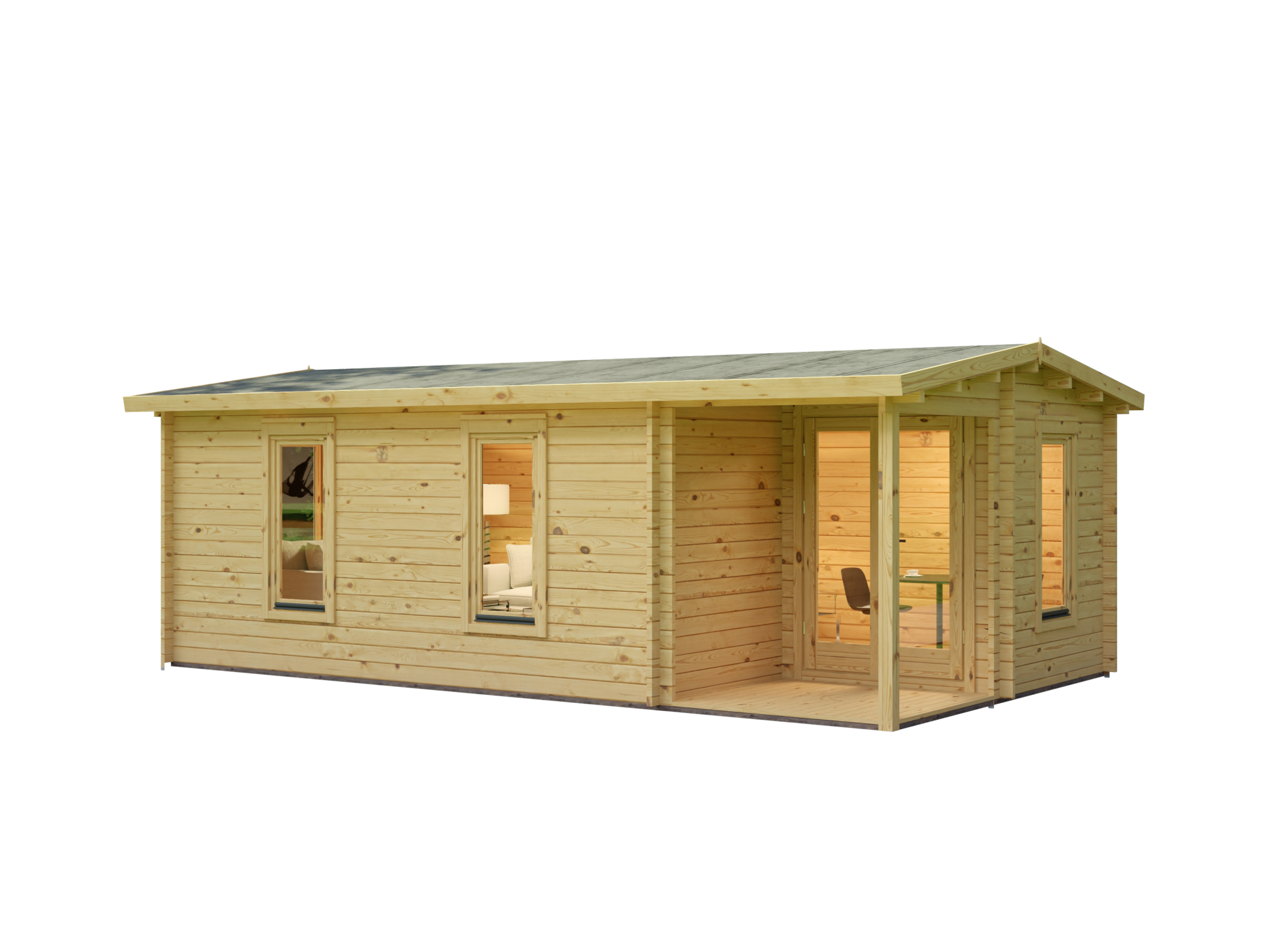

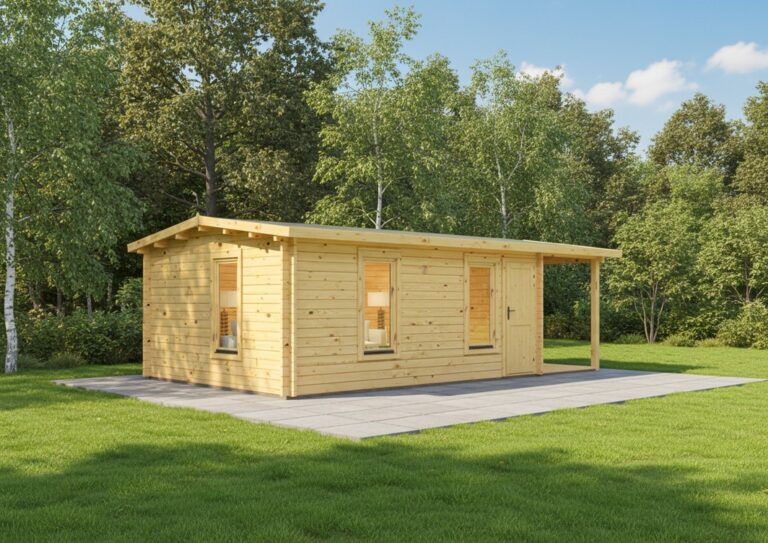

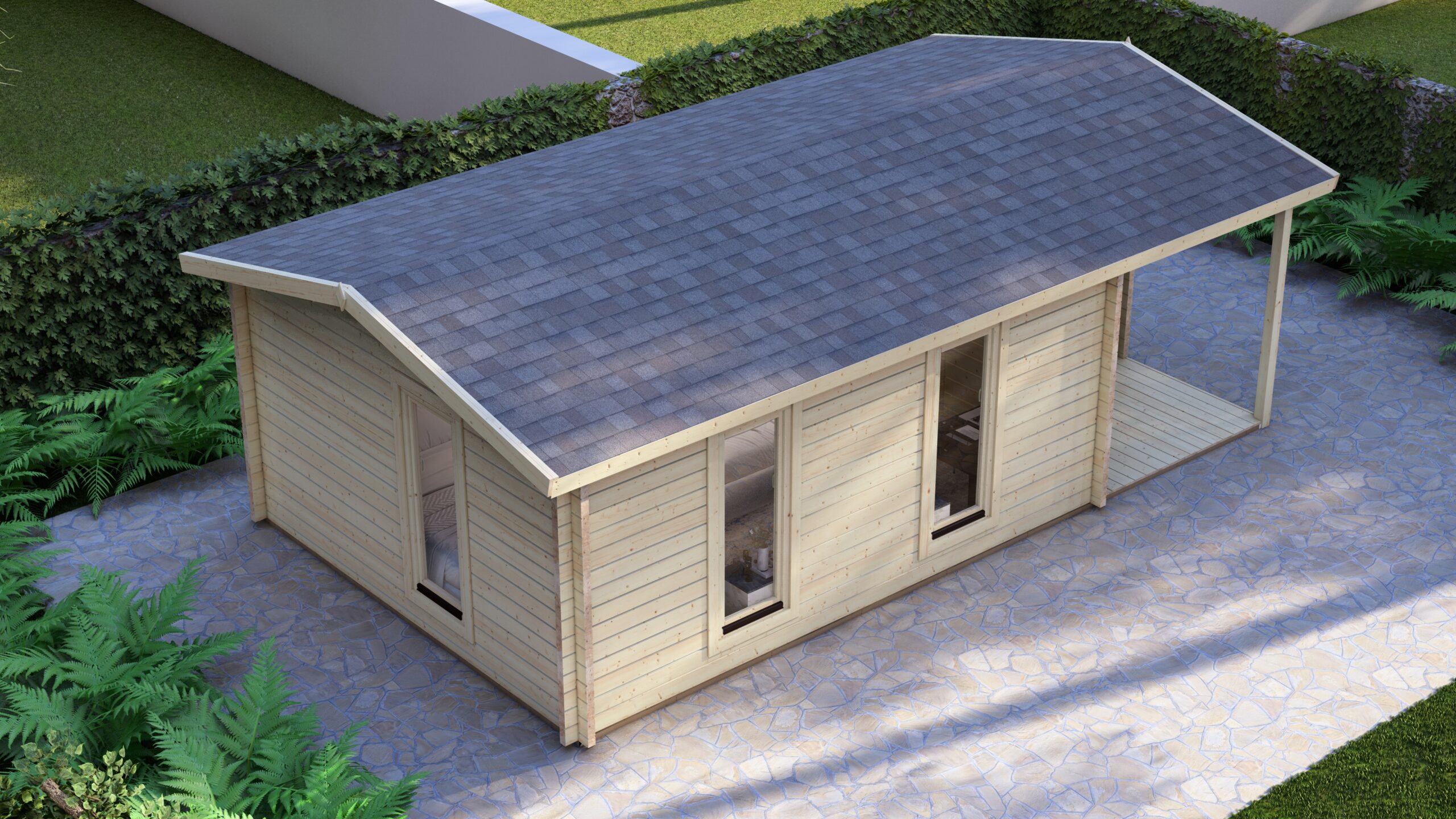

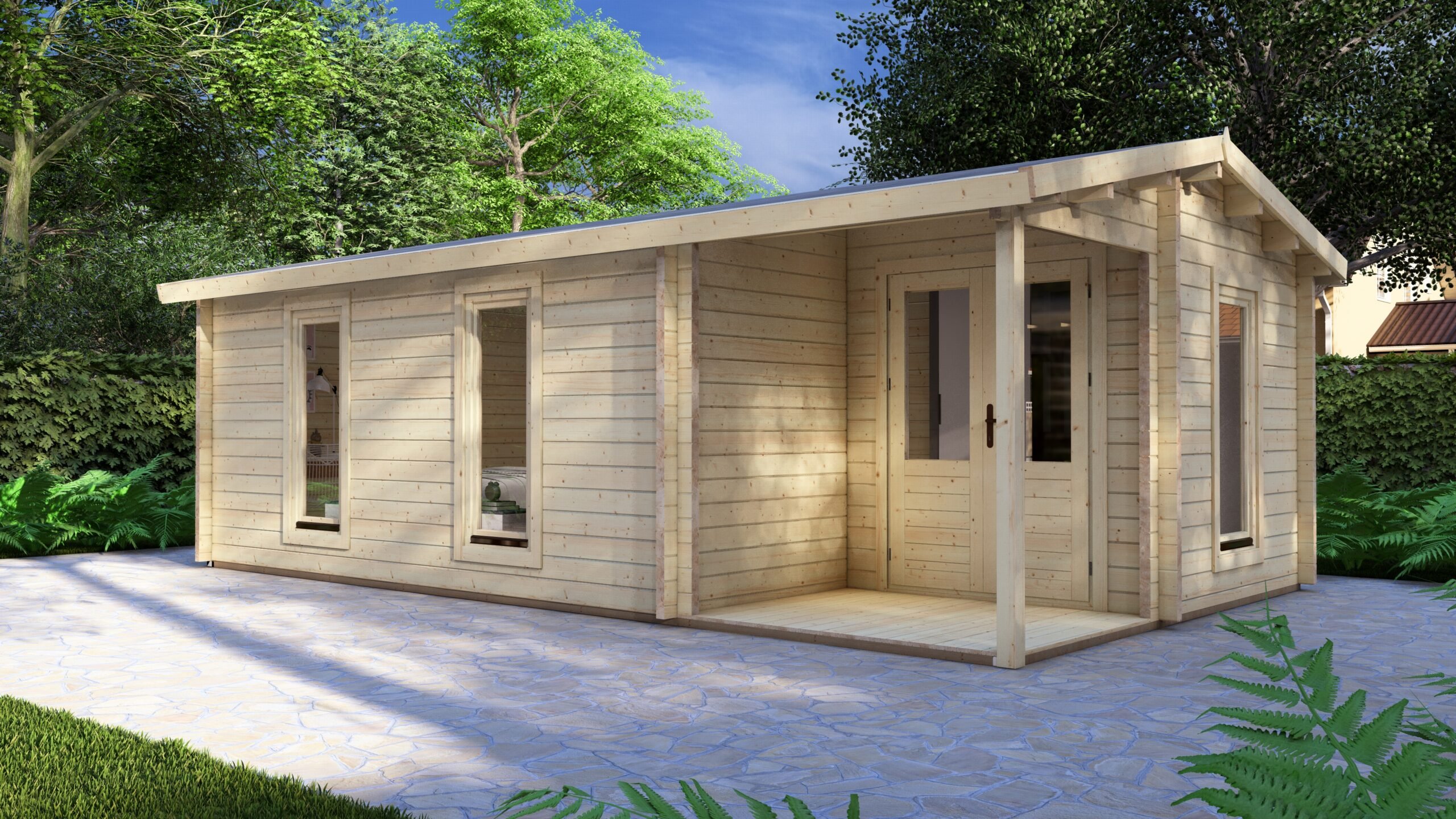

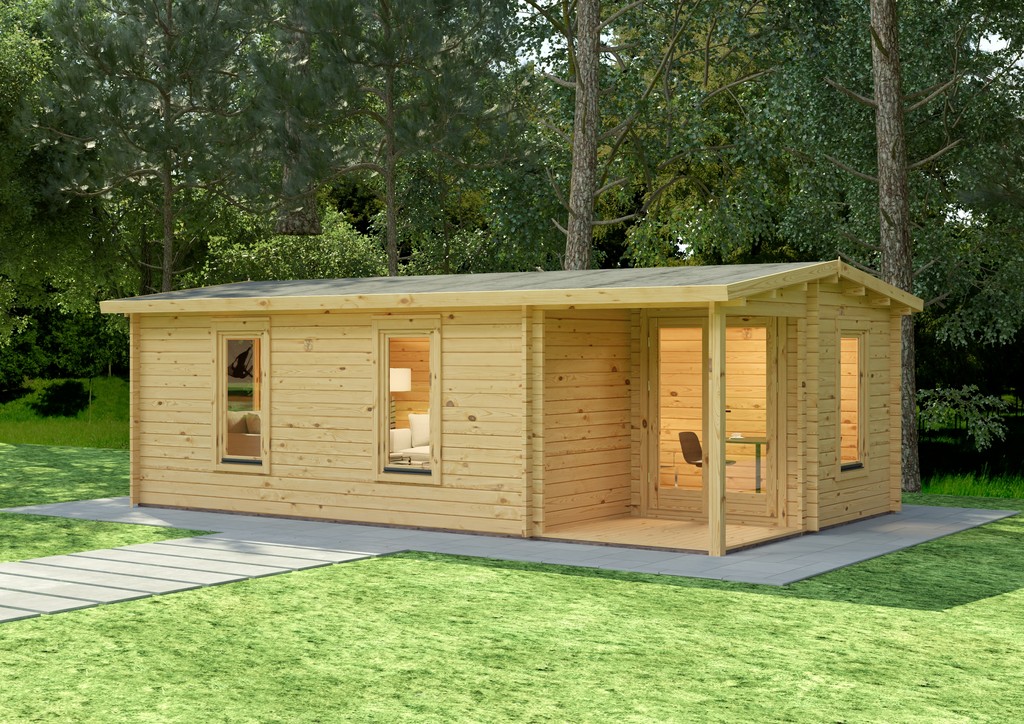

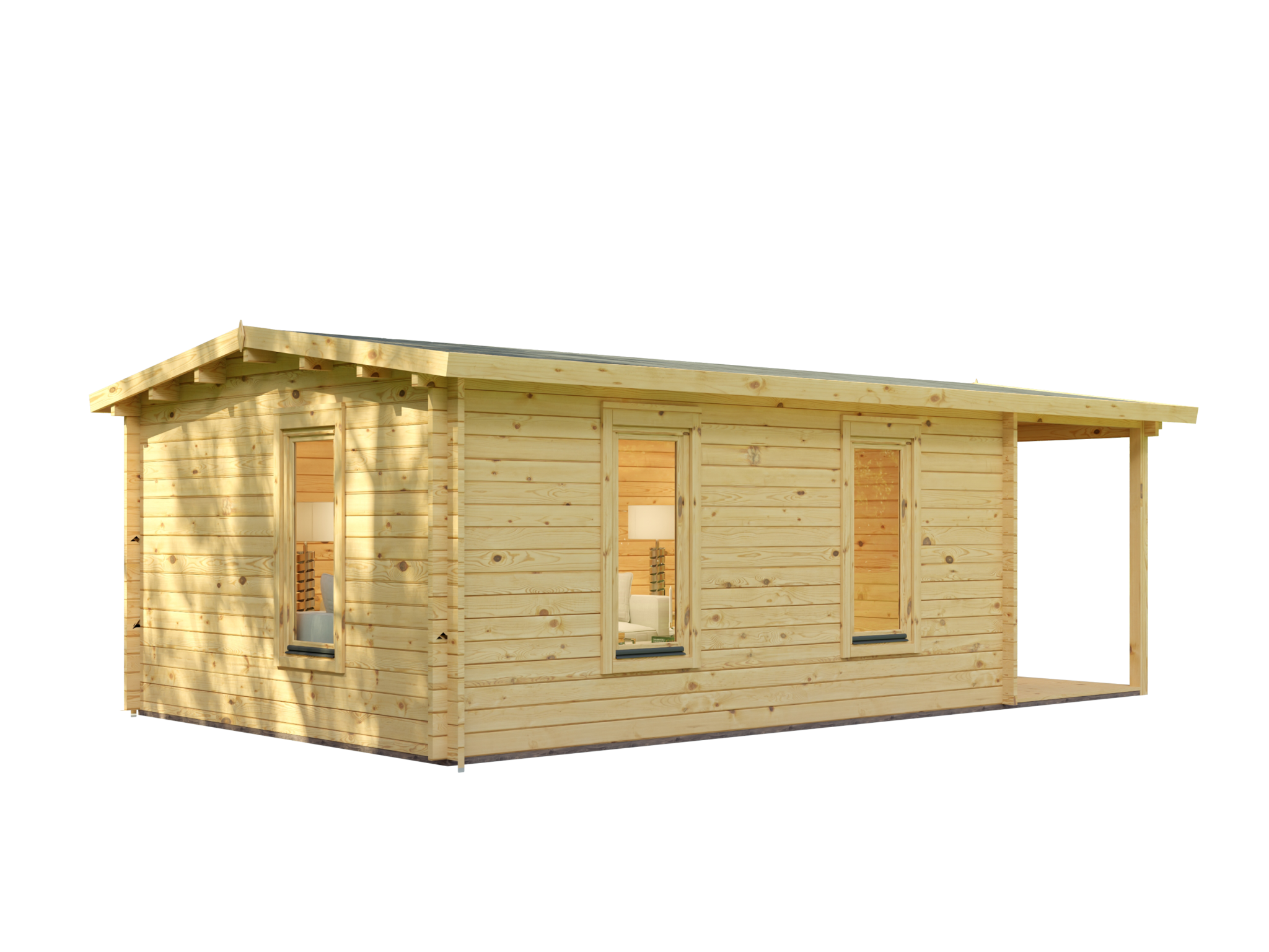

Log Cabin Matthew 7x4m is a garden log cabin supplied as a building kit. It measures 7 x 4 m externally, an external footprint of 28 m². The ridge height is 253 cm and the eaves height 209 cm. It has one storey. It is listed with the garden offices.
Read the full description
Layout

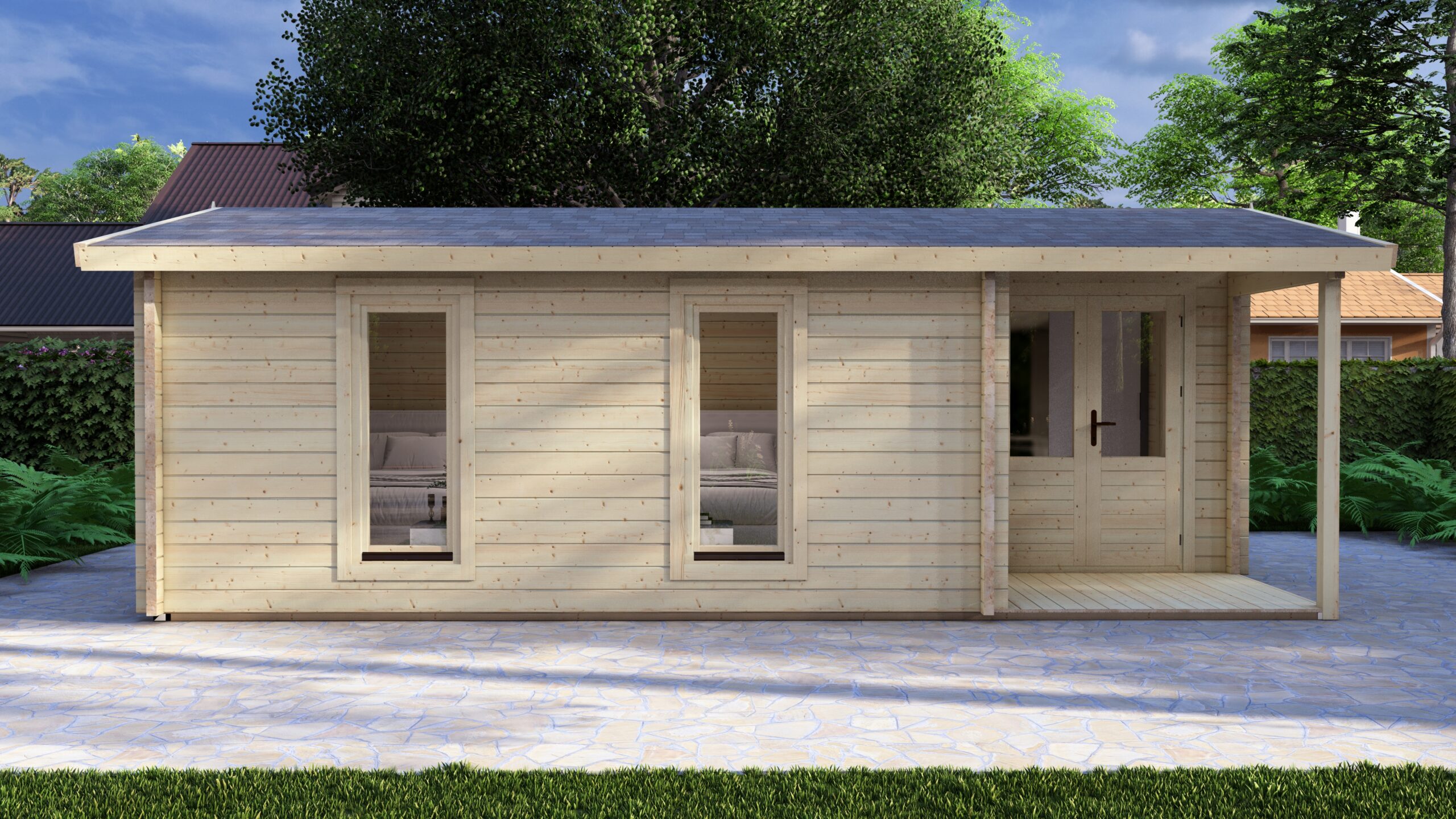

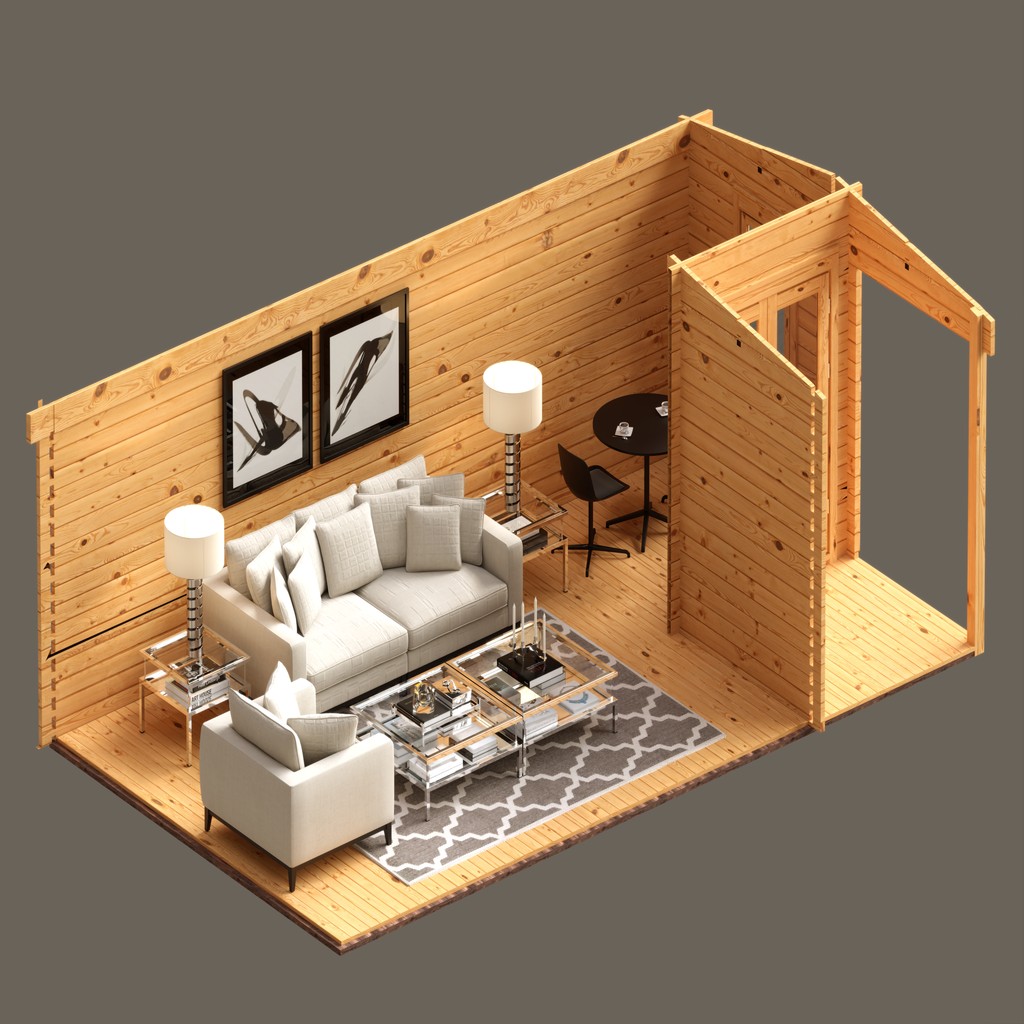

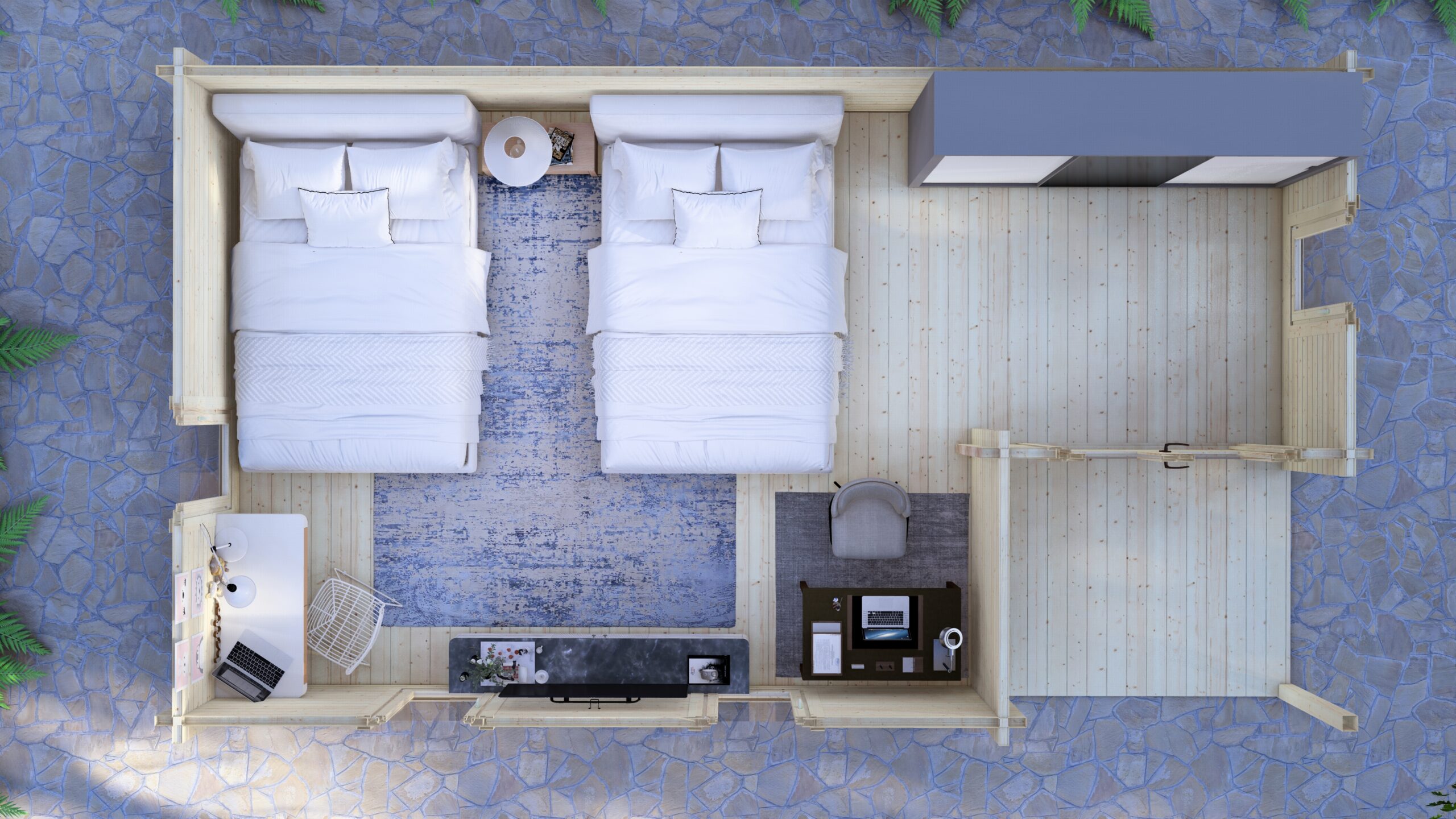

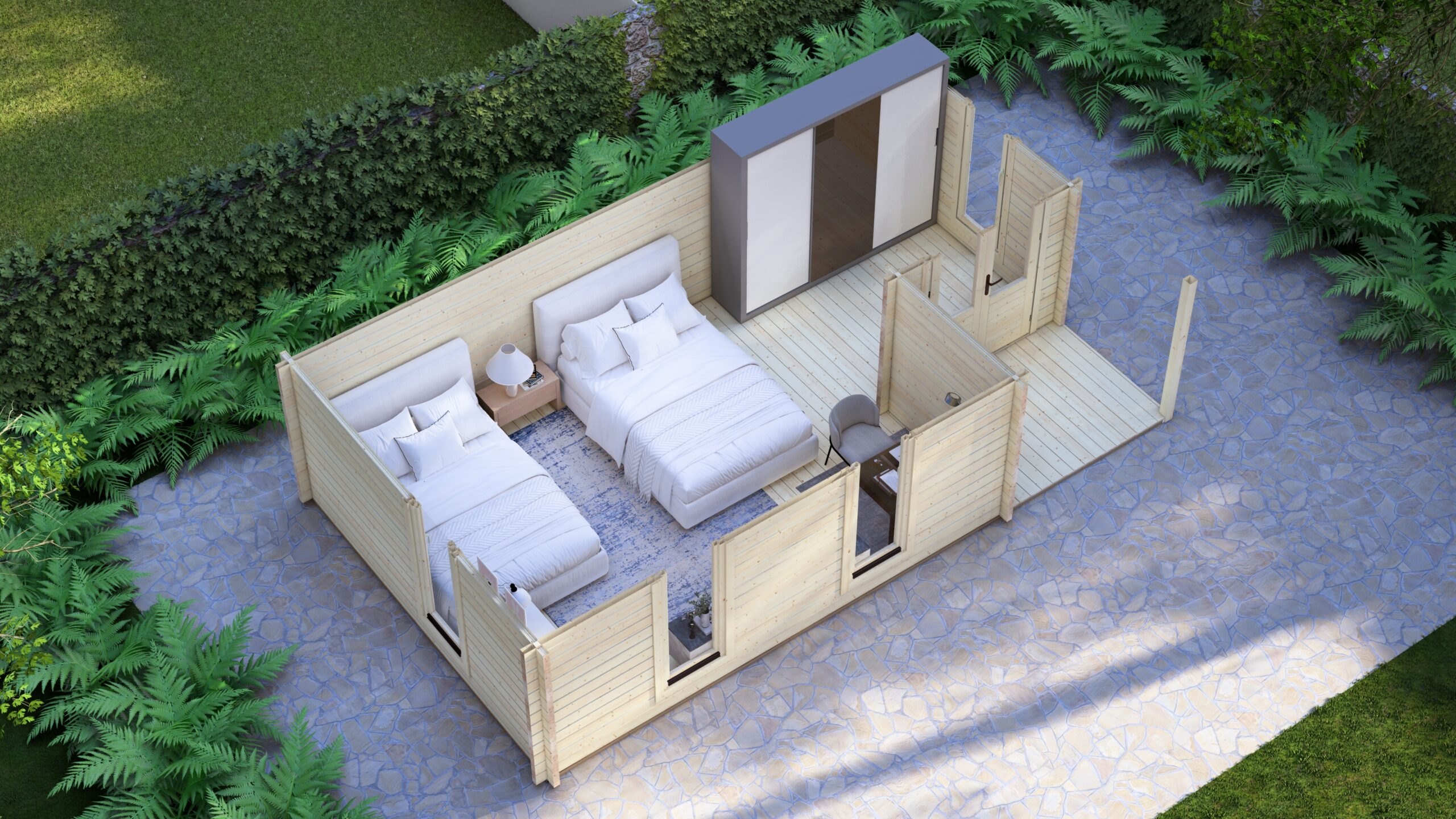

The plan drawing shows one L-shaped room. It also shows a porch in the inner corner.
Walls
The wall logs are solid, of the 58 x 130 mm profile: each log is 58 mm thick and 130 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Log Cabin Matthew 7x4m, 58mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 7 x 4 m |
| External footprint area | 28 m² |
| Eaves height | 209 cm |
| Ridge height | 253 cm |
| Storeys | 1 |
| Base | External footprint 7 x 4 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 58 x 130 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Garden type (IV45) timber door, 5-point locking, 4-6-4 mm double glazing |
| Windows | Garden type (IV45) timber window, tilt and turn, 4-6-4 mm double glazing |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
The kit is supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Log Cabin Archie 4.4x5.4m
| This model | Archie 4.4x5.4m | |
|---|---|---|
| External size | 7 x 4 m | 4.4 x 5.4 m |
| External footprint | 28 m² | 23.8 m² |
| Ridge height | 253 cm | 247 cm |
| Eaves height | 209 cm | 221 cm |
