Modern Log Cabin 6x4m, Alu Sliding Doors, Pent Roof
Delivery is agreed individually with each client. Markets and languages
For private buyers the supply route is confirmed project by project.
At a glance

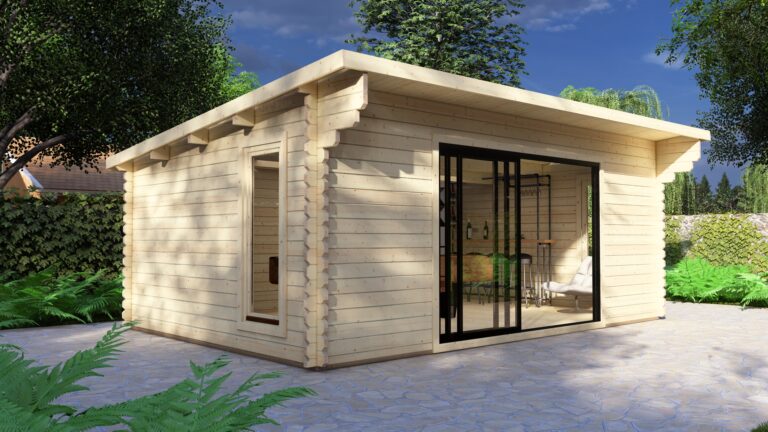

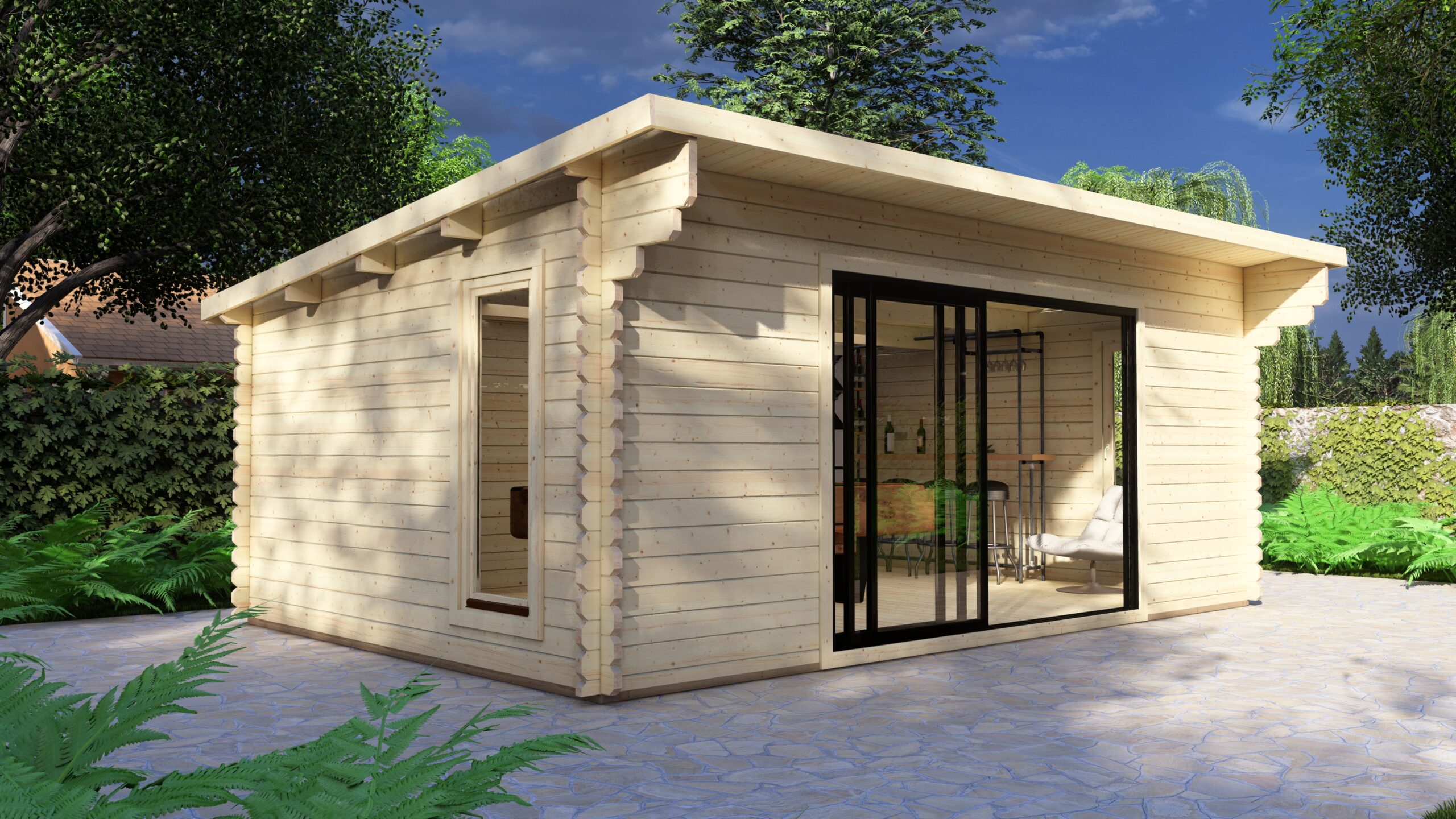

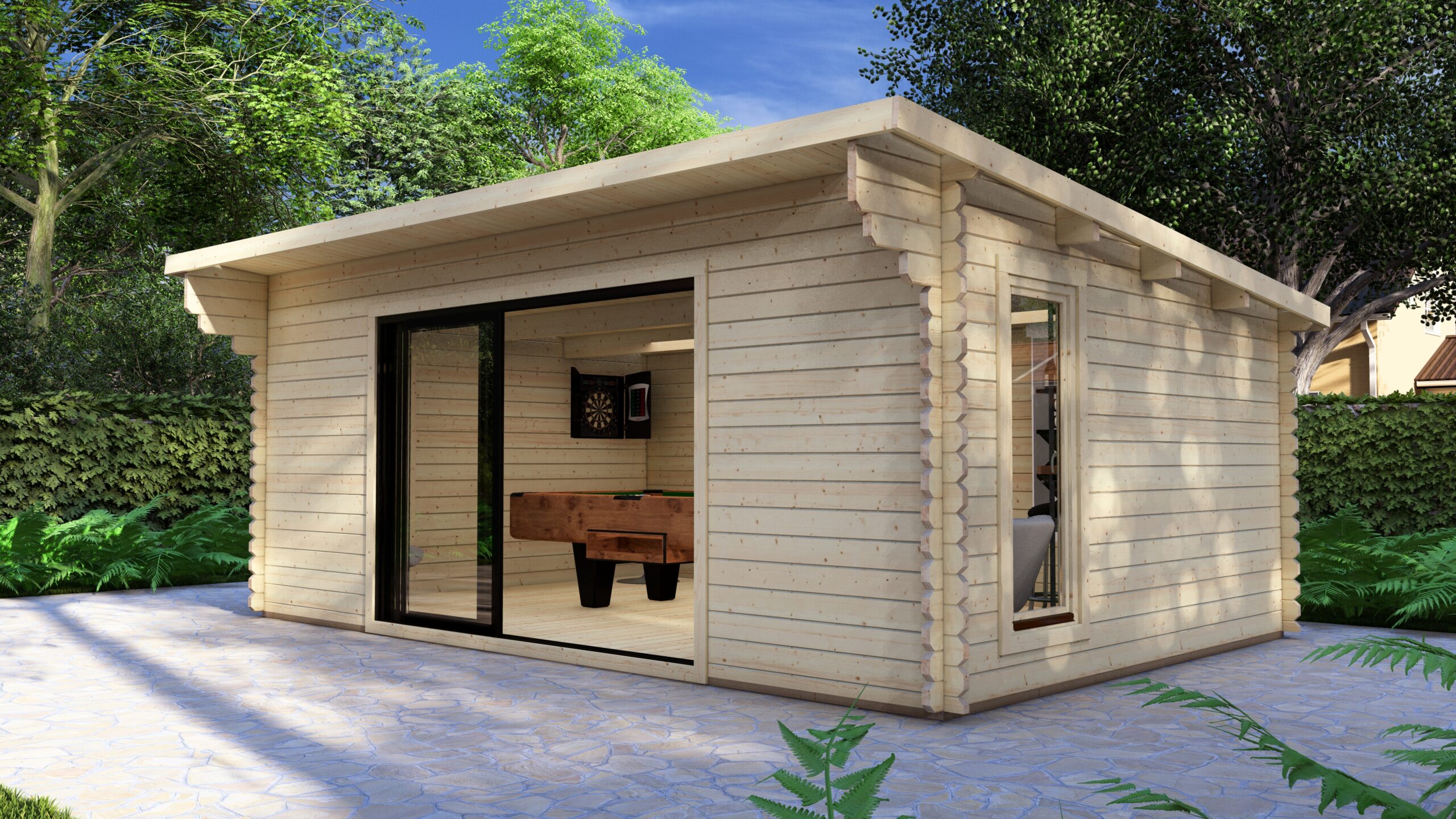

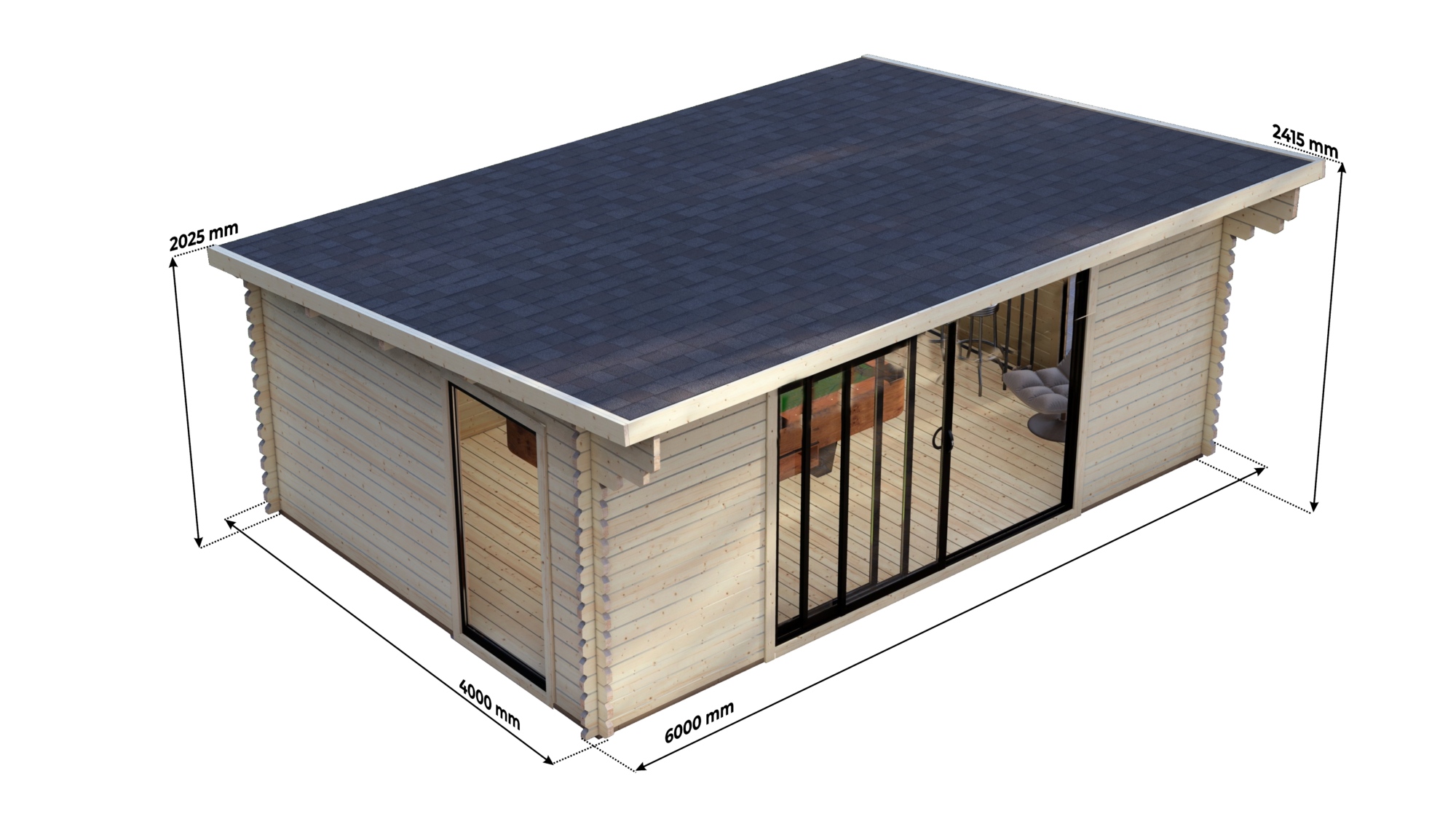

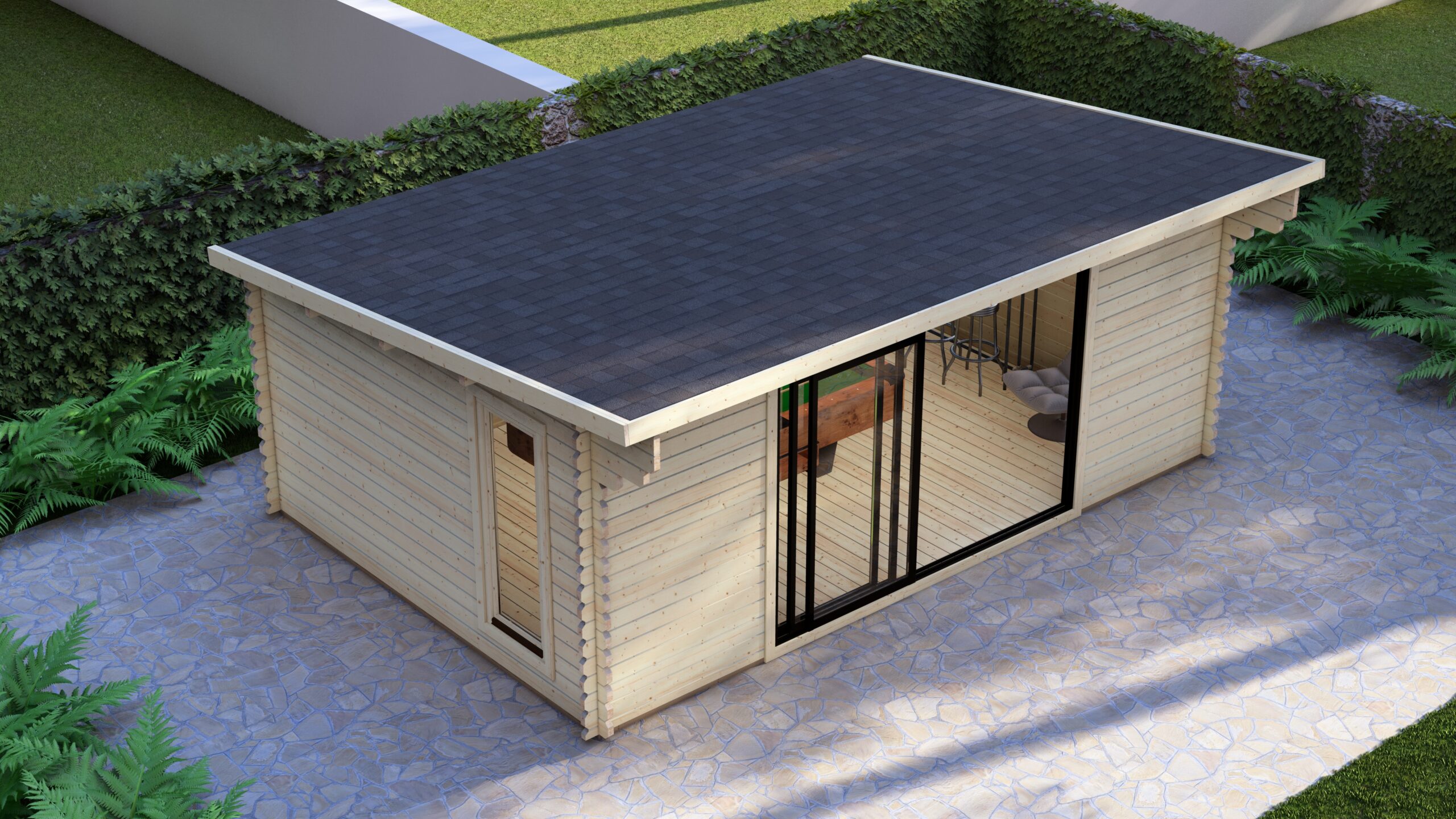

Modern Log Cabin 6x4m, Alu Sliding Doors, Pent Roof is a log cabin with aluminium sliding doors and a pent roof, supplied as a building kit. It measures 6 x 4 m externally, an external footprint of 24 m². The ridge height is 241 cm and the eaves height 202 cm. It is listed with the modern log cabins with aluminium sliding doors.
Read the full description
Layout

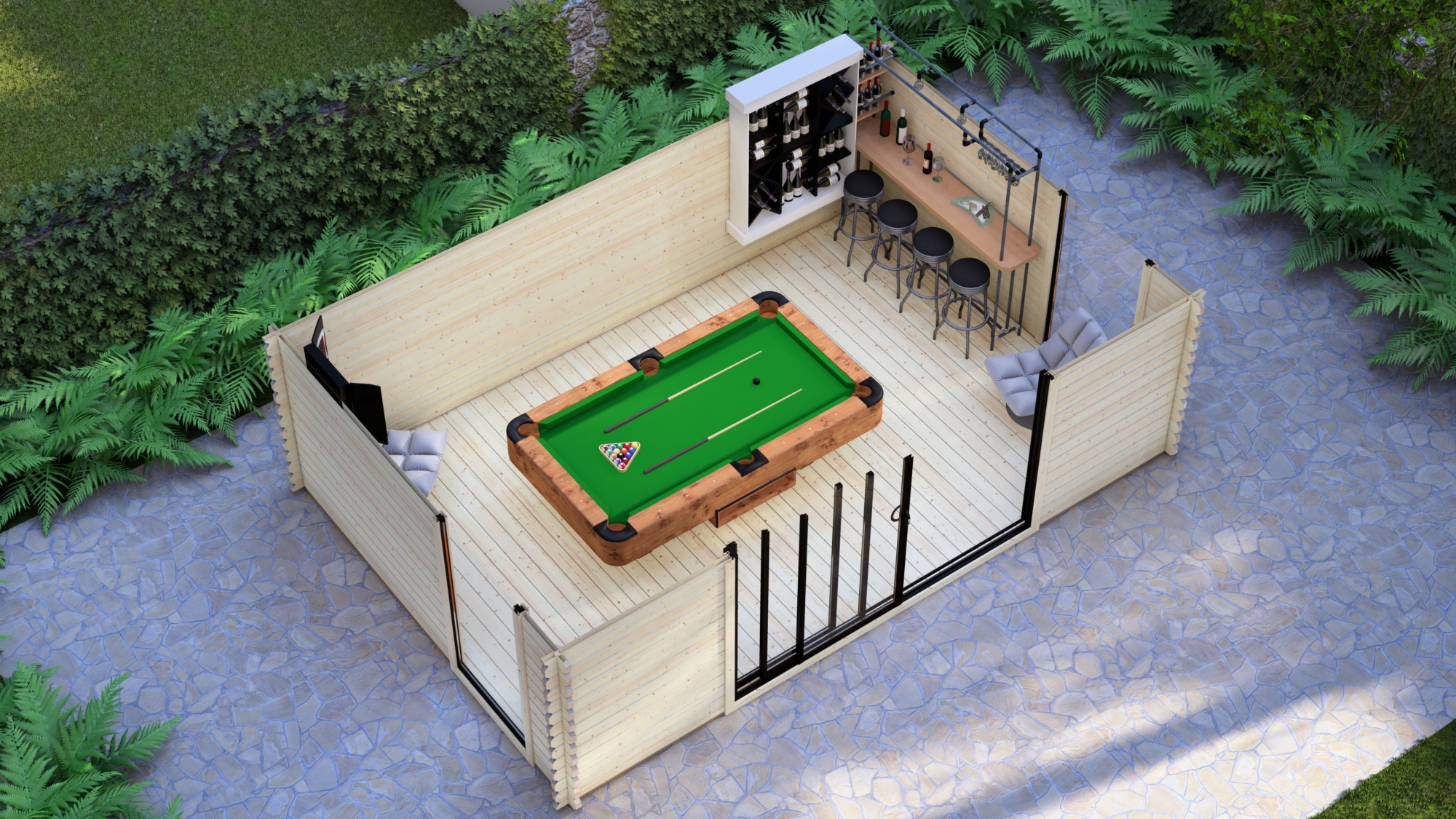

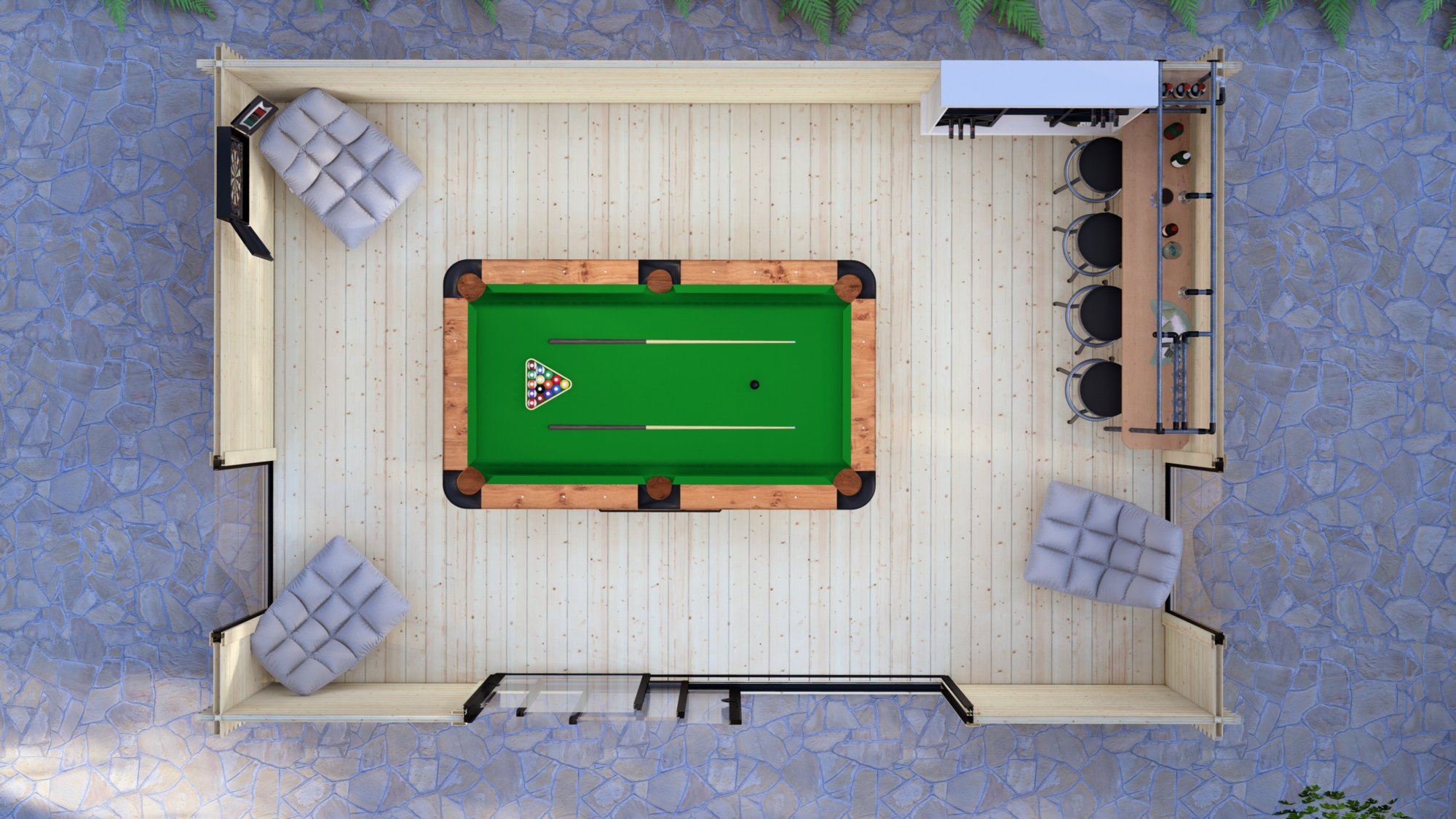

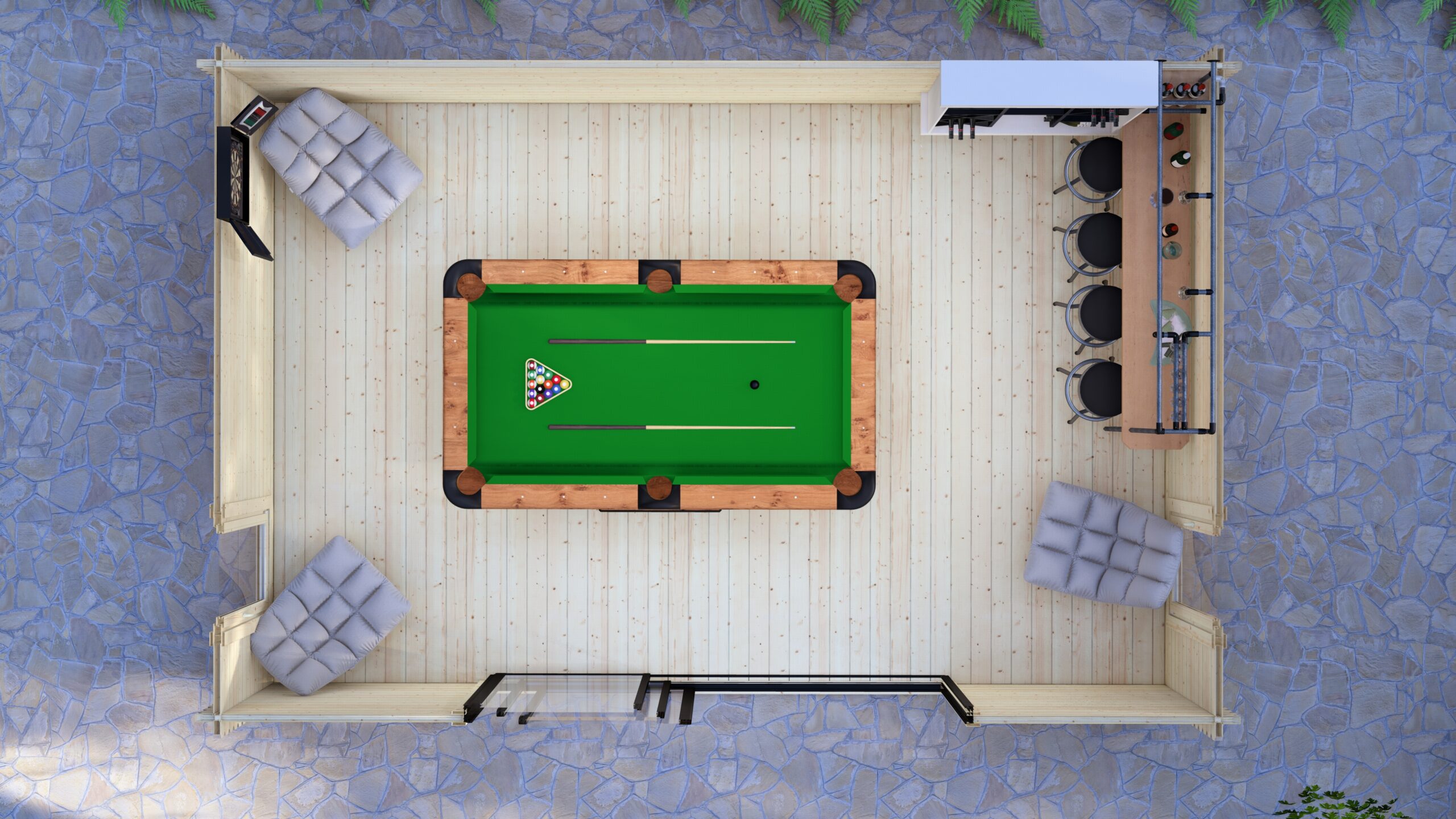

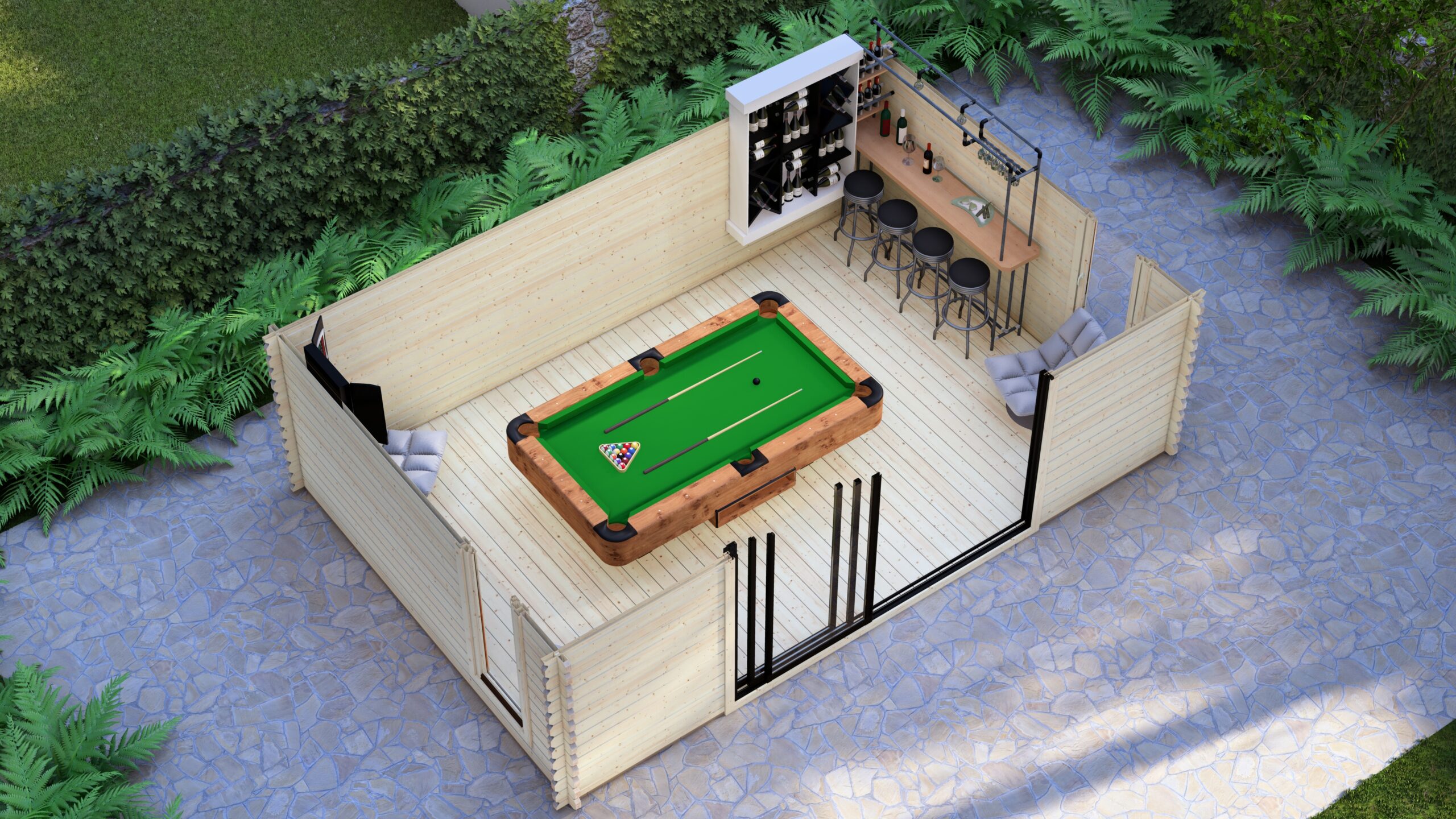

The plan drawing shows one room without inner walls.
Walls

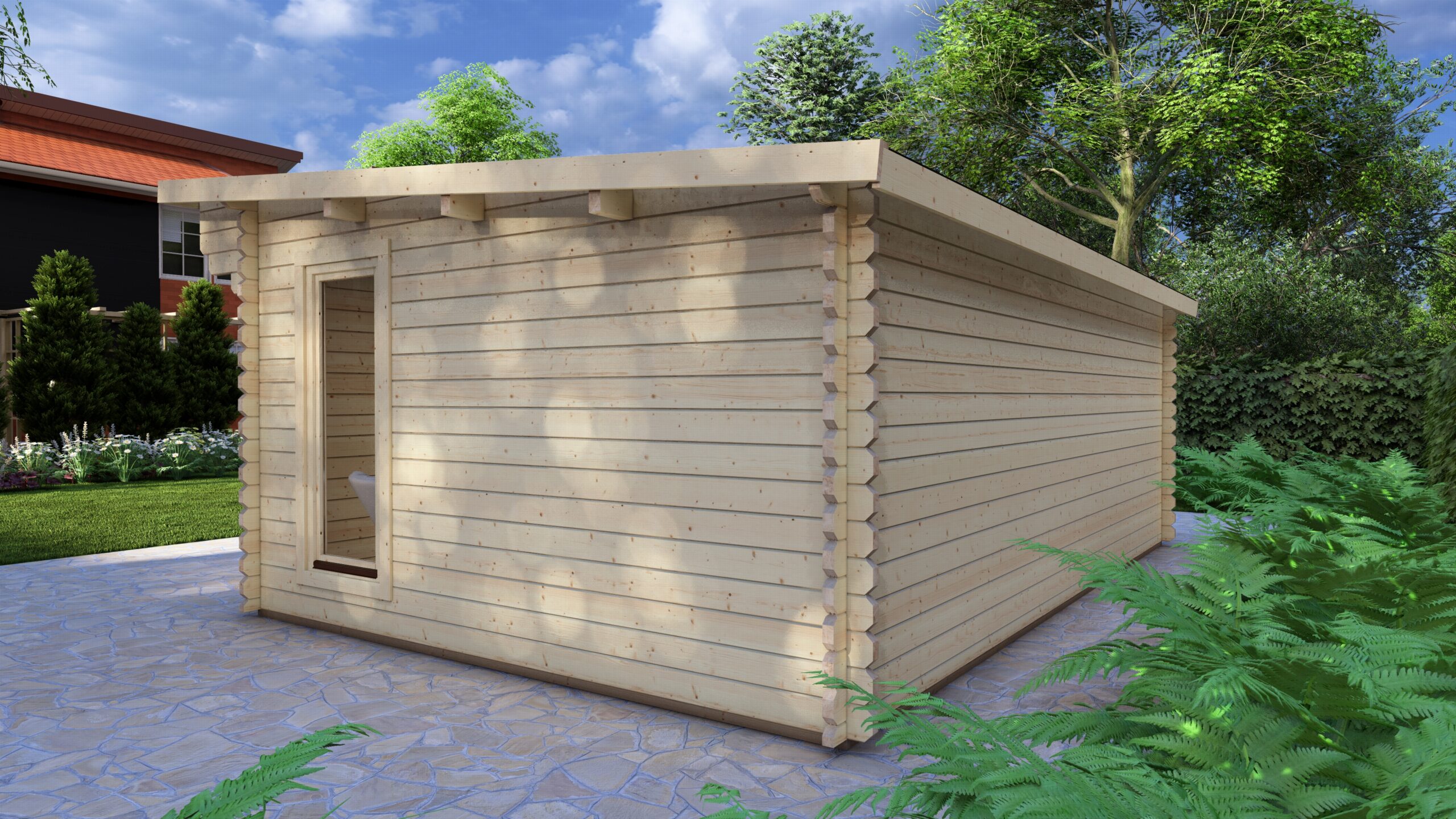

The wall logs are solid, of the 44 x 130 mm profile: each log is 44 mm thick and 130 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
Windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Modern Log Cabin 6x4m, Alu Sliding Doors, Pent Roof. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

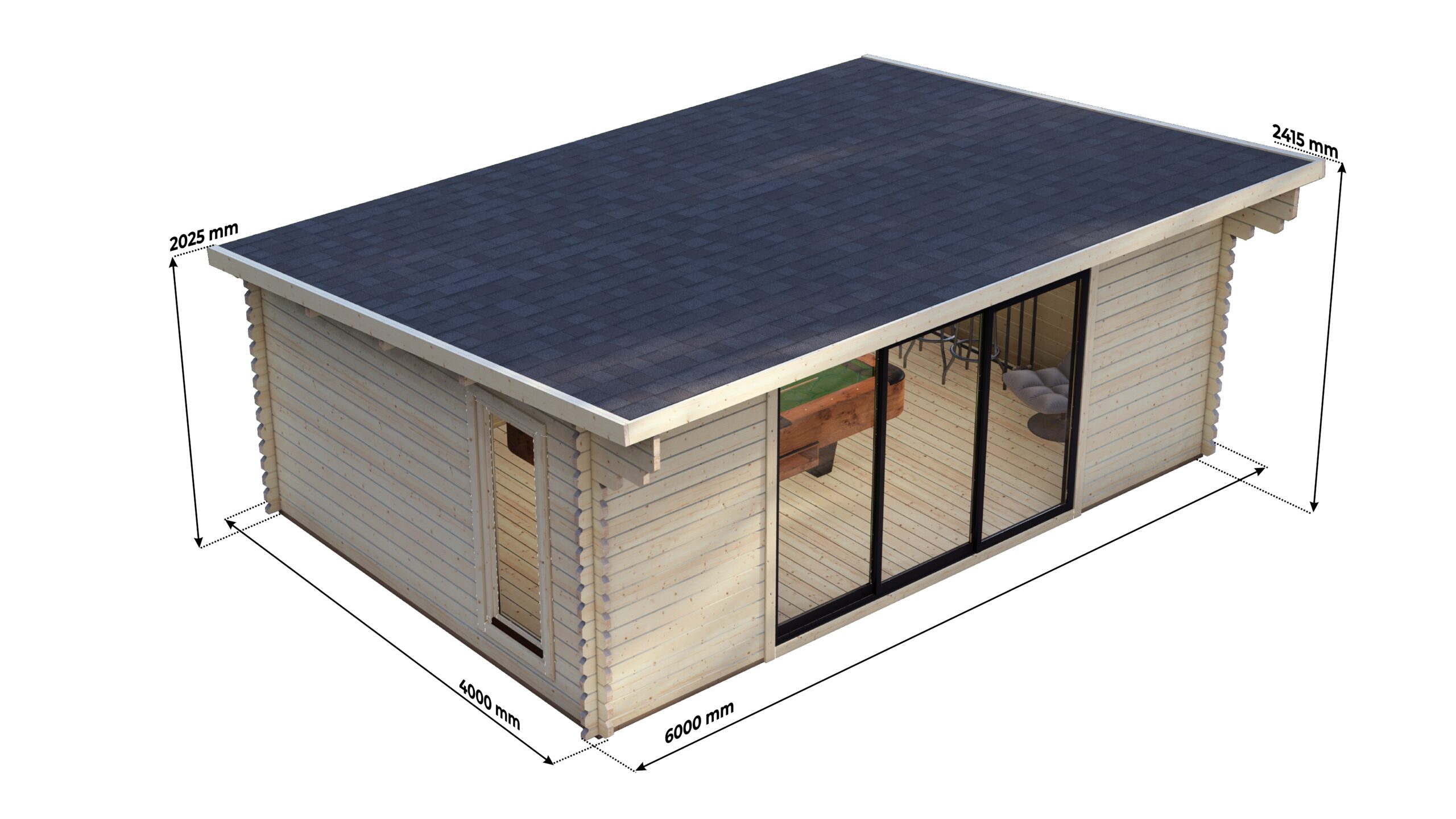

| External dimensions | 6 x 4 m |
| External footprint area | 24 m² |
| Eaves height | 202 cm |
| Ridge height | 241 cm |
| Base | External footprint 6 x 4 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof form | Pent |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |

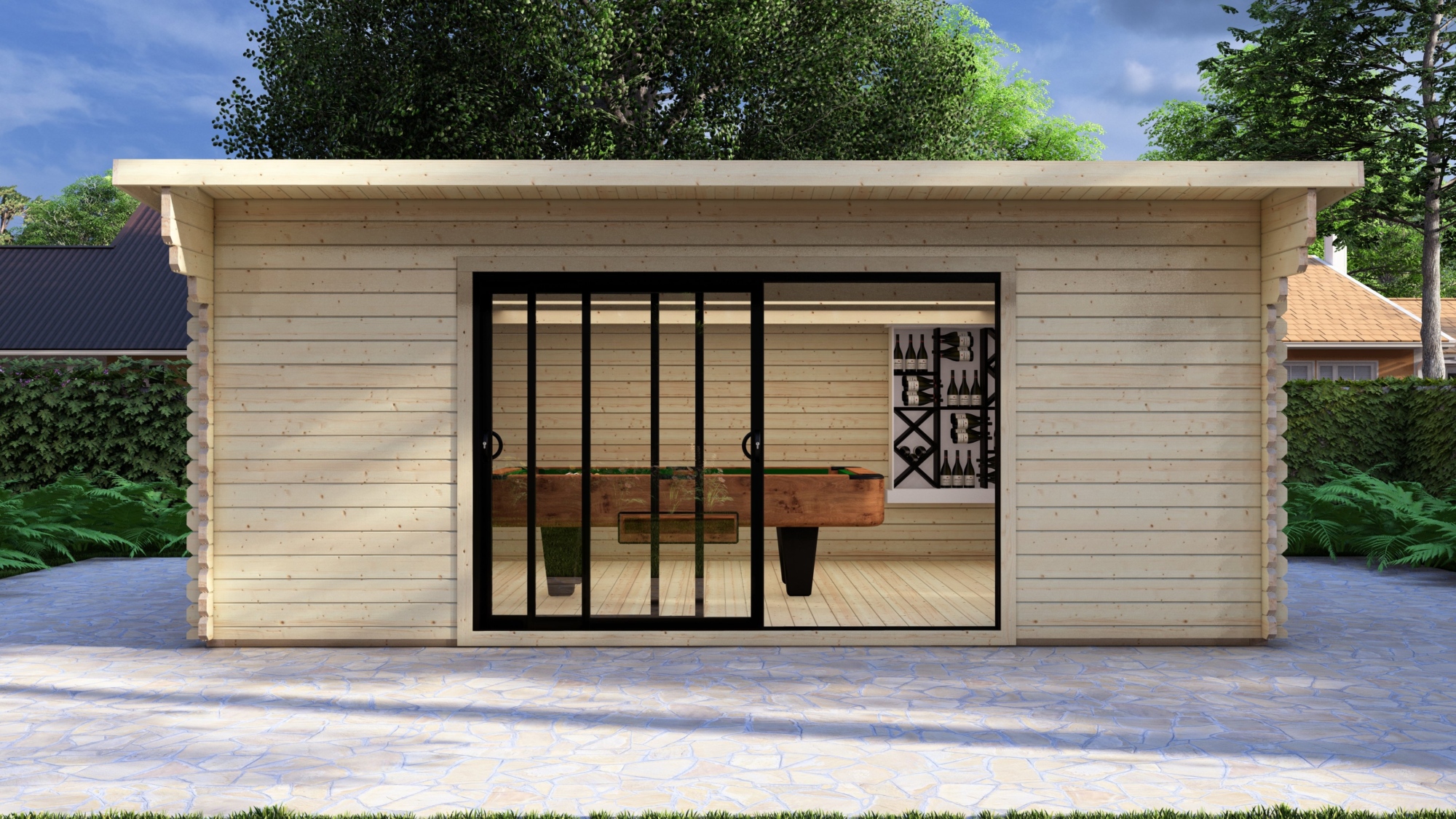

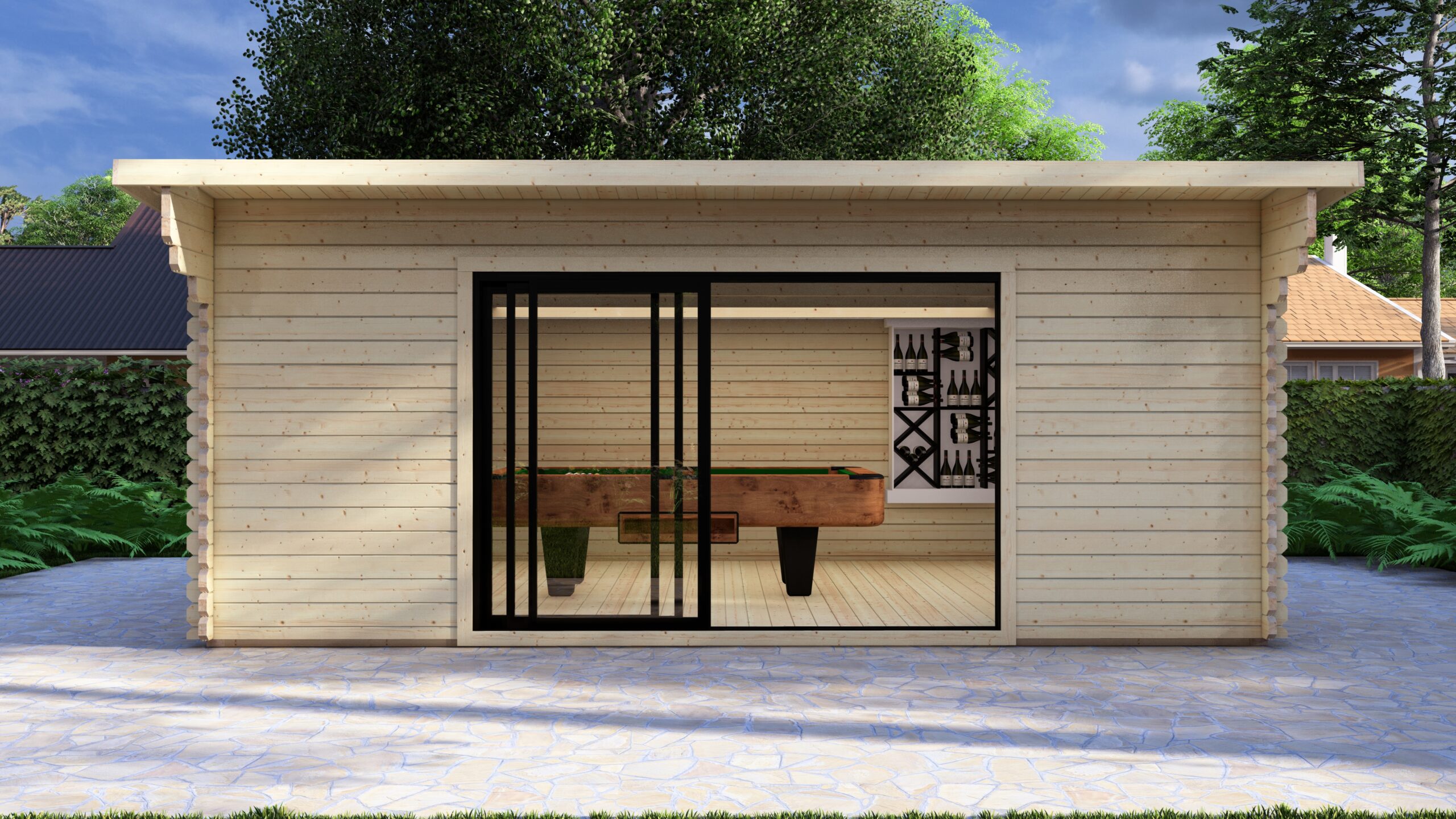

| Doors | Aluminium sliding door, double glazed |
| Windows | Garden type (IV45) timber window, tilt and turn, 4-6-4 mm double glazing |
| Aluminium sliding systems | Sourced from a specialist manufacturer and supplied as part of the project. |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Modern Log Cabin 6x4m, Alu Sliding Doors, Long Ridge Roof
| This model | Long Ridge Roof | |
|---|---|---|
| External size | 6 x 4 m | 6 x 4 m |
| External footprint | 24 m² | 24 m² |
| Ridge height | 241 cm | 241 cm |
| Eaves height | 202 cm | 202 cm |
| Roof | Pent roof | Long ridge roof |
Modern Log Cabin 5.9x4.0m, Aluminium Sliding Doors
| This model | Doors | |
|---|---|---|
| External size | 6 x 4 m | 5.9 x 4 m |
| External footprint | 24 m² | 23.6 m² |
| Ridge height | 241 cm | 247 cm |
| Eaves height | 202 cm | 221 cm |
| Roof | Pent roof | not compared |
Modern Log Cabin 5x4m, Alu Sliding Doors, Long Ridge Roof
| This model | Roof | |
|---|---|---|
| External size | 6 x 4 m | 5 x 4 m |
| External footprint | 24 m² | 20 m² |
| Ridge height | 241 cm | 241 cm |
| Eaves height | 202 cm | 202 cm |
| Roof | Pent roof | Long ridge roof |
Frequently asked questions
What is a modern log cabin with aluminium sliding doors?
A Eurodita modern log cabin is a timber log cabin with aluminium sliding doors, manufactured in Lithuania and supplied flat packed; the doors are aluminium systems bought in from a specialist. The same solid log wall kit is catalogued as a modern garden office, summer house and garden room. The base is provided locally; installation is not part of our supply.
Do I need planning permission for a modern garden office?
In England, a garden office incidental to the house can fall under Class E of the General Permitted Development Order 2015: single storey, eaves no higher than 2.5 m, height no more than 4 m with a dual-pitched roof, 2.5 m within 2 m of the boundary, or 3 m otherwise. Your local planning authority confirms the position.
What sizes do modern log cabins with sliding doors come in?
Eight models, external dimensions: 3.2 x 2.6 m with an apex roof, 4 x 3 m, 5 x 4 m and 6 x 4 m with a pent or long ridge roof, and 5.9 x 4.0 m. All are catalogued in 44 mm wall logs; a solid log model can be made in 28, 34, 44, 58 or 70 mm.
Can Eurodita customise Modern Alu size or door placement?
Yes. Eurodita can review Modern Alu adjustments, including footprint, layout and aluminium sliding-door placement. Dealers should send drawings or a specification brief. Feasibility, price, production drawings, documentation scope and lead time are confirmed at quotation stage before any client-facing promise is made.
