Log House Mathilde 13.7x8.2m, 88mm
Delivery is agreed individually with each client. Markets and languages
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
At a glance

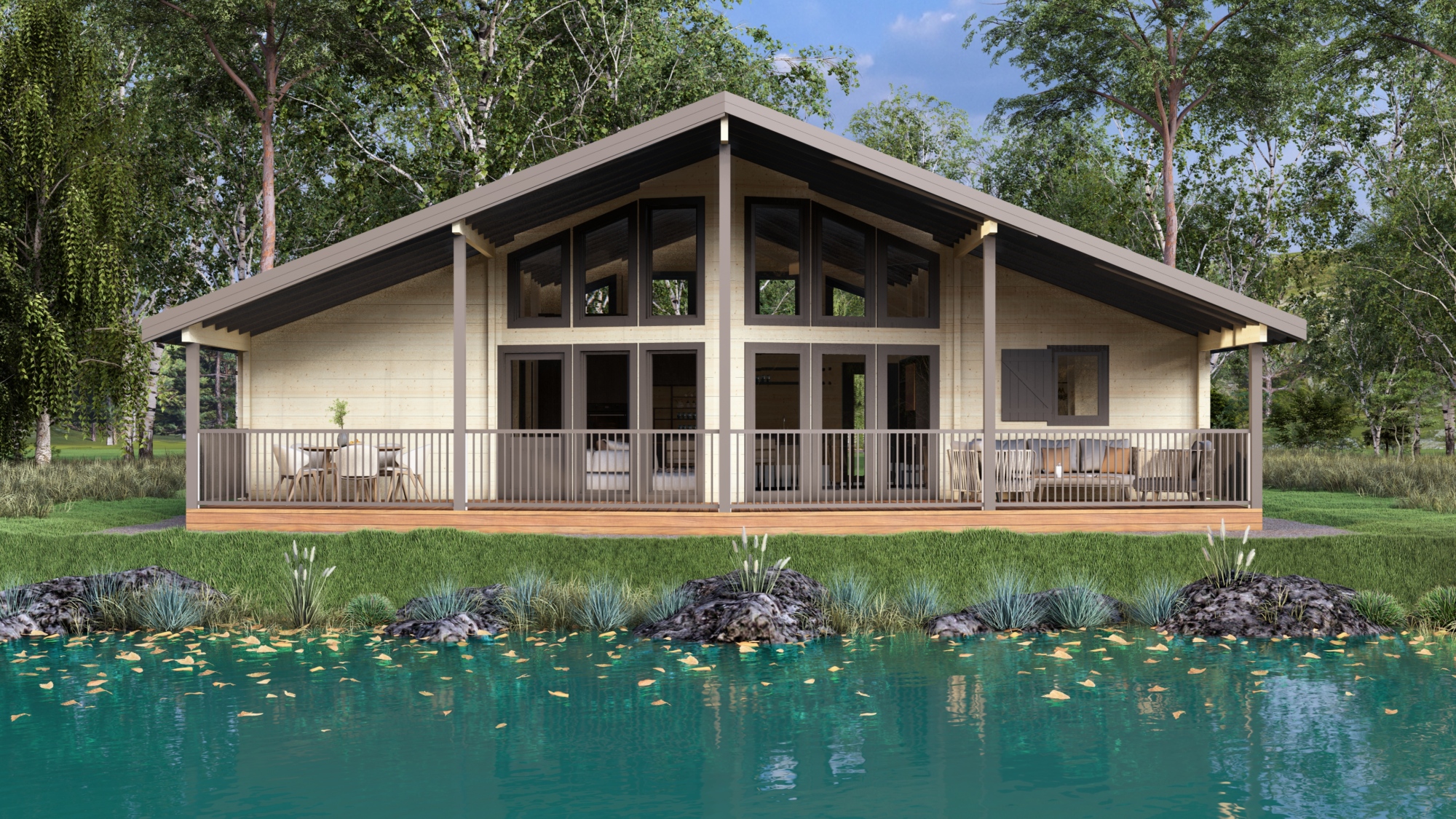

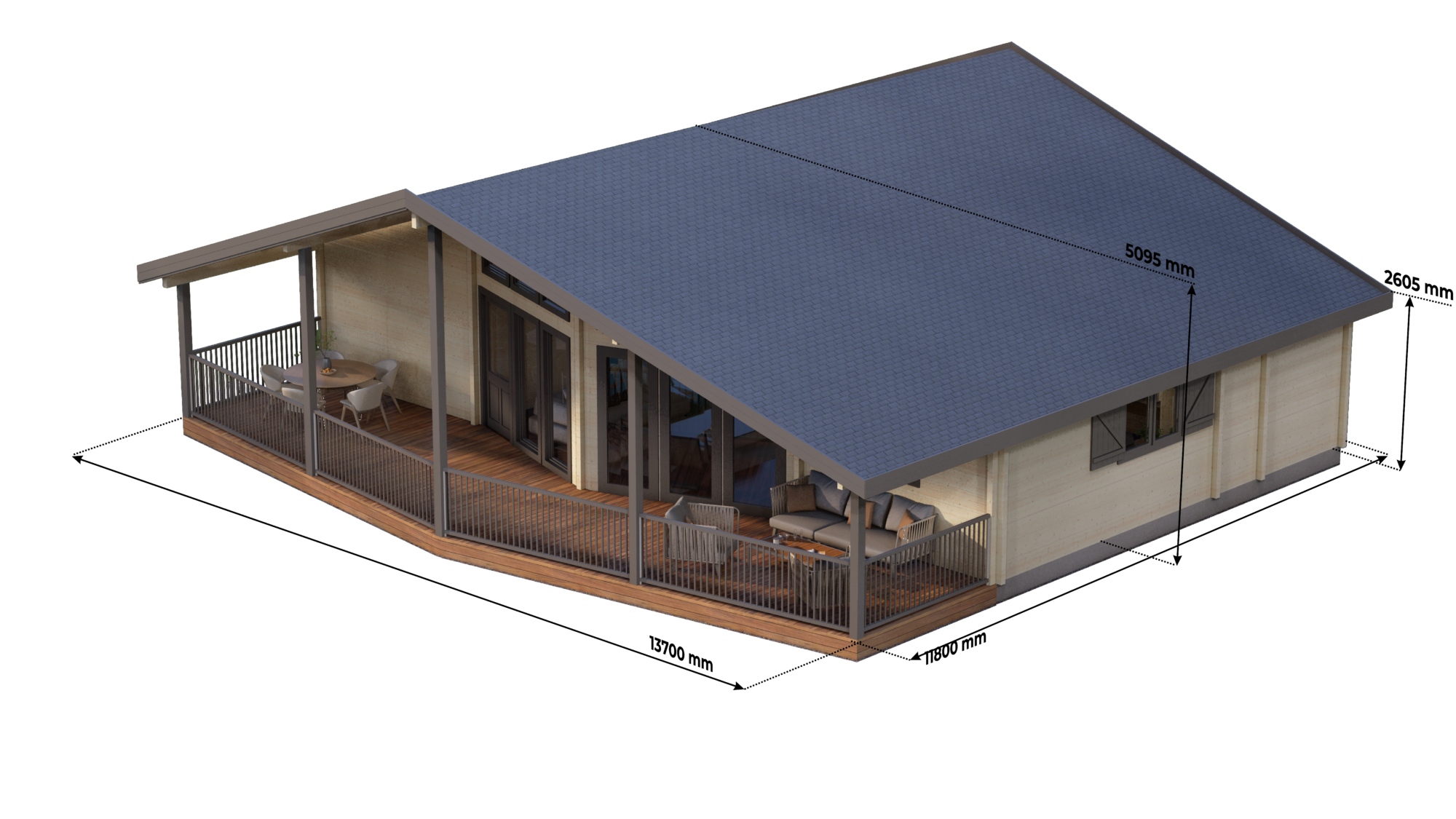

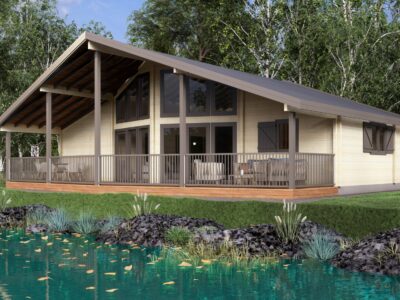

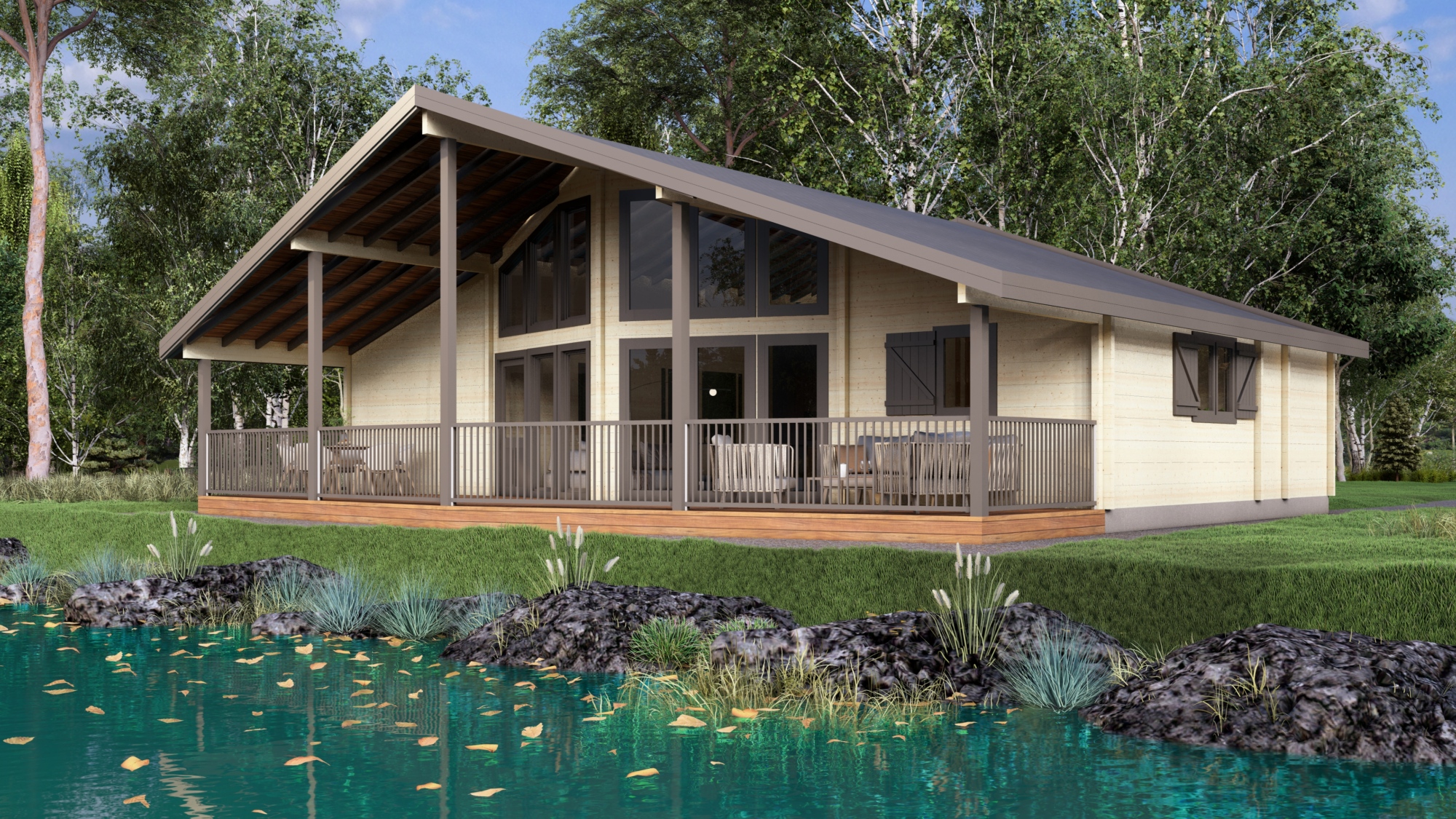

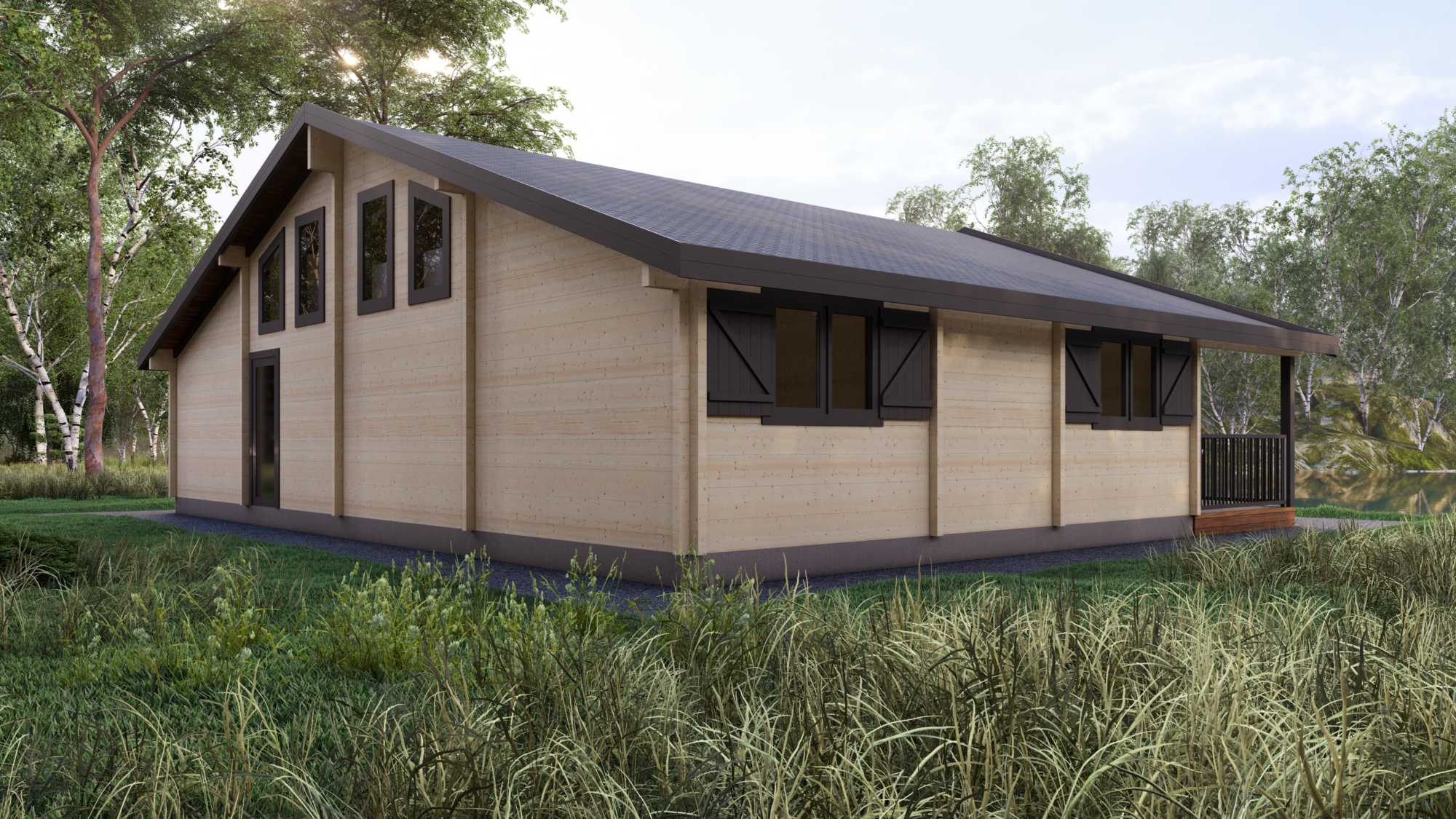

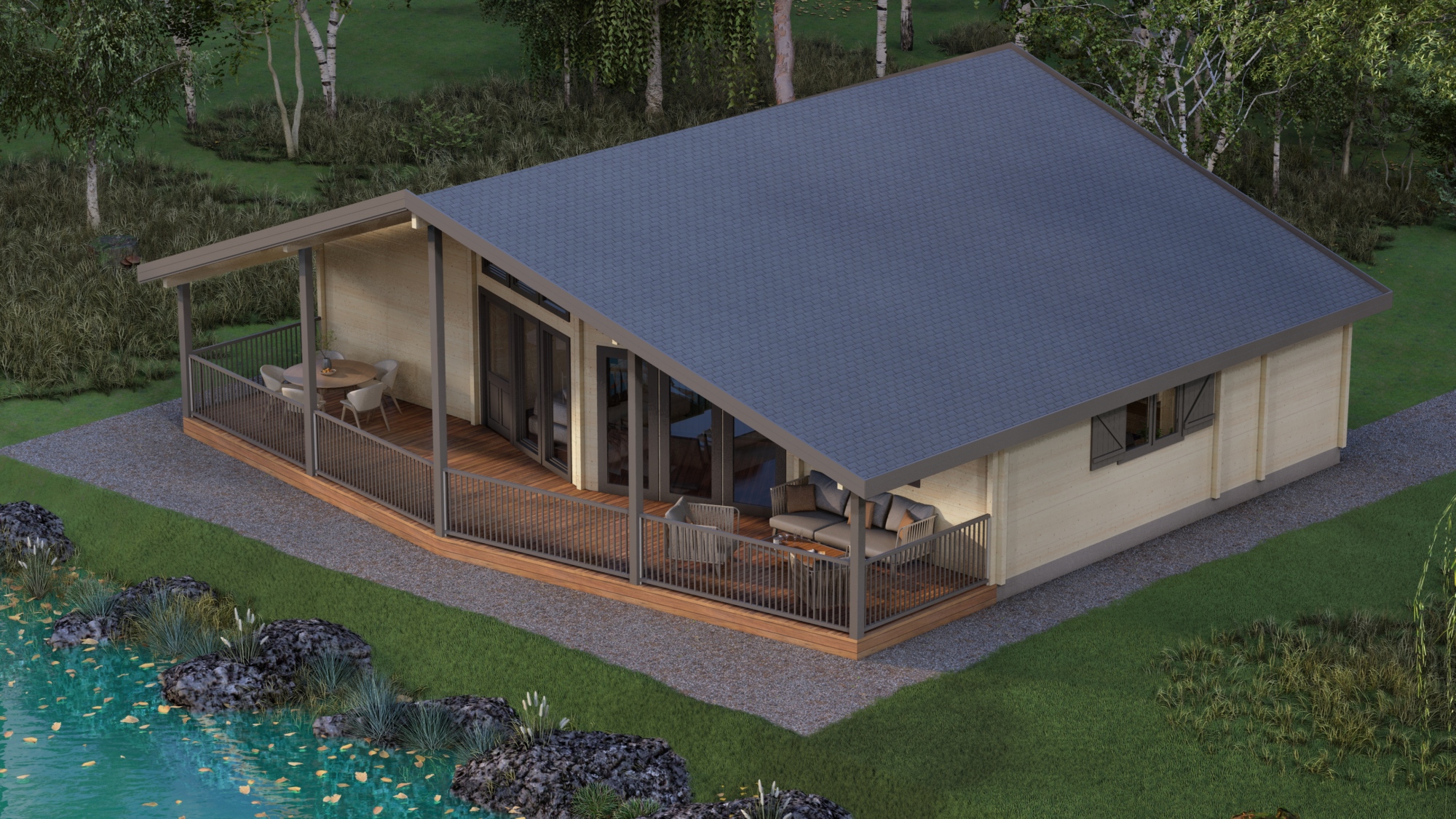

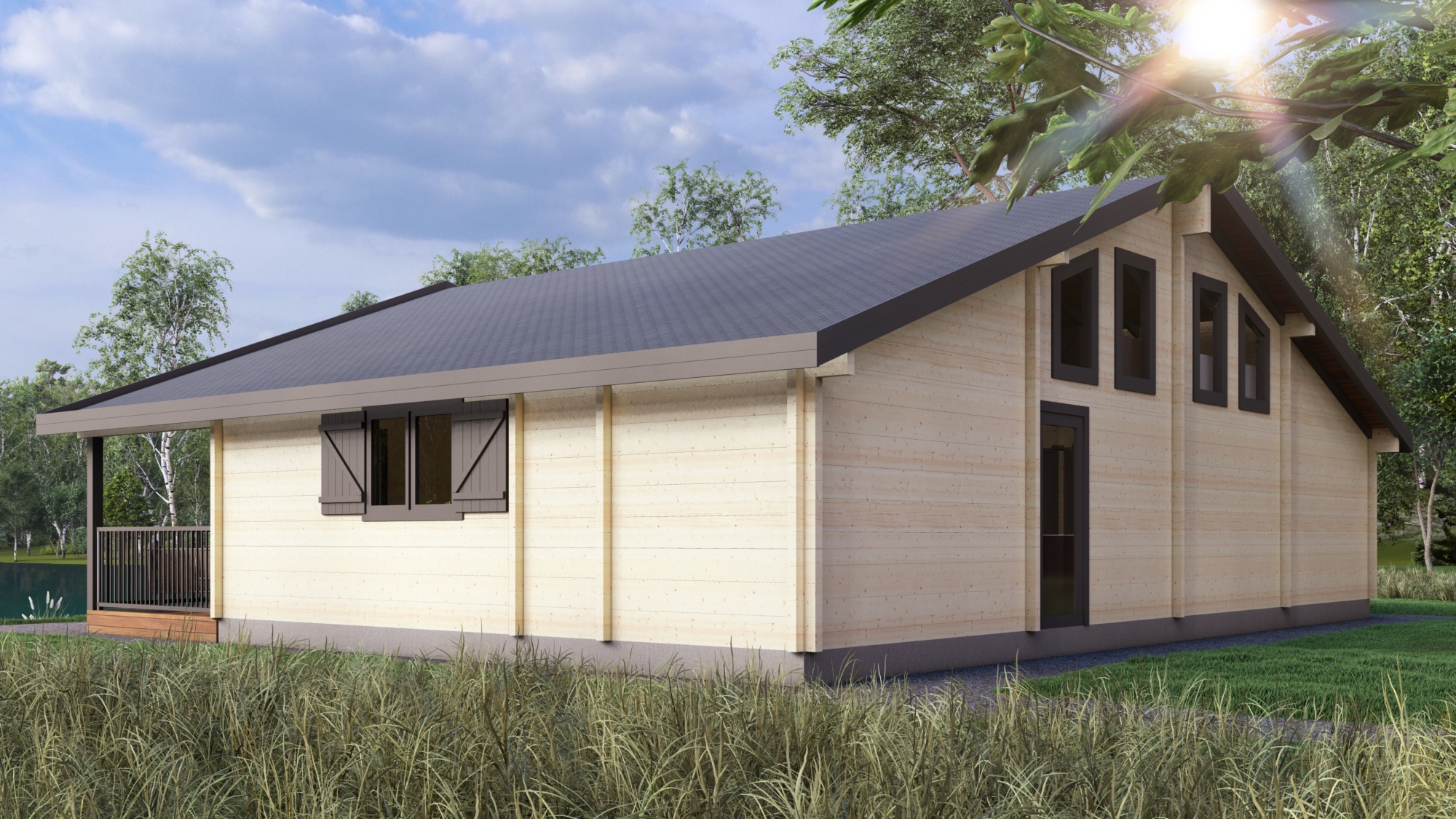

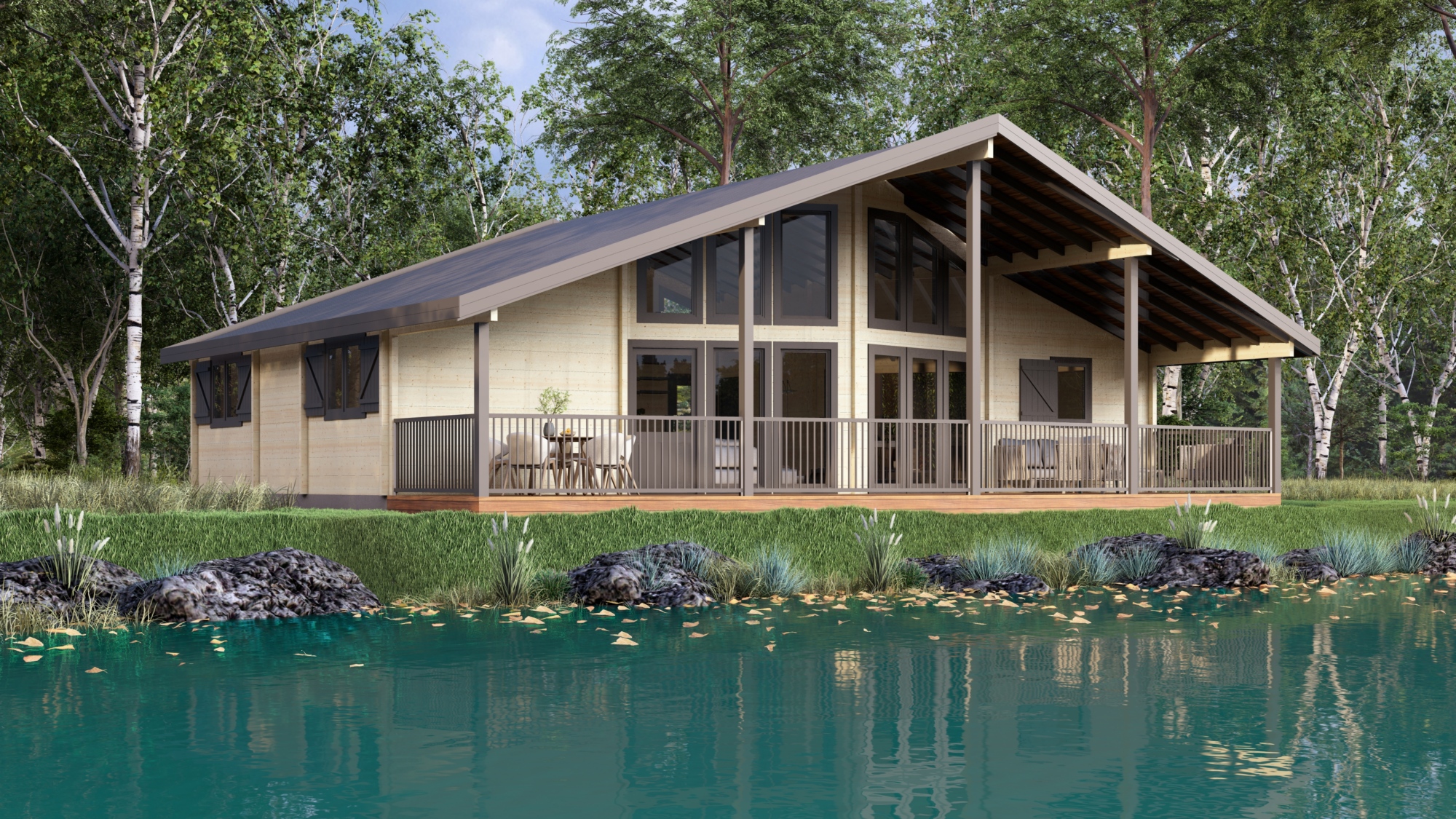

Log House Mathilde 13.7x8.2m is a glulam log house supplied as a building kit. It measures 13.7 x 8.2 m externally and has a terrace of 2.8 m; the external footprint without the terrace is 112.3 m². The ridge height is 509 cm and the eaves height 232 cm. It is listed with the glulam houses.
Read the full description
Layout

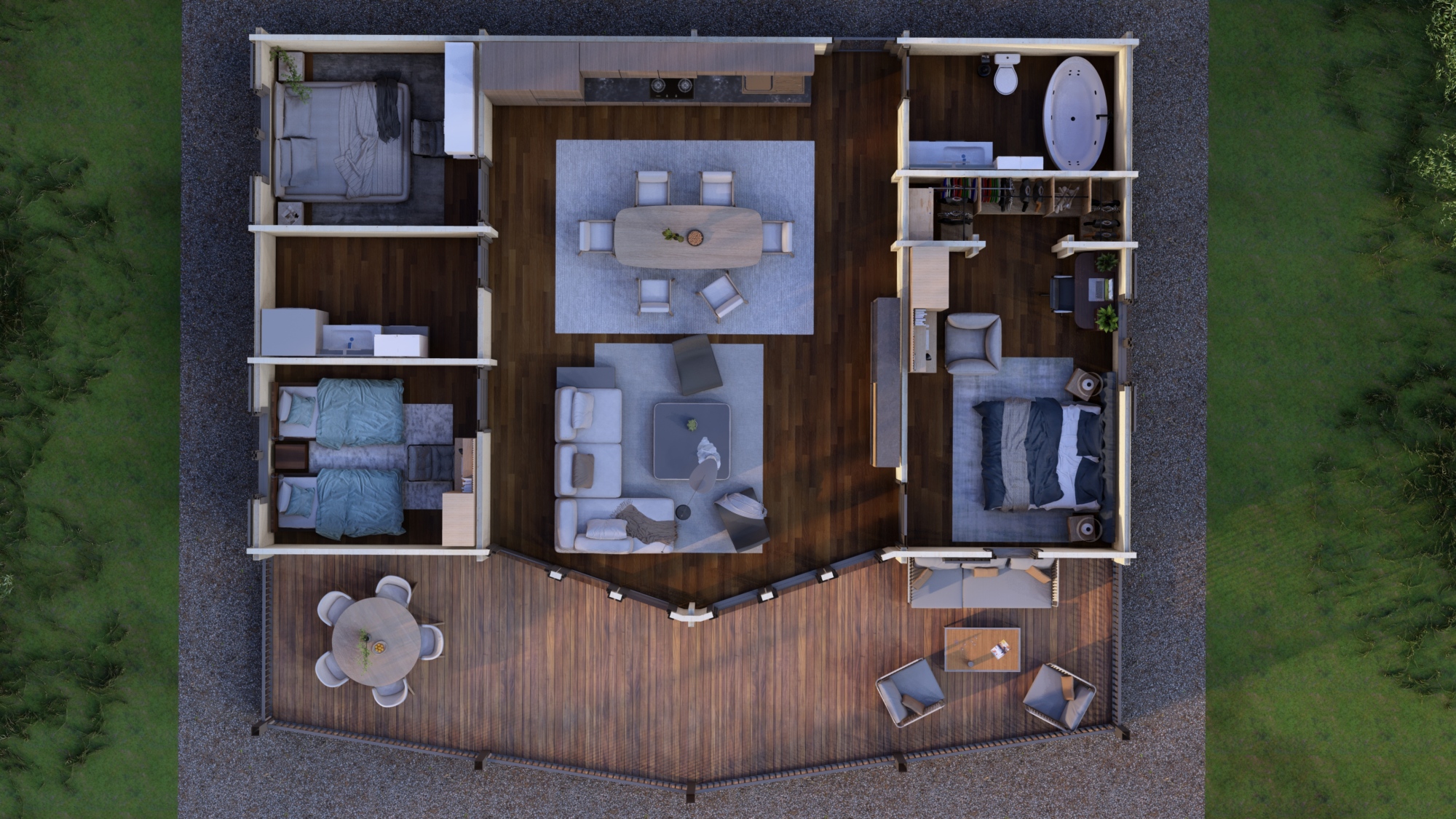

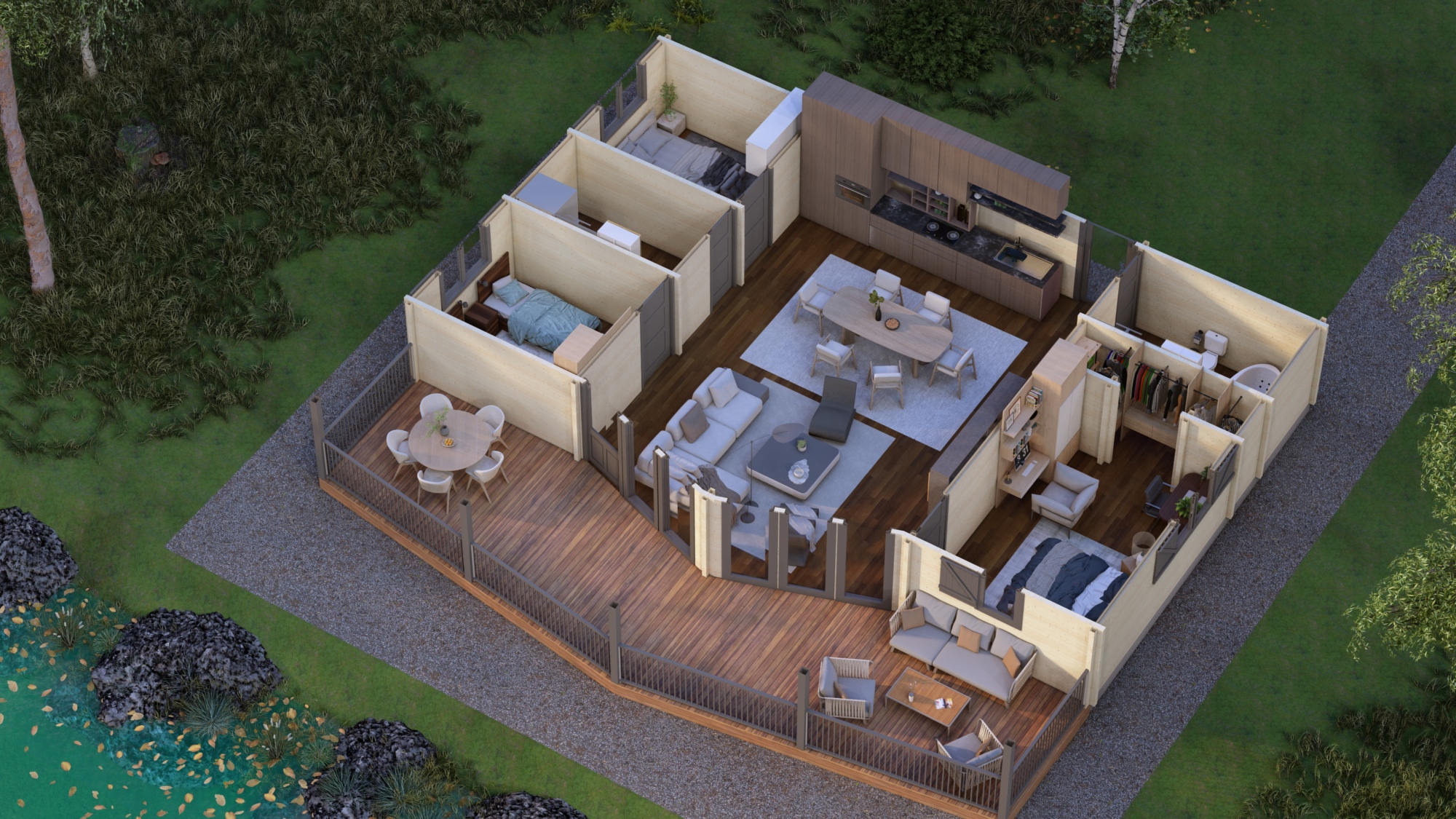

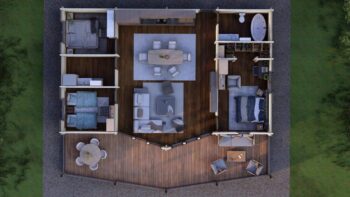

The plan drawing shows an open living room with a kitchen area, three bedrooms, a bathroom, a utility room and a dressing room. It also shows a deck along the front.
Walls
The walls are glulam wall logs of the 88 x 260 mm profile: each log is 88 mm thick and 260 mm high. A glulam model can be made in any glulam profile. The glulam is glued, profiled and CNC machined at the Eurodita factory. The profiles are set out on wall thickness and glulam profiles.
Doors and windows
Doors and windows are made by Eurodita in timber. See windows and doors.
Technical data sheet
Specification recorded for Log House Mathilde 13.7x8.2m, 88mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 13.7 x 8.2 m |
| Terrace | 2.8 m, in addition to the building's external dimensions |
| Eaves height | 232 cm |
| Ridge height | 509 cm |
| Base | External footprint 13.7 x 8.2 m, with the 2.8 m terrace in addition. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Residential type (IV68) timber door, 5-point locking, 4-16-4 mm double glazing |
| Windows | Residential type (IV68) timber window, tilt and turn, 4-16-4 mm double glazing |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
Supplied EXW from the Eurodita factory. We supply the kit with assembly drawings; installation is not part of our supply.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Glulam Log House Linnea 11.5x9.8m
| This model | 11.5x9.8m | |
|---|---|---|
| External size | 13.7 x 8.2 m | 11.5 x 9.8 m |
| External footprint | 112.3 m² | 112.7 m² |
| Ridge height | 509 cm | 539 cm |
| Eaves height | 232 cm | 437 cm |
| Wall logs | 88 x 260 mm glulam | 220 x 260 mm glulam |
Glulam Log House London 13x8.8m
| This model | 13x8.8m | |
|---|---|---|
| External size | 13.7 x 8.2 m | 13 x 8.8 m |
| External footprint | 112.3 m² | 114.4 m² |
| Ridge height | 509 cm | not compared |
| Eaves height | 232 cm | not compared |
| Wall logs | 88 x 260 mm glulam | 135 x 260 mm glulam |
Glulam Log House Rome 10x11m
| This model | 10x11m | |
|---|---|---|
| External size | 13.7 x 8.2 m | 10 x 11 m |
| External footprint | 112.3 m² | 110 m² |
| Ridge height | 509 cm | not compared |
| Eaves height | 232 cm | not compared |
| Wall logs | 88 x 260 mm glulam | 135 x 260 mm glulam |
