Log Cabin Louis 5x3m, 44mm
The Log Cabin Louis provides 15 m² of functional space in a 5 x 3 m footprint with 44 mm wall thickness .
Technical data sheet
Specification recorded for Log Cabin Louis 5x3m, 44mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.

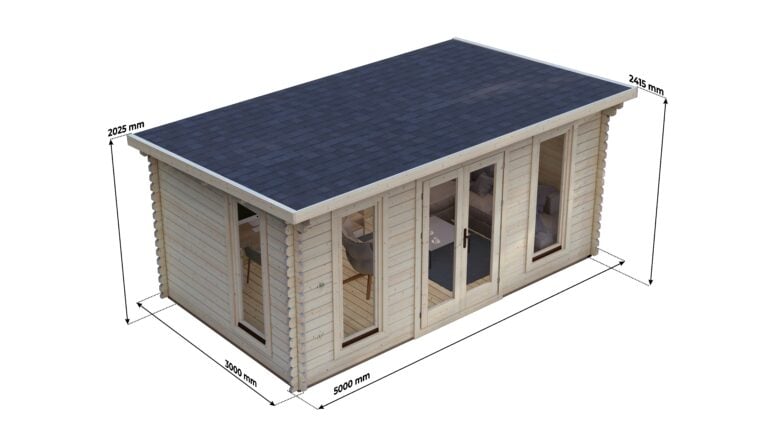

| Building | |
|---|---|
| External dimensions | 5 x 3 m |
| Eaves height | 202 cm |
| Ridge height | 241 cm |
| Storeys | 1 |
| Base | External footprint 5 x 3 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 44 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Need this in a different size?
This model is supplied as a 5 x 3 m footprint, 44 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the summer house log cabins range.
About This Log Cabin Louis 5x3m, 44mm
Product Overview
The Log Cabin Louis provides 15 m² of functional space in a 5 x 3 m footprint with 44 mm wall thickness. Manufactured by UAB Eurodita in Kaunas, Lithuania. A compact garden office, studio, or treatment room. The 44 mm construction delivers solid insulation performance for extended seasonal use. View the garden office collection.
Layout & Configuration

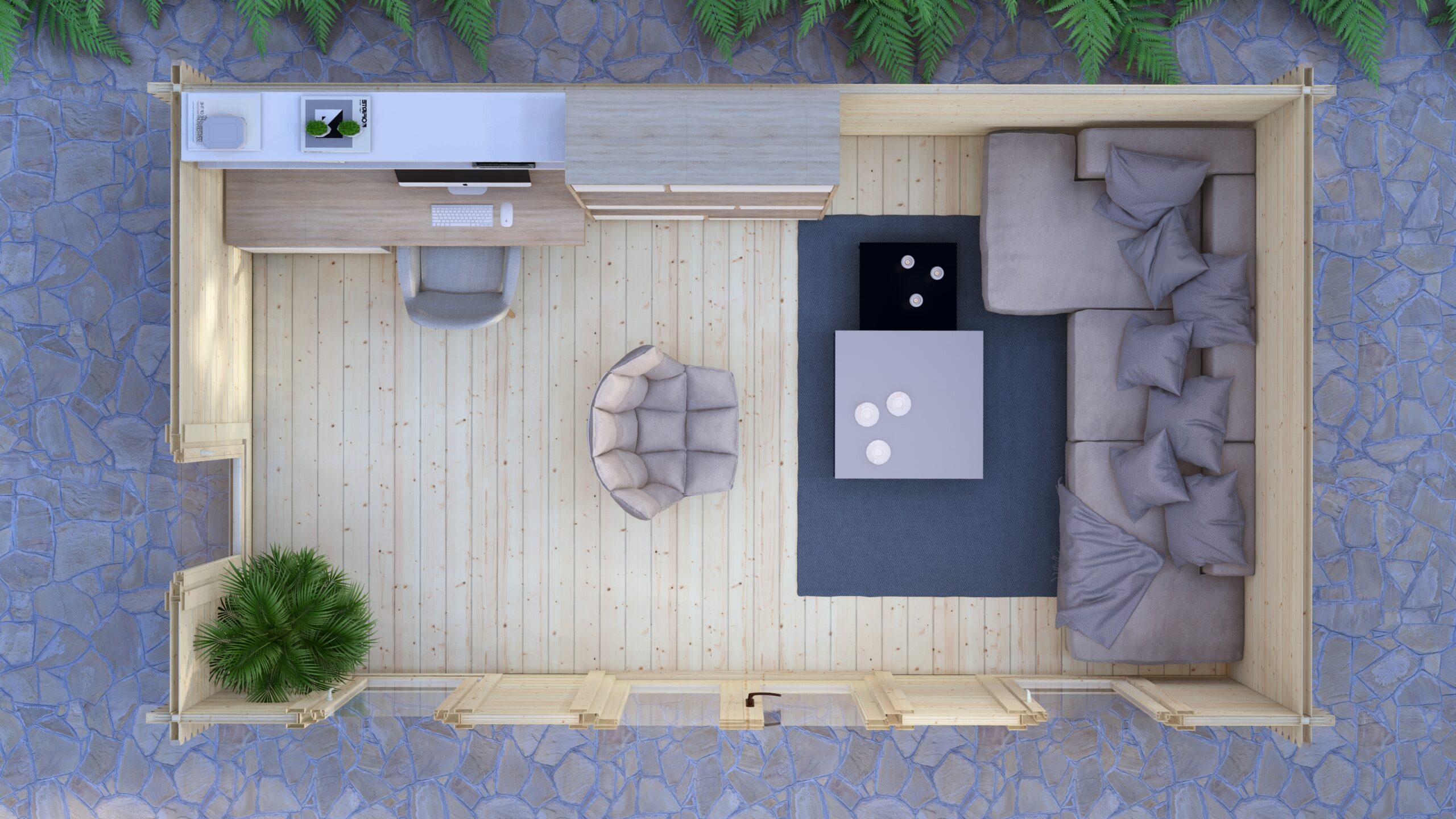

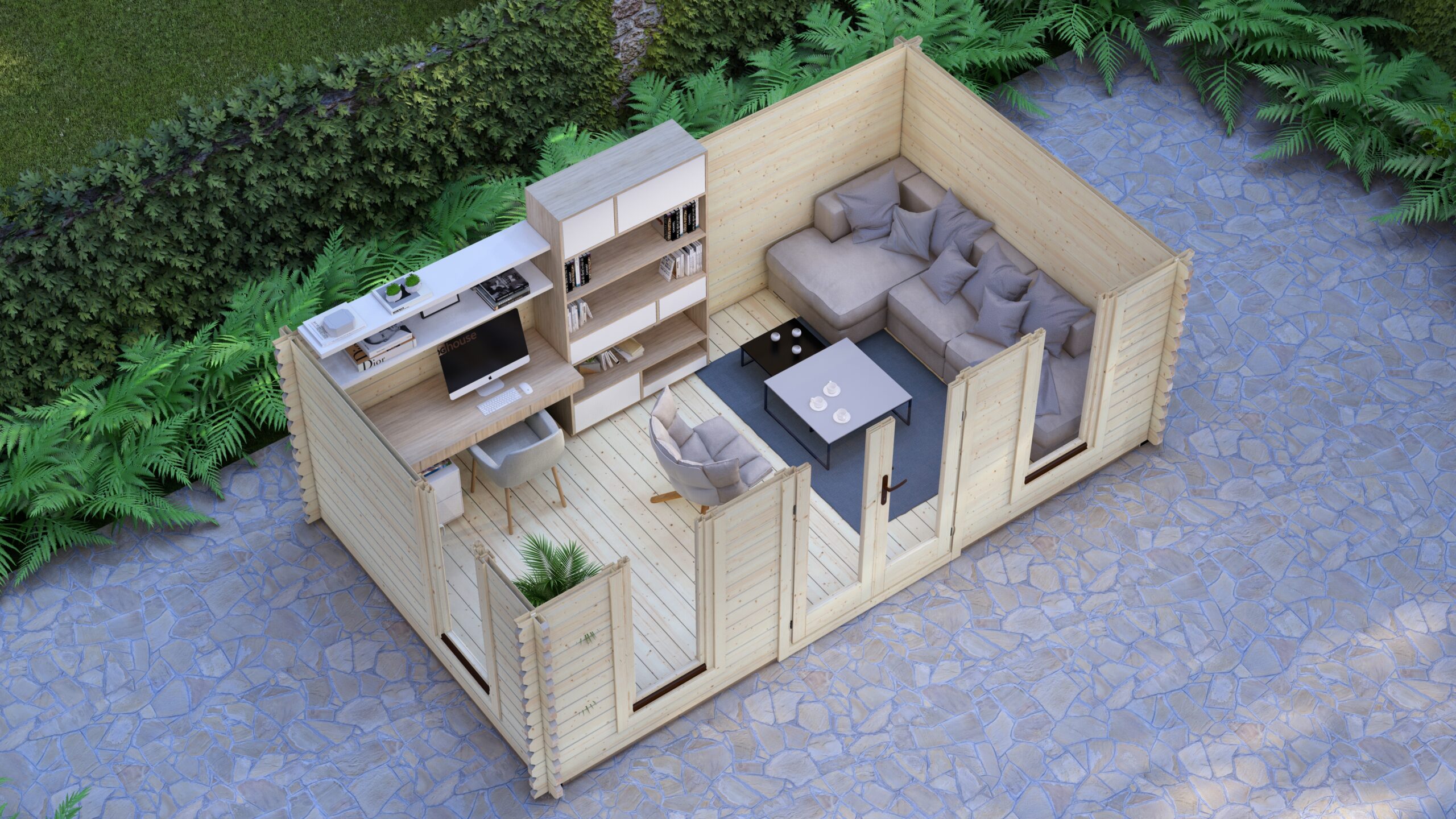

The 5 x 3 m single-room interior accommodates a desk workstation, client seating, shelving, and storage for professional garden office use. Alternatively suits creative studio, therapy room, or personal gym applications.
Timber & Construction
Constructed from Northern European timber, kiln-dried in Nardi kilns (Italy) to a 12-14% production moisture target. The 44 mm tongue-and-groove wall logs machined on Hundegger CNC centres (Germany). The 44 mm profile provides project-specific thermal retention compared to 28 mm alternatives.
Technical Specifications
Key specifications: External dimensions: 5 x 3 m | Floor area: ~15 m² | Wall thickness: 44 mm | Timber: Northern European timber, kiln-dried | Assembly: tongue-and-groove interlocking | Foundation: confirmed for the specific model and site.
Customisation Options
Dealers can specify additional windows, French door, veranda extension, wall thickness upgrade (70 mm), insulated floor and roof, and pre-applied coatings. For garden office positioning, electrical conduit pre-routing and cable management available. Standard catalogue production lead time is confirmed per order at quote stage.
Manufacturing & Delivery
Produced at UAB Eurodita in Kaunas, Lithuania. Ships as a compact flat-pack kit. The 15 m² format enables multiple units per full-load. Production timing is confirmed per order at quote stage.
Private Label Partnership
Private-label branding, packaging and customer-facing documentation are agreed perorder. The 44 mm Louis is a core product for garden office dealers.
What should dealers confirm before quoting Log Cabin Louis 5x3m, 44mm?
Eurodita supplies Log Cabin Louis 5x3m, 44mm as a private-label B2B garden cabin / summer house with a 5x3m footprint and 44mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, wall profile, glazing/openings, roof and floor options, finish or treatment route, packaging, unloading access, EXW release or freight route from Kaunas, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
