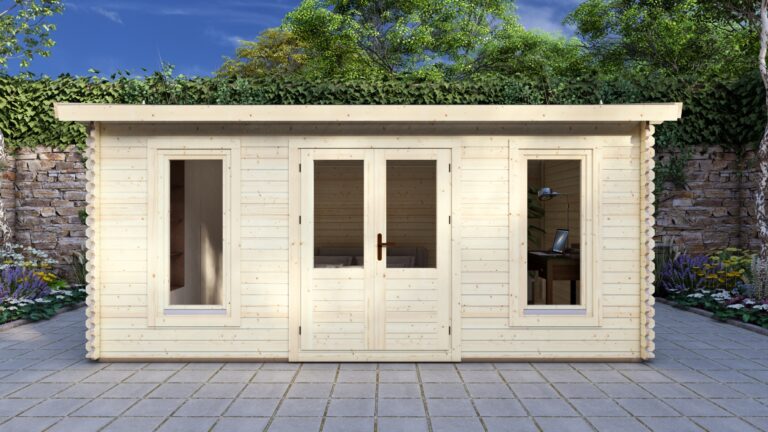

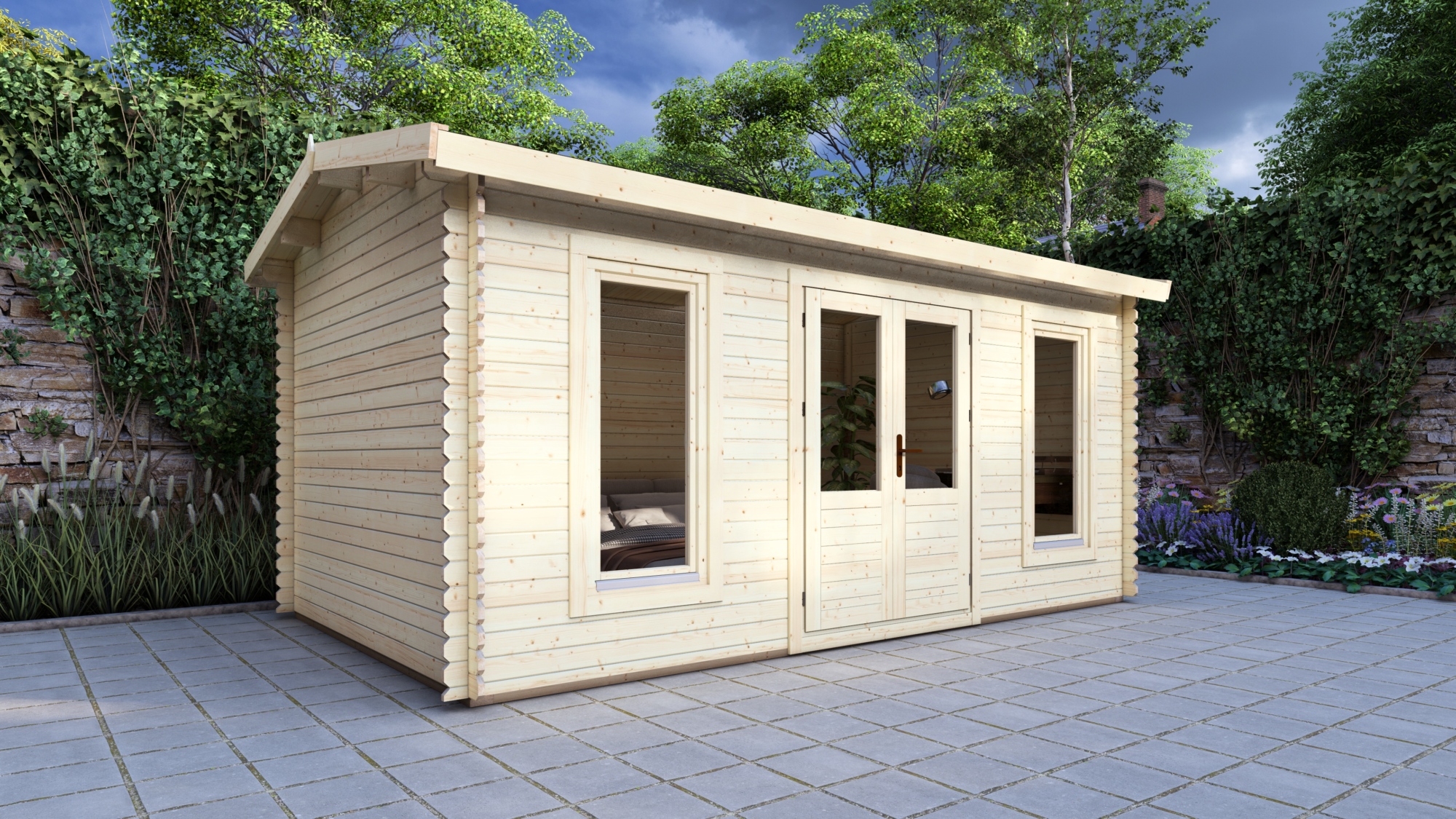

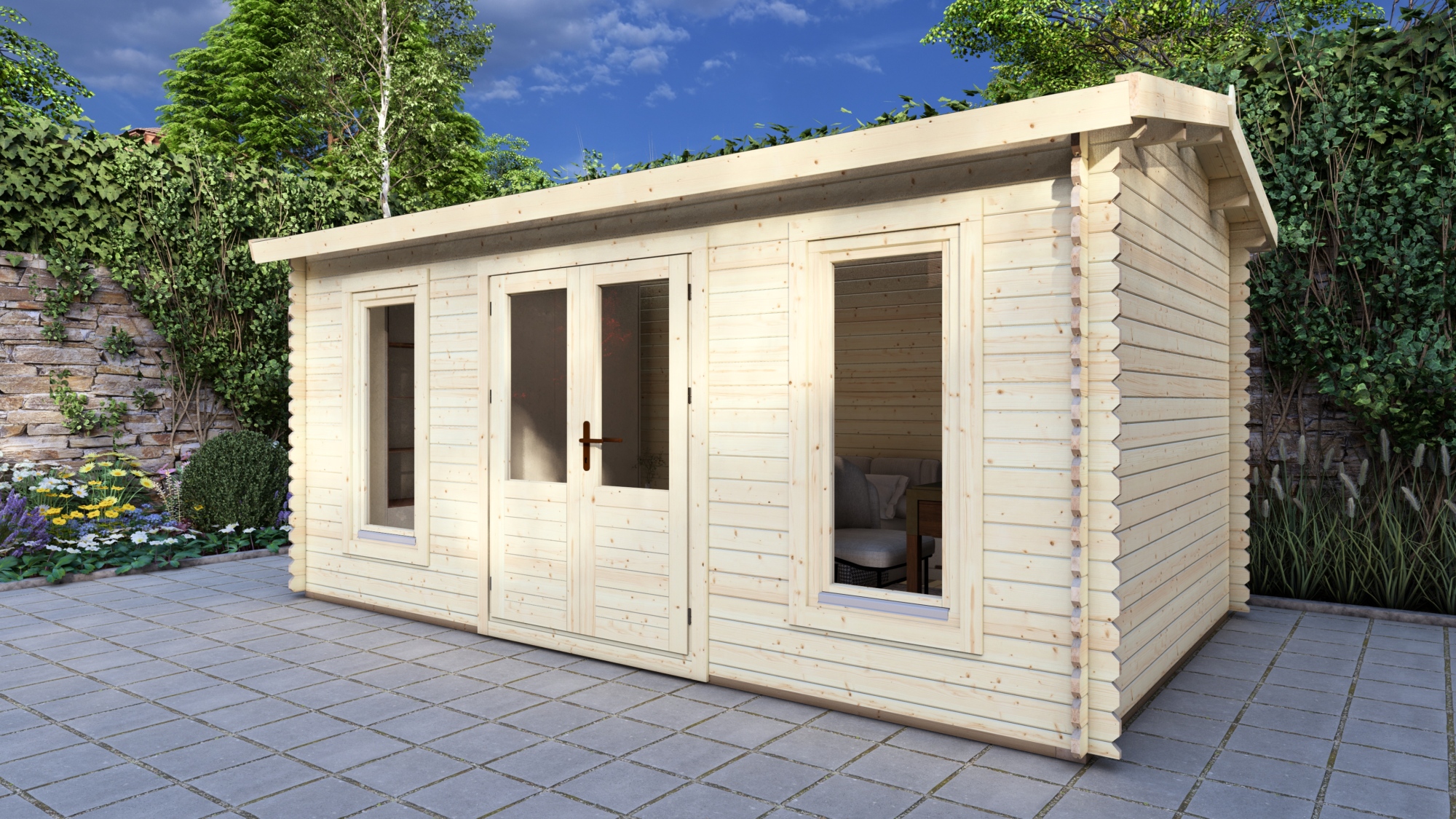

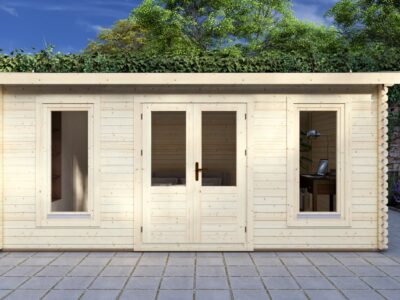

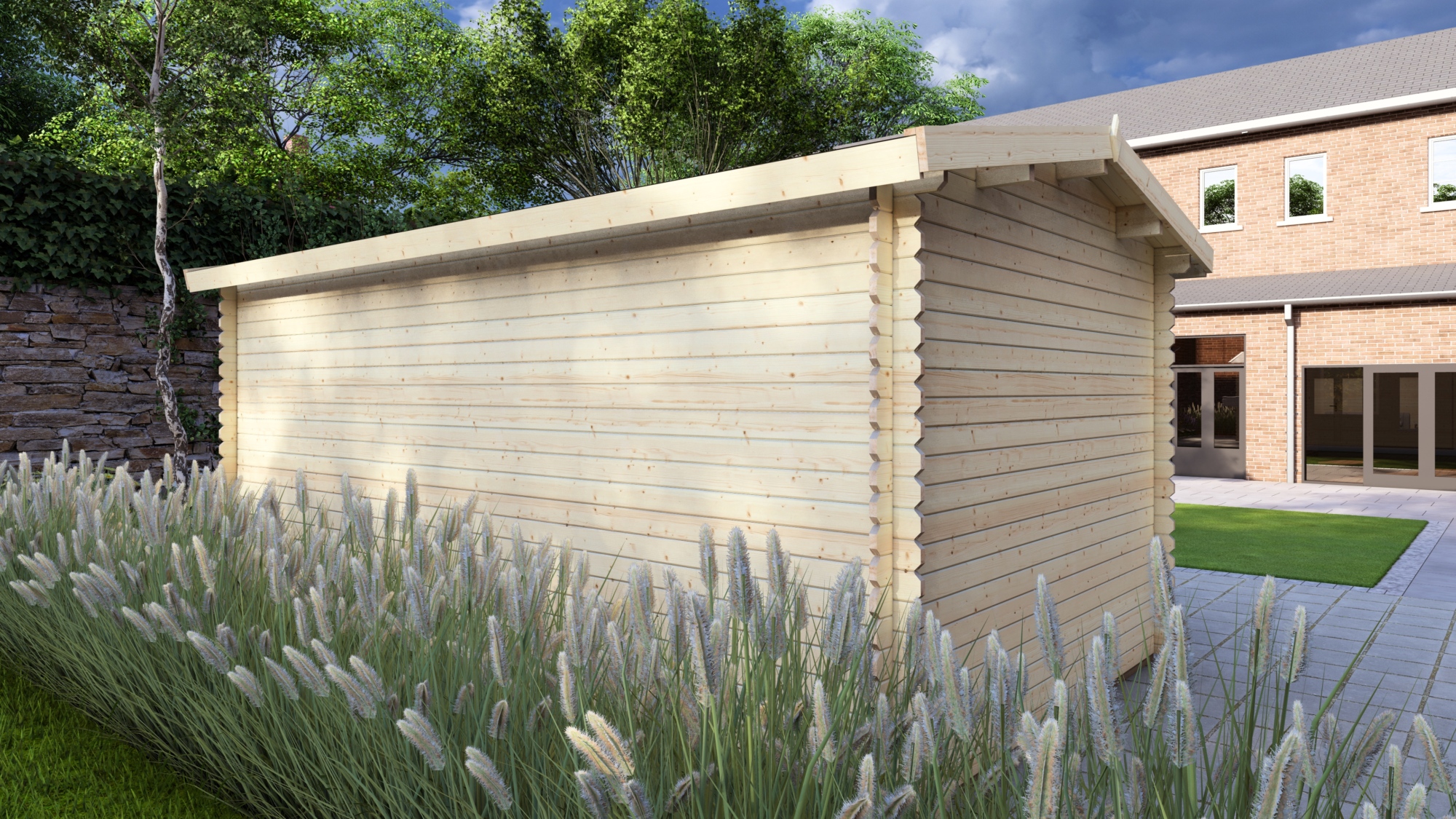

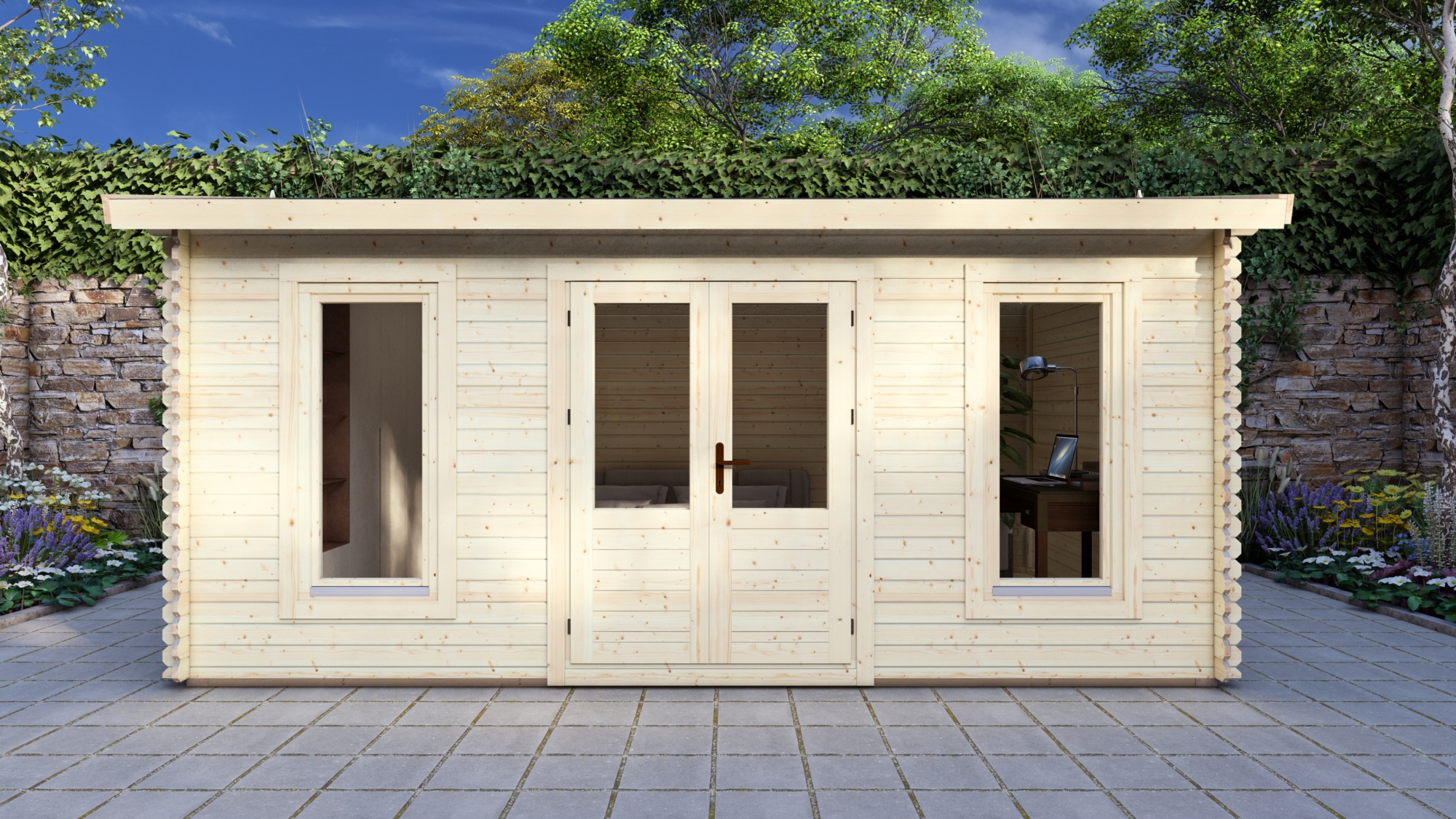

Log Cabin Abigail 5.0×3.0m, 28mm
The Log Cabin Abigail delivers 15 m² of functional space in a 5.0 x 3.0 m footprint with 28 mm wall thickness .
Technical data sheet
Specification recorded for Log Cabin Abigail 5.0x3.0m, 28mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

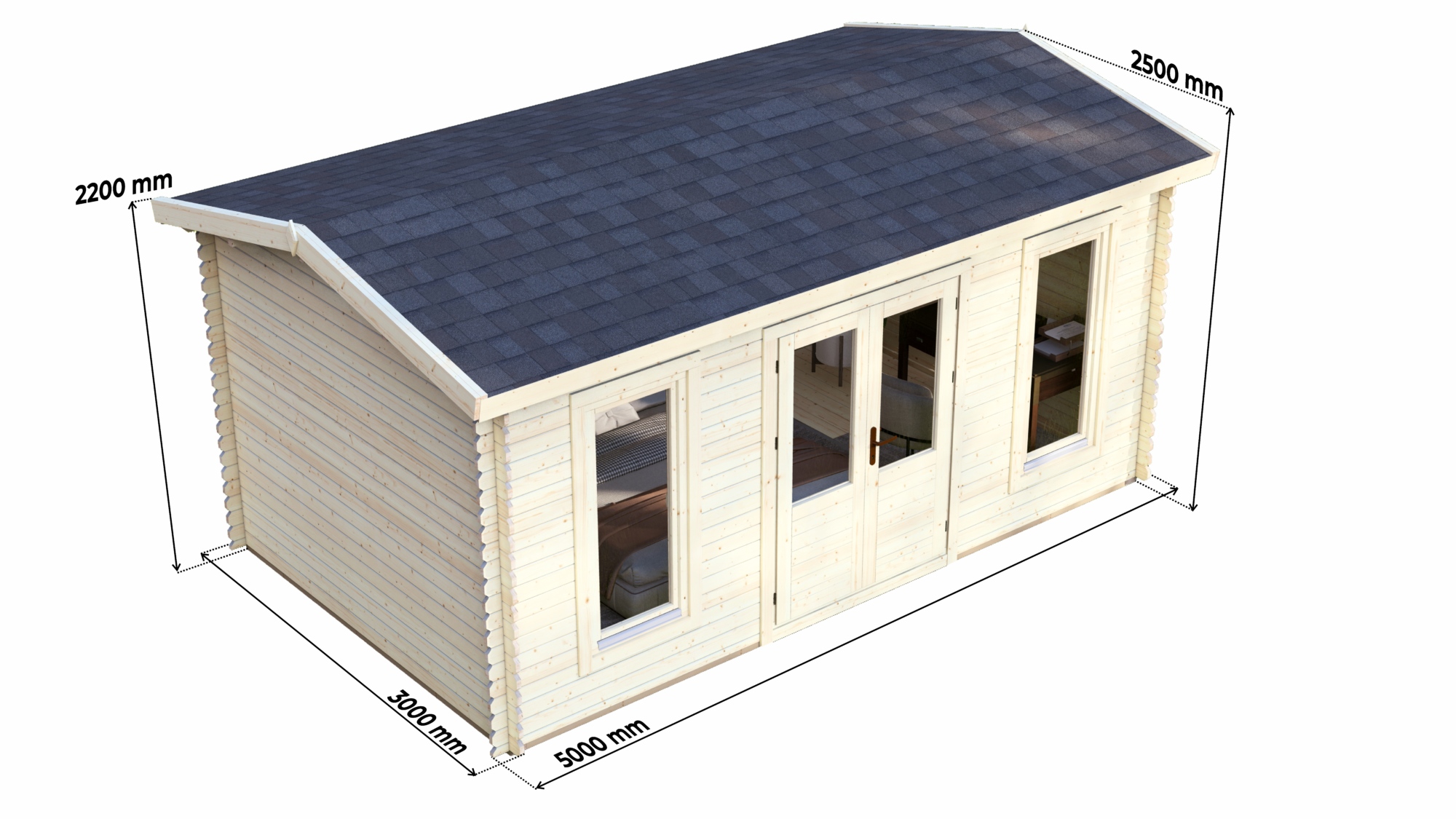

| External dimensions | 5 x 3 m |
| Eaves height | 220 cm |
| Ridge height | 250 cm |
| Base | External footprint 5 x 3 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 28 x 100 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Standard Profile |
| Windows | Double-Glazed Timber Joinery, Standard Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 5.0 x 3.0 m footprint, 28 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the summer house log cabins range.
About This Log Cabin Abigail 5.0×3.0m, 28mm
Product Overview
The Log Cabin Abigail delivers 15 m² of functional space in a 5.0 x 3.0 m footprint with 28 mm wall thickness. Manufactured by UAB Eurodita in Lithuania, from kiln-dried Northern European timber. Positioned as a garden office, hobby room, studio, or storage building. Browse the complete garden office range.
Layout & Configuration

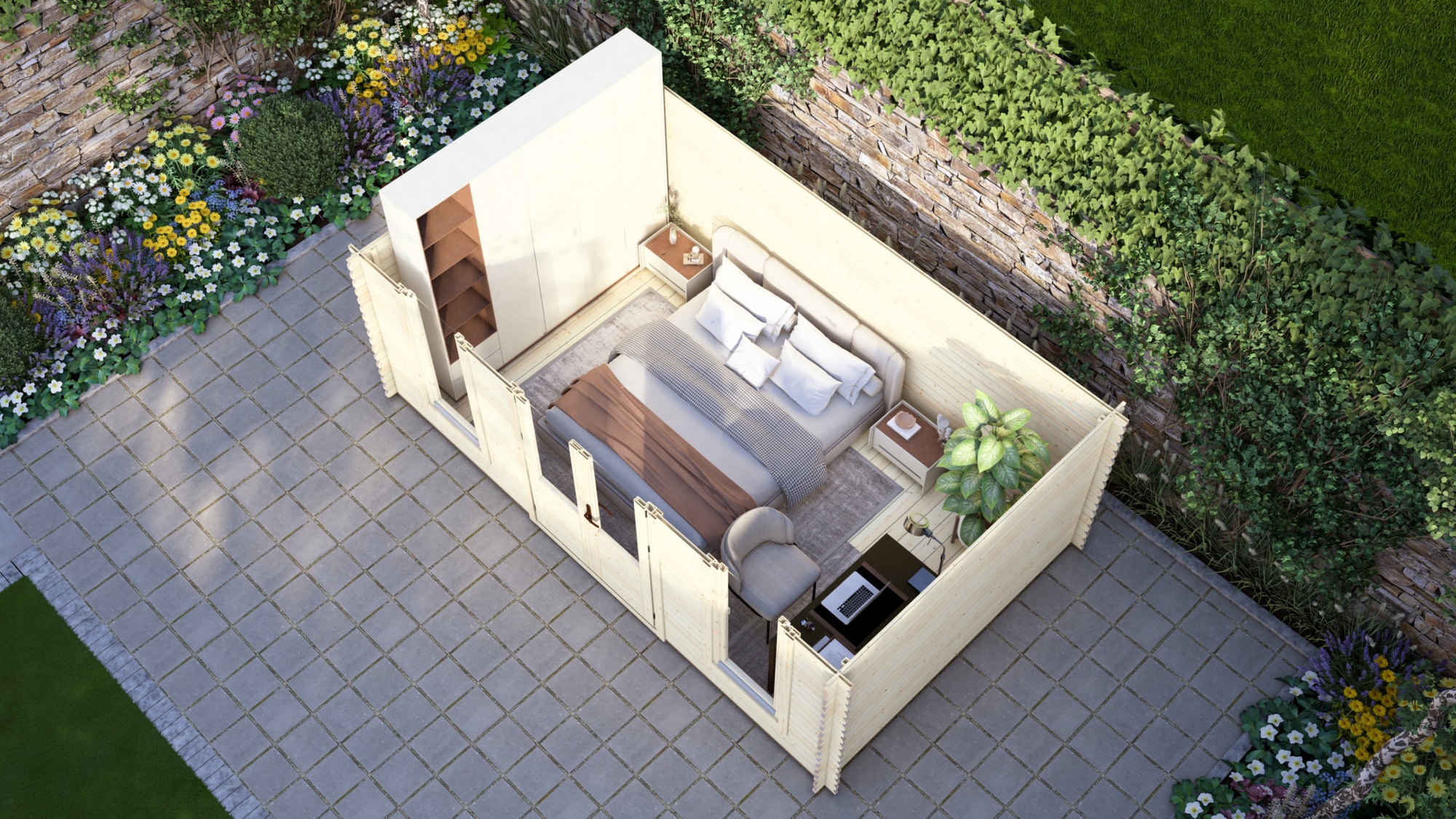

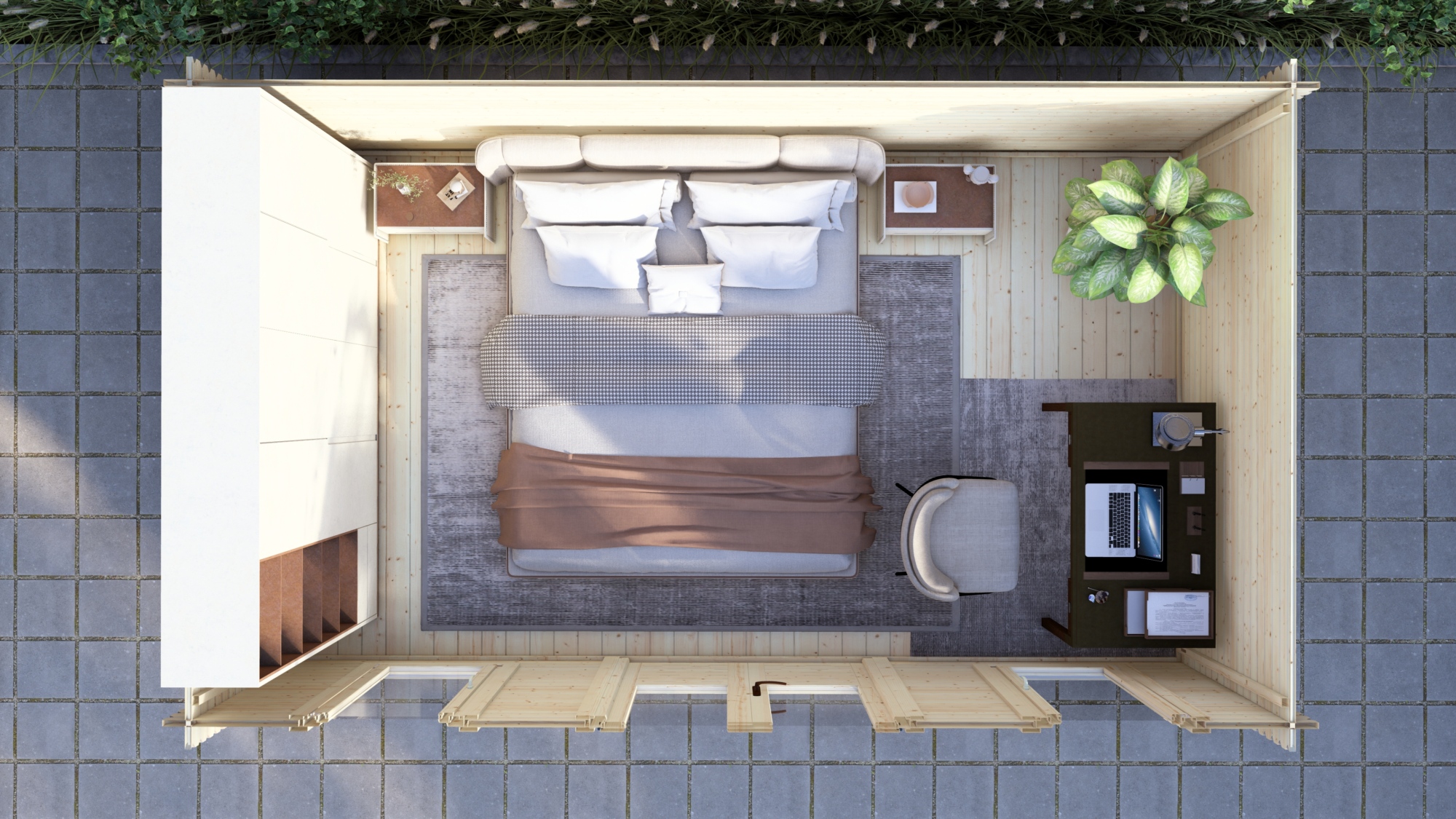

The 5.0 x 3.0 m single-room layout accommodates a desk workstation, seating area, or storage configuration. The elongated plan provides wall length for shelving and furniture placement while maintaining clear floor space. Natural light enters through positioned windows.
Timber & Construction
Built from kiln-dried Northern European timber at a 12-14% production moisture target. The 28 mm tongue-and-groove wall logs machined on Hundegger CNC centres (Germany). The 28 mm profile provides a balance between structural performance and material efficiency.
Technical Specifications
Key specifications: External dimensions: 5.0 x 3.0 m | Floor area: ~15 m² | Wall thickness: 28 mm | Timber: Northern European timber, kiln-dried | Jointing: tongue-and-groove | Foundation: confirmed for the specific model and site.
Customisation Options
Dealers can specify wall thickness upgrades (34 mm, 44 mm), additional windows, French door conversion, veranda extension, and factory-applied treatment. Internal insulation upgrades for extended-season use where the final specification and local review support it available. Standard catalogue production lead time is confirmed per order at quote stage.
Manufacturing & Delivery
Produced at UAB Eurodita in Lithuania. Ships as a compact flat-pack kit. The 15 m² footprint allows multiple units per full-load. Production timing is confirmed per order at quote stage.
Private Label Partnership
Private-label branding, packaging and customer-facing documentation are agreed perorder. The Abigail gives garden-centre and online retail partners a compact catalogue option.
What should dealers confirm before quoting Log Cabin Abigail 5.0×3.0m, 28mm?
Eurodita supplies Log Cabin Abigail 5.0×3.0m, 28mm as a private-label B2B garden cabin / summer house with a 5m x 3m footprint and 28mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, wall profile, glazing/openings, roof and floor options, finish or treatment route, packaging, unloading access, EXW release or freight route from the Eurodita factory, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
Explore Similar Products
B2B Order Framework
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Private-label scope
Branding on packaging and documents, agreed per order.
Production planning
Production scope confirmed in the written quotation.
Commercial terms
Price, quantity and payment quoted per order.
Technical documents
Drawings and specifications listed in the order documentation.
Configuration review
Dimensions, openings and wall profile reviewed before quotation.
Dispatch terms
EXW Eurodita factory as standard; delivered options per market and order.
