Glulam Log House Lumio 102 11.7×8.7m, 220mm
Eurodita Lumio 102 is a single-storey with mezzanine gallery 220 mm glulam house with 11.71 x 8.71 m external footprint (approximately 102 m² built area), giving 133.2 m² total net area including mezzanine.
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for Glulam Log House Lumio 102 11.7x8.7m, 220mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 11.7 x 8.7 m |
| External footprint area | 101.8 m² |
| Eaves height | 268 cm |
| Ridge height | 522 cm |
| Storeys | 1 |
| Base | External footprint 11.7 x 8.7 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof form | Apex |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 11.7 x 8.7 m footprint, 220 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the glulam houses range.
About This Glulam Log House Lumio 102 11.7×8.7m, 220mm
What is the Eurodita Lumio 102?
Eurodita Lumio 102 is a single-storey with mezzanine gallery 220 mm glulam house with 11.71 x 8.71 m external footprint (approximately 102 m² built area), giving 133.2 m² total net area including mezzanine. Manufactured at the Eurodita factory and supplied to project developers and B2B dealers building mid-size catalogue ranges under private-label manufacturing terms.
How is the Lumio 102 laid out?

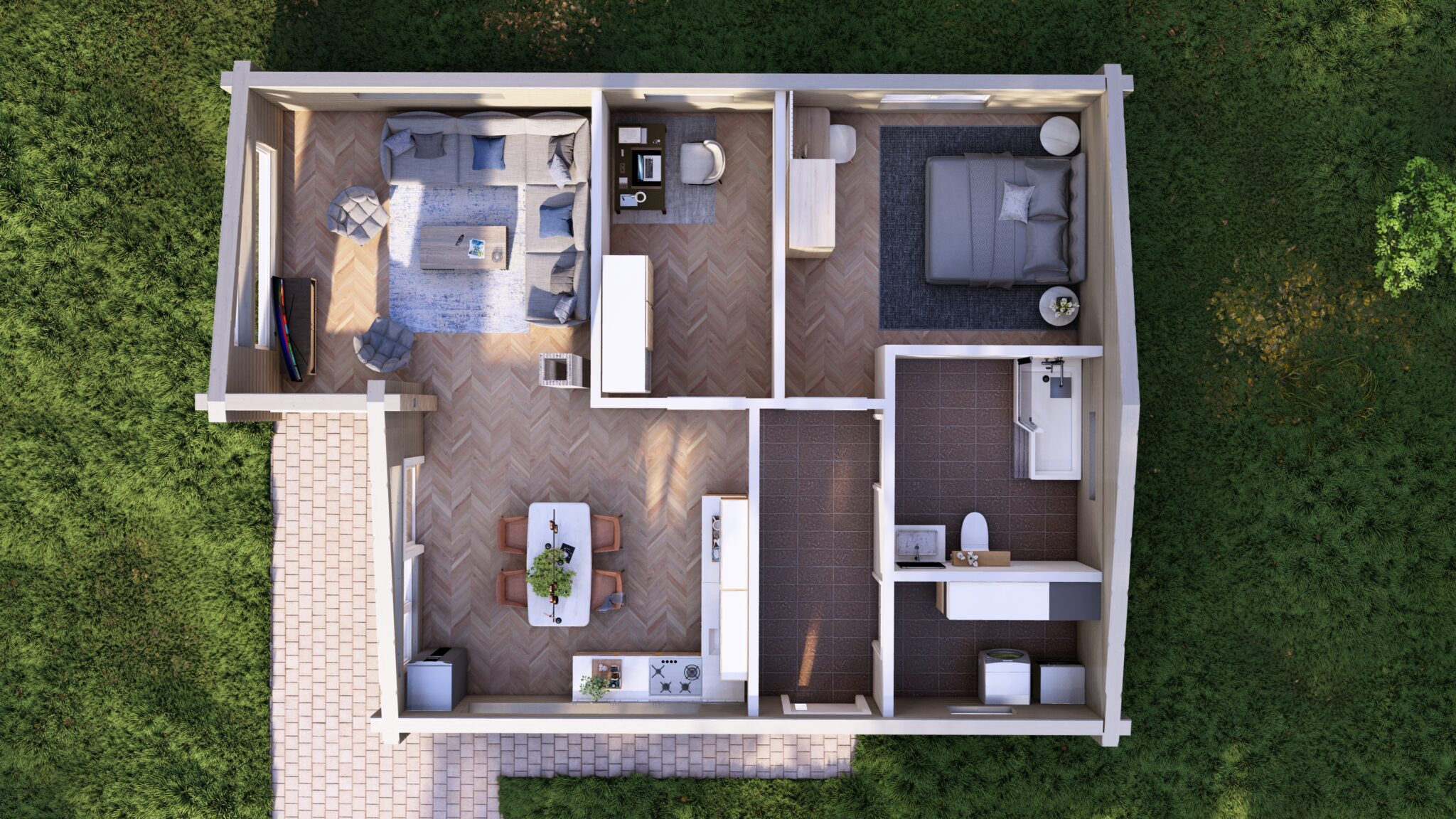

Ground floor includes Living-kitchen-dining (36.9 m²), Bedroom (15.0 m²), Study (9.4 m²), Bathroom (7.8 m²), Hallway (6.8 m²), Utility room (4.9 m²). Mezzanine gallery adds Gallery (45.4 m²), Loft (7.0 m²). The ground-floor net floor area is 80.8 m². The layout includes 1 + study (convertible) bedroom configuration and 1 bathroom, suitable for single-storey with mezzanine gallery accommodation-style layout review across European climates.
How is the Lumio 102 constructed?
The Eurodita Lumio 102 wall profile is manufactured from Northern European timber, with 220 mm wall thickness laminated for dimensional stability. Tongue-and-groove joints between courses give assembly stability and reduce air infiltration. Timber stock is purchased from suppliers within certified supply chains. Double-glazed timber joinery features insulated frames for both doors and windows.
What floor and roof specification does the Lumio 102 use?
Floor package uses tongue-and-groove boards supported by pressure-treated bearers for ground-contact applications. The roof is a 20° gable profile at 5.22 m ridge height and 2.68 m eaves height, reviewed against the dealer's delivery-market brief. The roof package is supplied with the kit; covering material is configurable (tiles, metal sheet, or bituminous).
What customisation options are available?
Wall-thickness upgrades extend thermal specification planning for colder-climate briefs, and additional insulation packages support extended-season use. Glazing options include triple-glazed units and enlarged window configurations. Interior partition kits enable flexible room arrangements, and veranda extensions can be specified for covered outdoor space. Branding under the dealer's own label is available as part of Eurodita private-label programme.
Where is the Lumio 102 made?
Eurodita manufactures this product in Lithuania. Product scope, production timing, EXW factory release or any individually arranged delivered option, and documentation are confirmed in the written quotation and order. Component numbering and assembly documentation are supplied with the agreed kit.
Is the Lumio 102 available for private-label B2B supply?
Eurodita supplies this product through a private-label B2B route. Dealer-branded labelling, packaging, drawings and relevant documentation are agreed per order. Order volume, commercial terms and any showroom support are confirmed in the quotation. As a residential home, the Lumio 102 can also be supplied directly to a private client, with each project assessed individually.
What support does the Lumio 102 come with?
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order. Available product and order documentation is confirmed for the project, specification and destination.
What should dealers confirm before quoting Glulam Log House Lumio 102 11.7×8.7m, 220mm?
Before quoting Glulam Log House Lumio 102 11.7×8.7m, 220mm, dealers should confirm destination market, intended use, floor layout, chosen Eurodita glulam profile route (70mm, 88mm, 135mm, 180mm or 220mm where agreed), glazing and door package, insulation route, services, foundation interface, branding, packing, local-authority review and logistics. Eurodita supports B2B partners through Glulam Houses, private-label manufacturing and shipping coordination.
