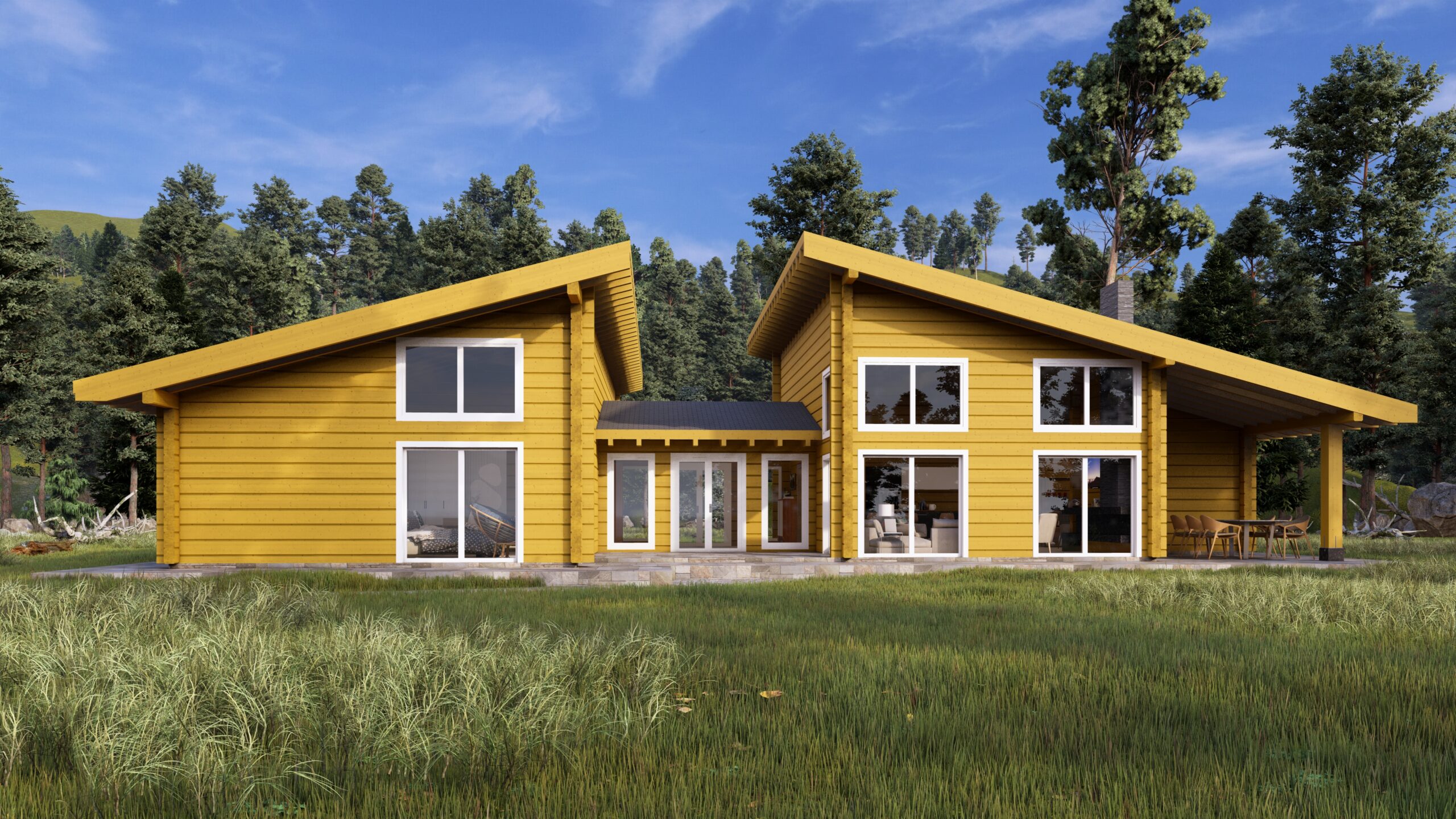

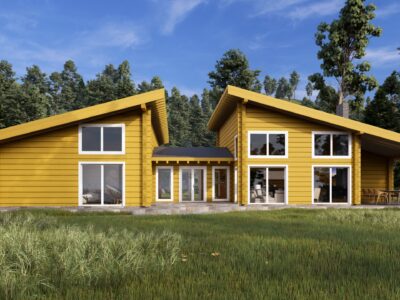

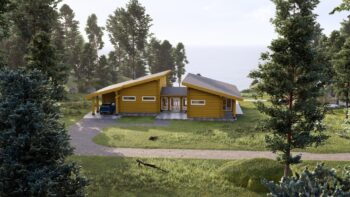

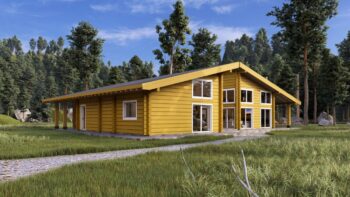

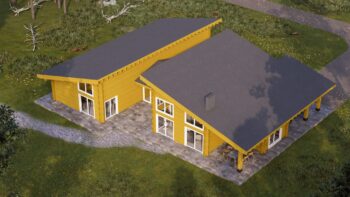

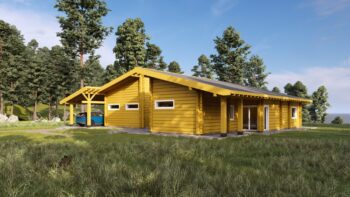

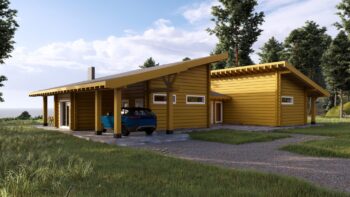

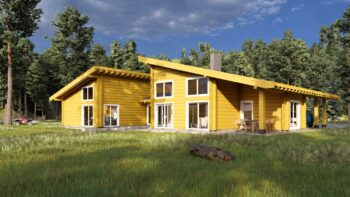

Glulam Log house Logique
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for Glulam Log house Logique. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 16.68 x 22.67 m |
| External footprint area | 378.1 m² |
| Eaves height | 300 cm |
| Ridge height | 612 cm |
| Storeys | 1 |
| Base | External footprint 16.68 x 22.67 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 16.68 x 22.67 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the contemporary glulam homes range.
About This Glulam Log house Logique
Product Overview
The Logique delivers impressive 16.68x22.67m living space through contemporary glulam construction. Designed for project use subject to local authority review, this substantial log house provides developers and contractors with a premium timber solution. The generous dimensions create flexible possibilities for family accommodation layouts or higher-specification retreat projects across European markets.

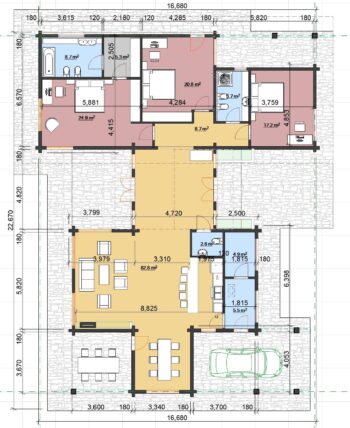

Layout & Configuration

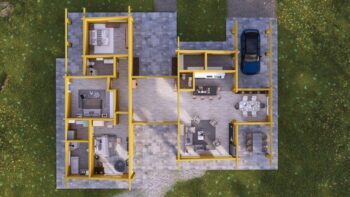

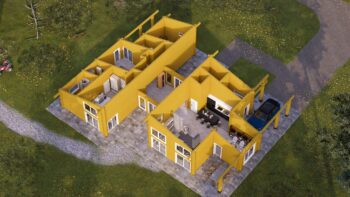

Open-plan living areas utilise the full footprint efficiently. The 300cm eaves height creates spacious ground floor accommodation, while the 6.12m ridge provides scope for mezzanine levels or cathedral ceilings. Interior partitioning remains flexible to accommodate varied accommodation requirements and regional preferences.
Timber & Construction
Northern European timber forms the 180mm wall system with precision tongue-and-groove joints ensuring assembly stability. Double-glazed timber joinery incorporates insulated profiles for project-specific thermal specification. The glulam construction method provides strong dimensional stability compared to traditional solid timber approaches.
Floor & Roof
Robust 28mm floor boards rest on pressure-treated bearer systems for long-term stability. The roof incorporates 19mm tongue-and-groove boards providing both roof deck and interior ceiling finish. Storm bracing elements ensure the building envelope meets European site wind-exposure review.
Customisation Options
Insulation is specified per project and the materials are sourced locally. Triple-glazing options available for extreme climate applications. Partition kits enable rapid interior configuration, while veranda extensions expand the living envelope. Regional adaptations ensure review against local building requirements.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Precision CNC machinery ensures millimetre accuracy across all components. Glulam production timing is confirmed per order according to project specification.
Private Label Partnership
Private-label manufacturing enables dealer branding across all documentation and delivery materials. Comprehensive 3D visualisation supports customer presentations, while showroom display programmes enhance retail environments. Technical training ensures dealer teams maintain consistent product knowledge and assembly expertise.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
What should dealers verify before quoting Glulam Log house Logique?
Eurodita supplies Glulam Log house Logique as a B2B private-label glulam house for dealers, developers and project teams. Before quoting, confirm whether the project uses the listed wall profile or another Eurodita glulam profile route, 88mm, 135mm, 180mm or 220mm, plus layout changes, documentation scope, EXW Eurodita factory logistics and local-authority review needs. Check Glulam Houses, private-label manufacturing, shipping policy and documentation status before client commitments.
B2B Order Framework
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Private-label scope
Branding on packaging and documents, agreed per order.
Production planning
Production scope confirmed in the written quotation.
Commercial terms
Price, quantity and payment quoted per order.
Technical documents
Drawings and specifications listed in the order documentation.
Configuration review
Dimensions, openings and wall profile reviewed before quotation.
Dispatch terms
EXW Eurodita factory as standard; delivered options per market and order.
How a B2B Order Moves Forward
Each step is confirmed in writing for the specific order. See Reading a Eurodita quotation.
