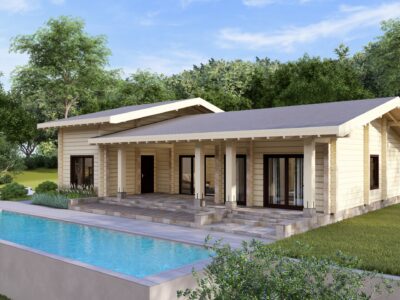

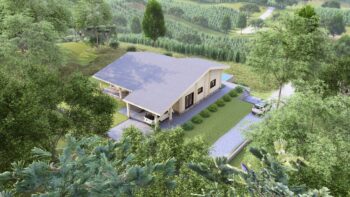

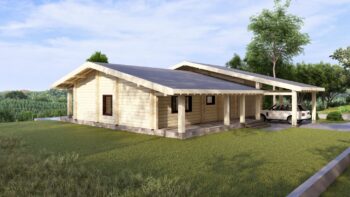

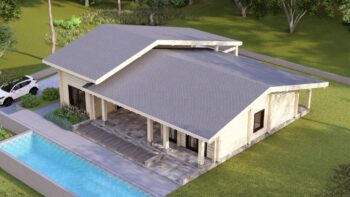

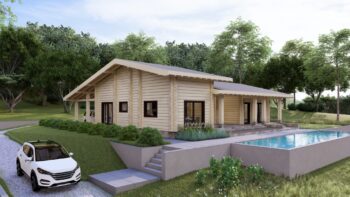

Glulam Log house Naturhaus
The Naturhaus addresses the growing demand for project-specific accommodation timber structures that combine traditional log aesthetics with project-specific thermal specification.
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for Glulam Log house Naturhaus. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 15.32 x 11.45 m |
| External footprint area | 175.4 m² |
| Eaves height | 340 cm |
| Ridge height | 620 cm |
| Storeys | 1 |
| Base | External footprint 15.32 x 11.45 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile options | 70 x 130 mm, 88 x 260 mm, 135 x 260 mm, 180 x 260 mm or 220 x 260 mm glulam, chosen per project and budget |
| Corner system | Dovetail corner system available on the 88 to 220 mm glulam profiles, not on 70 x 130 mm |
| Construction | Interlocking tongue and groove joints |
| Timber | Glued-laminated timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 15.32 x 11.45 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the contemporary glulam homes range.
About This Glulam Log house Naturhaus
Product Overview
The Naturhaus addresses the growing demand for project-specific accommodation timber structures that combine traditional log aesthetics with project-specific thermal specification. This 15.32 x 11.45m glulam log house delivers project-specific accommodation standards for development projects, holiday parks, and higher-specification resort projects across European markets requiring substantial family accommodation.
Layout & Configuration

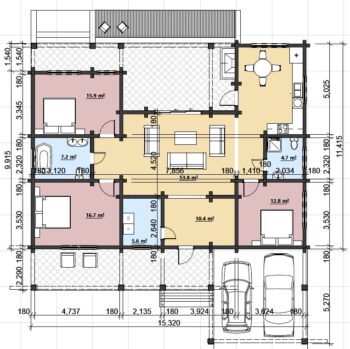

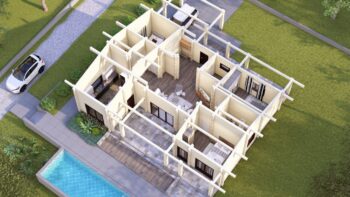

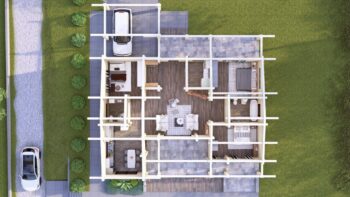

The spacious floor plan accommodates multiple bedroom configurations with dedicated living areas and full kitchen facilities. The 340cm eaves height creates generous ceiling clearance throughout, while the 620cm ridge height enables effective loft utilization for additional sleeping quarters or storage space in project applications.
Timber & Construction
Engineered from Northern European timber, the 180mm wall thickness incorporates strong interlocking tongue-and-groove joints for assembly stability and thermal specification. Double-glazed timber joinery with insulated profiles ensures project comfort brief, while the glulam construction provides dimensional stability strong to traditional solid timber construction methods.
Floor & Roof
The structural foundation features 28mm floor boards supported by pressure-treated bearers for moisture resistance and longevity. Tongue-and-groove 19mm roof boards provide solid decking beneath final coverings, with integrated storm bracing ensuring assembly stability in challenging weather conditions typical of European installation environments.
Customisation Options
Wall thickness upgrades enable project-specific thermal specification for colder climates, while additional insulation packages can be reviewed against regional project requirements. Triple-glazing options, internal partition kits, and veranda extensions allow dealers to configure specifications for local market requirements and customer preferences within dealer-led project briefs.
Manufacturing & Delivery
The Eurodita factory is dimensioned for 150,000 m³ of timber a year. Glulam production timing is confirmed per order according to project specification.
Private Label Partnership
Private-label manufacturing enables trade partners to market under their own branding with comprehensive documentation support. Custom 3D visualizations, branded technical specifications, and showroom display programmes help dealers present professional solutions to project developers and contractors requiring substantial family accommodation structures.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
What should dealers verify before quoting Glulam Log house Naturhaus?
Eurodita supplies Glulam Log house Naturhaus as a B2B private-label glulam house for dealers, developers and project teams. Before quoting, confirm whether the project uses the listed wall profile or another Eurodita glulam profile route, 88mm, 135mm, 180mm or 220mm, plus layout changes, documentation scope, EXW Eurodita factory logistics and local-authority review needs. Check Glulam Houses, private-label manufacturing, shipping policy and documentation status before client commitments.
