Eurodita Twin Skin two bed log cabin 8x7m
Twin Skin two bed log cabin 8x7m is a twin-skin log cabin with two bedrooms, supplied as a building kit.
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
Technical data sheet
Specification recorded for Eurodita Twin Skin two bed log cabin 8x7m. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 8 x 7 m |
| External footprint area | 56 m² |
| Eaves height | 220 cm |
| Ridge height | 312 cm |
| Storeys | 1 |
| Base | External footprint 8 x 7 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall build-up | 44-100-44 mm: 44 mm outer skin, 100 mm cavity, 44 mm inner skin. 188 mm total wall thickness. |
| Other wall options | The other approved twin-skin build-ups and solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Single glazed |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | The 100 mm cavity is the space insulation occupies. Eurodita supplies the structure prepared for insulation, not the insulation material, so the cavity dimension is not an insulation specification. |
| Availability | Build-up availability and suitability for a given project and destination are confirmed per order. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 8 x 7 m footprint. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 2 bedroom log cabins range.
About This Eurodita Twin Skin two bed log cabin 8x7m
The model
Twin Skin two bed log cabin 8x7m is a twin-skin log cabin with two bedrooms, supplied as a building kit. It measures 8 x 7 m externally, an external footprint of 56 m². The ridge height is 312 cm and the eaves height 220 cm. It has one storey. It is listed with the twin skin log cabins.
Layout

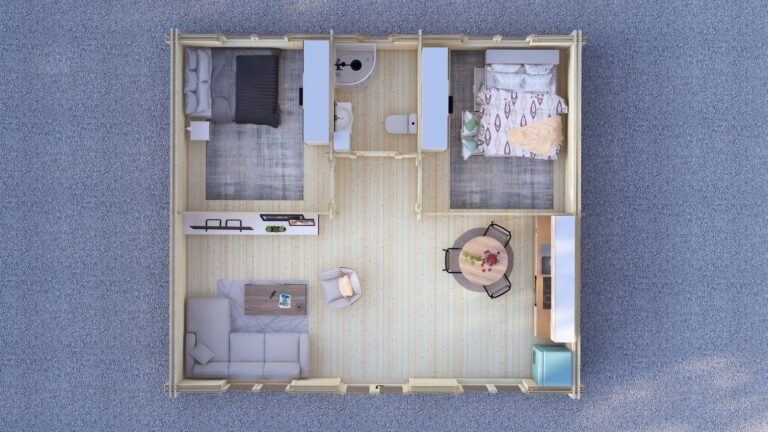

The plan drawing shows an open living room with a kitchen area, two bedrooms and a bathroom. Furniture and fittings in the drawing show how the rooms can be used; kitchens, bathrooms and interior fit-out are local scope.
Walls
The wall is a twin-skin build-up of 44-100-44 mm: a 44 mm outer wall log, a 100 mm cavity and a 44 mm inner wall log, 188 mm in total. The cavity is prepared for insulation, which is sourced locally. The other approved build-ups (44-50-44, 58-50-58 and 58-100-58 mm) can be specified, and the availability of a build-up is confirmed per order.
Floor and roof
The floor is 28 mm floorboards on floor bearers that are impregnated as standard. The roof is boarded with 19 mm tongue and groove boards. A storm brace and anchor set is included.
Doors and windows
Doors are single-glazed timber joinery, made by Eurodita. Windows are double-glazed timber joinery with an insulated profile, made by Eurodita.
What can be changed
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing: the written quotation is prepared in the Eurodita design and estimator system, with 2D drawings and a 3D visualisation. Cable channels are machined in the wall logs where the order specifies them. More on bespoke orders.
Supply
The kit is quoted in writing and supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project; foundations, utilities and approvals stay with the local team of the buyer. What the kit holds is set out on What is in a Eurodita kit.
