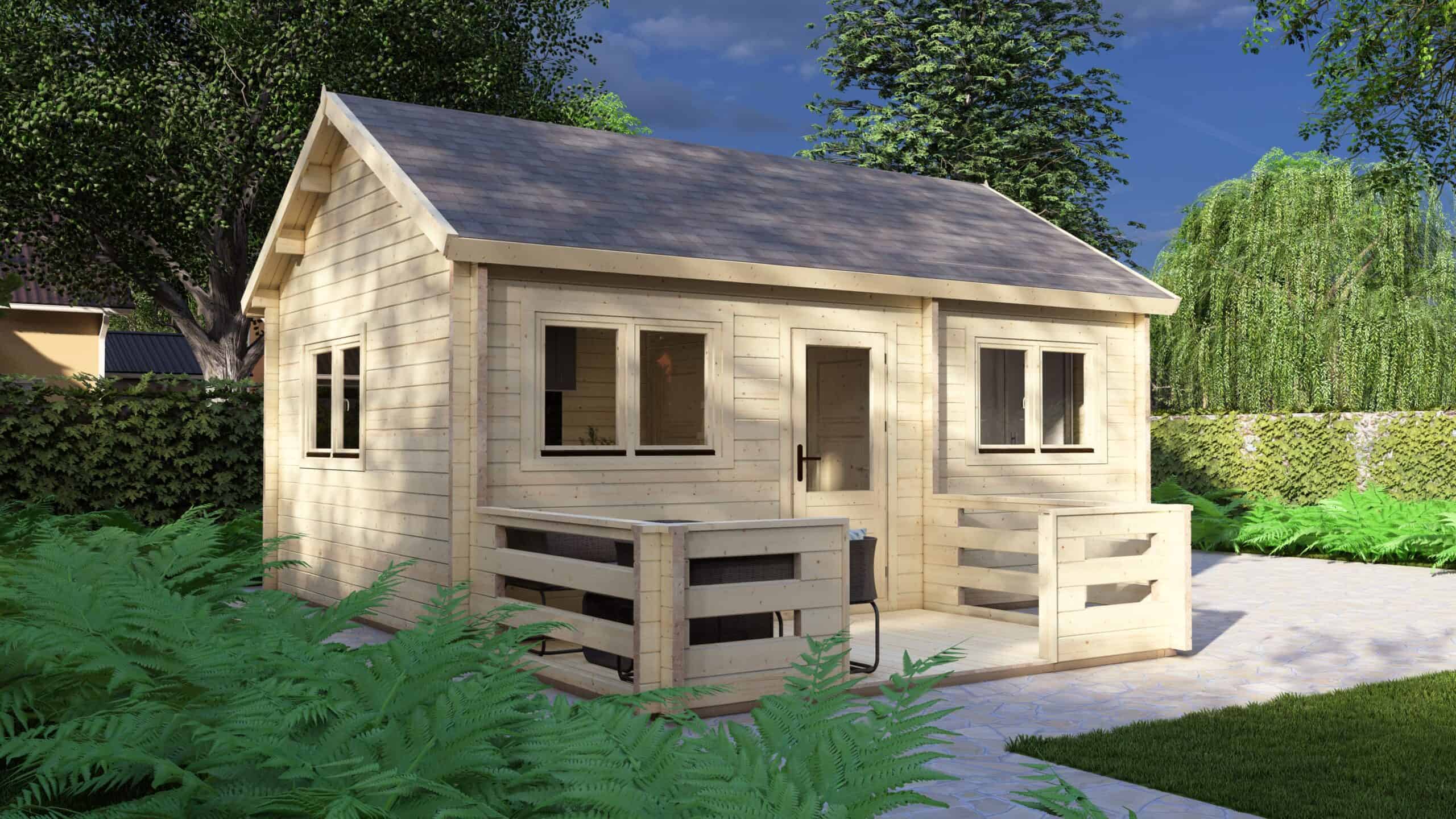

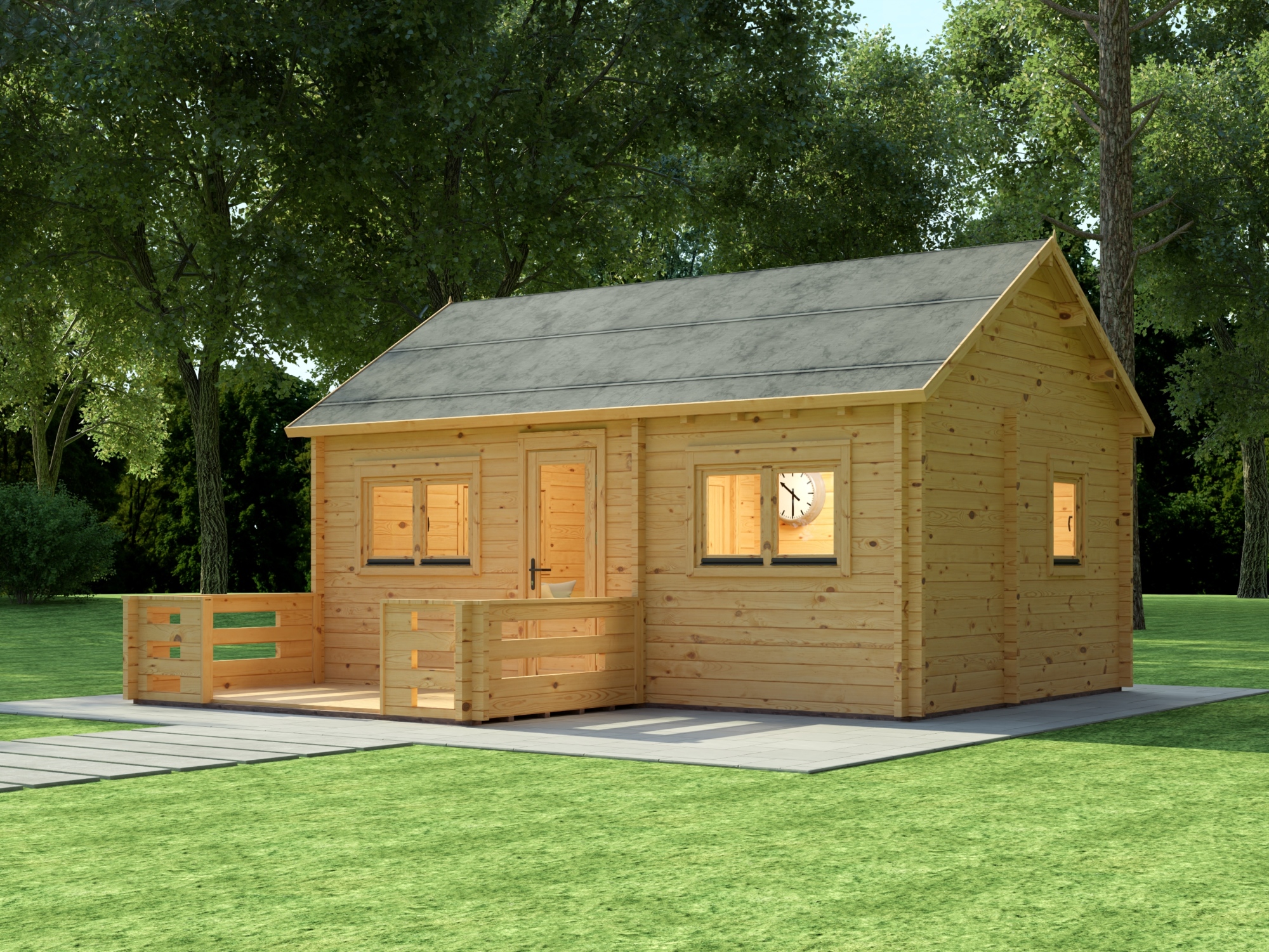

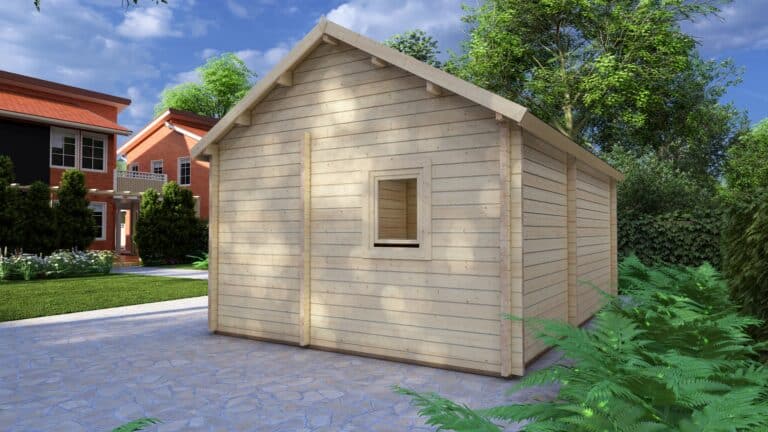

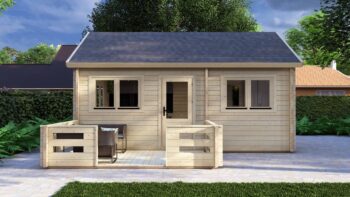

Log Cabin Betty 5.85×4.1m, 58mm
The Betty Log Cabin serves contractors and developers requiring compact timber-building solution with project-specific thermal specification. This 5.85x4.1m structure delivers efficient living space through 58mm wall construction and integrated double-glazed joinery.
Technical data sheet
Specification recorded for Log Cabin Betty 5.85x4.1m, 58mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

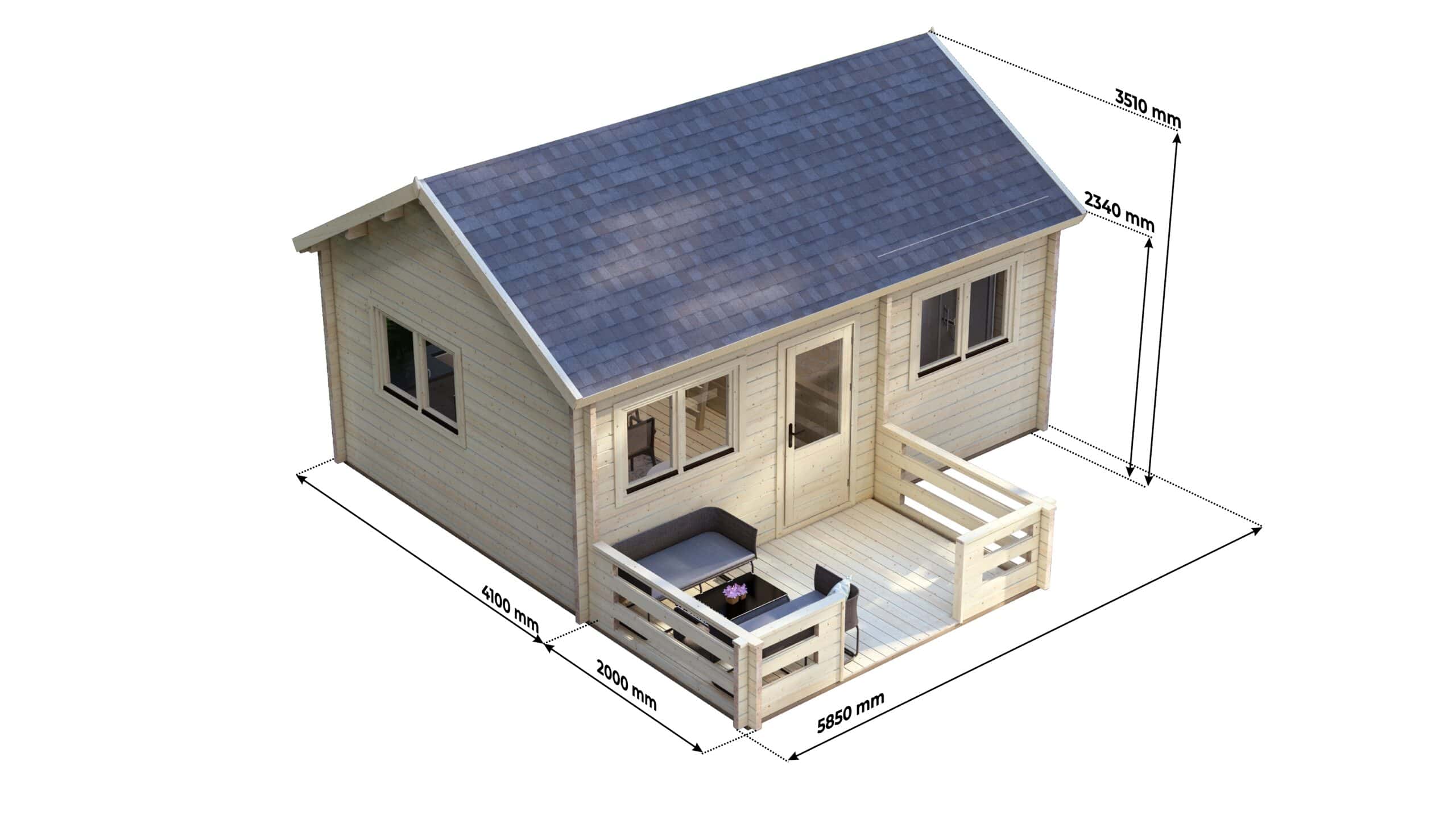

| External dimensions | 5.85 x 4.1 m |
| External footprint area | 24 m² |
| Eaves height | 234 cm |
| Ridge height | 351 cm |
| Storeys | 1 |
| Base | External footprint 5.85 x 4.1 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 58 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
Need this in a different size?
This model is supplied as a 5.85 x 4.1 m footprint, 58 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 1 bedroom log cabins range.
About This Log Cabin Betty 5.85×4.1m, 58mm
Product Overview
The Betty Log Cabin serves contractors and developers requiring compact timber-building solution with project-specific thermal specification. This 5.85x4.1m structure delivers efficient living space through 58mm wall construction and integrated double-glazed joinery. Designed for extended-season use, it provides dealers with a versatile residential unit suitable for diverse applications.

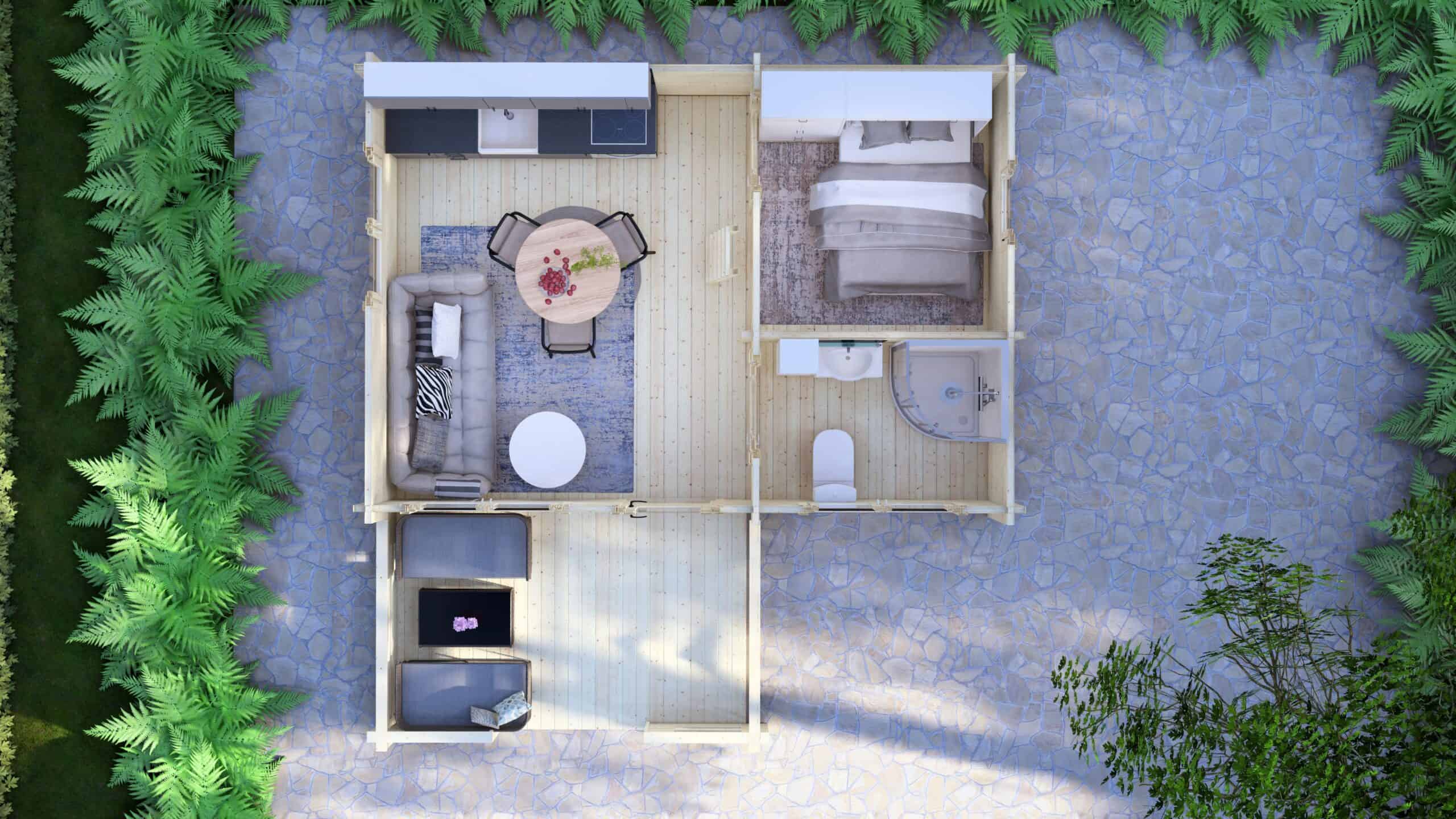

Layout & Configuration

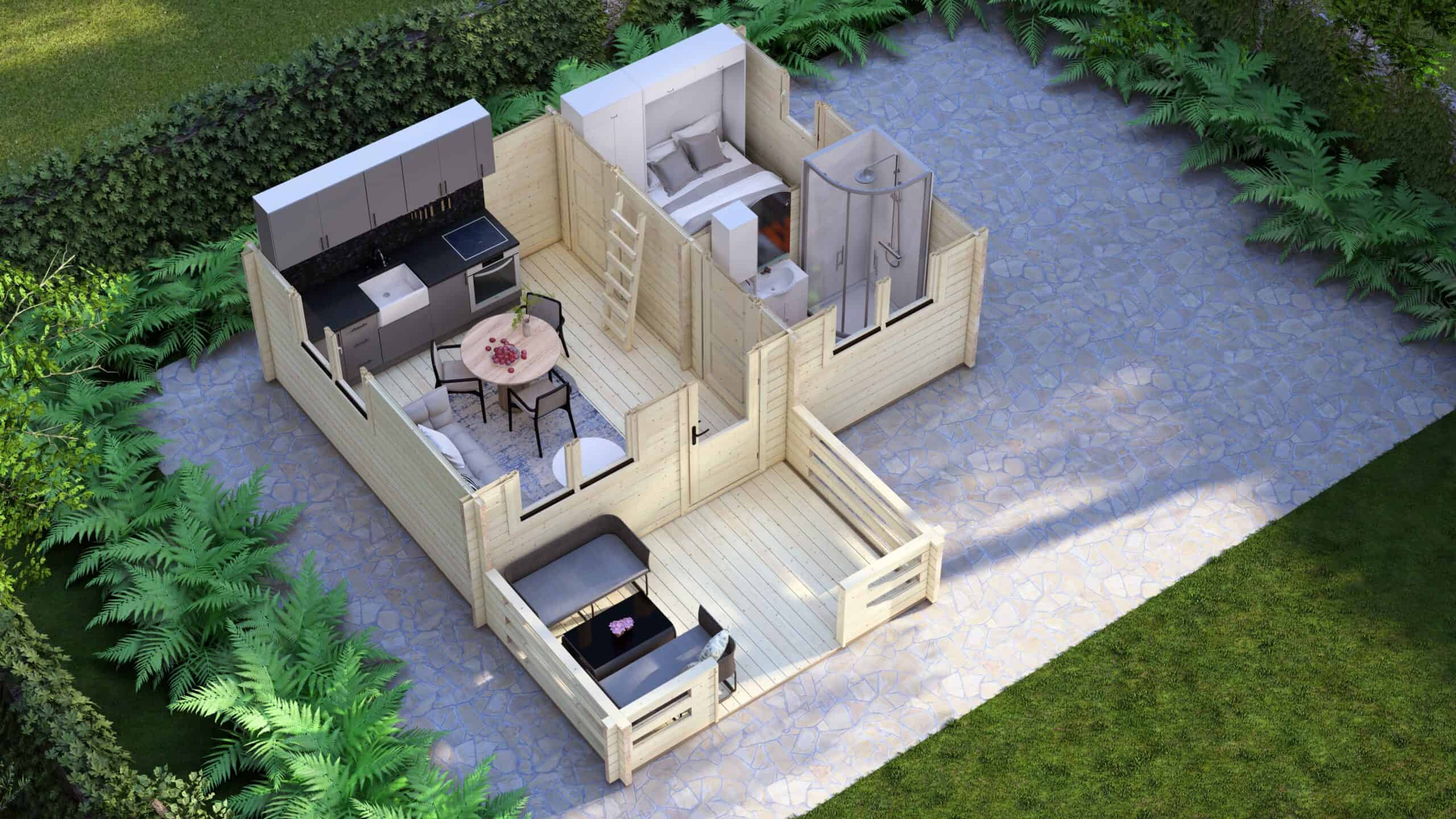

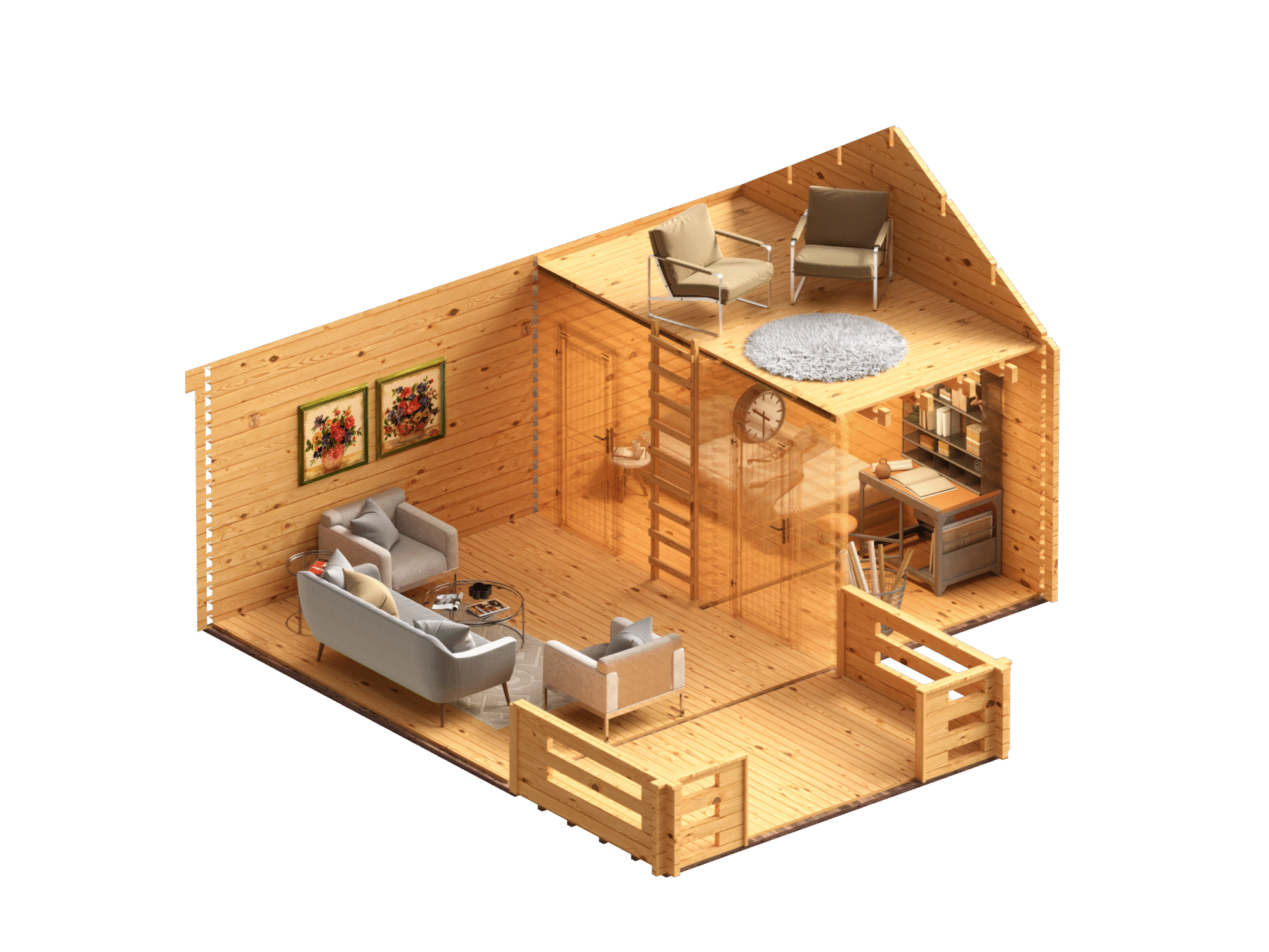

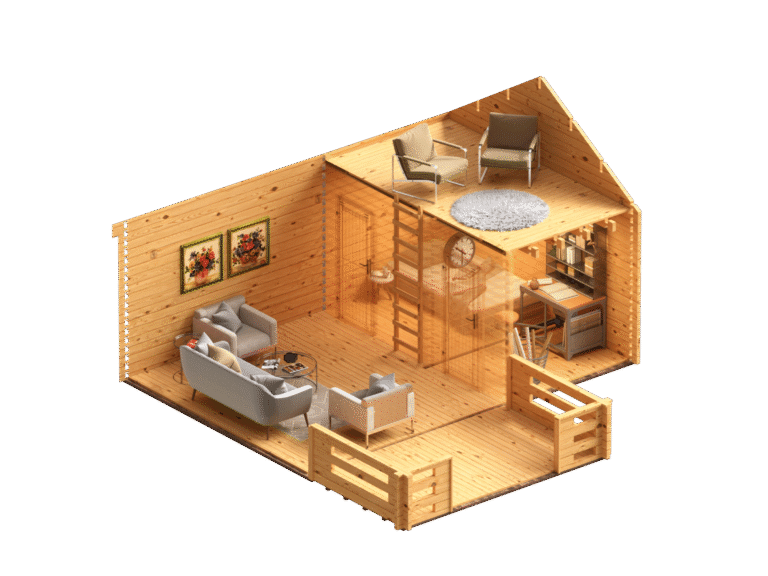

The open-plan interior maximises usable space within the compact footprint. Strategic window placement supports natural light distribution throughout the single room configuration. The 234cm eaves height creates comfortable headroom, while the 351cm ridge accommodates potential loft conversion for additional storage or sleeping space when required.
Timber & Construction
Northern European timber provides excellent thermal stability and strength characteristics. The 58mm wall thickness incorporates precision-milled tongue and groove joints for airtight assembly. Double-glazed timber windows and doors feature insulated profiles, delivering enhanced energy-related specification for project applications requiring project-specific comfort review.
Floor & Roof
The structural floor incorporates 28mm boards supported by pressure-treated bearers for long-term stability. Roof construction utilises 19mm tongue and groove boarding with integrated storm bracing. This specification supports assembly stability while providing the thermal mass necessary for consistent internal temperatures across seasonal variations.
Customisation Options
Wall thickness upgrades accommodate enhanced insulation requirements for specific climate zones. Triple-glazed window options can support higher thermal specification briefs where the dealer or project team confirms the local requirement. Interior partition kits enable room division, while veranda extensions expand the functional living area for clients requiring covered outdoor space.
Manufacturing & Delivery
Eurodita processes 150,000 m³ of timber annually. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita's standard terms are EXW from Kaunas. Bespoke modifications accommodate specific project requirements while maintaining our established quality standards and delivery schedules.
Private Label Partnership
Private-label capability enables dealers to market under their own branding with customised documentation and technical drawings. Professional 3D visualisation services support sales presentations, while showroom display programmes provide physical demonstration units. This partnership approach strengthens local market positioning while maintaining manufacturing efficiency.
What should dealers confirm before quoting Log Cabin Betty 5.85×4.1m, 58mm?
Eurodita supplies Log Cabin Betty 5.85×4.1m, 58mm as a private-label B2B residential log cabin with a 5.85x4.1m footprint and 58mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, layout, openings, selected wall or insulation scope, foundation interface, unloading access, EXW release or freight route from Kaunas, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
