Log cabin Folio 8x5m, 58mm
Technical data sheet
Specification recorded for Log cabin Folio 8x5m, 58mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|

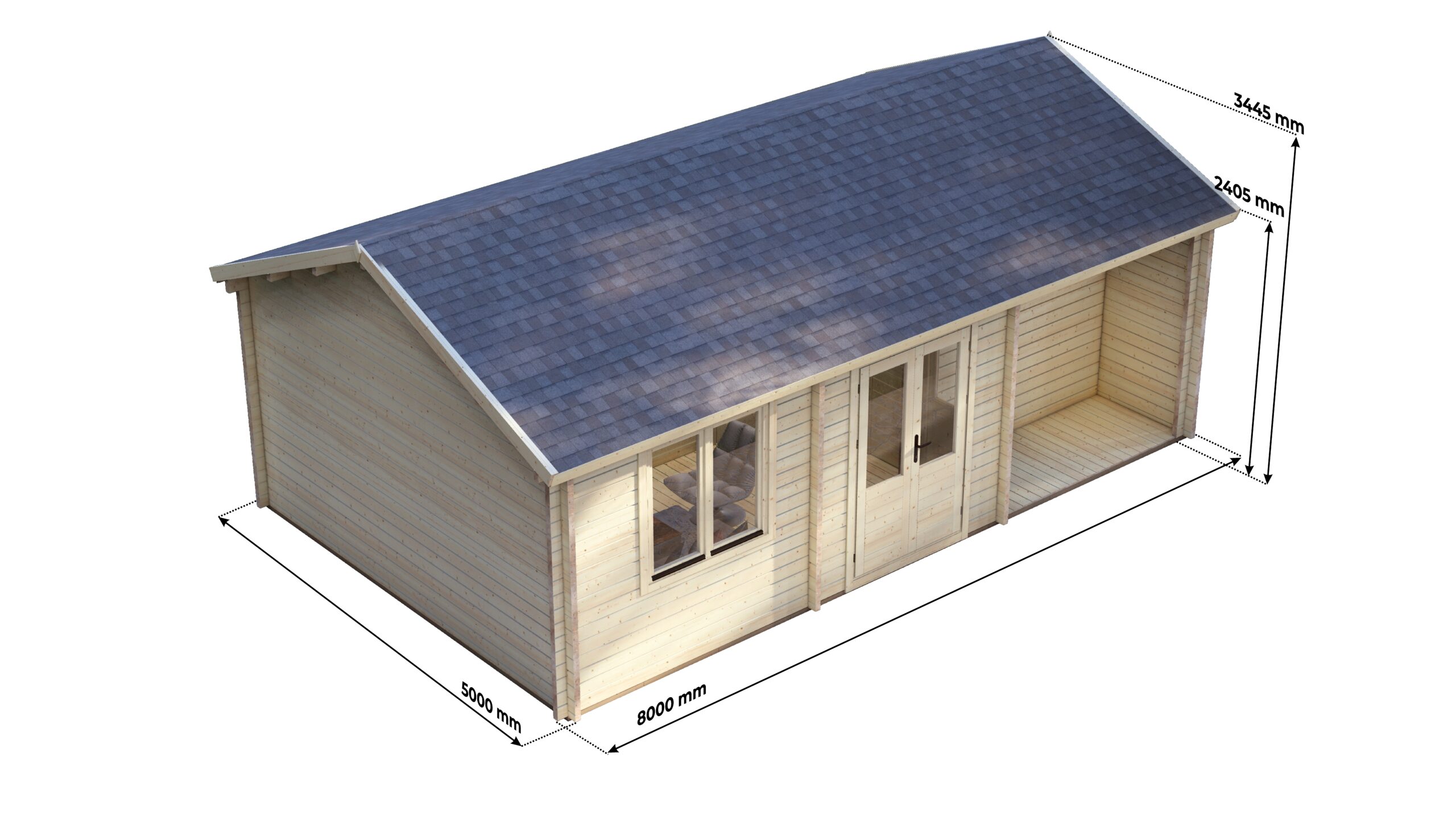

| External dimensions | 8 x 5 m |
| Eaves height | 240 cm |
| Ridge height | 344 cm |
| Base | External footprint 8 x 5 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 58 x 130 mm as standard |
| Other wall options | Other approved solid wall profiles can be specified to suit the project and budget. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Double-Glazed Timber Joinery, Insulated Profile |
| Windows | Double-Glazed Timber Joinery, Insulated Profile |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Need this in a different size?
This model is supplied as a 8 x 5 m footprint, 58 mm wall profile. If your customer needs a different layout, send a drawing. Eurodita will confirm whether the qualified bespoke route and factory scope fit the exact project. Partner branding is agreed per order.
- 1 Send a drawing A hand sketch can start the review. Mark known window and door positions, wall thickness and heights; Eurodita confirms any missing technical inputs.
- 2 Confirm the quotation scope If the enquiry fits, pricing and any CAD/3D or technical material are prepared to the agreed scope.
- 3 Review the agreed scope Revisions follow the quotation and project scope until written sign-off.
CAD/3D quotation material is prepared to the qualified project scope. Availability and timing are confirmed during qualification. Partner branding is applied where agreed; required manufacturer, legal and traceability information is retained.
Send a bespoke briefDimensions, wall thickness and opening positions are confirmed per project at quote stage. Bespoke production timing is confirmed at quotation stage. See published projects for built examples with dimensions and drawings, or review the rest of the 1 bedroom log cabins range.

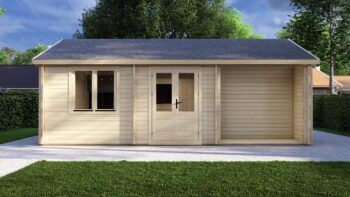

About This Log cabin Folio 8x5m, 58mm
Product Overview
The Folio serves as a compact project-specific accommodation solution for developers seeking quality one-bedroom accommodations. This 8 x 5m log cabin delivers functional living space through efficient design and robust Nordic construction. Suited to managed-site developments, holiday parks, or supplementary housing projects requiring extended-use accommodation capabilities.

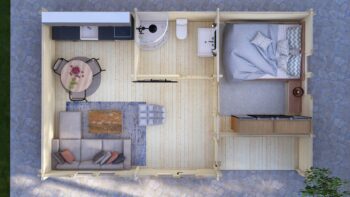

Layout & Configuration

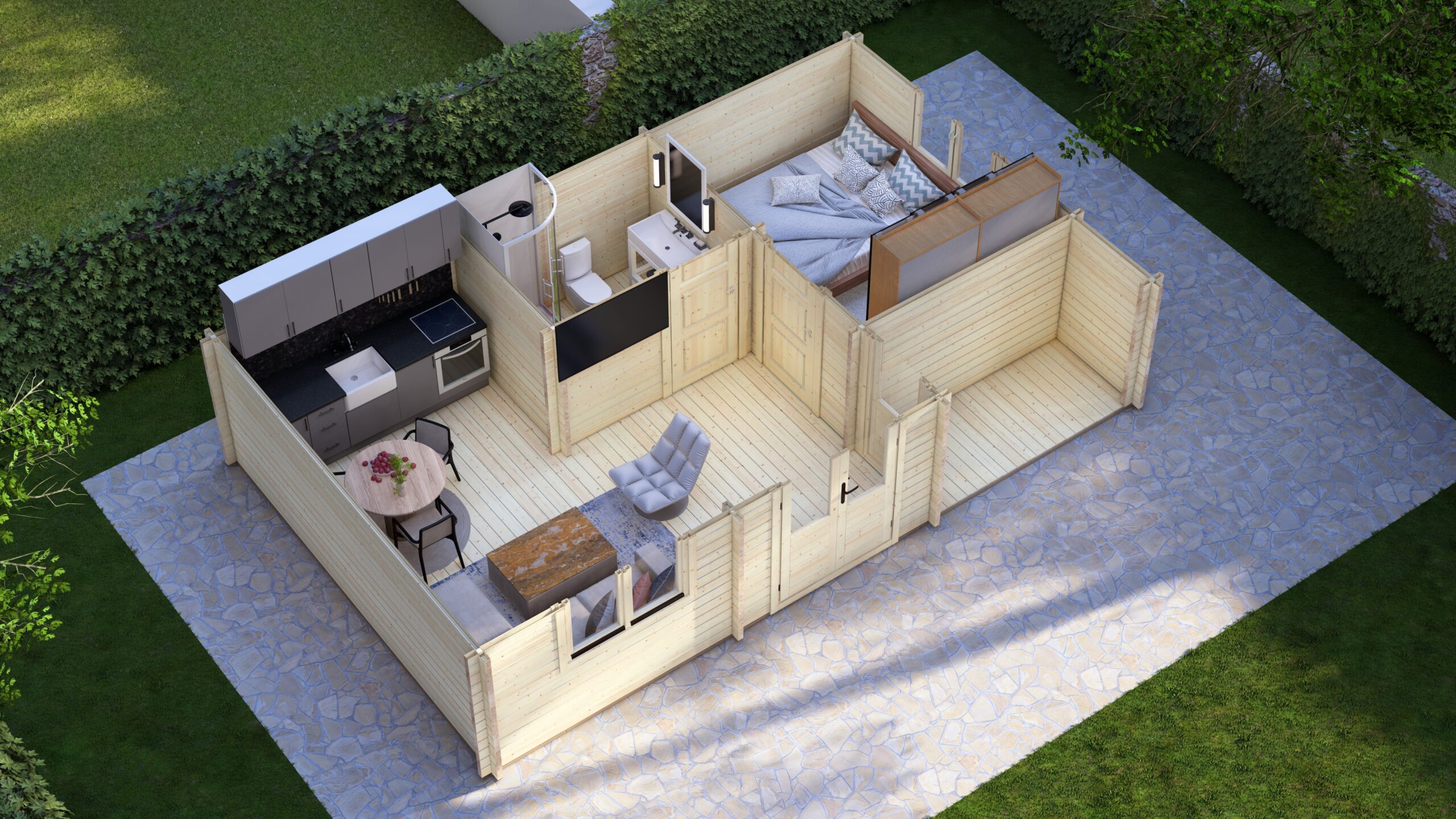

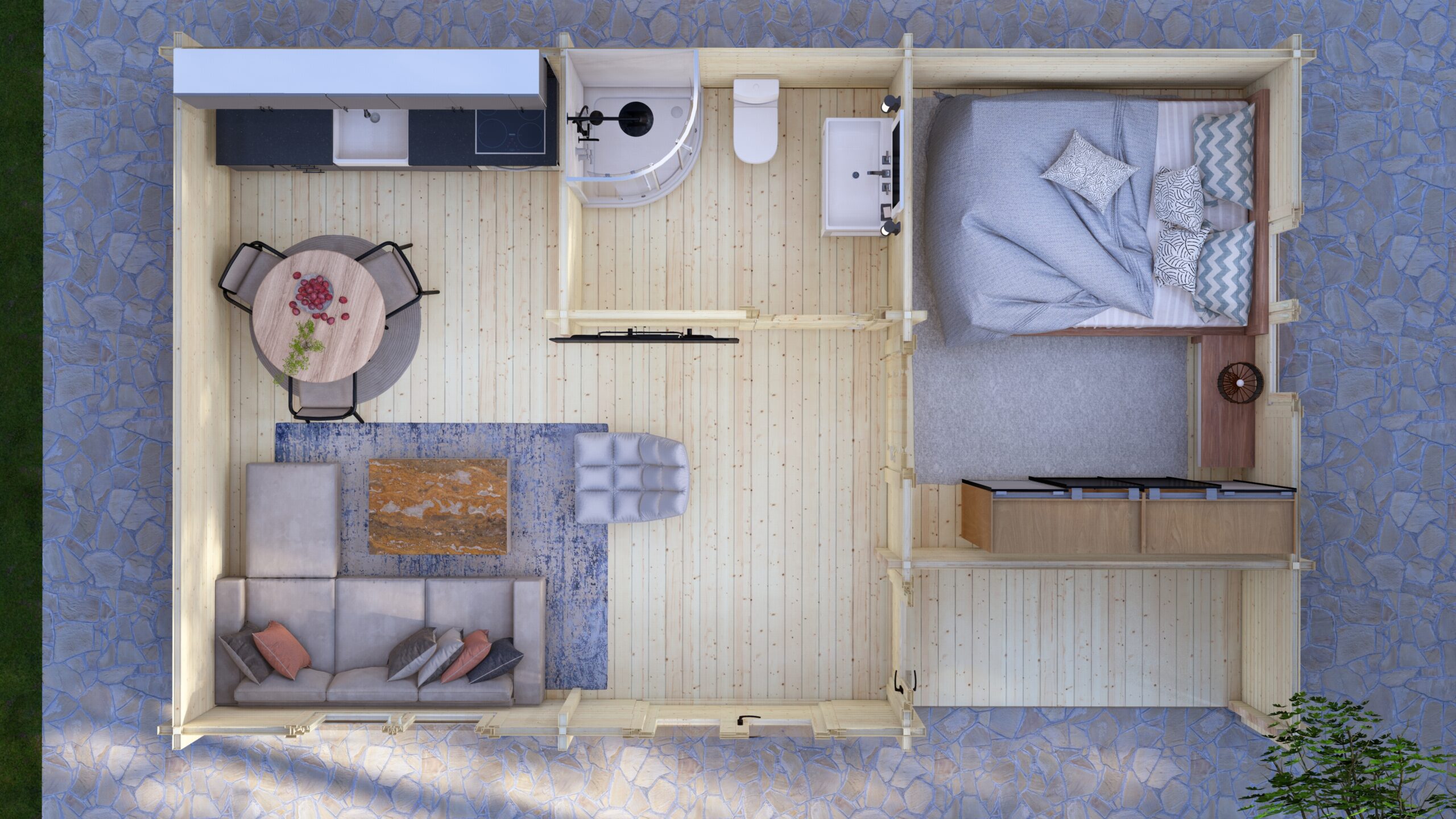

Open-plan living area incorporates kitchen, dining, and lounge zones within the main floor space. Separate bedroom provides privacy while maintaining the cabin's compact footprint. The 240cm eaves height supports comfortable headroom throughout, with the pitched roof creating additional visual space and storage potential.
Timber & Construction
Northern European timber construction features 58mm wall thickness with precision-machined tongue and groove profiles. Interlocking joints help reduce thermal weak points while supporting assembly stability. Double-glazed timber joinery incorporates insulated profiles for enhanced thermal specification and weather resistance in four-season applications.
Floor & Roof
Structural flooring incorporates 28mm boards supported by pressure-treated bearers for long-term stability. Roof construction utilises 19mm tongue and groove boarding with integrated storm bracing for wind resistance. This configuration provides the structural foundation necessary for site-use approval subject to local-authority review.
Customisation Options
Wall-thickness and insulation upgrades are confirmed at quotation stage for the product family, target use and destination-market review. Triple-glazed joinery options available for extreme climate applications. Interior partition kits enable flexible room configurations, while veranda extensions expand outdoor living capabilities. Bespoke modifications accommodate specific project requirements.
Manufacturing & Delivery
Eurodita processes 150,000 m³ of timber annually. Freight route and final delivery timing are agreed per order in the written quotation. Eurodita's standard terms are EXW from Kaunas. Our established supply chain supports consistent quality while accommodating both standard configurations and project-specific modifications.
Private Label Partnership
Private-label manufacturing enables dealers to market under their own branding with customised documentation and technical specifications. Partner support includes 3D visualisation services, showroom display programmes, and co-branded marketing materials. This partnership approach strengthens dealer relationships while maintaining competitive positioning.
What should dealers confirm before quoting Log cabin Folio 8x5m, 58mm?
Eurodita supplies Log cabin Folio 8x5m, 58mm as a private-label B2B residential log cabin with a 8 x 5m footprint and 58mm Northern European timber wall specification. Before quoting, dealers should confirm the quote stage package, layout, openings, selected wall or insulation scope, foundation interface, unloading access, EXW release or freight route from Kaunas, private-label documentation, and local-authority planning or site-use review requirements.
Product, order and after-sales conditions are confirmed in writing for each project in the quotation, order confirmation and applicable product documentation. Please contact Eurodita for the documentation relevant to your confirmed order.
