Log Cabin Gladehaven 6x7.2m, 58mm
Delivery is agreed individually with each client. Markets and languages
Supplied to dealers, developers and private-label partners; larger homes are also supplied directly to private clients.
At a glance

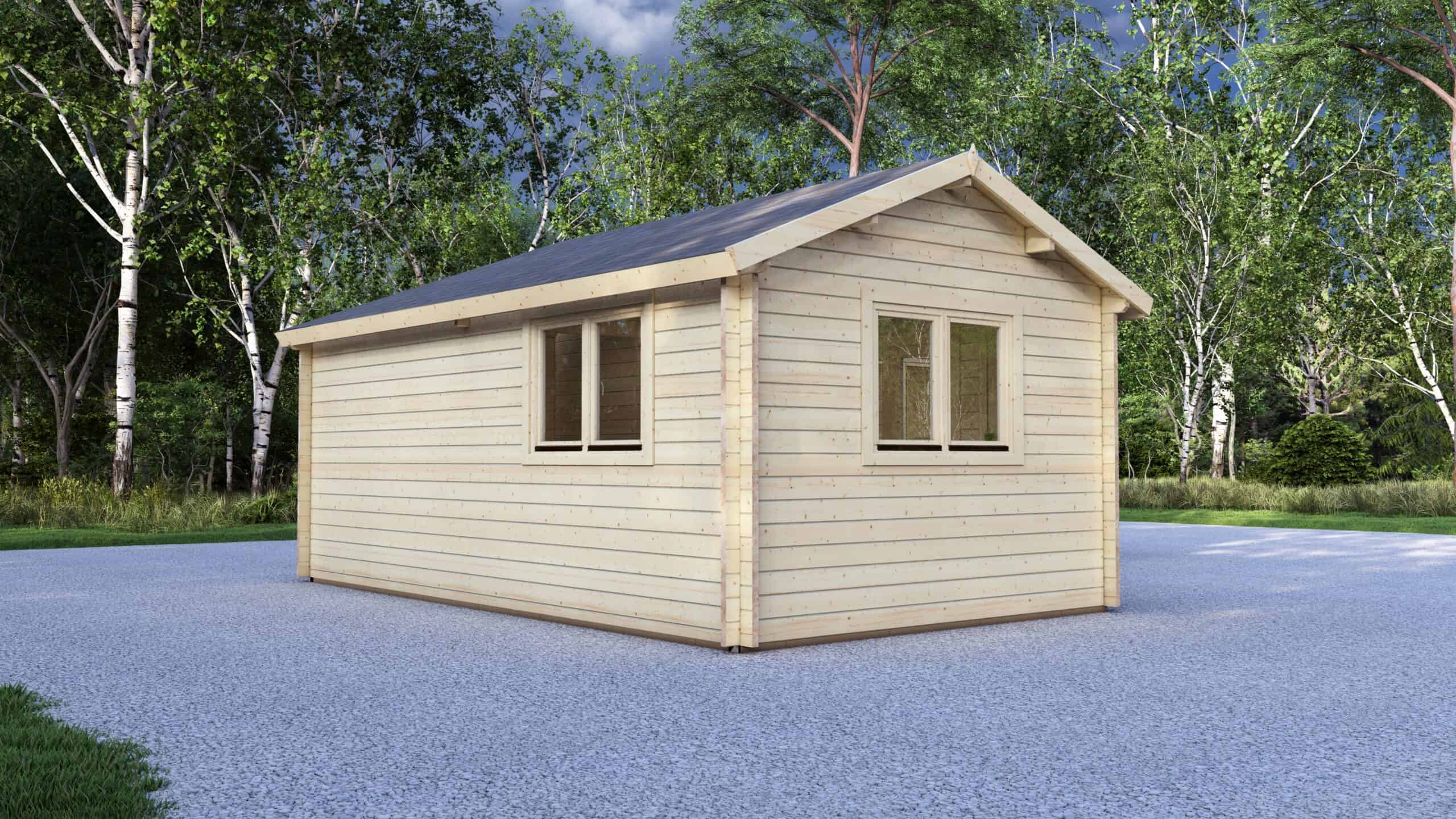

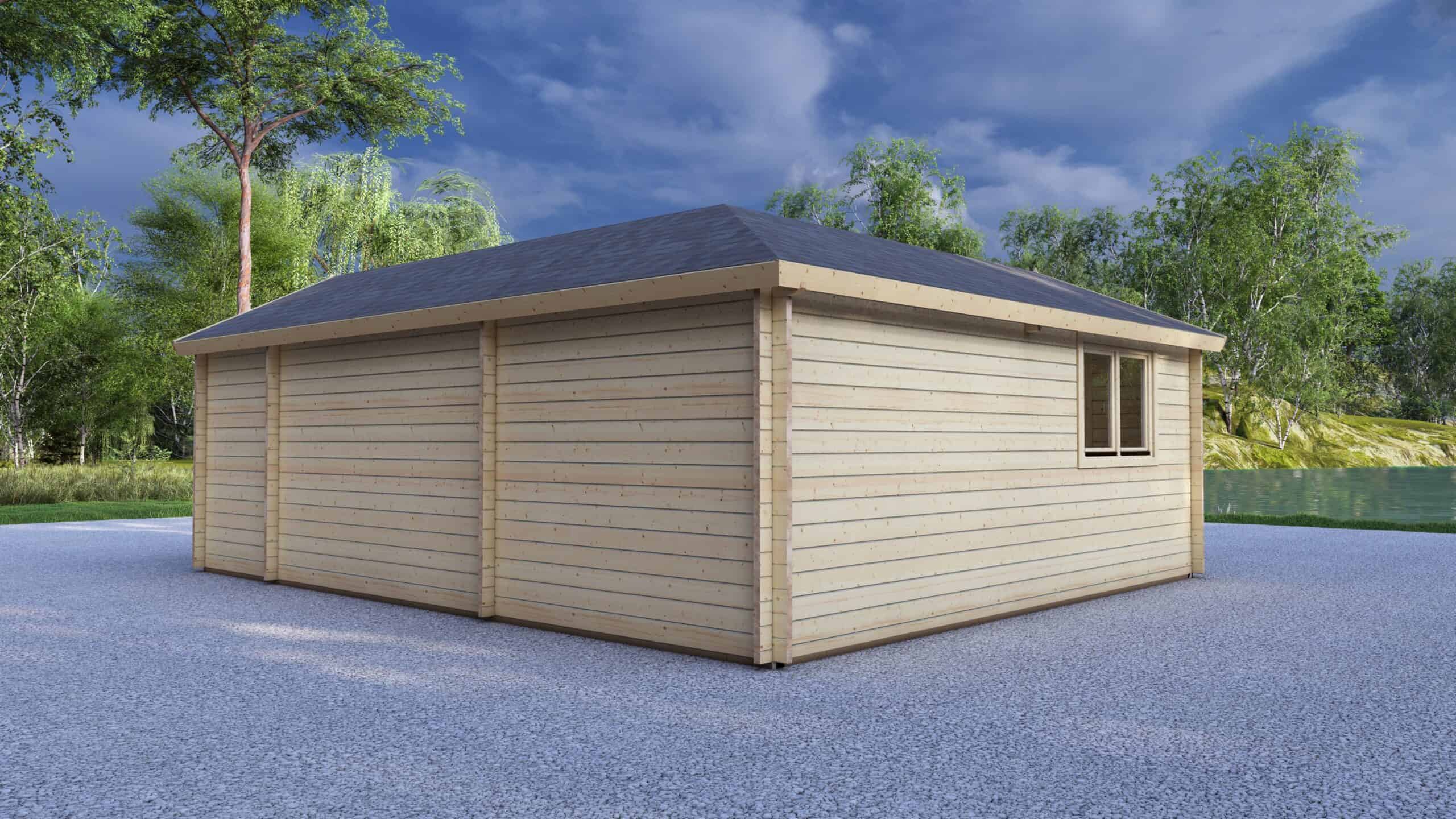

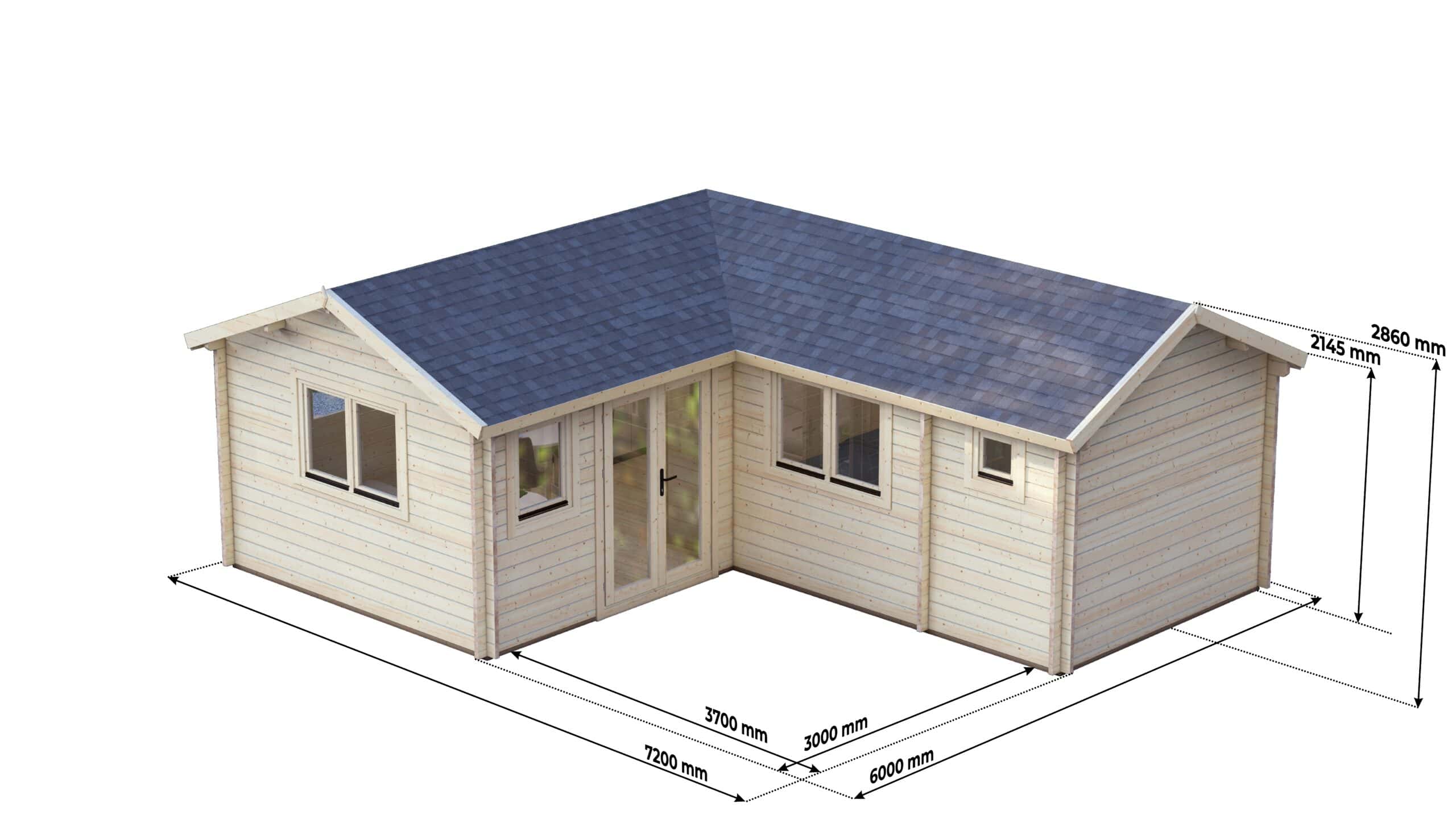

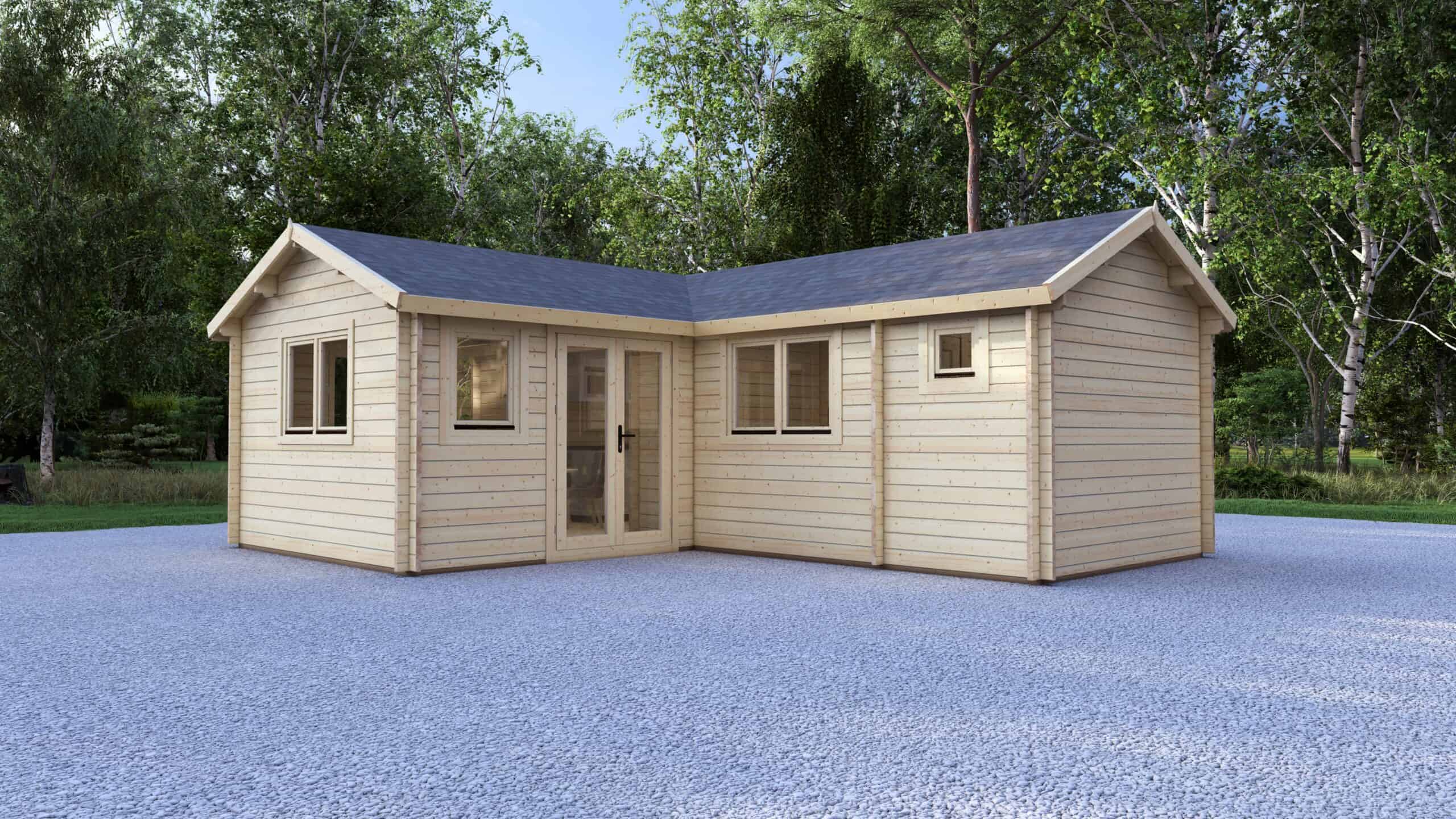

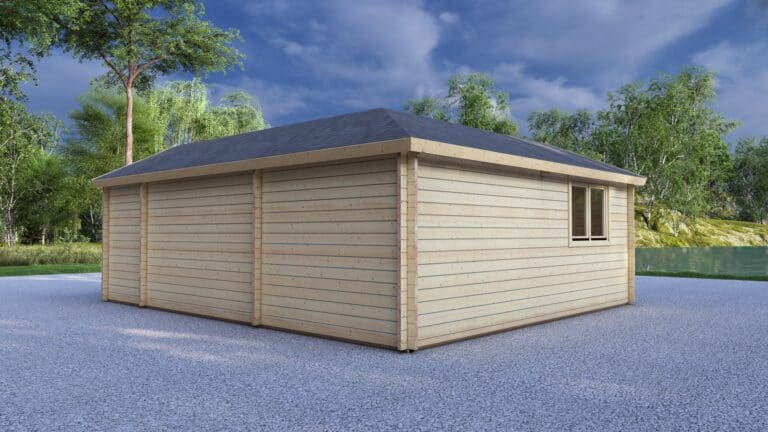

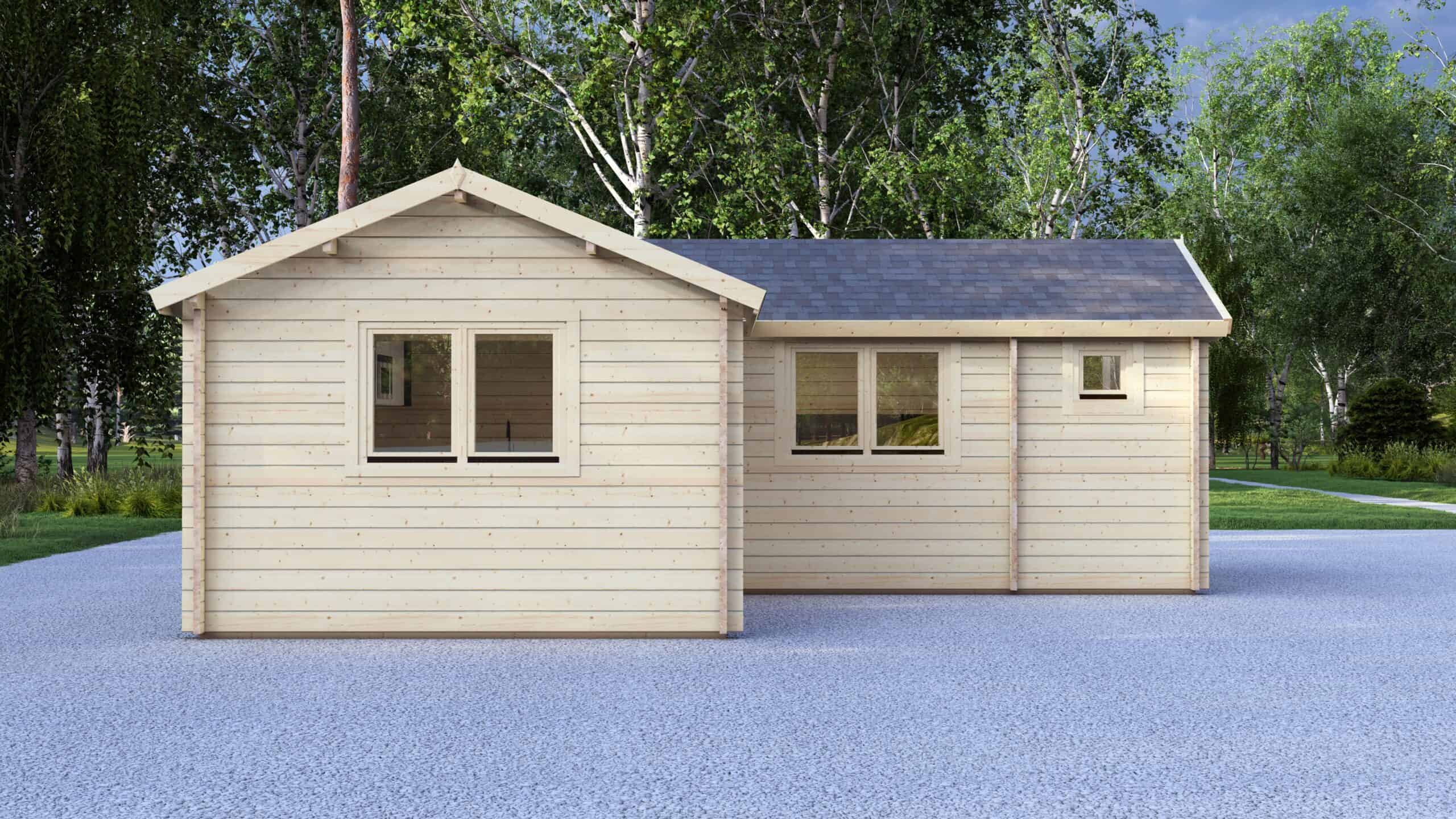

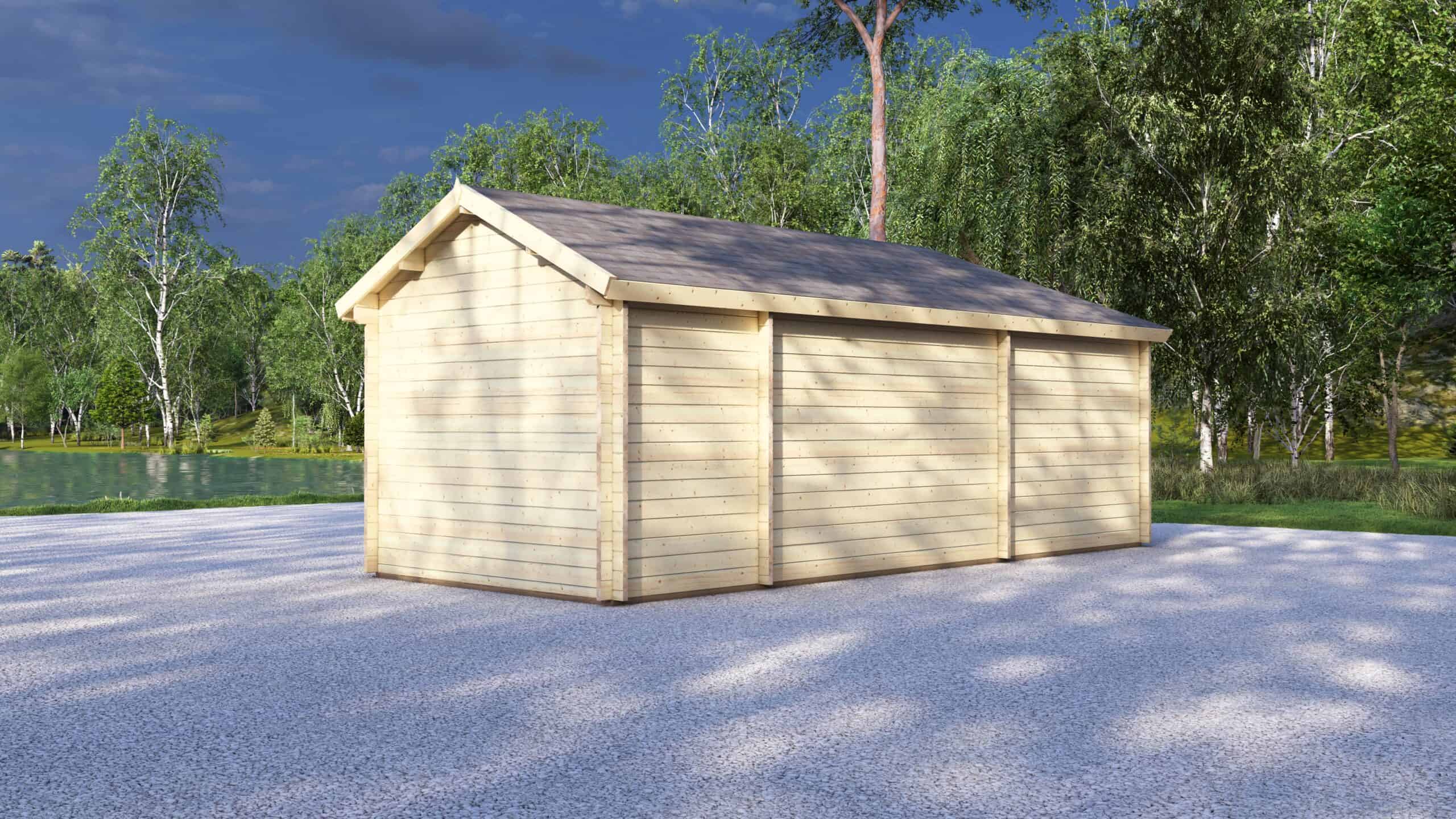

Log Cabin Gladehaven 6x7.2m is a log cabin with one bedroom, supplied as a building kit. It measures 6 x 7.2 m externally, an external footprint of 43.2 m². The ridge height is 286 cm and the eaves height 214 cm. It has one storey. It is listed with the 1 bedroom log cabins.
Read the full description
Layout

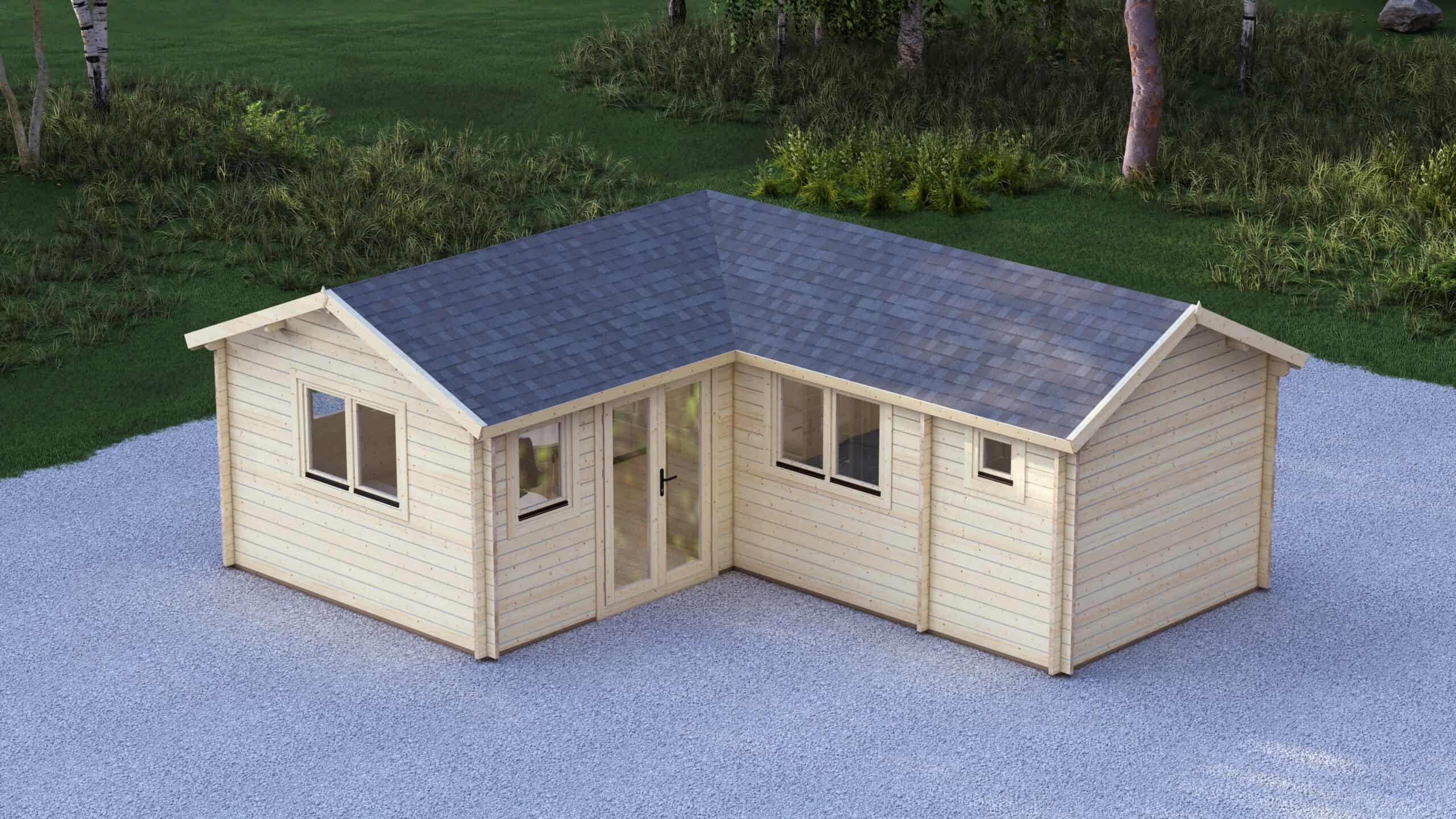

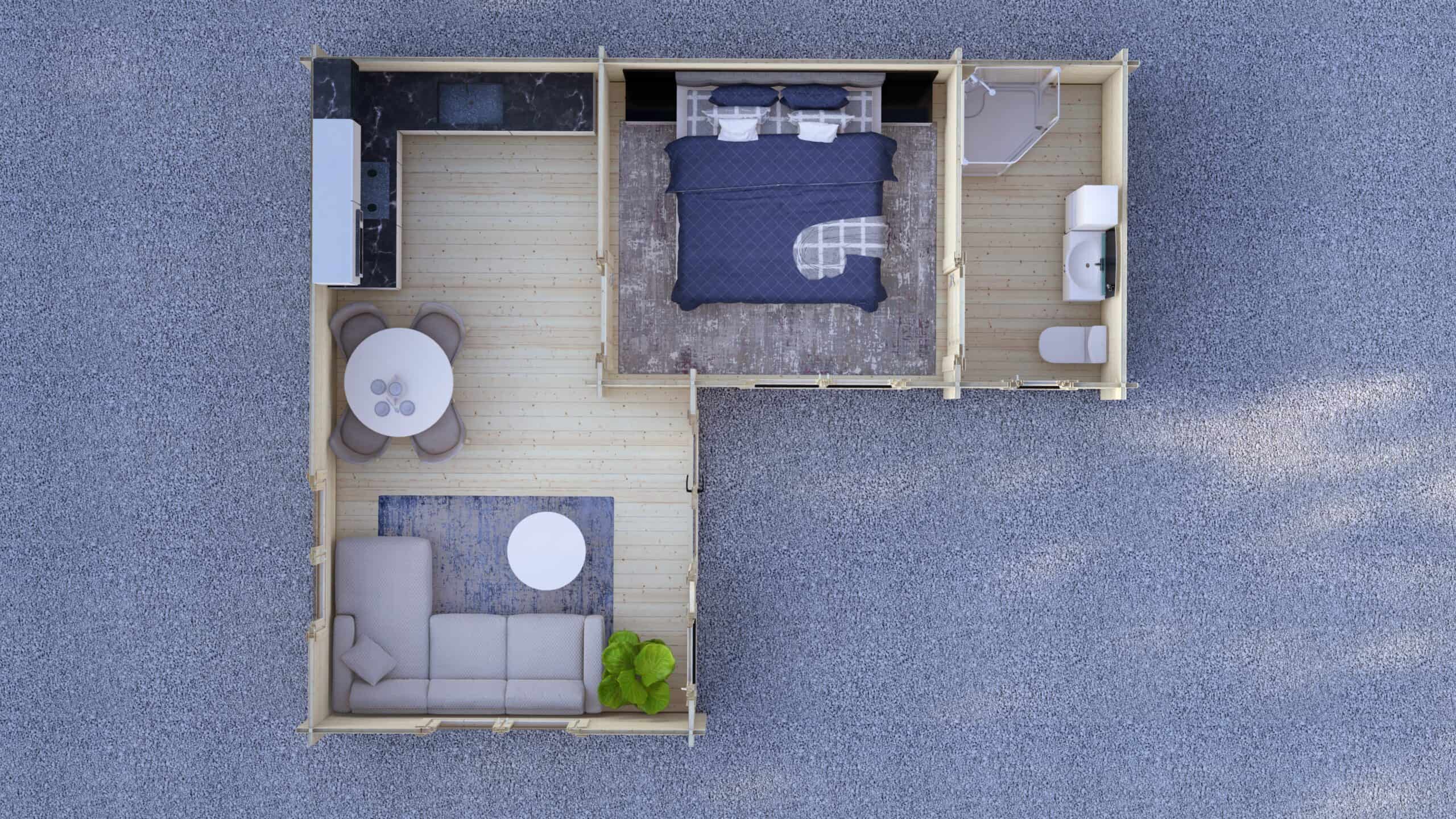

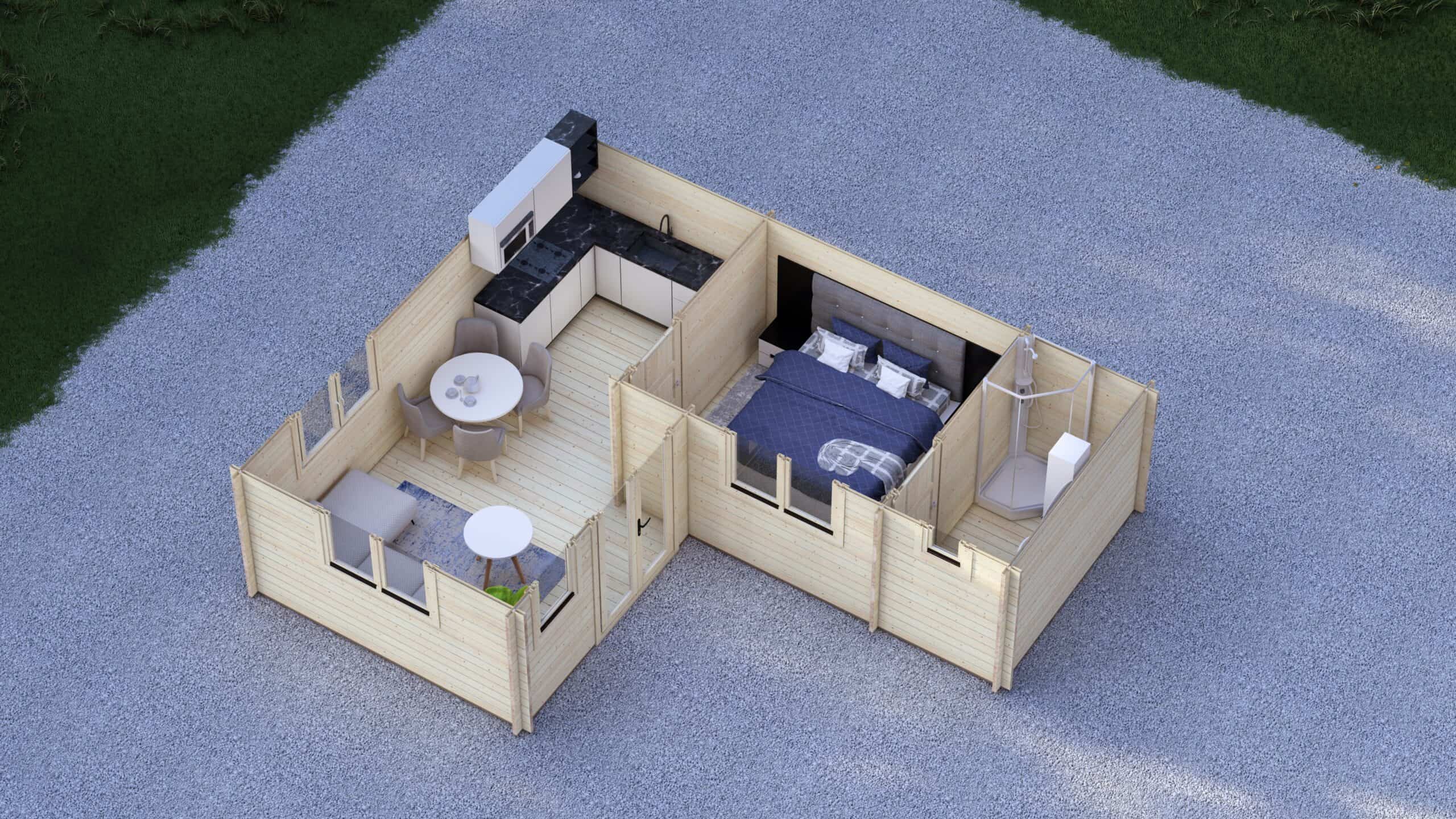

The plan drawing shows an open living room with a kitchen area, one bedroom and a bathroom. The building is L-shaped in plan.
Walls
The wall logs are solid, of the 58 x 130 mm profile: each log is 58 mm thick and 130 mm high. Wall logs are supplied untreated by default. The profiles are set out on wall thickness and glulam profiles.
Technical data sheet
Specification recorded for Log Cabin Gladehaven 6x7.2m, 58mm. Dimensions are the building's external dimensions. A row appears only where a figure is recorded for this model.
| Building | |
|---|---|
| External dimensions | 6 x 7.2 m |
| External footprint area | 43.2 m² |
| Eaves height | 214 cm |
| Ridge height | 286 cm |
| Storeys | 1 |
| Base | External footprint 6 x 7.2 m. Base type and size are confirmed for the specific model and site. |
| Structure | |
| Wall profile | 58 x 130 mm as standard |
| Other wall options | A solid log model can be made in any of the 28, 34, 44, 58 and 70 mm profiles; the profile is confirmed in the written quotation. |
| Construction | Interlocking tongue and groove joints |
| Timber | Northern European timber |
| Storm brace and anchor set | Included |
| Floor | |
| Floor bearers | Impregnated as standard |
| Floor boards | 28 mm |
| Roof | |
| Roof boards | 19 mm tongue and groove boards |
| Doors and windows | |
| Doors | Timber door, made by Eurodita; the type is confirmed in the written quotation |
| Windows | Timber window, made by Eurodita; the type is confirmed in the written quotation |
| Scope of these figures | |
| Insulation | Eurodita supplies the timber structure prepared for insulation where required, not the insulation material. |
| Performance | These dimensions establish no thermal, fire, structural or certification performance. |
Add-ons & Customisation
Options for this model (branding, wall thickness, openings, insulation preparation, partitions, veranda) are listed on What is in a Eurodita kit and confirmed per order.
How an Order Is Agreed
Scope is confirmed in the written quotation. Details: Reading a Eurodita quotation.
Need this in a different size?
Size, layout and the positions of doors and windows can be changed for an order. Send a sketch or a drawing. From a complete sketch to a 3D view, drawings and a price within one working day.
Supply
The kit is supplied EXW from the Eurodita factory. Installation and how it is organised is agreed per project.
For trade buyers
Dealers, distributors and private-label brands can carry this model in their own range.
Compared with similar models
Log Cabin Folio 8x5m
| This model | Folio 8x5m | |
|---|---|---|
| External size | 6 x 7.2 m | 8 x 5 m |
| External footprint | 43.2 m² | 40 m² |
| Ridge height | 286 cm | 344 cm |
| Eaves height | 214 cm | 240 cm |
| Wall logs | 58 x 130 mm | 58 x 130 mm |
1 Bedroom Log Cabin 5x7m
| This model | 5x7m | |
|---|---|---|
| External size | 6 x 7.2 m | 5 x 7 m |
| External footprint | 43.2 m² | 35 m² |
| Ridge height | 286 cm | 312 cm |
| Eaves height | 214 cm | 221 cm |
| Wall logs | 58 x 130 mm | 44 x 130 mm |
